Portable Cold Electroplating for On-Site Repair of Crankshafts and Machinery Components

LDC Borstplätering offers innovative portable electroplating solutions ideal for on-site repairs, ensuring effective metal build-up without the need for heating or machining. Our cold process enables quick recovery with deposits as thin as 0.05 mm in just 10-15 minutes, suitable for various conductive materials including cast iron, stainless steel, copper, and more. With molecular bonding for excellent adhesion, our coatings can be machined, ground, or polished, making it perfect for damaged components in harsh industrial environments.

reuben-reilly
Télécharger la présentation

Portable Cold Electroplating for On-Site Repair of Crankshafts and Machinery Components

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. LDC borstplätering LDC Portable Electroplating Cold process: used at roomtemperature, no stress or adjustmentsbecause of termal distorsion. To tolerance: normally no machiningrequired Quick metal build-up: 0,05 mm in 10-15 min. Plating: on all conductive materials, castiron, stainless, mild steel, copper, chromeetc Densedeposits: no or verylittleporosity in mostcoatings Many differens metals: nickel, gold, silver, copper, cobolt, zinc and alloys. Excellent bonding: molecular bonding results in very god adhesion, all coatingscan be machined, ground or polished. Mobile equipment: the repair can be done on site www.ldc-brushplating.com

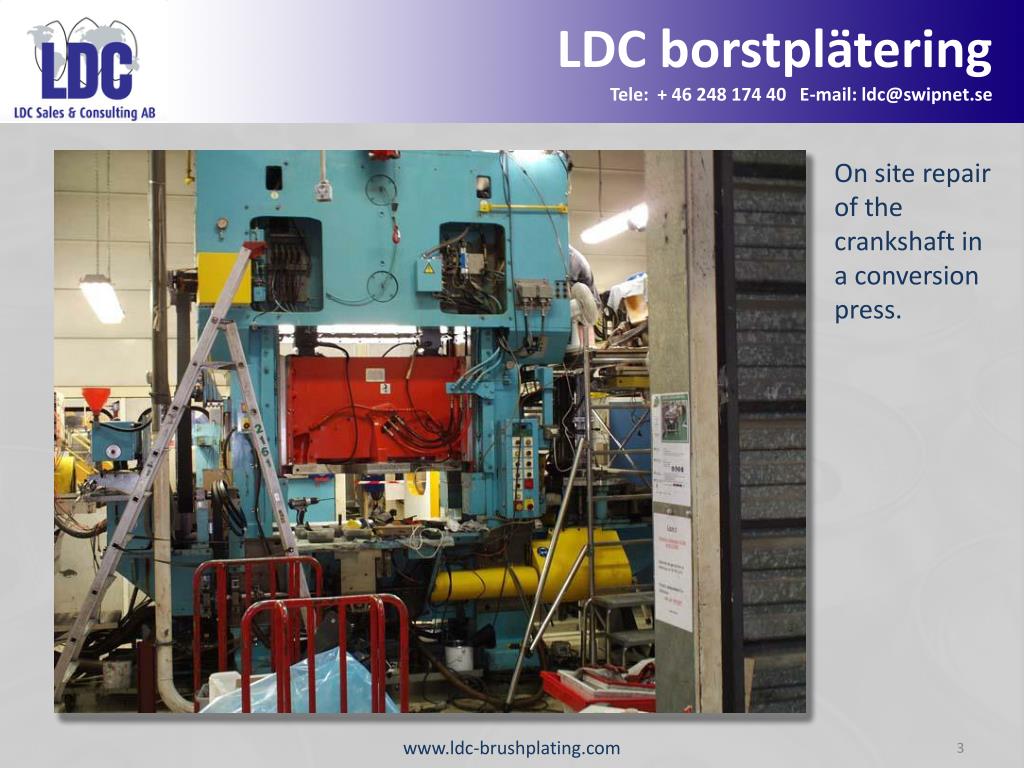

  2. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se On site repair of the crankshaft in a conversion press. www.ldc-brushplating.com

  3. LDC borstplätering Tele: + 46 248 174 40 E-mail: ldc@swipnet.se Damaged /worn flywheel bearing areas on the crankshaft in a conversion press. www.ldc-brushplating.com

  4. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Prepare and masking off surrounding areas. www.ldc-brushplating.com

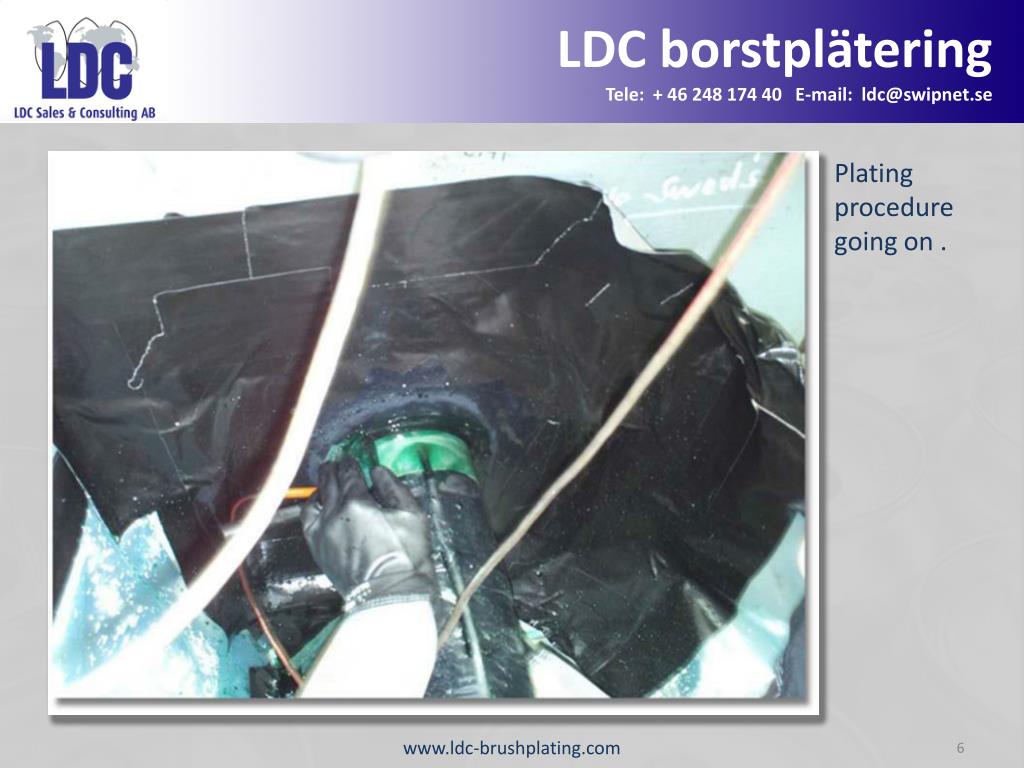

  5. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se • Plating procedure going on . www.ldc-brushplating.com

  6. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Damaged bearing journal plated to size. www.ldc-brushplating.com

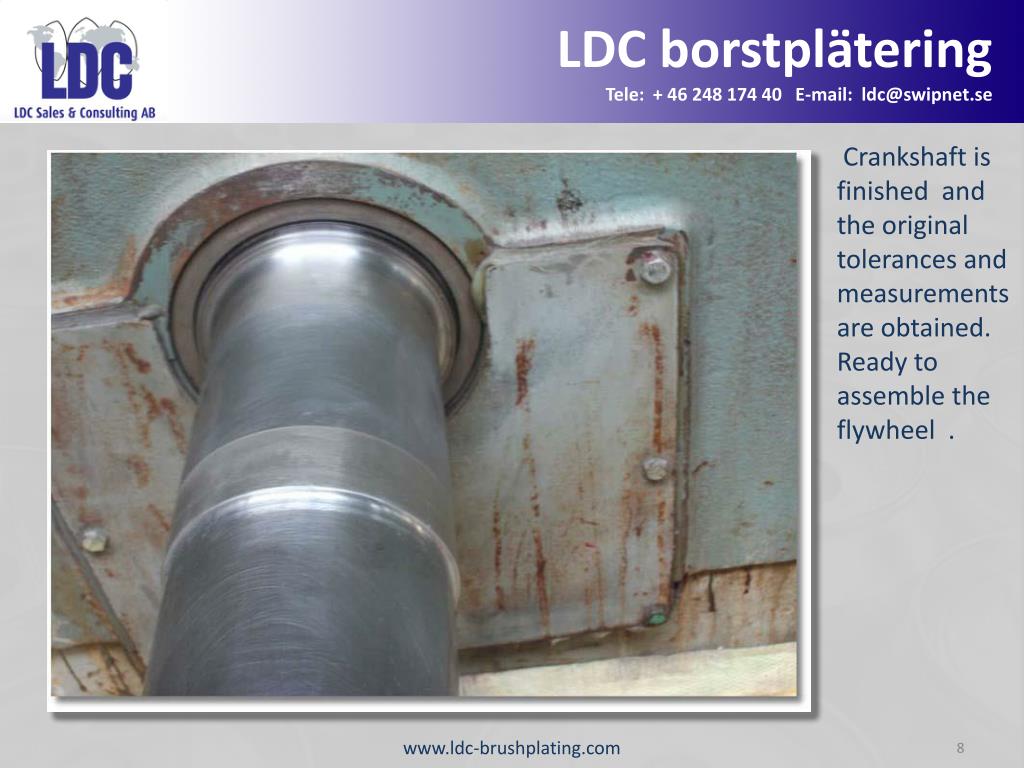

  7. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Crankshaft is finished and the original tolerances and measurements are obtained. Ready to assemble the flywheel . www.ldc-brushplating.com

  8. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Repair on site . Lower bed die in a conversion press with local wear damages www.ldc-brushplating.com

  9. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Plated/repaired damage on the lower bed die. LDC-2904 copper hi-speed HB250 were used to fill the damage up . Top coated with LDC-2807 Nickel acid for wear and corrosion protection. www.ldc-brushplating.com

  10. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Repair on site . Lower bed die in a conversion press with local wear damages www.ldc-brushplating.com

  11. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Damaged area in the lower bed die. www.ldc-brushplating.com

  12. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se One worn out slide. There are damages from the pistons and micro vibrations. And causes oil leaking. www.ldc-brushplating.com

  13. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Damaged area inside the slide www.ldc-brushplating.com

  14. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se The damages is being plated with a hard copper of 250 Brinell and grinded to original tolerances. www.ldc-brushplating.com

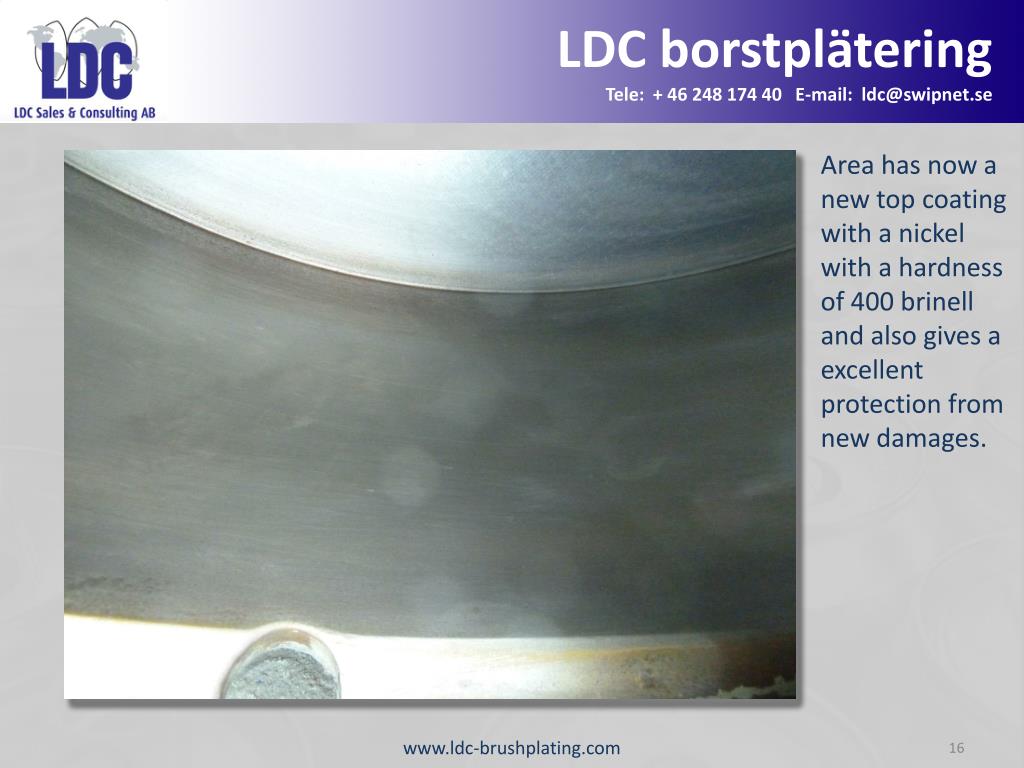

  15. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Area has now a new top coating with a nickel with a hardness of 400 brinell and also gives a excellent protection from new damages. www.ldc-brushplating.com

  16. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Plating is now finished and the slide is ready for assembly. www.ldc-brushplating.com

  17. LDC borstpläteringTele: + 46 248 174 40 E-mail: ldc@swipnet.se Oil leakage from scratched and damaged main pistons brush plated on site. www.ldc-brushplating.com
