Trigger design engineering tools

This document outlines comprehensive data flow analysis tools and methodologies that refine the optimal architecture of the Trigger Processor. By examining constraints such as pixel detector architecture, segment finder algorithms, and queuing theory, we improve efficiency and identify bottlenecks in data processing. Utilizing MATLAB for simulations enhances verification of parameters against real-event data. Implementation relies on FPGA and DSP technologies, employing VHDL simulators and synthesis tools to develop efficient firmware. The analysis and implementation strategies are crucial for maximizing throughput and performance.

reuel
Télécharger la présentation

Trigger design engineering tools

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Trigger design engineering tools

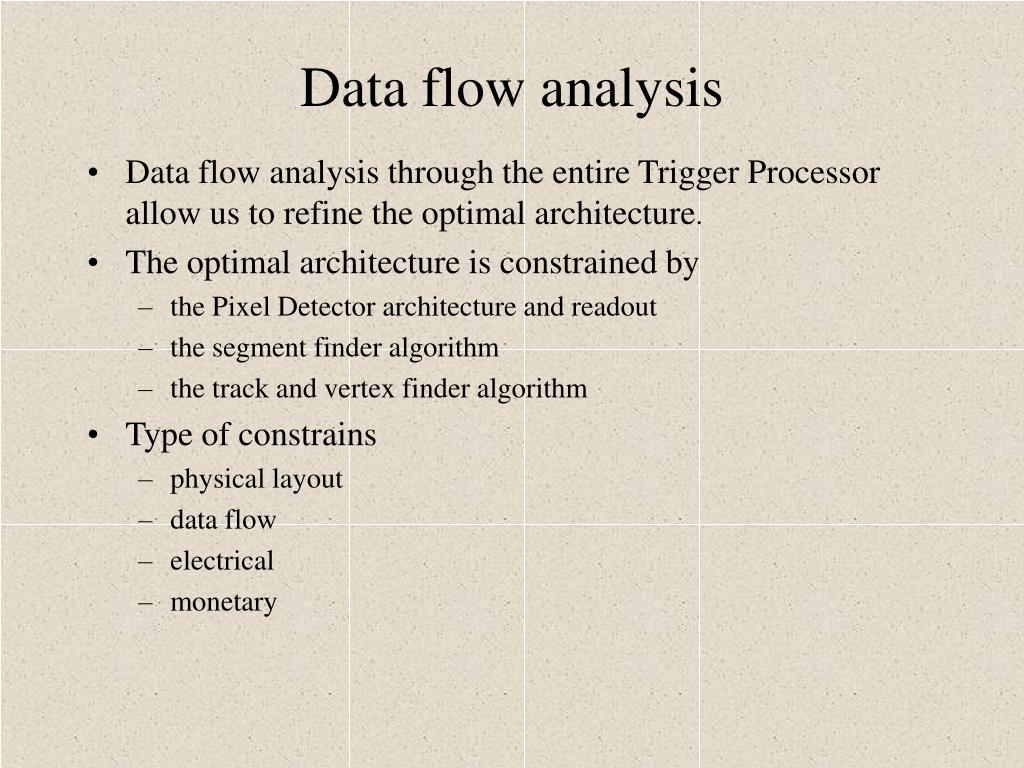

  2. Data flow analysis • Data flow analysis through the entire Trigger Processor allow us to refine the optimal architecture. • The optimal architecture is constrained by • the Pixel Detector architecture and readout • the segment finder algorithm • the track and vertex finder algorithm • Type of constrains • physical layout • data flow • electrical • monetary

  3. Data flow analysis tools • Queuing theory: provides a measure of data throughput and efficiency in the system. Allow us to calculate buffer sizes and eliminate bottlenecks. • 1st two statistical moments of the input distributions • computing time of processing nodes • algorithms • communication nets

  4. Data flow analysis tools (cont.) • Data flow simulation (Matlab) : performs verification of the parameters estimated in the queuing analysis. Runs “real” events instead of probabilistic moments • Simulation files come from physic simulations. • Event processing and communication times are the same as in queuing analysis. • Simulation results provide • a measure of the bandwidth • a measure of the efficiency • buffer sizes • bottleneck detection • Down side of data flow simulations • still to far away from implementation. (Too high level behavioral)

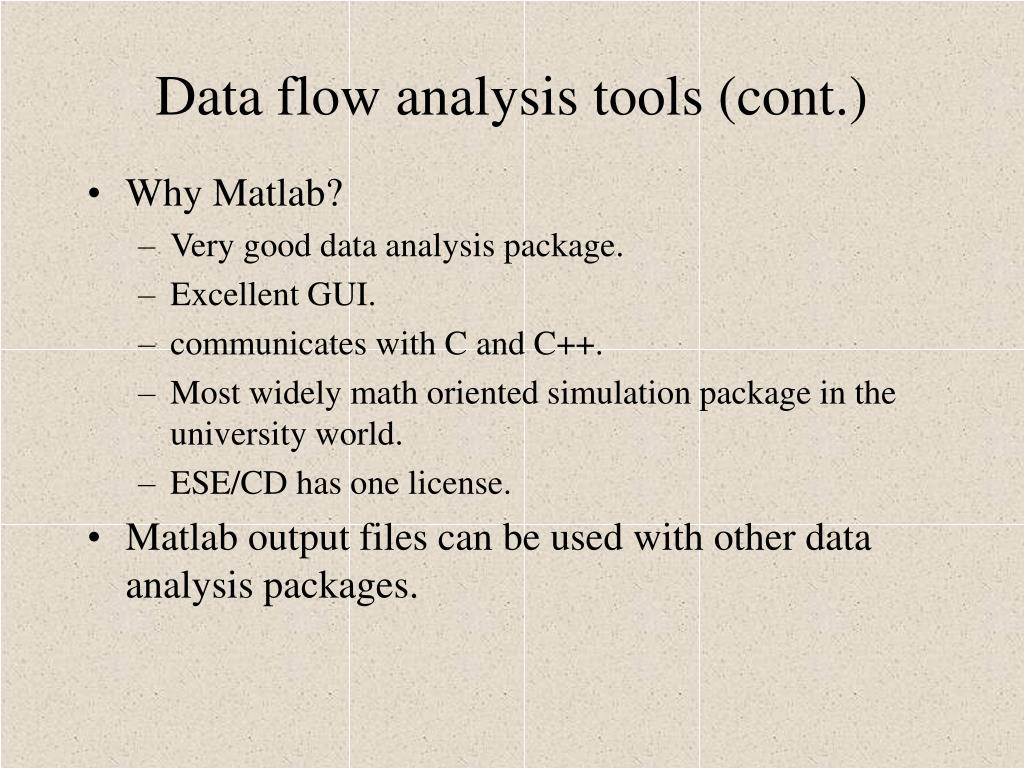

  5. Data flow analysis tools (cont.) • Why Matlab? • Very good data analysis package. • Excellent GUI. • communicates with C and C++. • Most widely math oriented simulation package in the university world. • ESE/CD has one license. • Matlab output files can be used with other data analysis packages.

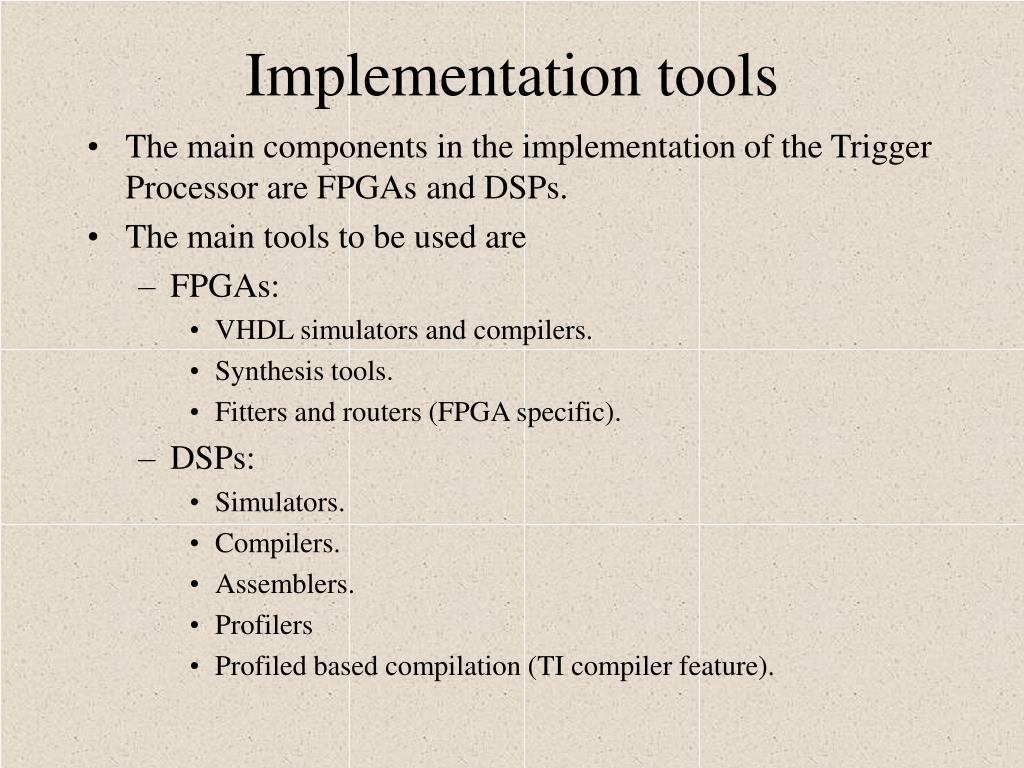

  6. Implementation tools • The main components in the implementation of the Trigger Processor are FPGAs and DSPs. • The main tools to be used are • FPGAs: • VHDL simulators and compilers. • Synthesis tools. • Fitters and routers (FPGA specific). • DSPs: • Simulators. • Compilers. • Assemblers. • Profilers • Profiled based compilation (TI compiler feature).

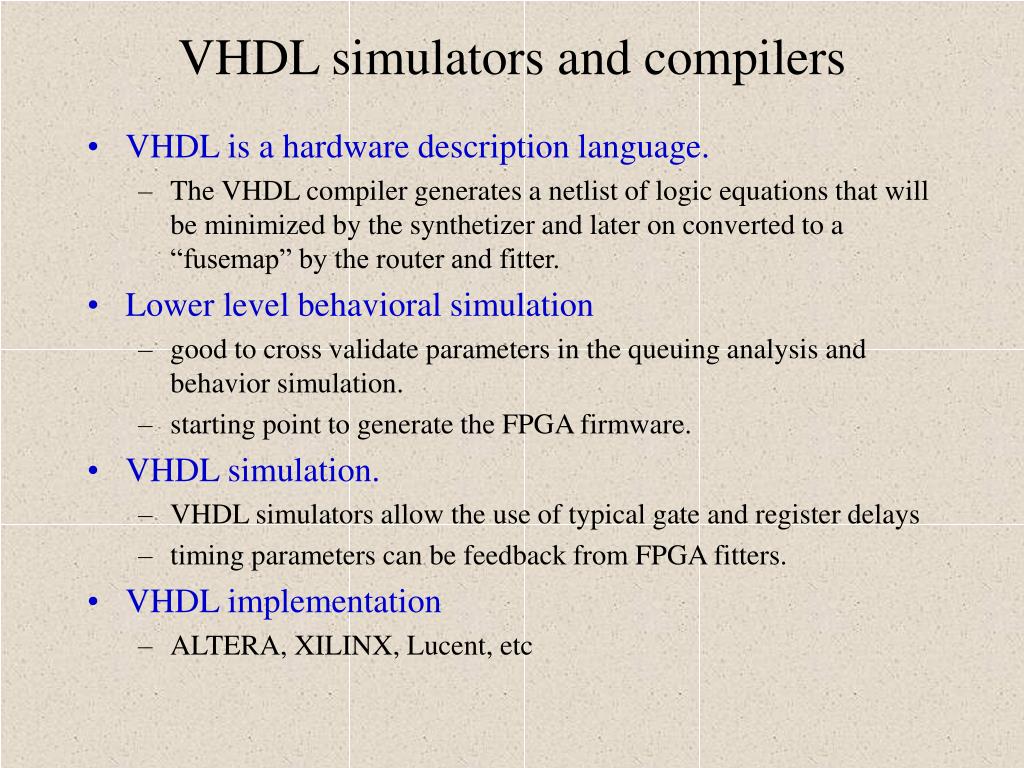

  7. VHDL simulators and compilers • VHDL is a hardware description language. • The VHDL compiler generates a netlist of logic equations that will be minimized by the synthetizer and later on converted to a “fusemap” by the router and fitter. • Lower level behavioral simulation • good to cross validate parameters in the queuing analysis and behavior simulation. • starting point to generate the FPGA firmware. • VHDL simulation. • VHDL simulators allow the use of typical gate and register delays • timing parameters can be feedback from FPGA fitters. • VHDL implementation • ALTERA, XILINX, Lucent, etc

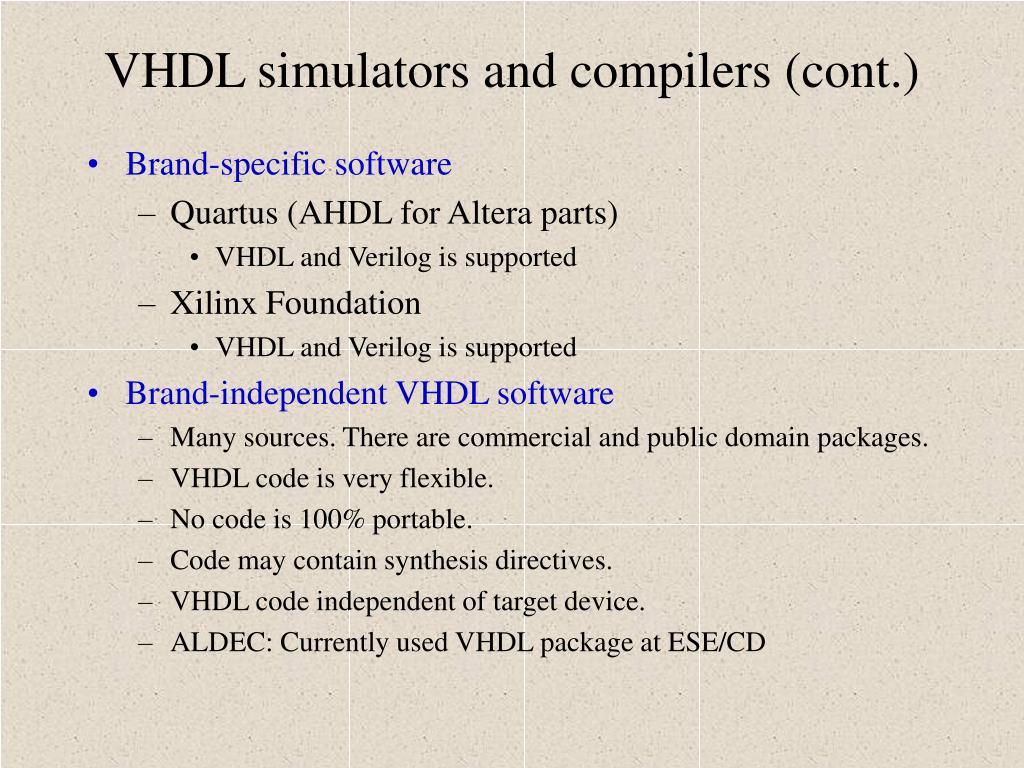

  8. VHDL simulators and compilers (cont.) • Brand-specific software • Quartus (AHDL for Altera parts) • VHDL and Verilog is supported • Xilinx Foundation • VHDL and Verilog is supported • Brand-independent VHDL software • Many sources. There are commercial and public domain packages. • VHDL code is very flexible. • No code is 100% portable. • Code may contain synthesis directives. • VHDL code independent of target device. • ALDEC: Currently used VHDL package at ESE/CD

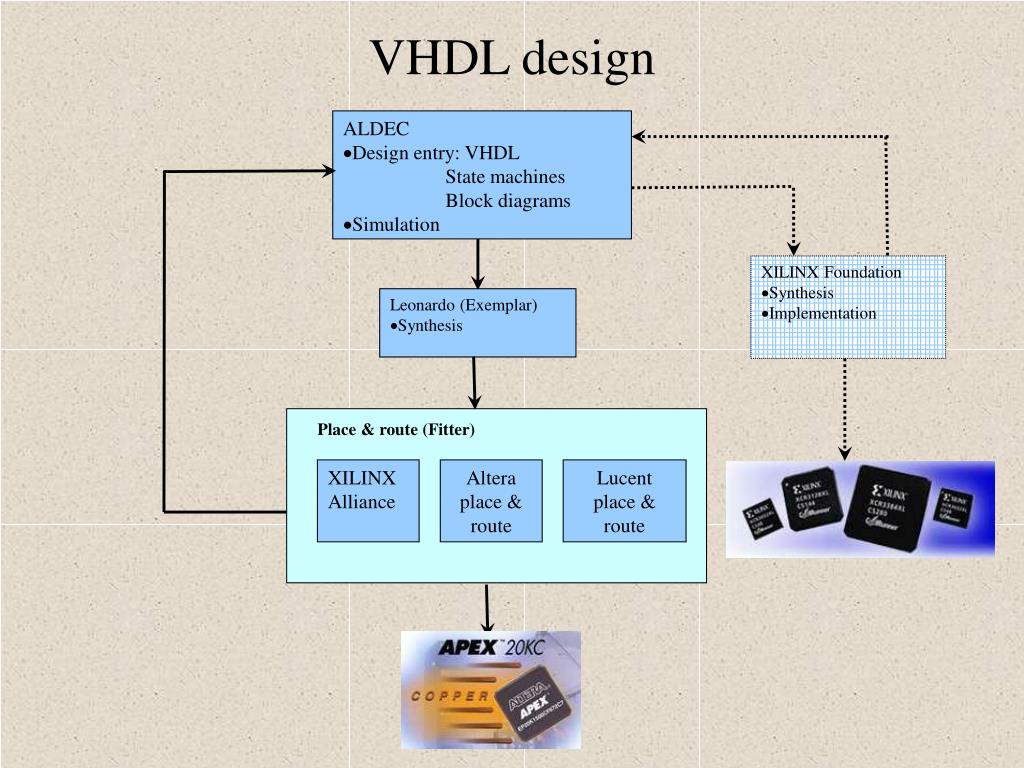

  9. VHDL design • ALDEC • Design entry: VHDL • State machines • Block diagrams • Simulation • XILINX Foundation • Synthesis • Implementation • Leonardo (Exemplar) • Synthesis Place & route (Fitter) XILINX Alliance Altera place & route Lucent place & route

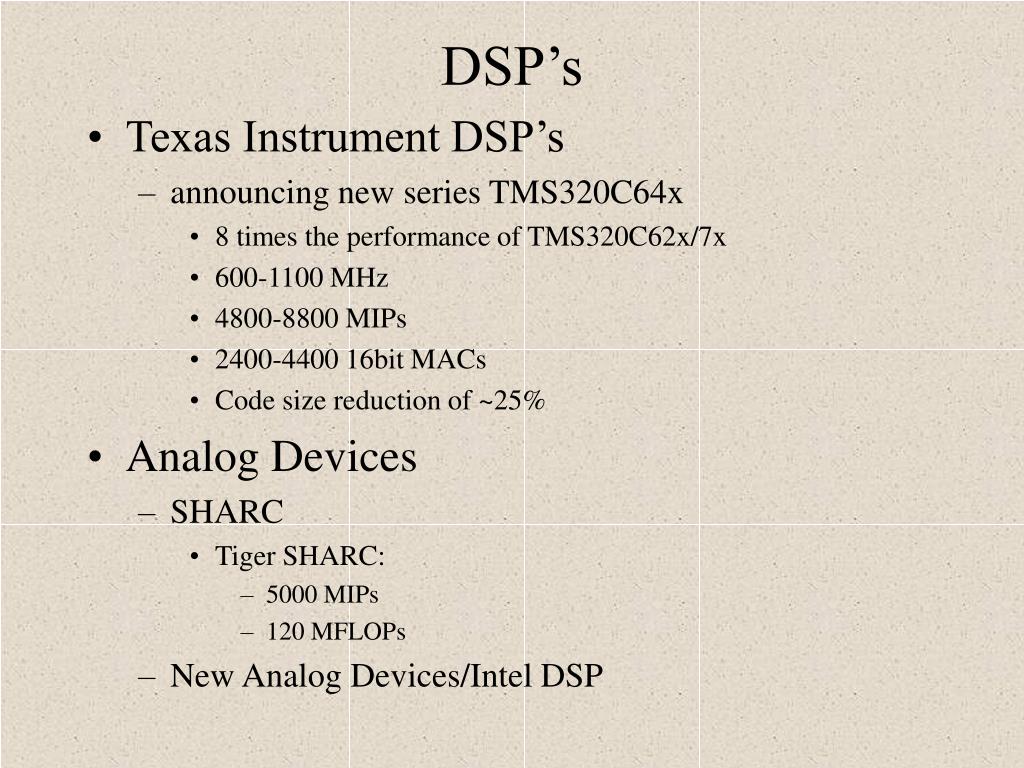

  10. DSP’s • Texas Instrument DSP’s • announcing new series TMS320C64x • 8 times the performance of TMS320C62x/7x • 600-1100 MHz • 4800-8800 MIPs • 2400-4400 16bit MACs • Code size reduction of ~25% • Analog Devices • SHARC • Tiger SHARC: • 5000 MIPs • 120 MFLOPs • New Analog Devices/Intel DSP
