  1. Steps to Master Revit Family Creation Build smarter, parametric libraries for your projects. www.revitbimservices.com

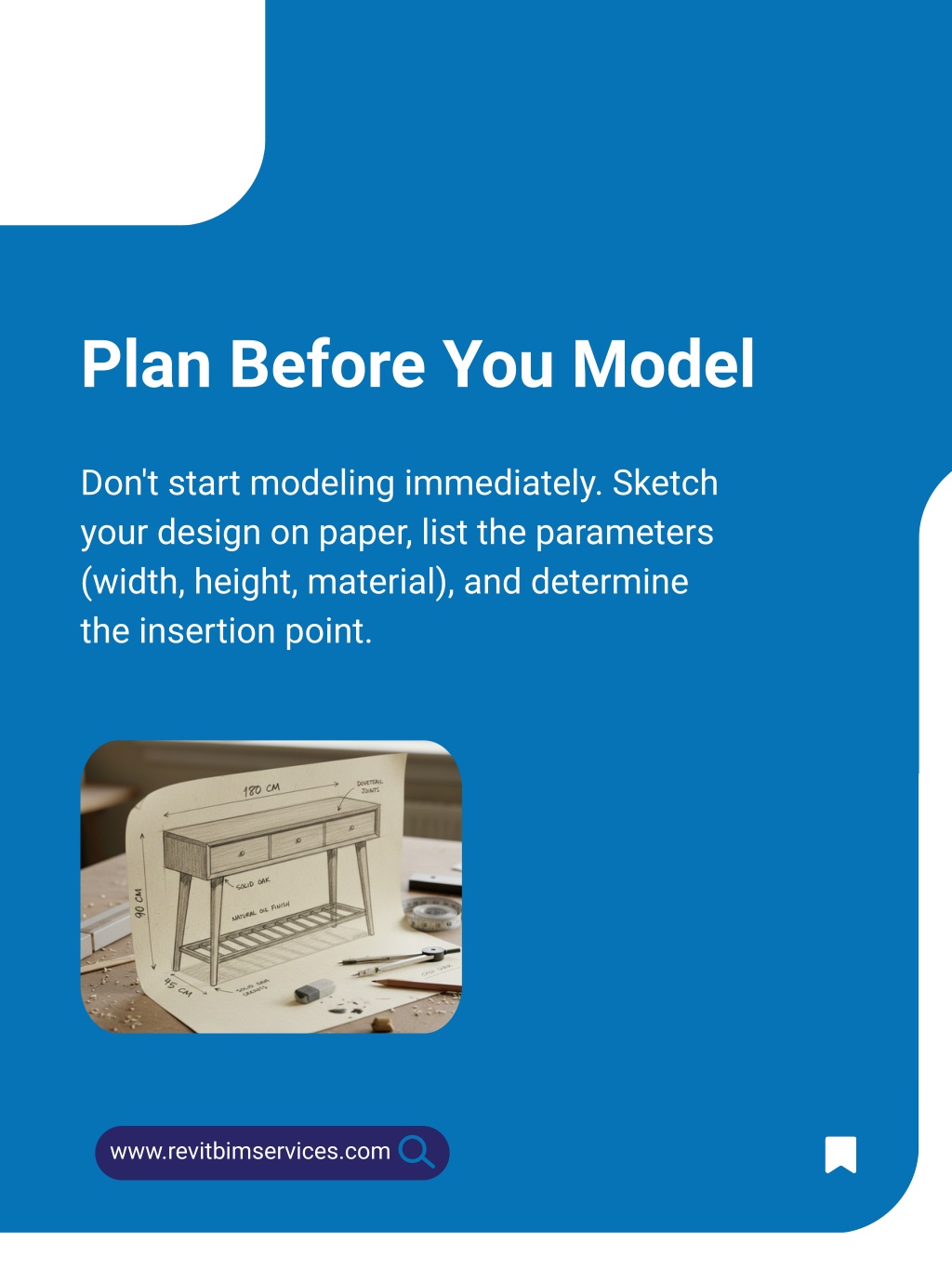

  2. Plan Before You Model Don't start modeling immediately. Sketch your design on paper, list the parameters (width, height, material), and determine the insertion point. www.revitbimservices.com

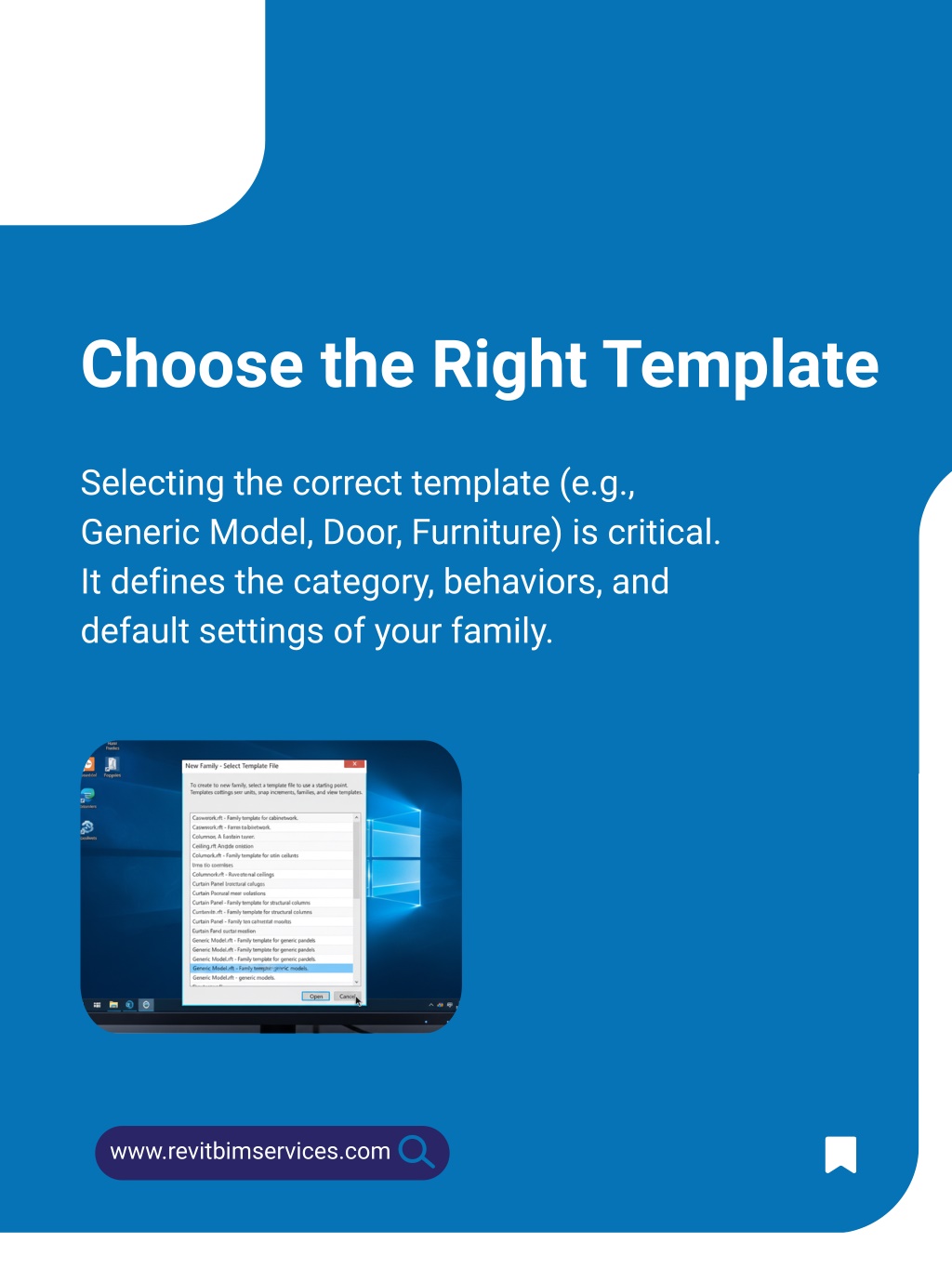

  3. Choose the Right Template Selecting the correct template (e.g., Generic Model, Door, Furniture) is critical. It defines the category, behaviors, and default settings of your family. www.revitbimservices.com

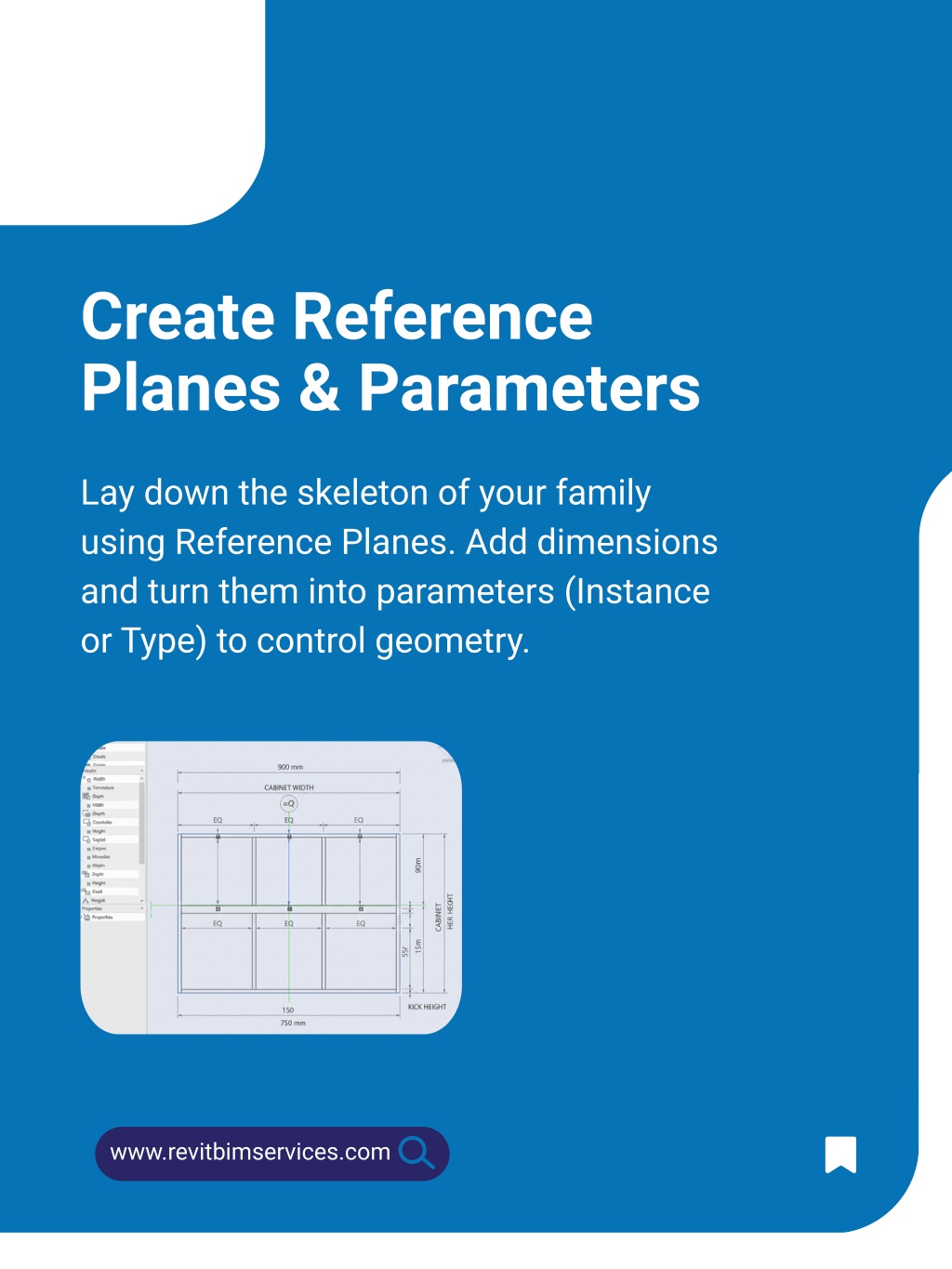

  4. Create Reference Planes & Parameters Lay down the skeleton of your family using Reference Planes. Add dimensions and turn them into parameters (Instance or Type) to control geometry. www.revitbimservices.com

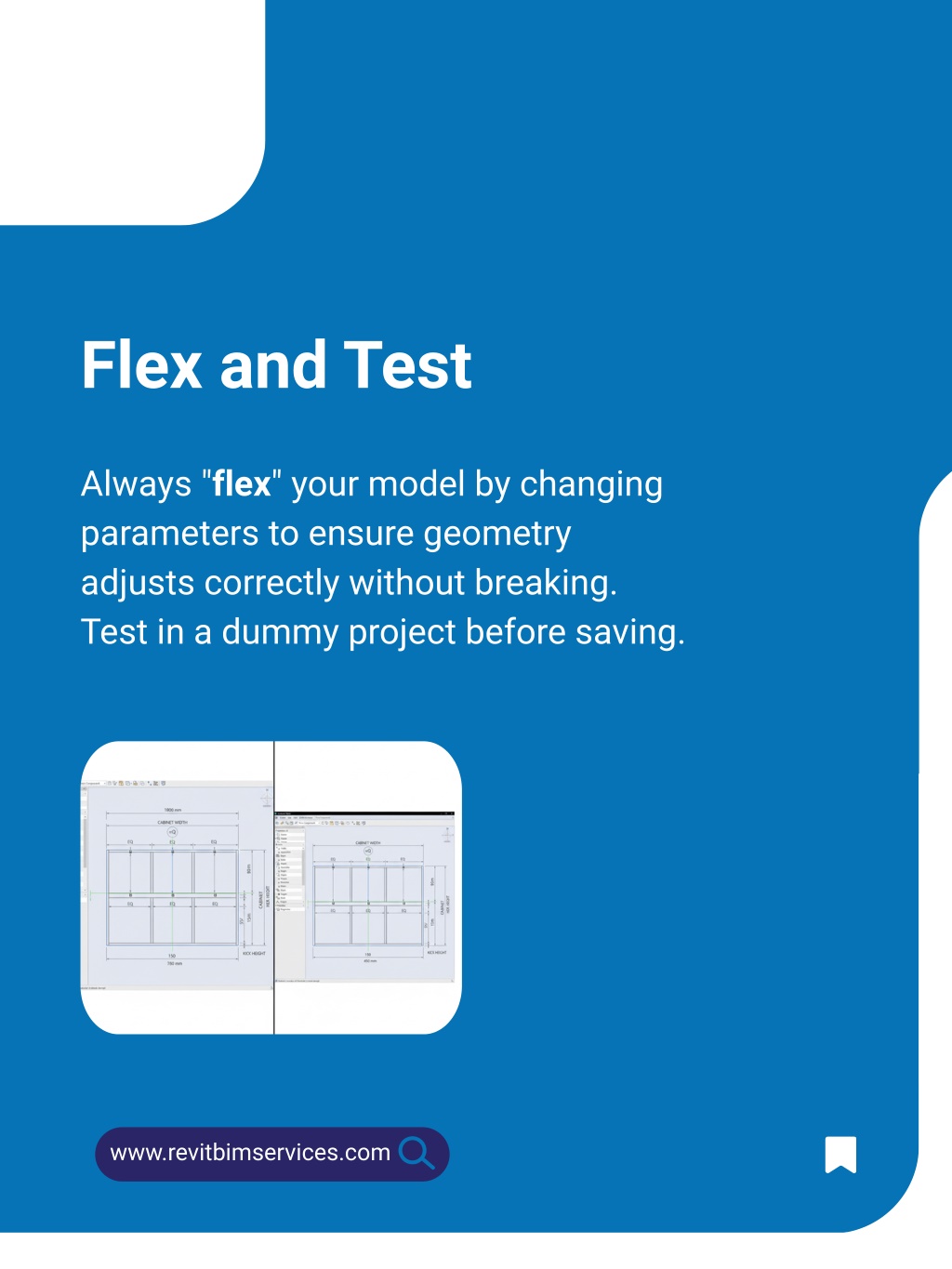

  5. Flex and Test Always "flex" your model by changing parameters to ensure geometry adjusts correctly without breaking. Test in a dummy project before saving. www.revitbimservices.com
