  1. Handheld CWT Sample Acquisition in Alaska ADF&G Mark, Tag and Age Lab April 2006

  2. THE UNITS

  3. THE UNITS

  4. THE UNITS

  5. SAMPLER’S VIEW • Go to delivery sites • Tap in sample information • Go to office • Tap “Synchronize” menu item

  6. SAMPLER’S VIEW • Go to delivery sites • Tap in sample information • Go to office • Tap “Synchronize” menu item • Repeat until no more salmon

  7. FEATURES • Wireless database connectivity • Barcode label scanning • Extremely rigorous data validation • Automatic lookup table updates • Automatic sample-id management • Email notifications of progress • Ruggedized / water resistant unit

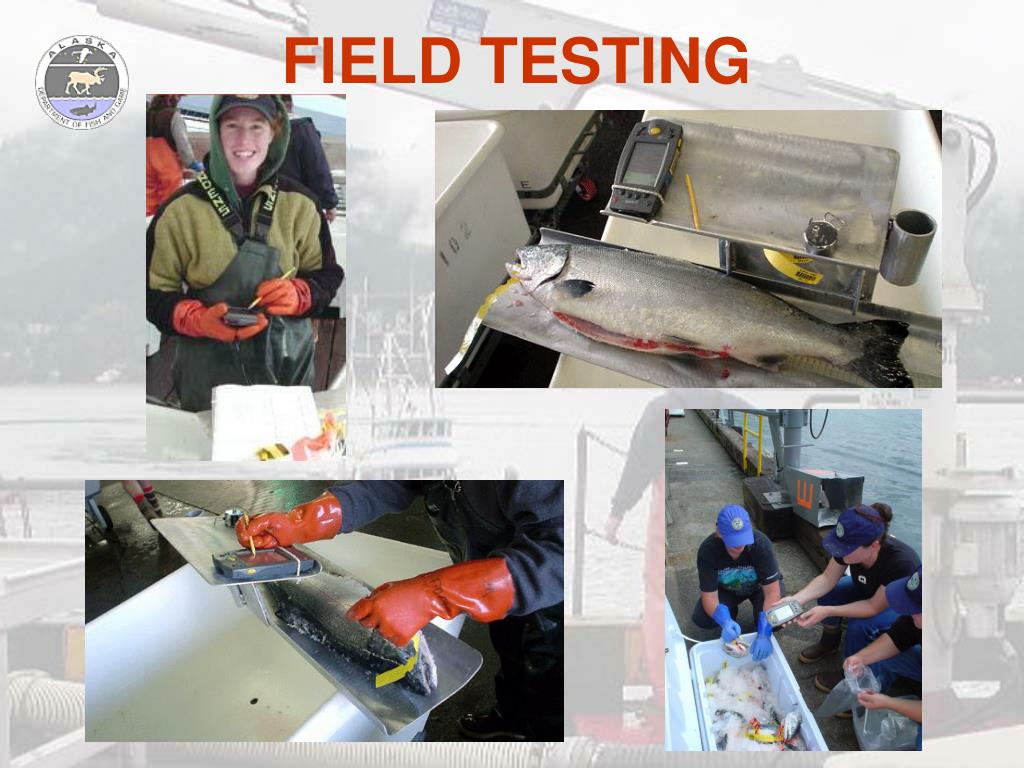

  8. FIELD TESTING

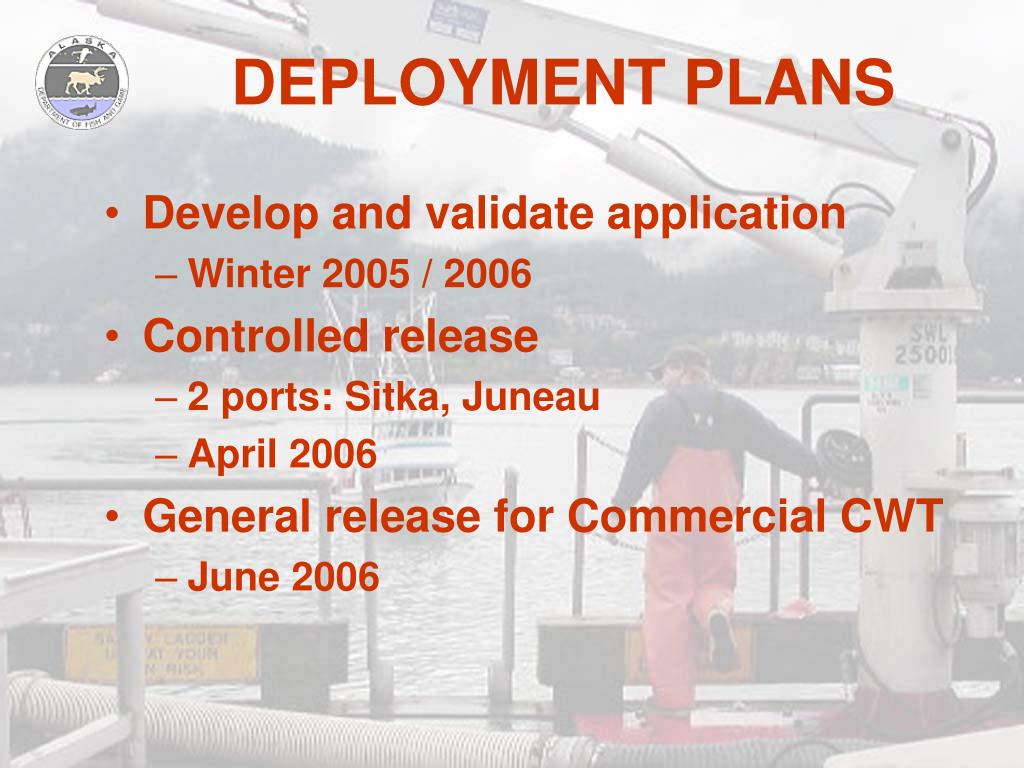

  9. DEPLOYMENT PLANS • Develop and validate application • Winter 2005 / 2006 • Controlled release • 2 ports: Sitka, Juneau • April 2006 • General release for Commercial CWT • June 2006

  10. 1: SAMPLE ENTRY SCREEN Designed to require no keyboard input All dates entered with “date pickers”

  11. 2: CATCH SCREEN Dropdowns enforce standard values

  12. 3: RECOVERIES No limit on number of heads per sample

  13. 4: SAMPLE COUNTS Optional remarks may be entered by screen and/or hardware keyboard

  14. IMMEDIATE FEEDBACK Regardingdata Regarding operations

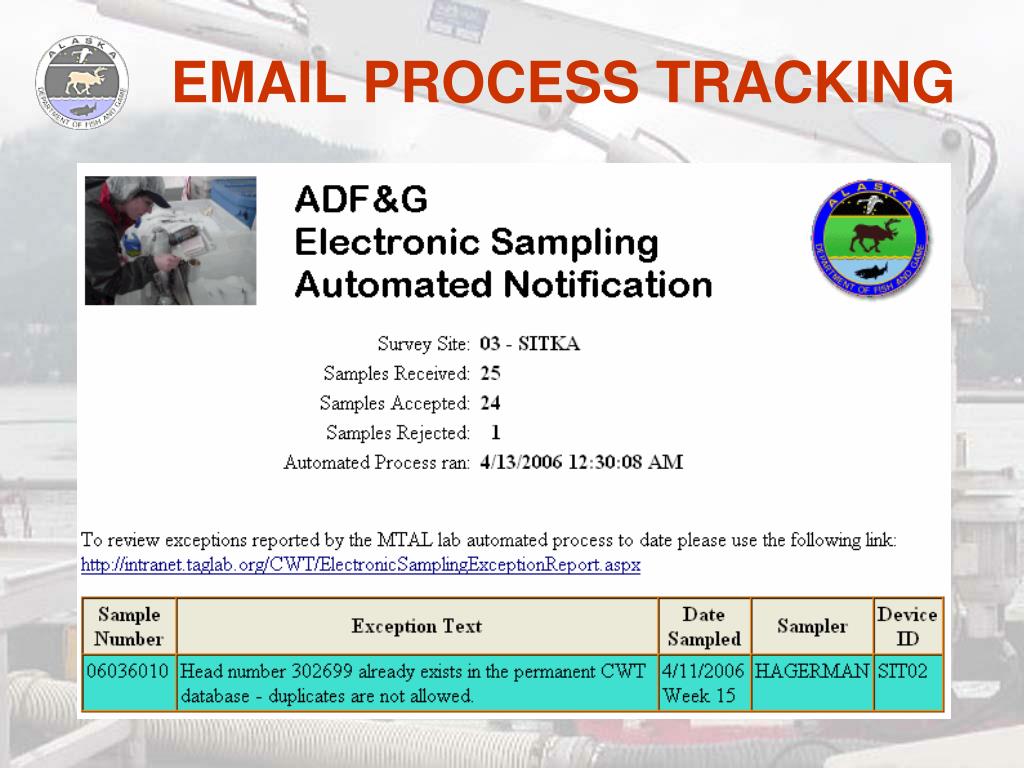

  15. EMAIL PROCESS TRACKING

  16. BENEFITS • Eliminates sources of transcription error • Immediate validation feedback at the data source in the field • Forces use of consistent and current coding • Rapid and accurate transmission from remote locations • No need for multi-page forms, Xeroxing, microfilming, archive boxes • Faster than paper forms!

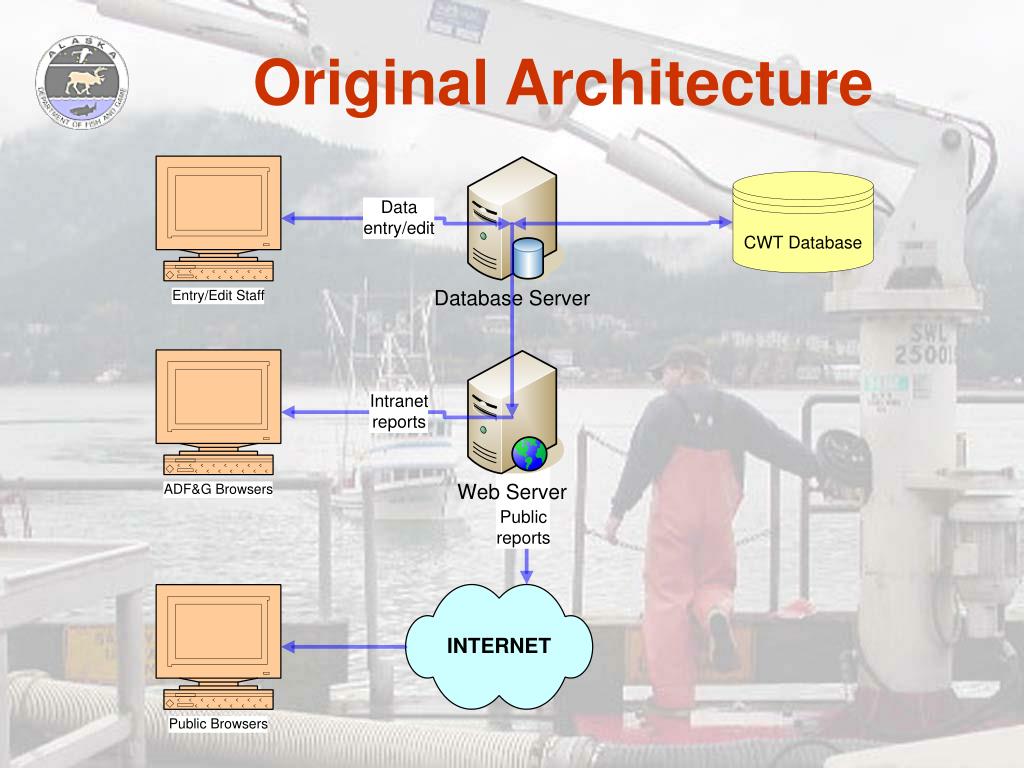

  17. Original Architecture

  18. New Architecture

  19. Also new: ORE / NORE • Facilities report releases directly using web forms at their convenience • Incremental entry • Complete editing • Extensive validation • No paper management • No data entry for ADF&G

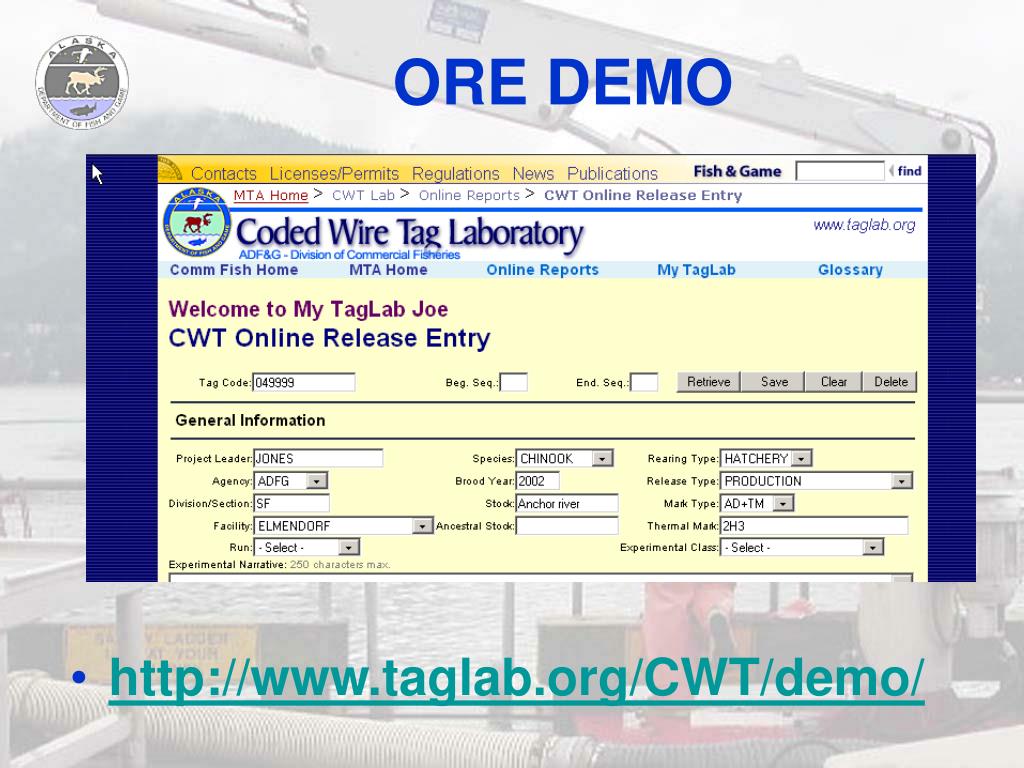

  20. ORE DEMO • http://www.taglab.org/CWT/demo/
