  1. FATSCOPY

  2. FATSCOPY Mass Tape Data Migration FATS Tape Quality Control FATAR Tape Data Tool

  3. FATSCOPY All Functions:- Run on z/OS Support all z/OS tape technology Support existing tape drives and VTS’s ISPF panels for ease of use

  4. FATSCOPY • High Performance • Tape Data Migration • Mass Copying • Media Conversion • VTS Population • Tape Stacking

  5. FATSCOPY Main uses:- When you install a new tape subsystem And need to move existing tape data to the new media Eg 3490 to TS1130 CA-1 RMM

  6. FATSCOPY Includes converting to VTS Eg 3490 to VTS Or old VTS to new VTS Or VTS to non-VTS tape Or to Tapeless VTS All common VTS’s supported

  7. FATSCOPY Very easy to do Copy 1000’s of tapes / datasets in one job Simple JCL & Control Statements ISPF Panels

  8. FATSCOPY • Select by – • Explicit or masked volser • - BA1007 or BA10* • Volser ranges or lists • - BA1007 incr. by 1 for a max. of 50 • Explicit or masked (CAT)DSN • SYSP.DBPROD.TABLE • SYSP.DB*.* • Device Type • - 3490/3592/……. • Physical volume in VTS • Tape Management System • - TMSIN=RMM or CA1

  9. FATSCOPY • SELECT by – • Creation date - CRDATE>=2010001,CRDATE<=2010365 • Expiration date- EXPDATE>=2012001 • Creating job name- CRJOB=(PAY*,INV*) • Dataset size • File seq no.

  10. FATSCOPY User experience… “We had 1000's of 3480/3490E tapes in our disaster recovery site. We used FATSCOPY to copy them to IBM 3590 Magstar tapes which reduced our offsite storage cost by 90%!”

  11. FATSCOPY Tape Managers- Interfaces to CA-1, CA-TLMS and DFSMSrmm Data used in selection criteria TMS data applied to new tapes Keep or scratch the original tapes

  12. FATSCOPY Other Features- Simulations Audit Checkpoint / Restart ‘Restart’ a real copy from a checkpoint made by a Simulation Exploited by the ISPF panels

  13. FATSCOPY Other Features- ABR and HSM ML2 tapes supported Other externally-recorded tapes … call us

  14. FATSCOPY ISPF Panels for FATSCOPY

  15. Our Primary ISPF Menu

  16. FATSCOPY Menu

  17. 1) Volume range… ‘All Files On All Tapes In Range’ Excluded volumes EXCLUDE

  18. Volume Range 1) Press Enter

  19. 1) Enter R – View Selection Report

  20. View Selection Report

  21. 1) Enter V – View Selected Volumes 1) Enter M - VIEW SIMULATION MESSAGES/ERRORS BROWSE XTRHES1.FTCERROR.D2012111.T080119.XTRHES1- Line 00000000 Col 001 08 Command ===> Scroll ===> CSR ********************************* Top of Data ******************************** FATSCOPY ERROR/MESSAGES REPORT ------------------------------------------------------------------------------ FATS167 **SELECT ALLDSN SPECIFIED, BUT NO TAPE MGMT INFO FOR VOLUME=BA1011. VOLUME BYPASSED. FATS189 **RESTART DATA SET CREATED. DSN=XTRHES1.FTCDSNDS.D2012111.T080119.XTRHES1

  22. FATSCOPY Menu

  23. 2) Tape Volume List

  24. SIMULATION REVIEW

  25. VIEW SELECTION REPORT ********************************************** Top of Data *************************************** FATSCOPY DATA SET SELECTION REPORTS 4/23/20 DATA SET NAME VOLSER FSEQ VSQ CRDATE EXDATE CREATJOB TMSSTAT SIZE STATUS REASON ------------------------ ------- ----- --- ------- ------ -------- ------- ------ ------ -------- FDRABR.VIDPPM4.B102065A BA1007 1 1 2002065 PMARCH SCRATCH 62.4M SELECT FDRABR.VIDPPM2.B102065A BA1007 2 1 2002065 PMARCH SCRATCH 15.5M SELECT FDRABR.VIDPPM1.B102065A BA1007 3 1 2002065 PMARCH SCRATCH 125.1M SELECT FDRABR.VIDPPM6.B102065A BA1007 4 1 2002065 PMARCH SCRATCH 8.5M SELECT FDRABR.LASTAPE.ARCPROD1 BA1007 5 1 2002065 PMARCH SCRATCH <1.0M BYPASS EXCLUDED FDRABR.LASTAPE.ARCPROD1 BA1007 6 1 2002065 DARCHIVE SCRATCH <1.0M BYPASS EXCLUDED FDRABR.LASTAPE.ARCPROD1 BA1007 7 1 2002065 DARCHIVE SCRATCH <1.0M BYPASS EXCLUDED

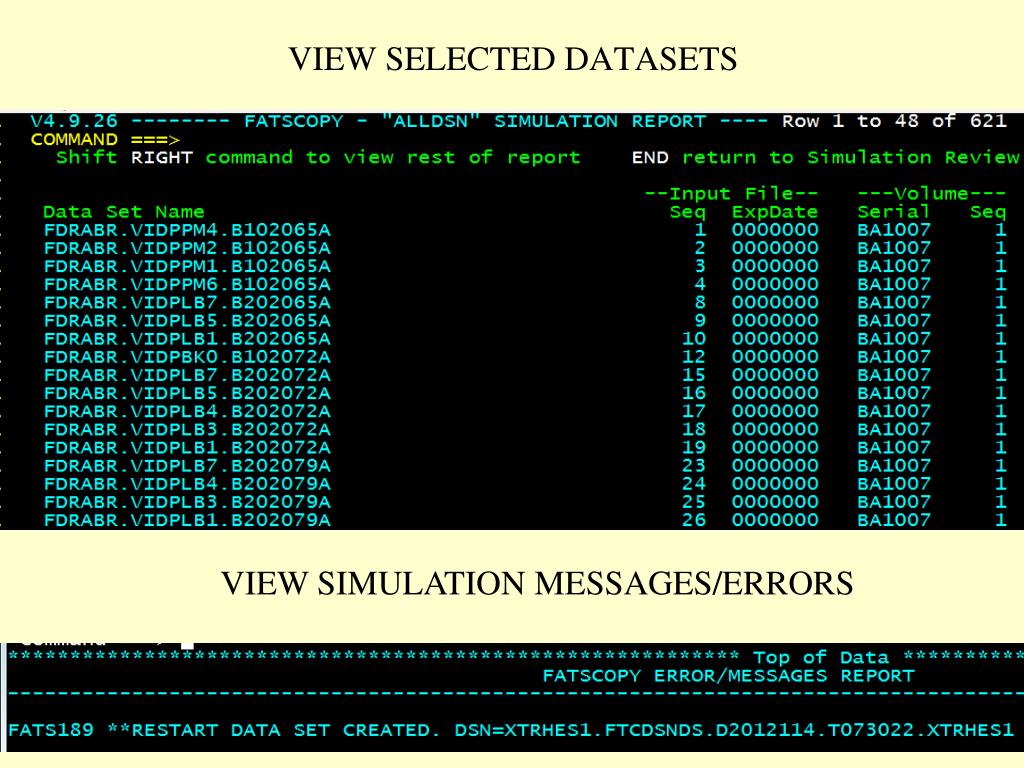

  26. VIEW SELECTED DATASETS VIEW SIMULATION MESSAGES/ERRORS

  27. FATSCOPY Menu

  28. 3) Select/Exclude From Catalog

  29. 3) Select/Exclude From Catalog **************************************** Top of Data ***************************************************** COPY DATA SET SELECTION REPORTS 5/24/2012 PAGE 1 DATA SET NAME VOLSER FSEQ VSQ DEVT CRDATE EXDATE CREATJOB TMSSTAT SIZE STATUS REASON -------------------------- ------ ----- --- ------ ------- ------- -------- ------- ------ ------ -------- FDRABR.VIDPLBB.C1009500 ST0468 30 2 3590-1 2012098 1999000 FBACKUP1 MASTER 381.0M SELECT FDRABR.VIDPLBB.C1009501 ST0504 149 3 3590-1 2012100 2012135 DBACKUPS MASTER 381.0M BYPASS EXPIRED FDRABR.VIDPLBB.C1009502 ST0504 206 3 3590-1 2012101 2012136 DBACKUPS MASTER 381.0M BYPASS EXPIRED FDRABR.VIDPLBB.C1009503 ST0036 263 4 3590-1 2012102 2012137 DBACKUPS MASTER 381.0M BYPASS EXPIRED FDRABR.VIDPLBB.C1009605 ST0316 370 4 3590-1 2012132 2012167 DBACKUPS MASTER 10.7M SELECT FDRABR.VIDPLBB.C1009606 ST0291 461 5 3590-1 2012135 2012170 DBACKUPS MASTER 1.8M SELECT FDRABR.VIDPLBB.C1009607 ST0291 517 5 3590-1 2012136 2012171 DBACKUPS MASTER <1.0M SELECT FDRABR.VIDPLBB.C1009608 ST0291 573 5 3590-1 2012137 2012172 DBACKUPS MASTER 204.7M SELECT FDRABR.VIDPLBB.C1009609 ST0291 629 5 3590-1 2012138 2012173 DBACKUPS MASTER <1.0M SELECT FDRABR.VIDPLBB.C1009610 ST0291 685 5 3590-1 2012139 2012174 DBACKUPS MASTER <1.0M SELECT FDRABR.VIDPLBB.C1009611 ST0452 772 6 3590-1 2012142 2012177 DBACKUPS MASTER 2.2M SELECT FDRABR.VIDPLBB.C1009612 ST0452 828 6 3590-1 2012143 2012178 DBACKUPS MASTER 250.5M SELECT FDRABR.VIDPLBB.C1009613 ST0452 884 6 3590-1 2012144 2012179 DBACKUPS MASTER 47.4M SELECT FDRABR.VIDPLBB.C2009100 ST0033 31 3590-1 N/A BYPASS EXCLUDED FDRABR.VIDPLBB.C2009101 ST0287 157 3590-1 N/A BYPASS EXCLUDED FDRABR.VIDPLBB.C2009102 ST0287 216 3590-1 N/A BYPASS EXCLUDED FDRABR.VIDPLBB.C2009103 ST0287 275 3590-1 N/A BYPASS EXCLUDED FDRABR.VIDPLBB.C2009104 ST0287 334 3590-1 N/A BYPASS EXCLUDED FDRABR.VIDPLBB.C2009105 ST0154 393 3590-1 N/A BYPASS EXCLUDED

  30. REVIEW RESULTS of SIMULATION(S)

  31. View Selection Report

  32. Batch Job Example //STACK EXEC PGM=FATSCOPY,REGION=0M //SYSPRINT DD SYSOUT=* //SELRPT DD SYSOUT=* //COPYRPT DD SYSOUT=* //SYSABEND DD SYSOUT=* //TAPEOUT DD DSN=OUTPUT,UNIT=STK,DISP=(,KEEP) //SYSIN DD * SIM CHECKPT EXCLUDE DSN=FDRABR.LASTAPE.* SELECT ALLDSN,VOL=BA1007,CRDATE.GT.2002.366,CRDATE.LT.2004.001 SELECT ALLDSN,VOL=BA1009,CRDATE.GT.2002.366,CRDATE.LT.2004.001 SELECT ALLDSN,VOL=BA1010,CRDATE.GT.2002.366,CRDATE.LT.2004.001 SELECT ALLDSN,VOL=BA1011,CRDATE.GT.2002.366,CRDATE.LT.2004.001

  33. FATSCOPY Summarize • Easy-to-use, high-performance z/OS tape copy, consolidation, migration and conversion utility that can automate the process of copying and recataloging tape-based data sets from one tape media to another, including Virtual Tape, Vtape and VTS systems. • Interfaces with CA-1 and RMM • Simulation – makes it easy to verify that the expected files/tapes will be selected before the process run for real • More information on the CD and our website:http://fdr.com/products/fatscopy/ • DEMO: • http://fdr.com/portfolio/products/demo.cfm

  34. FATSCOPY Incorporating FATS and FATAR Any Questions ?
