  1. IBM System Storage – N series

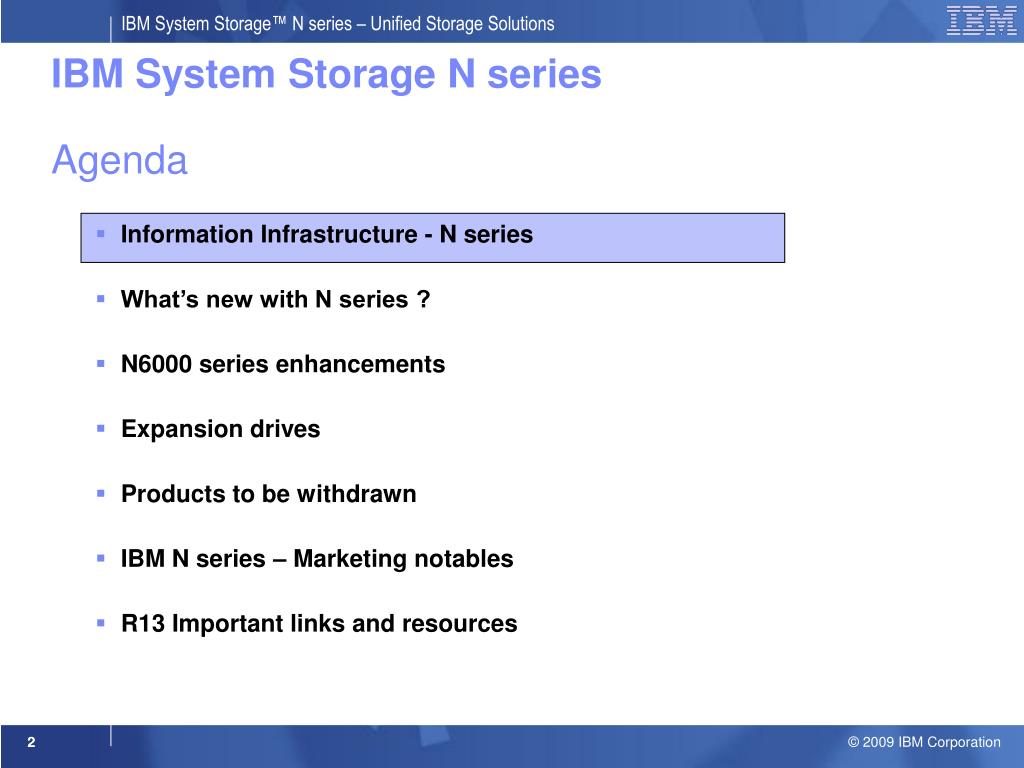

  2. IBM System Storage N series Agenda • Information Infrastructure - N series • What’s new with N series ? • N6000 series enhancements • Expansion drives • Products to be withdrawn • IBM N series – Marketing notables • R13 Important links and resources 2

  3. IBM Information Infrastructures Must… N series Information Compliance Reduce reputation risks Information Availability Deliver continuous information access Information Retention Support information retention policies Information Security Enable secure sharing of information 3

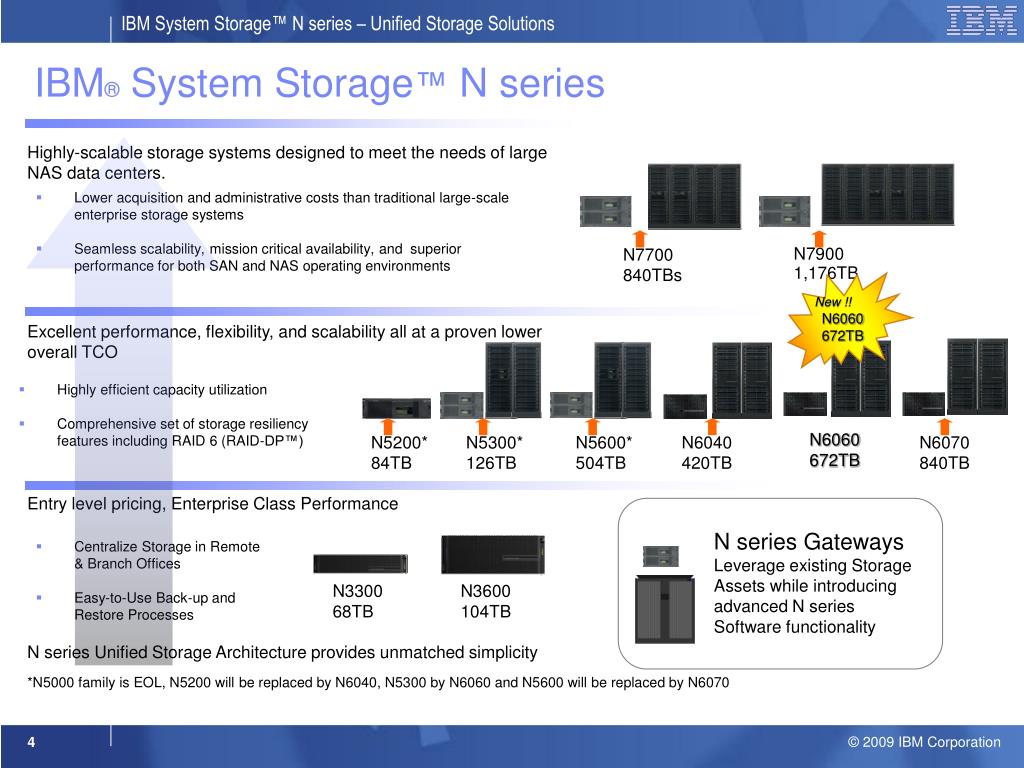

  4. IBM® System Storage™ N series New !! N6060 672TB N5200* 84TB Highly-scalable storage systems designed to meet the needs of large NAS data centers. • Lower acquisition and administrative costs than traditional large-scale enterprise storage systems • Seamless scalability, mission critical availability, and superior performance for both SAN and NAS operating environments N7700 840TBs N7900 1,176TB Excellent performance, flexibility, and scalability all at a proven lower overall TCO • Highly efficient capacity utilization • Comprehensive set of storage resiliency features including RAID 6 (RAID-DP™) N6060 672TB N5300* 126TB N5600* 504TB N6040 420TB N6070 840TB Entry level pricing, Enterprise Class Performance N series Gateways Leverage existing Storage Assets while introducing advanced N series Software functionality • Centralize Storage in Remote & Branch Offices • Easy-to-Use Back-up and Restore Processes N3300 68TB N3600 104TB N series Unified Storage Architecture provides unmatched simplicity *N5000 family is EOL, N5200 will be replaced by N6040, N5300 by N6060 and N5600 will be replaced by N6070

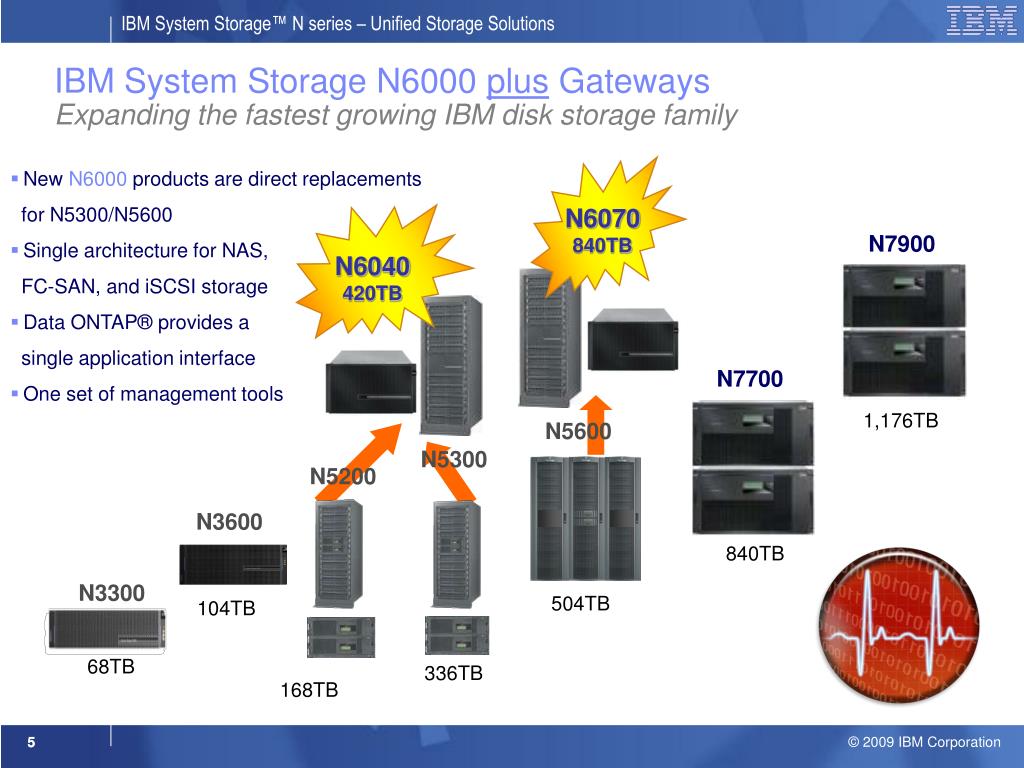

  5. IBM System Storage N6000 plus GatewaysExpanding the fastest growing IBM disk storage family • New N6000 products are direct replacements • for N5300/N5600 • Single architecture for NAS, • FC-SAN, and iSCSI storage • Data ONTAP® provides a • single application interface • One set of management tools N6070 840TB N7900 N6040 420TB N7700 1,176TB N5600 N5300 N5200 N3600 840TB N3300 504TB 104TB 68TB 336TB 168TB 5

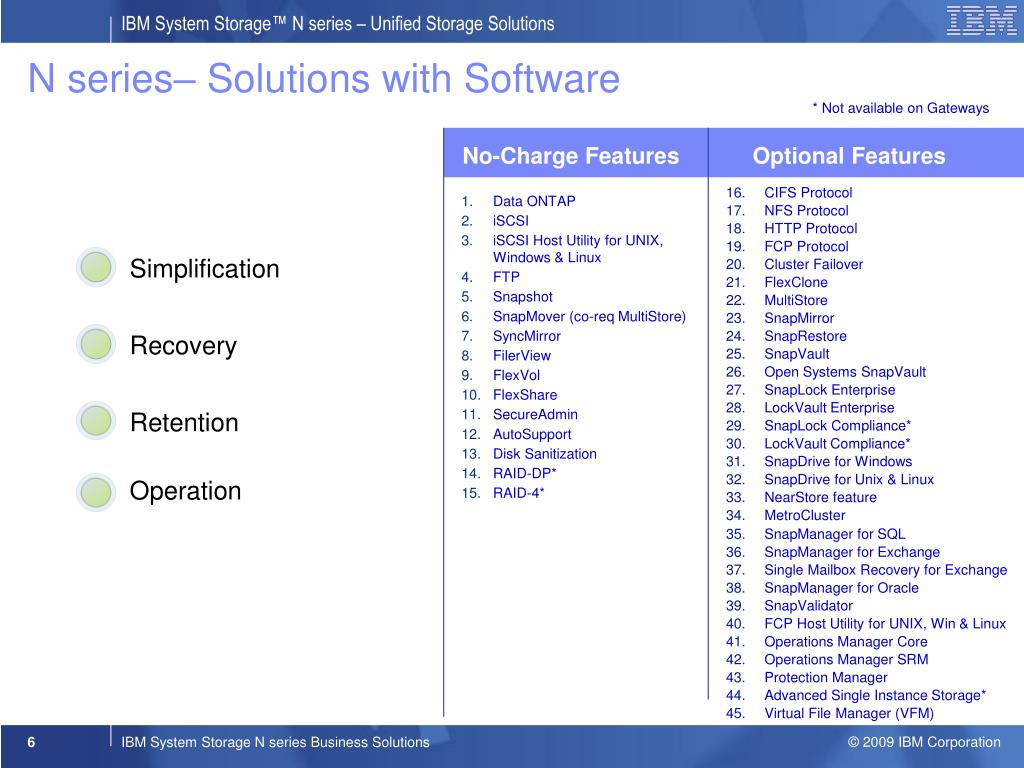

  6. N series– Solutions with Software * Not available on Gateways No-Charge Features Optional Features • CIFS Protocol • NFS Protocol • HTTP Protocol • FCP Protocol • Cluster Failover • FlexClone • MultiStore • SnapMirror • SnapRestore • SnapVault • Open Systems SnapVault • SnapLock Enterprise • LockVault Enterprise • SnapLock Compliance* • LockVault Compliance* • SnapDrive for Windows • SnapDrive for Unix & Linux • NearStore feature • MetroCluster Data ONTAP iSCSI iSCSI Host Utility for UNIX, Windows & Linux FTP Snapshot SnapMover (co-req MultiStore) SyncMirror FilerView FlexVol FlexShare SecureAdmin AutoSupport Disk Sanitization RAID-DP* RAID-4* Simplification Recovery Retention Operation • SnapManager for SQL • SnapManager for Exchange • Single Mailbox Recovery for Exchange • SnapManager for Oracle • SnapValidator • FCP Host Utility for UNIX, Win & Linux • Operations Manager Core • Operations Manager SRM • Protection Manager • Advanced Single Instance Storage* • Virtual File Manager (VFM) IBM System Storage N series Business Solutions

  7. Simplification Multi-Protocol – FCP, iSCSI, CIFS, NFS, HTTP, FTP Multi-Function – SAN, NAS, Backup, Compliance Scalability – Workgroup to Enterprise Availability – RAID DP to MetroCluster Virtualization – MultiStore, FlexVol, FlexClone, SnapMover IBM System Storage N series Business Solutions

  8. Simplification Multi-Protocol • NAS • IP SAN • FC SAN Traditional Arrays Only Offer Fibre Channel IBM System Storage N series Business Solutions

  9. Simplification Partitioning MultiStore H:\\WinFileServer3\User WinFileServer1 UnixFileServer1 WinFileServer2 WinFileServer3 UnixFileServer2 WinFileServer1 VM WinFileServer2 VM WinFileServer3 VM UnixFileServer1 VM UnixFileServer2 VM • Create virtual machines (VM) of existing Servers • Collapse Existing Environment • No Client Re-Configuration • Same Management Structure IBM System Storage N series Business Solutions

  10. Simplification • Increase storage utilization • Enable thin provisioning and re-allocation • Increase application performance FlexVol • Designed to allow administrators to create multiple flexible volumes across a large pool of disks • Dynamic, non-disruptive storage (thin) provisioning; space- and time-efficiency • Allows users to get more space dynamically and non-disruptively • Can enable more productive use of available storage and helps improve performance by distributing applications across more spindles • Grow and Shrink NAS file systems on the fly. Without FlexVol, application is limited to pre-assigned space FlexVol™ Application is free to grab more space if needed IBM System Storage N series Business Solutions

  11. Simplification Writeable Snapshots FlexClone • FlexClone copies are near-instantaneous • Storage efficient • Significant Cost Savings • Writeable copies consume space and time • Impacts deployment time Traditional Arrays N series FlexClones Production – 1TB Production – 1TB Dev – 1TB Dev – 40KB Test – 40KB Test – 1TB QA – 1TB QA – 40KB Test2 – 40KB Test2 – 1TB Total = 5TB’s Total = 1TB + Changes IBM System Storage N series Business Solutions

  12. Simplification Availability Options ContinuousOperations Synchronous Clusters MetroCluster LAN/WANClustering SynchronousReplication Availability Asynchronous Replication Synchronous SnapMirror® and Clusters Block Level Incremental (BLI) Backups Synchronous SnapMirror and SyncMirror™ Asynchronous SnapMirror App Testing SnapVault™ ApplicationRecovery FlexClones® Daily Backup SnapRestore® Snapshot™ Copies Data Integrity RAID-DP™ High-Level SLA Low-Level SLA Medium-Level SLA Cost IBM System Storage N series Business Solutions

  13. Recovery Snapshot – Instantaneous Backup (RPO) SnapRestore – System Recovery in Seconds (RTO) SnapMirror – System Replication (RPO/RTO) SnapManager – Application Integration (RPO/RTO) MetroCluster – Failover from primary to secondary site IBM System Storage N series Business Solutions

  14. Recovery Snapshot Backups Snapshot Hourly2 Hourly1 • Instantaneous Backup of NAS and SAN data • Restores of either large files or entire flexible volume • 255 Snapshots per FlexVol (499 FlexVol’s per N series) • Drag and drop restore of user files – significant reduction in RTO and RPO • No performance impact in keeping multiple online SnapShots • Automated Application Integration into MS Exchange, MS SQL and Oracle • SPACE EFFICIENT because only block level updates occur Hourly0 Production Data • Data Corruption/Deletion 2. Copy document from Snapshot folder to production folder 3. Reduce recovery to minutes instead of hours or days IBM System Storage N series Business Solutions

  15. Recovery Database or Application Snapshot Backups SnapRestore Hourly2 • Near instantaneous restoration of NAS and SAN data • Restores of either large files or entire flexible volume • Significant reduction in recovery time • Automated application integration into MS Exchange, MS SQL and Oracle Hourly1 Hourly0 Production Data • Data Corruption/Deletion • Issue SnapRestore to most recent hourly snapshot and replay transaction logs 3. Reduce recover time to minutes instead of hours or days IBM System Storage N series Business Solutions

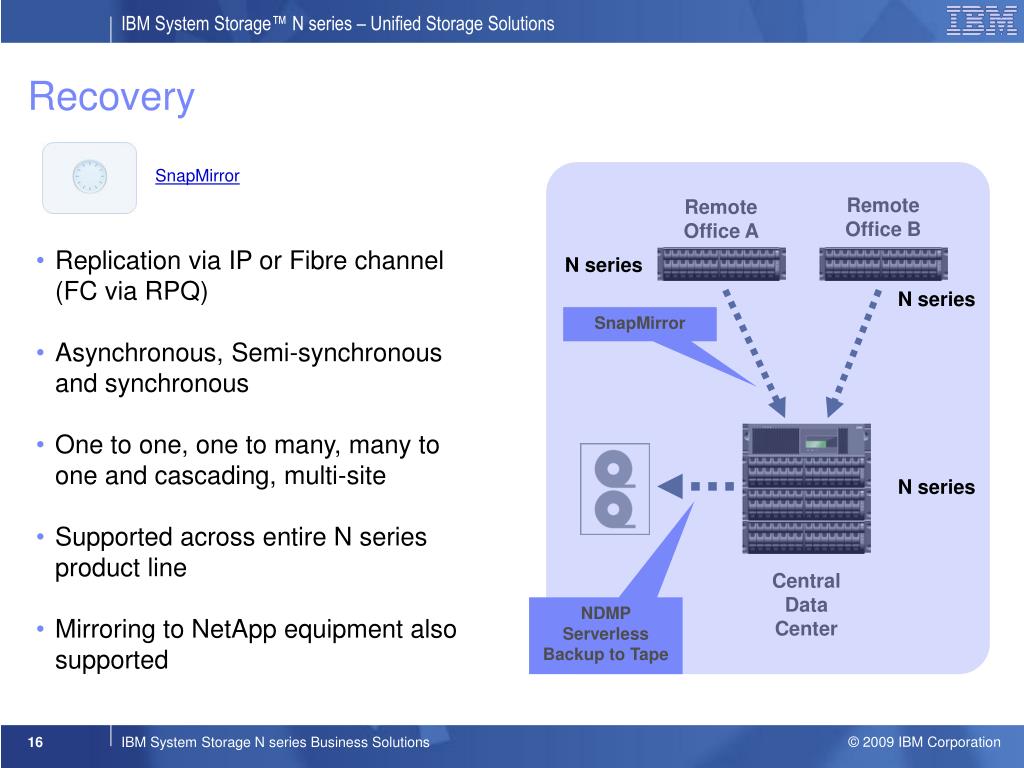

  16. Recovery SnapMirror Remote Office B Remote Office A • Replication via IP or Fibre channel (FC via RPQ) • Asynchronous, Semi-synchronous and synchronous • One to one, one to many, many to one and cascading, multi-site • Supported across entire N series product line • Mirroring to NetApp equipment also supported N series N series SnapMirror N series Central Data Center NDMP Serverless Backup to Tape IBM System Storage N series Business Solutions

  17. Recovery Reduces implementation time, increase availability and reduce RPO and RTO SnapManager Application Servers SnapMirror for Remote Recovery with Snapshots • Automated application Integration and availability for Microsoft Exchange, Microsoft SQL, SAP and Oracle • SnapShot • SnapRestore • SnapMirror – Application disaster recovery • SnapDrive – Grow application storage on the fly • Automated DB and message store Migration • Optional for MS Exchange: • Single Mailbox Recovery Site or System Disaster Disaster Recovery Site Hourly Snapshots for Local Recovery Central Data Center Failover to D/R Site IBM System Storage N series Business Solutions

  18. Recovery Site A Site B Stretch MetroCluster Fabric • Extends clustered failover capabilities from primary to a remote site • Replicates data from the primary site to the remote site to ensure the data there is completely up-to-date and available • If Site A goes down, MetroCluster allows you to rapidly resume operations at a remote site minutes after a disaster X Ym Xm Y Vol-X Mirrored Vol-Y Mirrored Vol-X Vol-Y • Stretch MetroCluster provides a disaster recovery option at distances to 500 meters between each N series node. Available on N5000 & N7000 models (Axx) • Fabric MetroCluster provides a disaster recovery option at distances up to 100km using a fibre channel switched network. Available on N5000 Models (Axx) IBM System Storage N series Business Solutions

  19. Retention SATA and FC Disk – Mix and Match SnapLock – Non-erasable, non-rewriteable (WORM) data protection for archival and compliance SnapVault & Open Systems SnapVault – Block Backups NearStore Feature – Maintains a fixed upper limit for concurrent SnapMirror and SnapVault transfers IBM System Storage N series Business Solutions

  20. Operation Service Levels – FlexShare Storage Optimization - Advanced Single Instance Storage Centralized Management – Operations Manager Reduced Administration – Disparate architectures vs. single architecture IBM System Storage N series Business Solutions

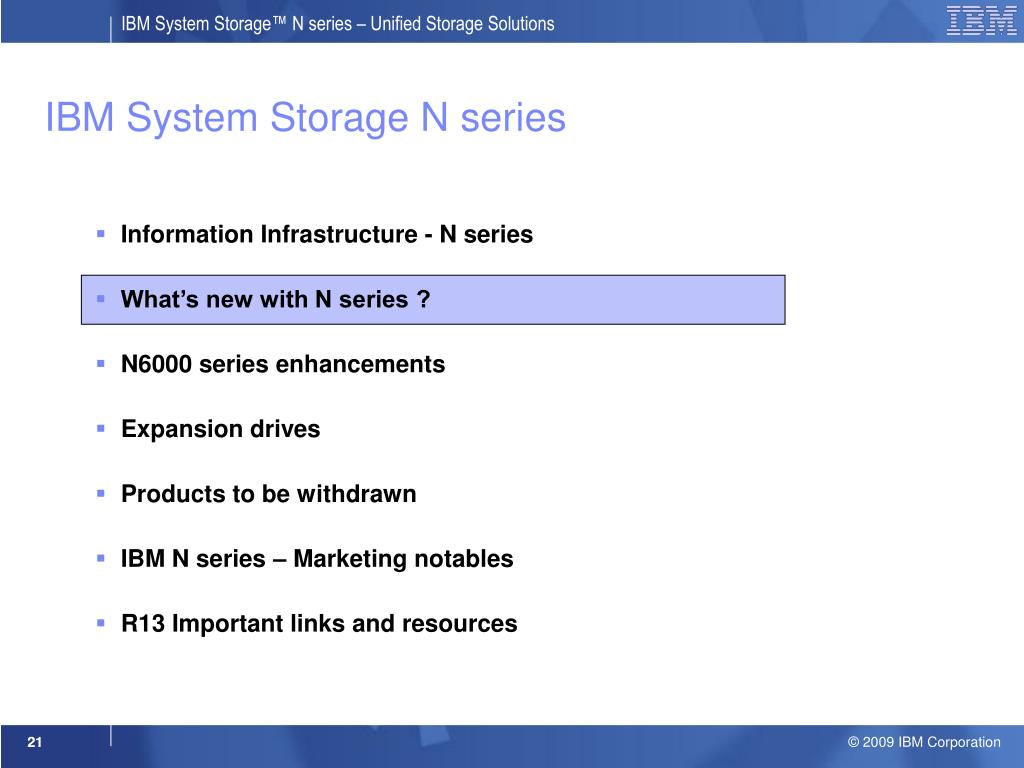

  21. IBM System Storage N series • Information Infrastructure - N series • What’s new with N series ? • N6000 series enhancements • Expansion drives • Products to be withdrawn • IBM N series – Marketing notables • R13 Important links and resources 21

  22. What is new with N series? NEW! On October 28, IBM is announcing extraordinary operating system enhancements to the IBM System Storage N6000 series, offering outstanding support forGateways in the midrange market: • Support for A-SIS deduplication • Support for EXN Expansion Unit Disks and LUN support • 4 port, 4 Gbps target adapter available for N6000 • Performance Acceleration Module (also available for systems) N series advanced capacity storage expansion units will also be launched: • 450 GB 15K FC drives and SAS disk drives will strengthen N series portfolio. 22

  23. IBM System Storage N series • Information Infrastructure - N series • What’s new with N series ? • N6000 series enhancements • Expansion drives • Products to be withdrawn • IBM N series – Marketing notables • R13 Important links and resources 23

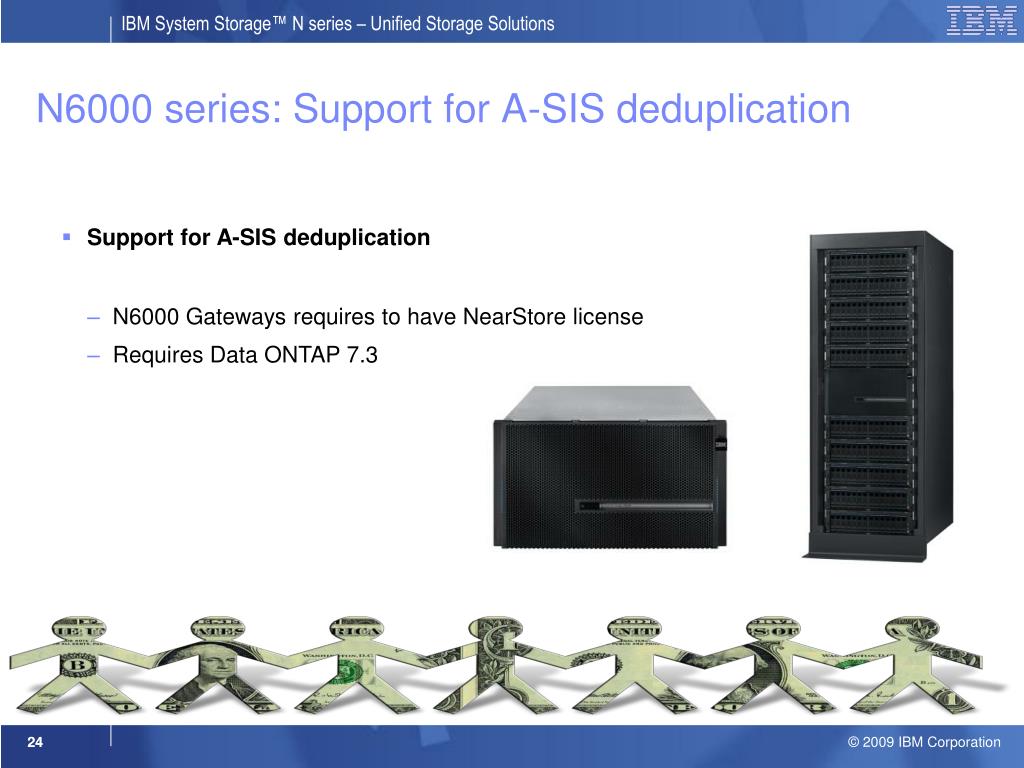

  24. N6000 series: Support for A-SIS deduplication • Support for A-SIS deduplication • N6000 Gateways requires to have NearStore license • Requires Data ONTAP 7.3 24

  25. NearStore and A-SIS Licenses for N6000 Gateways Potential A-SIS deduplication Space Savings 25 No charge for NearStore • Previously not available for N6000 Gateways A-SIS deduplication feature code remains no charge • Requires NearStore license - no charge

  26. IBM N series Gateway and Deduplication Functionality • Deduplication across multi-vendor storage • Deduplication : 1000+ Licenses already sold • Can save up to 60-90% storage efficiency, depending on application • Tangible cost savings • Minimize Power/Cooling Requirements • Space savings • EMC, HDS, or HP – NO EQUIVALENT FUNCTIONALITY Feature Storage Optimization Power to revolutionize 26

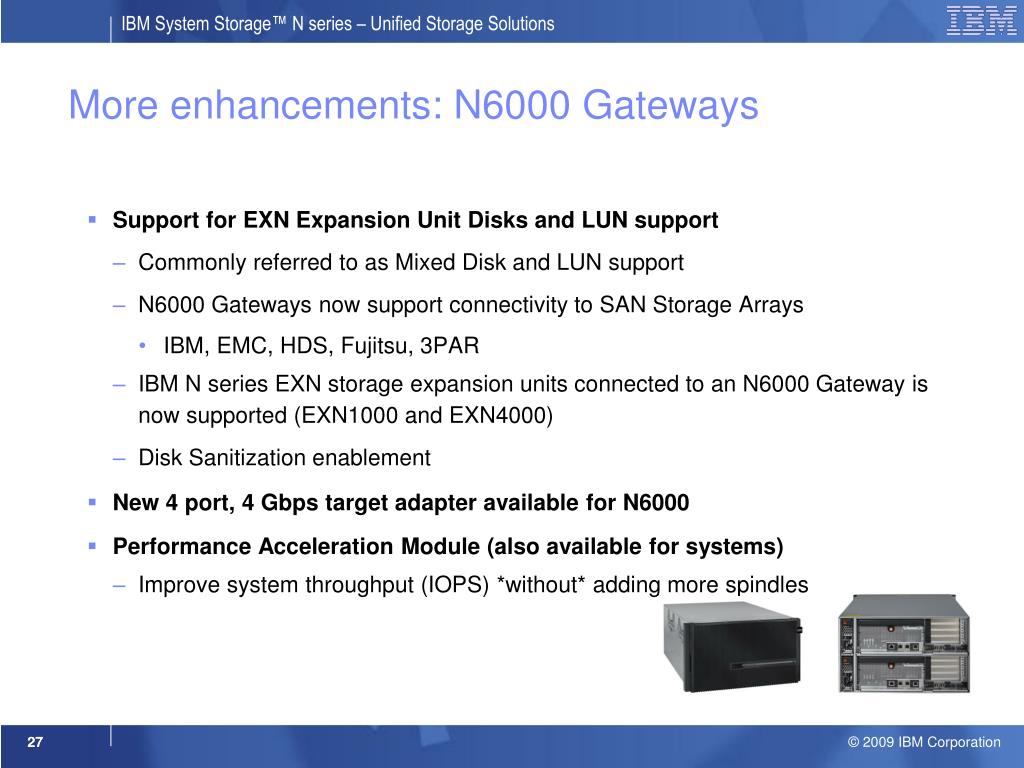

  27. More enhancements: N6000 Gateways Support for EXN Expansion Unit Disks and LUN support • Commonly referred to as Mixed Disk and LUN support • N6000 Gateways now support connectivity to SAN Storage Arrays • IBM, EMC, HDS, Fujitsu, 3PAR • IBM N series EXN storage expansion units connected to an N6000 Gateway is now supported (EXN1000 and EXN4000) • Disk Sanitization enablement New 4 port, 4 Gbps target adapter available for N6000 Performance Acceleration Module (also available for systems) • Improve system throughput (IOPS) *without* adding more spindles 27

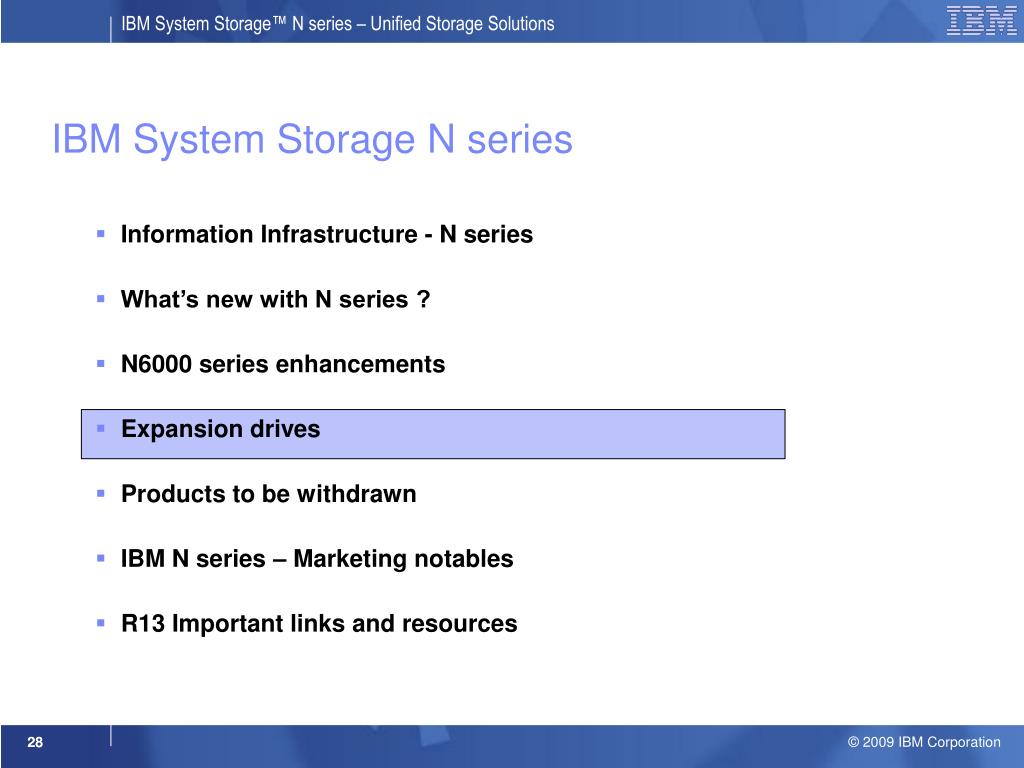

  28. IBM System Storage N series • Information Infrastructure - N series • What’s new with N series ? • N6000 series enhancements • Expansion drives • Products to be withdrawn • IBM N series – Marketing notables • R13 Important links and resources 28

  29. What is new with the N series Storage System? Advanced capacity storage expansion units will also be offered on this announcement: • 450 GB 15K FC drives and SAS disk drives to strengthen N series portfolio. • Customer will recognize a 50% increase in FC storage density per EXN4000 (DS14MK4FC shelf); 6.3TB with the new 450GB FC drives vs. only 4.2TB for the current 300GB drives. • This results in lower power, real-estate, and cooling requirements, and ultimately lower maintenance costs. 29

  30. IBM System Storage N series • Information Infrastructure - N series • What’s new with N series ? • N6000 series enhancements • Expansion drives • Products to be withdrawn • IBM N series – Marketing notables • R13 Important links and resources 30

  31. Products withdrawn • N3700 series – 2863-A10/A20 • N7700-A11/G11 - N7900-A11/G11 (single node) • N5000 series – 2865-A10/A20 31

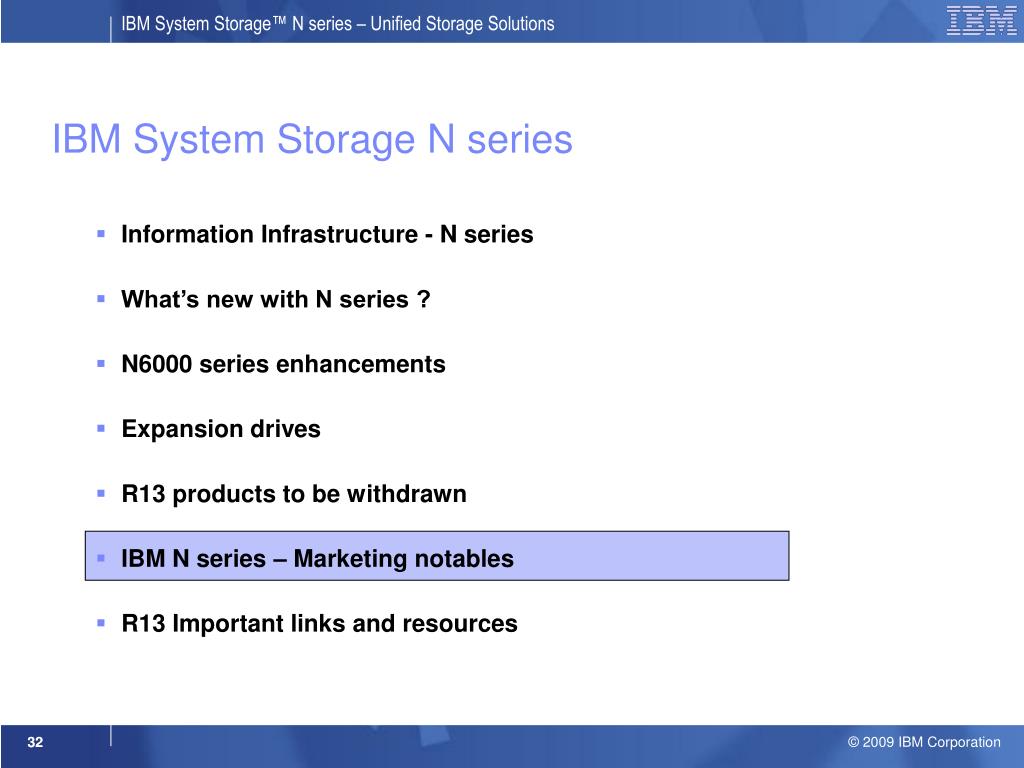

  32. IBM System Storage N series • Information Infrastructure - N series • What’s new with N series ? • N6000 series enhancements • Expansion drives • R13 products to be withdrawn • IBM N series – Marketing notables • R13 Important links and resources 32

  33. IBM N series –Marketing Notables • "How to Compete and Win against EMC" Q408 Storage Sales Academy (SSA) Register now: https://www-03.ibm.com/servers/eserver/zseries/education/topgun/enrollment/esfldedu.nsf/LUWebClasses/Selected_Storage_Programs%7C%7CSystem_Storage_Sales_Academy?OpenDocument • *New* N series vs. EMC 1-pager • *New* N series Product Guide • Customer References document recently updated • Storage Enterprise Resource Planner Solution (SERP) – “Solutions” section of the sales kit Events New Marketing Tools

  34. Release 13 – Important Links and Resources • IBM Solutions Assurance Product Guides and Checklists • For pre-Sales and pre-installation solutions assurance reviews. This site also provides a range of additional information on the Solution Assurance process and product guides, including those for the specified models. http://w3-03.ibm.com/support/assure/assur30i.nsf/Web/SA • Business Partners: The N series Solutions Assurance Documentation can be found at the IBM PartnerWorld Business Partner Solution Assurance library at: https://www-304.ibm.com/jct09002c/partnerworld/mem/support/trs_wgd_sa.html • IBM Implementation Services for Network Attached Storage Systems - IBM System Storage N5000/N6000/N7000 http://spimweb1.boulder.ibm.com/services/bte/ep/dyno.wss?oid=807 • Obtain up to 40% off on Exchange Software Bundles for N series http://w3-03.ibm.com/sales/support/ShowDoc.wss?&infotype=SK&infosubtype=S0&docid=S001247R53613O39&ssid=exchange_sk For Business Partners: https://www-304.ibm.com/jct09002c/partnerworld/wps/servlet/mem/ContentHandler/exchange_sk

  35. N series and NAS Competition

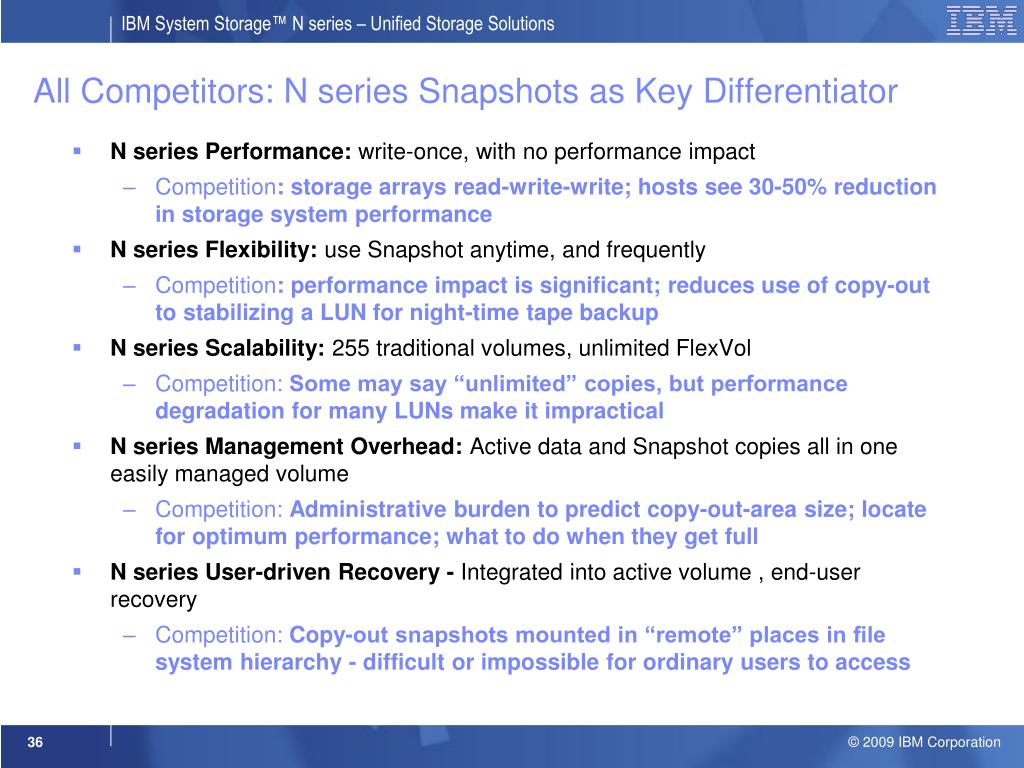

  36. All Competitors: N series Snapshots as Key Differentiator • N series Performance: write-once, with no performance impact • Competition: storage arrays read-write-write; hosts see 30-50% reduction in storage system performance • N series Flexibility: use Snapshot anytime, and frequently • Competition: performance impact is significant; reduces use of copy-out to stabilizing a LUN for night-time tape backup • N series Scalability: 255 traditional volumes, unlimited FlexVol • Competition: Some may say “unlimited” copies, but performance degradation for many LUNs make it impractical • N series Management Overhead: Active data and Snapshot copies all in one easily managed volume • Competition: Administrative burden to predict copy-out-area size; locate for optimum performance; what to do when they get full • N series User-driven Recovery - Integrated into active volume , end-user recovery • Competition: Copy-out snapshots mounted in “remote” places in file system hierarchy - difficult or impossible for ordinary users to access

  37. CLARiiON CX CLARiiON DL Celerra Centera AXi CXi AX DMX Control Center™ Family of Mgmt Products IBM N series Unified Networked Storage … do more learn less … EMC Technology OverviewPoint Solutions vs. Single Architecture EMC: OS: Networked Storage: CentraStar CAS Flare Mid-SAN Lo-SAN Mid-iSCSI Lo-iSCSI IPStor&Flare Virtual Tape Lib. Enginuity Hi-End SAN DART Hi-NAS 1 System and OS 1 Replication Strategy 1 Management Interface

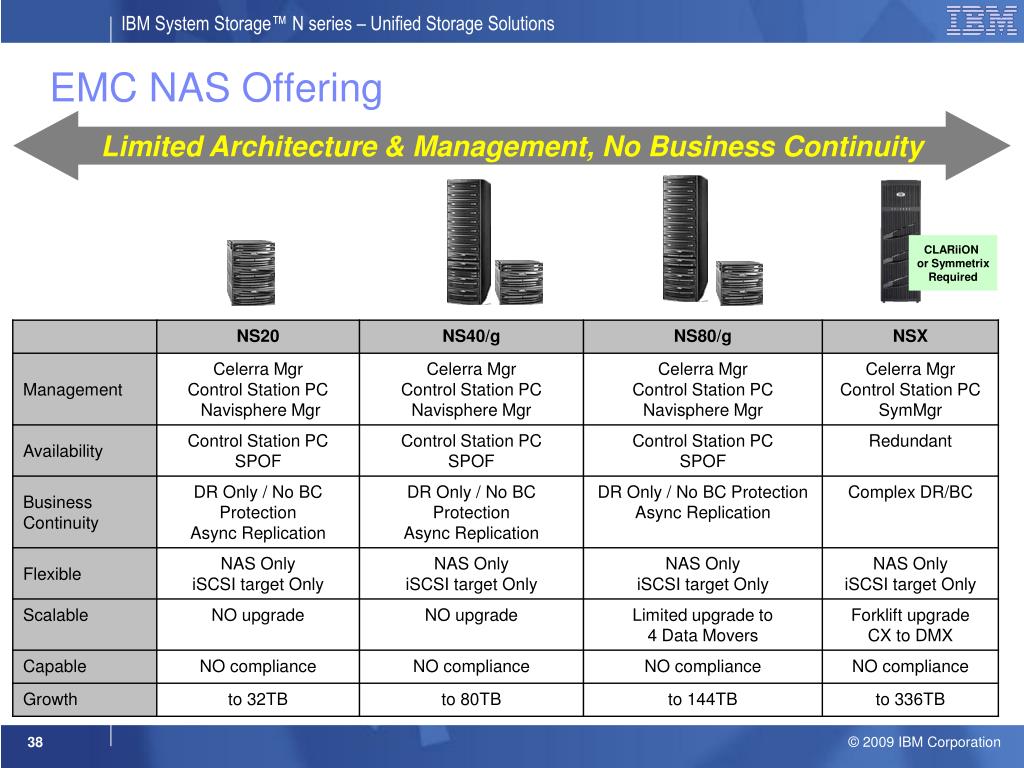

  38. EMC NAS Offering Limited Architecture & Management, No Business Continuity CLARiiON or SymmetrixRequired

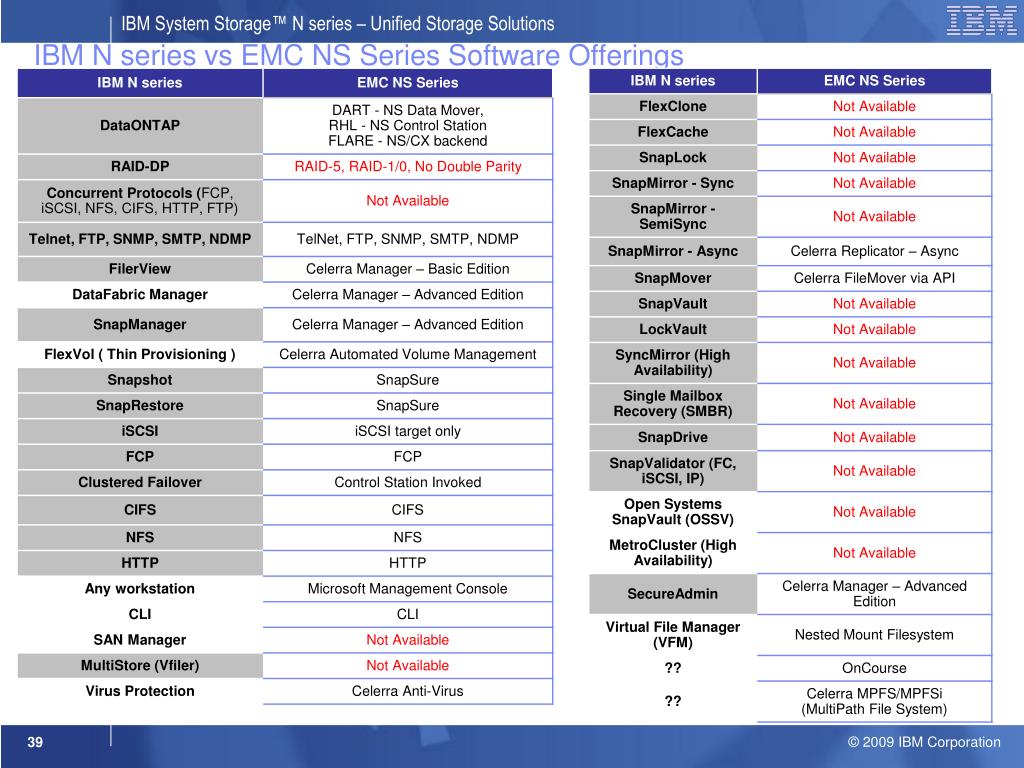

  39. IBM N series vs EMC NS Series Software Offerings

  40. EMC CX4 Announce – August 4, 2008 • EMC announced 4 models of the CLARiiON CX4: • Virtual Provisioning (adopted from Celerra) • 64-bit processing, (AMD multi-core technology) • Customer-installable / serviceable (from consumer products) • Future availability of SSD (sourced from Emulex) and disk spin-down (from Quantum)* • Tucci: CIOs’ No. 1 problem is complexity; change is too difficult; appliances address this challenge N series Competitive Positioning & Model Alignment:

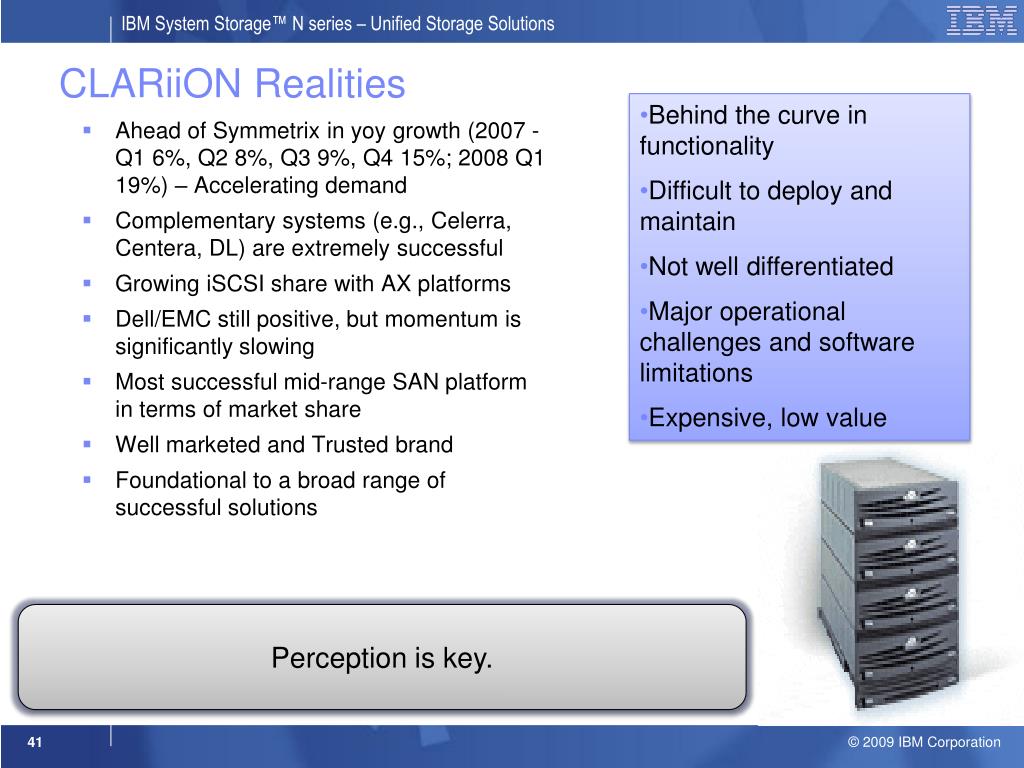

  41. CLARiiON Realities • Behind the curve in functionality • Difficult to deploy and maintain • Not well differentiated • Major operational challenges and software limitations • Expensive, low value Perception is key. Ahead of Symmetrix in yoy growth (2007 - Q1 6%, Q2 8%, Q3 9%, Q4 15%; 2008 Q1 19%) – Accelerating demand Complementary systems (e.g., Celerra, Centera, DL) are extremely successful Growing iSCSI share with AX platforms Dell/EMC still positive, but momentum is significantly slowing Most successful mid-range SAN platform in terms of market share Well marketed and Trusted brand Foundational to a broad range of successful solutions

  42. Perspectives on CLARiiON messaging • N series has equally powerful hardware • Performance relies heavily on ongoing tuning; complex management • Optional software is often incompatible and inept • Appliances don’t play well together and increase TCO • 5x9s is an expensive EMC-only service contract; not available from OEM suppliers • VMware is independent and vendor-neutral “Ultra” scalable Hardware features More manageable Navisphere Analyzer and QoS, PowerPath Breadth of configuration/optimization parameters (via Navisphere) Optional software and appliances More robust than others Cache de-staging to disk Fast failover / failback Better for VMware Special access through ownership Closer affinity through access Validation through TBs

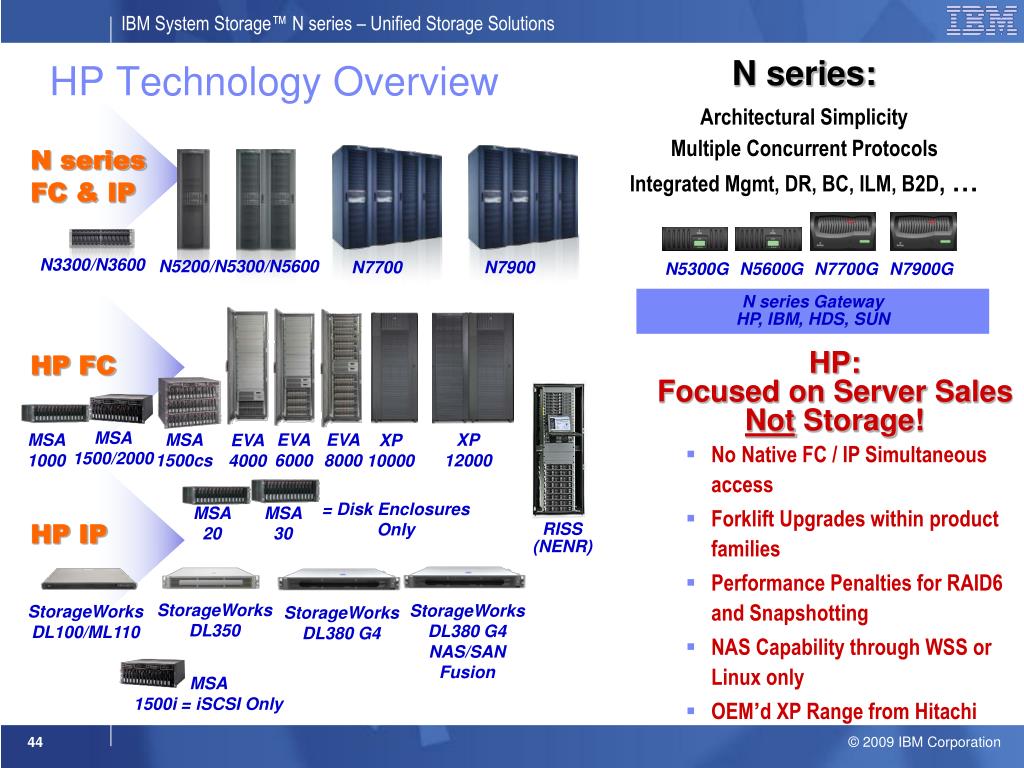

  43. StorageWorks DL350 StorageWorks DL100/ML110 StorageWorks DL380 G4 NAS/SAN Fusion StorageWorks DL380 G4 = Disk Enclosures Only MSA 20 MSA 30 N series: Architectural Simplicity Multiple Concurrent Protocols Integrated Mgmt, DR, BC, ILM, B2D, … HP Technology Overview N seriesFC & IP N3300/N3600 N5200/N5300/N5600 N7700 N7900 N5300G N5600G N7700G N7900G N series Gateway HP, IBM, HDS, SUN HP FC HP: Focused on Server SalesNot Storage! • No Native FC / IP Simultaneous access • Forklift Upgrades within product families • Performance Penalties for RAID6 and Snapshotting • NAS Capability through WSS or Linux only • OEM’d XP Range from Hitachi MSA 1500/2000 MSA 1000 MSA 1500cs EVA 6000 EVA 8000 XP 12000 EVA 4000 XP 10000 RISS (NENR) HP IP MSA 1500i = iSCSI Only

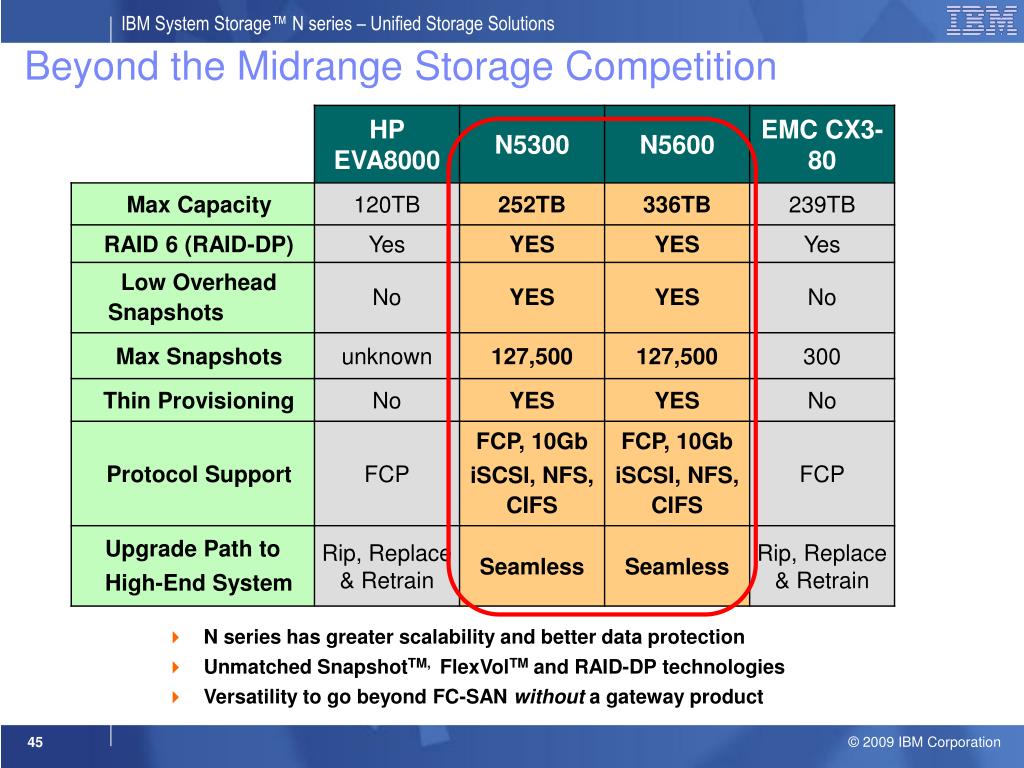

  44. Beyond the Midrange Storage Competition • N series has greater scalability and better data protection • Unmatched SnapshotTM, FlexVolTM and RAID-DP technologies • Versatility to go beyond FC-SAN without a gateway product

  45. Why N series vs. HP? Greater data integrity via RAID-DP & Maintenance Center Lower total cost of ownership Easier to install, configure, and deploy Flex and Snap-suite dramatically simplify administration and allocation of storage Staff only needs to be trained in one technology Greater versatility Integrated multi-protocol SAN/NAS in one box Simultaneous FCP & iSCSI in one box Common compatible architecture across the entire product range Full interoperability and upgradeability across entire range product range Staff only needs to be trained in one technology Superior host and application software support Superior solution completeness Superior software technology Competing Against HP

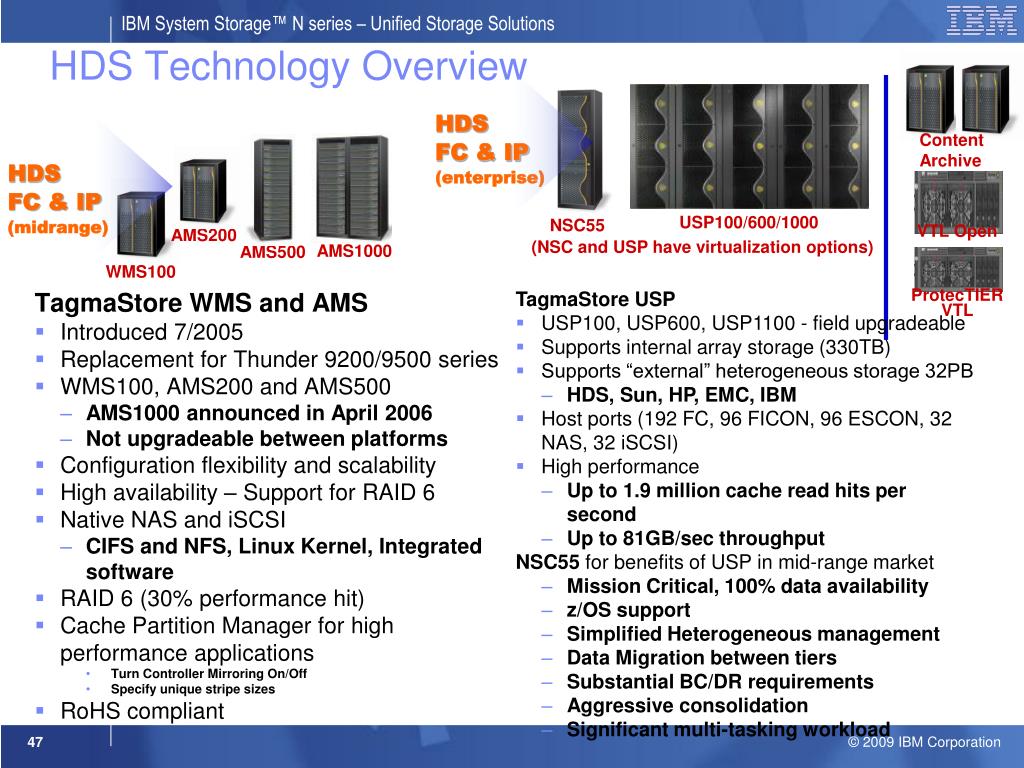

  46. TagmaStore WMS and AMS Introduced 7/2005 Replacement for Thunder 9200/9500 series WMS100, AMS200 and AMS500 AMS1000 announced in April 2006 Not upgradeable between platforms Configuration flexibility and scalability High availability – Support for RAID 6 Native NAS and iSCSI CIFS and NFS, Linux Kernel, Integrated software RAID 6 (30% performance hit) Cache Partition Manager for high performance applications Turn Controller Mirroring On/Off Specify unique stripe sizes RoHS compliant HDSFC & IP(enterprise) (NSC and USP have virtualization options) AMS200 AMS500 WMS100 AMS1000 VTL Open HDSFC & IP(midrange) ProtecTIER VTL NSC55 Content Archive USP100/600/1000 HDS Technology Overview TagmaStore USP • USP100, USP600, USP1100 - field upgradeable • Supports internal array storage (330TB) • Supports “external” heterogeneous storage 32PB • HDS, Sun, HP, EMC, IBM • Host ports (192 FC, 96 FICON, 96 ESCON, 32 NAS, 32 iSCSI) • High performance • Up to 1.9 million cache read hits per second • Up to 81GB/sec throughput NSC55 for benefits of USP in mid-range market • Mission Critical, 100% data availability • z/OS support • Simplified Heterogeneous management • Data Migration between tiers • Substantial BC/DR requirements • Aggressive consolidation • Significant multi-tasking workload

  47. FC SAN IP SAN WAN LAN LAN LAN N series Unified Architecture, Open Protocols Corporate Data Center Distributed locations Home Dirs Unix , Linux Exchange CIFS, NFS NAS Protocols N3700 CIFS Windows® Servers Home Dir, Network Shares, Archive Data Utilizing SATA drives N7800 w/ FC CRM Regional Data Center N5200 Gateway Linux® Servers N5500 w/ SATA ERP iSCSI Exchange & SQL Server SQL Server iSCSI Windows Servers UNIX® Servers Windows Servers One architecture, One management interface DS4800

  48. IBM N Series Key Competitive Advantages: • IBM has a single family of software (Data ONTAP) that works across all the N series offerings. This single architecture: • Reduces training • Reduces process, makes business more agile • Takes advantage of synergy between primary and secondary storage • Lowers Total Cost of Ownership • All N series products offer the same software options, system and storage management tools, and multiprotocol (NAS, IP SAN, FC SAN; FC and SATA drives) functionality • N series Snapshot technology provides greater flexibility • More copies online (up to 255) provides lower recovery time • Not copy on write, so no performance degradation • Space efficient, non-writable, non-corruptible • Backups while active file system is in production

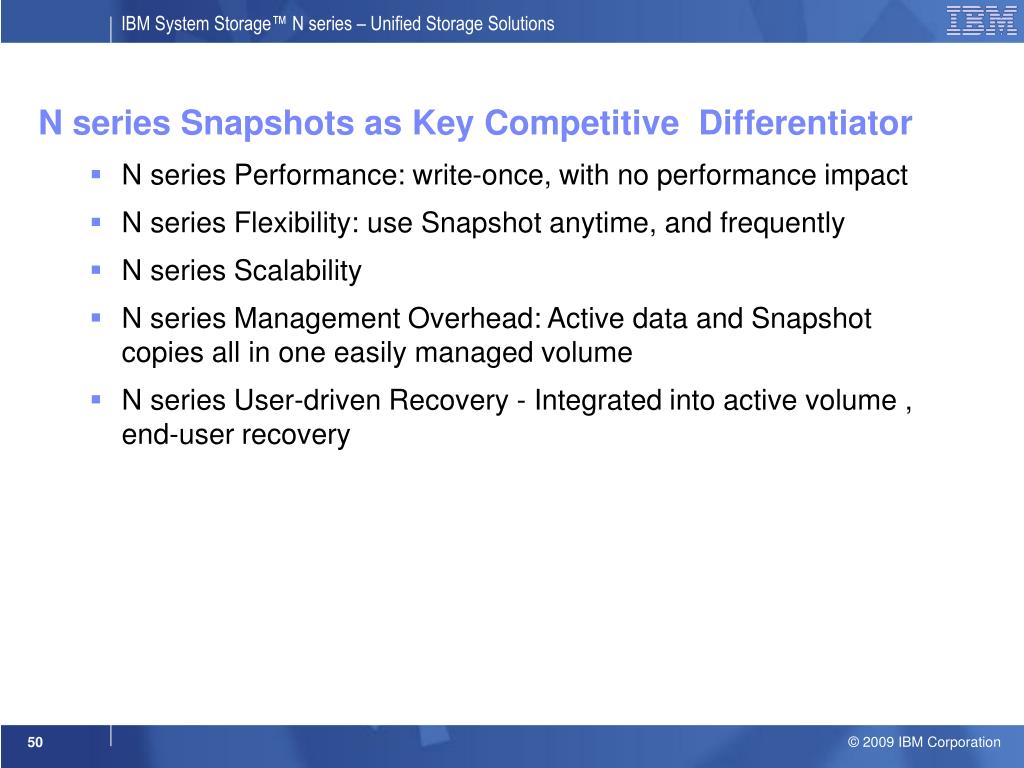

  49. N series Snapshots as Key Competitive Differentiator • N series Performance: write-once, with no performance impact • N series Flexibility: use Snapshot anytime, and frequently • N series Scalability • N series Management Overhead: Active data and Snapshot copies all in one easily managed volume • N series User-driven Recovery - Integrated into active volume , end-user recovery

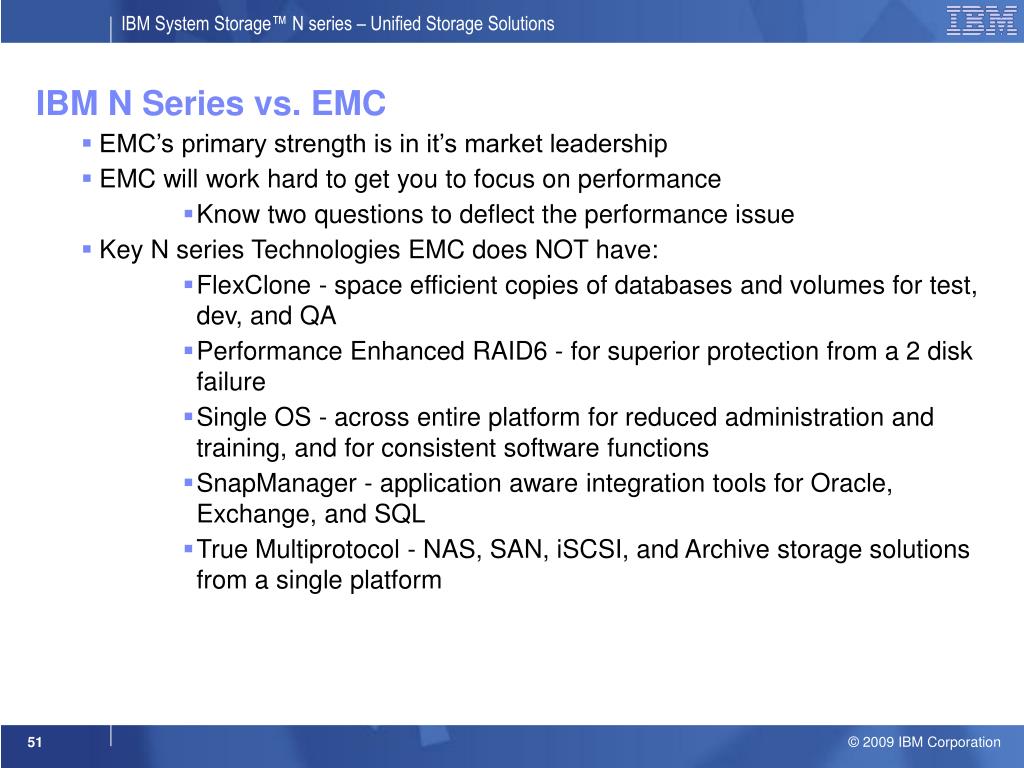

  50. IBM N Series vs. EMC • EMC’s primary strength is in it’s market leadership • EMC will work hard to get you to focus on performance • Know two questions to deflect the performance issue • Key N series Technologies EMC does NOT have: • FlexClone - space efficient copies of databases and volumes for test, dev, and QA • Performance Enhanced RAID6 - for superior protection from a 2 disk failure • Single OS - across entire platform for reduced administration and training, and for consistent software functions • SnapManager - application aware integration tools for Oracle, Exchange, and SQL • True Multiprotocol - NAS, SAN, iSCSI, and Archive storage solutions from a single platform
