  1. Instrument QC and Qualification

  2. Why QC is Important LSRII Optical Configuration LSRII QC LSRII Validation LSRII Optimization LSRII Calibration LSRII Standardization Practice Analysis?? Overview

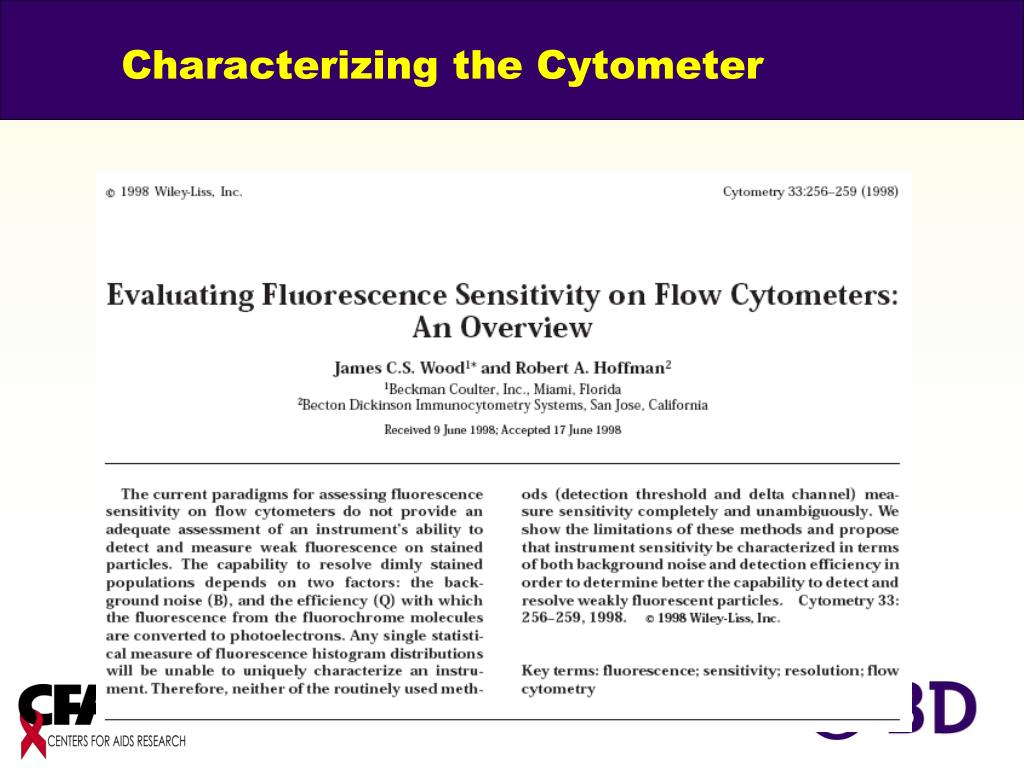

  3. Characterizing the Cytometer

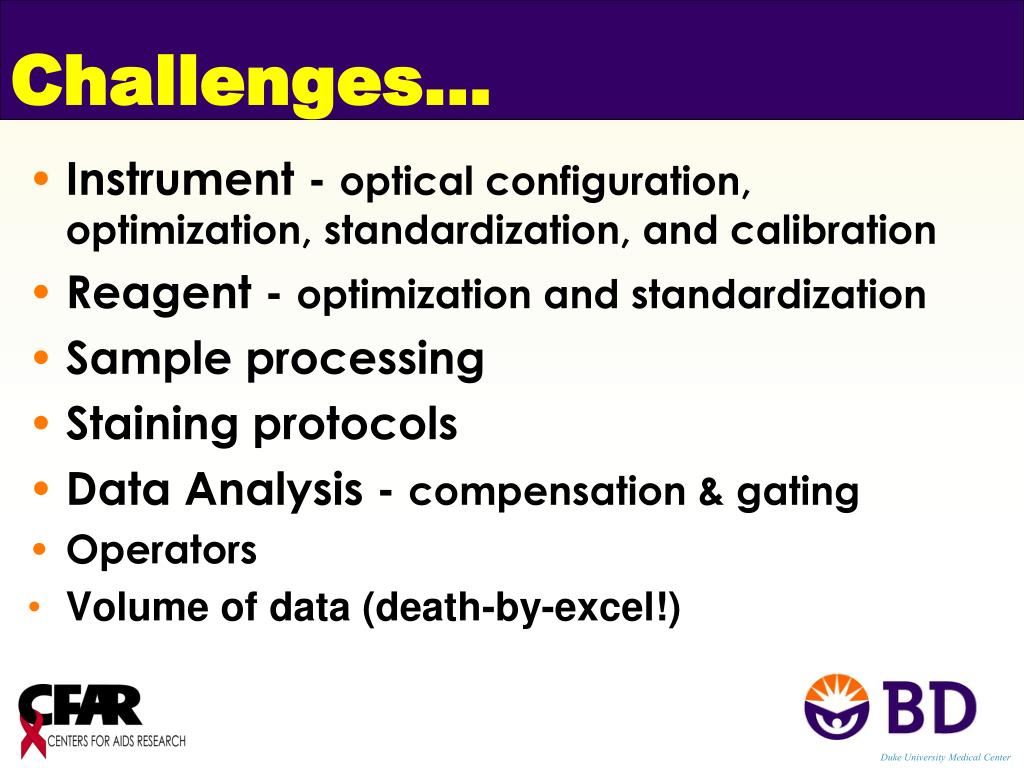

  4. Challenges… Instrument - optical configuration, optimization, standardization, and calibration Reagent - optimization and standardization Sample processing Staining protocols Data Analysis - compensation & gating Operators Volume of data (death-by-excel!) Duke University Medical Center

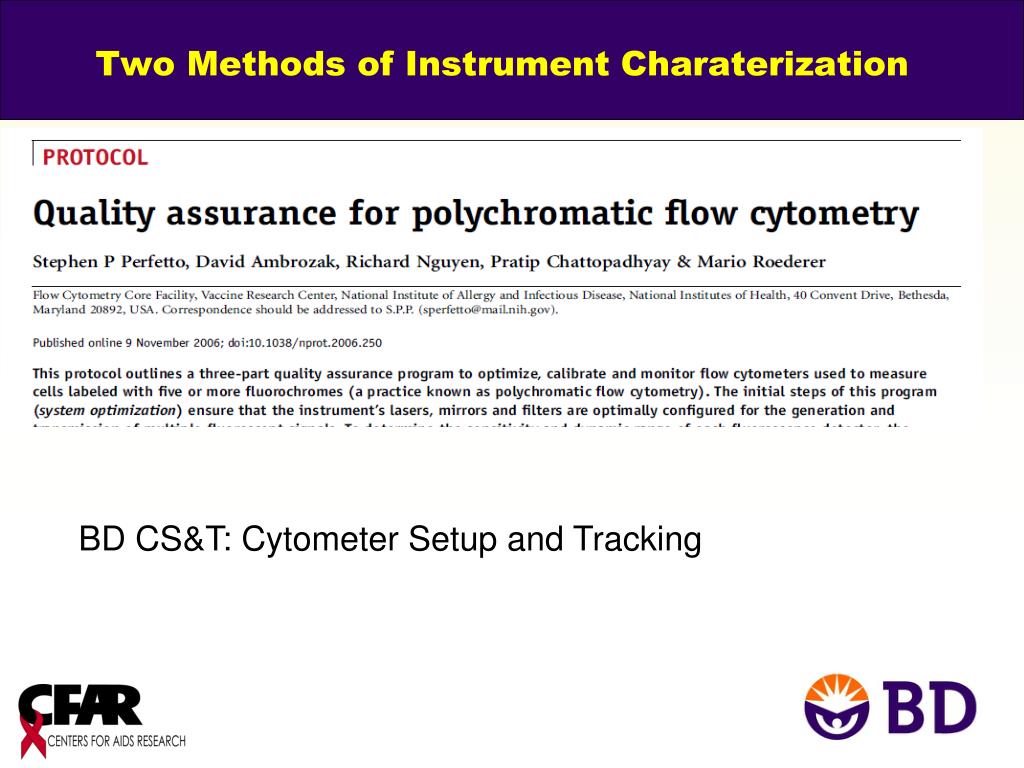

  5. Two Methods of Instrument Charaterization BD CS&T: Cytometer Setup and Tracking

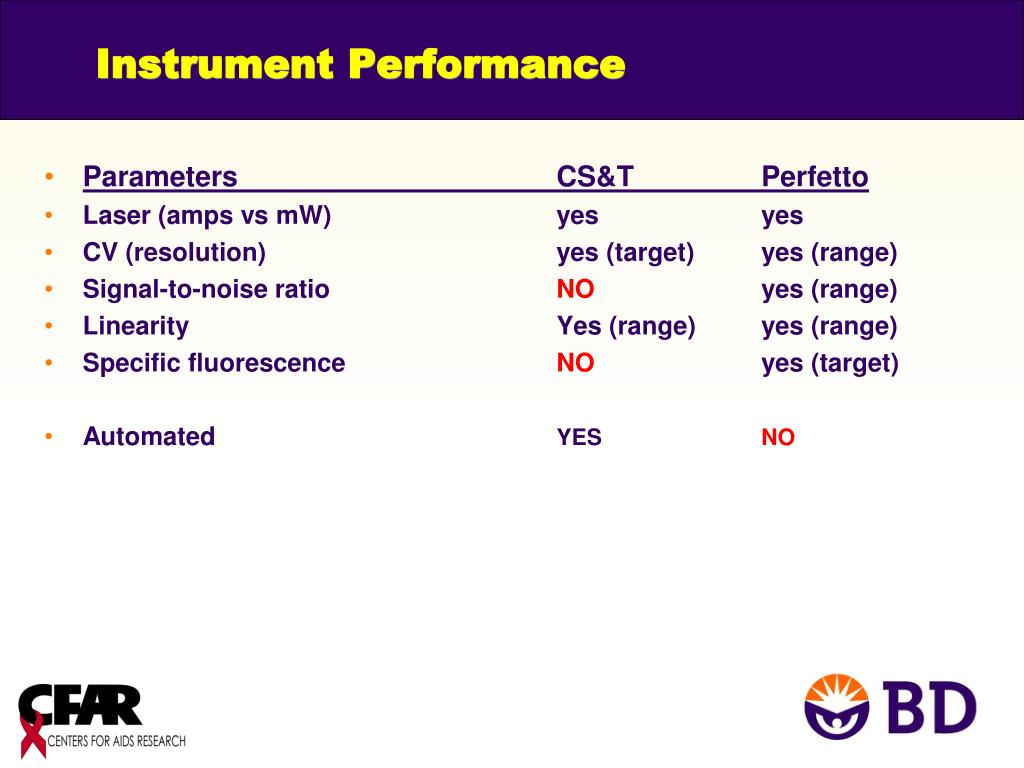

  6. Parameters CS&T Perfetto Laser (amps vsmW) yes yes CV (resolution) yes (target) yes (range) Signal-to-noise ratio NO yes (range) Linearity Yes (range) yes (range) Specific fluorescence NO yes (target) Automated YES NO Instrument Performance

  7. Instrument QC Frequency Purpose Initial Characterization & After Optical Service Validation: optimal voltage range for each detector Once Per Assay Optimization: assay specific optimal voltage for each detector & assay specific target channels Each Experiment & Troubleshooting Calibration: set detectors to assay specific target channel values for specimen acquisition Standardization: Monitor trendlines using assay specific target channels over time

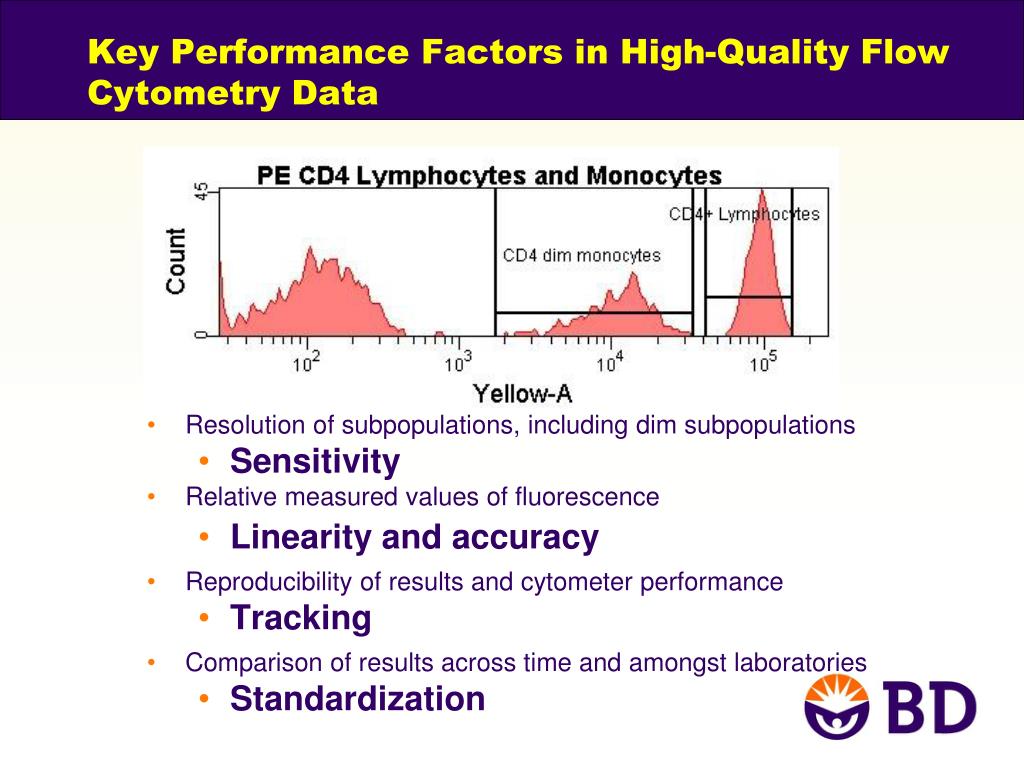

  8. Key Performance Factors in High-Quality Flow Cytometry Data • Resolution of subpopulations, including dim subpopulations • Sensitivity • Relative measured values of fluorescence • Linearity and accuracy • Reproducibility of results and cytometer performance • Tracking • Comparison of results across time and amongst laboratories • Standardization

  9. Validation Linearity Resolution (CV) Signal-to-Noise Ratio (S:N) - LLOD & LLOQ Optimization Select Optimal Voltages for Inst Performance with Assay-Specific Reagents - reduce spillover (Specificity) Establish Assay-Specific Target Channels Calibration (“Daily QC”) Set Daily Voltages Verify Voltages are within acceptable Range (P/F) Verify CVs are within acceptable Range (P/F) Set Target Channels for Specimen Acquisition (P/F) Standardization - Reproducibility/Precision Record Daily Target Channel Values Record Daily Voltages Record Daily CVs Calculate Daily S:N Plot & Review Monthly Trendlines LSRII qualification

  10. Linearity • Definition: Proportionality of output to input • Method: Access linearity using the ratio of two pulses over voltage range of the PMT • Significance: Linearity is important for compensation (Median Pk6 - Median Pk5) Median Pk5 = Constant

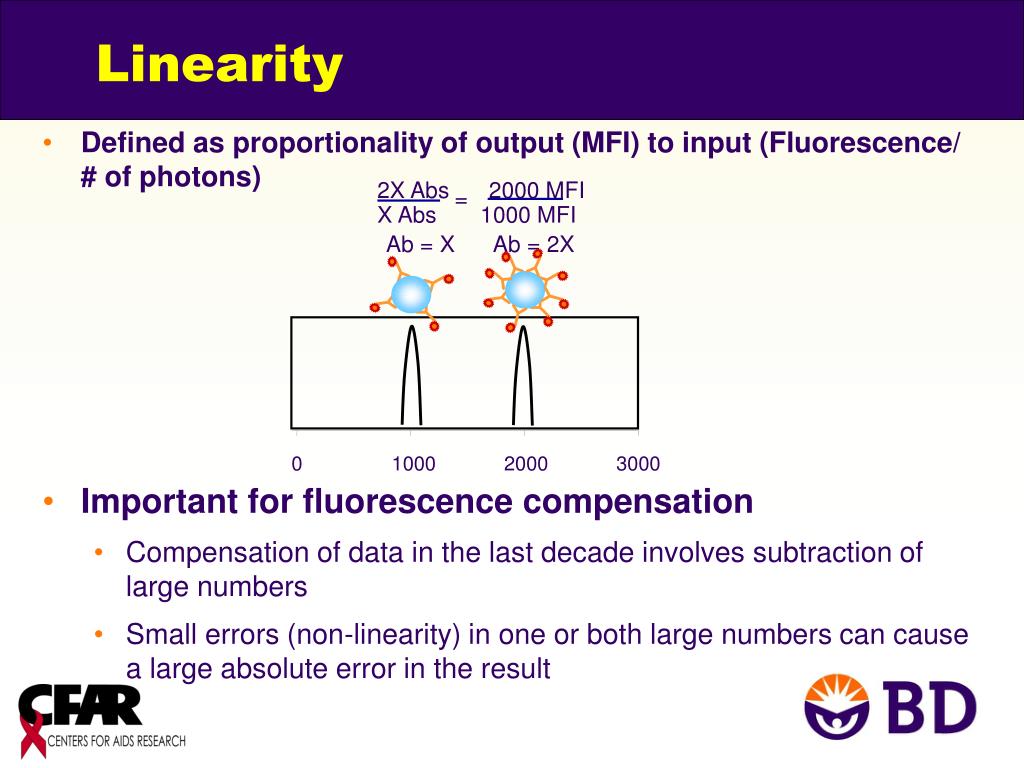

  11. Linearity • Defined as proportionality of output (MFI) to input (Fluorescence/ # of photons) • Important for fluorescence compensation • Compensation of data in the last decade involves subtraction of large numbers • Small errors (non-linearity) in one or both large numbers can cause a large absolute error in the result 2X Abs 2000 MFI = X Abs 1000 MFI Ab = X Ab = 2X 0 1000 2000 3000

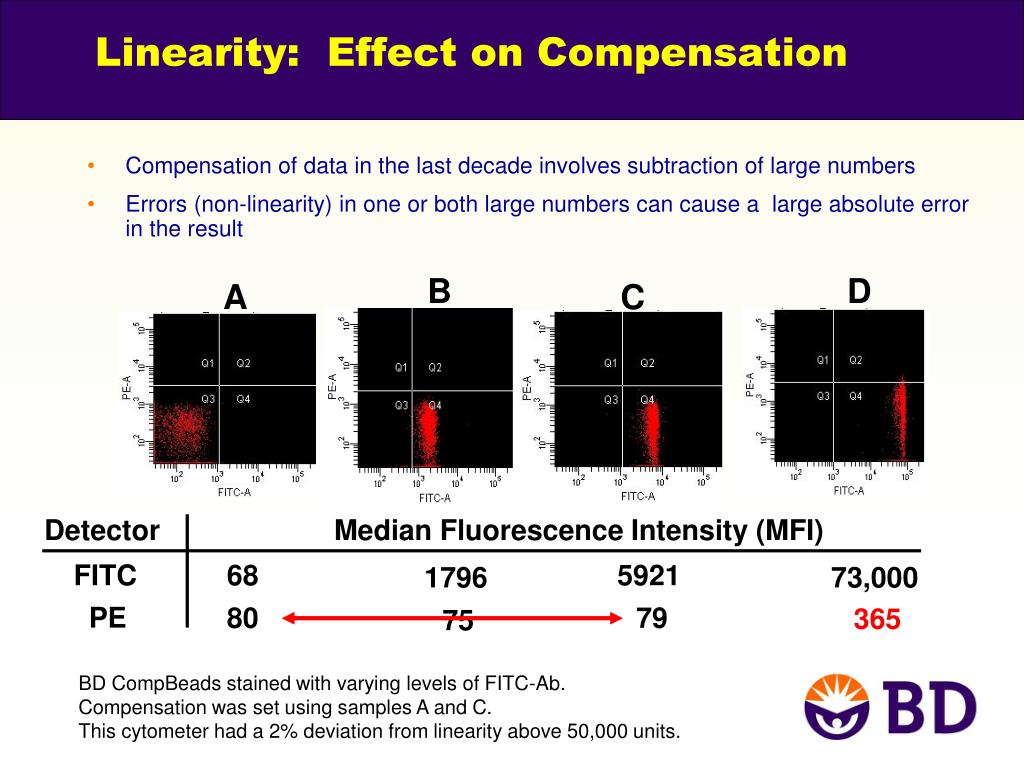

  12. A C B D Detector Median Fluorescence Intensity (MFI) FITC 68 5921 1796 73,000 PE 80 79 365 75 Linearity: Effect on Compensation • Compensation of data in the last decade involves subtraction of large numbers • Errors (non-linearity) in one or both large numbers can cause a large absolute error in the result BD CompBeads stained with varying levels of FITC-Ab. Compensation was set using samples A and C. This cytometer had a 2% deviation from linearity above 50,000 units.

  13. Validation Linearity Resolution (CV) Signal-to-Noise Ratio (S:N) - LLOD & LLOQ Optimization Select Optimal Voltages for Inst Performance with Assay-Specific Reagents - reduce spillover (Specificity) Establish Assay-Specific Target Channels Calibration (“Daily QC”) Set Daily Voltages Verify Voltages are within acceptable Range (P/F) Verify CVs are within acceptable Range (P/F) Set Target Channels for Specimen Acquisition (P/F) Standardization - Reproducibility/Precision Record Daily Target Channel Values Record Daily Voltages Record Daily CVs Calculate Daily S:N Plot & Review Monthly Trend lines LSRII Qualification

  14. cvs

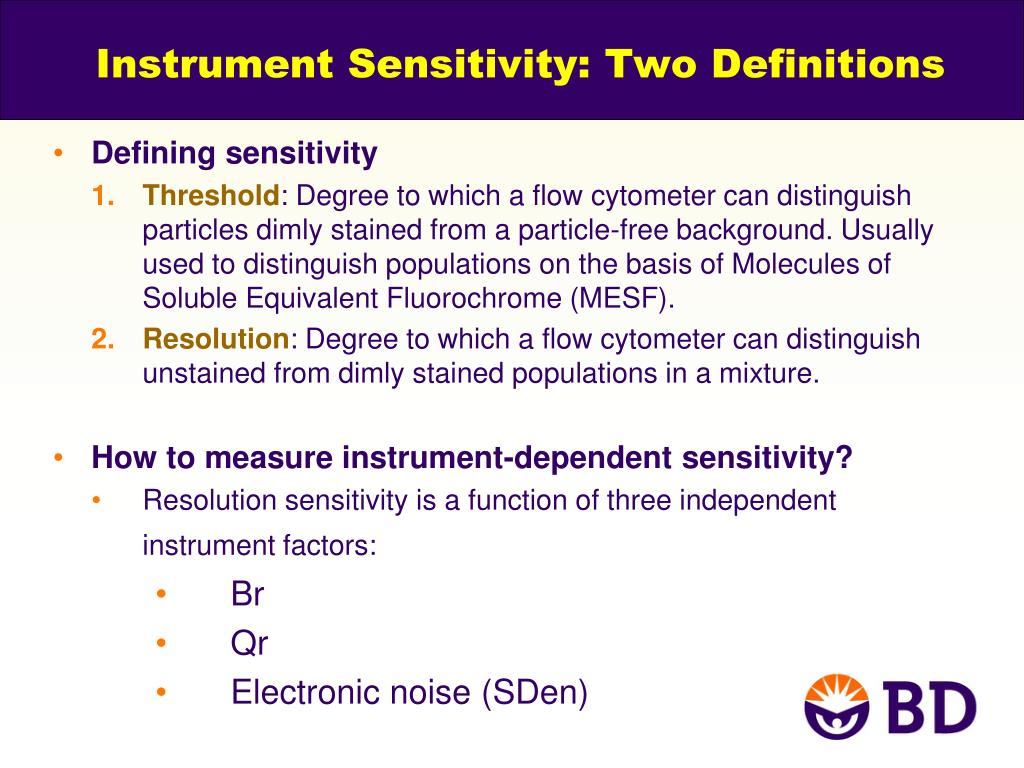

  15. Instrument Sensitivity: Two Definitions • Defining sensitivity • Threshold: Degree to which a flow cytometer can distinguish particles dimly stained from a particle-free background. Usually used to distinguish populations on the basis of Molecules of Soluble Equivalent Fluorochrome (MESF). • Resolution: Degree to which a flow cytometer can distinguish unstained from dimly stained populations in a mixture. • How to measure instrument-dependent sensitivity? • Resolution sensitivity is a function of three independent instrument factors: • Br • Qr • Electronic noise (SDen)

  16. Background contributions

  17. Why is Br important? • High Br widens negative and dim populations. • High Br value = lower resolution • Low Br value = higher resolution Low Br High Br

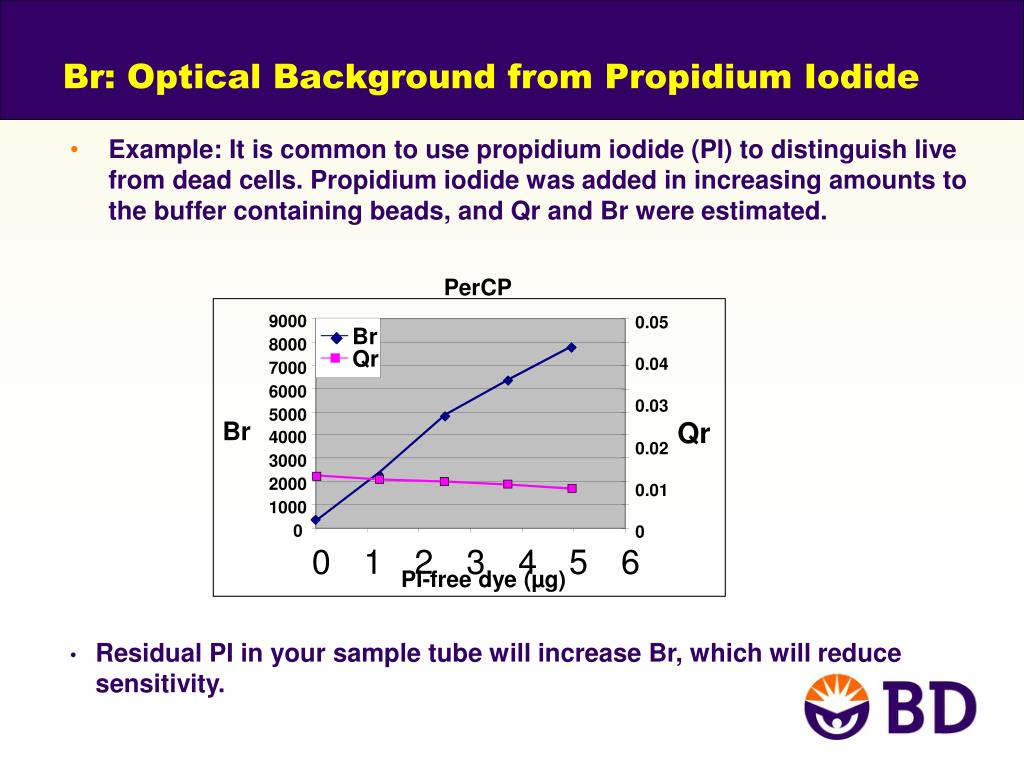

  18. PerCP 9000 0.05 8000 0.04 7000 6000 0.03 5000 Br Br Qr 4000 Qr 0.02 3000 2000 0.01 1000 0 0 0 1 2 3 4 5 6 PI-free dye (µg) Br: Optical Background from Propidium Iodide • Example: It is common to use propidium iodide (PI) to distinguish live from dead cells. Propidium iodide was added in increasing amounts to the buffer containing beads, and Qr and Br were estimated. • Residual PI in your sample tube will increase Br, which will reduce sensitivity.

  19. Relative Q: Qr • Qr is photoelectrons per fluorescence unit and indicates how bright a reagent will appear on the sample when measured in a specific detector. # photoelectrons Qr = # fluorescence molecules PMT 1  2 photoelectrons  = 0.25 Qr = 8 fluorescence molecules PMT 2 1 photoelectron  = 0.125 Qr = 8 fluorescence molecules

  20. Why is Qr important? A system with a higher Qr has a better resolution than a system with a lower Qr. Low Qr value = lower resolution High Qr value = higher resolution High Qr Low Qr

  21. What Factors Affect Qr? • Laser power • Optical efficiency • PMT sensitivity (red spectrum) • Poor PMT performance • Dirty flow cell • Dirty or degraded filter

  22. Spillover Decreases Resolution Sensitivity Spread from APC Cy-7 background Population resolution for a given fluorescence parameter is decreased by increased spread due to spillover from other fluorochromes.

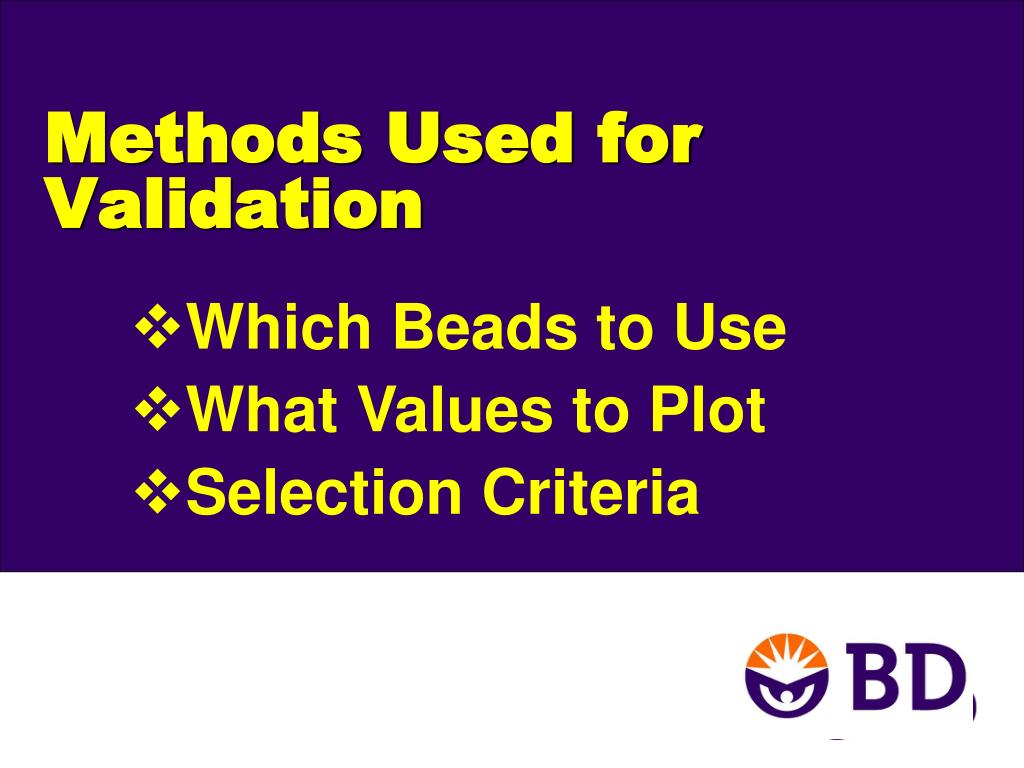

  23. Methods Used for Validation • Which Beads to Use • What Values to Plot • Selection Criteria

  24. Blue Laser Duke LSRII Red Laser Duke LSRII (488nm) (635nm) FITC Alexa 680 515/20 710/50 505LP 685LP 488LP 550LP 740LP 660/20 575/25 780/60 SSC APC PE ﾐ APC Blue Blue Cy7 Green Laser Duke LSRII Violet Laser Duke LSR II (532nm) (407nm) QDot PE 655 Cy5.5 QDot PE 585 TR 660/40 710/50 585/42 690LP 610/20 630LP Am 570LP 600LP Cyan QDot 505LP 515/20 560/40 545 535LP 557LP 575/25 560/40 450/50 640LP 595LP 740LP PE- 670LP QDot 660/40 605/40 Green Cas 780/40 565 705/70 Blue PE QDot PE QDot Cy5 605 Cy7 705 Duke LSRII Optical Configuration Duke University Medical Center

  25. Beads Used for LSRII Validation • 8 Peak Rainbow: 300-900v in 50v increments (all PMTs) • Non-fluorescent to Very Bright; Broad Spectrum Ex & Em • 8pks • Run: Once, then after optical service - “High” flow rate & LOG scale • Uses: Validation • Check Linearity: (MedianPk6-MedianPk5)/MedianPk5 • Check CV: CV Pk5 • Check S:N (LLOD & LLOQ): MedianPk5/MedianBlank • Unstained Comp Beads: 300-900v in 50v increments (all PMTs) • Non-fluorescent • 1pk • Run: Once, then after optical service- “High” flow rate & LOG scale • Uses: Validation • Check S:N (LLOD & LLOQ): MedianPk5/MedianBlank

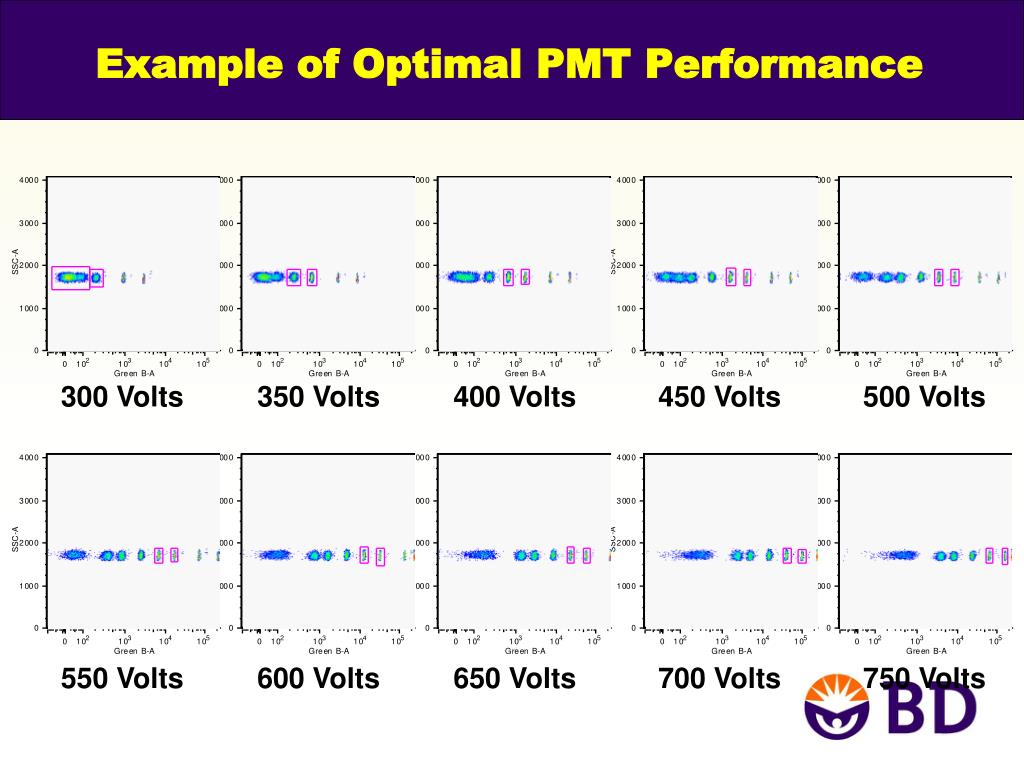

  26. Example of Optimal PMT Performance 300 Volts 350 Volts 400 Volts 450 Volts 500 Volts 550 Volts 600 Volts 650 Volts 700 Volts 750 Volts

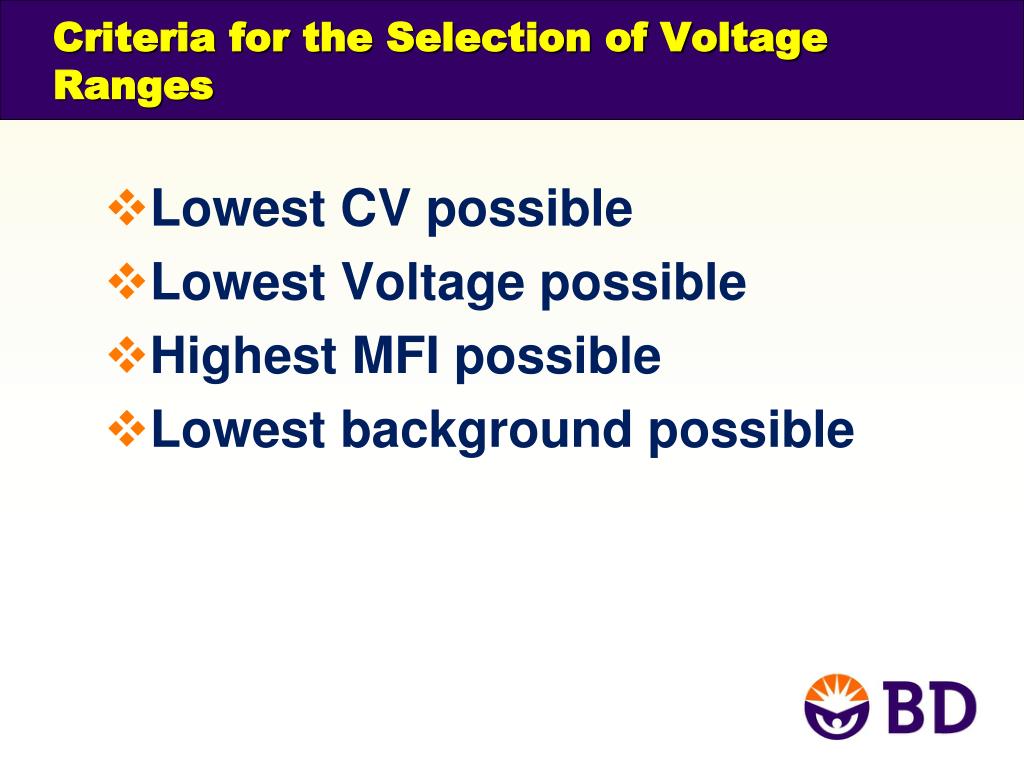

  27. Criteria for the Selection of Voltage Ranges • Lowest CV possible • Lowest Voltage possible • Highest MFI possible • Lowest background possible

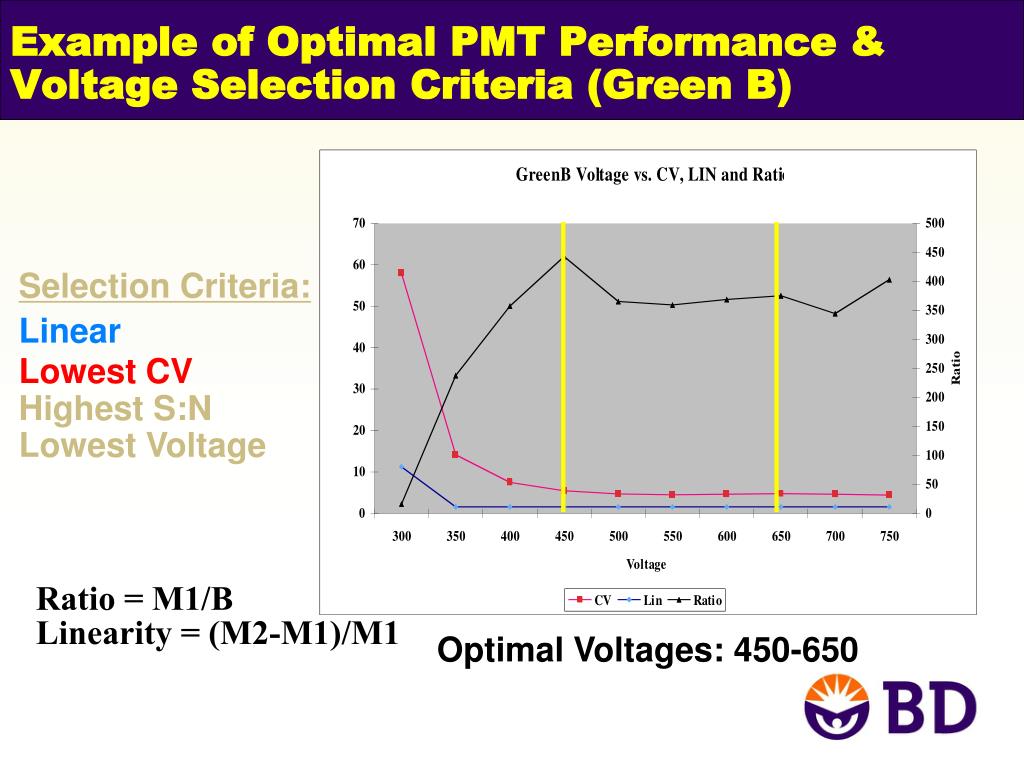

  28. Example of Optimal PMT Performance & Voltage Selection Criteria (Green B) Selection Criteria: Linear Lowest CV Highest S:N Lowest Voltage Ratio = M1/B Linearity = (M2-M1)/M1 Optimal Voltages: 450-650

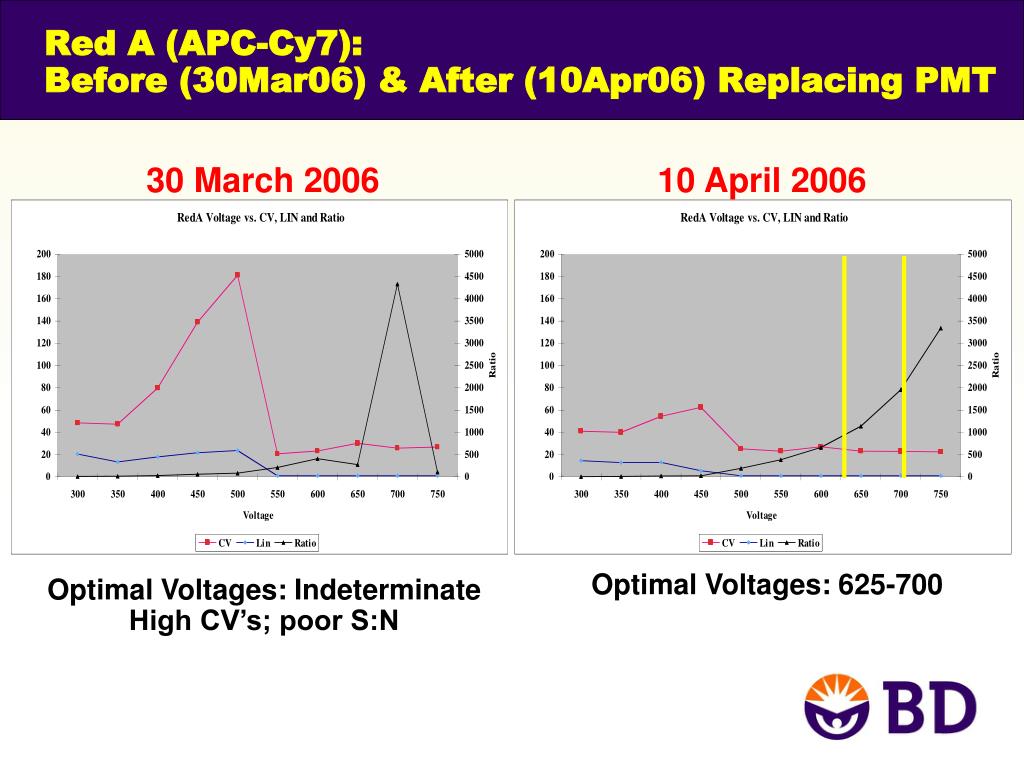

  29. Red A (APC-Cy7):Before (30Mar06) & After (10Apr06) Replacing PMT 30 March 2006 10 April 2006 Optimal Voltages: 625-700 Optimal Voltages: Indeterminate High CV’s; poor S:N

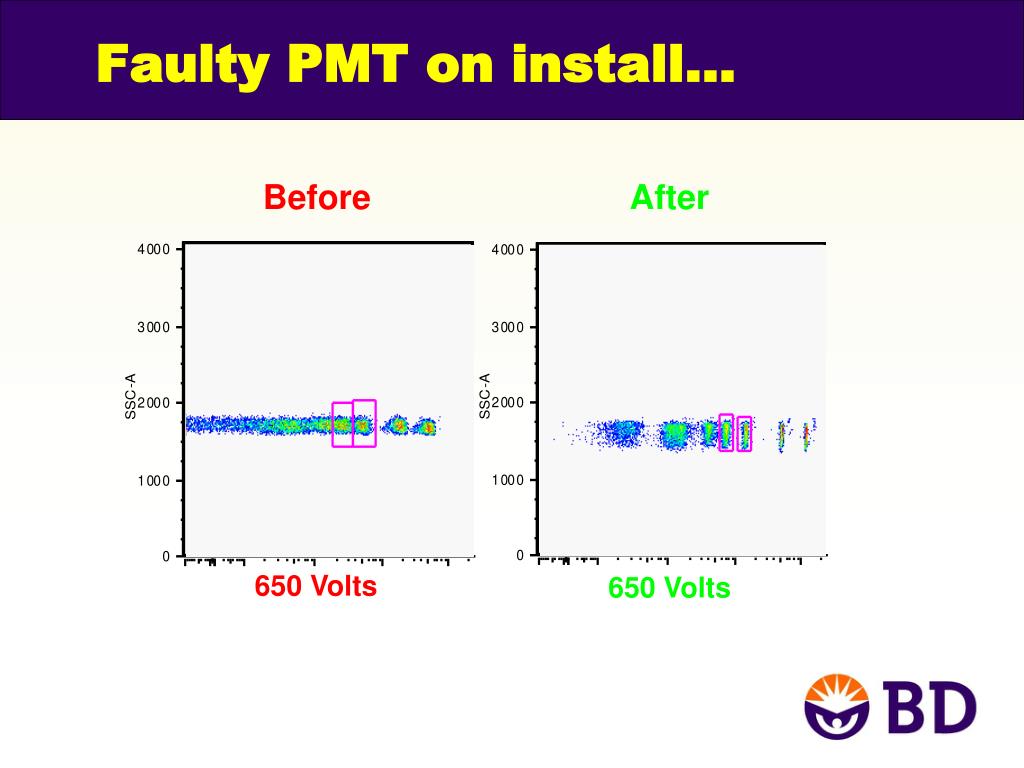

  30. Faulty PMT on install… Before After 650 Volts 650 Volts

  31. Validation Linearity Resolution Signal-to-Noise Ratio (S:N) - LLOD & LLOQ Optimization Select Optimal Voltages for Inst Performance with Assay-Specific Reagents - reduce spillover (Specificity) Establish Assay-Specific Target Channels Calibration (“Daily QC”) Set Daily Voltages Verify Voltages are within acceptable Range (P/F) Verify CVs are within acceptable Range (P/F) Set Target Channels for Specimen Acquisition (P/F) Standardization - Reproducibility/Precision Record Daily Target Channel Values Record Daily Voltages Record Daily CVs Calculate Daily S:N Plot & Review Monthly Trend lines LSRII Qualification

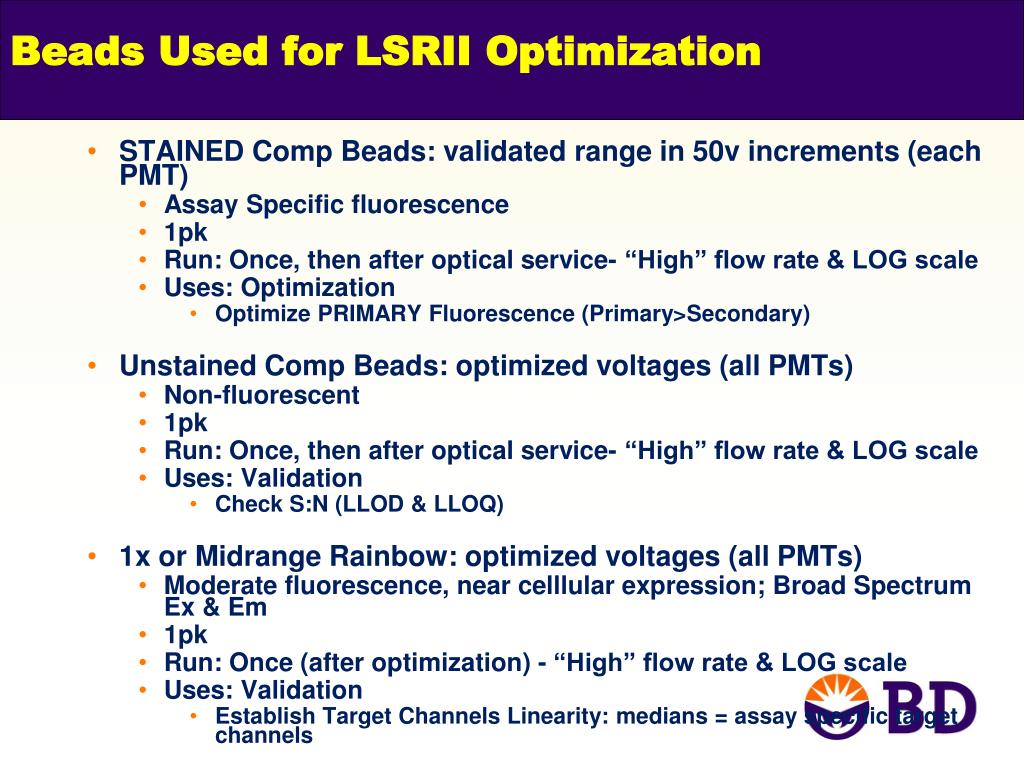

  32. Beads Used for LSRII Optimization • STAINED Comp Beads: validated range in 50v increments (each PMT) • Assay Specific fluorescence • 1pk • Run: Once, then after optical service- “High” flow rate & LOG scale • Uses: Optimization • Optimize PRIMARY Fluorescence (Primary>Secondary) • Unstained Comp Beads: optimized voltages (all PMTs) • Non-fluorescent • 1pk • Run: Once, then after optical service- “High” flow rate & LOG scale • Uses: Validation • Check S:N (LLOD & LLOQ) • 1x or Midrange Rainbow: optimized voltages (all PMTs) • Moderate fluorescence, near celllular expression; Broad Spectrum Ex & Em • 1pk • Run: Once (after optimization) - “High” flow rate & LOG scale • Uses: Validation • Establish Target Channels Linearity: medians = assay specific target channels

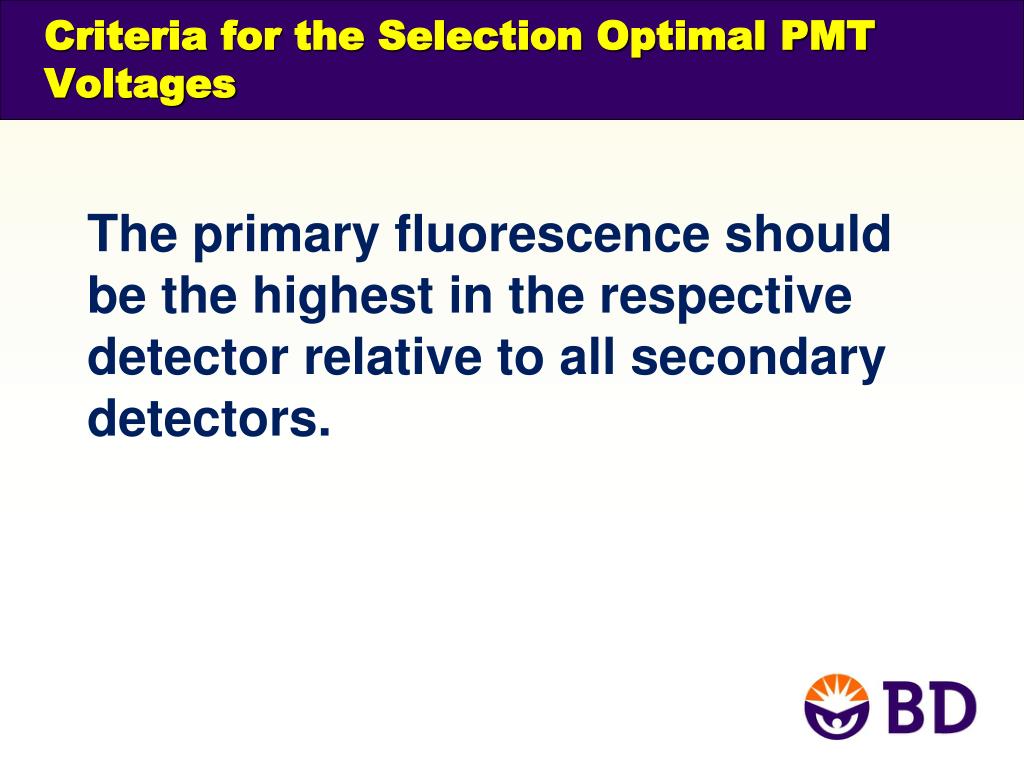

  33. Criteria for the Selection Optimal PMT Voltages The primary fluorescence should be the highest in the respective detector relative to all secondary detectors.

  34. Green A: TNF PE-Cy7460v Baseline & Final

  35. Green B: CD8 PerCP-Cy5.5450v Baseline

  36. Green B: CD8 PerCP-Cy5.5550v Final

  37. Green C: CD27 PE-Cy5350v Baseline

  38. Green C: CD27 PE-Cy5450v Final

  39. Green D: CD45RO PE-TR430v Baseline & Final

  40. Green E: MIP1b PE350v Baseline & Final

  41. Duke LSRII Optimization of Specific Fluorescence Blue Violet Primary Fluorescence Red Green Secondary Fluorescence

  42. Neg Comp Beads

  43. Validation Linearity Resolution Signal-to-Noise Ratio (S:N) - LLOD & LLOQ Optimization Select Optimal Voltages for Inst Performance with Assay-Specific Reagents - reduce spillover (Specificity) Establish Assay-Specific Target Channels Calibration (“Daily QC”) Set Daily Voltages Verify Voltages are within acceptable Range (P/F) Verify CVs are within acceptable Range (P/F) Set Target Channels for Specimen Acquisition (P/F) Standardization - Reproducibility/Precision Record Daily Target Channel Values Record Daily Voltages Record Daily CVs Calculate Daily S:N Plot & Review Monthly Trend lines LSRII Qualification

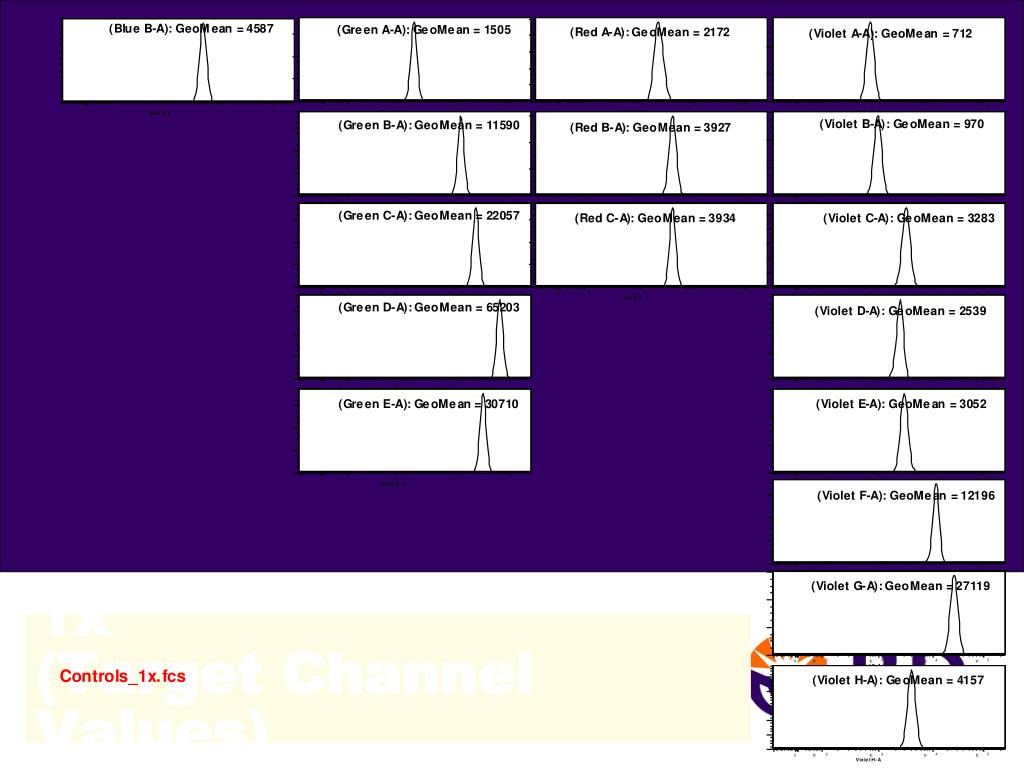

  44. 1x(Target Channel Values)

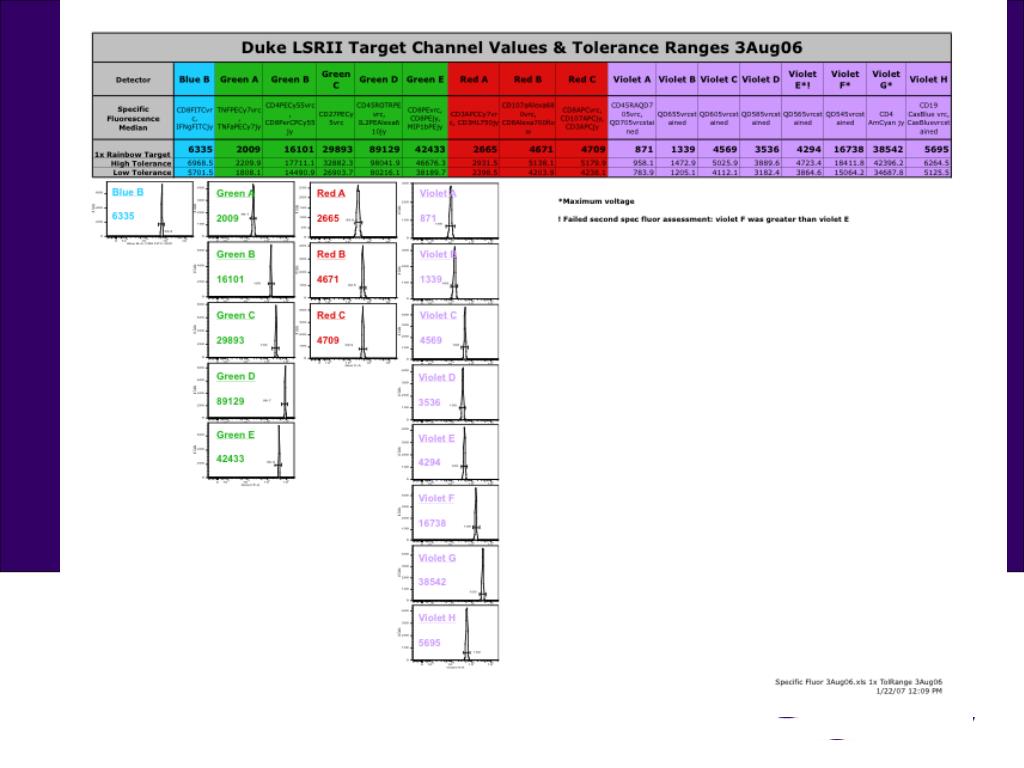

  45. Target Channels & Ranges
