RC Circuits – time behavior!

DISCHARGING. RC Circuits – time behavior!. DISCHARGING. RC Circuits – time behavior!. DISCHARGING. DISCHARGING. DISCHARGING. Number example: What are the voltages across R and across C at a time t = 0.010 s after the switch is closed?. Next page. Review of exponential decay.

rhian
Télécharger la présentation

RC Circuits – time behavior!

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. DISCHARGING RC Circuits – time behavior!

  2. DISCHARGING RC Circuits – time behavior!

  3. DISCHARGING

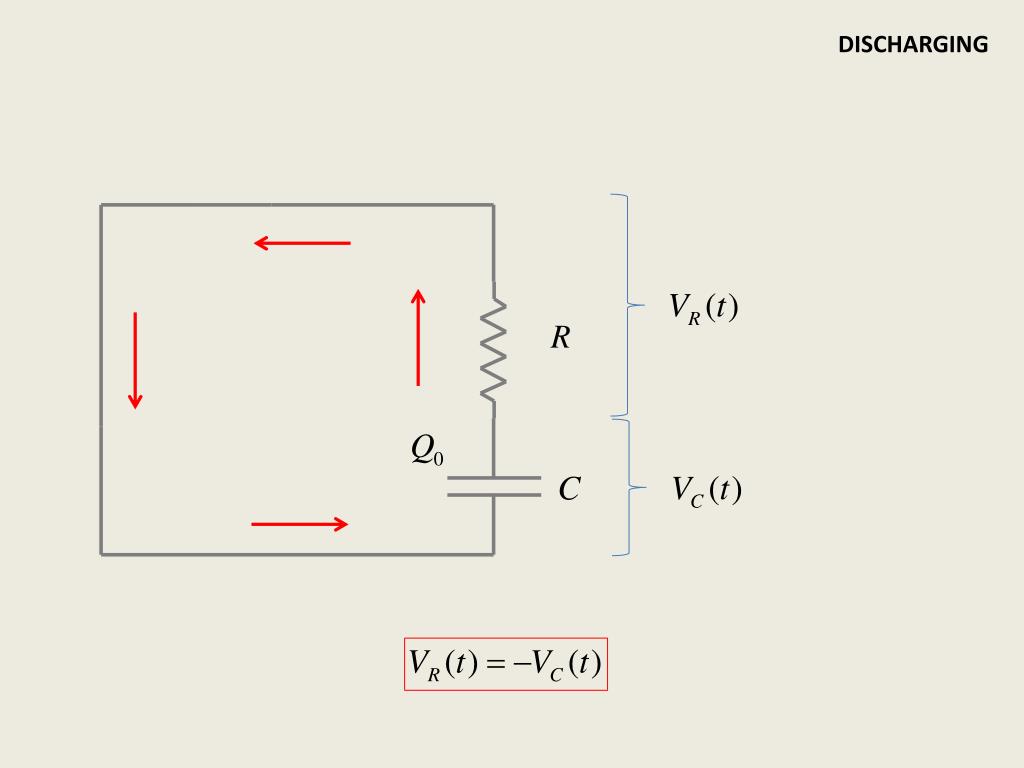

  4. DISCHARGING

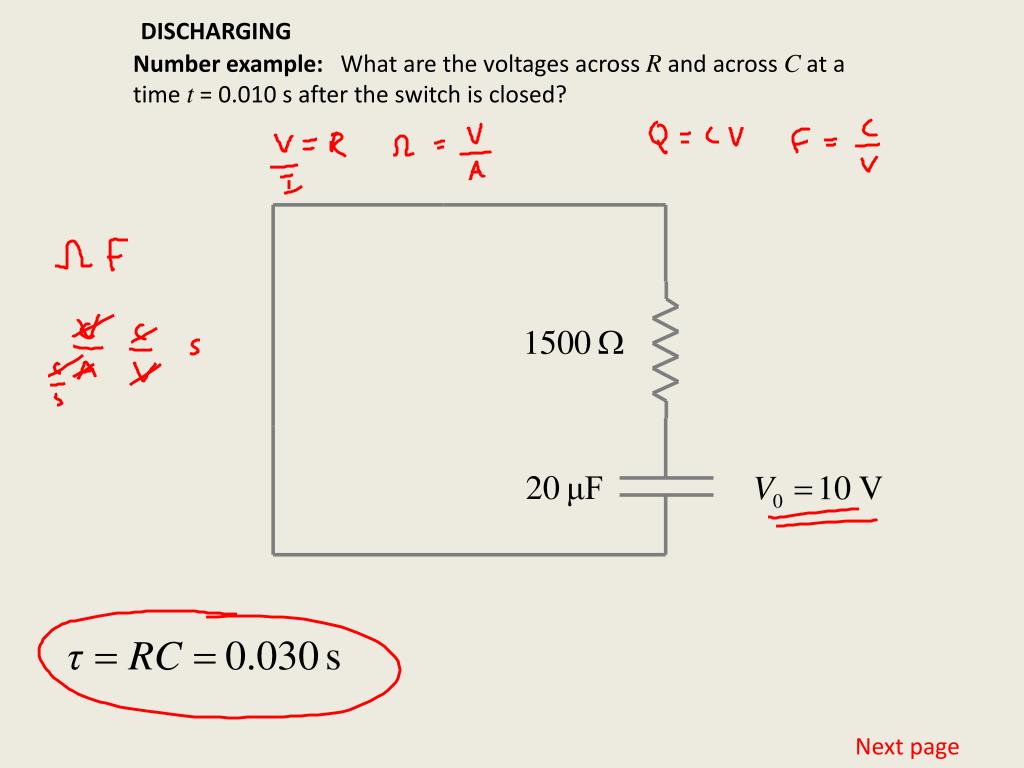

  5. DISCHARGING Number example: What are the voltages across R and across C at a time t = 0.010 s after the switch is closed? Next page

  6. Review of exponential decay 2.718281….

  7. The natural logarithm

  8. Half Life: Time it takes to decay by a factor of 1/2!

  9. Celexa: t1/2 = 37 hrs. 40 mg decreases to what after 1 day? How much (in general) after 1 day:

  10. Celexa: What if you keep taking them every day? D0 = 40 mg .64/day 100 mg 50 mg 0 1 2 3 4 5 DAYS

  11. Celexa: some math: what’s the maximum dose you ever get? Equilibrium: Day’s loss = next dose

  12. RC circuits again! Time constant: Charging: Discharging:

  13. DISCHARGE Example: R = 2.20 k and C = 150 μF – charged up to 15 V. How long for VC to fall to 10V when the switch is closed? when switch closed

  14. CHARGE Example: How long will it take to charge the Cap up to 10 V? when switch closed

  15. The neon light bulb: off on (about 60 V)

  16. Relaxation oscillator:

  17. Relaxation oscillator: 555 demo

  18. Relaxation oscillator: what’s the period of oscillation?

  19. REVIEW: What are the voltages across, and charges of, each Cap? + more space …

  20. summary …

  21. 216 mC 3.6V + 5.4V 54 mC 162 mC
