  1. Chapter 5: XHTML, Part 2 CIS 275—Web Application Development for Business I

  2. Tables • Tables in HTML documents are used for • Defining page ________ • Displaying data • Tags associated with tables • The ________ tag identifies the existence of a table • The <tr> tag defines table _______ • The <td> tag defines table _____ cells (or just “cells”) • The <caption> tag describes the table’s content. • The <thead>, <tbody>, and <tfoot> tags define the three major sections of a table. • Examples of commonly used attributes • <table border=“1” width=“100%” summary=“This …”> • <tr align=“left” valign=“top”> • <td align=“center” rowspan=“2”> layout <table> rows data

  3. Example <html> <body> <table> <tr> <td>row 1, cell 1</td> <td>row 1, cell 2</td> </tr> <tr> <td>row 2, cell 1</td> <td>row 2, cell 2</td> </tr> </table> </body> </html> Table Tips First, write the HTML code for a standard r x c table Begin to modify that code to create the desired effects, such as alignment, spanning, nested tables, etc. Simple Example and Tips

  4. <?xml version = "1.0"?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.1//EN" "http://www.w3.org/TR/xhtml11/DTD/xhtml11.dtd"> <html xmlns = "http://www.w3.org/1999/xhtml"> <head> <title>An XHTML Table</title> <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1" /> </head> <body> <table width="400" border="1"> <tr> <th align="left">Money spent on....</th> <th align="right">January</th> <th align="right">February</th> </tr> <tr> <td align="left">Clothes</td> <td align="right">$241.10</td> <td align="right">$50.20</td> </tr> <tr> <td align="left">Make-Up</td> <td align="right">$30.00</td> <td align="right">$44.45</td> </tr> <tr> <th align="left">Sum</th> <th align="right">$271.10</th> <th align="right">$94.65</th> </tr> </table> </body> </html> Example of Valid XHTML

  5. Spanning Columns <html> <body> <table border="1"> <tr> <th>Name</th> <th colspan="2">Telephone</th> </tr> <tr> <td>Bill Gates</td> <td>555 77 854</td> <td>555 77 855</td> </tr> </table> </body> </html>

  6. Spanning Rows <html> <body> <table border="1"> <tr> <th>First Name:</th> <td>Bill Gates</td> </tr> <tr> <th rowspan="2">Telephone:</th> <td>555 77 854</td> </tr> <tr> <td>555 77 855</td> </tr> </table> </body> </html>

  7. Forms input • Forms are used to capture ______ from users • A form is defined by the <form> tag • Attributes of the <form> tag • name (each form should have a name) • Example: <form id=“student_info” name=“input”> • action (what will happen when the form is __________) • Example: <form id=“student_info” name=“student_info” action=“mailto:richardjohnson@smsu.edu”> • method (data exchange method, either “get” or “______”) <form id="input" name=“input” action="html_form_action.asp" method=“post"> • The end of the form is designated with ________ submitted post </form>

  8. Form Elements • A form element is an object (i.e., a ______) within a form used to collect a single piece of information. • Tags used for form elements: • <input> for text, radio buttons, checkboxes, and push buttons • The _______ attribute is used to specify each kind of element • <select> for drop-down _______ • <option> tags are used with <select> to specify each item • <textarea> for a scrollable text area • The _______ attribute is used for each element to identify the field. • Check the examples for more details. field type list name

  9. <html> <body> <form action=“mailto:someone@w3schools.com" method="post" enctype="text/plain"> <p> Name: <input type="text" name="name" value="yourname" size="20“ /> <br /> Male: <input type="radio" name="Sex" value="Male" /> <br /> Female: <input type="radio" name="Sex" value="Female“ /> <br /> Mail:<input type="text" name="mail" value="yourmail" size="20“ /> Comment:<input type="text" name="comment" value="yourcomment" size="40“ /> <br /><br /> <input type="submit"value="Send“ /> <input type="reset" value="Reset“ /> </form> </p> </body> </html> Sample Form

  10. Introduction to Image Maps • A ___________ is an area of an image that acts as a link. • An image ______ is a list of coordinates that define hotspots. • A _______-_____ image map is processed by the server (Web site host computer). • A _______-_____ image map is downloaded to and processed by the client computer. hotspot map server side client side

  11. Defining an Image Map • The syntax for an image map is: <map id=“_____________”> <area shape = “________” coords =“_____________” href =“_____” alt=“…” > <area shape = “________” coords =“_____________” href =“_____” alt=“…” > <area shape = “________” coords =“_____________” href =“_____” alt=“…” > </map > • The shape property can have the values __________, __________, and _________. • The coords property has values, measured in _______, depending on the shape. mapid shape coordinates URL RECT CIRCLE POLY pixels

  12. 3.3 Image Map Coordinates • The coordinate syntax for a rectangle is: coords =“______________________________________” • The coordinate syntax for a circle is: coords =“______________________________________” • The coordinate syntax for a polygon is: coords =“______________________________________” • For a graphic to use an image map requires the __________ property in the ______ tag. <img src=“____________” usemap=“#____________” alt=“…”> x_left, y_upper, x_right, y_lower x_center, y_center, radius x1, y1, x2, y2, x3, y3, . . . usemap <img> filename mapid

  13. Meta • The <meta> tag is used to provide specific information about a document. Some _______ engines uses <meta> to index web page contents. • This meta element is required for character encoding: <meta http-equiv="content-type" content="text/html; charset=iso-8859-1"> (required for HTML 4.01 validation) • This meta element gives a description of your page: <meta name=“___________" content="Free Web tutorials on HTML, CSS, XML, and XHTML"> • This meta element defines keywords for your page: <meta name=“__________" content="HTML, DHTML, CSS, XML, XHTML, JavaScript, VBScript"> search description keywords

  14. Frames • The purpose of frames is to display more than one web page in a single browser _________. • Each HTML document is called a _______. • The <frameset> tag defines the _______ of frames in a window (rows or _________). • <frameset cols="25%,75%"> … </frameset> • Values for rows or cols can be percentages, pixels, or ___. • The <frame> tag defines which web page will occupy the frame. Below, two columns, two web pages. <frameset cols="25%, *">    <frame src="frame_a.htm">    <frame src="frame_b.htm"> </frameset> window frame layout columns *

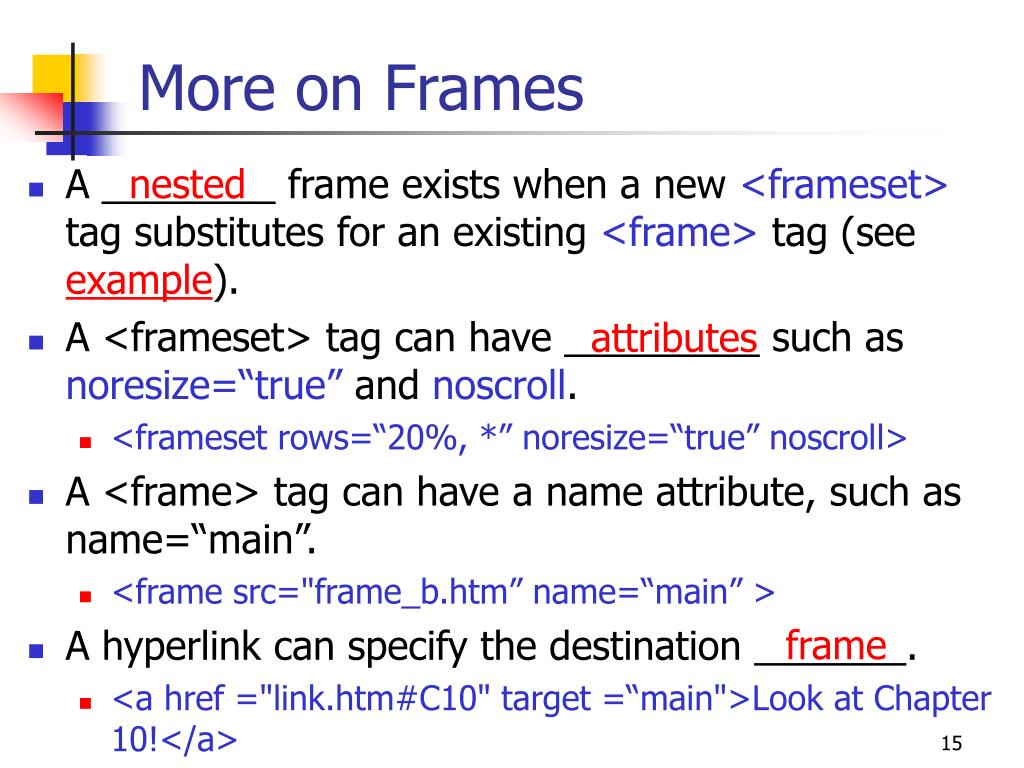

  15. More on Frames • A ________ frame exists when a new <frameset> tag substitutes for an existing <frame> tag (see example). • A <frameset> tag can have _________ such as noresize=“true” and noscroll. • <frameset rows=“20%, *” noresize=“true” noscroll> • A <frame> tag can have a name attribute, such as name=“main”. • <frame src="frame_b.htm” name=“main” > • A hyperlink can specify the destination _______. • <a href ="link.htm#C10" target =“main">Look at Chapter 10!</a> nested attributes frame

  16. Sample Frames Page <?xml version = "1.0"?> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Frameset//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-frameset.dtd"> <html> <head> <title>Frames Page</title> <meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1" /> </head> <frameset rows="25%, *"> <frame src="contents.htm" /> <frame src="resume.htm" name="main" /> </frameset> </html>

  17. Head • The head element should contain only information _______ the document. • The tags that are legal inside the head section are <base>, <link>, <meta>, _______, <style>, and <script>. • Examples • <base target="_blank"> (all ________ will use this target) • <link rel="stylesheet" type="text/css" href="mystyle.css"> (links this page to mystyle.css) • <title>Richard Johnson’s Web Site</title> (appears in ______ bar of browser window) • Others explained later about <title> hyperlinks title

  18. URL’s • Following is the general format of a URL: scheme://host.domain:port/path/filename • The scheme is the type of Internet service, such as _____ • Examples of _______ are w3schools.com or ibm.com • The host is the domain host—by default it is ______ • The port is the port number of the host—default is ____ • The path is the sub directory on the ________ • The filename is the name of the _________. If omitted, it is what is set up on the server (such as default.htm). • Examples • <a href="news:alt.html">HTML Newsgroup</a> • <a href="ftp://www.w3schools.com/ftp/winzip.exe">Download WinZip</a> http domain www 80 server document

  19. Scripts • The purpose of adding scripts to web page is to make them more dynamic and ___________. • Example: In the <body> section, add the following: <script type="text/javascript"> <!-- document.write("Hello World!") // --> </script> <noscript>Your browser doesn’t support JavaScript! </noscript> • Notes on the code above: • A browser that supports scripting will ignore the __________. • The _____ denotes a JavaScript comment • A browser that doesn’t support scripting reads <!-- as a __________. interactive <!-- // comment

  20. Servers • To make your web pages available to the world: • Use an ISP (Internet Service _________) to host your site. • Install PWS (_________ Web Server, included with Windows XP Profession (not Home Edition). • Use Windows 2000 Server built-in IIS (Internet ___________ Services). • Use Windows Server 2003 with IIS 6.0. Provider Personal Information
