THE AREA OF A SHAPE

THE AREA OF A SHAPE. AREA OF A SHAPE. The area of a shape is the amount of flat space that the shape occupies. The area of a shape is measured using squares and finding the number that will fit inside the shape.

rian
Télécharger la présentation

THE AREA OF A SHAPE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. THE AREA OF A SHAPE

  2. AREA OF A SHAPE The area of a shape is the amount of flat space that the shape occupies. The area of a shape is measured using squares and finding the number that will fit inside the shape.

  3. If the shape is made up of full or half squares it is easy to count the squares and find the area. 1/2 1/2 1/2 1 2 6 Area = 71/2 sq. 3 4 5

  4. If the shape isn’t made of full or half squares you may have to put part squares together to make whole squares. • Count the full squares. • Put half squares together (if possible). • Put other parts together to make full squares. • You must have accounted for all of the space inside the shape.

  5. Area = 7 ½ squares 1 2 5 3 4 6 7 How much area does the rest make up?

  6. width length Area = length x width AREA OF A RECTANGLE Remember: The area of a shape is measured in units squared, cm or m . 2 2

  7. 1. 5 cm 9 cm 2. 11 cm 4 cm Area = l x w = 9 x 5 = 45 cm2

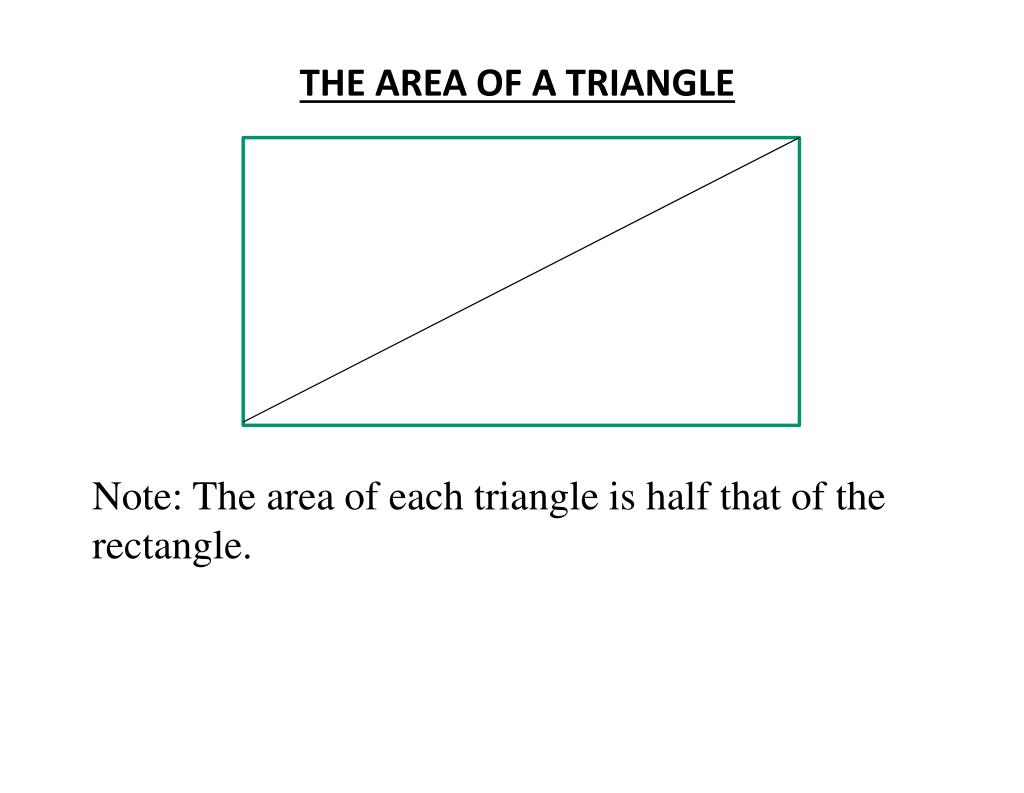

  8. THE AREA OF A TRIANGLE Note: The area of each triangle is half that of the rectangle.

  9. Area = ½ x base x height base Note: The height of a triangle is the perpendicular distance from the base to the highest point.

  10. 1. 6 cm 7 cm 2. 15 cm 10 cm THE AREA OF A TRIANGLE Area = ½ x base x height Area = ½ x 7 x 6 = ½ x 42 = 21 cm2 base Area = ½ x 10 x 15 = ½ x 150 = 75 cm2
