Numerical Methods for Acoustic Problems with Complex Geometries Based on Cartesian Grids

This overview discusses advanced numerical methods for solving acoustic problems in complex geometries, particularly using Cartesian grids. It covers key topics in computational aeroacoustics, including spatial discretization techniques like the Dispersion-Relation-Preserving (DRP) scheme and Optimized-Prefactored-Compact (OPC) schemes. The document also details time integration methods, specifically Low Dissipation and Dispersion Runge-Kutta (LDDRK) schemes, and examines the Cut-Cell method for handling boundaries. Results from test cases are presented, comparing CFD with aeroacoustic simulations, and proposals for improving solution accuracy are outlined.

rianne
Télécharger la présentation

Numerical Methods for Acoustic Problems with Complex Geometries Based on Cartesian Grids

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Numerical Methods for Acoustic Problems with Complex Geometries Based on Cartesian Grids D.N. Vedder 1103784

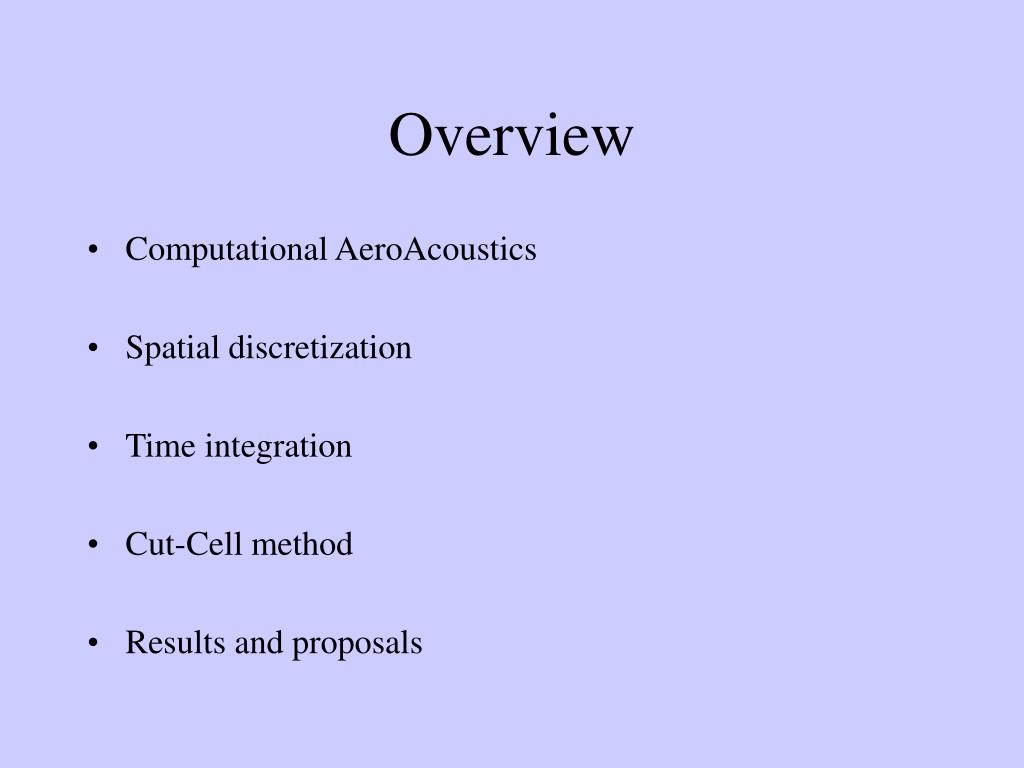

  2. Overview • Computational AeroAcoustics • Spatial discretization • Time integration • Cut-Cell method • Results and proposals

  3. CFD vs AeroAcoustics AeroAcoustics: Sound generation and propagation in association with fluid dynamics.  Lighthill’s and Ffowcs Williams’ Acoustic Analogies Computational AeroAcoustics(AeroAcoustics)

  4. Computational AeroAcoustics(Acoustics) • Sound modelled as an inviscid fluid phenomena  Euler equations • Acoustic waves are small disturbances  Linearized Euler equations:

  5. Computational AeroAcoustics(Dispersion relation) • A relation between angular frequency and wavenumber. • Easily determined by Fourier transforms

  6. Spatial discretization (DRP) • Dispersion-Relation-Preserving scheme • How to determine the coefficients?

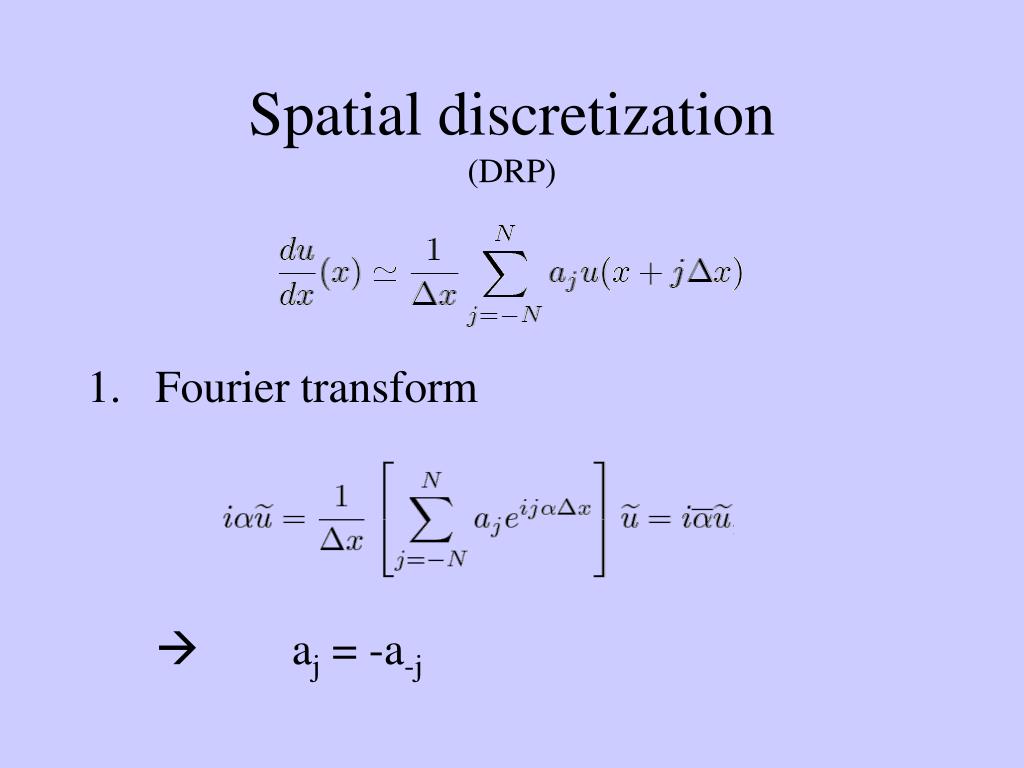

  7. Spatial discretization (DRP) • Fourier transform  aj = -a-j

  8. Spatial discretization (DRP) • Taylor series Matching coefficients up to order 2(N – 1)th  Leaves one free parameter, say ak

  9. Spatial discretization (DRP) 3. Optimizing

  10. Spatial discretization (DRP) Dispersive properties:

  11. Spatial discretization (OPC) • Optimized-Prefactored-Compact scheme • Compact scheme  Fourier transforms and Taylor series

  12. Spatial discretization (OPC) 2. Prefactored compact scheme Determined by

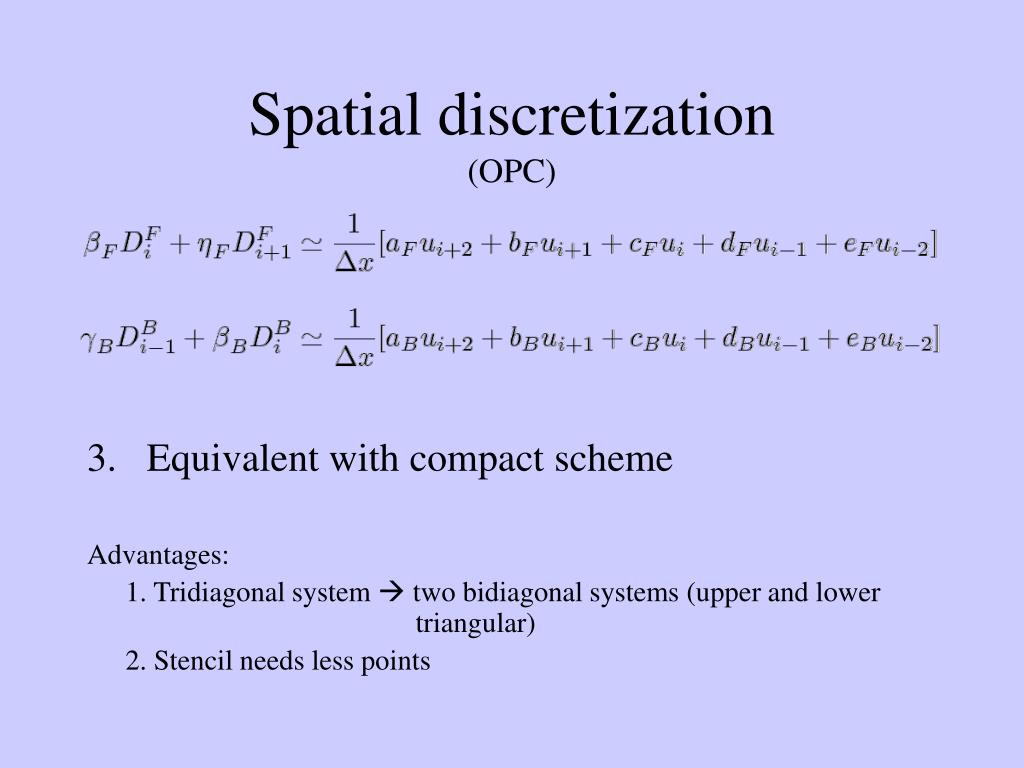

  13. Spatial discretization (OPC) 3. Equivalent with compact scheme Advantages: 1. Tridiagonal system  two bidiagonal systems (upper and lower triangular) 2. Stencil needs less points

  14. Spatial discretization (OPC) • Dispersive properties:

  15. Spatial discretization (Summary) • Two optimized schemes • Explicit DRP scheme • Implicit OPC scheme • (Dis)Advantages • OPC: higher accuracy and smaller stencil • OPC: easier boundary implementation • OPC: solving systems • Finite difference versus finite volume approach

  16. Time Integration (LDDRK) • Low Dissipation and Dispersion Runge-Kutta scheme

  17. Time Integration (LDDRK) • Taylor series • Fourier transforms • Optimization • Alternating schemes

  18. Time Integration (LDDRK) Dissipative and dispersive properties:

  19. Cut-Cell Method • Cartesian grid • Boundary implementation

  20. Cut-Cell Method fn fe fw • fn and fw with boundary stencils • fint with boundary condition • fsw and fe with interpolation polynomials fint fsw

  21. Test case Reflection on a solid wall • 6/4 OPC and 4-6-LDDRK • Outflow boundary conditions

  22. Proposals • Resulting order of accuracy • Impact of cut-cell procedure on it • Richardson/least square extrapolation • Improvement of solution

  23. Questions?
