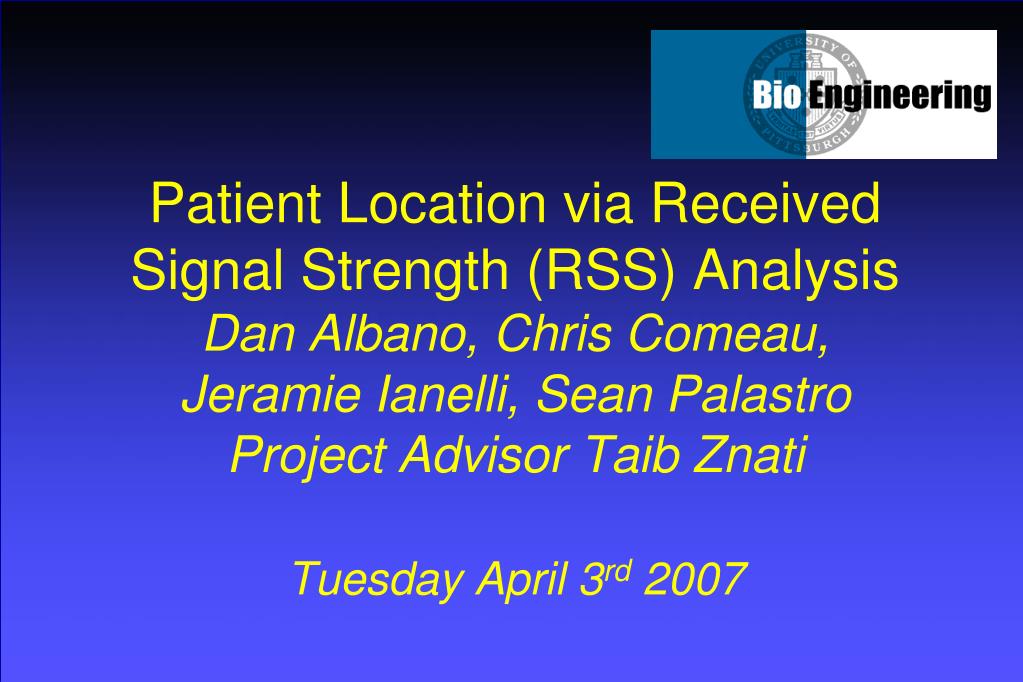

Patient Location via Received Signal Strength (RSS) Analysis Dan Albano, Chris Comeau, Jeramie Ianelli, Sean Palastro Project Advisor Taib Znati Tuesday April 3 rd 2007. Background.

richard-rivers
Télécharger la présentation

Background

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Patient Location via Received Signal Strength (RSS) Analysis Dan Albano, Chris Comeau, Jeramie Ianelli, Sean PalastroProject Advisor Taib ZnatiTuesday April 3rd 2007

  2. Background • Received signal strength (RSS) – parameter of wireless communications protocols (RF, IR, Bluetooth, etc.) that describes the power of a received signal • Signal strength is proportional to 1/d2 • Using this information, the distance between signal transmitter and receiver can be found • When combined with known locations of reference transmitters, a user’s location can be determined

  3. Project overview • The RSS location system is a set of software tools that allow for continuous indoor user tracking • Rmapr, a radio map generator • Generates a location-specific radio map • Trakr, the main end-user program • Compares real-time RSS values with radio map data to approximate location

  4. Project goals/rationale • Develop an architecture to advance/explore the field of location-aware computing • open-source • non-proprietary • RSS-based • Cross-platform approach allows for virtually limitless applications • Take advantage of 802.11b infrastructure • Existing • Inexpensive • Drivers available • Potential uses • Health Care - Patient monitoring • Military - Infantry / Supply monitoring • Elderly Support - In-Home / Assisted Living

  5. Competitive Analysis • As compared to commercial location tracking solutions, • Our strengths • Open source • Software-based • Free • Non-proprietary • Our weaknesses • Location-specific • Accuracy dependent on building geometry • As location changes, radio map must be updated

  6. Design Alternatives • Wireless communication protocol? • RF, Wi-Fi, Bluetooth, ultrasound, IR • Wi-Fi (802.11b) was chosen • Inexpensive, near-ubiquitous • Programming language? • C/C++, Java, Python, Matlab • C++ was chosen • Simple to implement, pre-existing device libraries • Development platform? • Windows, Linux, Palm OS

  7. Milestones • Wireless access points and Palm units received • Driver development • Linux • Windows • Palm • Blueprints received • Radio-map development • Compile an API for Windows, Linux, Palm • Explore alternate algorithms, improve radio map density • Additional features/refinement

  8. List of Materials • Blueprint or dimensions of 5th Floor of Sennott Square • Device driver capable of extracting RSS values of multiple SSIDs • Five 802.11b compatible access points • Laptop w/ Windows XP, Linux • Microsoft Visual Studio • Windows Driver Development Kit • Palm OS Developer’s Suite • Palm Tx handhelds • Server Desktop Computer

  9. Main components • Hardware • Pre-existing 802.11b infrastructure • At least 3 AP’s • Software • Rmapr • Radio map • Trakr

  10. Hardware – Access Points Our testing area: • 5th floor Sennott Sq. • 5 AP’s • Sources of interference: • Pre-existing wireless networks in addition to our own • Offices, construction materials, wireless devices, etc.

  11. Software – Rmapr Radio Map Generator • Creates radio map of a location by recording RSS values of reference AP’s at many points in the area • Generates a list with the form (x, y, RSS1, RSS2, RSS3, RSS4, RSS5) • As map density increases, accuracy increases, but set-up time increases as well • Radio map is stored in server

  12. Software - Trakr end-user interface • As user moves, the software reads the RSS values of nearby AP’s • These RSS values are compared to the radio map • The closest match from the radio map is loaded and the location data is read • This data is interpreted by the software and updated in the GUI

  13. Viterbi algorithm • The Viterbi algorithm allows us to predict the path and location of the user from the observed changes in signal strength • Makes use of a moving average estimation • In depth discussion of theory is out of the scope of this presentation

  14. Project management • Goals of BIOENG 1160: • Develop radio map • Develop server and end-user programs • Test multiple location algorithms/add functionality • Results of BIOENG 1161 • Develop radio map  • Develop server and end-user programs  • Test multiple location algorithms/add functionality – in progress

  15. Individual areas of focus • Dan Albano • Linux/Palm implementation, driver development • Chris Comeau • Linux/Palm implementation, driver development • Jeramie Ianelli • Literature, research, hardware • Sean Palastro • Windows implementation, driver development

  16. Problems • Initial API tests failed • Further development of project rests on driver development • Drivers eventually developed/adapted • Additional hardware will be required to develop a LINUX platform driver • Additional laptop for LINUX development acquired • Waiting on hardware

  17. Future work • Project refinement • Find errors using multiple methods of location detection, (Averaging, etc.) • Develop location-based error tracking graph to locate areas with significant interference/attenuation • Project expansion • Add GUI front-end • Additional Palm development • Misc. features

  18. Acknowledgements Our group would like to thank • Dr. Taib Znati for his time, effort, and funding • Bill Hoffman for network access and troubleshooting • Anandha Gopalan for Linux advice and code troubleshooting • Bioengineering department for funding and resources

  19. Questions
