  1. Sayed Ahmed Computer Science and Engineering, BUET, Bangladesh MSc, Computer Science, Canada http://sayed.justetc.net Introduction to Angular.JS

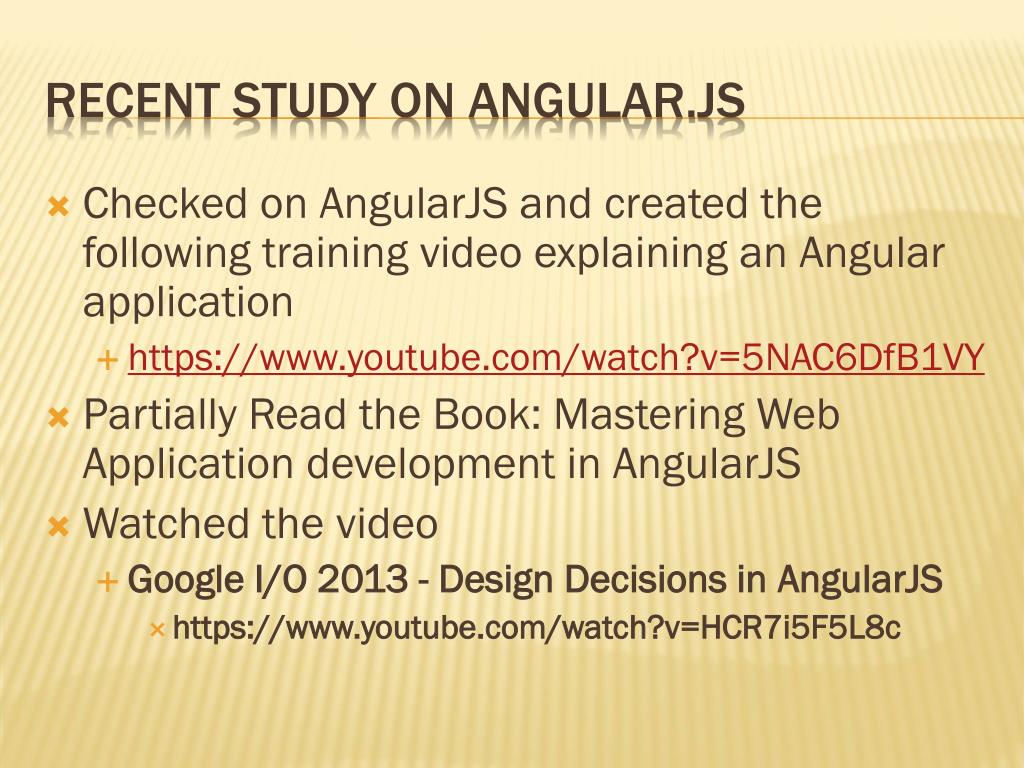

  2. Checked on AngularJSand created the following training video explaining an Angular application • https://www.youtube.com/watch?v=5NAC6DfB1VY • Partially Read the Book: Mastering Web Application development in AngularJS • Watched the video • Google I/O 2013 - Design Decisions in AngularJS • https://www.youtube.com/watch?v=HCR7i5F5L8c Recent Study on Angular.JS

  3. Watched this but pretty lightly • Introduction to Angular JS • https://www.youtube.com/watch?v=8ILQOFAgaXE • Pretty lightly watched • Karl Seamon - Angular Performance - NG-Conf • https://www.youtube.com/watch?v=zyYpHIOrk_Y • Tried to watch but did not finish [still in my tablet] • Security with Angular JS • https://www.youtube.com/watch?v=18ifoT-Id54 • Testing Strategies for Angular JS • https://www.youtube.com/watch?v=UYVcY9EJcRs Recent Study on AngularJS

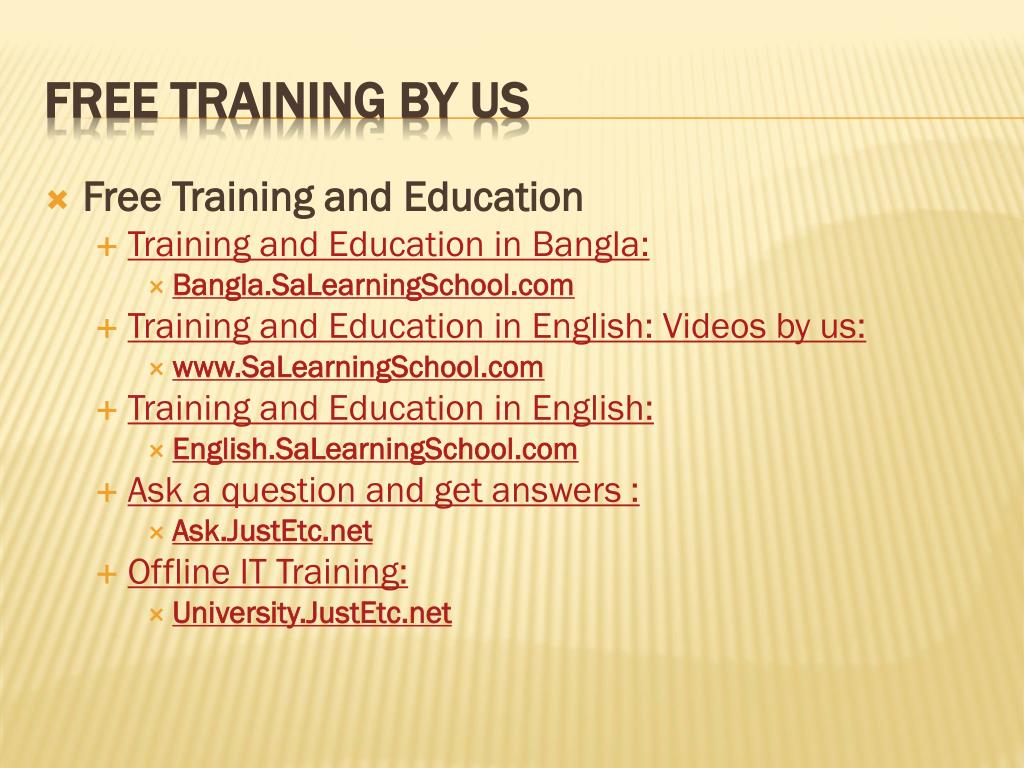

  4. Free Training and Education • Training and Education in Bangla: • Bangla.SaLearningSchool.com • Training and Education in English: Videos by us: • www.SaLearningSchool.com • Training and Education in English: • English.SaLearningSchool.com • Ask a question and get answers : • Ask.JustEtc.net • Offline IT Training: • University.JustEtc.net Free Training by US

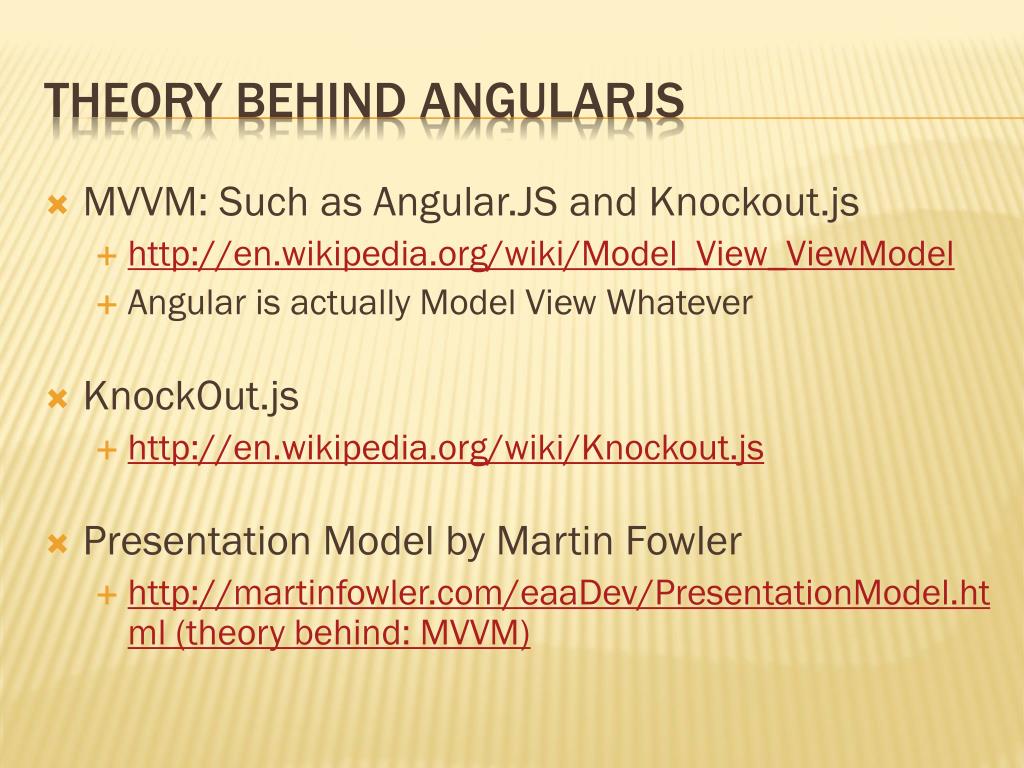

  5. MVVM: Such as Angular.JS and Knockout.js • http://en.wikipedia.org/wiki/Model_View_ViewModel • Angular is actually Model View Whatever • KnockOut.js • http://en.wikipedia.org/wiki/Knockout.js • Presentation Model by Martin Fowler • http://martinfowler.com/eaaDev/PresentationModel.html (theory behind: MVVM) Theory Behind AngularJS

  6. Why Angular? and Why not Angular [Yes, checked them lightly or not] • 10 reasons why use angular? • http://www.sitepoint.com/10-reasons-use-angularjs/ • Why Does Angular.js Rock? • http://angular-tips.com/blog/2013/08/why-does-angular-dot-js-rock/ • Check the total article and esp the section: Why not Angular, Why not Backbone, Why not Ember • https://moot.it/blog/technology/frameworkless-javascript.html • These articles do worth reading [recommended]: • http://angular-tips.com/blog/archives/ • Bite-sized web development training with AngularJS • https://egghead.io/ Angular.JS resources : Related JavaScript framework Stuff

  7. Mastering Web Application Development with AngularJS • http://www.packtpub.com/angularjs-web-application-development/book • CRUD Application Demo with Angular • https://github.com/angular-app/angular-app • Angular.JS Wiki • https://github.com/angular/angular.js/wiki Angular.JS resources : Related JavaScript framework Stuff

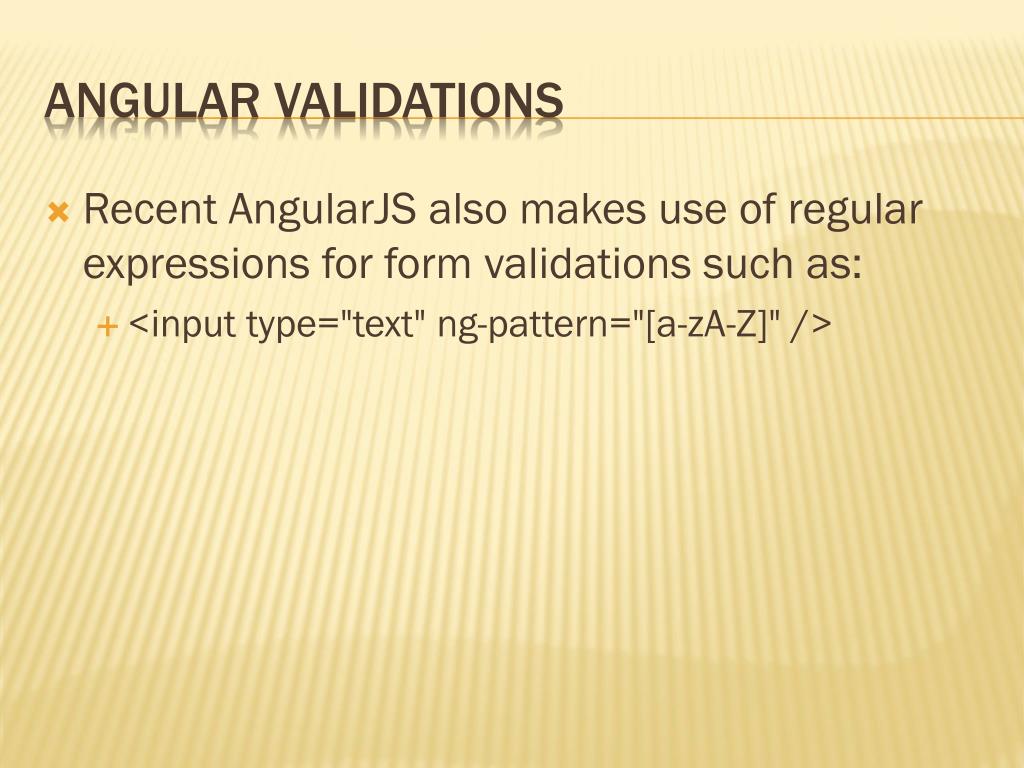

  8. Recent AngularJS also makes use of regular expressions for form validations such as: • <input type="text" ng-pattern="[a-zA-Z]" /> Angular Validations

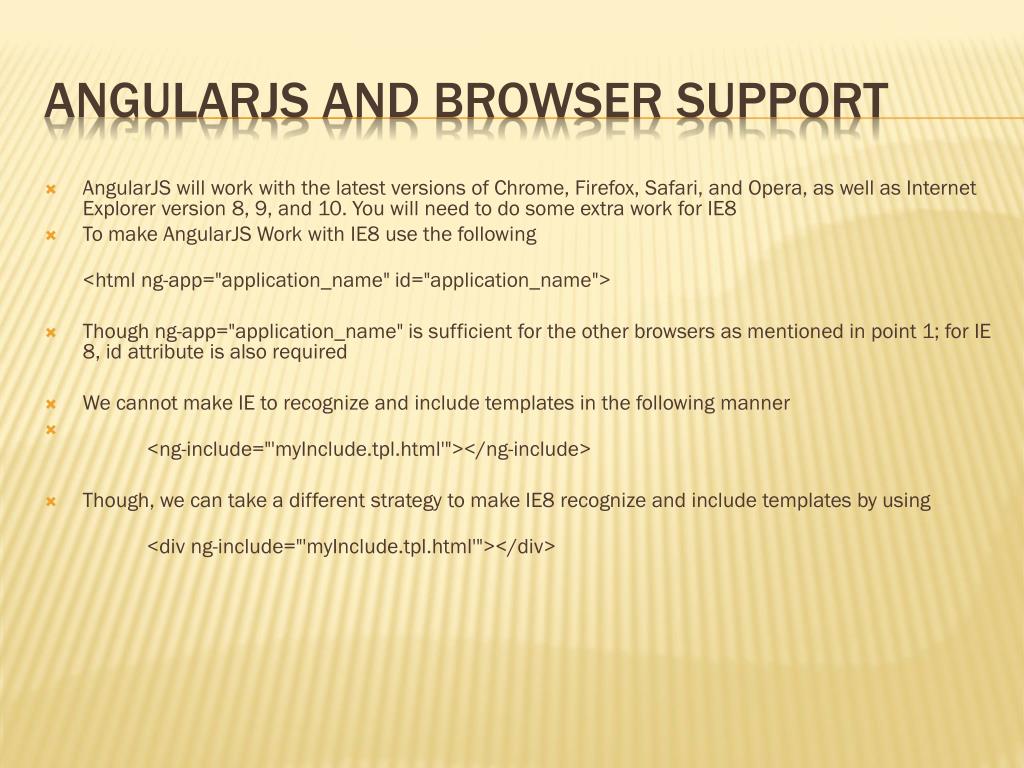

  9. AngularJS will work with the latest versions of Chrome, Firefox, Safari, and Opera, as well as Internet Explorer version 8, 9, and 10. You will need to do some extra work for IE8 To make AngularJS Work with IE8 use the following <html ng-app="application_name" id="application_name"> Though ng-app="application_name" is sufficient for the other browsers as mentioned in point 1; for IE 8, id attribute is also required We cannot make IE to recognize and include templates in the following manner <ng-include="'myInclude.tpl.html'"></ng-include> Though, we can take a different strategy to make IE8 recognize and include templates by using <div ng-include="'myInclude.tpl.html'"></div> AngularJS and Browser Support

  10. we have to make IE8 recognize <ng-include=""> to be able to use this custom tag to include templates. We can do that by using • <head> <!--[if lte IE 8]> <script>document.createElement('ng-include');document.createElement('ng-view'); • </script> <![endif]--> </head> • Supporting IE7 for AngularJS • You need to do everything that you did for IE8. • AngularJSwas not tested with IE7; so you need to adjust stuff as they come along • IE7 does not have many APIs commonly present in web-browsers such as JSON API • You will need libraries such as http://bestiejs.github.io/json3/ to be included in your application to support JSON • IE6 is not supported AngularJS and Browser Support

  11. The Issue and Why Optimize • In general, the landing web-page should load fast to have a good impression of the application/web-site. However, that usually requires some extra work and tuning • If you have developed a single page web-application with AngularJS or you have developed a single page web-based mobile application with AngularJS, you need to optimize the landing page • It can be tricky to load and display the first page right; with mobile this becomes more tricky. And with Angular, you have to download additional Angular libraries that will inject information or data to make the page look right. If not done right, you may end up showing the templates, and lots of curly braces ( {{ user.name}} ) to your users. • For rescue, there are three helps • ng-bind : Angular Directive • ng-cloak : Angular Directive • AMD : Asynchronous JavaScript Module Loading with Require.js Optimize the Landing page for AngulaJS based Applications

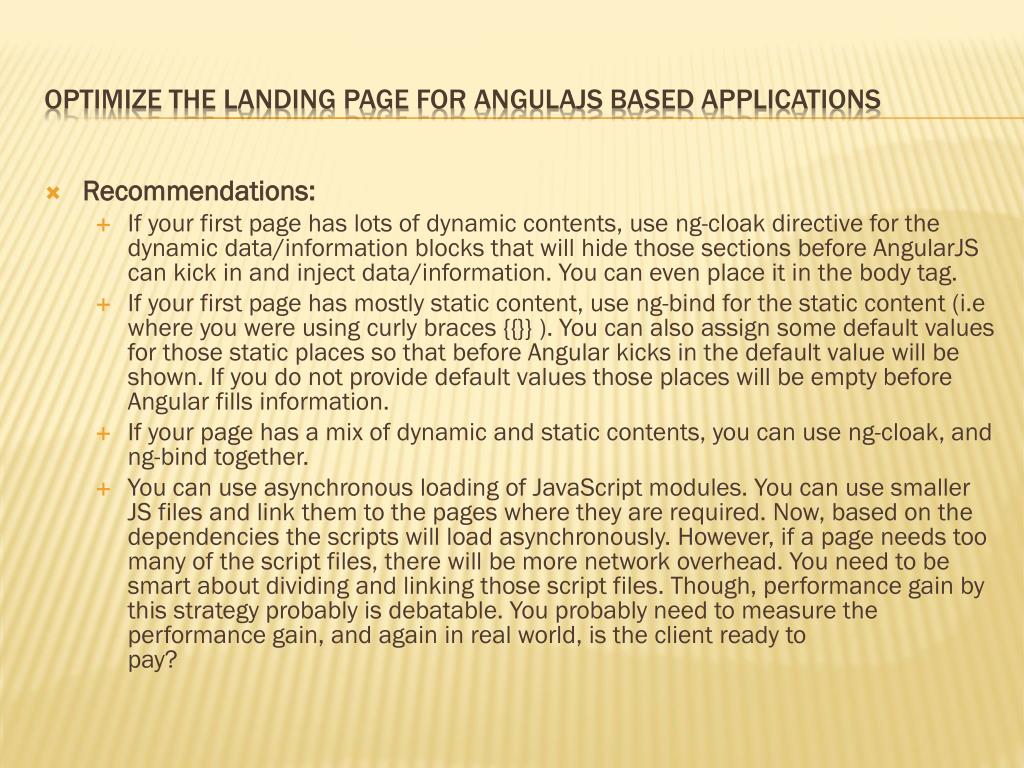

  12. Recommendations: • If your first page has lots of dynamic contents, use ng-cloak directive for the dynamic data/information blocks that will hide those sections before AngularJS can kick in and inject data/information. You can even place it in the body tag. • If your first page has mostly static content, use ng-bind for the static content (i.e where you were using curly braces {{}} ). You can also assign some default values for those static places so that before Angular kicks in the default value will be shown. If you do not provide default values those places will be empty before Angular fills information. • If your page has a mix of dynamic and static contents, you can use ng-cloak, and ng-bind together. • You can use asynchronous loading of JavaScript modules. You can use smaller JS files and link them to the pages where they are required. Now, based on the dependencies the scripts will load asynchronously. However, if a page needs too many of the script files, there will be more network overhead. You need to be smart about dividing and linking those script files. Though, performance gain by this strategy probably is debatable. You probably need to measure the performance gain, and again in real world, is the client ready topay? Optimize the Landing page for AngulaJS based Applications

  13. Another Tip • If the page is mostly static, put <script> at the bottom and use ng-bindIf the page is mostly dynamic, put <script> at the top and use ng-cloak • Examples of using ng-cloak • <div ng-controller="" ng-cloak> <h1>Hello, {{name}}!</h1></div> • Example of using ng-bind • <div ng-controller=""> Hello, <span ng-bind="name"></span>!</div> • If you use Require.js to load angular, you cannot use ng-app directive. You need to use angular.bootstrap method from JavaScript instead • Reference: • Book: Mastering Web Application Development with AngularJS Optimize the Landing page for AngulaJS based Applications

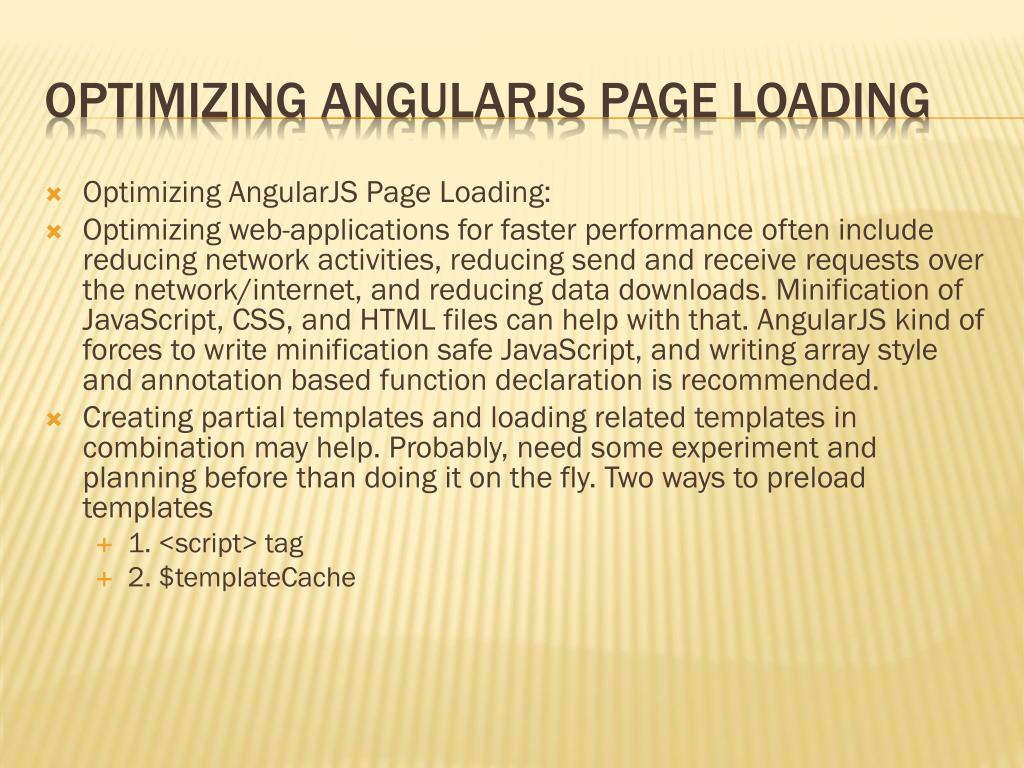

  14. Optimizing AngularJS Page Loading: • Optimizing web-applications for faster performance often include reducing network activities, reducing send and receive requests over the network/internet, and reducing data downloads. Minification of JavaScript, CSS, and HTML files can help with that. AngularJS kind of forces to write minification safe JavaScript, and writing array styleand annotation based function declaration is recommended. • Creating partial templates and loading related templates in combination may help. Probably, need some experiment and planning before than doing it on the fly. Two ways to preload templates • 1. <script> tag • 2. $templateCache Optimizing AngularJS Page Loading

  15. You may want to read one of our other articles on optimizing landing pages for AngularJS single page applications by usinngng-cloak, and ng-bind Using Asynchronous script loader such as Require.Js does not improve the performance a lot [according to the book as listed in the reference section]. Hence, so far, AMD is not recomended with AngularJS You can check how to use Require.JS in your applications at : http://requirejs.org/docs/start.html . You may want to use them in non-AngularJS projects. The idea is, you have to have a consistent project directory structure esp for JavaScript files as recommended and specified by Require.Js. In your, HTML file you refer to the main.js file, single entry point for loading JS code. In that main.js, you will use Require.JS esp. require() to load other JS files asynchronously and as required by your application. Optimizing AngularJS Page Loading

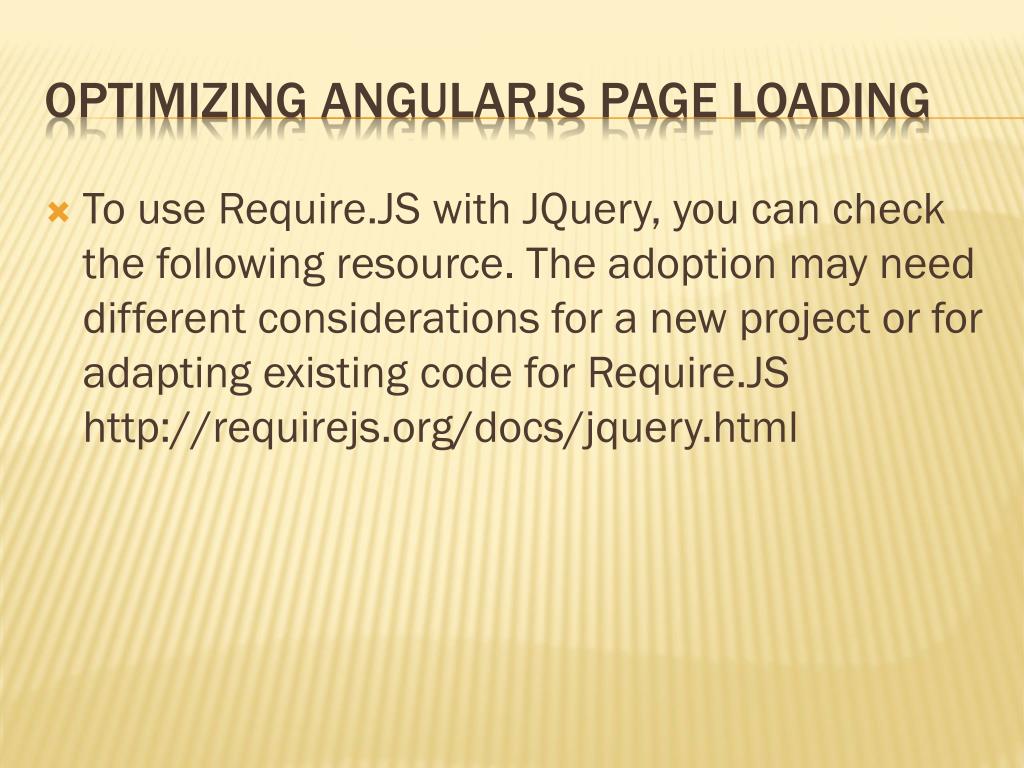

  16. To use Require.JS with JQuery, you can check the following resource. The adoption may need different considerations for a new project or for adapting existing code for Require.JShttp://requirejs.org/docs/jquery.html Optimizing AngularJS Page Loading

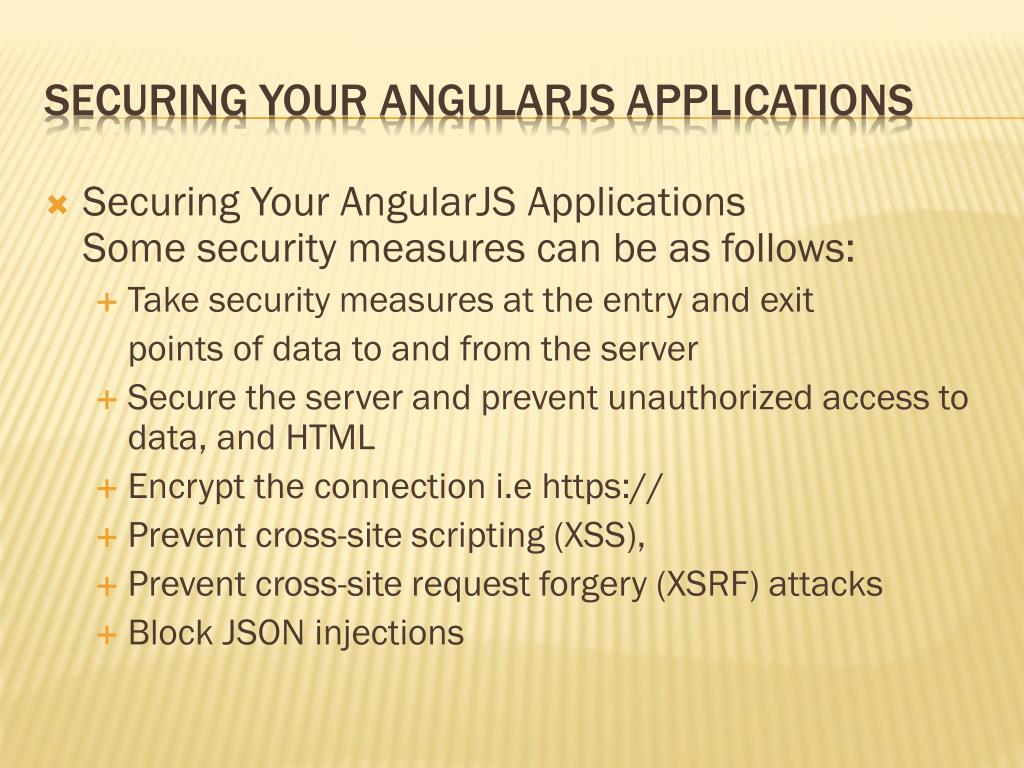

  17. Securing Your AngularJS ApplicationsSome security measures can be as follows: • Take security measures at the entry and exit points of data to and from the server • Secure the server and prevent unauthorized access to data, and HTML • Encrypt the connection i.e https:// • Prevent cross-site scripting (XSS), • Prevent cross-site request forgery (XSRF) attacks • Block JSON injections Securing Your AngularJS Applications

  18. AngularJS Templates Securing: • $templateCache caches templates if you want to use this. We need to remove the cache for each user login • The following or similar stuff can help • Cache-Control: no-cache, no-store, must-revalidatePragma : no-cacheExpires : 0 Securing Your AngularJS Applications

  19. using https can address the snooping and man in the middle attack • You need to prevent JSON Injection Vulnerabilityto do this, you can add )]}', before your JSON, though not valid JSON but helps to prevent JSON injection vulnerability. • Prevent XSS attack in the client side • AngularJSescapes all HTML in text that is displayed through the ng-bind directive, or template interpolation (that is text in {{curly braces}}). Securing Your AngularJS Applications

  20. Performance Improvement of AngularJS Applications: Writing Robust AngulaJS Applications • Ideally, you need to measure the performance and apply the strategy based  on the outcome. • Your intuition may be wrong unless you verify it against real life situations and measure it. • Also, testing the performance on real or sample data may help depending on the Application. Performance Improvement of AngularJSApplications

  21. That's right, I did not experience it, but the right knowledge is, you need to be careful about using the $digest loop. Too many iterations such as 50 loops or 100 loops may make your applications unresponsive. The number of watches inside  the $digest loops, and how fast those watches run also affect performance a lot. You can either reduce the number of watches or make the watches faster You can also monitor memory usage by those watches. Less memory use can make your application faster. Performance Improvement of AngularJSApplications

  22. ng-repeat directive is also performance sensitive. If you use ng-repeat to work on collections having 100s of items, it may cause performance penalty. So either plan and limit the entries in your collections or write custom directives for the purpose. In either case, do it in such a way so that it causes less performance penalty. You need to measure the performance though Your judgement also have to be right Performance Improvement of AngularJSApplications

  23. Localization Support in Angular : Writing International Applications in AngularJS • Under the AngularJS library there is a folder i18n where en-us locale related data are kept. If you want to use a different locale you can do it as follows. Notice the script tag with lib/angular/angular-locale_fr-ca.js to support for fr_ca locale. The .js file should have something as below: • angular.module('locale', ['ngLocale']) : module definition with a dependency on the ngLocale module: • <!doctype html><html ng-app="locale"><head><meta charset="utf-8"><script src="lib/angular/angular.js"></script><script src="lib/angular/angular-locale_fr-ca.js"></script><script src="locale.js"></script></head><body ng-controller="LocaleCtrl">...</body> Localization Support in Angular : Writing International Applications in AngularJS

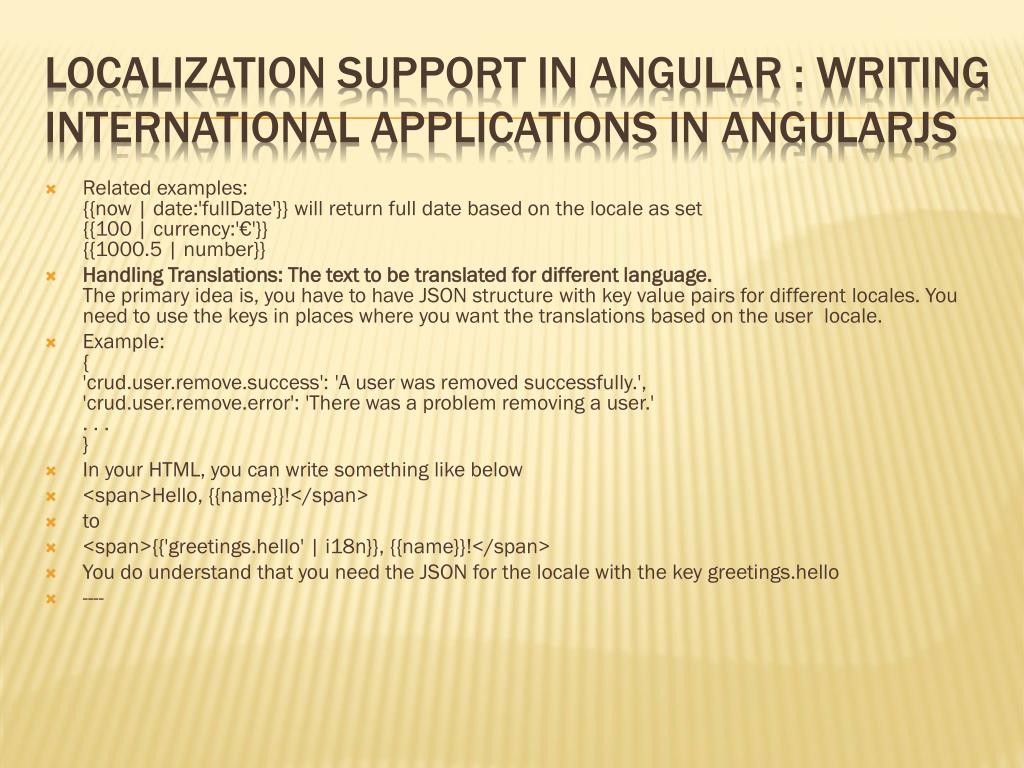

  24. Related examples:{{now | date:'fullDate'}} will return full date based on the locale as set{{100 | currency:'€'}}{{1000.5 | number}} Handling Translations: The text to be translated for different language.The primary idea is, you have to have JSON structure with key value pairs for different locales. You need to use the keys in places where you want the translations based on the user  locale. Example:{'crud.user.remove.success': 'A user was removed successfully.','crud.user.remove.error': 'There was a problem removing a user.'. . .} In your HTML, you can write something like below <span>Hello, {{name}}!</span> to <span>{{'greetings.hello' | i18n}}, {{name}}!</span> You do understand that you need the JSON for the locale with the key greetings.hello ---- Localization Support in Angular : Writing International Applications in AngularJS

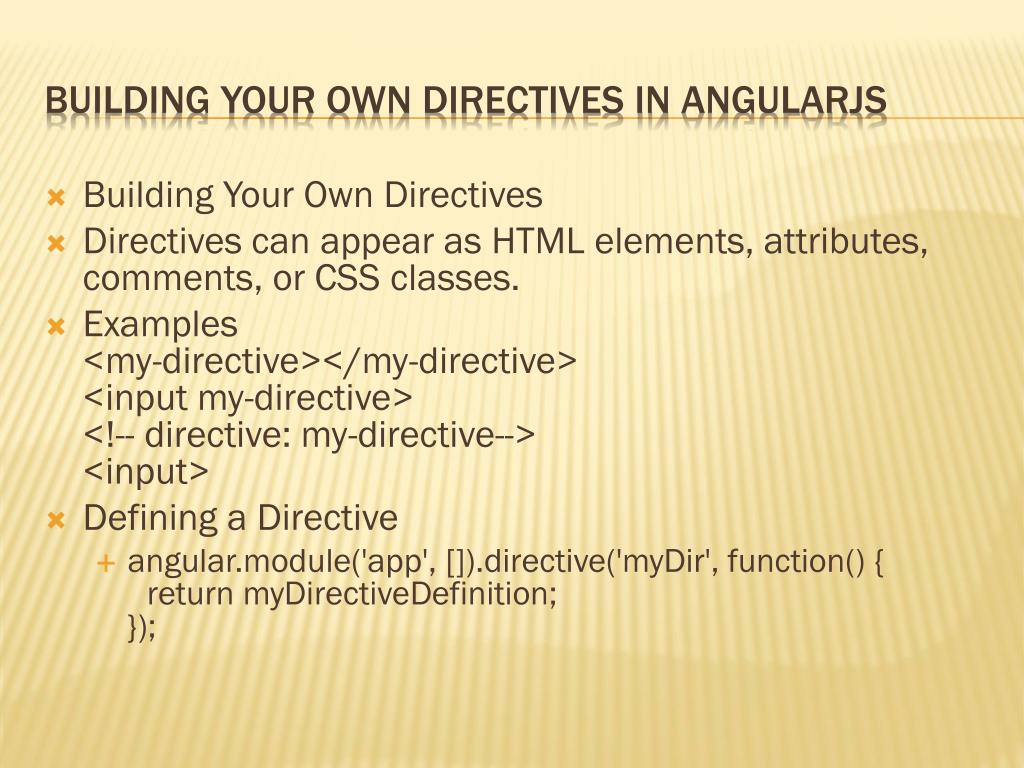

  25. Building Your Own Directives • Directives can appear as HTML elements, attributes, comments, or CSS classes. • Examples<my-directive></my-directive><input my-directive><!-- directive: my-directive--><input> • Defining a Directive • angular.module('app', []).directive('myDir', function() { return myDirectiveDefinition;}); Building Your Own Directives in AngularJS

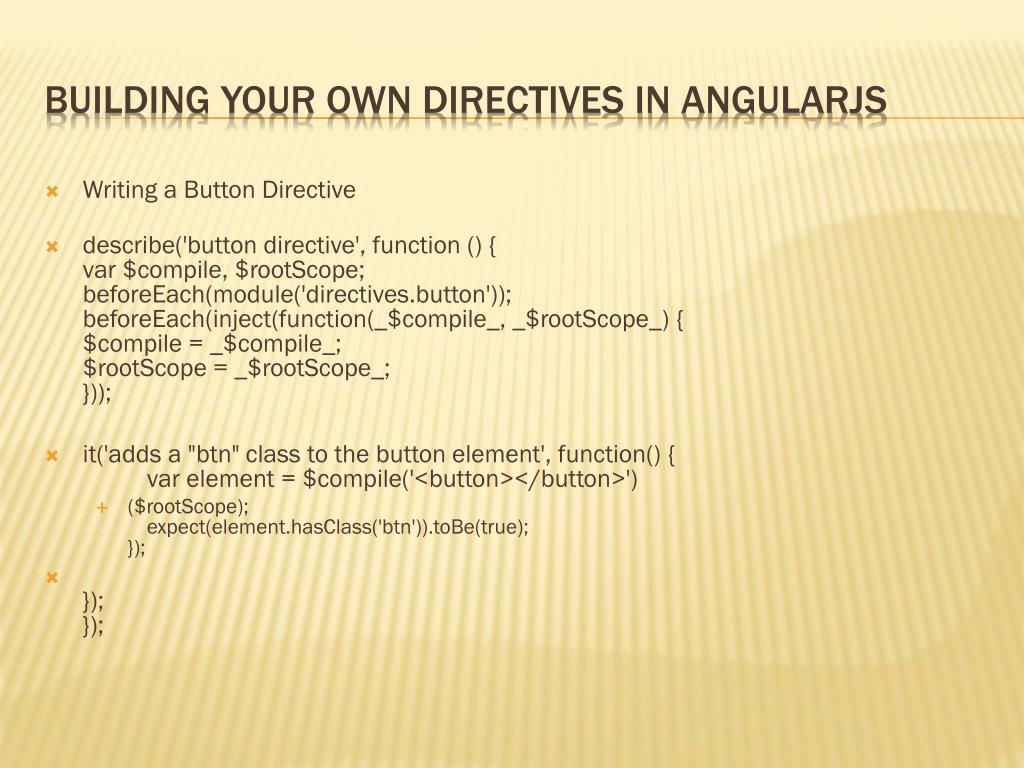

  26. Writing a Button Directive • describe('button directive', function () {var $compile, $rootScope;beforeEach(module('directives.button'));beforeEach(inject(function(_$compile_, _$rootScope_) {$compile = _$compile_;$rootScope = _$rootScope_;})); • it('adds a "btn" class to the button element', function() {var element = $compile('<button></button>') • ($rootScope); expect(element.hasClass('btn')).toBe(true);}); • });}); Building Your Own Directives in AngularJS

  27. Using the button directive <button type="submit">Click Me!</button> • Implementing a Custom Validation Directives • Now we have our tests in place, so we can implement the functionality of the directive: • myModule.directive('validateEquals', function() {return { require: 'ngModel', link: function(scope, elm, attrs, ngModelCtrl) { function validateEqual(myValue) {var valid= (myValue === scope.$eval(attrs.validateEquals));ngModelCtrl.$setValidity('equal', valid); return valid ? myValue : undefined; } Using the button directive

  28. ngModelCtrl.$parsers.push(validateEqual);ngModelCtrl.$formatters.push(validateEqual);ngModelCtrl.$parsers.push(validateEqual);ngModelCtrl.$formatters.push(validateEqual); scope.$watch(attrs.validateEquals, function() {ngModelCtrl.$setViewValue(ngModelCtrl.$viewValue); }); } };}); Using the button directive

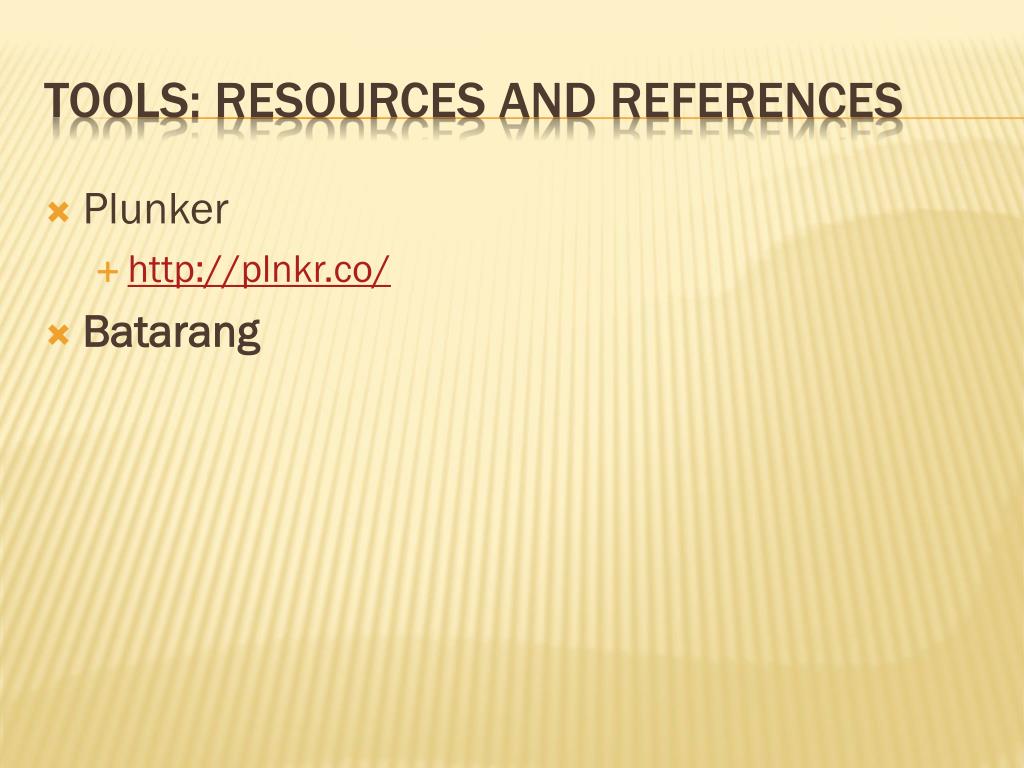

  29. Plunker • http://plnkr.co/ • Batarang Tools: Resources and references

  30. http://todomvc.com/ http://karma-runner.github.io/ https://github.com/vojtajina/testacular/ Bindonce Resources and references
