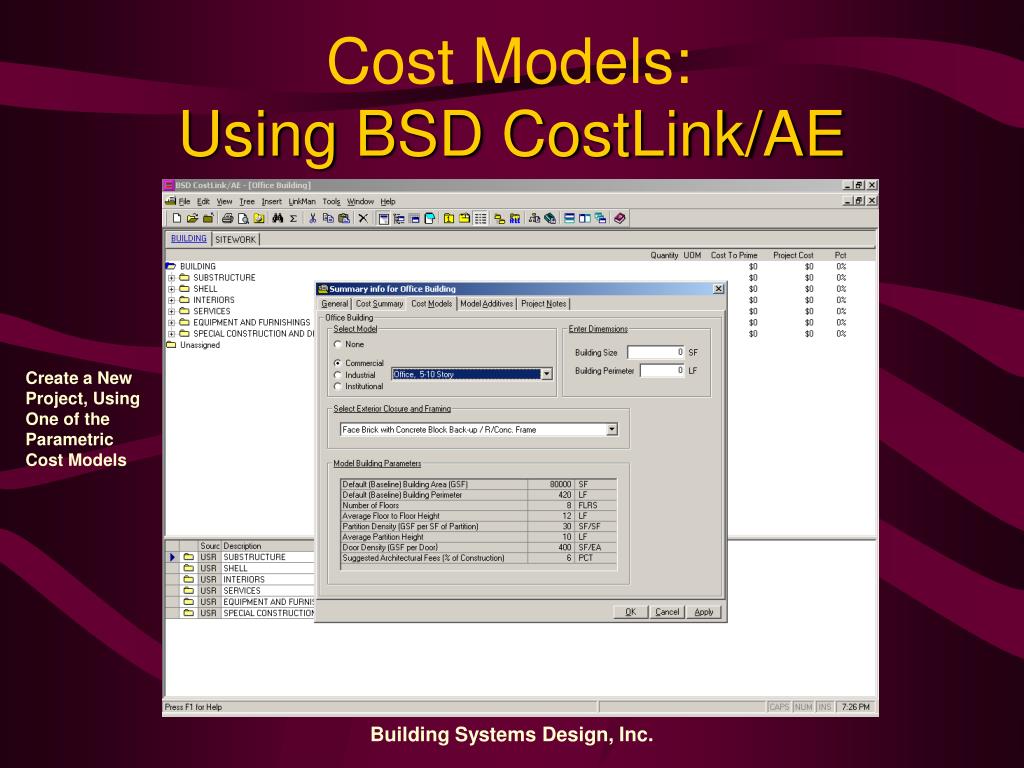

  1. Cost Models: Using BSD CostLink/AE Create a New Project, Using One of the Parametric Cost Models Building Systems Design, Inc.

  2. Cost Models: Using BSD CostLink/AE Insert the gross building size & perimeter… Building Systems Design, Inc.

  3. Cost Models: Using BSD CostLink/AE Insert the gross building size & perimeter… Then select a frame & exterior closure type… Building Systems Design, Inc.

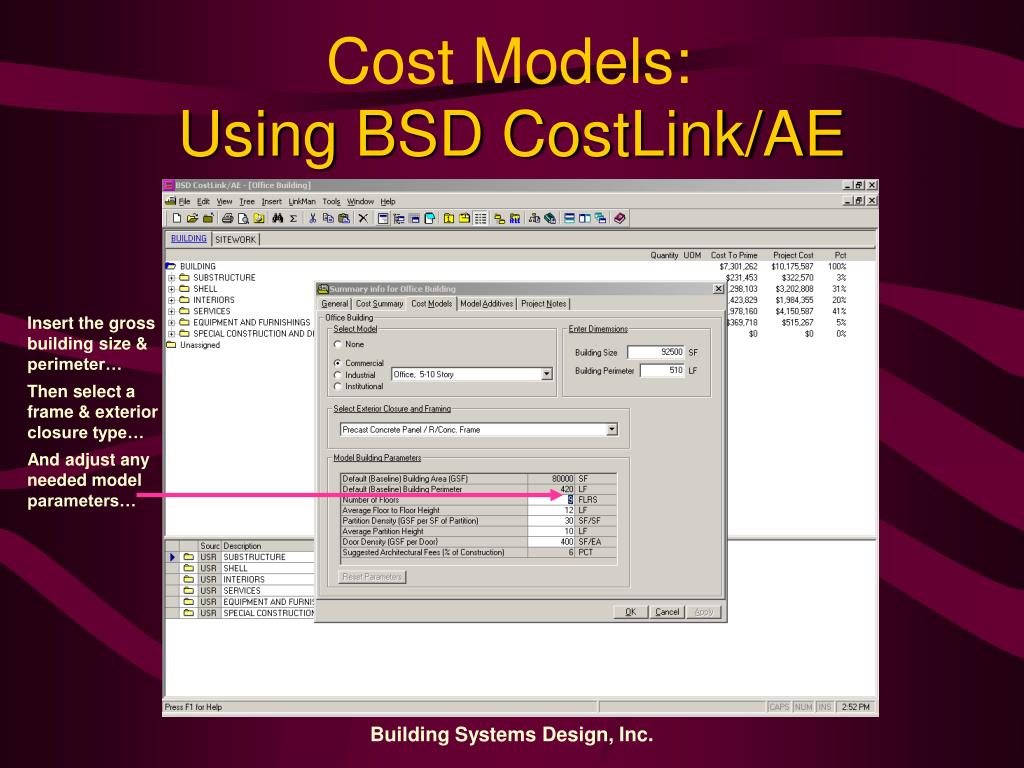

  4. Cost Models: Using BSD CostLink/AE Insert the gross building size & perimeter… Then select a frame & exterior closure type… And adjust any needed model parameters… Building Systems Design, Inc.

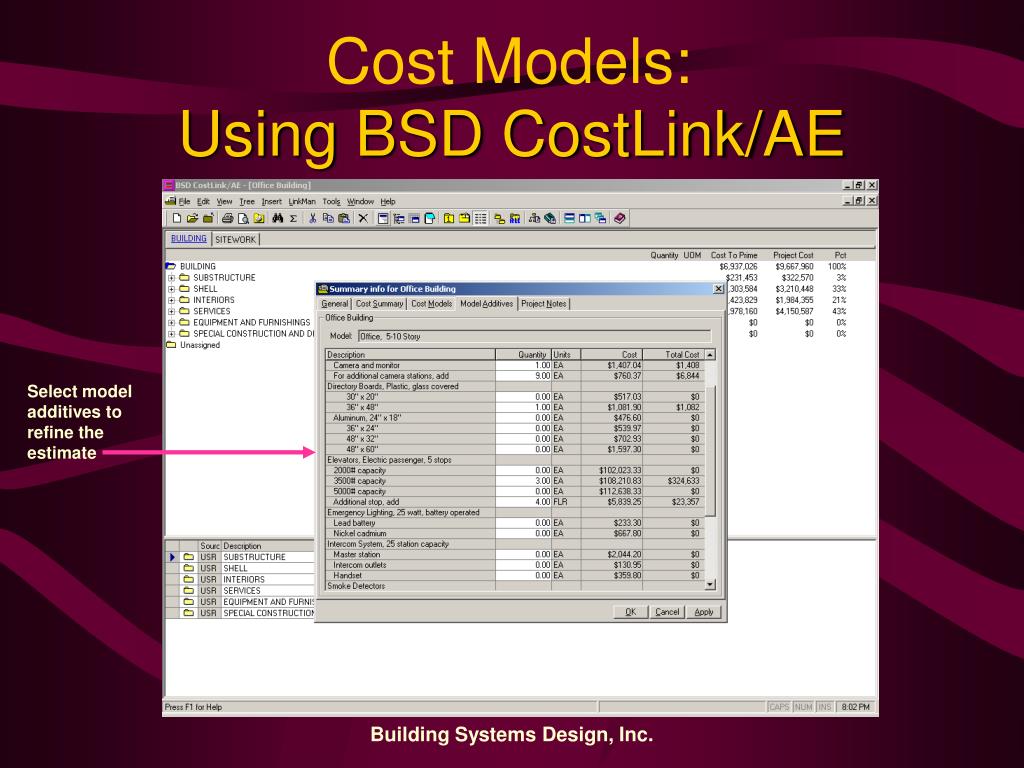

  5. Cost Models: Using BSD CostLink/AE Select model additives to refine the estimate Building Systems Design, Inc.

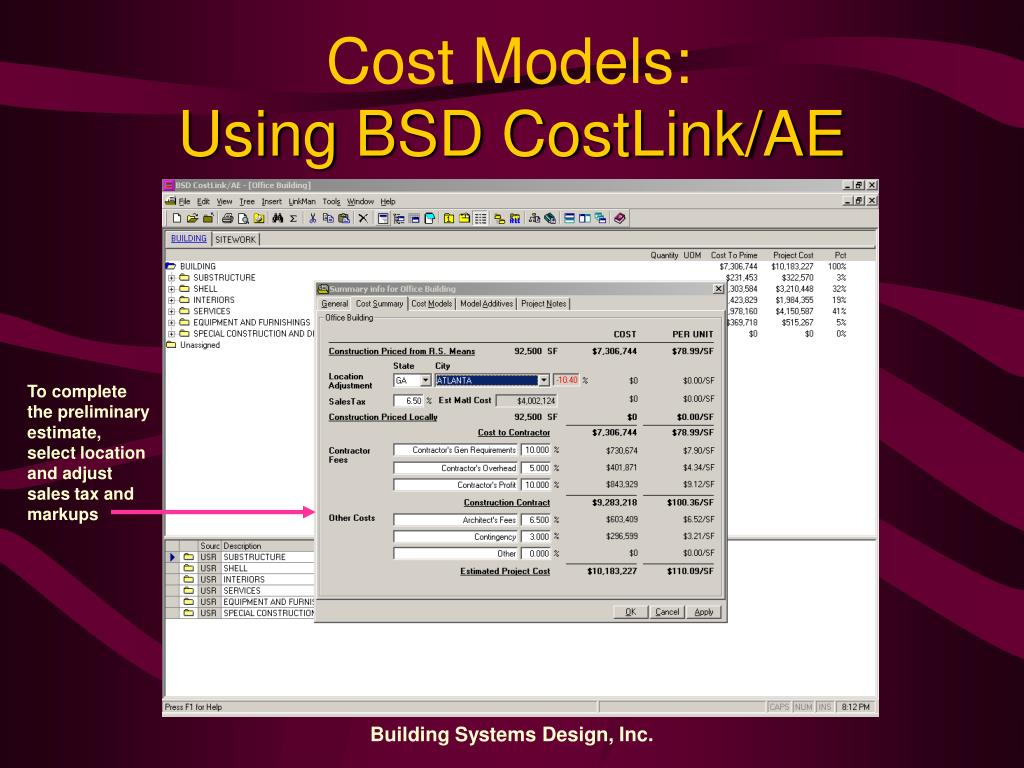

  6. Cost Models: Using BSD CostLink/AE To complete the preliminary estimate, select location and adjust sales tax and markups Building Systems Design, Inc.

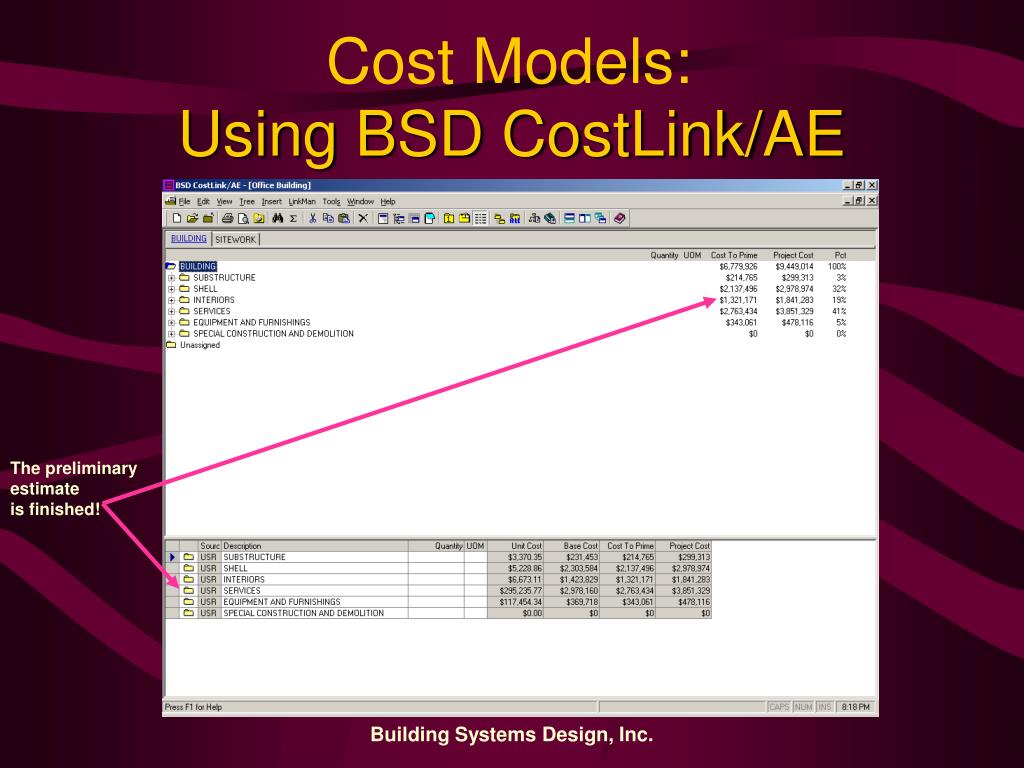

  7. Cost Models: Using BSD CostLink/AE The preliminary estimate is finished! Building Systems Design, Inc.

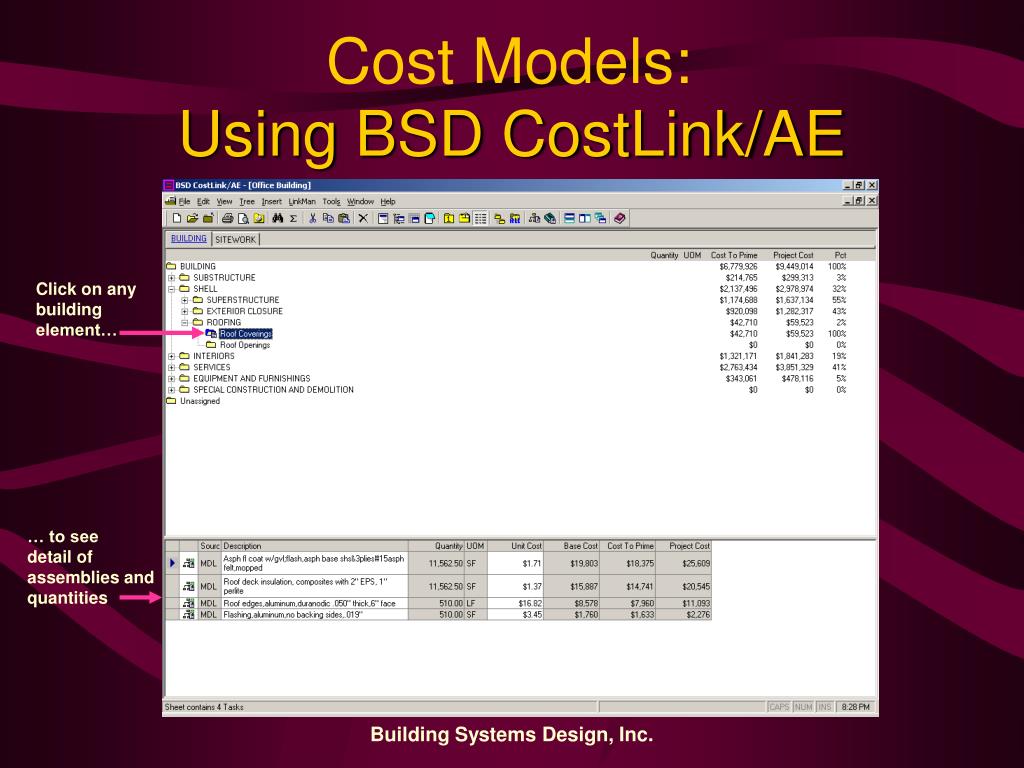

  8. Cost Models: Using BSD CostLink/AE Click on any building element… … to see detail of assemblies and quantities Building Systems Design, Inc.

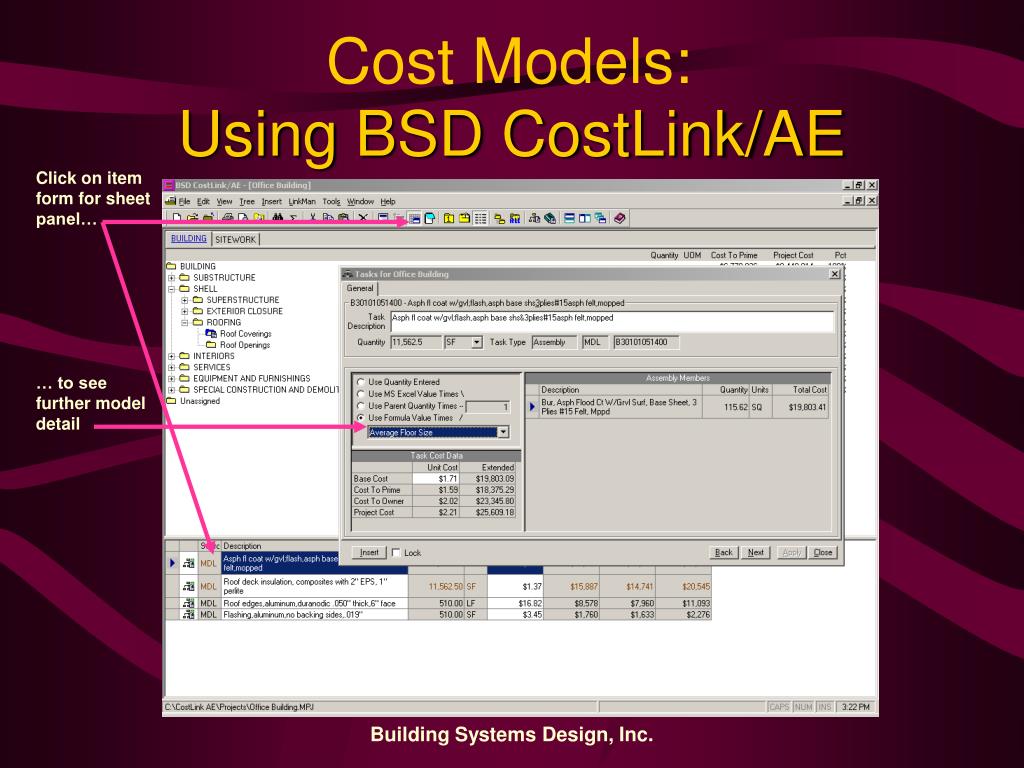

  9. Cost Models: Using BSD CostLink/AE Click on item form for sheet panel… … to see further model detail Building Systems Design, Inc.

  10. Cost Models: Using BSD CostLink/AE You can change quantities to adjust model to your specific project… Building Systems Design, Inc.

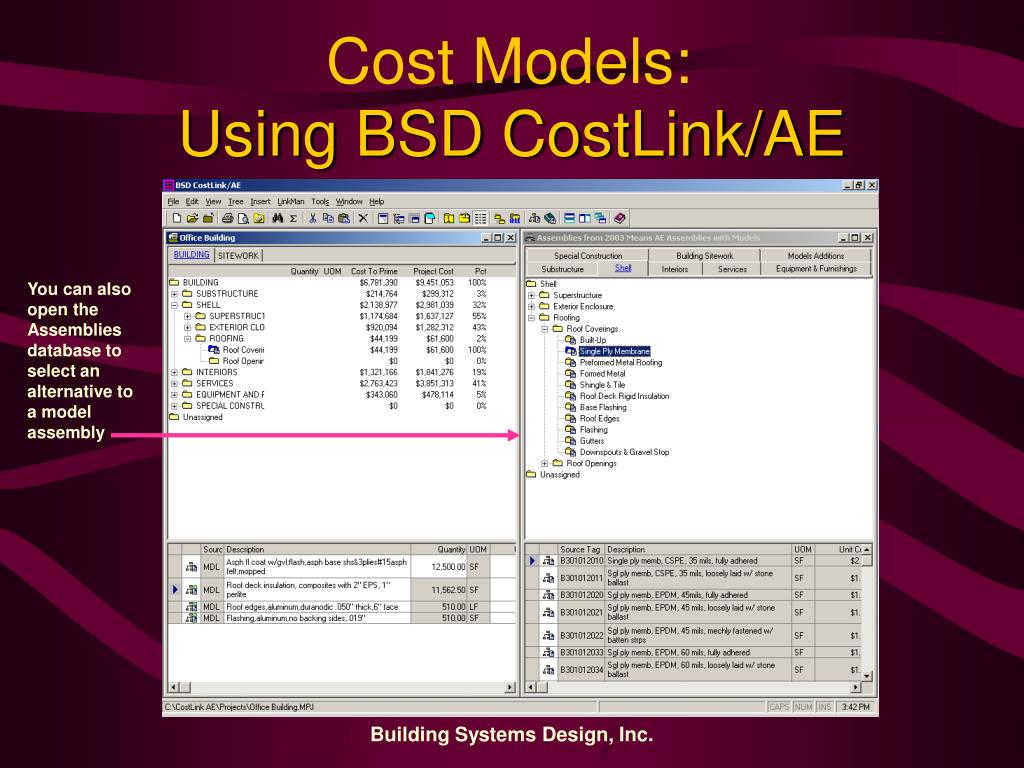

  11. Cost Models: Using BSD CostLink/AE You can also open the Assemblies database to select an alternative to a model assembly Building Systems Design, Inc.

  12. Cost Models: Using BSD CostLink/AE Then drag and drop a selected alternative assembly into your project Building Systems Design, Inc.

  13. Cost Models: Using BSD CostLink/AE You can print a summary or detailed estimate at any time Building Systems Design, Inc.

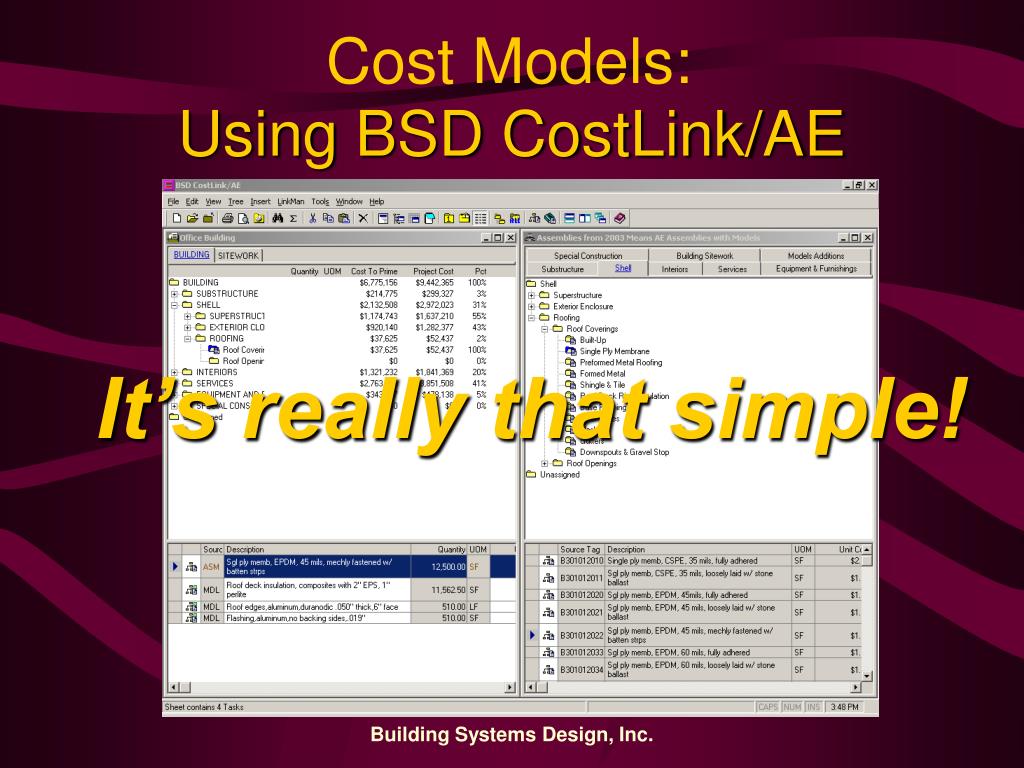

  14. Cost Models: Using BSD CostLink/AE It’s really that simple! Building Systems Design, Inc.

  15. Using BSD CostLink/AE CostLink/AE Has Many Other Features… For Example, You Can Attach A Note to Any Item in the Cost Estimate —Including Pictures! Building Systems Design, Inc.

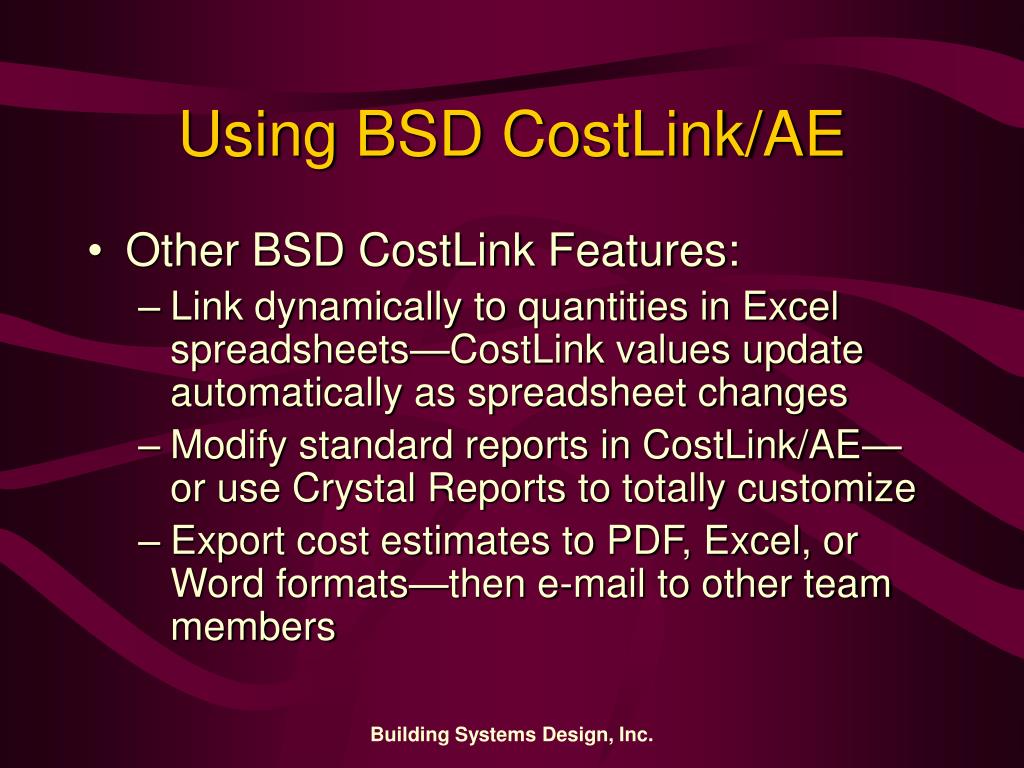

  16. Using BSD CostLink/AE • Other BSD CostLink Features: • Link dynamically to quantities in Excel spreadsheets—CostLink values update automatically as spreadsheet changes • Modify standard reports in CostLink/AE—or use Crystal Reports to totally customize • Export cost estimates to PDF, Excel, or Word formats—then e-mail to other team members Building Systems Design, Inc.
