Upgrading an Electrical Panel: When, Why, and How

1. Homes evolve. Households include an induction range or a heatpump. Somebody purchases an EV. A yard workshop grows from a hobby to a small business. Then the lights dim when the dryer kicks on, or a breaker trips every time the area heater and the microwave run together. All of these stories satisfy at the very same point: the electrical panel. Understanding when to update, why it matters, and how to do it well can avoid annoyance journeys, best electrical panels for homes secure devices, and get rid of risks that are tough to see till something goes wrong. What an electrical panel really does The electrical panel is the distribution brain of a structure. Power from the utility or a main detach arrive on bus bars inside the cabinet. Specific circuits branch off through breakers sized for the wire they safeguard. The panel's job is not simply benefit. It is a safety gadget. Breakers trip under overloads and brief circuits to secure electrical wiring insulation from overheating. The neutral and ground bars end return paths and bonding. The enclosure itself is listed to contain faults and heat. Two numbers dominate panel conversations. The service size in amperes describes the score of the whole system, usually 60, 100, 125, 150, 200, or 400 amps for homes. Then there is the panelboard score which need to be equal to or greater than the service. Many homes run 100 or 200 amp services. For modern loads like EV charging, electrical heat, medspas, and accessory house units, 200 amp service is quick ending up being the baseline. The quiet signals that your panel is due for replacement Most people think an upgrade just matters when the lights flicker or breakers continuously journey. Those are apparent informs, however the peaceful signs are just as important. I have opened panels where the door looked tidy, yet inside the neutrals shared terminals, or aluminum branch conductors had actually drifted loose. The devices itself, not simply the symptoms, drives the decision. Consider these normal triggers for a panel upgrade: Repeated tripping that associates with normal use, specifically when two or three high-draw devices perform at once. An existing 60 or 100 amp service in an all-electric or soon-to-be all-electric home, including heatpump, induction cooktop, or EV charging. Obsolete or remembered panel brands and breaker types understood for failure to trip, getting too hot, or poor bus connections. Evidence of overheating like discolored insulation, breakable breakers that wiggle on the bus, or a musty burned smell when the cover is removed. Remodeling that adds square video footage, a rental suite, or major fixed-in-place home appliances such as a sauna or a shop-grade air compressor. I have had property owners ask whether a single annoyance journey suggests the panel is bad. Typically not. A single journey can be a toaster, a vacuum starting existing, or a tool with a frustrating inrush. Repetitive journeys with a pattern tell the story. If the vacuum trips the very same bedroom breaker whenever, odds are the circuit is overwhelmed with space heating systems or home entertainment equipment, not that the electrical panel stopped working. An excellent evaluation distinguishes circuit-level issues from systemic limits. The diplomatic immunities that are worthy of extra attention There are understood issue panels, and they stick around since they often keep working right up until they do not. Federal Pacific Electric Stab-Lok breakers have a long history of failing to trip reliably under overload. Certain Zinsco and Sylvania panels experience bus corrosion and poor clip stress. I still see these in 1960s and 1970s homes. If you have one, replacement belongs on your list, even if you have actually not observed issues yet. Insurance companies are significantly cautious of them, and buyers frequently negotiate replacement during a sale. Another special case is any panel showing aluminum branch circuits from the 1960s to early 1970s. Aluminum feeders prevail and generally fine when terminations are rated and maintained. Branch circuits on older aluminum, specifically ended under devices not noted for AL conductors, can loosen in time. A panel upgrade alone will not repair branch electrical wiring, however it is a natural moment to correct terminations, include approved connectors, or prepare a rewiring strategy. Finally, take a look at homes that grew naturally without a plan. Multiple subpanels shoehorned into closets. Utility room that became small electrical rooms. Romex entering through knockouts without bushings. Panels embeded in restrooms or other restricted places. These are code and safety problems initially, capacity problems second.

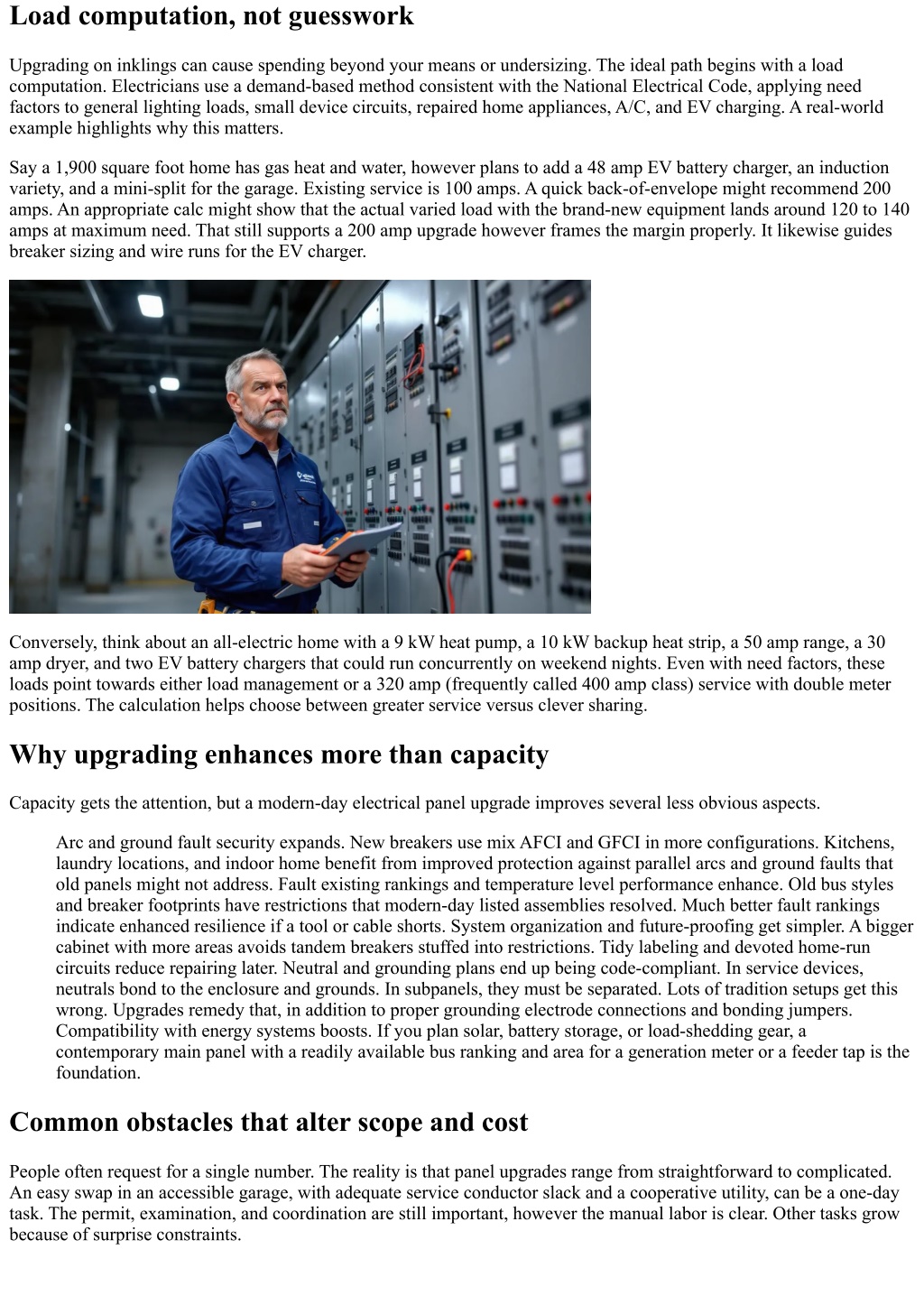

2. Load computation, not guesswork Upgrading on inklings can cause spending beyond your means or undersizing. The ideal path begins with a load computation. Electricians use a demand-based method consistent with the National Electrical Code, applying need factors to general lighting loads, small device circuits, repaired home appliances, A/C, and EV charging. A real-world example highlights why this matters. Say a 1,900 square foot home has gas heat and water, however plans to add a 48 amp EV battery charger, an induction variety, and a mini-split for the garage. Existing service is 100 amps. A quick back-of-envelope might recommend 200 amps. An appropriate calc might show that the actual varied load with the brand-new equipment lands around 120 to 140 amps at maximum need. That still supports a 200 amp upgrade however frames the margin properly. It likewise guides breaker sizing and wire runs for the EV charger. Conversely, think about an all-electric home with a 9 kW heat pump, a 10 kW backup heat strip, a 50 amp range, a 30 amp dryer, and two EV battery chargers that could run concurrently on weekend nights. Even with need factors, these loads point towards either load management or a 320 amp (frequently called 400 amp class) service with double meter positions. The calculation helps choose between greater service versus clever sharing. Why upgrading enhances more than capacity Capacity gets the attention, but a modern-day electrical panel upgrade improves several less obvious aspects. Arc and ground fault security expands. New breakers use mix AFCI and GFCI in more configurations. Kitchens, laundry locations, and indoor home benefit from improved protection against parallel arcs and ground faults that old panels might not address. Fault existing rankings and temperature level performance enhance. Old bus styles and breaker footprints have restrictions that modern-day listed assemblies resolved. Much better fault rankings indicate enhanced resilience if a tool or cable shorts. System organization and future-proofing get simpler. A bigger cabinet with more areas avoids tandem breakers stuffed into restrictions. Tidy labeling and devoted home-run circuits reduce repairing later. Neutral and grounding plans end up being code-compliant. In service devices, neutrals bond to the enclosure and grounds. In subpanels, they must be separated. Lots of tradition setups get this wrong. Upgrades remedy that, in addition to proper grounding electrode connections and bonding jumpers. Compatibility with energy systems boosts. If you plan solar, battery storage, or load-shedding gear, a contemporary main panel with a readily available bus ranking and area for a generation meter or a feeder tap is the foundation. Common obstacles that alter scope and cost People often request for a single number. The reality is that panel upgrades range from straightforward to complicated. An easy swap in an accessible garage, with adequate service conductor slack and a cooperative utility, can be a one-day task. The permit, examination, and coordination are still important, however the manual labor is clear. Other tasks grow because of surprise constraints.

3. Meter-main combos versus interior panels matter. In regions where the service disconnect must be outdoors, upgrading a meter-main can set off stucco patching, avenue reroutes, and even utility mast replacement. Service conductors might be undersized, or the mast lacks the height clearance above a roofing. Once opened, deterioration on the service lugs may force further replacement as much as the weatherhead. Inter-system bonding terminations often do not exist on older homes. Modern guidelines need bonding points for interaction and low-voltage systems. Including them is easy, but it is another line item. Clearance and working area can require moving. Panels need a minimum working depth and width, and specific spaces are off-limits. I have actually been called to "change a panel" installed inside a clothing closet. The best repair was to move to the garage back-to-back, spot the closet wall, and extend circuits. That is a different task than a like-for-like swap. On older masonry or lath-and-plaster walls, attaching a new larger cabinet often reveals that the wall can decline basic anchors without collapsing. Plywood backer boards and careful framing repairs might be needed. Anticipate an electrical expert who flags this before the day of installation to be the one who completes on time. The license and energy dance An electrical panel upgrade is not simply a professional in a truck. You will need a permit. In most jurisdictions, a service upgrade sets off an inspection by the authority having jurisdiction and a coordination visit with the utility to disconnect and reconnect power. Scheduling can add days. Experienced electricians prepare for the sequence: pre- approval of the riser diagram, examination the exact same day as the work, and an energy reconnect window in the afternoon. For overhead services, the energy's responsibilities and your electrician's responsibilities satisfy at the weatherhead or service point. For underground services, the demarcation might be at the handhole or meter base. In many cases, the energy requires a new meter base or a different meter place. The previously this is sorted out, the smaller the surprise. If your upgrade consists of a dive in amperage, the utility may evaluate transformer capacity and service drop size. Periodically, the community transformer can not support several upgrades without a modification. That does not mean you can not proceed, but it does affect timeline and might involve a cost share depending on the energy's policies. What a great upgrade day looks like I advise property owners to plan for a complete day without power. Charge phones, empty the ice maker, and consider a cooler for the fridge contents. The crew should get here with an in-depth circuit map, or they make one as they open the existing panel. Circuits get tagged, conductors pulled back, and the old cabinet eliminated. The brand-new cabinet mounts plumb and level, with cable entries dressed through listed adapters, bushings installed where needed, and conductors landed by circuit with proper torque. Bonding and grounding get unique attention. If the home lacks 2 ground rods, the electrical contractor drives them and bonds them with continuous wire. If there is a metal water service, the bond jumper gets installed within the required distance of the entry point. In a split system with a removed garage or subpanels, the neutral remains separated at those downstream panels. That is one of the most typical errors in do it yourself or handyman work. Breakers are sized to the wire, not to the home appliance nameplate desire list. If a variety circuit utilizes 8 AWG copper, the breaker matches the conductor, even if the appliance claims a larger breaker is appropriate. New AFCI and GFCI breakers go in where code requires them or where the house owner opts for higher defense. The labeling is clear and particular. "Kitchen small devices west counter" beats "kitchen." A tidy panel today conserves hours later. The inspector looks at labeling, conductor terminations, working clearances, service equipment bonding, grounding electrodes, and utility-side compliance. As soon as signed off, the utility reconnects. Great crews can move fast without cutting corners. The difference is preparation. Safety upgrades that ride along with a panel replacement A panel change is the perfect moment to eliminate a couple of persistent dangers: Replace all breakers that serve bedrooms or living areas with combination AFCI models, even if your regional amendments enable older configurations. It catches parallel arcs and cable damage that standard breakers will not.

4. Add GFCI security for outside, garage, bathroom, and kitchen area countertop circuits, preferably in the breaker so downstream outlets remain secured even if gadgets are altered later. Evaluate any multi-wire branch circuits. If they share a neutral, they require a 2-pole typical journey breaker or noted manage ties. That makes sure the neutral is never ever packed while one hot is off and the other is on, a condition that can overheat the neutral. Confirm rise security. A Type 2 whole-home rise protective device at the panel is economical compared to the cost of electronic devices and contemporary appliances. Clean up neutrals and premises. Each neutral must land under its own terminal. Grounds can be bundled as enabled by the bar's listing. This prevents a nasty class of intermittent faults. When a subpanel is smarter than a bigger service Sometimes the main panel is complete, however the service is appropriate. If you are not adding big continuous loads, a subpanel is a low-impact service. For instance, a garage workshop gets a small 60 amp subpanel fed from a 2-pole breaker in the primary panel. You acquire spaces where you need them, decrease cord clutter, and avoid the energy coordination. The key is to keep isolated neutrals in the subpanel and guarantee the feeder includes separate neutral and ground conductors sized to the load. Load management innovation has actually likewise developed. Lots of EV chargers and water heaters offer load sharing or demand action. A 50 amp breaker can serve two battery chargers that interact, each throttling to avoid going beyond the circuit's score. For homes where a service upgrade is cost-prohibitive due to energy requirements, clever load controllers can make the existing electrical panel work safely electrical panel while you plan for a future service change. Budget ranges and what drives them Numbers differ by region, but practical varieties assist set expectations. A like-for-like 100 amp to 100 amp panel replacement in an available place might run from 1,500 to 3,000 dollars, including permit and inspection. A 100 to 200 amp service upgrade with a new panel, meter base, grounding updates, and utility coordination typically lands between 3,500 and 6,500 dollars. Complex exterior meter-main upgrades, mast work, wall repair work, and moving can push into the 7,000 to 12,000 dollar zone. Include solar-ready arrangements, surge defense, and higher-end breakers, and the total relocations accordingly. The most affordable bid is not constantly the very best worth. Materials matter. An electrical contractor who uses listed fittings for every cable television entry, torques every lug to specification, and labels every circuit will conserve you time and possible failures later. If a cost looks too excellent, ask what it includes: permit costs, AFCI/GFCI breakers where required, new grounding electrodes, new meter base if required, channel replacement, stucco or drywall patching, and rise protection. How to prepare your home and your schedule A little preparation makes upgrade day simpler for everybody. Clear a four-foot radius in front of the panel. If the panel beings in a laundry room, relocation home appliances aside. Get rid of stored products from racks near the office. If pets get worried by sound or open doors, provide a quiet space. If the team requires access to the attic to trace or reroute circuits, make the hatch accessible and caution about insulation depth. Expect a power-down window. Most teams aim to finish and bring back power the exact same day, but delays can happen if the utility window slips or surprises emerge behind the panel. I recommend a battery light, a charged power bank, and planning meals that do not need significant cooking during that window. If you depend upon medical devices, let your electrical contractor understand well in advance so they can set up accordingly. Real examples from the field A homeowner called about flickering LED can lights when the dryer began. The panel was a late 1980s design, 100 amp, tidy on the exterior. Inside, the neutral bar was packed 2 or three conductors deep per terminal, and several neutrals shared terminals with premises. The bus showed pitting around 2 breaker positions, probably from a loose breaker clip and arcing. The service estimation with prepared loads, consisting of a 40 amp EV charger, pushed beyond a safe margin. We updated to a 200 amp panel, corrected neutrals, included a whole-home surge protector, and moved lighting to dedicated arcs with AFCI security. The flicker vanished, and more significantly, the loose terminations that were preparing the bar were gone.

5. Another project involved an artisan bungalow with a pantry panel that broke clearance and place rules. The house owner wanted an induction range and a heat pump hot water heater. We relocated the panel to the basement stair wall with proper working area, set up a new meter-main outside, and fed a subpanel upstairs for kitchen area circuits to keep run lengths reasonable. The inspector flagged the missing inter-system bonding, which we included. The utility required a mast replacement due to clearance over the roofing system. Due to the fact that we resolved it early, the schedule still held. Not every home needs a 200 amp upgrade. A little apartment with gas heat and hot water heater had a complete 100 amp panel, tandem breakers all over, and regular trips in the office. We set up a 60 amp subpanel in a closet surrounding to the primary panel place, moved the home office circuits and the kitchen area small device circuits to the subpanel, and replaced crucial breakers with dual-function AFCI/GFCI models. No energy involvement and a fraction of the cost. What to ask your electrician Credentials and confidence are obvious, but ask targeted concerns. Do they plan to perform an official load calculation? Will they upgrade grounding electrodes as needed? How will they deal with AFCI and GFCI requirements? Do they include a surge protector? Will they label circuits precisely and provide a panel directory that matches the as-built layout? How do they collaborate with the utility, and what is the expected interruption window? If you are thinking about solar or batteries, ask about bus score, primary breaker size, and any planned provisions for a generation meter or a feeder tap. If propositions differ significantly, compare scope line by line. One quote might include a new meter base and mast, while another presumes reusing limited devices. One may count on tandem breakers, another on full-sized spaces. The details reveal why prices diverge. When seriousness matters There are times when you do not wait. Any sign of overheating at the electrical panel, such as a melted breaker, sweltered bus bar, or that unmistakable electrical burning odor, should have immediate attention. Federal Pacific or Zinsco equipment with noticeable corrosion, fragile breaker manages, or frequent unusual journeys ought to be examined immediately. Water intrusion from a dripping meter enclosure or overhead mast can track down into the panel, oxidizing connections and creating covert resistance locations. If you see rust trails, staining, or white grainy residue around connections, call a professional. Short-lived procedures like de-energizing specific circuits may be suitable till replacement. Looking ahead: capacity, convenience, and resilience Homes are adding load. Heat pumps are taking control of for gas heating systems. EVs are not fringe anymore. Even without going all-electric, the sheer number of electronic devices suggests our circulation panels carry more duty than panels from 1975 ever pictured. A thoughtful upgrade does not just bump amperage. It brings your electrical system into alignment with current security standards, arranges circuits for simpler living, and sets the stage for renewables, storage, or future remodels. The finest outcomes originate from a measured method. Validate the existing condition of the electrical panel, determine any brand name or age-related threat, calculate genuine need with your planned modifications, and pick a course that respects both your budget plan and your future plans. Work with somebody who deals with torque specs and labeling as seriously as conductor size. The expense of doing it ideal is concrete. So is the cost of cutting corners. A home with a tidy, well-labeled, properly sized electrical panel feels various to reside in. The microwave no longer dims the lights. The garage battery charger runs overnight without tripping. The breaker directory in fact helps when you require to shut down the water heater. And when a storm rolls through, that rise protective device you added quietly takes the hit rather of your fridge and router. That is what an upgrade purchases you: security, capability, and a system you can trust.
