Vectors in Biomechanical Analysis

Vectors in Biomechanical Analysis. Vectors represent dynamic action Vectors have two defining characteristics: Magnitude – The size or value Direction 65 MPH is speed (scalar.) Also: mass, volume, density 65 MPH due east is a vector Velocity, force, acceleration, momentum. Waco. aTm.

rinaldo-cahill
Télécharger la présentation

Vectors in Biomechanical Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

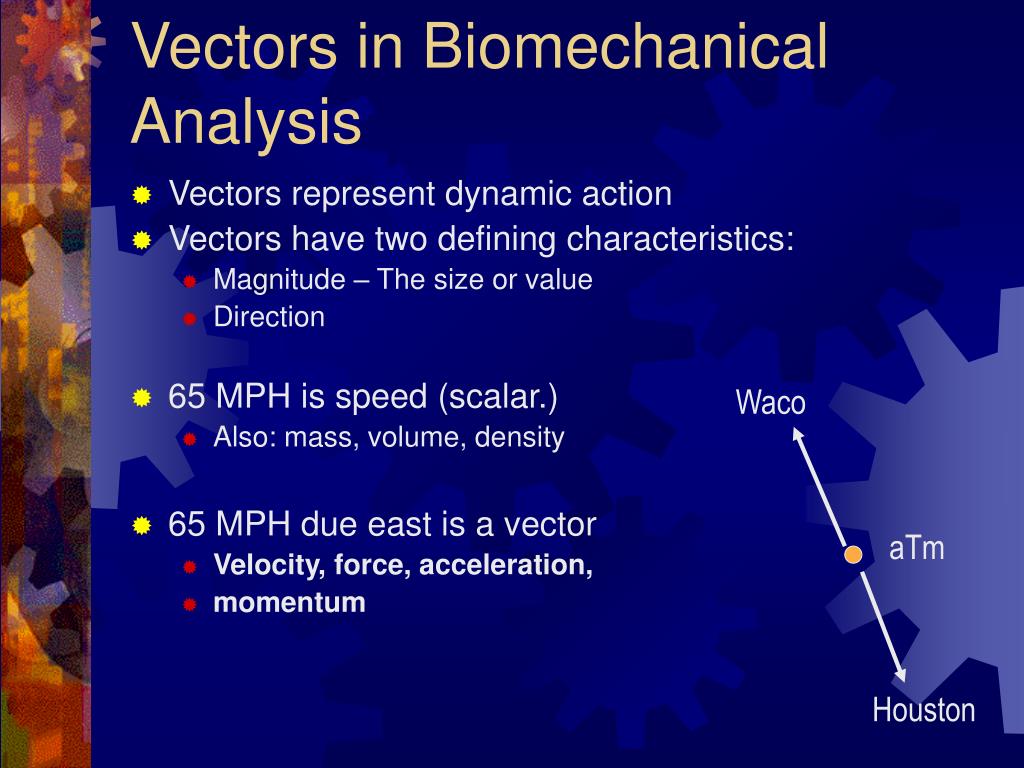

  1. Vectors in Biomechanical Analysis Vectors represent dynamic action Vectors have two defining characteristics: Magnitude – The size or value Direction 65 MPH is speed (scalar.) Also: mass, volume, density 65 MPH due east is a vector Velocity, force, acceleration, momentum Waco aTm Houston

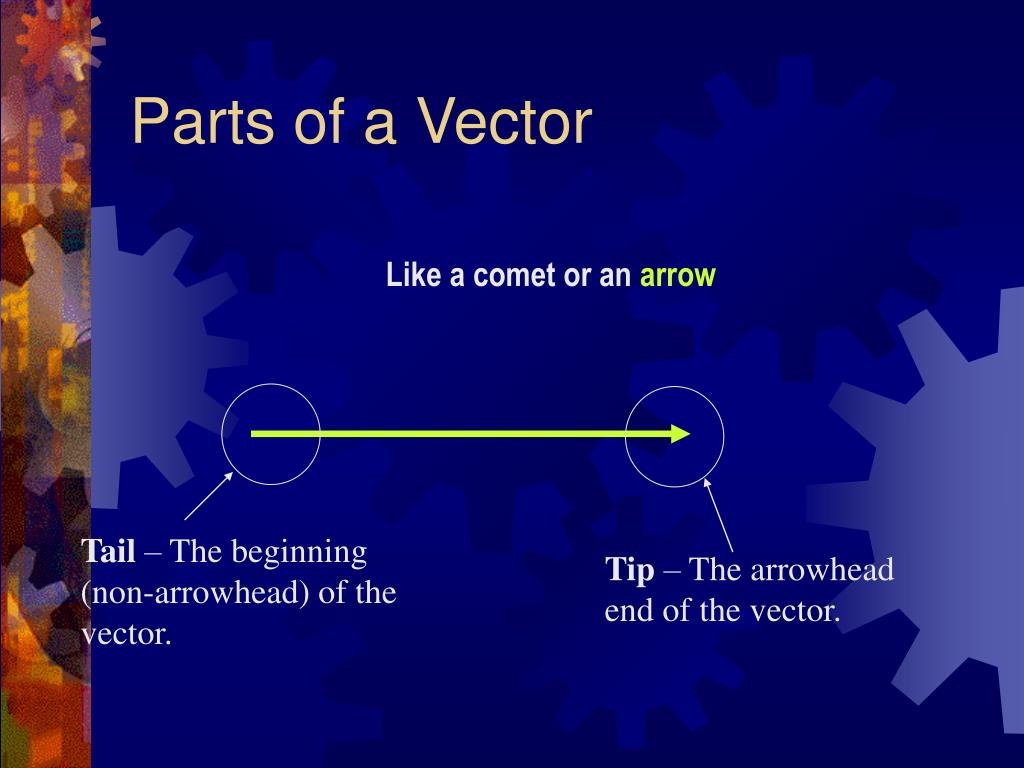

  2. Parts of a Vector Like a comet or an arrow Tail – The beginning (non-arrowhead) of the vector. Tip – The arrowhead end of the vector.

  3. Vector Representation • Vectors are represented by an arrow • The length of the arrow reflects the magnitude • The angular position of the arrow represents the vector’s direction magnitude Direction (q )

  4. magnitude Direction • Magnitude is a physical quantity (20 ft/sec, 50N, 10 m/sec2, etc.) • Direction is often expressed as an angle relative to a known reference (450 above horizontal)

  5. Working With Multiple Vectors • The relative size of vector quantities is shown by the relative size of the arrows representing them. 20 m/s 40 m/s The vector representing 40 m/s would be twice as long as the vector representing 20 m/s.

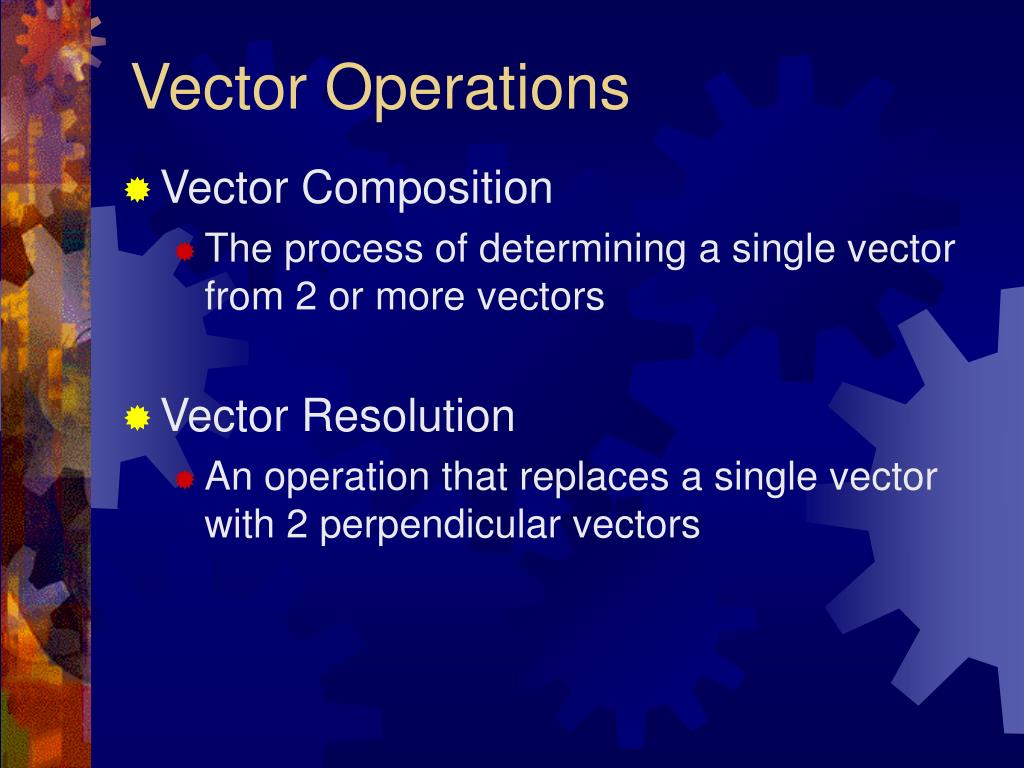

  6. Vector Operations • Vector Composition • The process of determining a single vector from 2 or more vectors • Vector Resolution • An operation that replaces a single vector with 2 perpendicular vectors

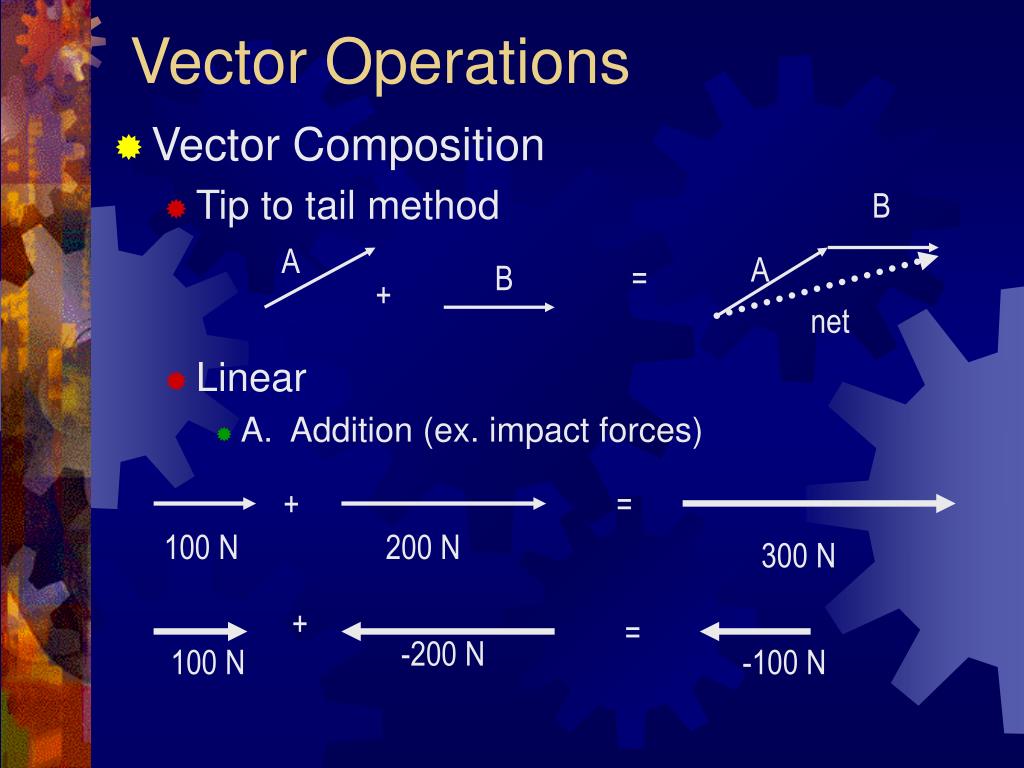

  7. Vector Operations B • Vector Composition • Tip to tail method • Linear • A. Addition (ex. impact forces) A A B = + net + = 100 N 200 N 300 N + = -200 N 100 N -100 N

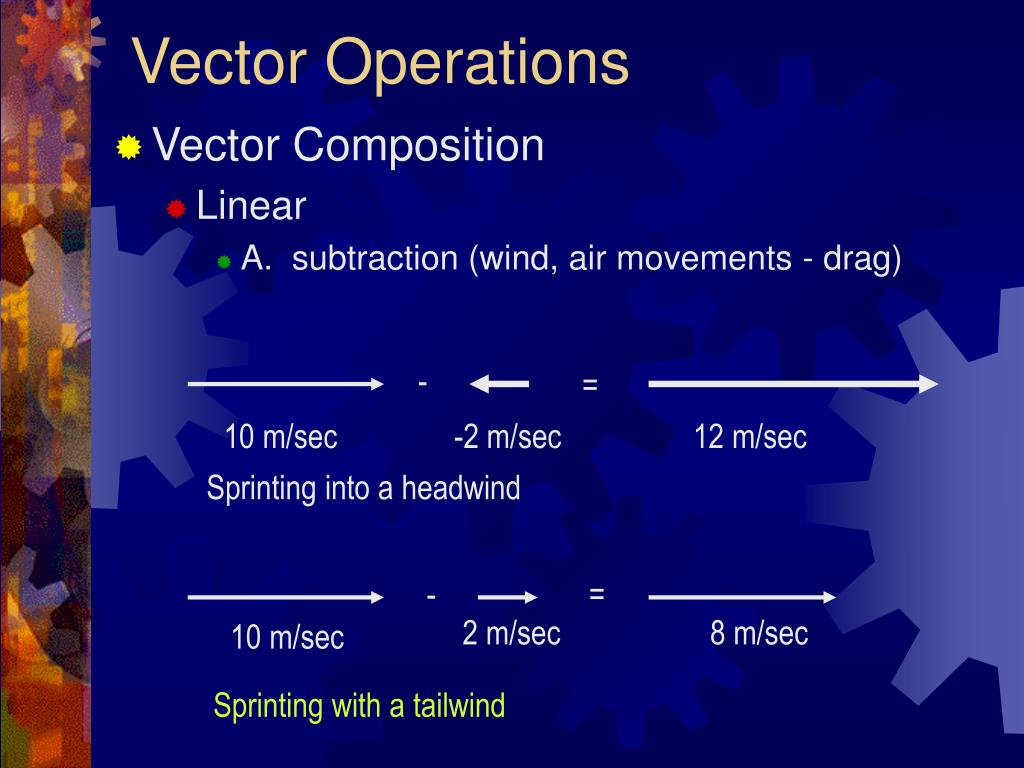

  8. Vector Operations • Vector Composition • Linear • A. subtraction (wind, air movements - drag) - = 10 m/sec -2 m/sec 12 m/sec Sprinting into a headwind - = 2 m/sec 8 m/sec 10 m/sec Sprinting with a tailwind

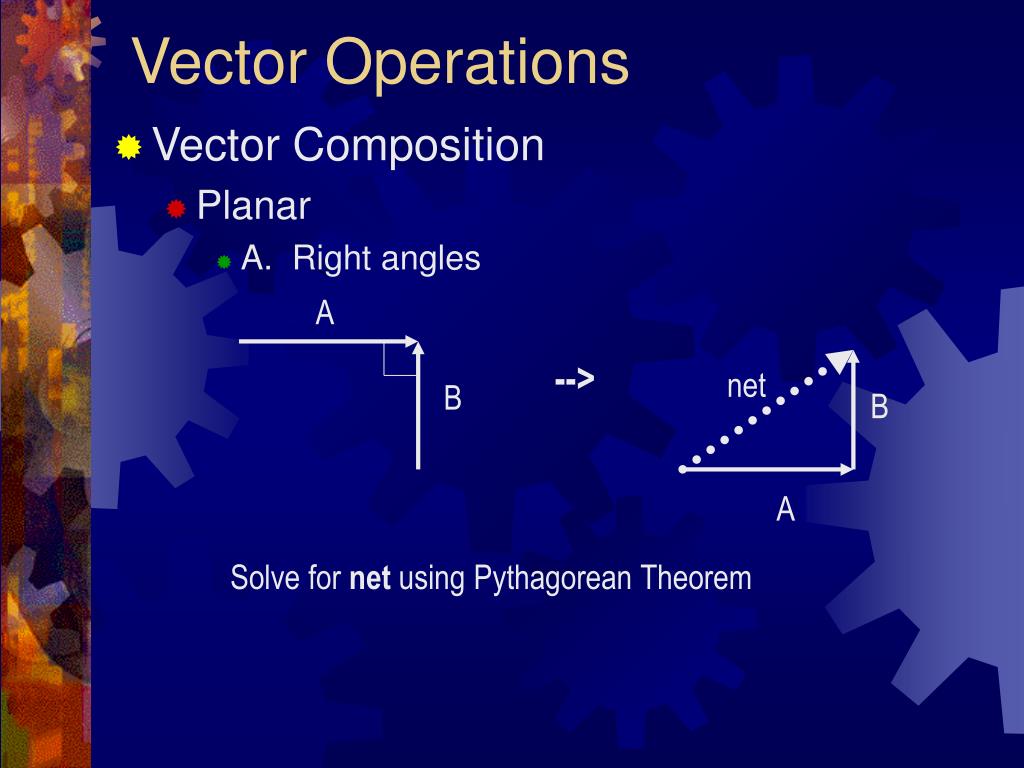

  9. Vector Operations • Vector Composition • Planar • A. Right angles A --> net B B A Solve for net using Pythagorean Theorem

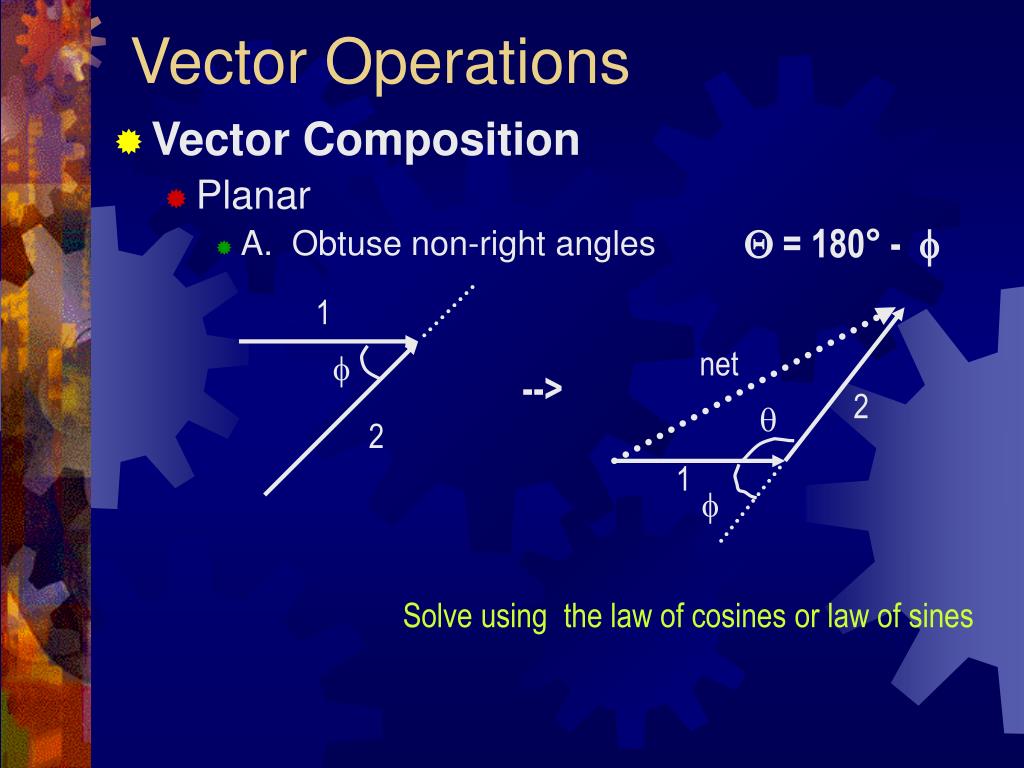

  10. Vector Operations • Vector Composition • Planar • A. Obtuse non-right angles Q = 180° - f 1 net f --> 2 q 2 1 f Solve using the law of cosines or law of sines

  11. 1350 Vector Composition Of Non Co-linear Vectors 2 tacklers are pulling on Dante Hall Player A uses a force of 200 N and. Player B is a force of 100 N acting at an angle of 1350 from vector A. Calculate the resultant of these two vectors. Vector A (vA) Vector B (vB)

  12. 1350 Vector B (vB) Vector A (vA) Vector Composition Of Non Co-linear Vectors • (1) tip to tail method f q

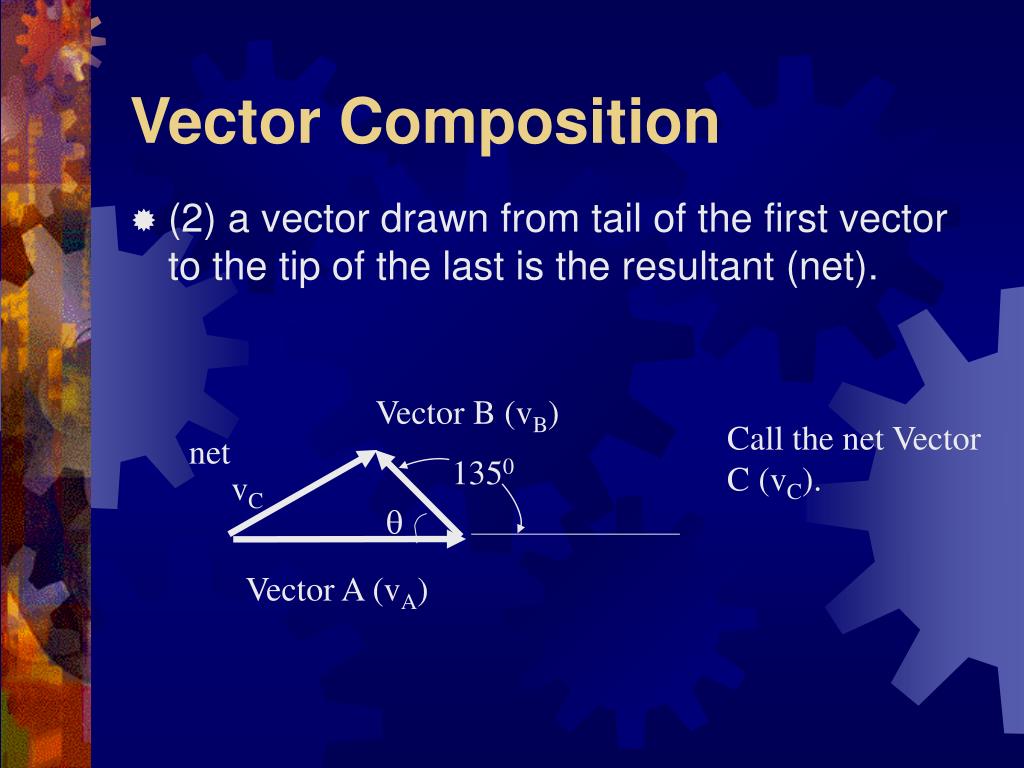

  13. 1350 net Vector B (vB) vC Vector A (vA) Vector Composition • (2) a vector drawn from tail of the first vector to the tip of the last is the resultant (net). Call the net Vector C (vC). q

  14. Vector B (vB) Resultant 1350 vC q Vector A (vA) C= √(200N)2+(100N)2-2(100N)(200N)cos 450= 147.4 N Vector Composition - Non Co-linear Vectors • (3) Use the Law of Cosines to calculate the magnitude of net vector. A = vA, B = vB, and C is the magnitude of the resultant vC. q is the angle opposite vC. q= 1800 – 1350 = 450 C2= A2+ B2-(2* A* B*cos q) vC= √A2+ B2-(2* A* B*cos q)

  15. Vector B (vB) Resultant b 1350 vC q Vector A (vA) Vector Composition Of Non Co-linear Vectors • (4) Since a vector has magnitude and direction, use the Law of Sines to find the direction. b is the angle opposite vB. - the angle that the resultant makes relative to vector A

  16. Vector B (vB) Resultant b 1350 vC q Vector A (vA) Vector Composition Of Non Co-linear Vectors law of sines: B/sin b = C/sin q sin b = (B* sin q)/C = (100 N * sin 450)/147.4 N) sin b = 0.480 Now find ß by using the inverse sine (sin-1)

  17. Vector Composition Of Non Co-linear Vectors • (5) inverse sine: expressed as sin-1 to find the angle. sin-1 (sin q ) = q • EXAMPLE: sin 300 = .5 sin-1 .5 = 300 Then: If sin b = 0.480 , b = sin-1 (.480) = 28.670 Therefore, vc 147.4 N at an angle 28.670 above Player A.
