  1. Corporation Membrane Aided Solutions Presentation to Isaac Gaon CEO STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE April, 2012

  2. Membrane Aided Solutions “separating liquids from liquids so as to capture and purify valuable component s within mixtures” STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

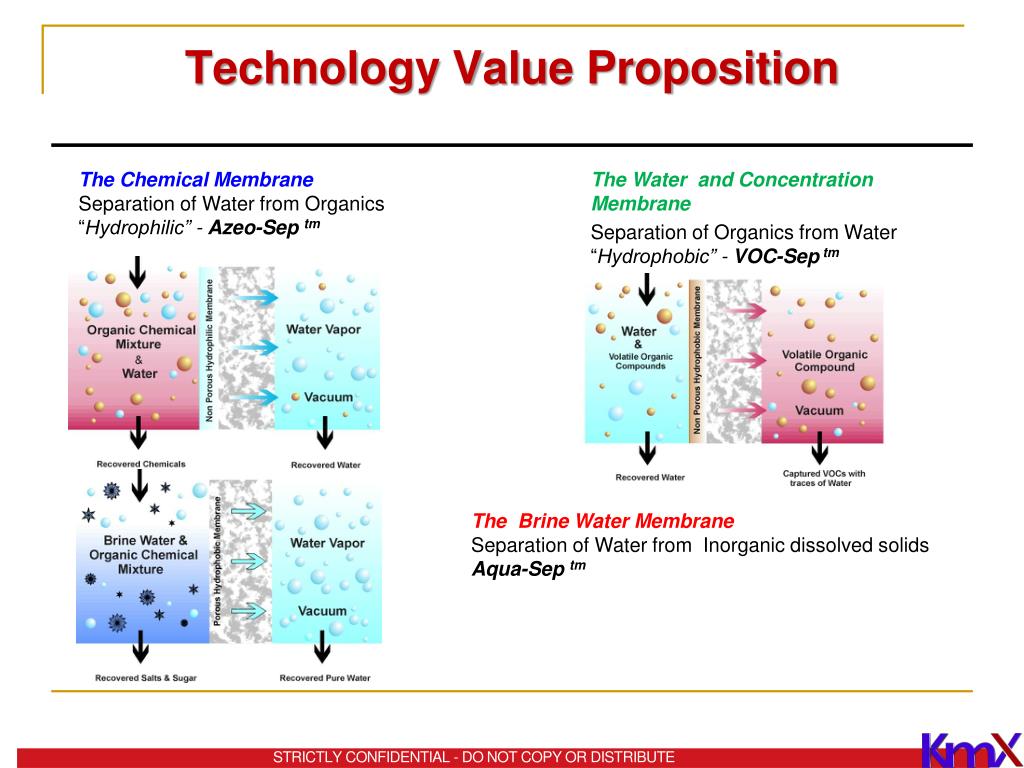

  3. Technology Value Proposition • The Chemical Membrane Separation of Water from Organics “Hydrophilic” - Azeo-Sep tm • The Water and Concentration Membrane • Separation of Organics from Water “Hydrophobic” - VOC-Sep tm • The Brine Water Membrane • Separation of Water from Inorganic dissolved solids Aqua-Sep tm STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

  4. Strategic Direction • Provide new membrane aided pathways in the manufacture of bio fuels / bio chemicals / bio plastics • Redirect chemical waste streams from incineration to rectification and reuse • Recover highly contaminated wastewater to drinking water quality • Create a win/win for business & the environment STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

  5. Butanol Value PropositionOne Ton Pilot Concentration & Dehydration of biobutanol - CAPEX <50% OPEX <60% From Fermentation From Fermentation Butanol Water Membrane Concentration & Inhibitor Separation Nitrogen Stripping Decantation Conventional Process KmX Process STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

  6. KmX’s Simple, Low Cost Solution for Cellulosic Ethanol • Conventional Process (Renewables &Cellulosic) 99.5% Ethanol Enzymatic/ Acid Hydrolysis Fermentation Beer Column Stripper Column Rectification Column Molecular Sieves Feedstock Preparation 99.5% Ethanol • KmX Process Algae Fermentation Feedstock Preparation KmX Hydrolysis Membrane Concentration & Dehydration Nitrogen Stripping “New” “New” “New” STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

  7. Virginia Plant Permitted for manifested waste ATF Permit for ethanol recovery 13.5 Acres 20,000 gallons/day capacity 4 Distillation Columns 4 Evaporators 2 Molecular Sieves 1 Centrifuge 1 Thin Film Evaporator Tank Farm -1m Gallons Membrane Pervap System Batch or Continuous Processing Well Equipped Laboratory Bottle bursting capabilities 7x24 operation STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

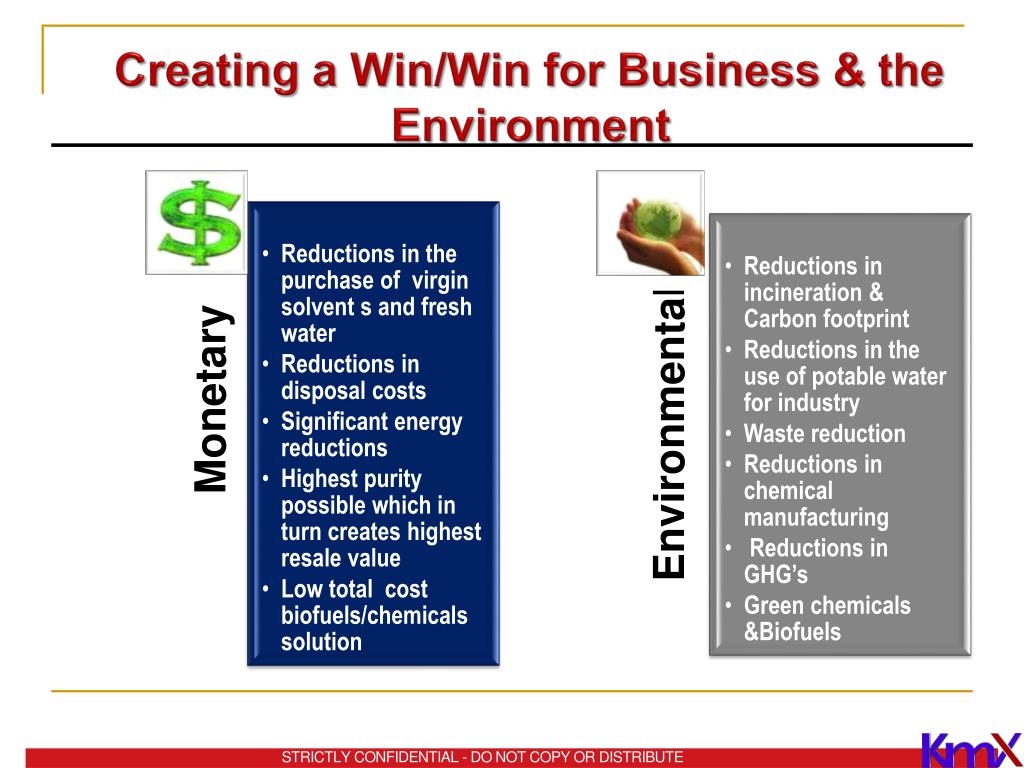

  8. Creating a Win/Win for Business & the Environment STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

  9. Pervaporation Membranes Industrial Applications STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE

  10. Thank You Q&A STRICTLY CONFIDENTIAL - DO NOT COPY OR DISTRIBUTE
