  1. SOHO DIY SECURE WIRELESS Matthew Maples Eastern Kentucky University Networking Security and Electronics

  2. Overview • Cost effective implementation of dual SSIDS in SOHO environment • Utilize wireless technology for maximum connectivity and decrease security risks • Re-purpose old or unused hardware

  3. Motivation • Mobile technology is growing • More security risks from unsecure devices • Experience customizing network to solve a problem • Cost effectiveness

  4. Problem Statement • Design and implementation of a mock SOHO setting using common or old hardware. • Utilize dual SSIDs to provide connectivity to typical network devices (file server) to secure connection while providing protection from unsecure devices.

  5. Initial Assumptions • Key for “secure” line will be handled appropriately by personnel. • Background in PC communications and networking or willingness to learn. • Designed for small settings. Number of devices would need to be increased for larger networks.

  6. Components Needed • FreeNas(or your choice of live cd/os to setup file server) • 3 PCS (1 for server, 2 workstations for demonstration) • 1 Linksys WRT54G Wireless-G Router • 1 Modem • Ethernet Cable • Wireless NIC/Adapters

  7. Preparation • 3 PCs (2 Workstations and 1 File Server) • File Server Min. Specs: • CPU: 32 bit or 64 bit (64bit for ZFS • RAM: 4gb, 6gb for ZFS • HD: Sata drives • After choosing specifications for each system, make sure that the master/slave drives are appropriately set and documented

  8. Preparation • Download FreeNAS to appropriate removable media (CD or USB) • Run FreeNAS image on File Server • Set static IP for file server by selecting Configure Network Interfaces during installation • Typing the IP into a web browser from a LAN workstation will connect to the server setup.

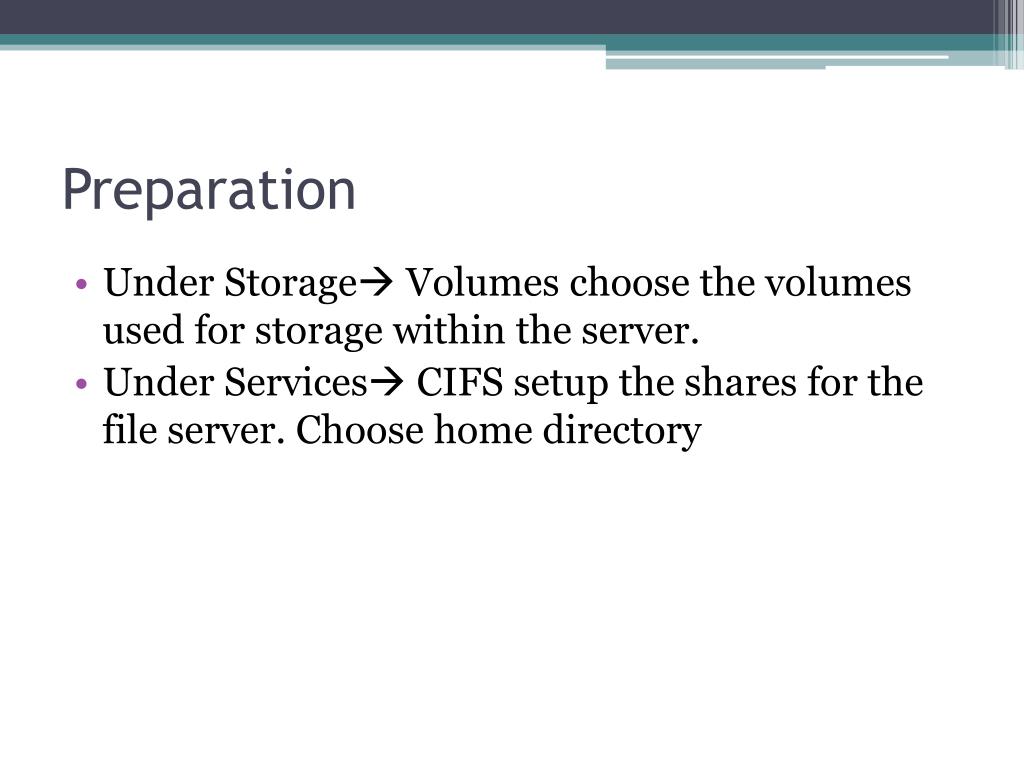

  9. Preparation • Under Storage Volumes choose the volumes used for storage within the server. • Under Services CIFS setup the shares for the file server. Choose home directory

  10. Preparation • Setup Wireless router for dual APS. • If the router does not come configured with DD-WRT then it must be installed. • Download the DD-WRT version that fits your router onto a PC • Connect the router to the PC via ethernet cable and log into the config using web browser (internet explorer recommended)

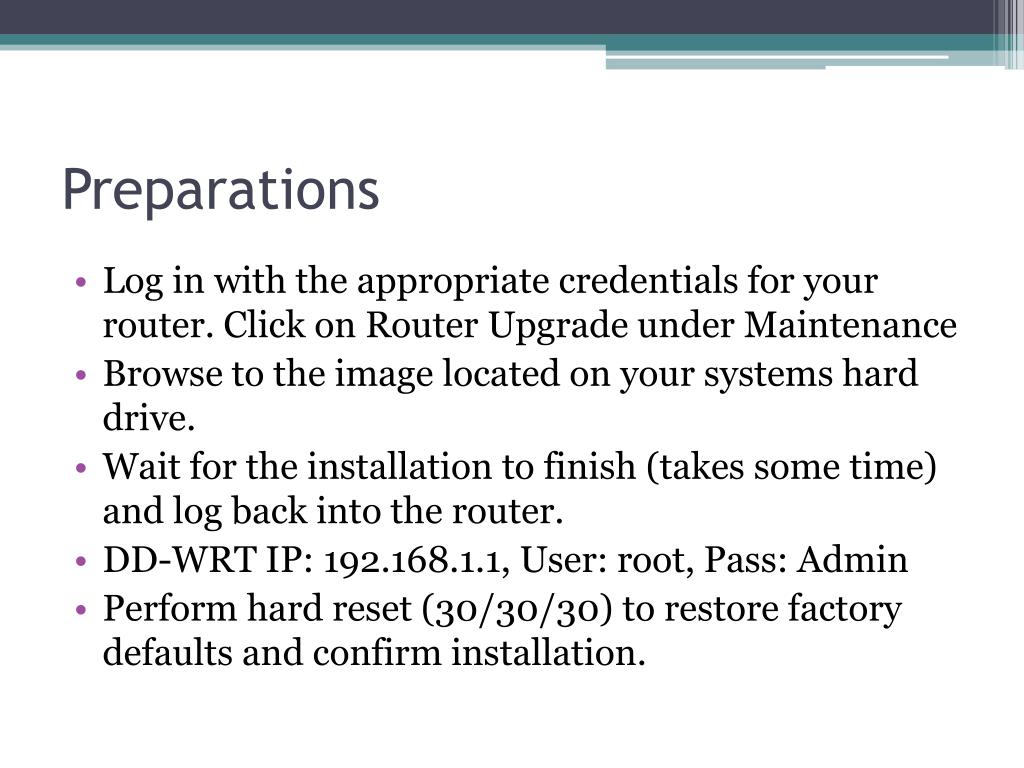

  11. Preparations • Log in with the appropriate credentials for your router. Click on Router Upgrade under Maintenance • Browse to the image located on your systems hard drive. • Wait for the installation to finish (takes some time) and log back into the router. • DD-WRT IP: 192.168.1.1, User: root, Pass: Admin • Perform hard reset (30/30/30) to restore factory defaults and confirm installation.

  12. Preparations • Setup 2 SSIDS on WRT54G router • Connect router to PC via Ethernet cable • In web browser, connect to 192.168.1.1 • Navigate to WirelessBasic Settings. • Click Add below Virtual Interfaces • Change SSIDs as needed.(I.E office and guest)

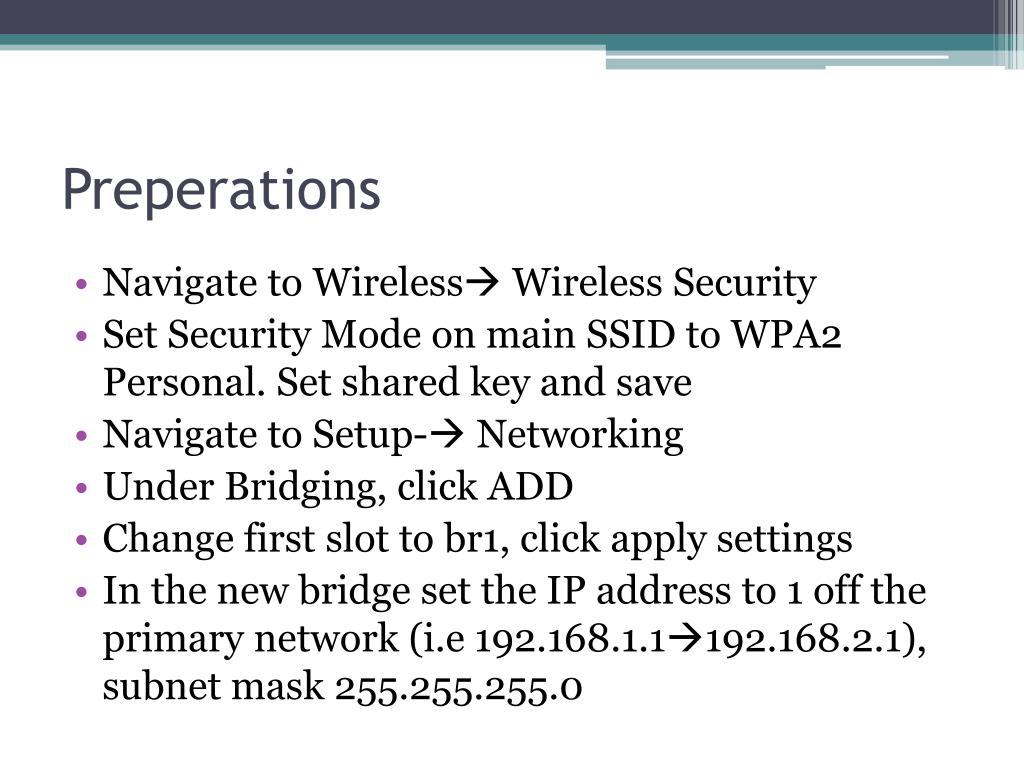

  13. Preperations • Navigate to Wireless Wireless Security • Set Security Mode on main SSID to WPA2 Personal. Set shared key and save • Navigate to Setup- Networking • Under Bridging, click ADD • Change first slot to br1, click apply settings • In the new bridge set the IP address to 1 off the primary network (i.e 192.168.1.1192.168.2.1), subnet mask 255.255.255.0

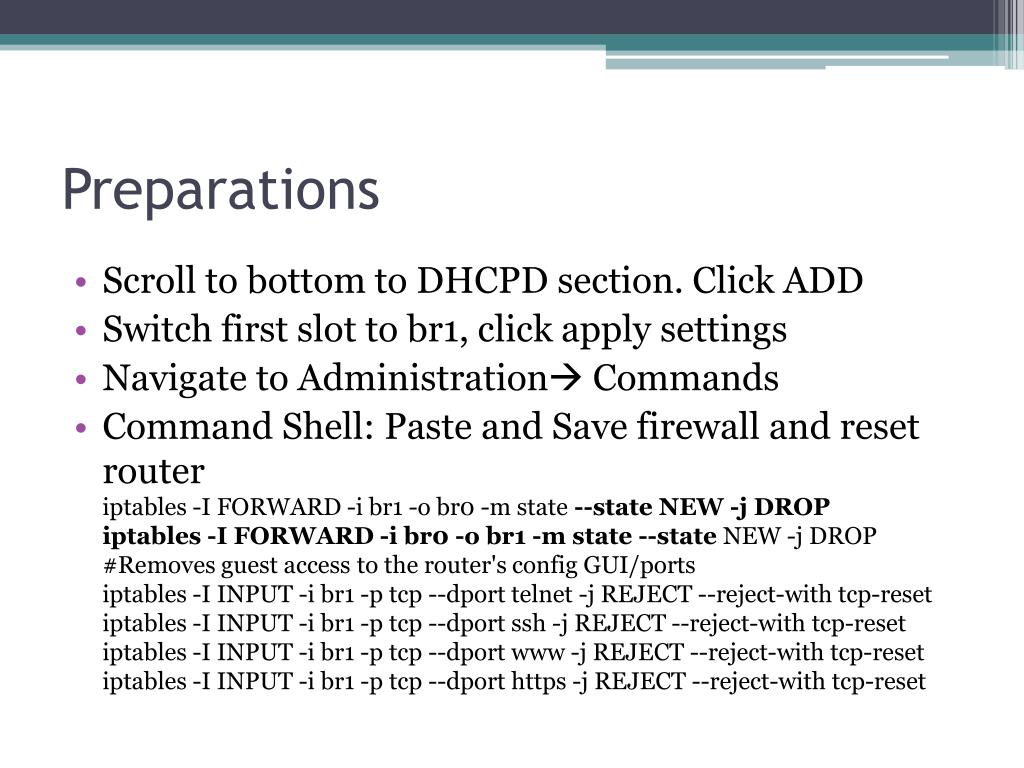

  14. Preparations • Scroll to bottom to DHCPD section. Click ADD • Switch first slot to br1, click apply settings • Navigate to Administration Commands • Command Shell: Paste and Save firewall and reset routeriptables -I FORWARD -i br1 -o br0 -m state --state NEW -j DROPiptables -I FORWARD -i br0 -o br1 -m state --state NEW -j DROP#Removes guest access to the router's config GUI/portsiptables -I INPUT -i br1 -p tcp --dport telnet -j REJECT --reject-with tcp-resetiptables -I INPUT -i br1 -p tcp --dportssh -j REJECT --reject-with tcp-resetiptables -I INPUT -i br1 -p tcp --dport www -j REJECT --reject-with tcp-resetiptables -I INPUT -i br1 -p tcp --dport https -j REJECT --reject-with tcp-reset

  15. Setup • Now that the Router is configured for dual SSIDS, you can setup the network • Setup workstations and file server with wireless communications via either wireless NICs or wireless adapters • On one workstation connect to the main network (i.e office) and on the other connect to the new one (i.e guest). • On the file server, connect to the main network.

  16. Testing/Results • From the workstation connected to the main network, create a new file under the share for the file server. • Try to do the same from a the second workstation. If setup properly the second workstation should not see the network share from the file server.

  17. Conclusion • The setup takes time and some knowledge of networking/pc hardware or willingness to learn. • Utilizing older systems/hardware can be a cost effective way to segregate small office or home networks to protect sensitive information without having to spend a lot of money on numerous WAP or limiting connectivity.

  18. Future Work • For added security, enable AP isolation for Guest SSID to prevent any workstation-> workstation communications on the guest network. • Inclusion of groups within FreeNAS software can also add an extra layer of security

  19. References • (n.d.). Wireless Networking. Retrieved from http://www.vicomsoft.com/learning-center/wireless- networking/ • Bernadette, J. How WiFi Works (n.d). Retrived from http://computer.howstuffworks.com/wireless- network.htm • Fitzpatrick, J. (2013, April 22). How to Enable a Guest Access Point on Your Wireless Network. HowTo Geek RSS. Retrieved May 6, 2014, from http://www.howtogeek.com/153827/how-to-enable-a-guest-access-point-on-your- wireless-network/ • Heyne, C. (2013, 06 23). 7 tips to boost wireless speed, range, and reliablity. Retrieved from http://www.audioholics.com/home-theater-connection/increase-wireless-speed-and-range • NetworkOC. Converting stand-alone cisco autonomous access point to lightweight access point. 2013, 09 23). Retrieved from http://www.networkoc.net/blog/ converting-stand-alone-cisco-autonomous-access-point-to-lightweight-access-point/ • Rubens, P. (2012, 05 10). Top 10 ways to secure a windows file server. Retrieved from http://www.esecurityplanet.com/windows-security/top-10-ways-to-secure-a-windows-file- server.html • Trived, Y. (2011, March 22). Turn Your Home Router Into a Super-Powered Router with DD- WRT. HowTo Geek RSS. Retrieved May 6, 2014, from http://www.howtogeek.com/56612/turn-your- home-router-into-a-super-powered-router- with-dd-wrt/
