  1. Lecture Server-side Programming CGI Common Gateway Interface

  2. Rich Internet Applications • An RIA is a web application that provides the client with the features and functionality of desktop applications • Requires transferring the processing from the server to the client • Javascript is one enabling technology for a RIA

  3. RIAs in the Internet client-server model Client (browser) Web server HTTP request for resource Data (eg multimedia) stay on the server Client does all the processing (eg play videos as they come in) Server sends code but keeps data

  4. Some technologies that support RIA development • Javascript (and associated ECMA dialects) • Adobe Flash • Flash player and IDE • Java Applets and Java Webstart (see later) • AJAX • Asynchronous JavaScript and XML

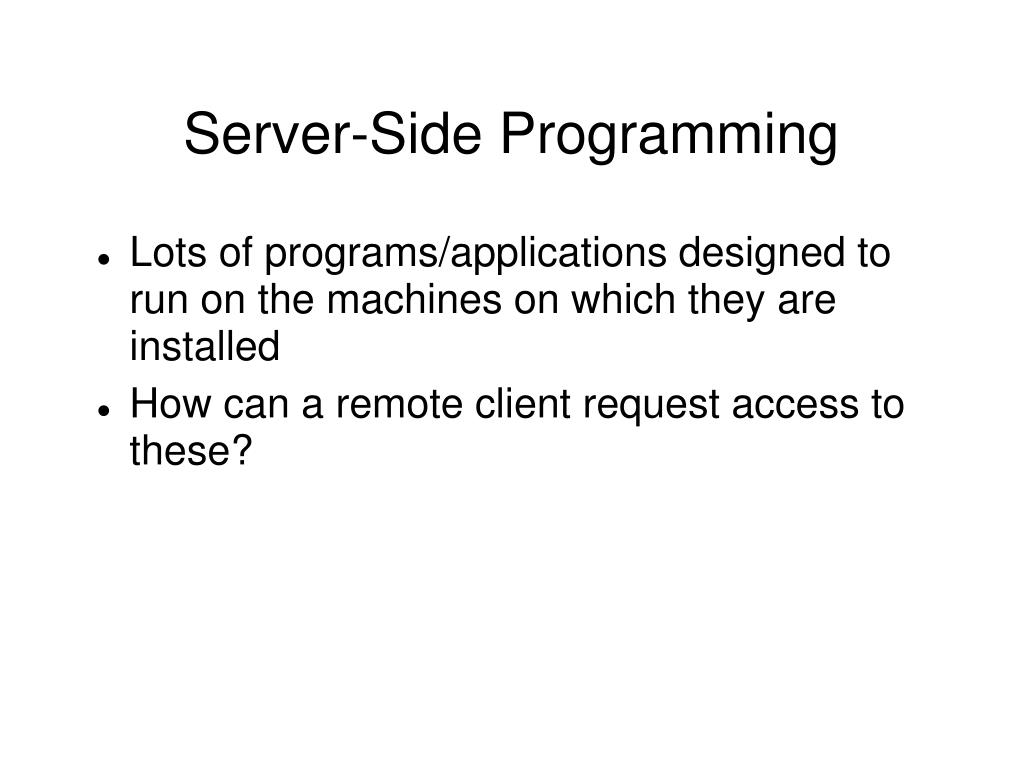

  5. Server-Side Programming • Lots of programs/applications designed to run on the machines on which they are installed • How can a remote client request access to these?

  6. CGI programming • CGI => Common Gateway Interface • A protocol for interfacing local applications with a web server • Sequence of steps • Client sends URL request • Program runs at the server side • Output is collected and sent back to the client • Often the output is an HTML “built” by the server

  7. CGI using HTML and C language • Why do we need CGI? • To read the information on the forms (HTML) • To build a customised HTML response to users • To understand the concept lets use C at first... • CGI is completely independent of the language and OS • CGI is implemented in (almost) all webservers

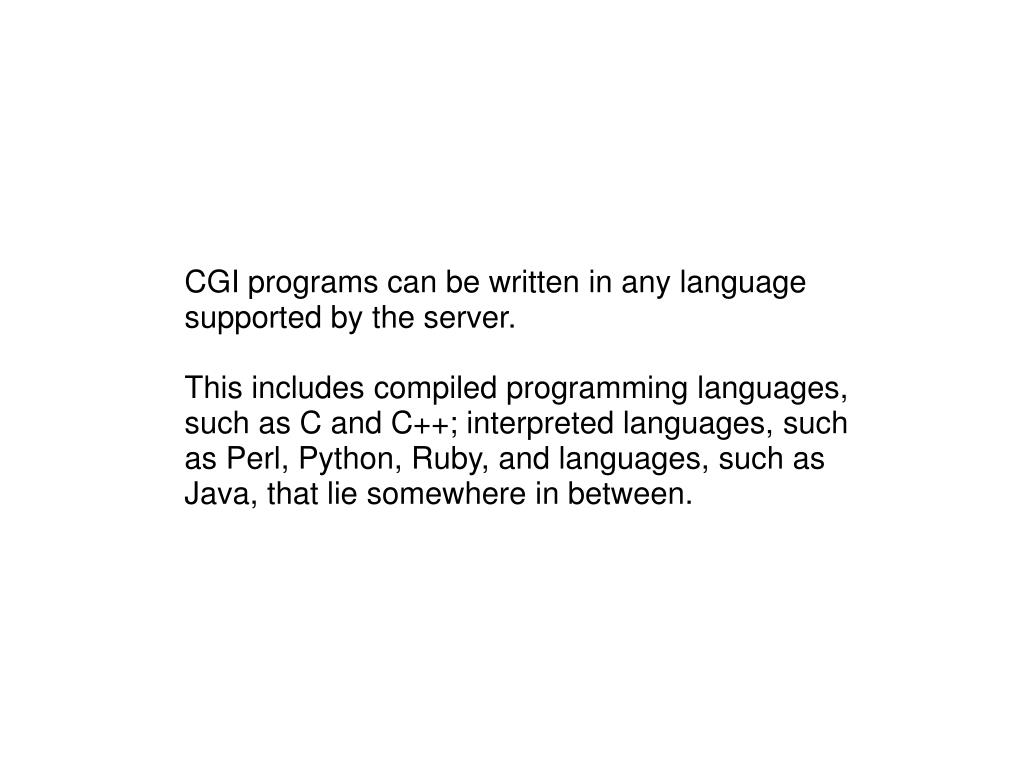

  8. CGI programs can be written in any language supported by the server. This includes compiled programming languages, such as C and C++; interpreted languages, such as Perl, Python, Ruby, and languages, such as Java, that lie somewhere in between.

  9. Hello World! #include <iostream> using namespace std; int main(void) { cout << "Content-Type: text/html;charset=us-ascii\n\n"; /** Print the HTML response page to STDOUT. **/ cout << "<html>\n"; cout << "<head><title>CGI Output</title></head>\n"; cout << "<body>\n" ; cout << "<h1>Hello, world.</h1>\n"; cout << "this is my first CGI" << "\n"; cout << "</body>\n"; cout << "</html>\n"; return 0; } Compile, then place the executable inside cgi-bin directory of xitami Test using a browser, URL: http://localhost:8080/cgi-bin/helloworld

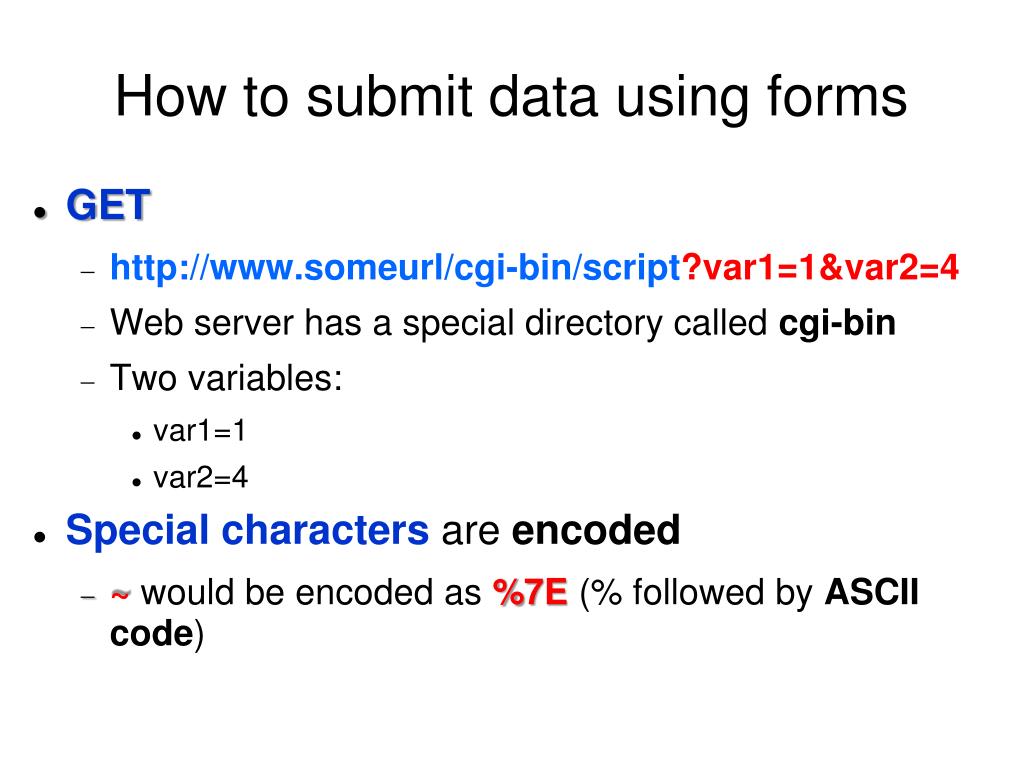

  10. How to submit data using forms • GET • http://www.someurl/cgi-bin/script?var1=1&var2=4 • Web server has a special directory called cgi-bin • Two variables: • var1=1 • var2=4 • Special characters are encoded • ~ would be encoded as %7E (% followed by ASCII code)

  11. GET • So variables from the forms go on URL • The environment variable is: • $QUERY_STRING • Most browsers limit the size of URLs (256 chars, some more, e.g., IE is 2083 chars) • When you have too much data, use POSTinstead...

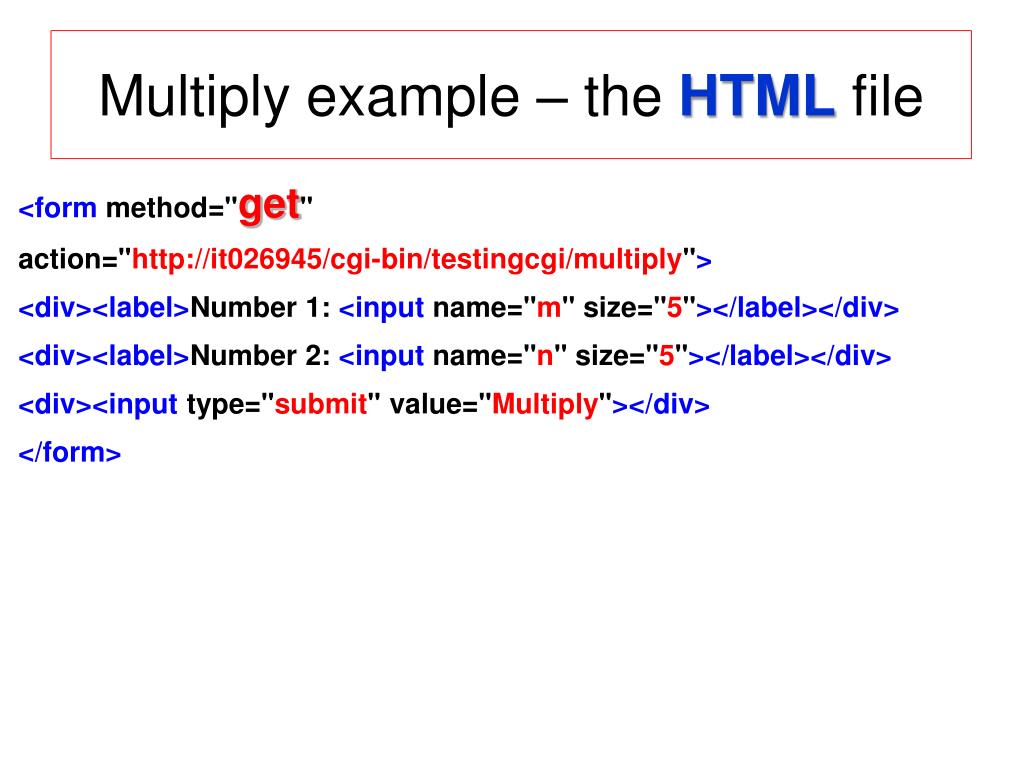

  12. Multiply example – the HTMLfile <form method="get" action="http://it026945/cgi-bin/testingcgi/multiply"> <div><label>Number 1: <input name="m" size="5"></label></div> <div><label>Number 2: <input name="n" size="5"></label></div> <div><input type="submit" value="Multiply"></div> </form>

  13. Multiply example • Action="http://it026945/cgi-bin/testingcgi/multiply"> • multiply is an executable under:/var/www/cgi-bin/ • with x permissions for all! • Variables in URL: • After submission, URL becomes: • http://it026945/cgi-bin/testingcgi/multiply?m=1&n=2

  14. Example CLIENT-SIDE SERVER-SIDE: Response

  15. Multiply example – the C file #include <stdio.h> #include <stdlib.h> #include <windows.h> //for Windows operating system – Sleep() int main(void) { char *data; longm,n; printf("%s%c%c\n","Content-Type:text/html;charset=iso-8859-1",13,10); printf("<TITLE>Multiplication results</TITLE>\n"); printf("<H3>Multiplication results</H3>\n"); data = getenv("QUERY_STRING");//here it is your data!!! if(data == NULL) printf("<P>Error!"); else if(sscanf(data,"m=%ld&n=%ld",&m,&n)!=2)//check for 2 inputs printf("<P>Error! Invalid data."); else printf("<P>%ld * %ld = %ld.",m,n,m*n); //Sleep(1000); // uncomment that to see who runs the process... return 0; } //from http://www.cs.tut.fi/~jkorpela/forms/cgic.html(July2010)

  16. Recall the sscanf() function in C • int sscanf ( const char * str, const char * format, ...); Read formatted data from string • On success, the function returns the number of items successfully read. • This count can match the expected number of readings or fewer, even zero, if a matching failure happens. • In the case of an input failure before any data could be successfully read, EOF is returned.

  17. getenv() function in C • char * getenv ( const char * name ); Get environment string • Retrieves a C string containing the value of the environment variable whosenameis specified as argument. • If the requested variable is not part of the environment list, the function returns a NULL pointer. • The string pointed by the pointer returned by this function shall not be modified by the program. • The same memory location may be used in subsequent calls togetenv, overwriting the previous content.

  18. fgets() function in C • char * fgets ( char * str, int num, FILE * stream ); Get string from stream Reads characters fromstreamand stores them as a C string intostruntil (num-1) characters have been read or either a newline or a the End-of-File is reached, whichever comes first. A newline character makesfgetsstop reading, but it is considered a valid character and therefore it is included in the string copied tostr. A null character is automatically appended instrafter the characters read to signal the end of the C string.

  19. POST • (GET was originally used only to get data from server) • data is passed via standard input stream (stdin) • the length (in bytes) of the data passed via • $CONTENT_LENGTH. • If the program reads more than the length, • ...unpredictable behaviour may happen!

  20. Multiply example – the HTML file <form method="post" action="http://it026945/cgi-bin/testingcgi/multiply"> <div><label>Number 1: <input name="m" size="5"></label></div> <div><label>Number 2: <input name="n" size="5"></label></div> <div><input type="submit" value="Multiply"></div> </form>

  21. Multiply with POST – C file • ...#define MAXLEN 80 • int main(void) • { • char *lenstr; • char input[MAXLEN]; • long m,n, len; • printf("%s%c%c\n","Content-Type:text/html;charset=iso-8859-1",13,10); • lenstr = getenv("CONTENT_LENGTH"); • if(lenstr == NULL || sscanf(lenstr,"%ld",&len)!=1 || len > MAXLEN) • printf("<P>There was an error in the content sent to Apache."); • else { • fgets(input, len+1, stdin); • printf("<P>Form received by Apache.<br>"); • printf("The form contains %ld bytes.<br>",len); • printf("<P>Apache received this: %s <br>",input); • if(sscanf(input,"m=%ld&n=%ld",&m,&n)!=2) • printf("<P>An error occurred, both variables must be numeric."); • else • printf("<P><h3> %ld * %ld = %ld.</h3>",m,n,m*n); • } • return 0; • } • //adapted from http://www.cs.tut.fi/~jkorpela/forms/cgic.html (July2010)

  22. Self-generating form in C • #include <stdio.h> • #include <stdlib.h> • int main(void) • { • char *data; • long m,n; • printf("%s%c%c\n","Content-Type:text/html;charset=iso-8859-1",13,10); • printf("<form method = "get" action=\"http://it026945/cgi-bin/testingcgi/multiply2\"><div><label>Multiplicand 1: <input name=\"m\" size=\"5\"></label></div><div><label>Multiplicand 2: <input name=\"n\" size=\"5\"></label></div><div><input type=\"submit\" value=\"Multiply!\"></div></form>"); • printf("<H3>Multiplication results</H3>"); • data = getenv("QUERY_STRING"); • if(data == NULL) • printf("<P>Error! Error in passing data from form to script."); • else if(sscanf(data,"m=%ld&n=%ld",&m,&n)!=2) • printf("<P>Error! Invalid data. Data must be numeric."); • else • printf("<P>The product of %ld and %ld is %ld.",m,n,m*n); • return 0; • }

  23. Self-generating form in C #include <stdio.h> #include <stdlib.h> int main(void) { char *data; long m,n; static int flag=0; printf("%s%c%c\n","Content-Type:text/html;charset=utf-8",13,10); printf("<form method = \"get\" action=\"http://localhost:8080/cgi-bin/multiply2_utf8\"> <div><label>Multiplicand 1: <input name=\"m\" size=\"5\"></label></div> <div><label>Multiplicand 2: <input name=\"n\" size=\"5\"></label></div> <div><input type=\"submit\" value=\"Multiply!\"></div></form>"); printf("<H3>Multiplication results</H3>"); data = getenv("QUERY_STRING"); if(data == NULL) { if( !flag ){ printf("<P>nothing to compute yet."); } else{ printf("<P>Error! Error in passing data from form to script."); } }else if(sscanf(data,"m=%ld&n=%ld",&m,&n)!=2) { printf("<P>Error! Invalid data. Data must be numeric."); } else{ printf("<P>The product of %ld and %ld is %ld.",m,n,m*n); flag = 1; } return 0; }

  24. Handling Special Characters void decode(char *src, char *last, char *dest){ for(; src != last; src++, dest++) if(*src == '+') *dest = ' '; else if(*src == '%') { int code; if(sscanf(src+1, "%2x", &code) != 1) code = '?'; *dest = code; src +=2; } else *dest = *src; *dest = '\n'; *++dest = '\0'; }

  25. Problems with CGI • Each a time request is made, a new process is spawned on the server • This can quickly overwhelm sites that get a large number of hits • One solution is to install libraries directly callable by the web server mod_perl mod_python

  26. CGI can be inefficient... • The executable is loaded in the server's memory every time it is called • Multiple copies • API would be more efficient... • Bad idea to do that using C/C++ • Unstable environment (crash the entire server) • Apache offers modules with Perl and Python APIs • Scripting languages such as ASP and PHP

  27. Security problems with CGI In Linux • Program is running in your server... • Suppose you want the user to run: • system "whois $username" ; • But what if the user actually sends: • "john; rm -rf " • system "whois john; rm -rf " ; • The administrator: “Oh dear!Where are all my files?” For Windows, http://technet.microsoft.com/en-us/sysinternals/bb897435.aspx

  28. Server-side programming • Better to use a language specially designed for server-side programming • See PHP programming next...

  29. References • http://www.cs.tut.fi/~jkorpela/forms/cgic.html
