  1. RMD setting- Confirmation - Panasonic

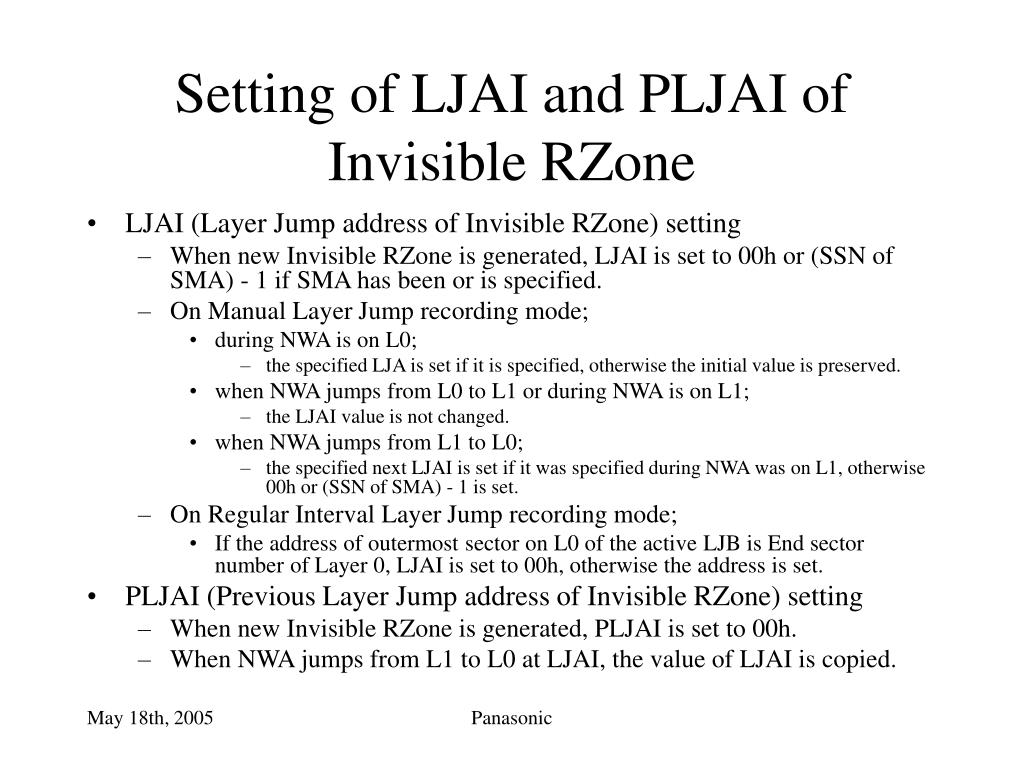

  2. Setting of LJAI and PLJAI of Invisible RZone • LJAI (Layer Jump address of Invisible RZone) setting • When new Invisible RZone is generated, LJAI is set to 00h or (SSN of SMA) - 1 if SMA has been or is specified. • On Manual Layer Jump recordingmode; • during NWA is on L0; • the specified LJA is set if it is specified, otherwise the initial value is preserved. • when NWA jumps from L0 to L1 or during NWA is on L1; • the LJAI value is not changed. • when NWA jumps from L1 to L0; • the specified next LJAI is set if it was specified during NWA was on L1, otherwise 00h or (SSN of SMA) - 1 is set. • On Regular Interval Layer Jump recording mode; • If the address of outermost sector on L0 of the active LJB is End sector number of Layer 0, LJAI is set to 00h, otherwise the address is set. • PLJAI (Previous Layer Jump address of Invisible RZone) setting • When new Invisible RZone is generated, PLJAI is set to 00h. • When NWA jumps from L1 to L0 at LJAI, the value of LJAI is copied. Panasonic

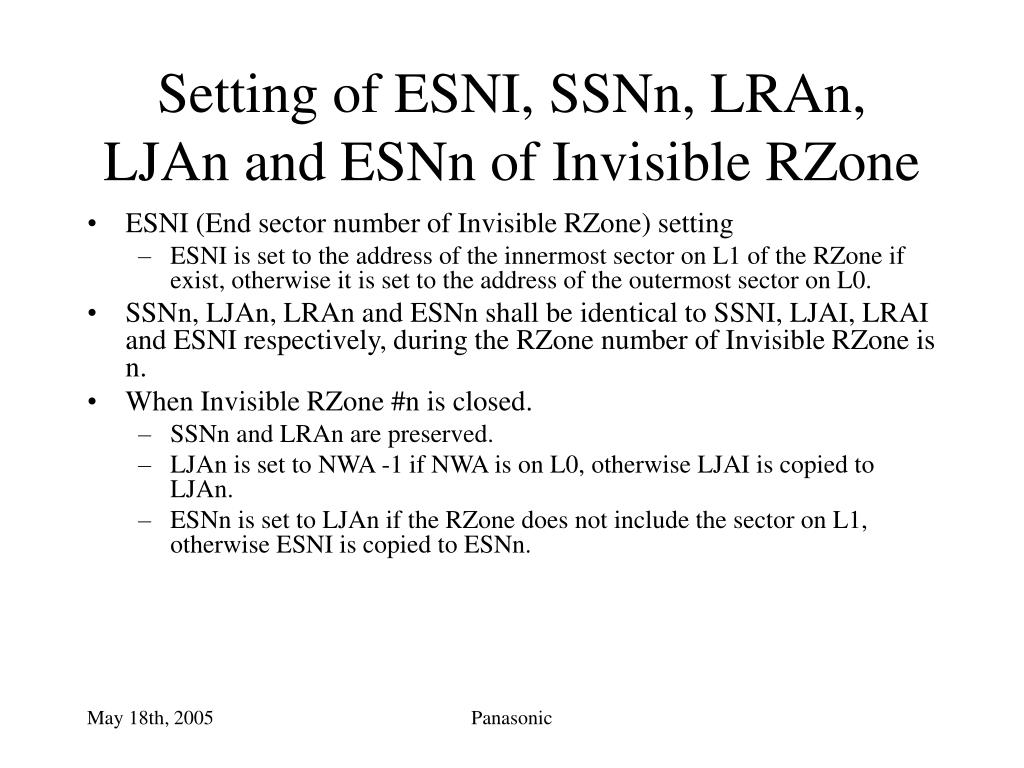

  3. Setting of ESNI, SSNn, LRAn, LJAn and ESNn of Invisible RZone • ESNI (End sector number of Invisible RZone) setting • ESNI is set to the address of the innermost sector on L1 of the RZone if exist, otherwise it is set to the address of the outermost sector on L0. • SSNn, LJAn, LRAn and ESNn shall be identical to SSNI, LJAI, LRAI and ESNI respectively, during the RZone number of Invisible RZone is n. • When Invisible RZone #n is closed. • SSNn and LRAn are preserved. • LJAn is set to NWA -1 if NWA is on L0, otherwise LJAI is copied to LJAn. • ESNn is set to LJAn if the RZone does not include the sector on L1, otherwise ESNI is copied to ESNn. Panasonic

  4. Setting of LJAn and ESNn of Reserved RZone • LJAn setting • LJAn is set to 00h if the outermost sector on L0 of the RZone is End sector number of Layer 0, otherwise LJA is set to the address of the outermost sector on L0 of the RZone. • ESNn setting • ESNn is set to the address of the innermost sector on L1 of the RZone if exist, otherwise it is set to the address of the outermost sector on L0 of the RZone. Panasonic

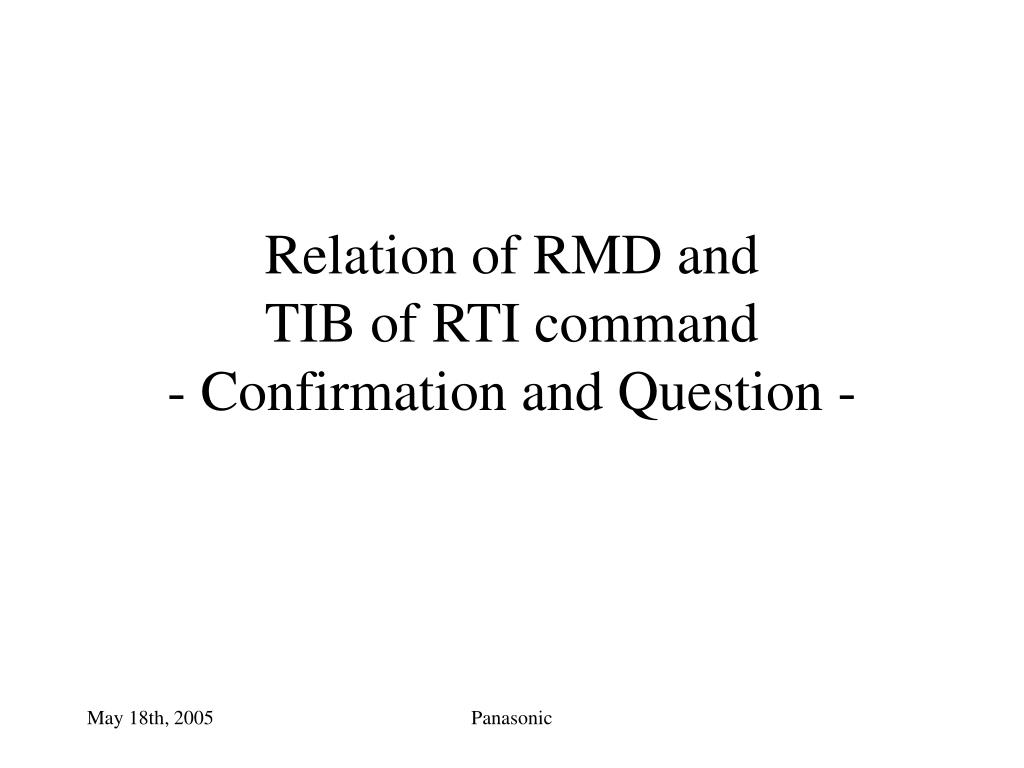

  5. Relation of RMD and TIB of RTI command- Confirmation and Question - Panasonic

  6. What is the meaning of LLJA field? Panasonic

  7. ESNn Reserved RZone SSNn LJAn ESNn Reserved RZone SSNn LJAn ESNn Reserved RZone SSNn LJAn ESNn Reserved RZone SSNn LJAn Which value is set to NLJA and LLJA fields for closed RZone? Panasonic

  8. Invalid fields Invalid fields Blank area LLJA Reserved RZone FMA LLJA Invisible RZone FMA LLJA Incomplete RZone LJA FMA Invisible RZone FMA LJA Invisible RZone FMA LJA Incomplete RZone FMA PLJA PLJA PLJA NLJA NLJA NLJA JI Incomplete RZone FMA LLJA Reserved Invisible FMA LLJA Incomplete RZone FMA LLJA PLJA Incomplete RZone FMA Incomplete RZone FMA PLJA RZone RZone FMA PLJA LJA NLJA LJA NLJA LJA NLJA NLJA FMA Incomplete RZone FMA LLJA FMA PLJA PLJA Incomplete RZone FMA PLJA FMA FMA NLJA LLJA LJA NLJA LJA LLJA LJA FMA NLJA FMA Reserved FMA PLJA LLJA PLJA NLJA LJA RZone FMA LJA LLJA NLJA NLJA FMA FMA PLJA NLJA FMA FMA FMA PLJA LJA FMA LLJA LJA PLJA LLJA LJA LLJA FMA FMA LJA LJA FMA FMA NLJA NLJA LLJA PLJA LLJA PLJA LLJA LLJA : TIB fields LJA FMA FMA LJA FMA FMA NLJA : RMD fields NLJA Panasonic PLJA PLJA

  9. Others Panasonic

  10. Recognition of Layer Jump recording mode by Format4 RMD Panasonic

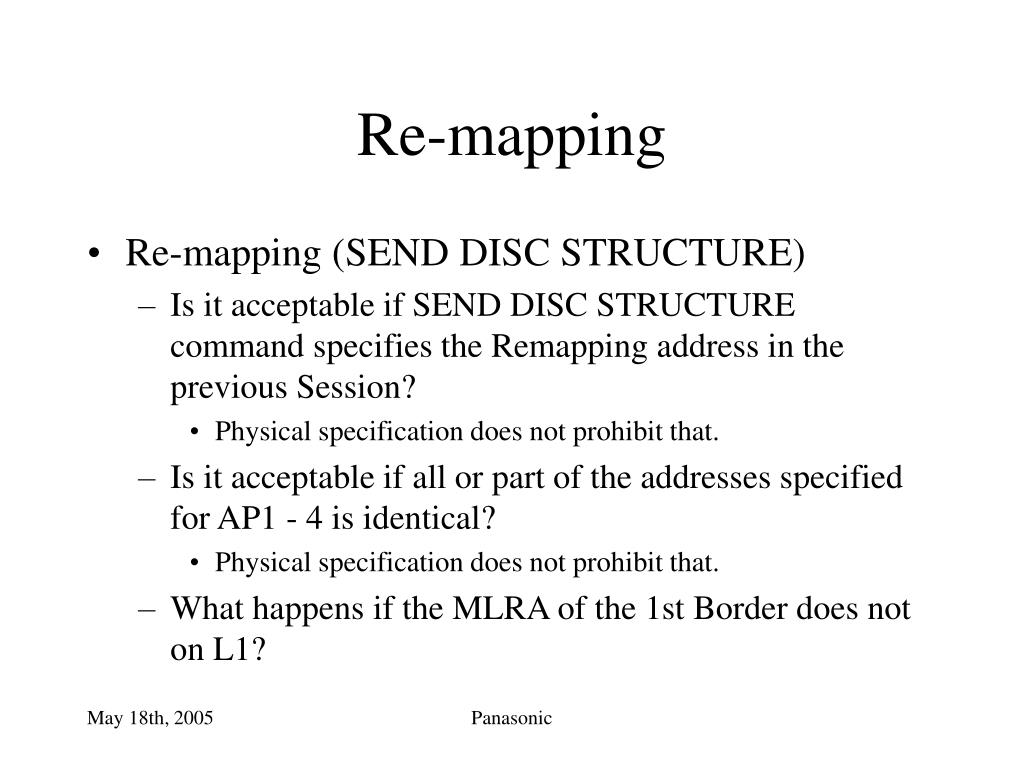

  11. Re-mapping • Re-mapping(SEND DISC STRUCTURE) • Is it acceptable if SEND DISC STRUCTURE command specifies the Remapping address in the previous Session? • Physical specification does not prohibit that. • Is it acceptable if all or part of the addresses specified for AP1 - 4 is identical? • Physical specification does not prohibit that. • What happens if the MLRA of the 1st Border does not on L1? Panasonic

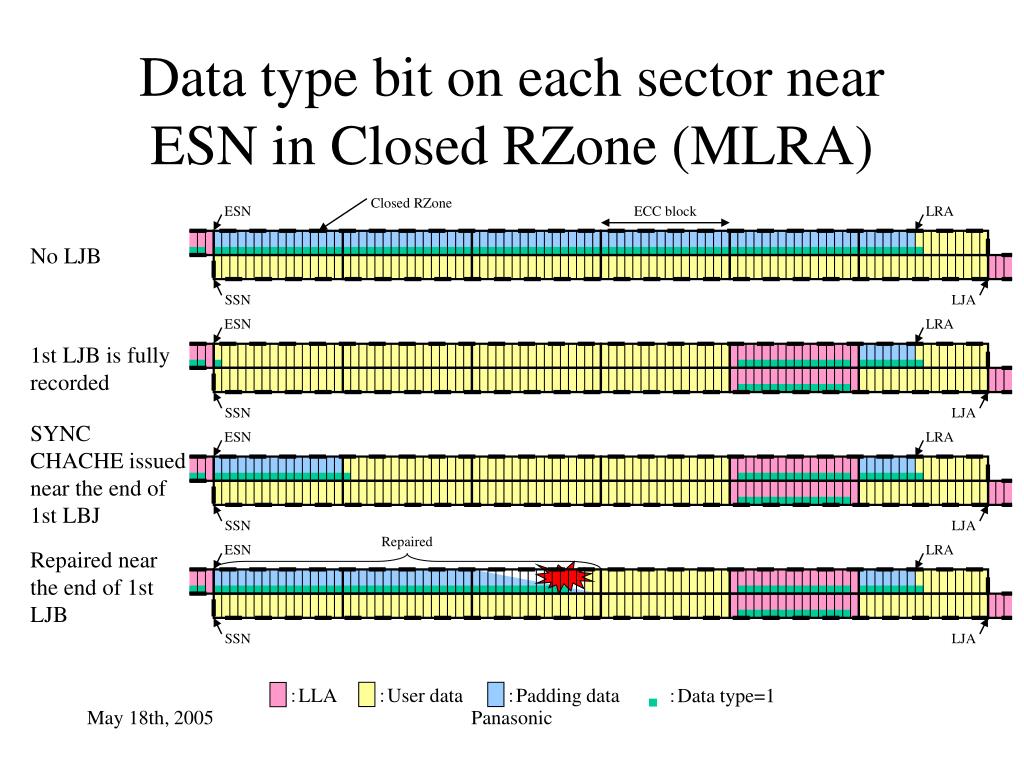

  12. Data type bit on each sector near ESN in Closed RZone (MLRA) Closed RZone ESN ECC block LRA No LJB SSN LJA ESN LRA 1st LJB is fully recorded SSN LJA ESN LRA SYNC CHACHE issued near the end of 1st LBJ SSN LJA Repaired ESN LRA Repaired near the end of 1st LJB SSN LJA ：LLA ：User data ：Padding data ：Data type=1 Panasonic
