  1. Grid-Brick Event Processing Framework in GEPS CHEP 03 – La Jolla, California A. Amorim, P. Trezentos, N. Almeida, H. Fei, L.Pedro, J.Villate, H.Wolters

  2. luis.pedro@cern.ch FCUL - Lisbon Outline • Introduction • Architecture Overview • Data Flow • How do we do it • Action! • Vantages and disadvantages • On-going and future work • Summary

  3. luis.pedro@cern.ch FCUL - Lisbon Introduction • What is GEPS • Grid-based Event Processing System • Developed on top of Globus • Provides web-based access to grid computing environment for event processing • Developed by GridPT working group

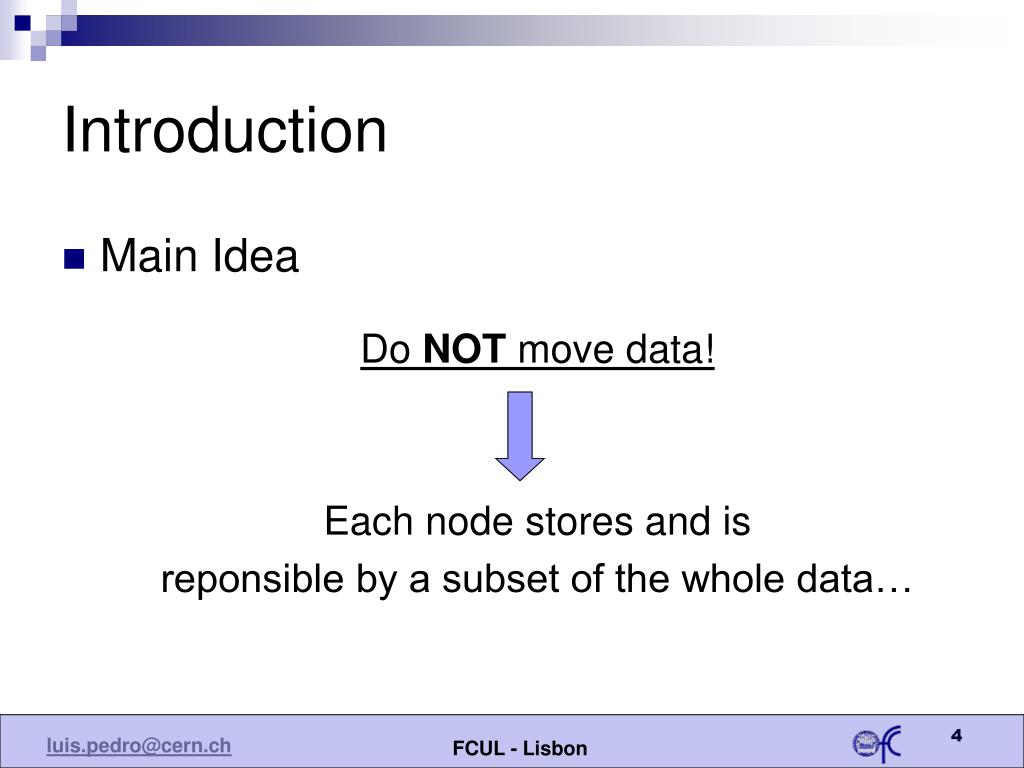

  4. luis.pedro@cern.ch FCUL - Lisbon Introduction • Main Idea Do NOT move data! Each node stores and is reponsible by a subset of the whole data…

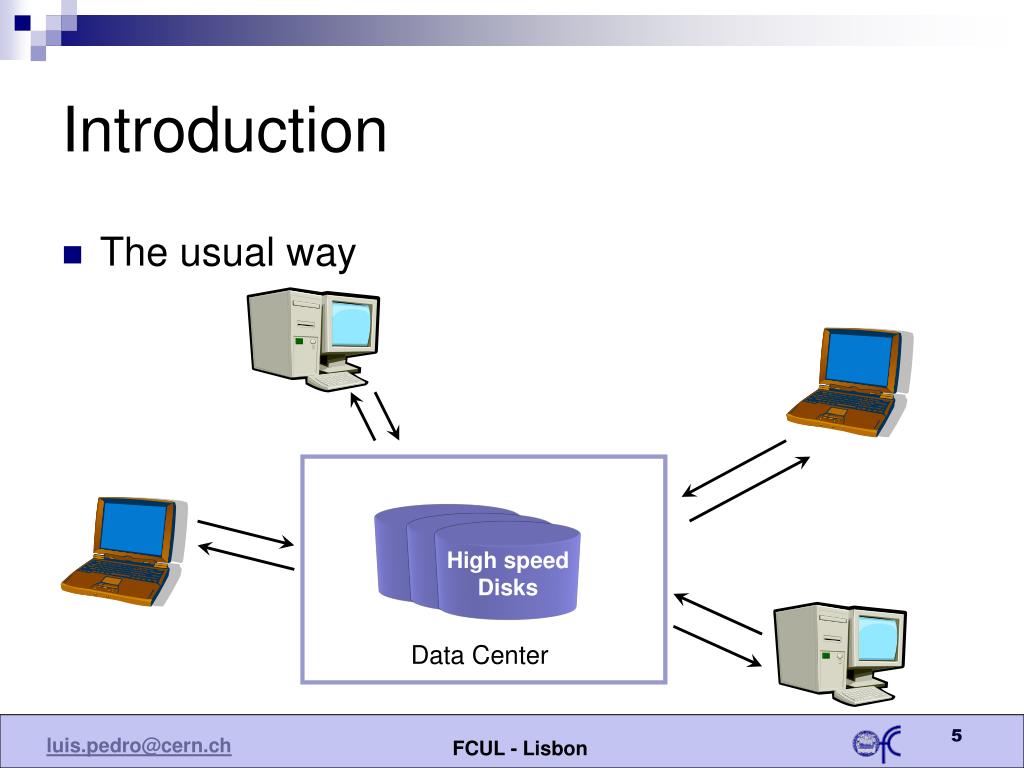

  5. High speed Disks Data Center luis.pedro@cern.ch FCUL - Lisbon Introduction • The usual way

  6. Meta-data catalogue User terminal User terminal User terminal luis.pedro@cern.ch FCUL - Lisbon Introduction • Our way Job submit server ………..

  7. luis.pedro@cern.ch FCUL - Lisbon Architecture Overview • User submits a query through a interface to the Job Submit Server (JSS). • Job submitted information will be stored in the Metadata Catalog.

  8. luis.pedro@cern.ch FCUL - Lisbon Architecture Overview • The job is submitted to the grid nodes using Globus API functions. • All the nodes query their own information and retrieve a result.

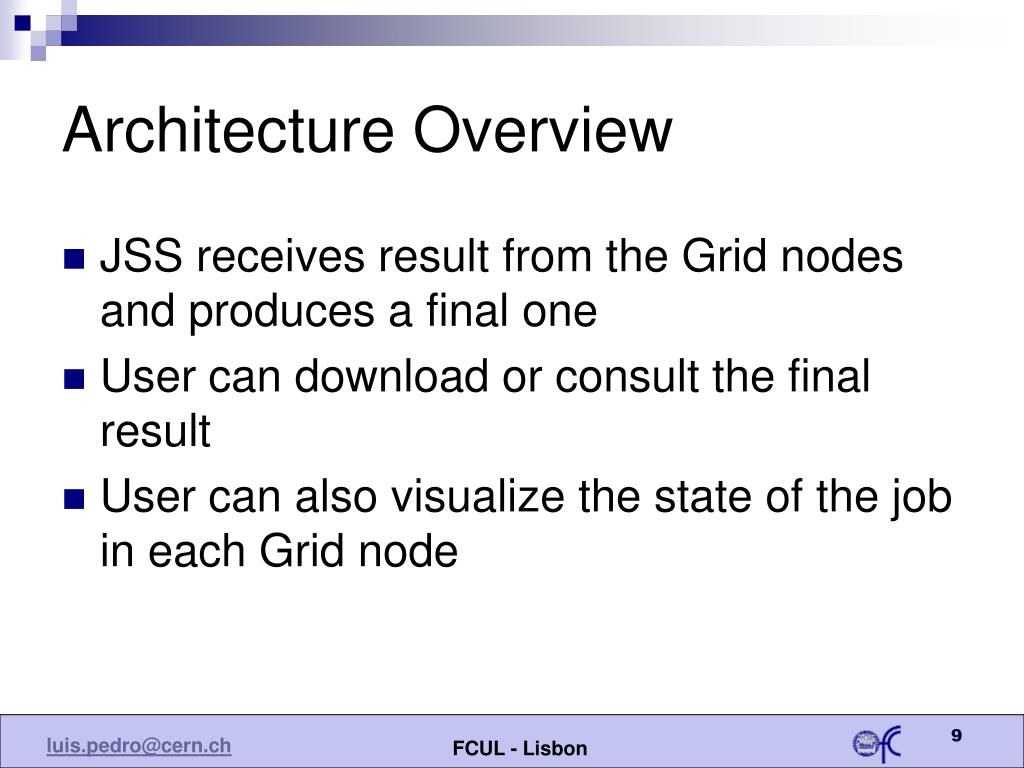

  9. luis.pedro@cern.ch FCUL - Lisbon Architecture Overview • JSS receives result from the Grid nodes and produces a final one • User can download or consult the final result • User can also visualize the state of the job in each Grid node

  10. luis.pedro@cern.ch FCUL - Lisbon Architecture Overview

  11. Meta-data catalogue Brick Grid node luis.pedro@cern.ch FCUL - Lisbon Data-flow JSS B R O K E R User terminal (PHP interface)

  12. luis.pedro@cern.ch FCUL - Lisbon How do we do it: • Technologies used • Globus • PgSQL • LDAP • PHP • ROOT

  13. luis.pedro@cern.ch FCUL - Lisbon How do we do it: • Relevant Features • Globus • Toolkit that provide GRID API functions • PgSQL • Meta-data catalogue implementation • LDAP • Query Grid node information • PHP • Web interface

  14. luis.pedro@cern.ch FCUL - Lisbon Action! • The human interface Main Page Submit a Job GREED info Job status

  15. luis.pedro@cern.ch FCUL - Lisbon Action! • Enabling ROOT Queries • The job is submitted to the grid nodes • All the nodes query their own information with ROOT and retrieve a ROOT file with a TTree • JSS receives the ROOT files and produces a final ROOT file with the result of the query • User can download or consult the final file because it is a TTree.

  16. luis.pedro@cern.ch FCUL - Lisbon Action! • Enabling ROOT Queries (cont) • Stores the information in each node using TTree’s • Filter the information in each node and retrieve a result file that include a TTree • Join all the result files in the Job Submit Server using a TChain and produces a final TTree that is the query result • View the final result file with a TBrowser or with Carrot

  17. luis.pedro@cern.ch FCUL - Lisbon Action! • Enabling ROOT Queries (reading ROOT files)

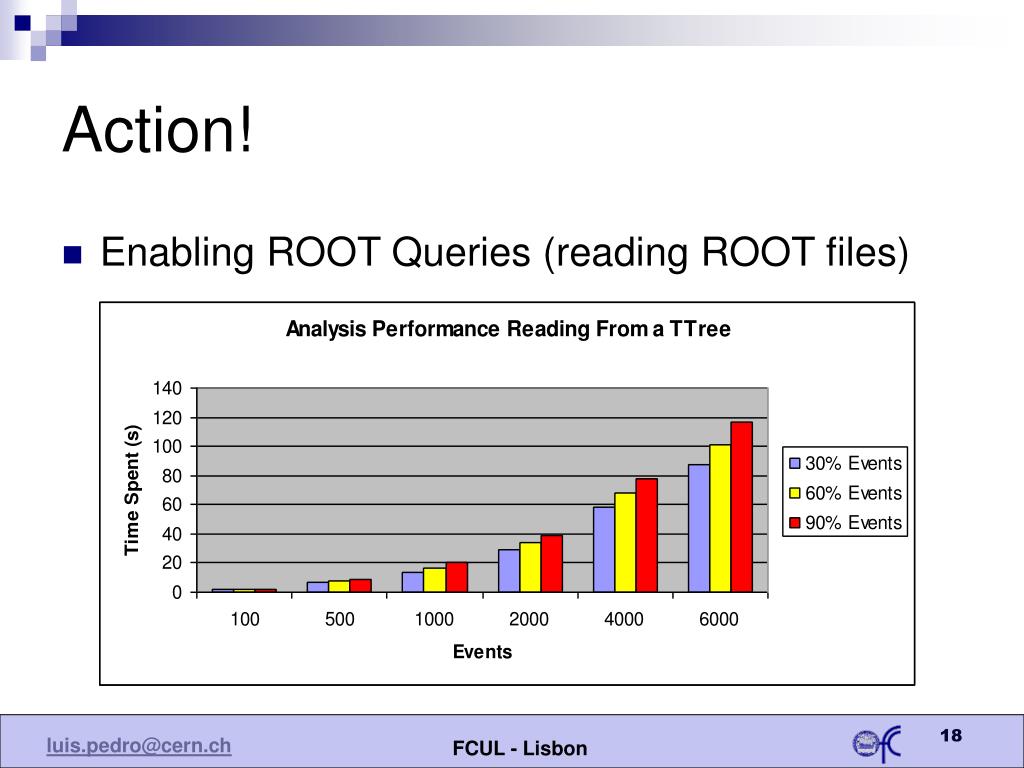

  18. luis.pedro@cern.ch FCUL - Lisbon Action! • Enabling ROOT Queries (reading ROOT files)

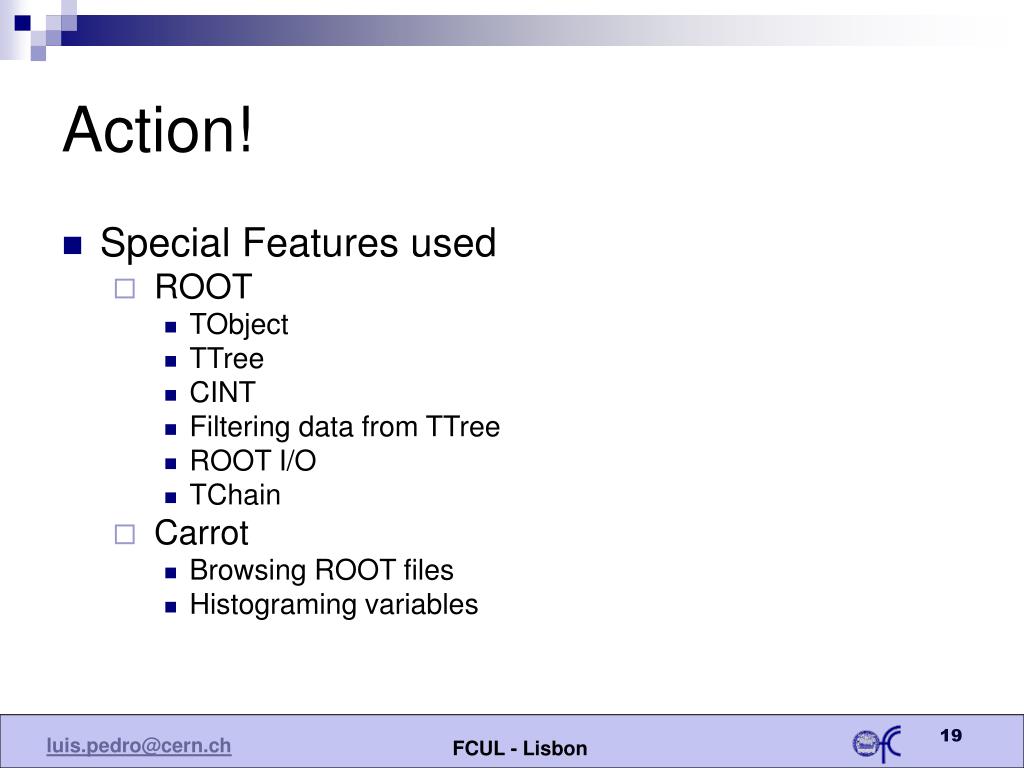

  19. luis.pedro@cern.ch FCUL - Lisbon Action! • Special Features used • ROOT • TObject • TTree • CINT • Filtering data from TTree • ROOT I/O • TChain • Carrot • Browsing ROOT files • Histograming variables

  20. luis.pedro@cern.ch FCUL - Lisbon Vantages and disavantages • Vantages • Commodity Data Storage • Huge Scalability (400 GB/node) • Granularity • Disadvantages • Load balancing • Suitable storage policy • Fault tolerance • Data replication or Backup

  21. luis.pedro@cern.ch FCUL - Lisbon On-going and future work • Error handling and fault-tolerance • Recover mechanisms for each node • Create a redundancy mechanism to recover from a malfunction in the nodes • Develop a storage mechanism to submit more work to the best nodes • Load balancing • Provide to user several interfaces to submit work

  22. luis.pedro@cern.ch FCUL - Lisbon Summary • A different approach is being developed • There is already a real prototype working • Some (good) results have been achieved • A lot of work already done….. • But …. Still a lot of work to do!

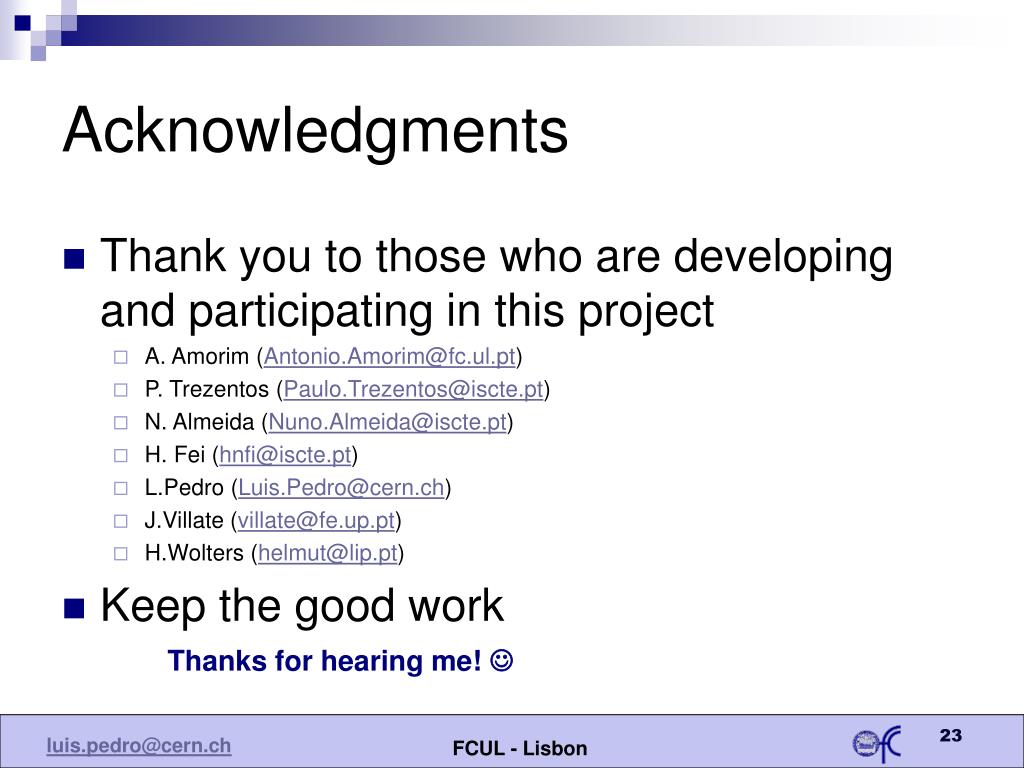

  23. luis.pedro@cern.ch FCUL - Lisbon Acknowledgments • Thank you to those who are developing and participating in this project • A. Amorim (Antonio.Amorim@fc.ul.pt) • P. Trezentos (Paulo.Trezentos@iscte.pt) • N. Almeida (Nuno.Almeida@iscte.pt) • H. Fei (hnfi@iscte.pt) • L.Pedro (Luis.Pedro@cern.ch) • J.Villate (villate@fe.up.pt) • H.Wolters (helmut@lip.pt) • Keep the good work Thanks for hearing me! 
