Update Procedure for LHC Sequence Files with New MADX Version

DESCRIPTION

Learn about necessary changes to LHC sequence files for compatibility with the latest MADX version. Remove "BV" attributes and adjust strength variable signs in beam 2 elements and correctors.

1 / 3

Télécharger la présentation

Update Procedure for LHC Sequence Files with New MADX Version

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

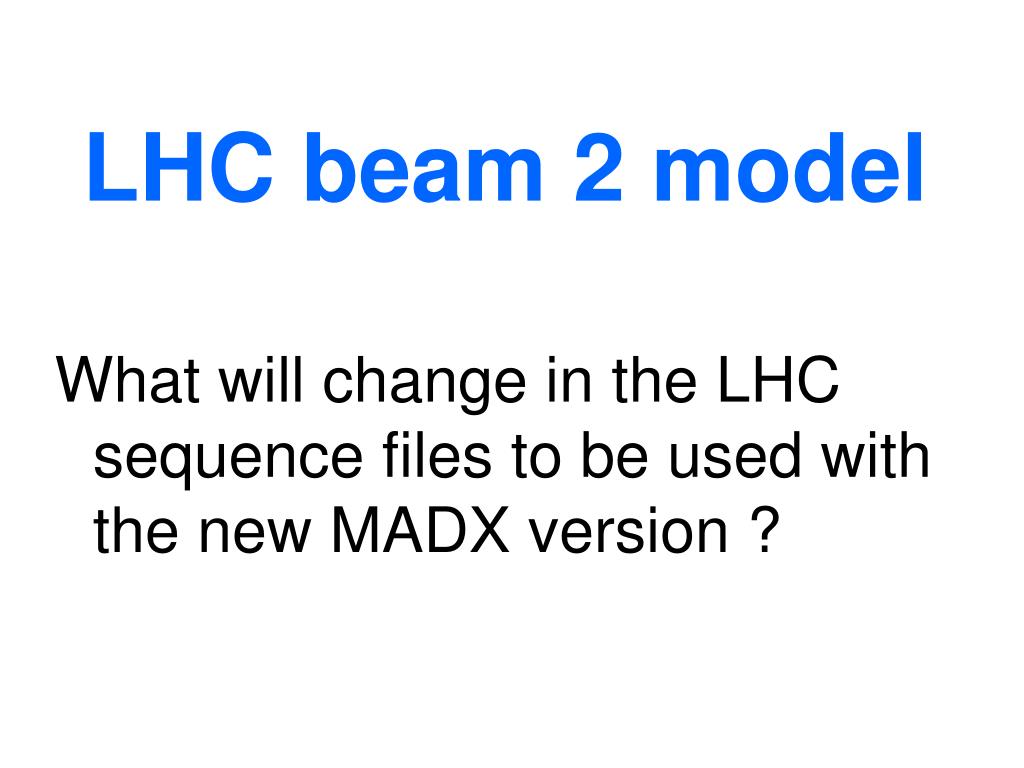

  1. LHC beam 2 model What will change in the LHC sequence files to be used with the new MADX version ?

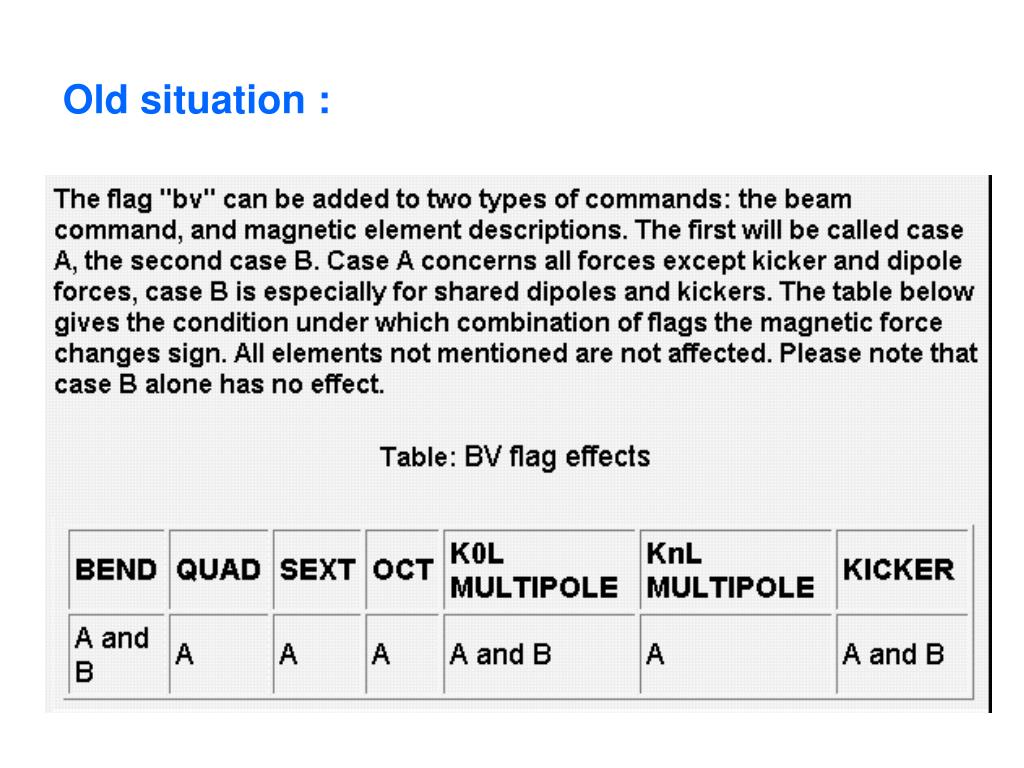

  2. Old situation:

  3. New situation : 1. remove all "BV" attributes in element or class definitions (concerns all single bore dipoles and orbit correctors): MBX : RBEND, .... , BV; MCBXH : HCORRECTOR, .... , BV; 2. change the signs of the strength variables in beam 2 (concerns all twin aperture dipoles and orbit correctors): MB.A10L1.B2, ANGLE := -ab.a81, K0 := -kb.a81; MBRC.4L1.B2, ANGLE := -ad2.l1, K0 := -kd2.l1; MCBH.18R1.B2, KICK := -acbh18.r1b2; MCBV.19R1.B2, KICK := -acbv19.r1b2;
