  1. Voice Over IP(VoIP)

  2. Understanding VoIP • Concepts • Components • Functionality • Protocols • Challenges • Demo Boyapati, Roopesh

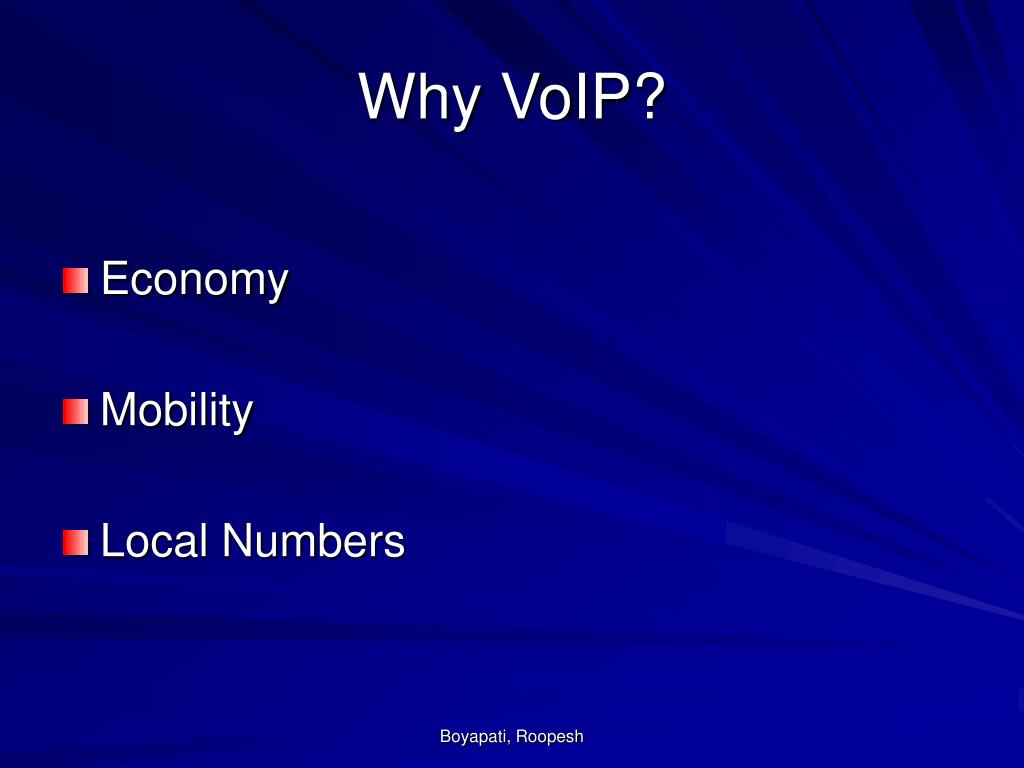

  3. Why VoIP? • Economy • Mobility • Local Numbers Boyapati, Roopesh

  4. VoIP Overview Boyapati, Roopesh

  5. ATA (analog telephone adapter) • Provides Dial tone • Provides Ring Signal for incoming calls • Analog to Digital conversion (Outgoing calls) • Digital to Analog (Incoming calls) • 2 Types Boyapati, Roopesh

  6. CODEC • Audio Signal Conversion • G.711: 64000/ second • G.729A: 8000/ second Boyapati, Roopesh

  7. Soft Switches • Call Processor • Phone number associated with that end point • End point’s current IP address • Specialized database/ mapping program. Boyapati, Roopesh

  8. Calling Process • Pick Receiver, this sends signal to ATA • ATA checks n/w connectivity and sends dial tone • Dial Phone Number • Phone number sent to VoIP service providers call processor • Soft switch connects both ends • Signal sent to receiver’s ATA to ring Boyapati, Roopesh

  9. Protocols • H.323 • Session Initiation Protocol • RTP • RTCP Boyapati, Roopesh

  10. H323 • Developed by ITU • Uses signaling messages Boyapati, Roopesh

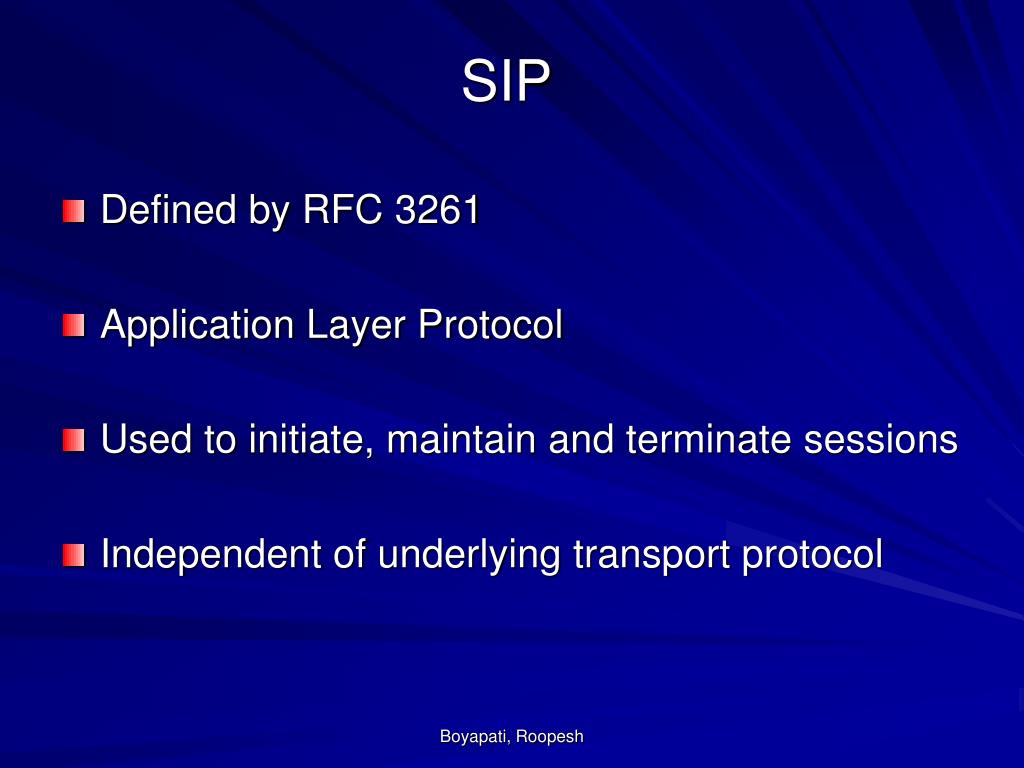

  11. SIP • Defined by RFC 3261 • Application Layer Protocol • Used to initiate, maintain and terminate sessions • Independent of underlying transport protocol Boyapati, Roopesh

  12. RTP • Real Time Transport Protocol • By IETF, 1996 • Works with all signaling protocols • Operates at transport layer • Independent of transport protocols used • Transports real time data Boyapati, Roopesh

  13. RTP (contd.) • Contains incrementing sequence number in each packet • Contains a sync source identifier and a time stamp Boyapati, Roopesh

  14. Real Time Control Protocol • Works hand in hand with RTP • RTP does data delivery while RTCP sends control packets • Ensure QoS to sender • Reports percentage of packet loss and jitter Boyapati, Roopesh

  15. DEMO Boyapati, Roopesh

  16. Challenges • Available bandwidth • Delay/Network Latency • Packet loss • Jitter • Echo • Security • Reliability • Pulse dialing to DTMF translation • Emergency 911 Calls Boyapati, Roopesh

  17. References • http://www.compare-voip.net/articles/voip-adapters.php • http://communication.howstuffworks.com/ip-telephony7.htm • www.protocols.com/pbook/VoIPFamily.htm • http://communication.howstuffworks.com/ip-telephony6.htm • www.wikipedia.org Boyapati, Roopesh

  18. Thank You ! Boyapati, Roopesh
