1 / 12

Boundary Conduction and Mass Transfer Analysis Across Temperature Gradients

This report provides a detailed analysis of boundary conduction heat transfer and mass transfer values across various temperature gradients (-5K, +10K, and -0.03K). The results outline the conduction heat transfer values for different parts, including metal thickness at the inlet and outlet, as well as mass part values in both convection and conduction scenarios. The data reveals critical insights into thermal dynamics, showcasing summations of heat transfer and mass flow across multiple boundary conditions. This information is essential for optimizing thermal performance in engineering applications.

ron
Télécharger la présentation

Boundary Conduction and Mass Transfer Analysis Across Temperature Gradients

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

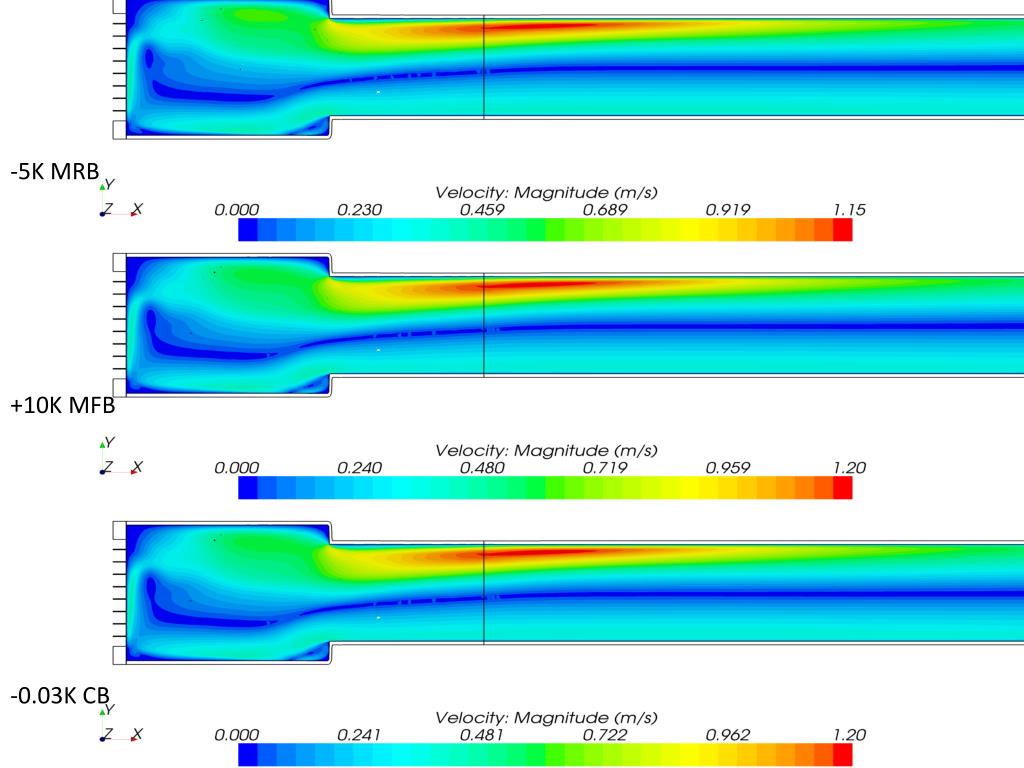

  1. -5K MRB +10K MFB -0.03K CB

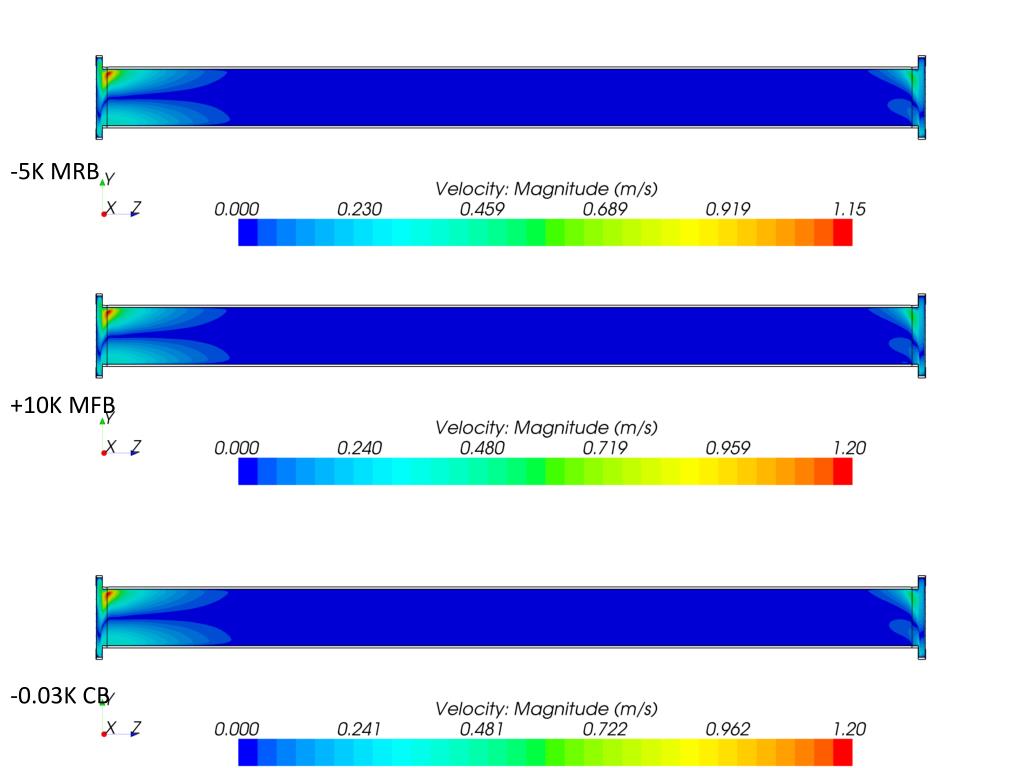

  2. -5K MRB +10K MFB -0.03K CB

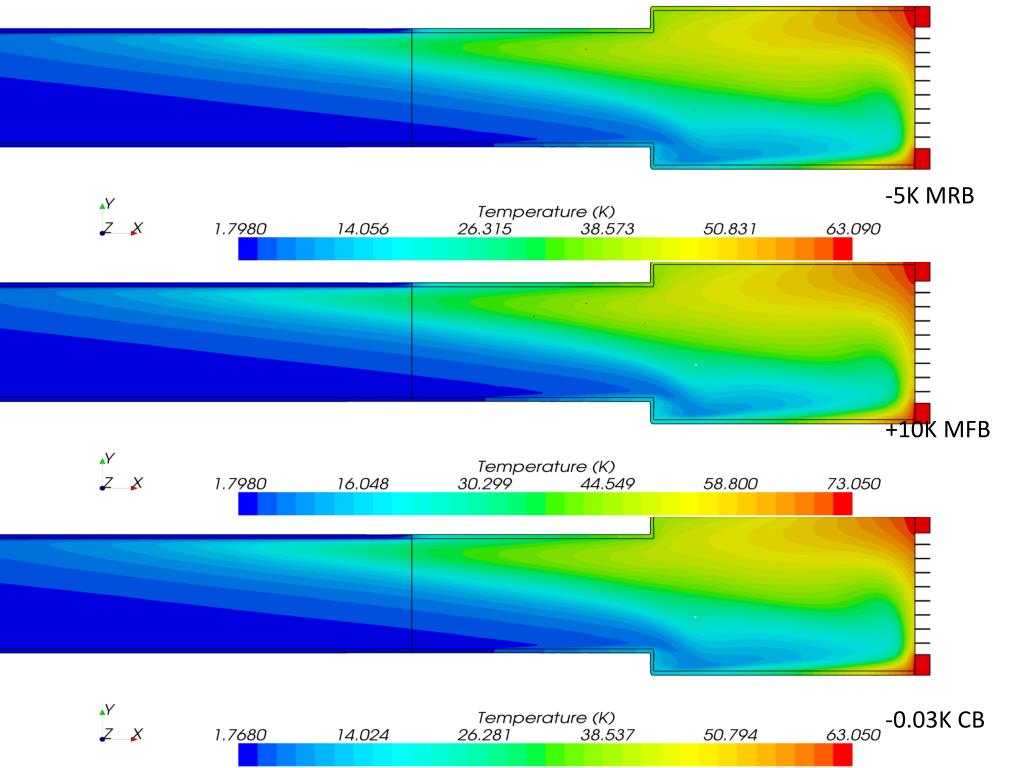

  3. -5K MRB +10K MFB -0.03K CB

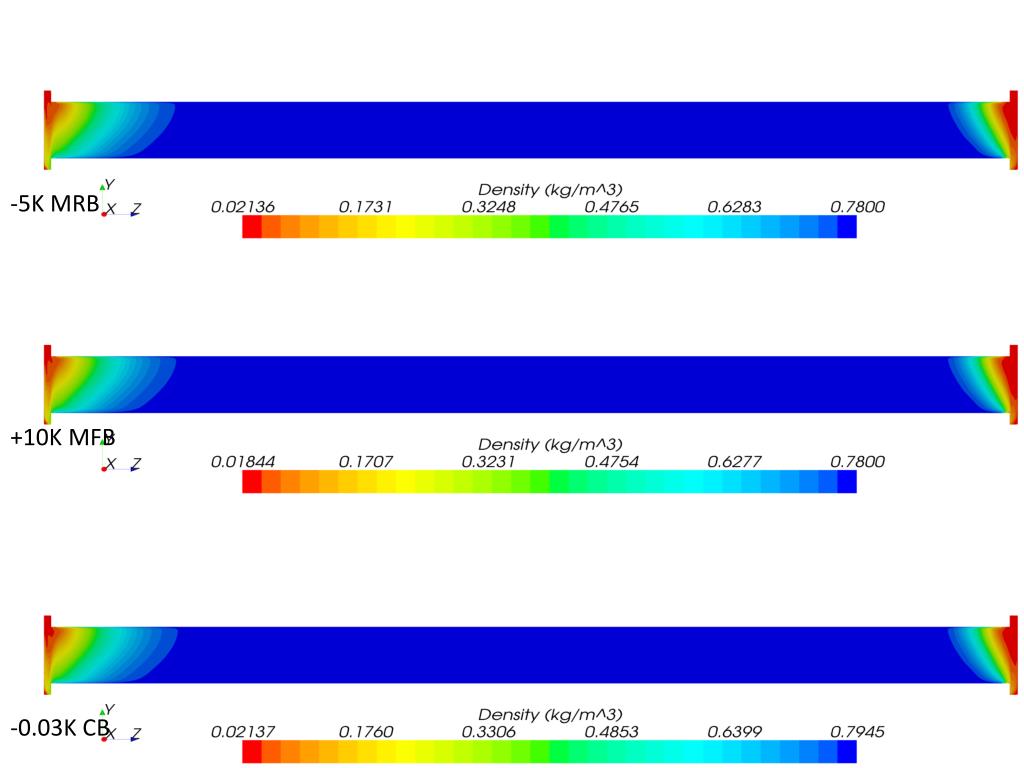

  4. -5K MRB +10K MFB -0.03K CB

  5. -5K MRB +10K MFB -0.03K CB

  6. -5K MRB +10K MFB -0.03K CB

  7. Sum of Boundary Conduction Heat Transfer Part Value (W) ------------------------------ ------------- CB metal top 4.449334e+00 MFB thickness inlet top 0.000000e+00 MRB thickness outlet top 0.000000e+00 Metal Net MFB right side -1.950725e+00 Metal Net MRB right side -2.742558e+00 ------------- Total: -2.439492e-01 Sum of Mass Part Value ------------------------------ ------------- CB 1.103628e-02 MFB 2.794457e-05 MRB 4.565313e-05 ------------- Total: 1.110988e-02 -5K MRB Sum of Boundary Conduction Heat Transfer Part Value (W) ------------------------------ ------------- CB metal top 4.700706e+00 MFB thickness inlet top 0.000000e+00 MRB thickness outlet top 0.000000e+00 Metal Net MFB right side -1.707783e+00 Metal Net MRB right side -2.989672e+00 ------------- Total: 3.251076e-03 Sum of Mass Part Value ------------------------------ ------------- CB 1.122210e-02 MFB 2.806957e-05 MRB 4.088270e-05 ------------- Total: 1.129105e-02 -0.03K CB Sum of Boundary Conduction Heat Transfer Part Value (W) ------------------------------ ------------- CB metal top 4.904997e+00 MFB thickness inlet top 0.000000e+00 MRB thickness outlet top 0.000000e+00 Metal Net MFB right side -1.922586e+00 Metal Net MRB right side -2.979465e+00 ------------- Total: 2.945900e-03 Sum of Mass Part Value ------------------------------ ------------- CB 1.102193e-02 MFB 2.424788e-05 MRB 4.054719e-05 ------------- Total: 1.108673e-02 +10K MFB

More Related
