  1. Managing Database Storage Structures

  2. Objectives • After completing this lesson, you should be able to do the following: • Describe the uses of the SYSAUX tablespace • Specify a default user tablespace • Create bigfile tablespaces • Create a default temporary tablespace • Create temporary tablespace groups • Rename tablespaces • Use the Redo Logfile Sizing Advisor

  3. SYSAUX Tablespace: Overview • Auxiliary tablespace to the SYSTEM tablespace • Mandatory tablespace • Created at time of database creation • Same security attributes as SYSTEM tablespace PERMANENT READ WRITE EXTENT MANAGEMENT LOCAL SEGMENT SPACE MANAGEMENT AUTO SYSTEM SYSAUX

  4. . . . SYSAUX Tablespace: Benefits • Reduces the number oftablespaces to manage • Load reduction on SYSTEM • Easier RAC management TOOLS DRSYS SYSTEM CWMLITE ODM SYSAUX

  5. SYSAUX Occupants

  6. Creating SYSAUX with DBCA

  7. Creating the SYSAUX Tablespace by Using CREATE DATABASE CREATE DATABASE DATAFILE '/u0/datafiles/system1.dbf' SIZE 200M SYSAUX DATAFILE'/u0/datafiles/sysaux1.dbf' SIZE 300M DEFAULT TEMPORARY TABLESPACE stemp_tbs TEMPFILE '/u3/datafiles/stemp_tbs1.dbf' SIZE 60M UNDO TABLESPACE sundo_tbs DATAFILE '/u2/datafiles/sundo_tbs1.dbf' SIZE 100M;

  8. Altering the SYSAUX Tablespace • You cannot alter mandatory attributes. • You must have the SYSDBA privilege. • Adding a data file: • Taking the tablespace offline: ALTER TABLESPACE sysaux ADD DATAFILE '/u0/datafiles/sysaux2.dbf' SIZE 200M ; ALTER TABLESPACE sysaux OFFLINE;

  9. Managing the SYSAUX Tablespace DROP TABLESPACE sysaux; ALTER TABLESPACE sysaux RENAME TO auxiliary; SYSAUX Data file transfer

  10. Using EM to View SYSAUX Occupants

  11. Relocating SYSAUX Occupants with EM

  12. Relocating SYSAUX Occupants with SQL • Monitor space usage of SYSAUX occupants: • Determine which procedure to use to move occupants from SYSAUX: SELECT OCCUPANT_NAME, SPACE_USAGE_KBYTESFROM V$SYSAUX_OCCUPANTS; SELECT OCCUPANT_NAME, SCHEMA_NAME, MOVE_PROCEDUREFROM V$SYSAUX_OCCUPANTS;

  13. Relocating SYSAUX Occupants with SQL (continued) • Move SYSAUX occupants to the DRSYS tablespace: • Move occupants back to the SYSAUX tablespace: EXEC WKSYS.MOVE_WK('DRSYS'); EXEC WKSYS.MOVE_WK('SYSAUX');

  14. Locally Managed SYSTEM Tablespace • Locally managed SYSTEM tablespace was supported beginning with Oracle9i, Release 2. • The benefits of this feature include: • Better performance • Ease of administration • A locally managed SYSTEM tablespace is of allocation type AUTOALLOCATE. • If your database has a locally managed SYSTEM tablespace, some restrictions apply.

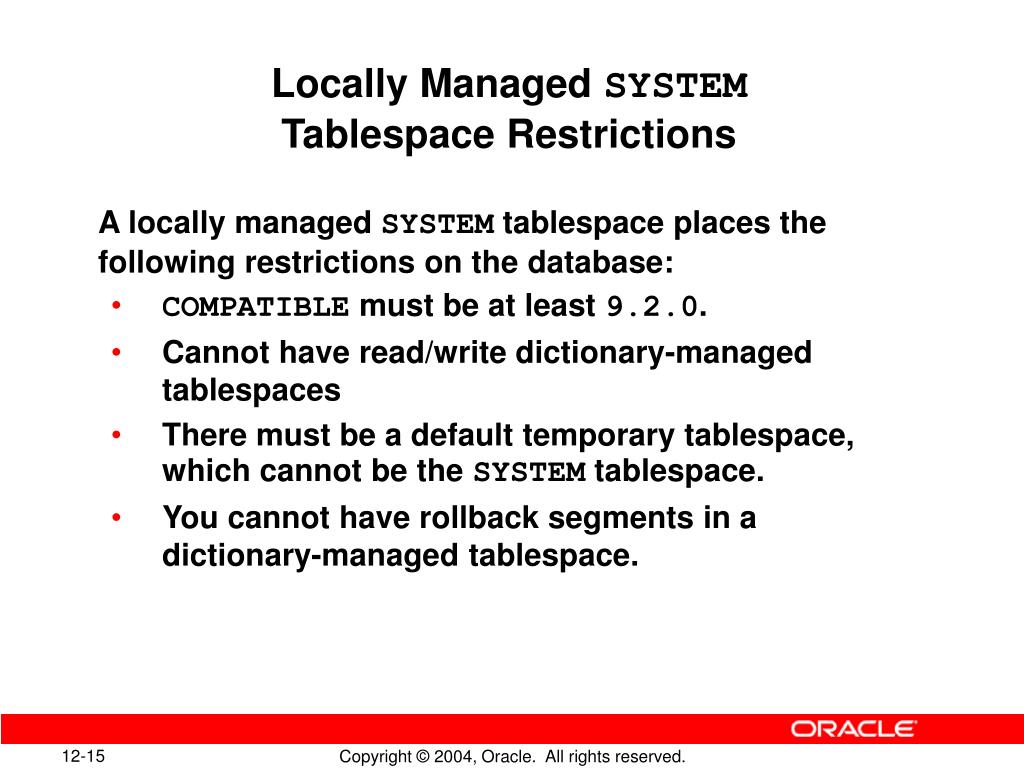

  15. Locally Managed SYSTEMTablespace Restrictions • A locally managed SYSTEM tablespace places the following restrictions on the database: • COMPATIBLE must be at least 9.2.0. • Cannot have read/write dictionary-managed tablespaces • There must be a default temporary tablespace, which cannot be the SYSTEM tablespace. • You cannot have rollback segments in a dictionary-managed tablespace.

  16. Creating a Locally Managed SYSTEM Tablespace at Database Creation Time To create a locally managed SYSTEM tablespace at database creation time, you must specify the EXTENT MANAGEMENTLOCAL clause in the CREATEDATABASE statement: SQL> CREATE DATABASE 2 EXTENT MANAGEMENT LOCAL 3 DATAFILE SIZE 300M 4 UNDO TABLESPACE UNDO 5 DEFAULT TEMPORARY TABLESPACE TEMP;

  17. Migrating the SYSTEM Tablespaceto a Locally Managed Tablespace • Use the DBMS_SPACE_ADMIN package: • The locally managed SYSTEM tablespace restrictions are enforced by the migration procedure. • Migration is possible only when the system is in restricted mode while all tablespaces other than SYSTEM, UNDO, and TEMP are in READONLY mode. SQL> EXECUTE DBMS_SPACE_ADMIN. - 2 TABLESPACE_MIGRATE_TO_LOCAL('SYSTEM');

  18. Default Permanent Tablespace: Overview • SYSTEM is the default permanent tablespace. • You can now change the default permanent tablespace for nonsystem users. System users Nonsystem users … SYS OUTLN SYSTEM HR SH OE Default SYSTEM

  19. Using EM to Designate a Default Permanent Tablespace

  20. Specifying a Default Permanent Tablespace by Using SQL CREATE DATABASE DATAFILE '/u0/datafiles/system1.dbf' SIZE 200M SYSAUX DATAFILE '/u0/datafiles/sysaux1.dbf' SIZE 300M DEFAULT TABLESPACE users DATAFILE '/u1/datafiles/users1.dbf' SIZE 100M SEGMENT SPACE MANAGEMENT AUTO DEFAULT TEMPORARY TABLESPACE stemp_tbs TEMPFILE '/u3/datafiles/stemp_tbs1.dbf' SIZE 60M UNDO TABLESPACE sundo_tbs DATAFILE '/u2/datafiles/sundo_tbs1.dbf' SIZE 100M; ALTER DATABASE DEFAULT TABLESPACE newusers; SELECT property_value FROM database_properties WHERE property_name = 'DEFAULT_PERMANENT_TABLESPACE';

  21. Oracle Managed Files (OMF): Overview • Oracle database server creates and deletes files as needed for tablespaces, temporary files, online logs, and control files. • You only need to specify the OS directory to be used for each file type. • OMF and non-OMF files can coexist. • Benefits of using OMF: • Reduces corruption caused by administrators • Reduces disk space consumed by obsolete files • Simplifies creation of test and development databases • Makes development of portable applications easier

  22. Deciding to Use Oracle Managed Files • Databases that are supported by the following: • A logical volume manager that supports striping/RAID and dynamically extensible logical volumes • A file system that provides large, extensible files • Low-end or test databases • Not supported with raw devices

  23. Defining the Location for Oracle Managed Files • Default OS directory: DB_CREATE_FILE_DEST • Control files and online log files: DB_CREATE_ONLINE_LOG_DEST_n • Two basic OMF configurations: • All files in one file system directory (DB_CREATE_FILE_DEST) • Data files andtemporary files separated from log files and control files (DB_CREATE_FILE_DEST and DB_CREATE_ONLINE_LOG_DEST_n)

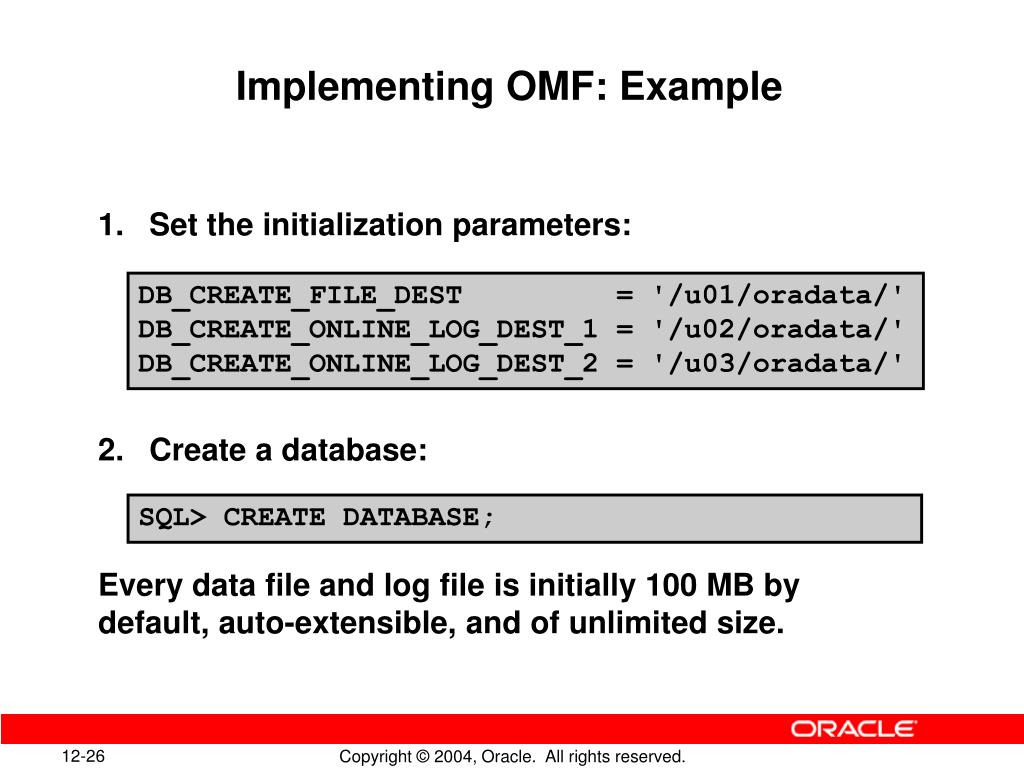

  24. Implementing OMF: Example • 1. Set the initialization parameters: • 2. Create a database: • Every data fileand log file is initially 100 MB by default, auto-extensible, and of unlimited size. DB_CREATE_FILE_DEST = '/u01/oradata/' DB_CREATE_ONLINE_LOG_DEST_1 = '/u02/oradata/' DB_CREATE_ONLINE_LOG_DEST_2 = '/u03/oradata/' SQL> CREATE DATABASE;

  25. OMF File Names: Structure • OMF file names comply with Optimal Flexible Architecture (OFA): • Control files o1_mf_%u_.ctl • Redo log files o1_mf_%g_%u_.log • Data files o1_mf_%t_%u_.dbf • Temporary data files o1_mf_%t_%u_.tmp • With SQL commands, you can manipulate existing OMF files just as you manipulatenormal files. • To determine whether a database file is an OMF: • Review the alert.log file. • Observe the file name.

  26. Managing OMF Control Files:Database Creation • If no CONTROL_FILES parameter is specified,Oracle database server uses (in order of precedence): • DB_CREATE_ONLINE_LOG_DEST_n • DB_CREATE_FILE_DEST • If none of the above are specified, the default destination is used (non-OMF). • After database creation, create a CONTROL_FILES entry in the initialization parameter file. • If there is a CONTROL_FILES parameter specified, then the behavior is unchanged from previous releases.

  27. Impact of OMF on the CREATECONTROLFILE Command • If the DB_CREATE_… parameters are specified,then the created control file will be OMF. • Create a CONTROL_FILES entry in the parameter file, unless you use a server parameter file. • Supply file names in the DATAFILE clauseeven for existing OMF files. • Depending on the [NO]RESETLOGS clause: • Supply log file name if using NORESETLOGS • Allow Oracle database server to create OMF redo logs if using RESETLOGS

  28. Managing OMF Redo Log Files • Add a complete group with ALTERDATABASEADDLOGFILE (no file specification, initialization parameters are used): • You continue to add or remove individual members by specifying full file names. • If you drop a group, all corresponding OMF files are deleted at the OS level. • Archived redo log files cannot be OMF files. SQL> ALTER DATABASE ADD LOGFILE; SQL> ALTER DATABASE ADD LOGFILE SIZE 10M;

  29. Managing OMF Tablespaces • The CREATETABLESPACE command no longer needs a DATAFILE clause: • When you drop a tablespace, all OMF files are also deleted at the OS level. • Add OMF files to a tablespace: • Change the default directory dynamically: SQL> CREATE TABLESPACE TBS1 [DATAFILE SIZE 200M]; SQL> ALTER TABLESPACE TBS1 ADD DATAFILE; SQL> ALTER SYSTEM SET 2 DB_CREATE_FILE_DEST='/oradata/';

  30. OMF Examples SQL> CREATE TABLESPACE tbs02 2 DATAFILE SIZE 300M, SIZE 300M; SQL> ALTER DATABASE ADD LOGFILE SIZE 400M; SQL> ALTER DATABASE RECOVER DATAFILE 2 '/u03/oradata/pay/o1_mf_tbs1_2ixfh90q_.dbf'; SQL> ALTER TABLE emp ALLOCATE EXTENT (DATAFILE 2 '/u03/oradata/pay/o1_mf_tbs1_2ixfh90q_.dbf'); SQL> ALTER DATABASE CREATE DATAFILE 2 '/u03/oradata/pay/o1_mf_tbs1_sd84oqy9_.dbf' 3 AS NEW;

  31. Bigfile Tablespaces: Overview • A bigfile tablespace contains a single file. • Maximum file size ranges from 8 TB to 128 TB. • Tablespaces are logically equivalent to data files. Database Tablespace Datafile Datafile Smallfile Bigfile

  32. Bigfile Tablespace Benefits • Significantly increases the storage capacity • Simplifies data file management for large databases by making tablespaces the main units of disk space administration … BFT n BFT 1 One-to-one mapping 8 EB 4 billionblocks

  33. Using Bigfile Tablespaces • Only supported for locally managed tablespaces using automatic segment space management • Use with logical volume managers or Automatic Storage Management (ASM) • OMF provides complete data file transparency.

  34. Creating Bigfile Tablespaces

  35. SQL Statement Changes and Additions • BIGFILE and SMALLFILE can be used to override the default tablespace type when creating a tablespace. • New commands and options were added to perform data file operations on bigfile tablespaces without specifying a data file name. • Specify file size in gigabytes and terabytes using the letters G and T, respectively.

  36. Specifying Bigfile Tablespaces in SQL Commands CREATE DATABASE SET DEFAULT BIGFILE TABLESPACE DATAFILE '/u0/data/system.dbf' SIZE 200M SYSAUX DATAFILE '/u0/data/sysaux.dbf' SIZE 300M SMALLFILE DEFAULT TEMPORARY TABLESPACE stemp_tbs TEMPFILE '/u3/data/stemp_tbs1.dbf' SIZE 60M SMALLFILE UNDO TABLESPACE sundo_tbs DATAFILE '/u2/data/sundo_tbs1.dbf' SIZE 100M; ALTER DATABASE SET DEFAULT BIGFILE TABLESPACE; CREATE BIGFILE UNDO TABLESPACE bundo_tbs DATAFILE '/u1/data/bundo_tbs.dbf' SIZE 1G; ALTER TABLESPACE users RESIZE 2G; ALTER TABLESPACE users AUTOEXTEND ON ;

  37. Viewing Information About Bigfile Tablespaces SELECT property_value FROM database_properties WHERE property_name='DEFAULT_TBS_TYPE'; SELECT tablespace_name, bigfile FROM DBA_TABLESPACES; SELECT name, bigfile FROM V$TABLESPACE;

  38. Using DBVERIFY with Bigfile Tablespaces Smallfile tablespace Bigfile tablespace SFile1 SFile2 BFile1 $dbv FILE=SFile1 $dbv FILE=BFile1 START=1 END=10000 $dbv FILE=SFile2 $dbv FILE=BFile1 START=10001

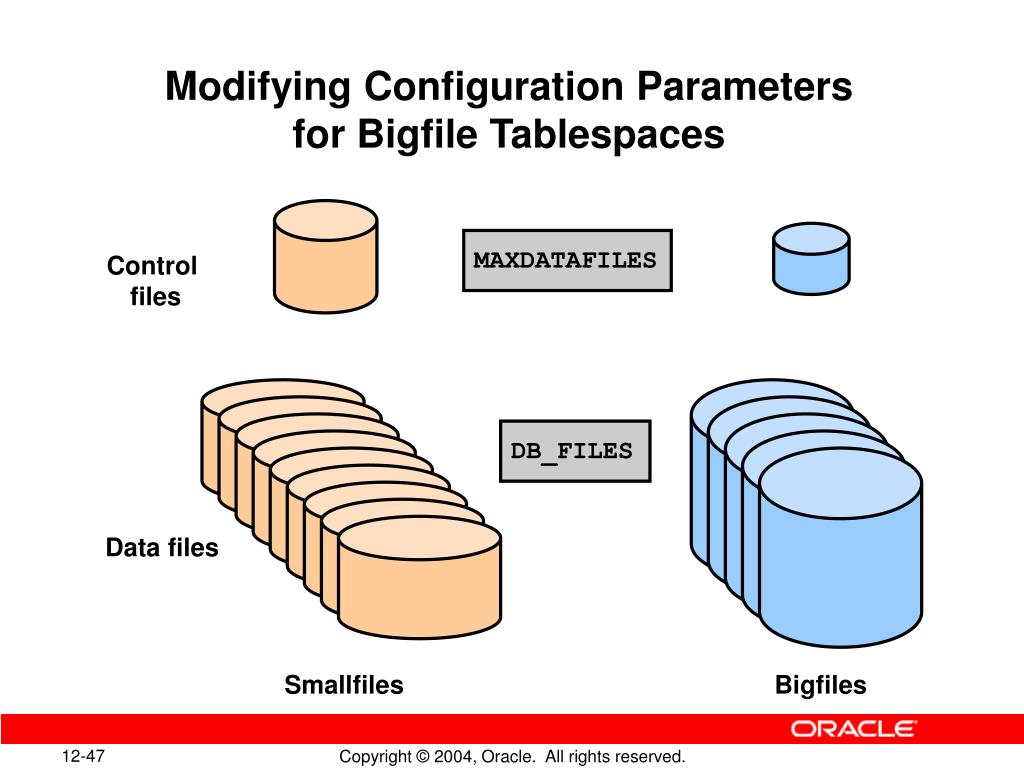

  39. Modifying Configuration Parameters for Bigfile Tablespaces MAXDATAFILES Control files DB_FILES Data files Smallfiles Bigfiles

  40. Using the DBMS_UTILITY Package with Bigfile Tablespaces • Functions are not needed with bigfile tablespaces: • Bigfile tablespace file number is 1024. DBMS_UTILITY.DATA_BLOCK_ADDRESS_FILE() DBMS_UTILITY.DATA_BLOCK_ADDRESS_BLOCK()

  41. Migrating Objects to Bigfile Tablespaces SMALLFILE tablespace BIGFILE tablespace ALTER TABLE MOVE CREATE TABLE AS SELECT Data Pump

  42. Extended ROWID Format and Bigfile Tablespaces DBMS_ROWID.ROWID_BLOCK_NUMBER Smallfile tablespaces Bigfile tablespaces OOOOOO FFF BBBBBB RRR OOOOOO LLL LLLLLL RRR Rownumber Data objectnumber Data blocknumber Data objectnumber Encoded blocknumber Relative filenumber Rownumber

  43. DBMS_ROWID Package Changes TS_TYPE_IN ROWID_INFO ROWID_BLOCK_NUMBER ROWID_RELATIVE_FNO SELECTDBMS_ROWID.ROWID_RELATIVE_FNO(ROWID,'BIGFILE') FROM employees;

  44. Default Temporary Tablespace: Overview • Specify a database-wide default temporary tablespace at database creation or at a later time. • If you do not specify a default temporary tablespace at database creation: • SYSTEMis the default temporary tablespace • A warning is written to the alert.log file • Users not explicitly assigned to a temporary tablespace are assigned to the default temporary tablespace.

  45. Obtaining Information About the Default Temporary Tablespace • Query DATABASE_PROPERTIES to retrieve information about the current default temporary tablespace: SQL> SELECT property_value 2 FROM database_properties 3 WHERE property_name = 4 'DEFAULT_TEMP_TABLESPACE';

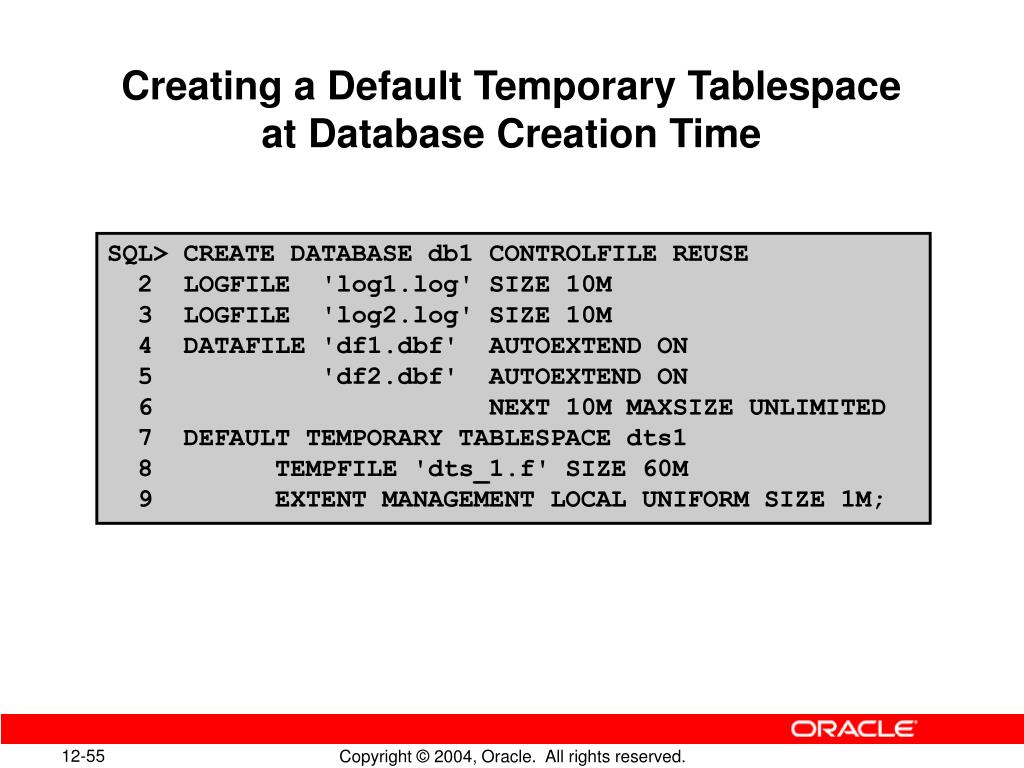

  46. Creating a Default Temporary Tablespaceat Database Creation Time SQL> CREATE DATABASE db1CONTROLFILE REUSE 2 LOGFILE 'log1.log' SIZE 10M 3 LOGFILE 'log2.log' SIZE 10M 4 DATAFILE'df1.dbf' AUTOEXTEND ON 5 'df2.dbf' AUTOEXTEND ON 6 NEXT 10M MAXSIZE UNLIMITED 7 DEFAULT TEMPORARY TABLESPACE dts1 8 TEMPFILE 'dts_1.f' SIZE 60M 9 EXTENT MANAGEMENT LOCAL UNIFORM SIZE 1M;

  47. Altering the Default Temporary Tablespace • Change the default temporary tablespacewith the ALTERDATABASE command: • Users are automatically reassigned to the new default temporary tablespace. SQL> ALTER DATABASE db1 2 DEFAULT TEMPORARY TABLESPACE dts2;

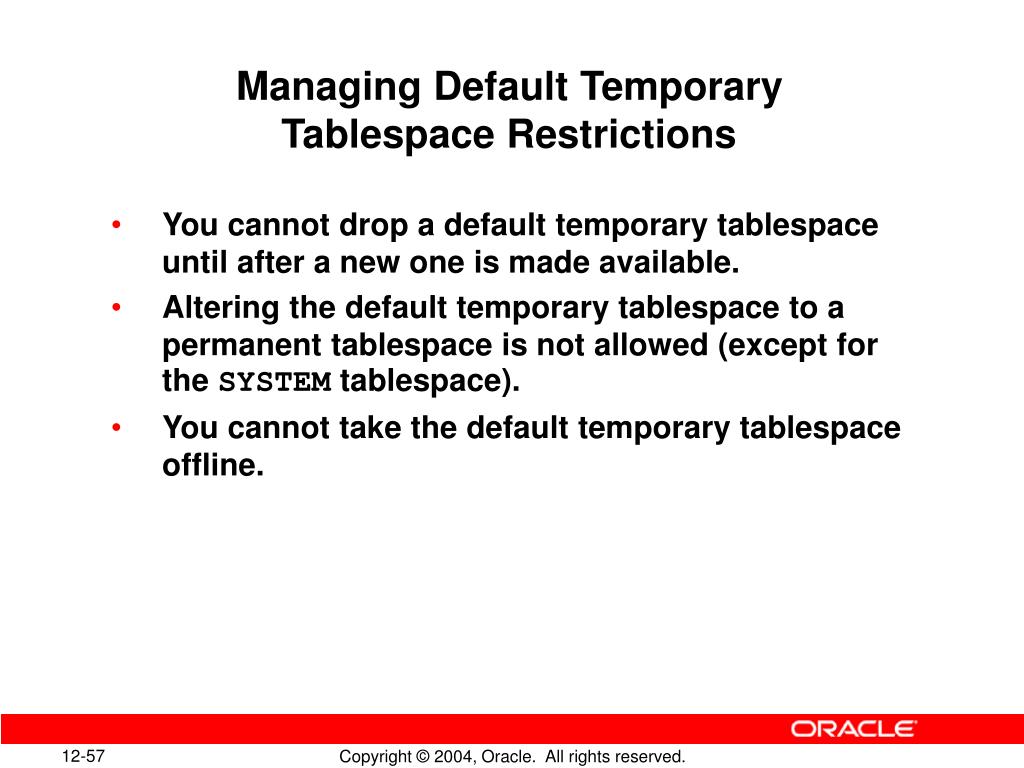

  48. Managing Default TemporaryTablespace Restrictions • You cannot drop a default temporary tablespace until after a new one is made available. • Altering the default temporary tablespace to a permanent tablespace is not allowed (except for the SYSTEM tablespace). • You cannot take the default temporary tablespace offline.

  49. Temporary Tablespace Group: Overview • Groups temporary tablespaces together • Characteristics: • At least one temporary tablespace • Same namespace as tablespaces • Created implicitly on first assignment • No explicit deletion Default temporary tablespace group TEMP Default tablespace EXAMPLE Tablespace TEMP1 Tablespace TEMPn …

  50. Temporary Tablespace Group: Benefits • Enables a user to use multiple temporary tablespaces: • Same user in multiple sessions • One particular parallel operation HR Serial Parallel HR Tablespace TEMP1 Tablespace TEMP2 Tablespace TEMP3 Temporary tablespace group TEMP
