Performance Comparison of Computer Systems and Parallel Processing Analysis

This analysis involves the testing of two computer systems using three benchmark tests to determine which system delivers superior performance based on normalized ratios. Additionally, it examines a program's execution time across single and four parallel processors, applying Amdahl's Law to calculate the speedup and the fraction of parallelizable code. The findings will provide insights into the efficiency of parallel processing and the comparative performance of different computer architectures.

ronnie
Télécharger la présentation

Performance Comparison of Computer Systems and Parallel Processing Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

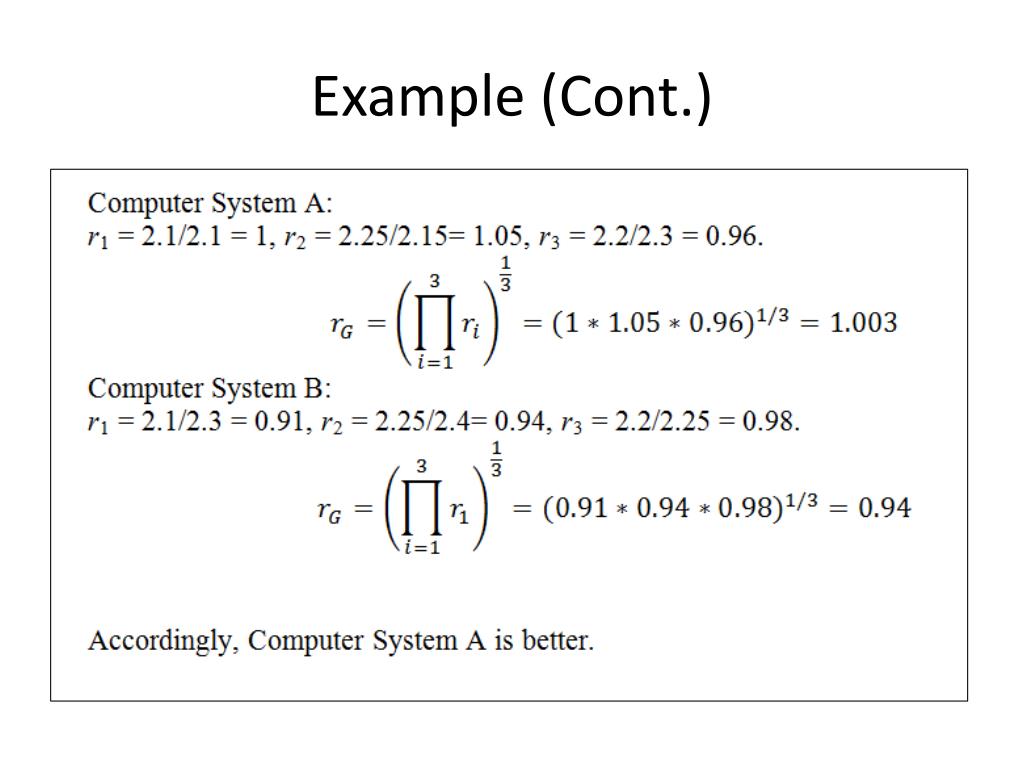

  1. Example (1) • Two computer systems have been tested using three benchmarks. Using the normalized ratio formula and the following tables below, find which computer system gives better performance than the other.

  2. Example (Cont.)

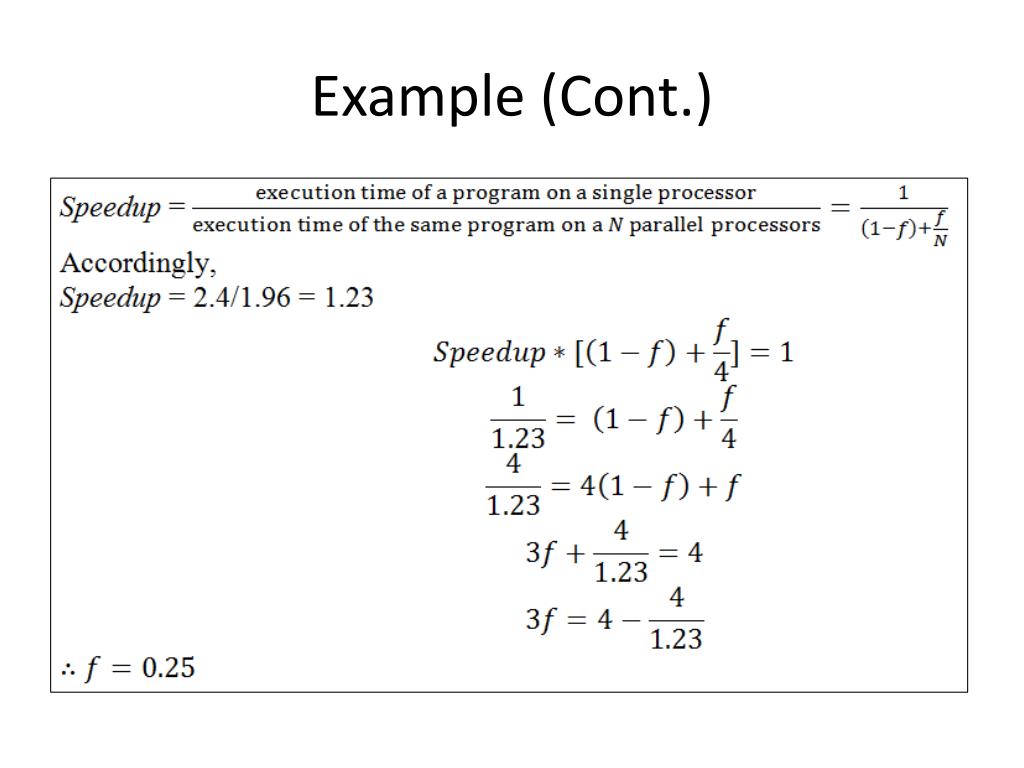

  3. Example (2) • If the execution time of a program on a single processor is 2.4 ns and the execution time of the same program on a 4 parallel processors is 1.96 ns. Find the Speedup and the fraction f of code infinitely parallelizable with no scheduling overhead using Amdahl’s law.

  4. Example (Cont.)
