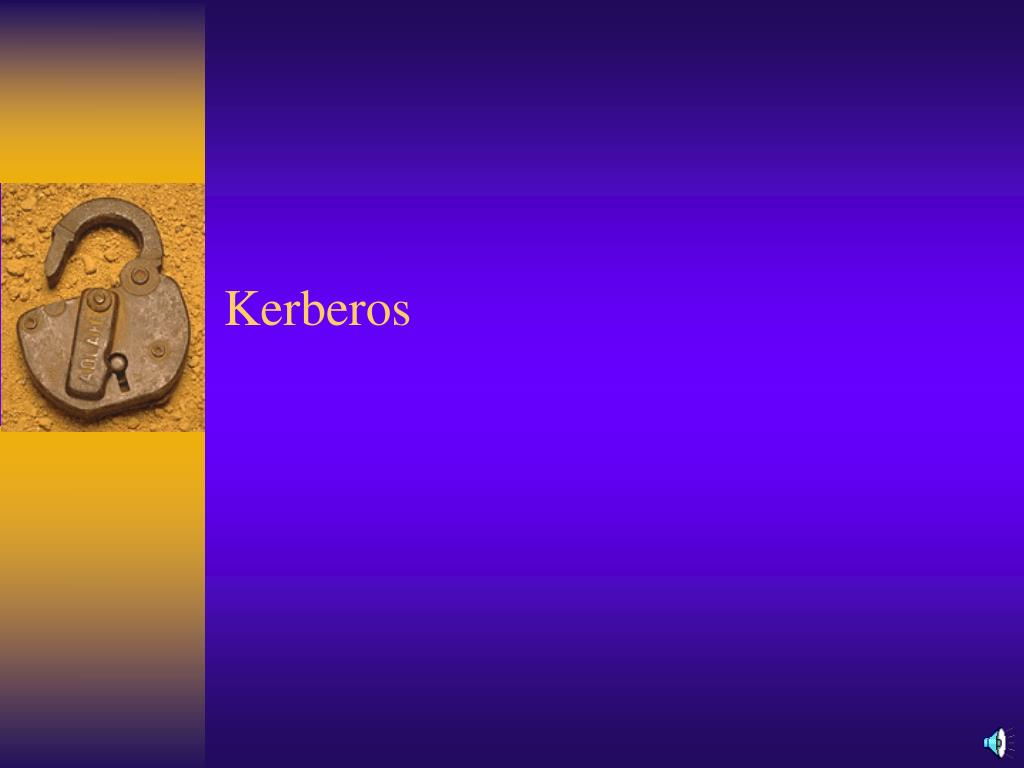

  1. Kerberos

  2. Kerberos • Kerberos was a 3-headed dog in Greek mythology • Guarded the gates of the dead • Decided who might enter • Talk about strong security!

  3. Kerberos • Three Parties are Present • Kerberos server • Applicant host • Verifier host Kerberos Server Applicant Verifier

  4. Kerberos • Kerberos Server shares a symmetric key with each host • Key shared with the Applicant will be called Key AS (Applicant-Server) • Key shared with verifier will be Key VS Kerberos Server Applicant Verifier Key AS Key VS

  5. Kerberos • Applicant sends message to Kerberos server • Logs in and asks for ticket-granting ticket (TGT) • Authenticates the applicant to the server • Server sends back ticket-granting ticket • TGT allows applicant to request connections Kerberos Server TGT RQ Applicant TGT

  6. Kerberos • To connect to the verifier • Applicant asks Kerberos server for credentials to introduce the applicant to the verifier • Request includes the Ticket-Granting Tickets Kerberos Server Credentials RQ Applicant

  7. Kerberos • Kerberos server sends the credentials • Credential include the session Key AV that applicant and verifier will use for secure communication • Encrypted with Key AS so that interceptors cannot read it Kerberos Server Credentials= Session Key AV Service Ticket Applicant

  8. Kerberos • Kerberos server sends the credentials • Credential also include the Service Ticket, which is encrypted with Key VS; Applicant cannot read or change it Kerberos Server Credentials= Session Key AV, Service Ticket Applicant

  9. Kerberos • Applicant sends the Service Ticket plus a Authenticator to the Verifier • Service ticket contains the symmetric session key (Key AV) • Now both parties have Key AV and so can communicate with confidentiality Service Ticket (Contains Key AV) + Authenticator Applicant Verifier

  10. Kerberos • Applicant sends the Service Ticket plus a Authenticator to the Verifier • Authenticator contains information encrypted with Key AV • Guarantees that the service ticket came from the applicant, which alone knows Key AV • Service ticket has a time stamp to prevent replay Service Ticket (Contains Key AV) + Authenticator

  11. Kerberos • Subsequent communication between the applicant and verifier uses the symmetric session key (Key AV) for confidentiality Communication Encrypted with Key AV Applicant Verifier

  12. Kerberos • The Service Ticket can contain more than Key AV • If the applicant is a client and the verifier is a server, service ticket may contain • Verifier’s user name and password • List of rights to files and directories on the server Verifier

  13. Kerberos • Is the basis for security in Microsoft Windows 2000 • Only uses symmetric key encryption for reduced processing cost
