  1. Aspect.NET – an aspect-oriented programming tool for Microsoft.NET using Phoenix and Whidbey Vladimir O. Safonov Professor of computer science, head of laboratory St. Petersburg University

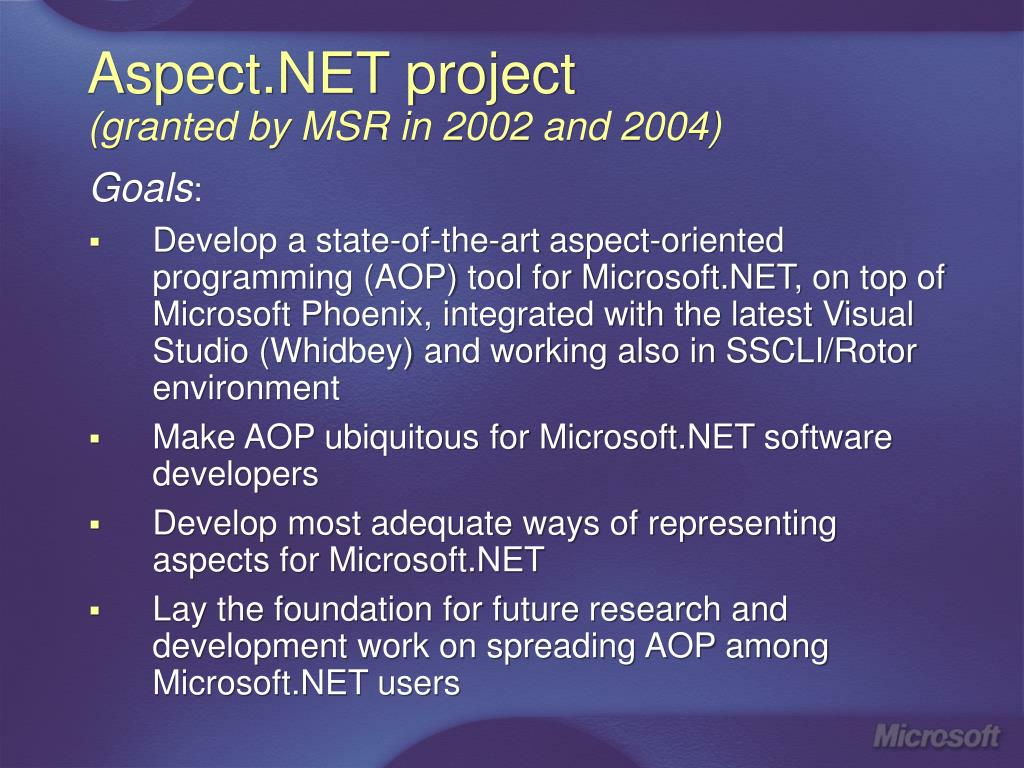

  2. Aspect.NET project (granted by MSR in 2002 and 2004) Goals: • Develop a state-of-the-art aspect-oriented programming (AOP) tool for Microsoft.NET, on top of Microsoft Phoenix, integrated with the latest Visual Studio (Whidbey) and working also in SSCLI/Rotor environment • Make AOP ubiquitous for Microsoft.NET software developers • Develop most adequate ways of representing aspects for Microsoft.NET • Lay the foundation for future research and development work on spreading AOP among Microsoft.NET users

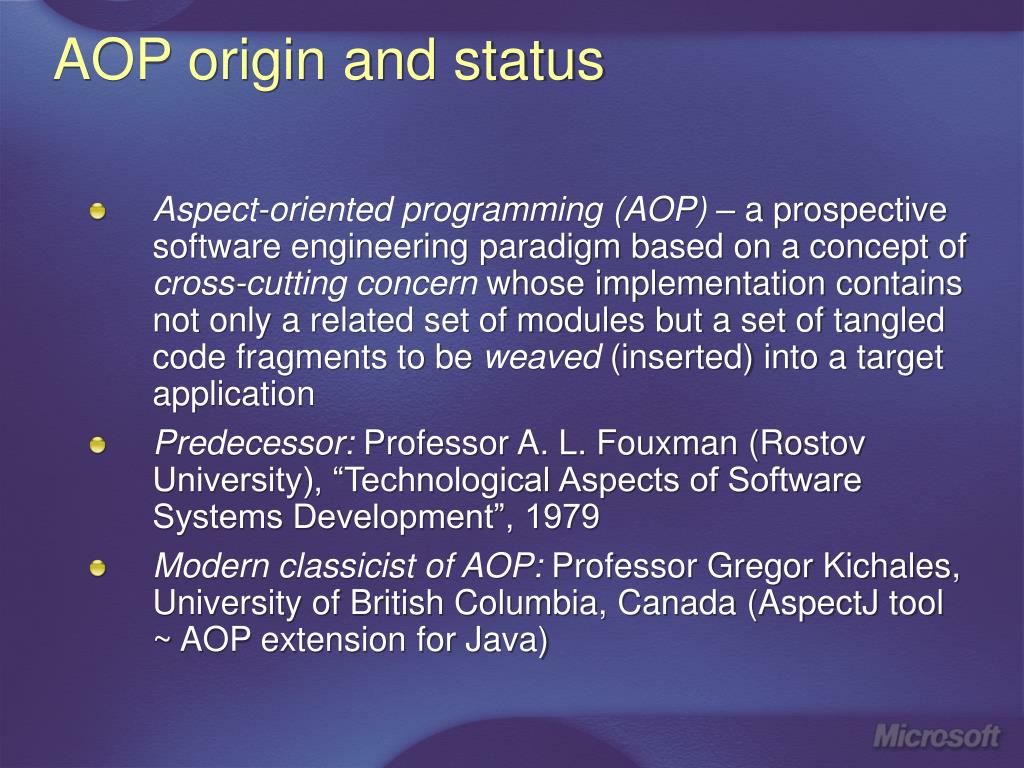

  3. AOP origin and status • Aspect-oriented programming (AOP) – a prospective software engineering paradigm based on a concept of cross-cutting concern whose implementation contains not only a related set of modules but a set of tangled code fragments to be weaved (inserted) into a target application • Predecessor: Professor A. L. Fouxman (Rostov University), “Technological Aspects of Software Systems Development”, 1979 • Modern classicist of AOP: Professor Gregor Kichales, University of British Columbia, Canada (AspectJ tool ~ AOP extension for Java)

  4. AOP basics • Cross-cutting concern ~ a concern whose implementation cannot be made by a generalized procedure • Examples ~ logging; security; MT-safety; implementation of a new source language construct in a compiler • Aspect ~ implementation of a cross-cutting concern • Weaving ~ applying (inserting) an aspect to a target application • Pointcut ~ a set of weaving rules for an aspect • Join points ~ a set of concrete points in a target application subject to aspect weaving • Benefits of AOP: make software development and maintenance easier due to performing it in terms of aspects

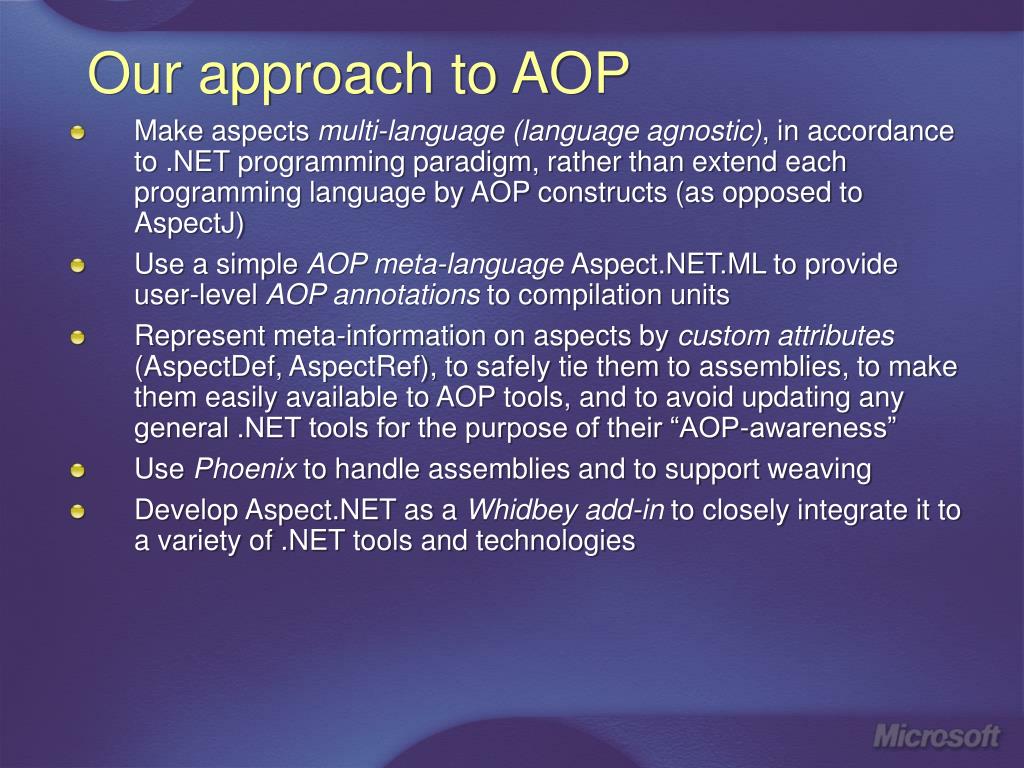

  5. Our approach to AOP • Make aspects multi-language (language agnostic), in accordance to .NET programming paradigm, rather than extend each programming language by AOP constructs (as opposed to AspectJ) • Use a simple AOP meta-language Aspect.NET.ML to provide user-level AOP annotations to compilation units • Represent meta-information on aspects by custom attributes (AspectDef, AspectRef), to safely tie them to assemblies, to make them easily available to AOP tools, and to avoid updating any general .NET tools for the purpose of their “AOP-awareness” • Use Phoenix to handle assemblies and to support weaving • Develop Aspect.NET as a Whidbey add-in to closely integrate it to a variety of .NET tools and technologies

  6. Aspect.NET architecture • Aspect.NET.ML converters (for C#, VB.NET etc) to definitions of AspectDef attribute • Aspect weaver: Target assembly + Aspect assembly -> Target assembly* • Aspect editor + aspect GUI: locating aspects, coloring aspects, editing aspects, deleting aspects • Aspectizer: locating aspects in non-AOP applications

  7. Example: the Politeness aspect %aspect Politeness public class Politeness { %modules public static SayHello () { System.Console.WriteLine(“Hello”); } public static SayBye () { System.Console.WriteLine(“Bye”); } %rules %before %call * %actionpublic staticvoid SayHelloAction {Politeness.SayHello()} %after %call * %actionpublic staticvoid SayByeAction{Politeness.SayBye()}

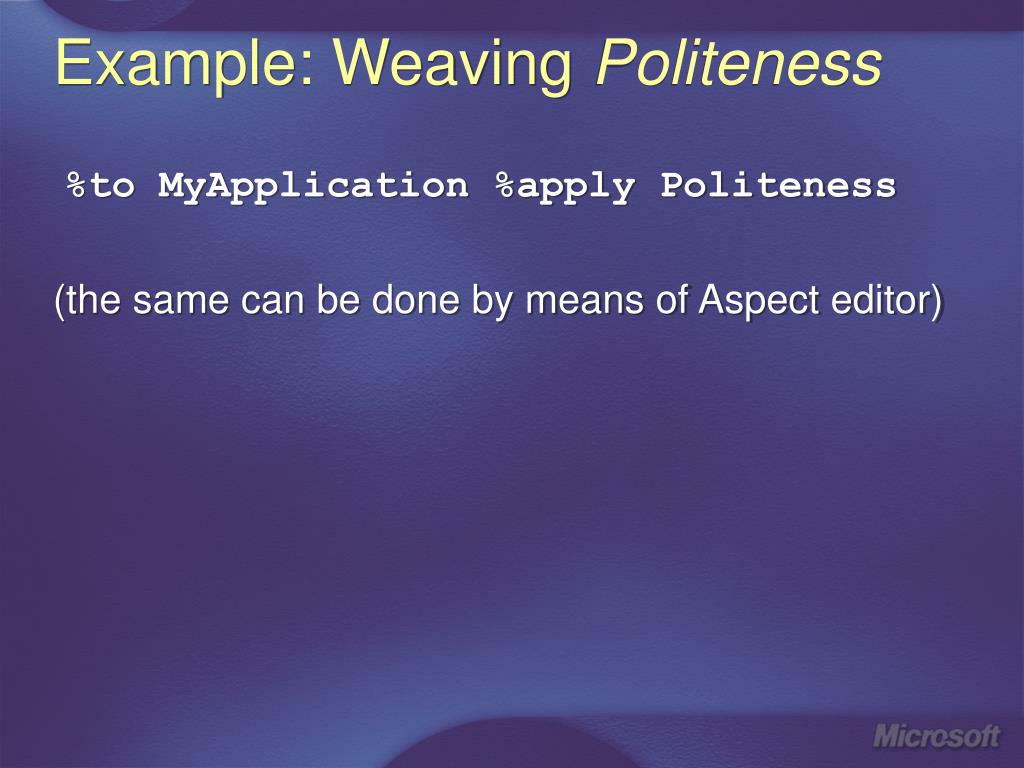

  8. Example: Weaving Politeness %to MyApplication %apply Politeness (the same can be done by means of Aspect editor)

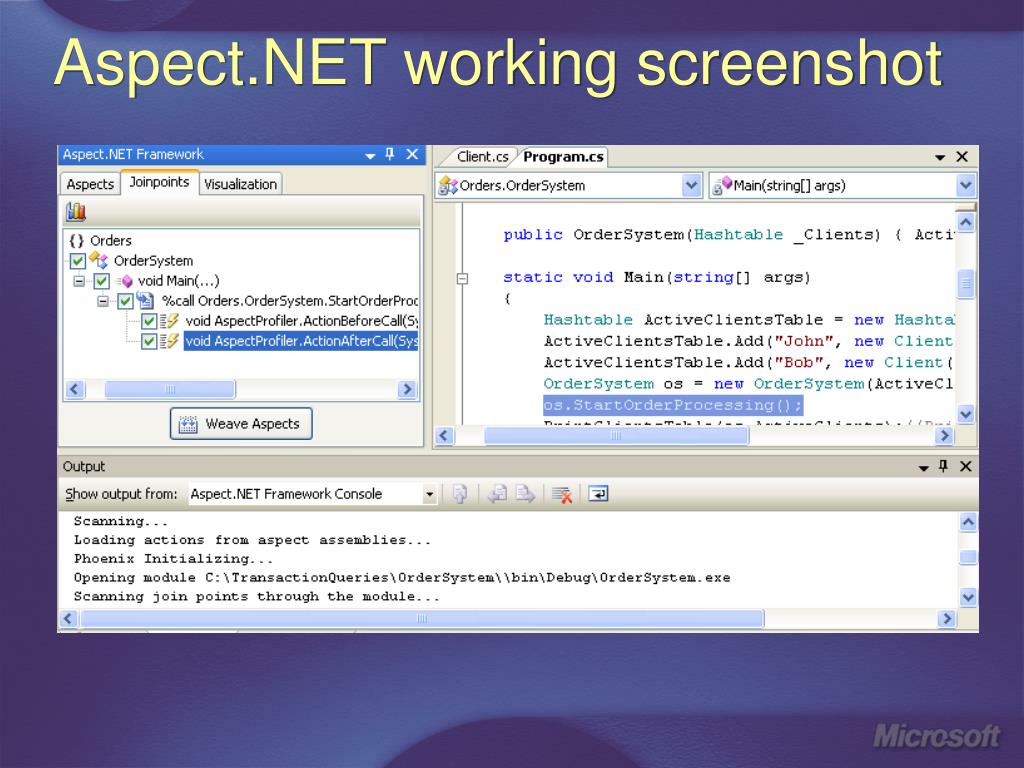

  9. Aspect.NET working screenshot

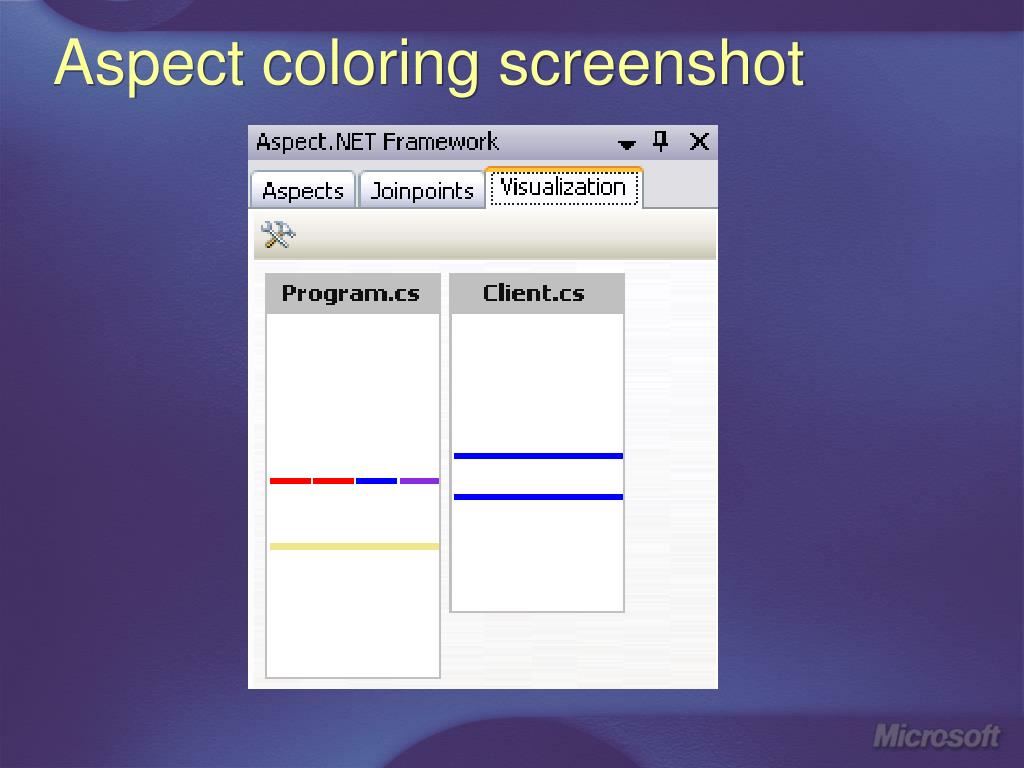

  10. Aspect coloring screenshot

  11. Aspect.NET status and perspectives • Aspect.NET implementation team (SPBU PhD and graduate students: Dmitry Grigoryev, Mikhail Gratchev, Alexander Maslennikov, Oleg Romashin et al.) • A working prototype of Aspect.NET on top of latest Phoenix (02/28/05) and Whidbey developed • Aspect.NET installer/distribution developed • By September 2005: complete working version of Aspect.NET • Perspectives: library of examples; further research on aspect-oriented knowledge management and on aspectizing (aspect mining)

  12. Using Aspect.NET Vladimir O. SafonovProfessor St. Petersburg University

  13. Aspect.NET references • http://aosd.net - The starting Web site on AOP • Safonov V. O. Aspect.NET: a new approach to aspect-oriented programming. - .NET Developer’s Journal, 2003, #4. • Safonov V.O. Aspect.NET: concepts and architecture. - .NET Developer’s Journal, 2004, #10. • Safonov V.O., Grigoryev D.A. Aspect.NET: aspect-oriented programming for Microsoft.NET in practice. - .NET Developer’s Journal, 2005, # 7. • Safonov V.O., Grigoryev D.A. Aspect.NET – an aspect-oriented programming tool for Microsoft.NET. – Proceedings of St. Petersburg Regional IEEE conference, St. Petersburg, May 2005.
