  1. Topology Optimization

  2. Test_1_v030_l05_g2

  3. Test_1_v030_l05_g2 Uniform unstructured quad mesh (input) T-Mesh + T-Spline Vertices: 762 Elements: 600

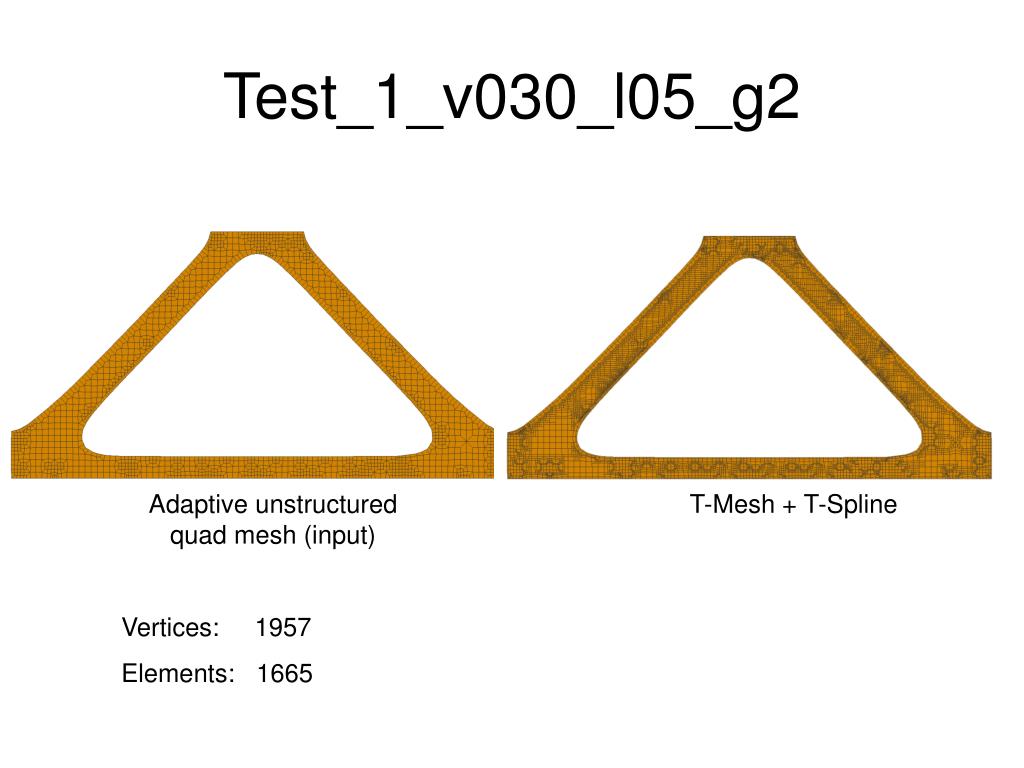

  4. Test_1_v030_l05_g2 Adaptive unstructured quad mesh (input) T-Mesh + T-Spline Vertices: 1957 Elements: 1665

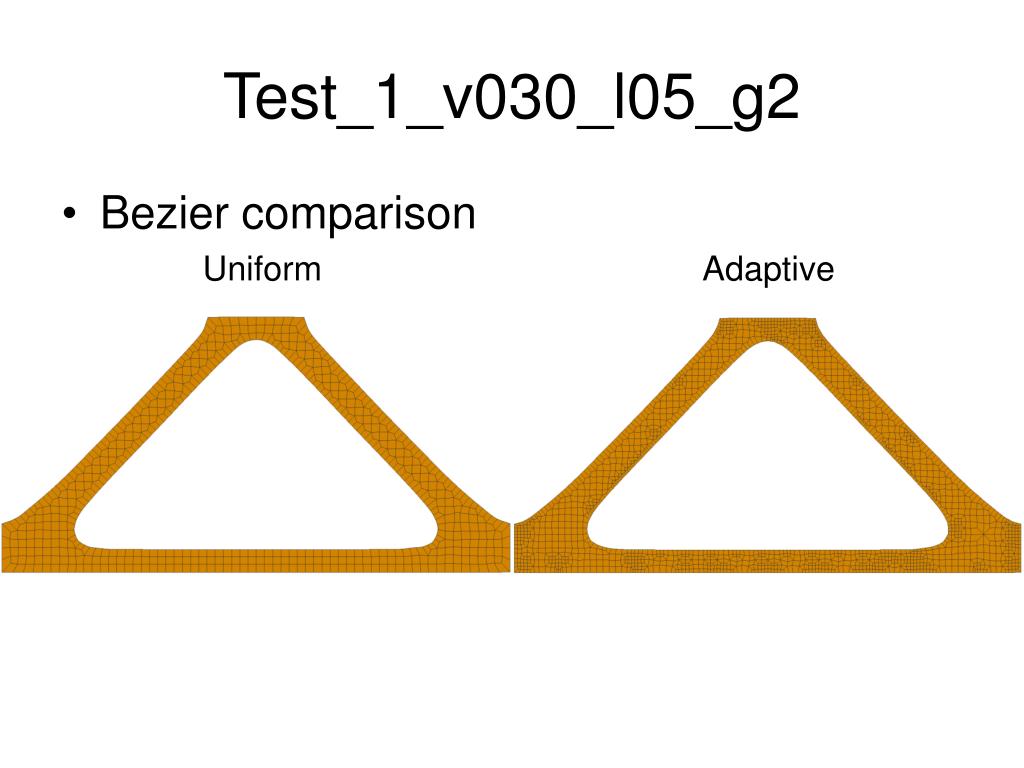

  5. Test_1_v030_l05_g2 • Bezier comparison Uniform Adaptive

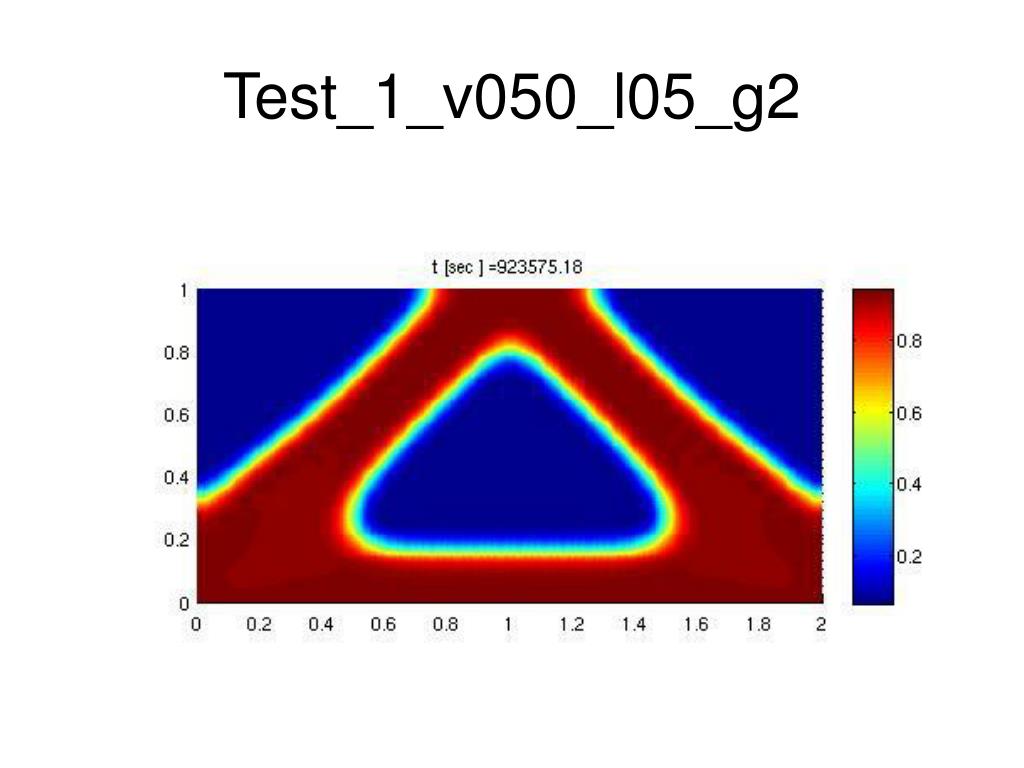

  6. Test_1_v050_l05_g2

  7. Test_1_v050_l05_g2 Uniform unstructured quad mesh (input) T-Mesh + T-Spline Vertices: 326 Elements: 259

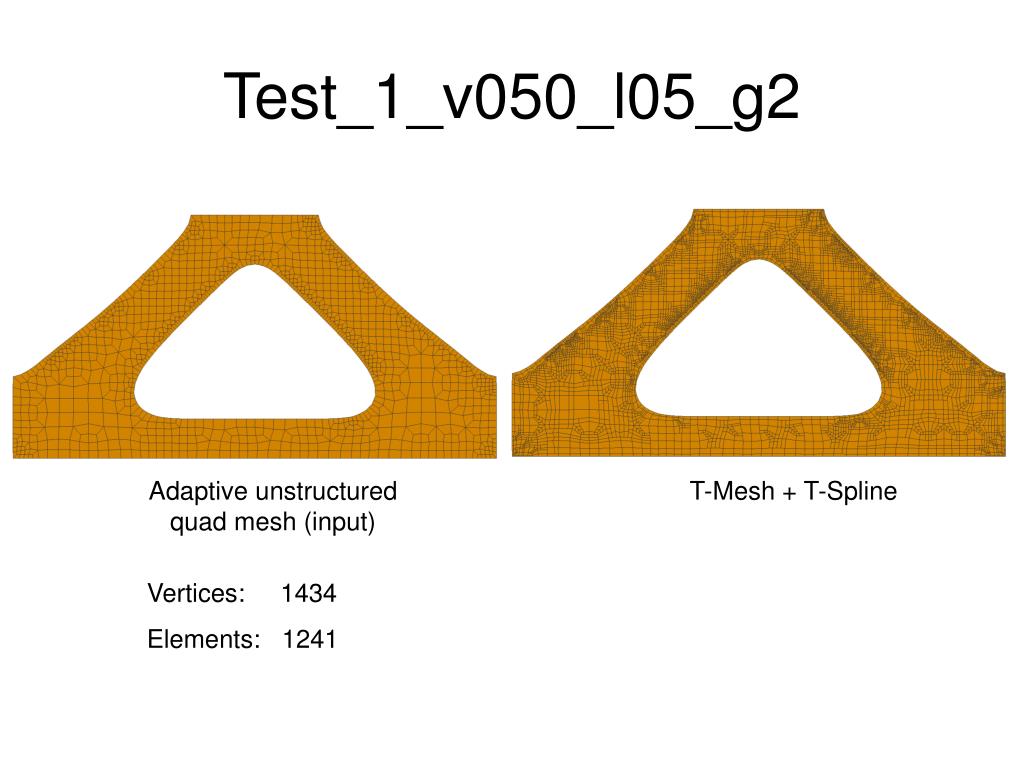

  8. Test_1_v050_l05_g2 Adaptive unstructured quad mesh (input) T-Mesh + T-Spline Vertices: 1434 Elements: 1241

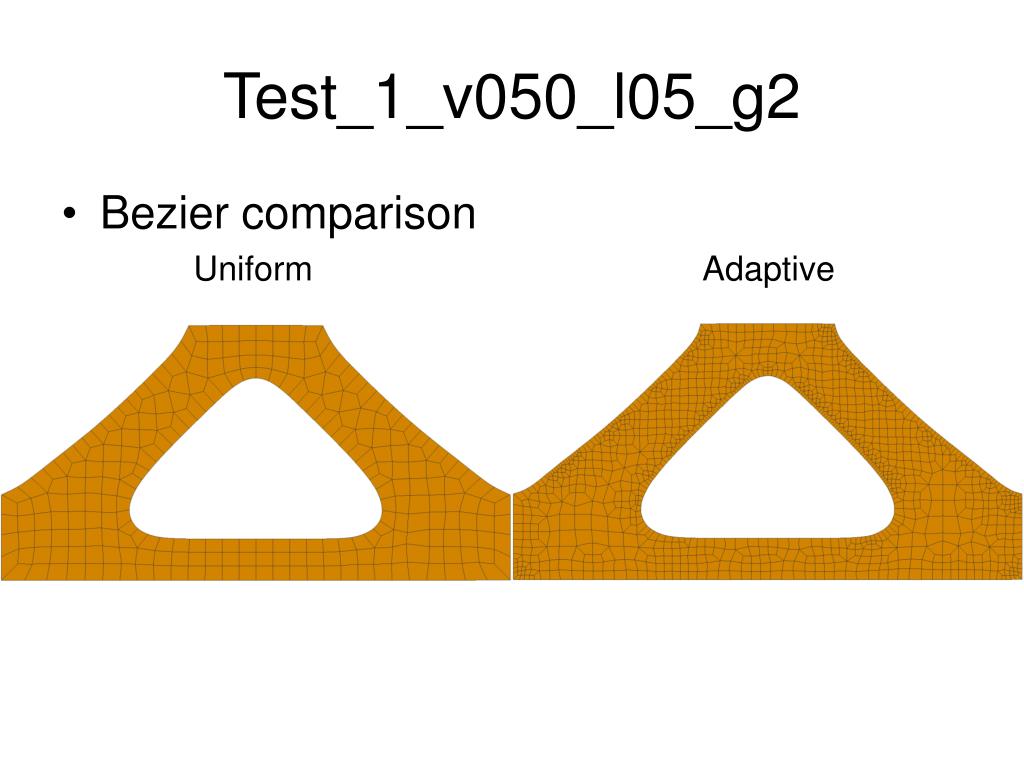

  9. Test_1_v050_l05_g2 • Bezier comparison Uniform Adaptive

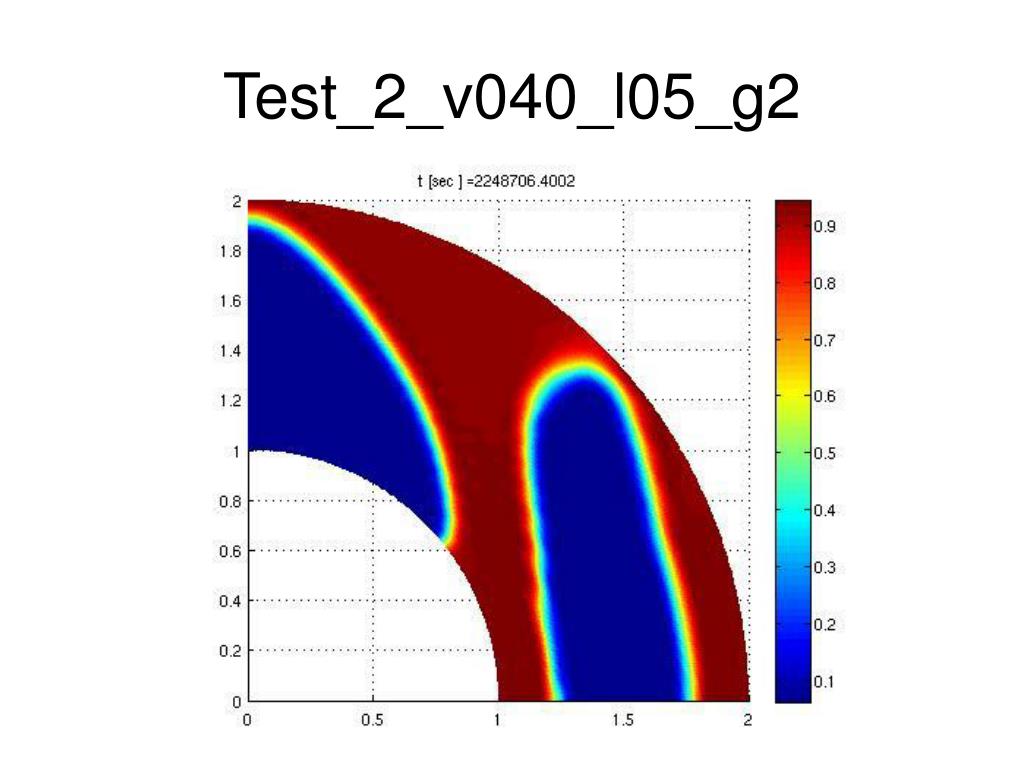

  10. Test_2_v040_l05_g2

  11. Test_2_v040_l05_g2 Uniform unstructured quad mesh (input) T-Mesh + T-Spline Vertices: 1677 Elements: 1422

  12. Test_2_v040_l05_g2 Adaptive unstructured quad mesh (input) T-Mesh + T-Spline Vertices: 1687 Elements: 1411

  13. Test_2_v040_l05_g2 • Bezier comparison Uniform Adaptive

  14. Test_5_v050_l05_g2

  15. Test_5_v050_l05_g2 Uniform unstructured quad mesh (input) T-Mesh + T-Spline Vertices: 2774 Elements: 2534

  16. Test_5_v050_l05_g2 Vertex Num: 2653 Element Num: 2361

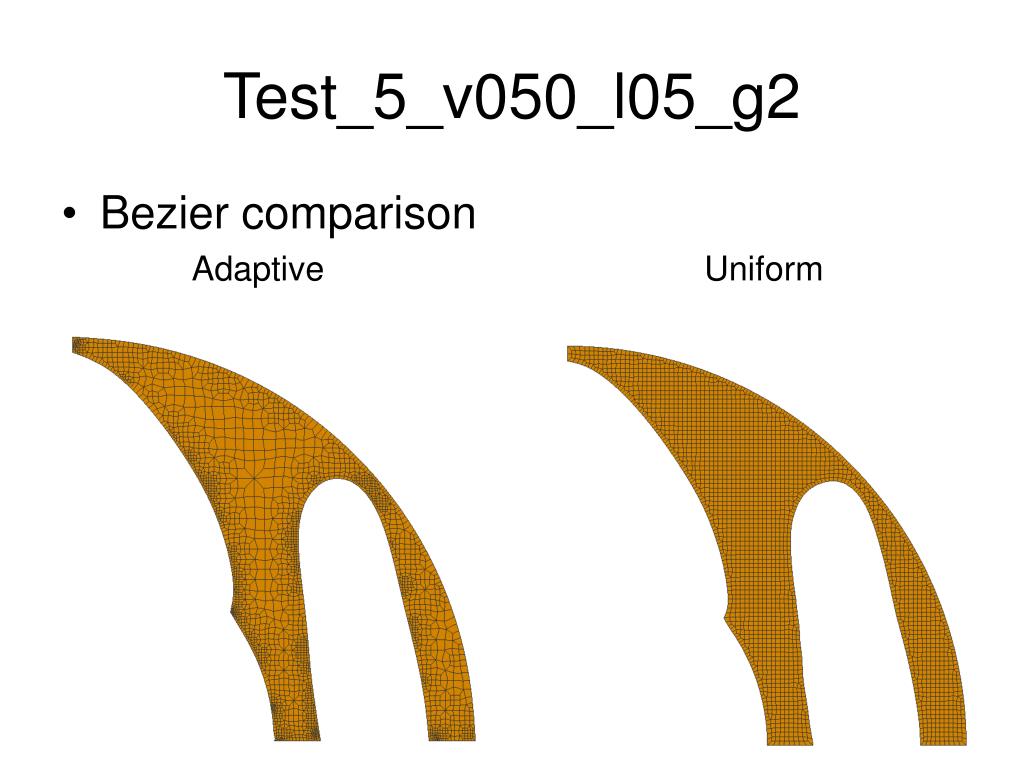

  17. Test_5_v050_l05_g2 • Bezier comparison Adaptive Uniform

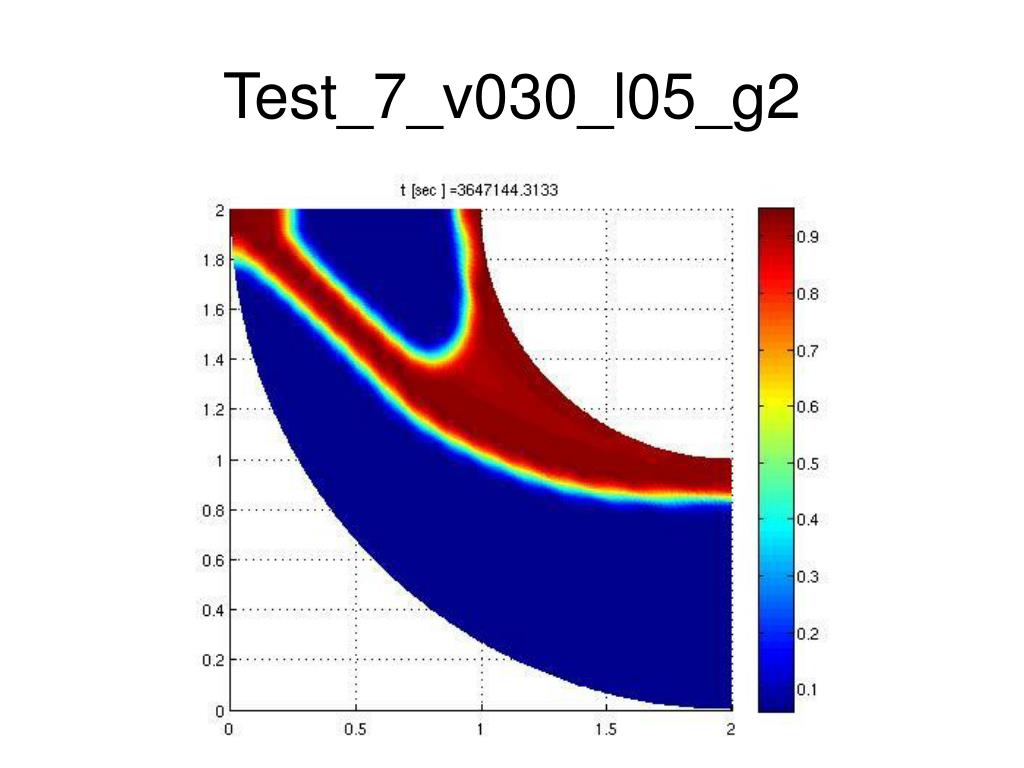

  18. Test_7_v030_l05_g2

  19. Test_7_v030_l05_g2 Vertex Num: 965 Element Num: 838

  20. Test_7_v030_l05_g2 Vertex Num: 1093 Element Num: 930

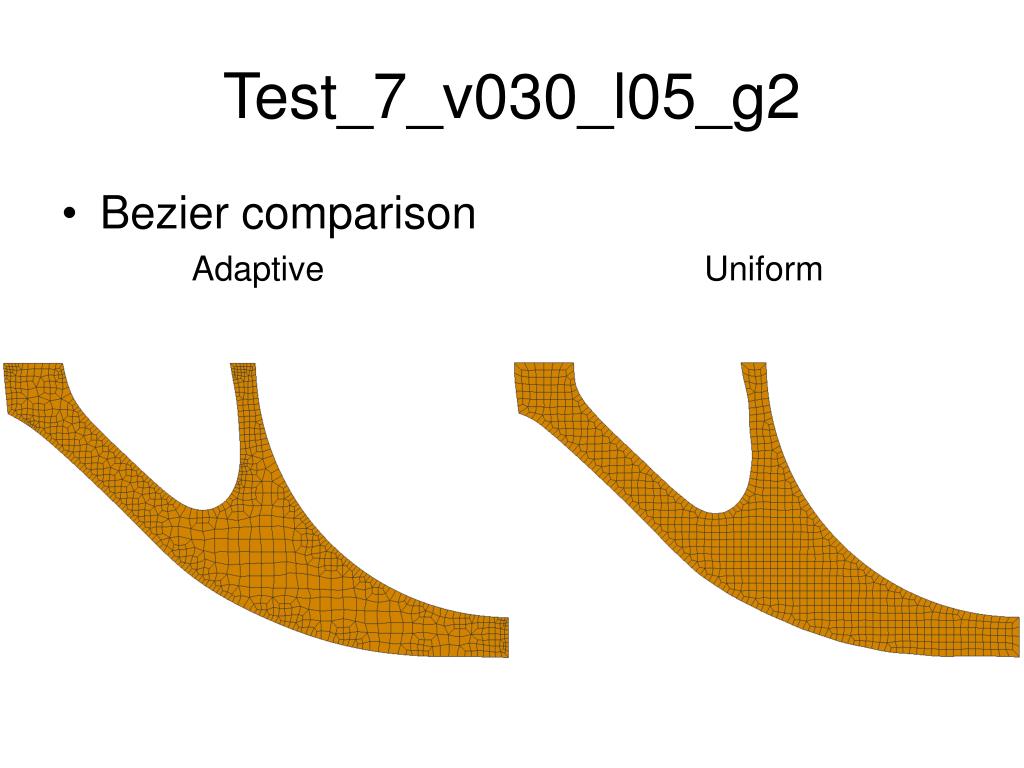

  21. Test_7_v030_l05_g2 • Bezier comparison Adaptive Uniform

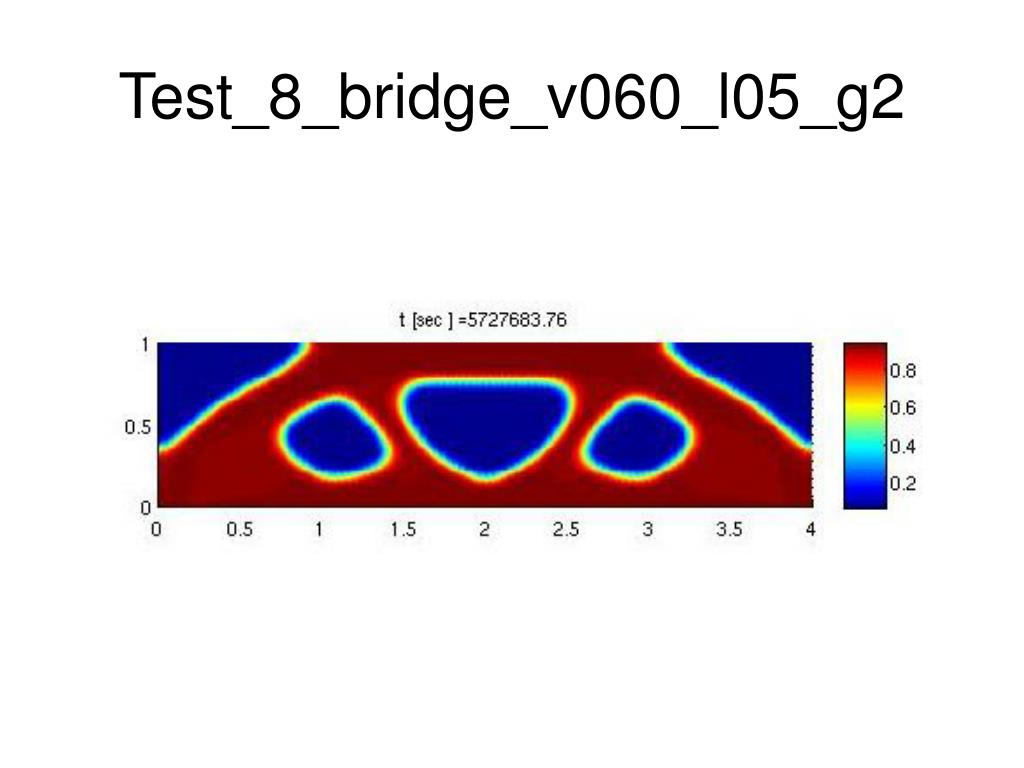

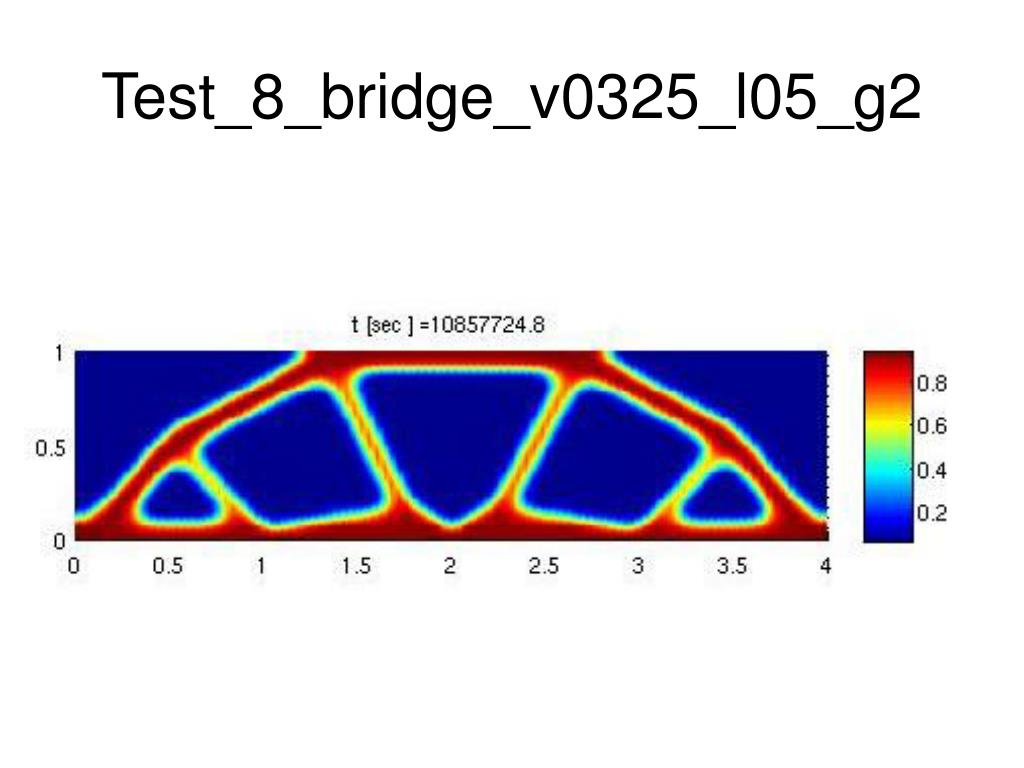

  22. Test_8_bridge_v060_l05_g2

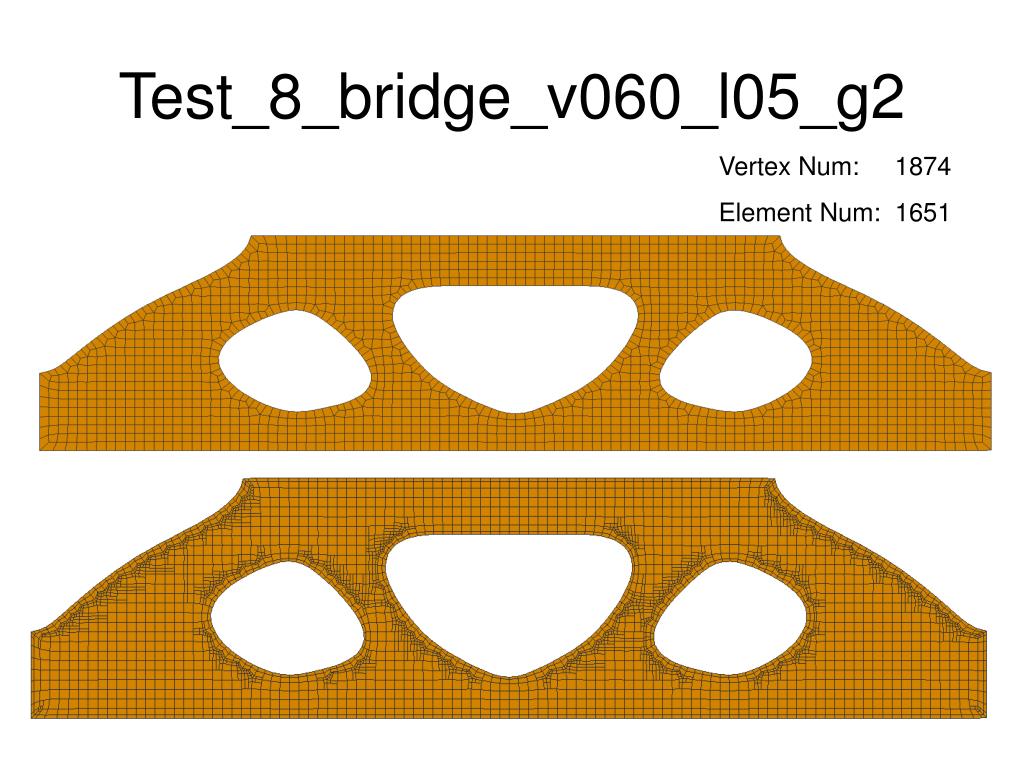

  23. Test_8_bridge_v060_l05_g2 Vertex Num: 1874 Element Num: 1651

  24. Test_8_bridge_v060_l05_g2 Vertex Num: 1584 Element Num: 1352

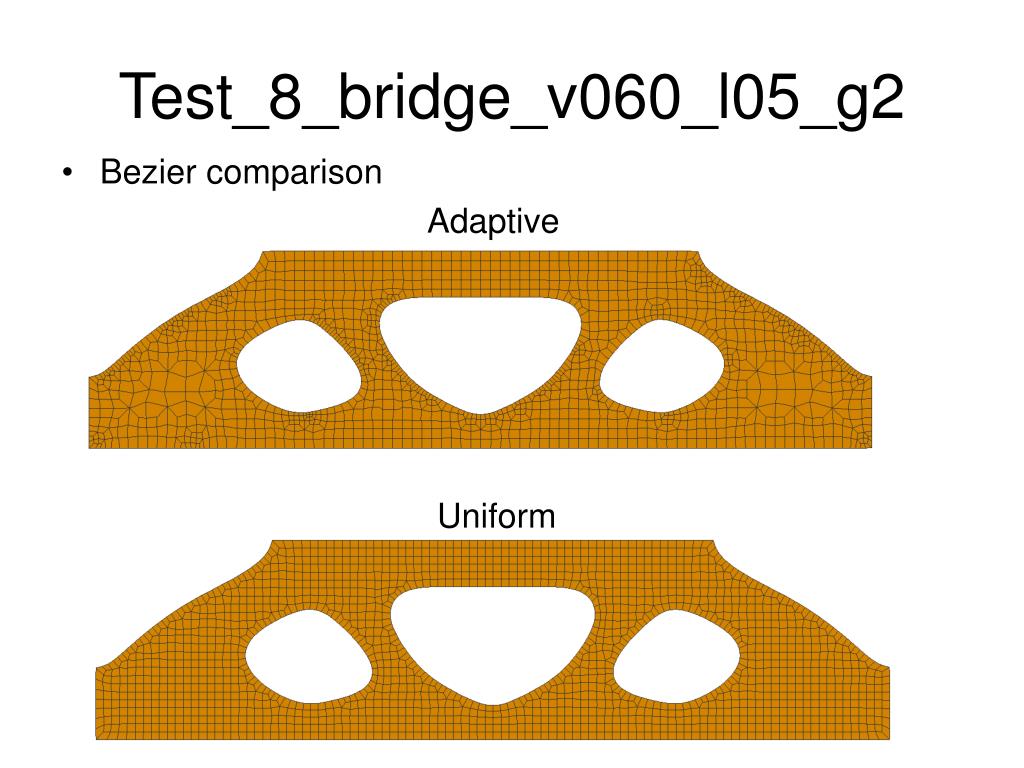

  25. Test_8_bridge_v060_l05_g2 • Bezier comparison Adaptive Uniform

  26. Test_8_bridge_v0325_l05_g2

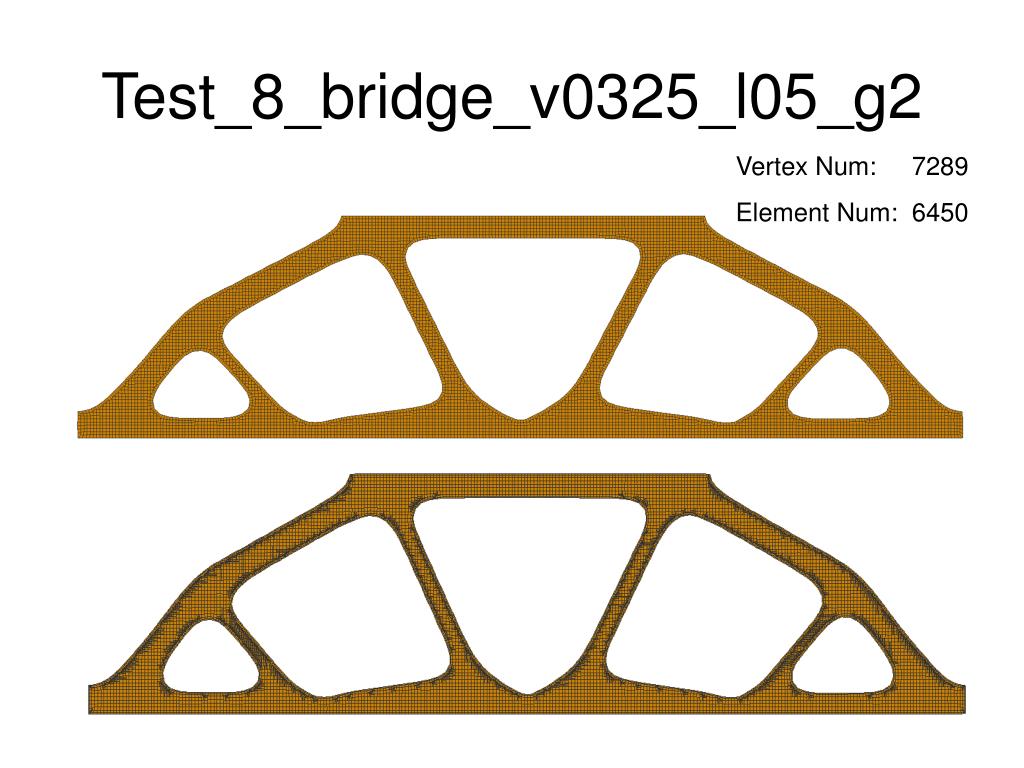

  27. Test_8_bridge_v0325_l05_g2 Vertex Num: 7289 Element Num: 6450

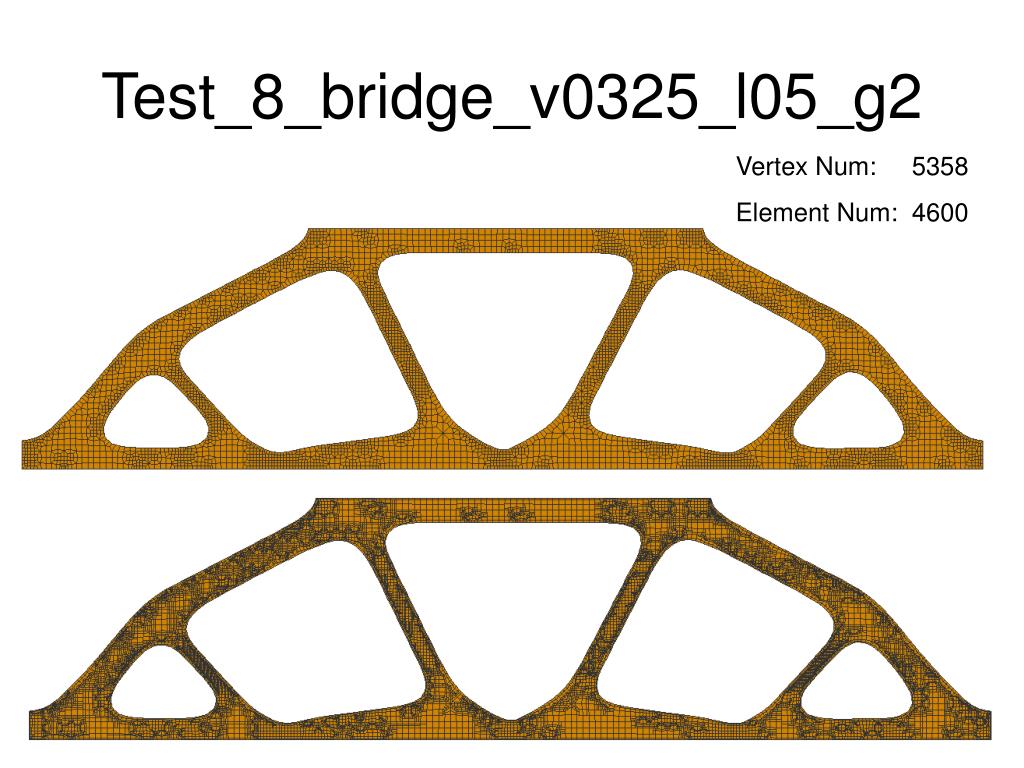

  28. Test_8_bridge_v0325_l05_g2 Vertex Num: 5358 Element Num: 4600

  29. Test_8_bridge_v0325_l05_g2 • Bezier comparison Adaptive Uniform

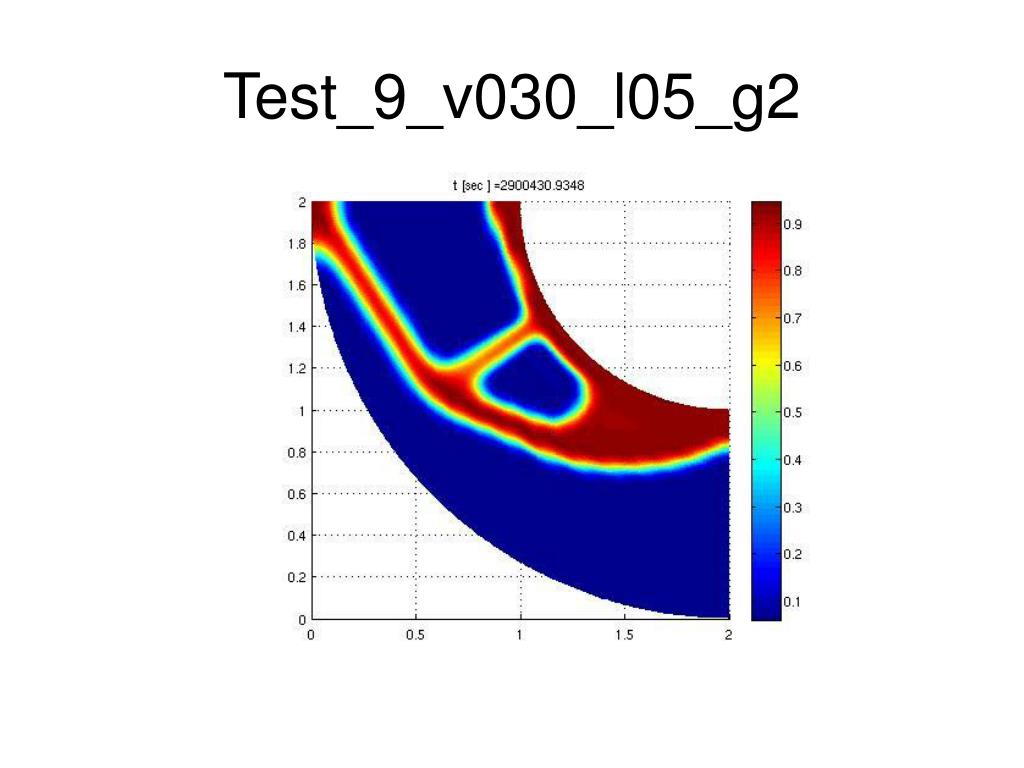

  30. Test_9_v030_l05_g2

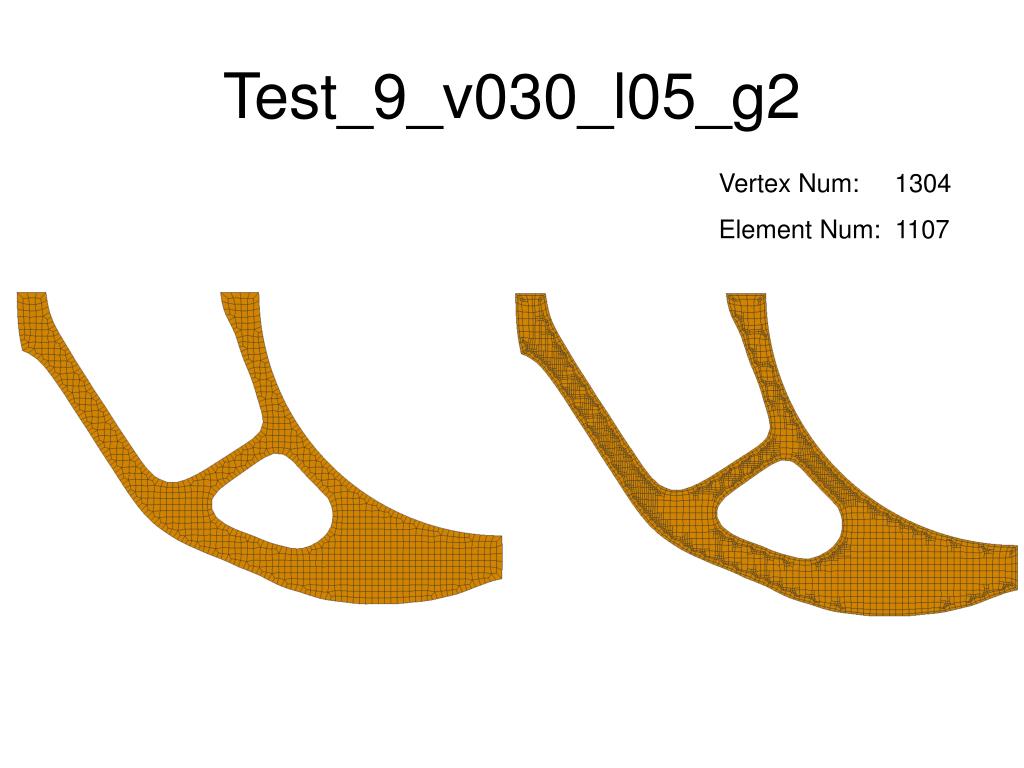

  31. Test_9_v030_l05_g2 Vertex Num: 1304 Element Num: 1107

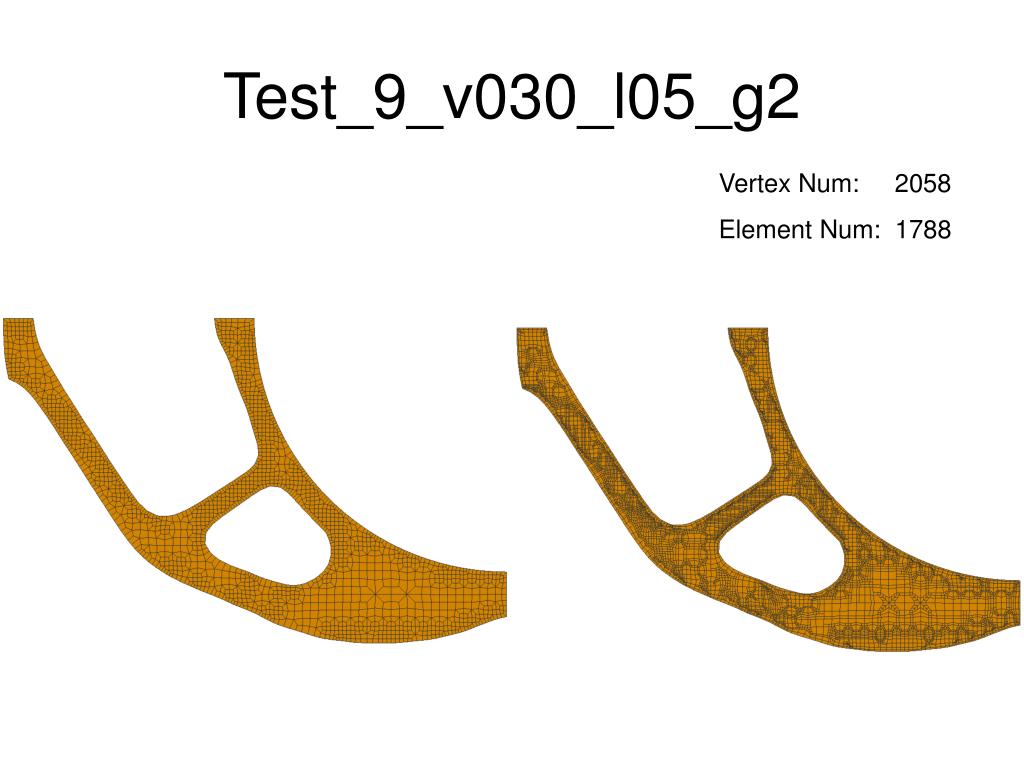

  32. Test_9_v030_l05_g2 Vertex Num: 2058 Element Num: 1788

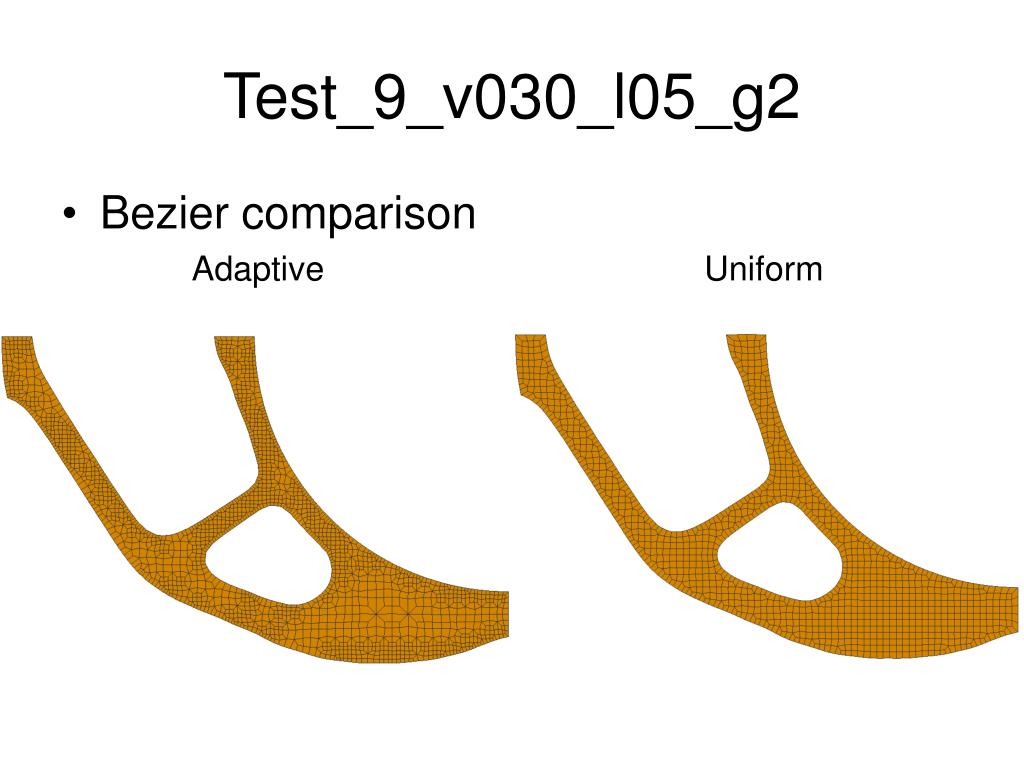

  33. Test_9_v030_l05_g2 • Bezier comparison Adaptive Uniform
