  1. AIR PRESSURE, FORCES AND WIND

  2. Larger systems, greater amplitude Smaller systems, less variation (except tropical cyclones)

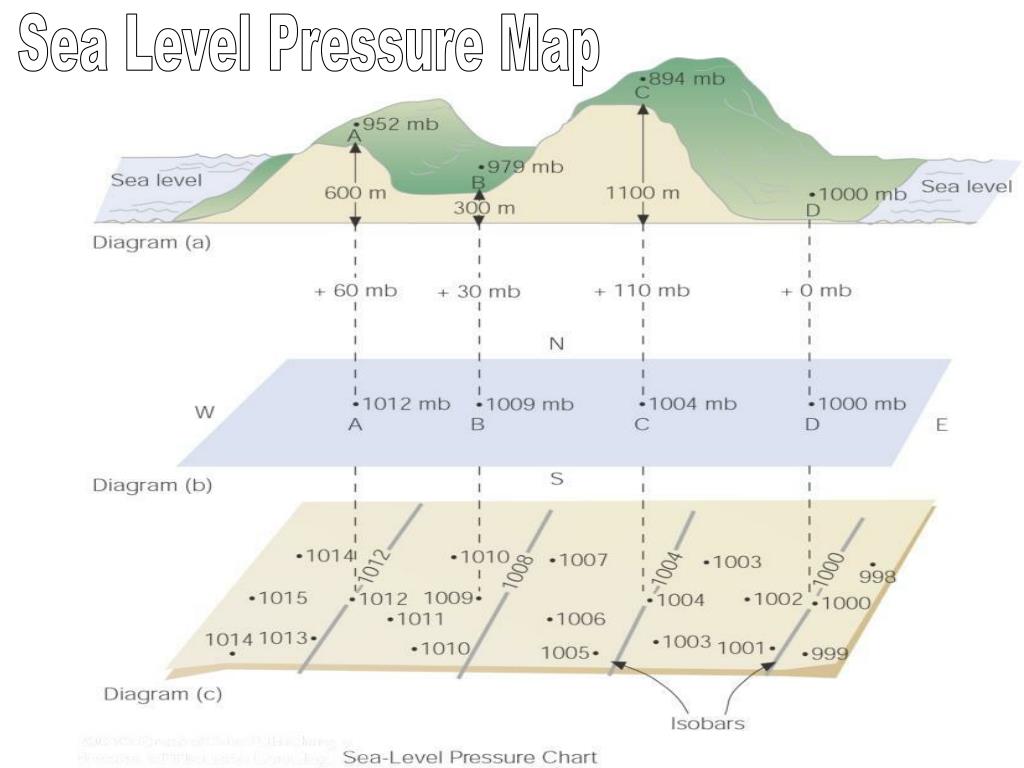

  3. Sea Level Pressure Map

  4. Other constant height maps

  5. Constant pressure surface

  6. 500 millibar map

  7. Pressure Gradient Force Remember the paper cup experiment

  8. FRICTION NEAR EARTH’S SURFACE - WIND CROSSES ISOBARS

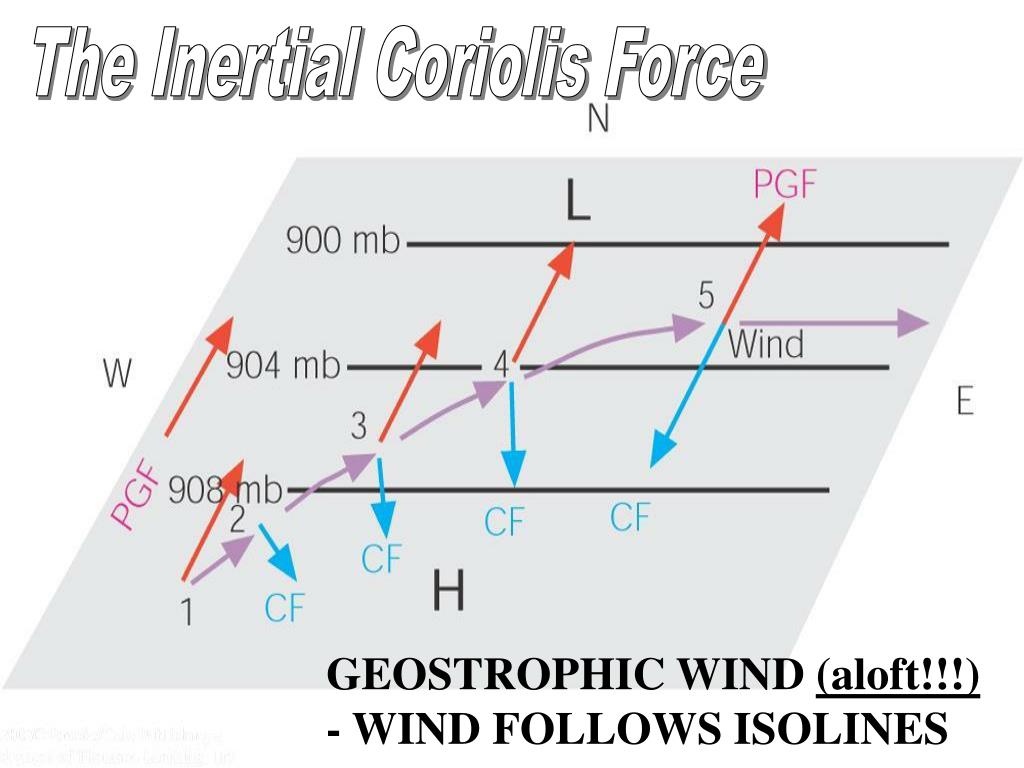

  9. The Inertial Coriolis Force GEOSTROPHIC WIND (aloft!!!) - WIND FOLLOWS ISOLINES

  10. WIND SMALL-SCALE & LOCAL SYSTEMS CHAPTER 10

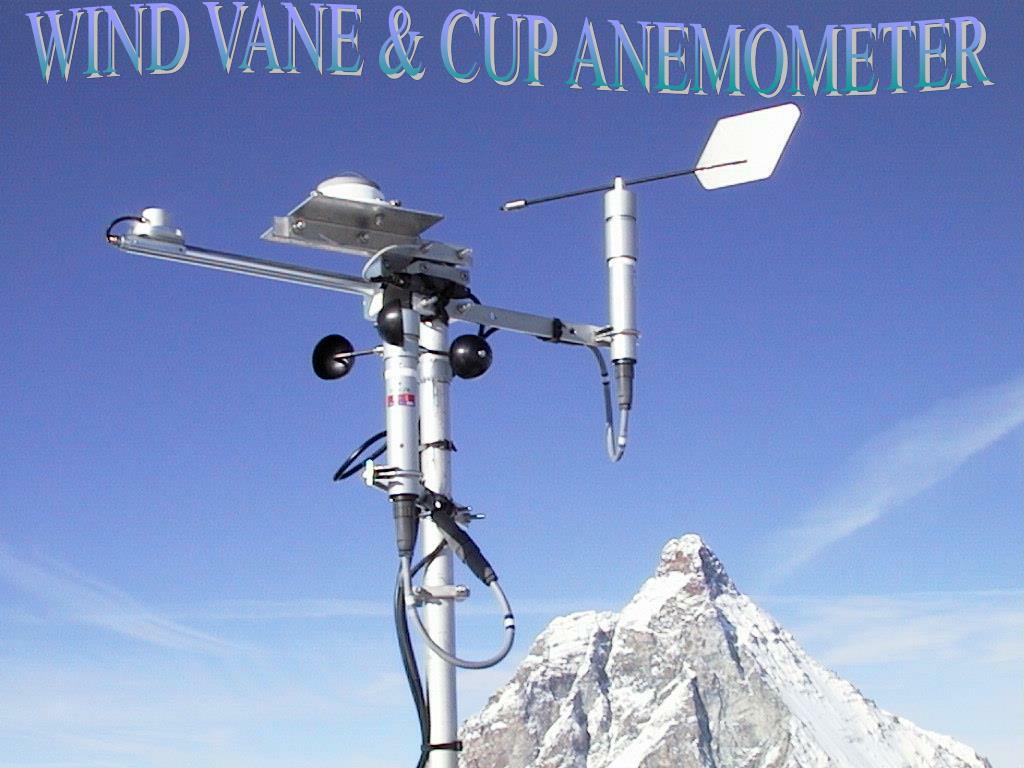

  11. WIND VANE & CUP ANEMOMETER

  12. SONIC ANEMOMETER SOUND WAVES DETERMINEWIND SPEED, DIRECTION & TEMPERATURE Sonic transducers

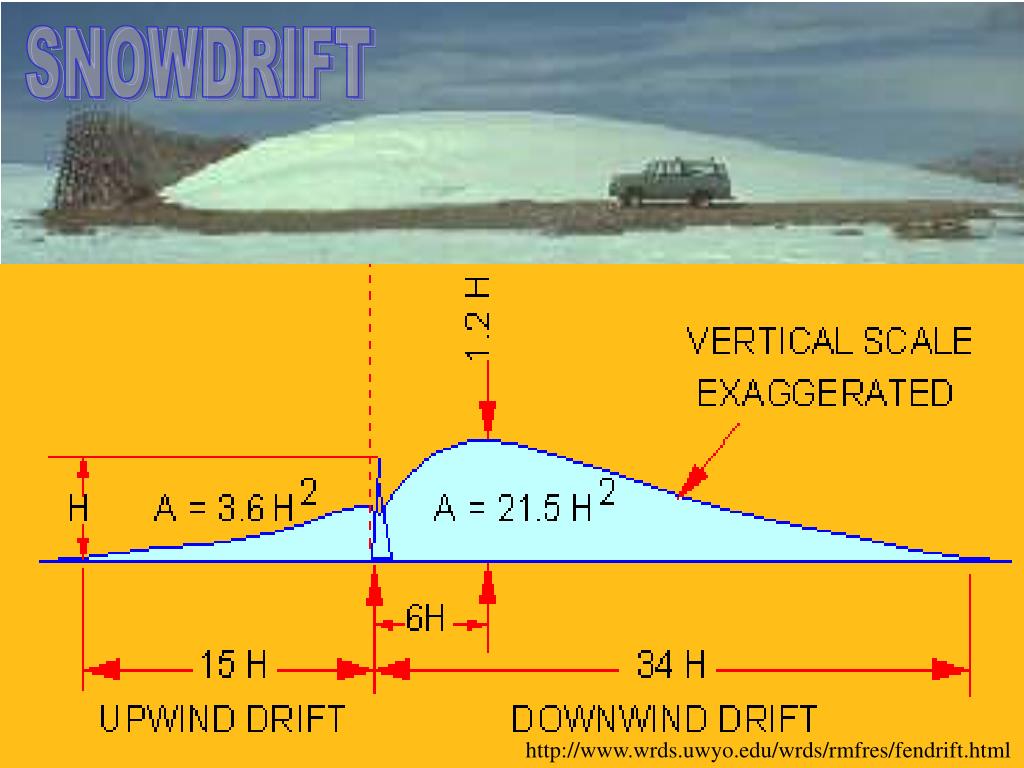

  13. SNOWDRIFT

  14. SNOWDRIFT http://www.wrds.uwyo.edu/wrds/rmfres/fendrift.html

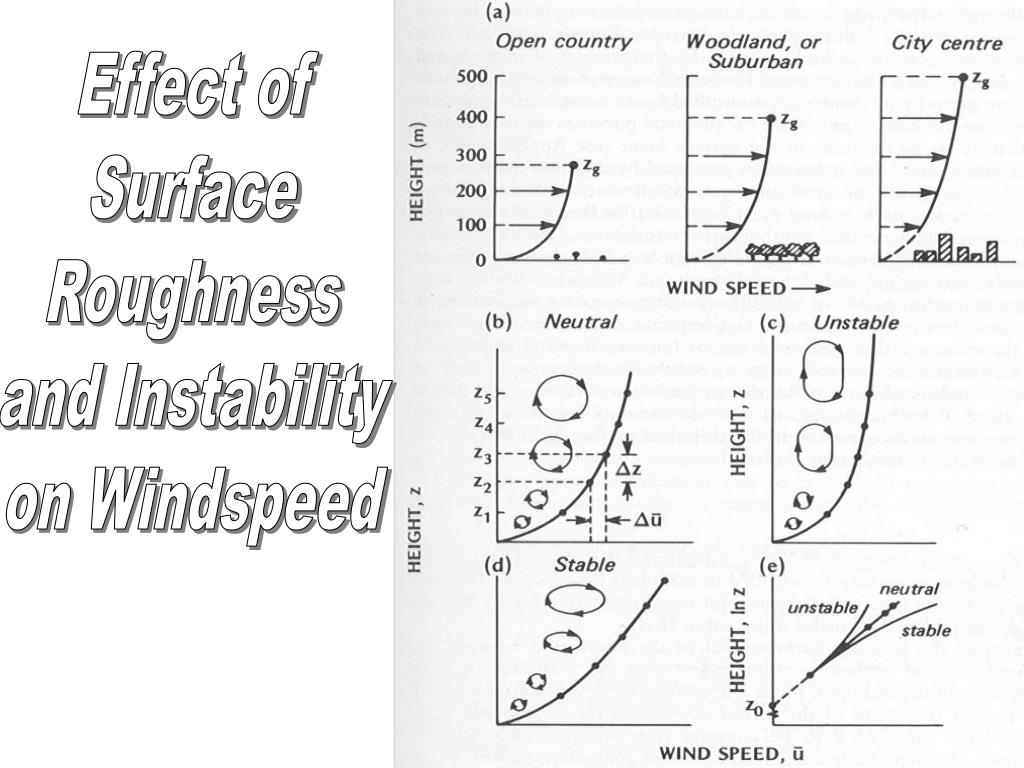

  15. Effect of Surface Roughness and Instability on Windspeed

  16. Depth of mixing depends on: Surface Heating WIND SPEED TOPOGRAPHY SURFACE ELEMENTS

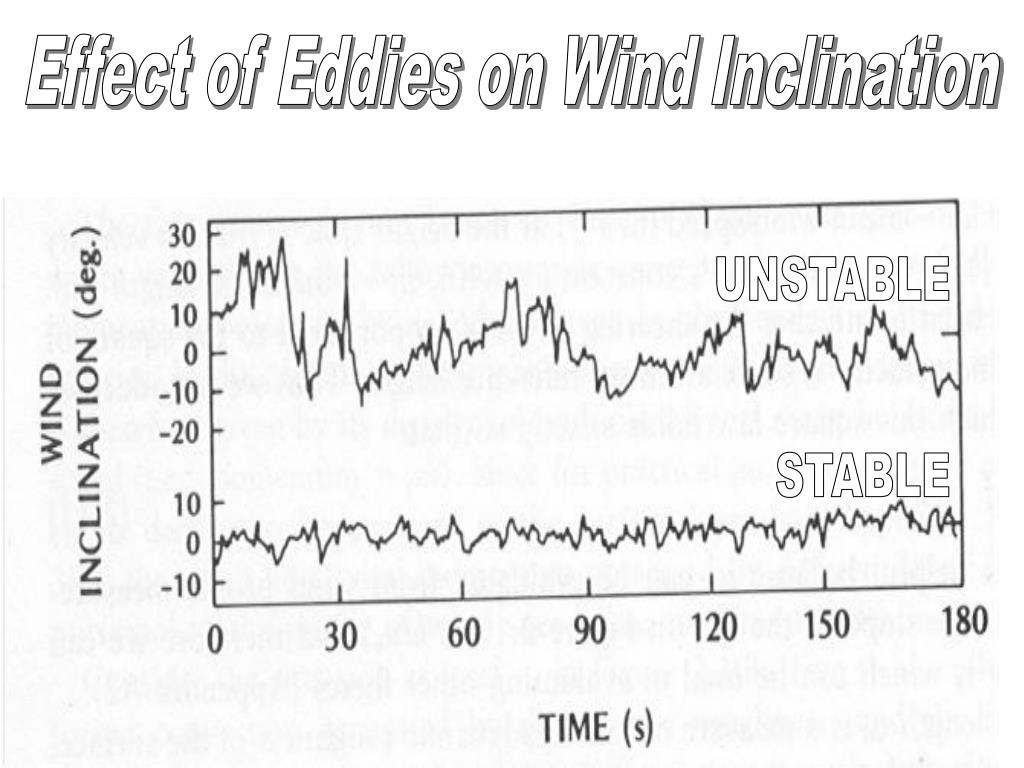

  17. Effect of Eddies on Wind Inclination UNSTABLE STABLE

  18. MOUNTAIN WAVES

  19. ROTOR CLOUDS

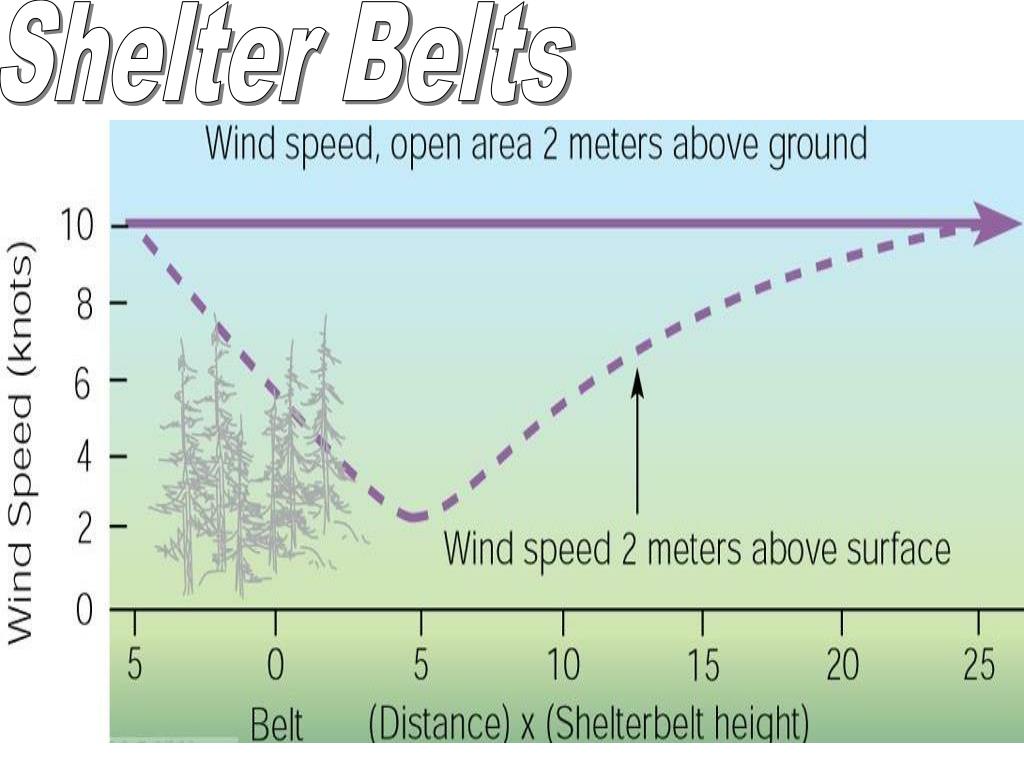

  20. Shelter Belts

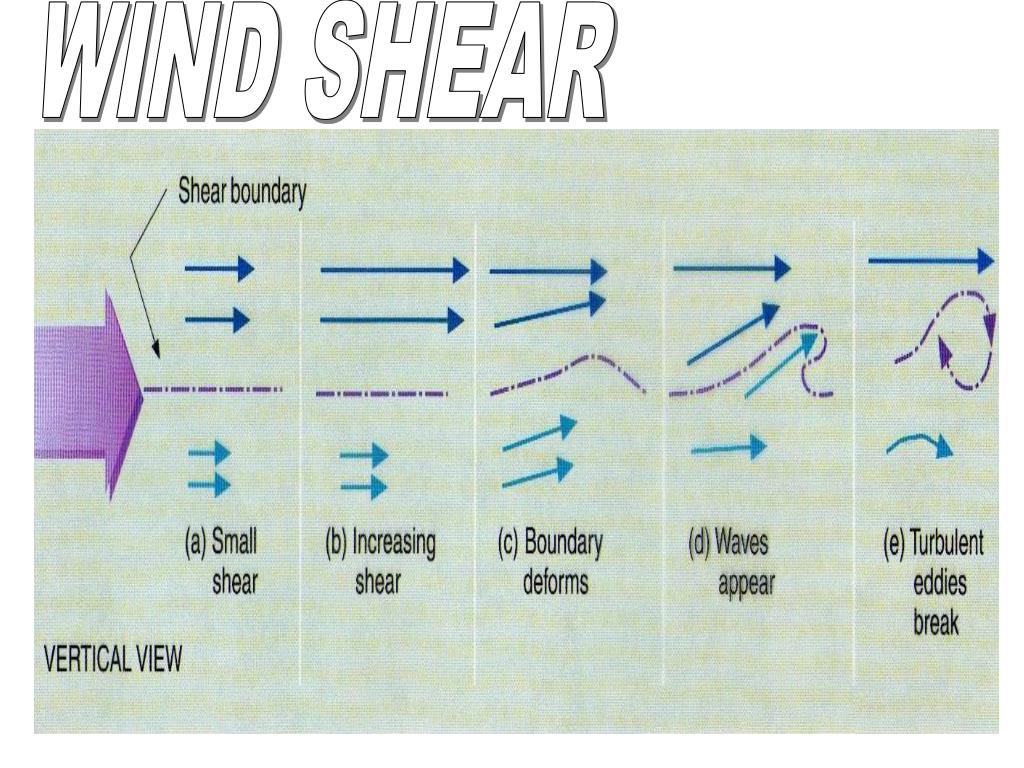

  21. WIND SHEAR

  22. Reinforcement of Wave Structure

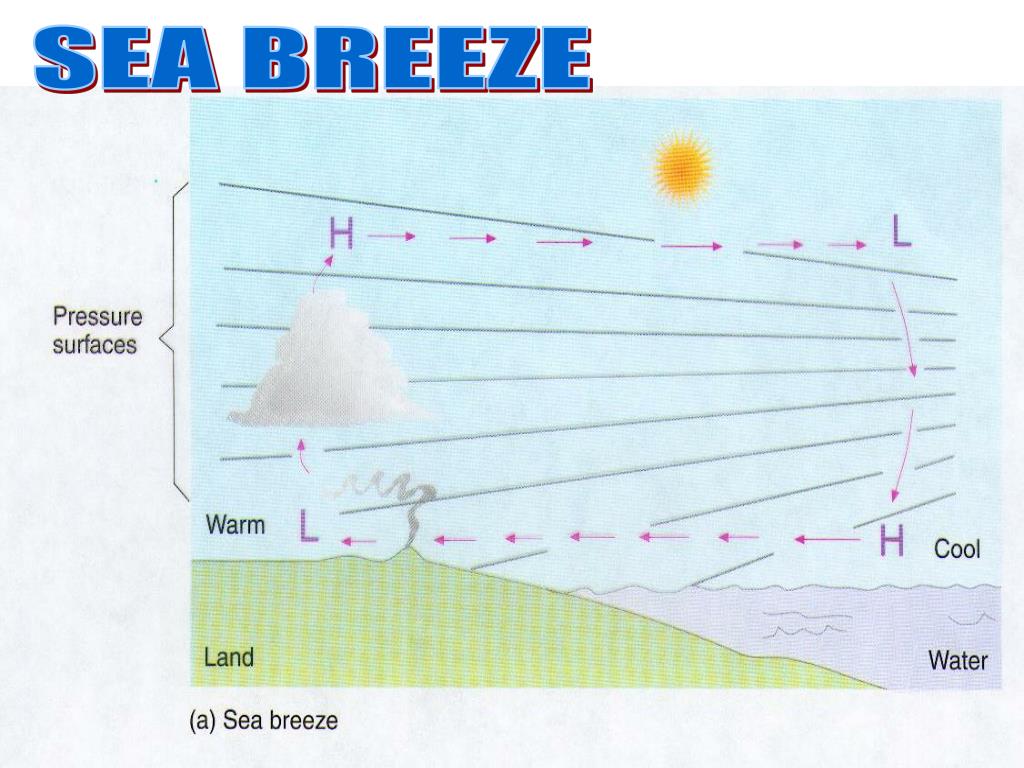

  23. SEA BREEZE

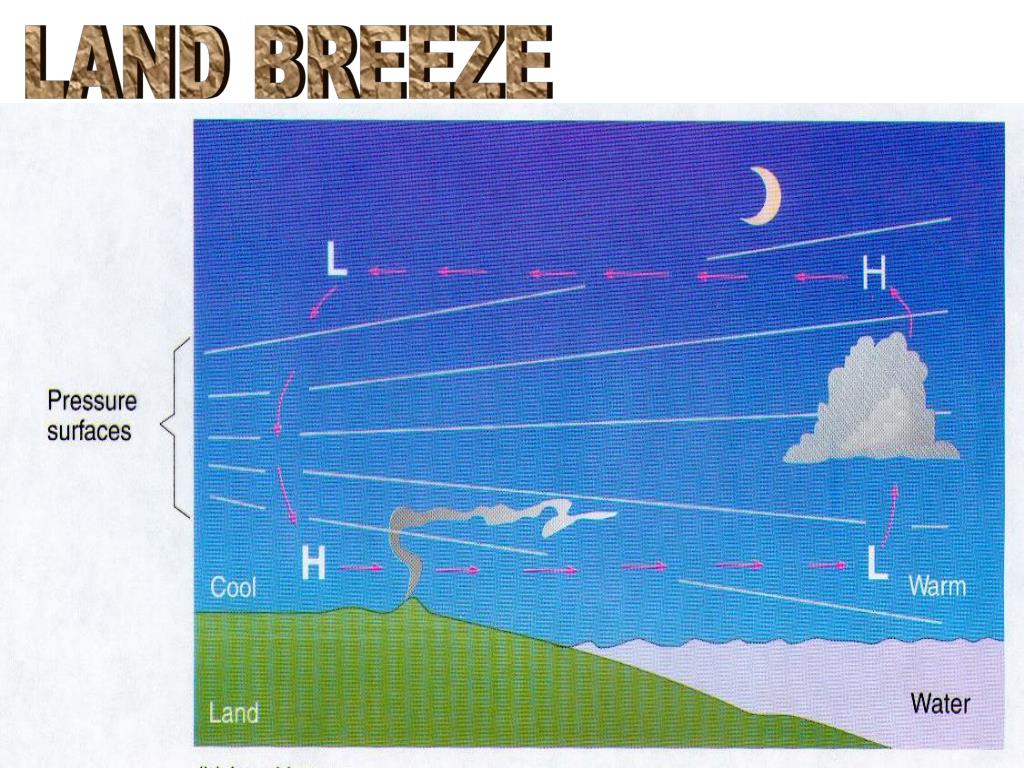

  24. LAND BREEZE

  25. Lake-induced convergence Also SW Ontario

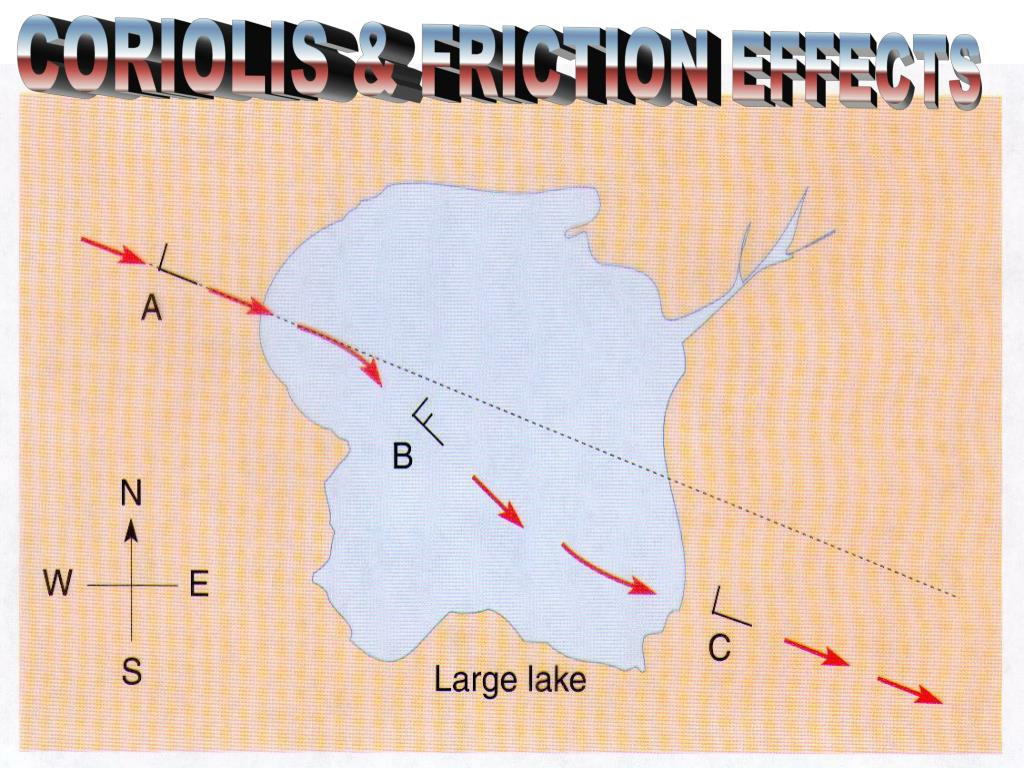

  26. CORIOLIS & FRICTION EFFECTS

  27. MONSOON SEASONS

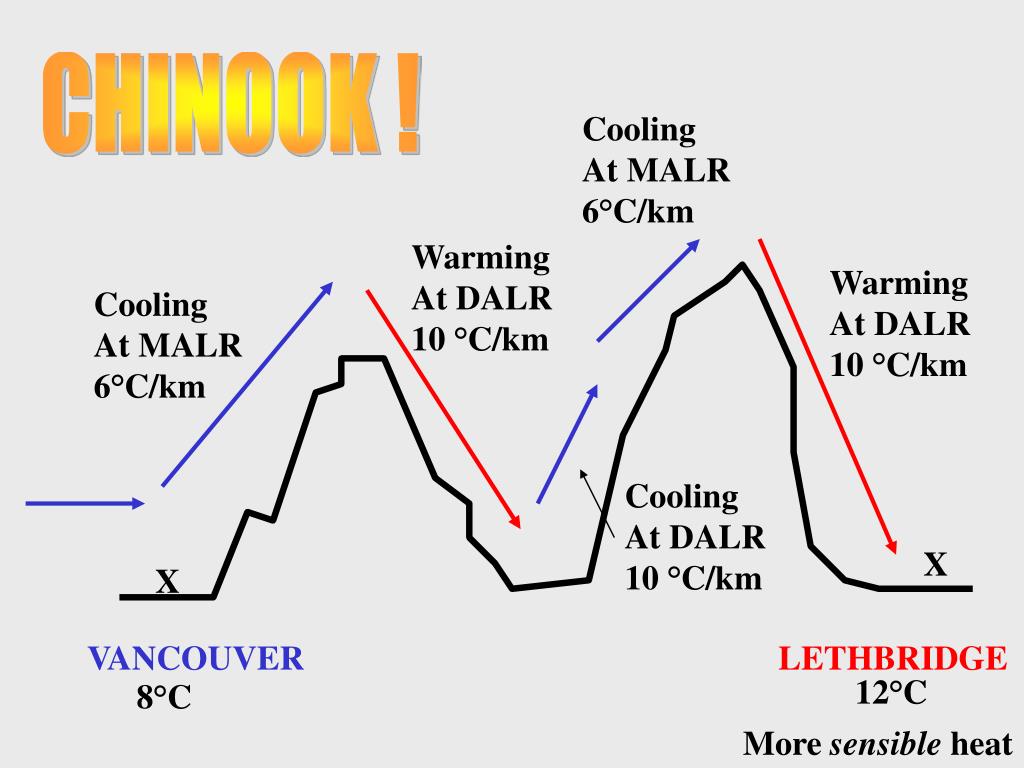

  28. CHINOOK ! Cooling At MALR 6°C/km Warming At DALR 10 °C/km Warming At DALR 10 °C/km Cooling At MALR 6°C/km Cooling At DALR 10 °C/km X X VANCOUVER LETHBRIDGE 12°C 8°C More sensible heat

  29. CHINOOK WALL CLOUD
