  1. DRIE for TSVs Group 2 Sasha Hoshian, Mikko Kataja, Ville Liimatainen, Mohammadreza Soleymaniha

  2. From RIE to DRIE • High aspect ratio structures needed (e.g TSVs, MEMS...) • Normal RIE too slow • Increase power and pressure • Etching becomes more isotropic • Damage to sidewalls DRIE

  3. Bosch process • Repeating two phases: • Etching (after ion bombardment) • Nearly isotropic plasma etch • E.g SF6 for silicon • Passivation • Protects the substrate from etching • E.g. C4F8 Etch Deposit passivation Etch

  4. Cryogenic process • Low temperature (< -100°C) • Slows down isotropic etching reactions • Simultaneous etching and passivation • E.g. SF6 / O2 plasma • Smooth sidewalls

  5. 3D integration • Interconnect lengths can be reduced by using the 3rd dimension • Advantages of TSVs • Small size and high density • High speed signal propagation and processing • Low power consumption • Many input-output terminals • Multi-functionality and high performance

  6. TSV (Through silicon vias) • TSVs provide interconnects between wafers • Possible conductor materials include metals such as Cu and Al and doped Si.

  7. TSV considerations • Aspect ratio • Reducing the TSV diameter minimizes lost space on chip. • Sidewall profile • Slighly sloped profile helps with filling. • Etch rate • Determines the manufacturing throughput • Conductor material • Material choice may restrict the subsequent processing temperature.

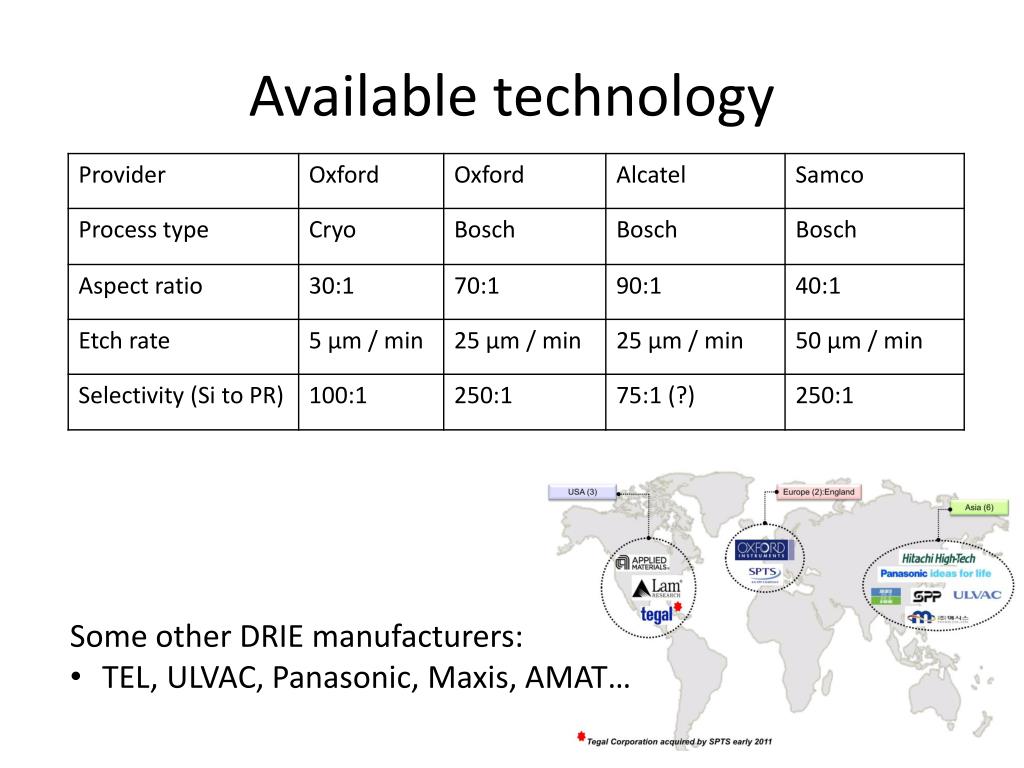

  8. Available technology • Some other DRIE manufacturers: • TEL, ULVAC, Panasonic, Maxis, AMAT…

  9. Conclusions • Aspect ratio • Bosch has better aspect ratio • Etch rate • Bosch is faster • Sidewalls • Cryo gives smoother sidewalls • Both processes allow both vertical and sloped profile • Temperature • Low temperature in cryo may cause problems with mask materials
