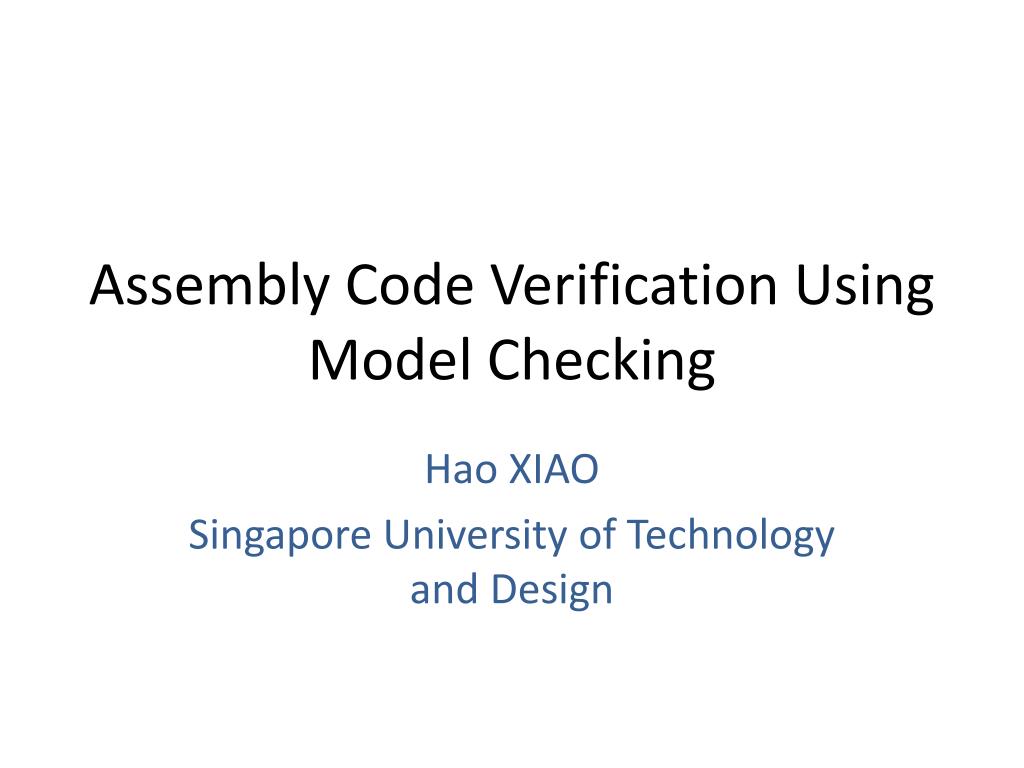

  1. Assembly Code Verification Using Model Checking Hao XIAO Singapore University of Technology and Design

  2. Outline • Motivation • Approach overview • ILA module @ PAT • On-going & future work

  3. Motivation

  4. Benefits • Achieve more reliability. • More software components can be verified. • Circumvent problems caused by compiler. • The verification target is most close to what is running on a CPU than the source code. • Easy to verify. • Binaries have more elegant syntax and well defined semantics than source code.

  5. Challenges • Instruction complexity. • Lack of high level semantic information. • Dynamic jump and call, no clear boundaries for “function”. • How to specify properties for assembly code. • Scalability. • Assembly code is much longer than source code.

  6. Design Goals • Accuracy: Faithfully handle the complex instructions in some ISA. • Extensibility: Easy extensible to handle different Instruction Set of various architecture. • Ease of Use: Those who are not familiar with temporal logic or assembly language should also find it is useful. • High Efficiency: Scalable to large programs.

  7. Approach Overview (1) Parser Properties User & Built in properties Static Analyzer Model Checker Counter Example Vine Parser ELF Emulator Vine IL

  8. Approach Overview (2) • Accuracy and Extensibility: Vine IL. • Ease of Use: Built in properties, if source is available, link counter examples back to source. • High Efficiency: property guided abstractions techniques for state space reduction; Function abstraction.

  9. ILA @ PAT • Vine IL • Emulator • Static Analyses • Built in properties • Example-buffer overflow checking

  10. Vine IL Binary file Assembly VEX IR Vine IL Libbfd LibVex Vine

  11. Vine IL Example

  12. Emulator(State builder) • Emulator is used to generate the successor states based on the current state. • A state consists of CPU registers, PC, memory. • Separate global states from local states. • Byte precision memory model.

  13. Static Analyses for Space Reduction • Stack Analysis • Dead Variable Analysis. • Value Set Analysis • Interrupt Flag Analysis. • Path Reduction

  14. Built-in Properties • Stack overflow checking • Integer overflow checking • Null pointer deference. • Division by zero checking • Uninitialized variable checking • Data race checking

  15. Example-Buffer Overflow Checking • Buffer overflow in assembly level: • write to a memory location beyond the boundaries of current stack frame. • Identify instrumentation point: • find write operations which have a variable d as its destination address. • Assertion instrumentation: • Add assertion d > %ebp && d < %espbefore the write instruction. • Model checking assertions.

  16. Example- C++ source code

  17. Example-Assembly Code s1 s1 s5 s2 s6 s3 s4

  18. Control Flow Graph S1 J1 S2 S3 J2 S4 S5 J3 S6

  19. CFG for Instrumented Code esp1 = esp0 - 0x4 M[esp1] = ebp0 ebp1 = esp1 esp2 = esp1 - max{0, 15} esp3 = esp2 – 0x20 S1 J1 M[ebp1 +0x8]>1 eax0= M[ebp1 + 0xc] eax1= M[eax0 + 0x4] M[esp3 + 0x18] = eax1 M[esp3 + 0x1c] = 0 S3 ebx0 =φ(S3,S4.2,M[ esp3 + 0x1c]) eax2 = M[esp3 + 0x18] eax3 = strlen (eax2) S4.2 S5 M[eax7] = edx0 M[esp3+0x1c] = M[esp3 + 0x1c] + 1 Error eax7 > ebp1 && eax7 < esp3 A1 eax4 = M[esp3 + 0x1c] eax5 = eax4 + M[esp3 + 0x18] edx0 = M[eax5] eax6 = esp3 + 0x10 eax7 = M[esp3 + 0x1c] + eax6 S4.1 J3 eax3 < ebx0 S6

  20. On-going & future Work • Implementation. • More abstraction techniques(e.g., irrelevant code elimination). • Symbolic model checking

  21. The End Thanks !
