  1. TD-SCDMA LNA PA from Andrew • Frequency Bands: 2010-2025MHz • Tx Power Level: Up to 3W • Tx Power Gain: 53 dB • Modulation: TD-SCDMA • Carrier: Up to 6 TD-SCDMA Carriers • Linearity: >4dB margin ACLR over 3GPP specs • PAE: >8% • Rx NF: < 2.0 • Rx Gain: 35dB • Operating Temperature: -40 ~ +65 OC • Figure Size: 247.5mm X 95mm X 35mm • Weight: < 1.5kg

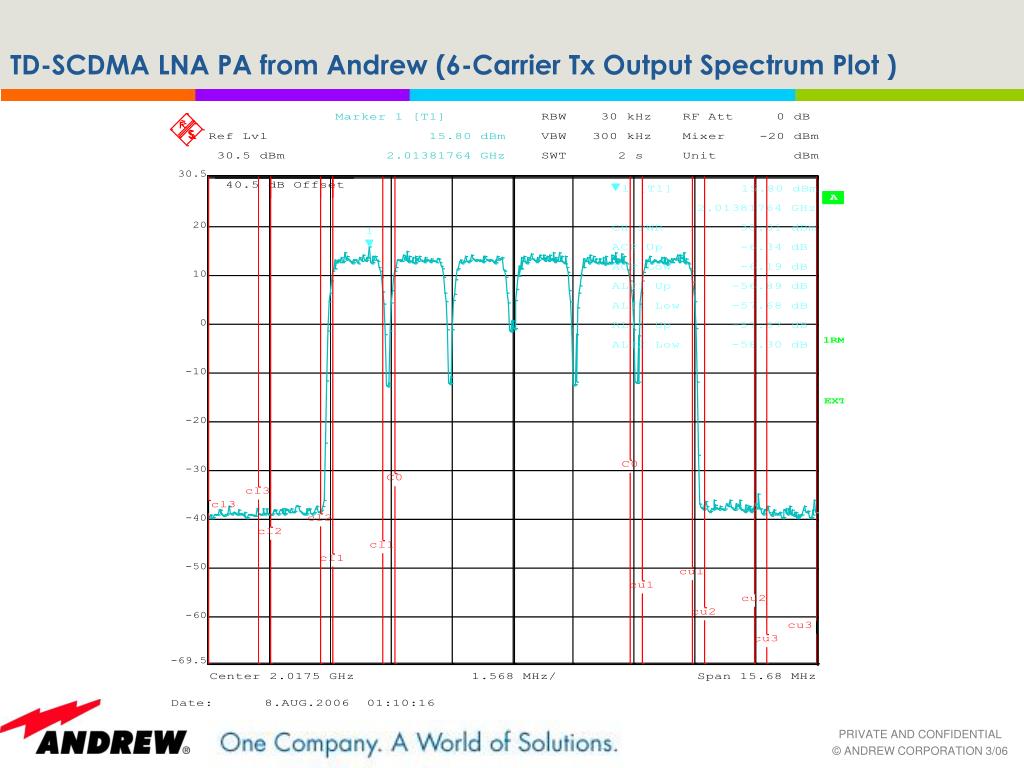

  2. TD-SCDMA LNA PA from Andrew (6-Carrier Tx Output Spectrum Plot )

  3. TD-SCDMA RRU LNA PA from Andrew • Frequency Bands: 2010-2025MHz • Tx Power Level: 3 Watts • Tx Power Gain: 45+/-1 dB • Modulation: TD-SCDMA • Carrier: Up to 6 TD-SCDMA Carriers • Linearity: >4dB margin ACPR over 3GPP specs • PAE: >7% • Rx NF: < 2.5 over –35C~+65C • Rx Gain: 30dB • Operating Température: -35 ~ +65 OC • Figure Size: 180mm X 88mm X 29mm • Weight: < 0.8kg

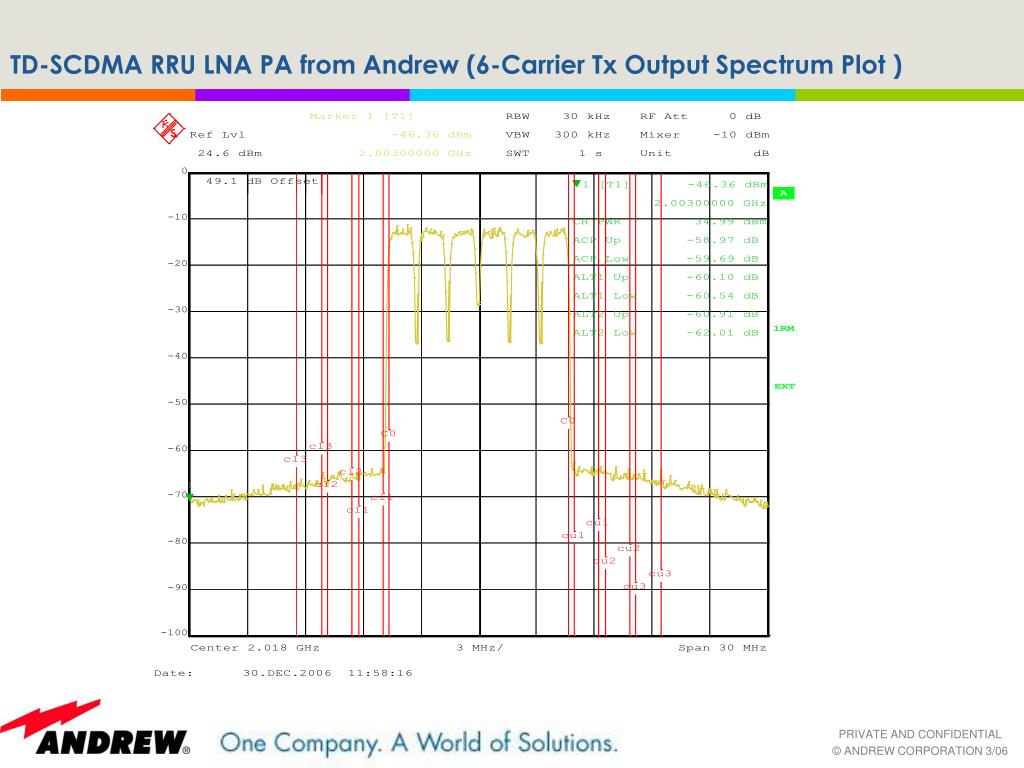

  4. TD-SCDMA RRU LNA PA from Andrew (6-Carrier Tx Output Spectrum Plot )

  5. TD-SCDMA LNA PA from Andrew (Pictures)
