  1. Using Knuth-Bendix toVerify Programs Scott McPeak OSQ 2/23/04

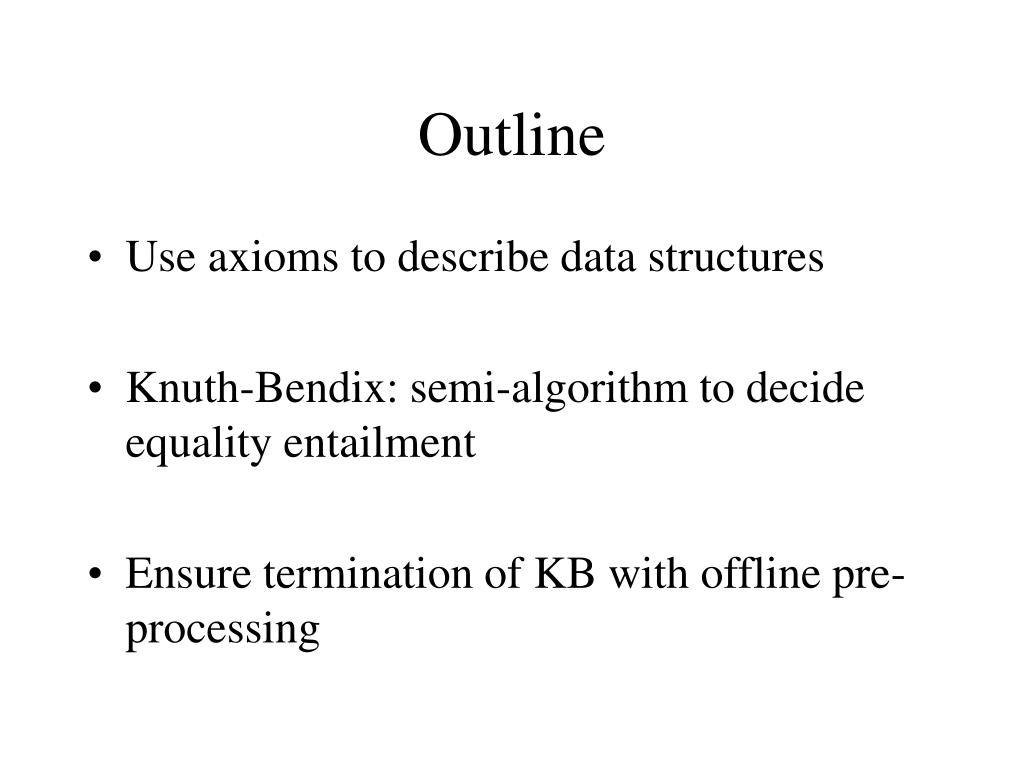

  2. Outline • Use axioms to describe data structures • Knuth-Bendix: semi-algorithm to decide equality entailment • Ensure termination of KB with offline pre-processing

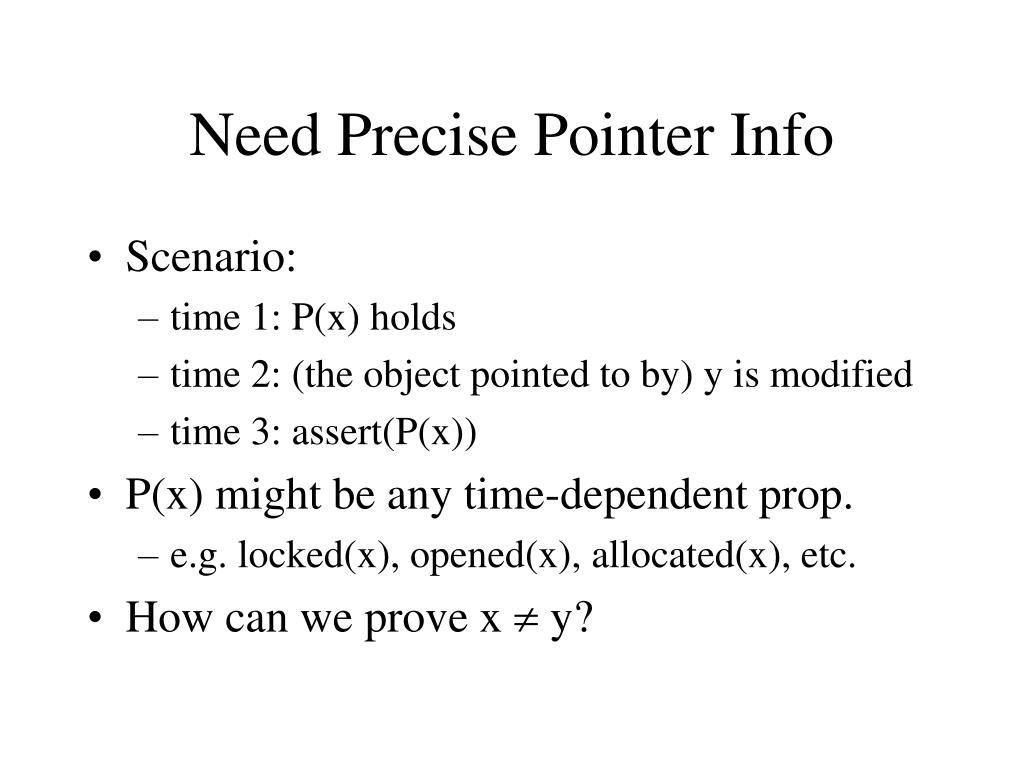

  3. Need Precise Pointer Info • Scenario: • time 1: P(x) holds • time 2: (the object pointed to by) y is modified • time 3: assert(P(x)) • P(x) might be any time-dependent prop. • e.g. locked(x), opened(x), allocated(x), etc. • How can we prove x ¹ y?

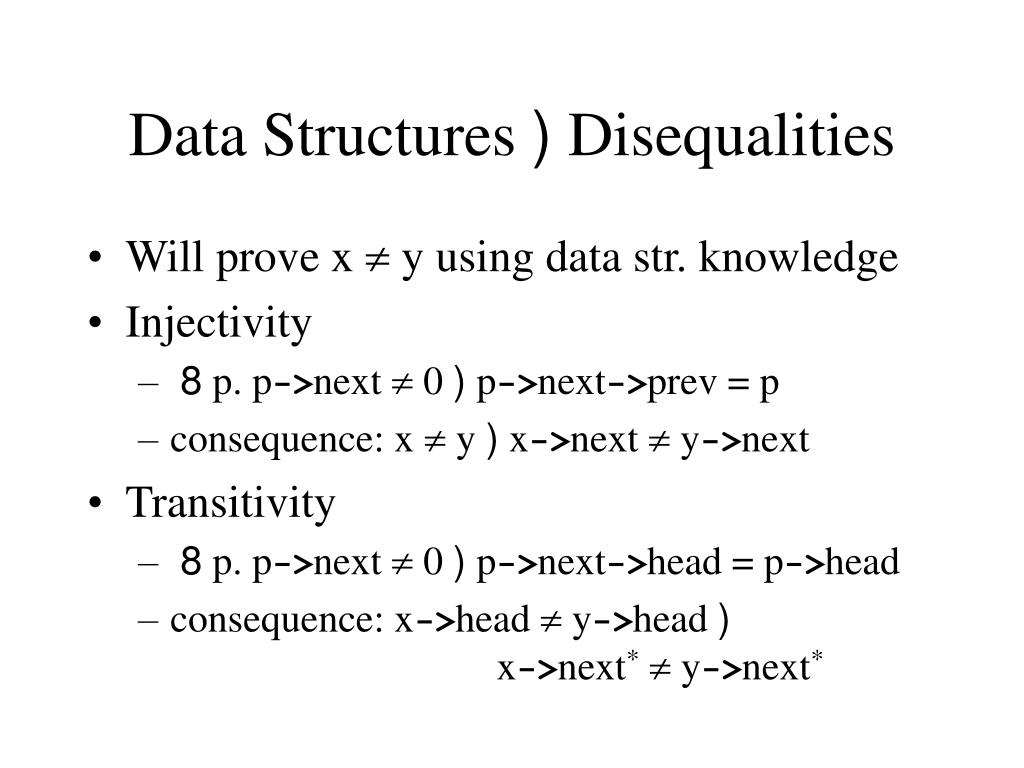

  4. Data Structures ) Disequalities • Will prove x ¹ y using data str. knowledge • Injectivity • 8 p. p->next ¹ 0 ) p->next->prev = p • consequence: x ¹ y ) x->next ¹ y->next • Transitivity • 8 p. p->next ¹ 0 ) p->next->head = p->head • consequence: x->head ¹ y->head ) x->next*¹ y->next*

  5. Short Example assume(x ¹ y); x = x->next; y = y->next; assert(x ¹ y);

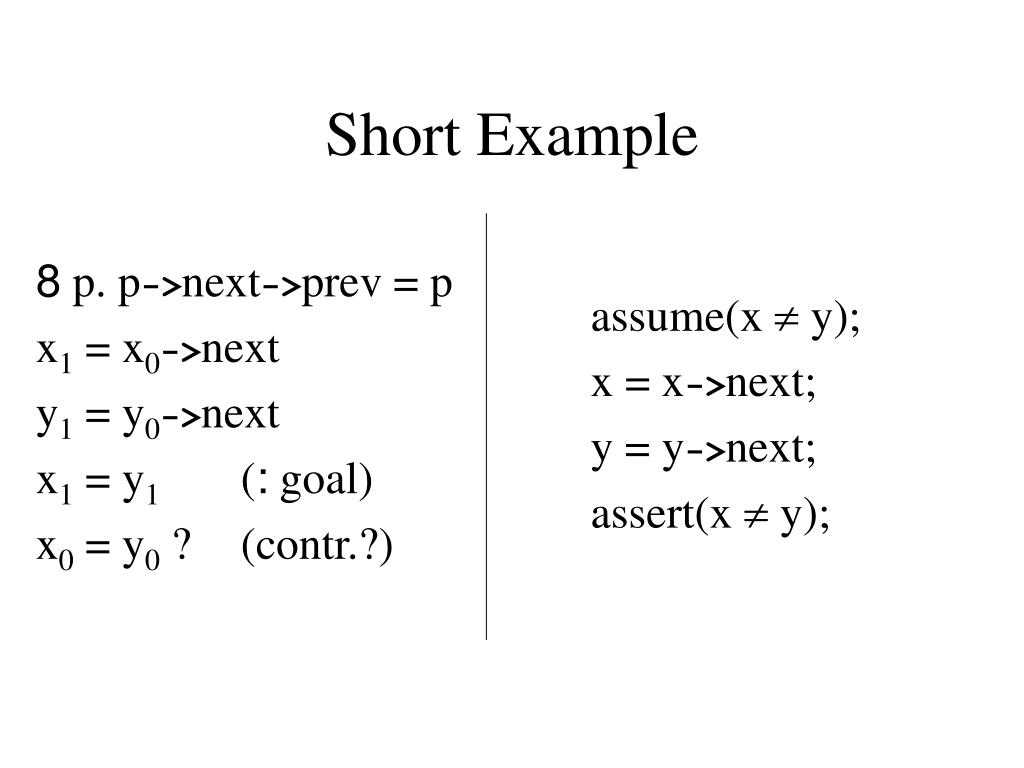

  6. Short Example assume(x ¹ y); x = x->next; y = y->next; assert(x ¹ y); 8 p. p->next->prev = p x1 = x0->next y1 = y0->next x1 = y1 (: goal) x0 = y0 ? (contr.?)

  7. Short Example 8 p. p->next->prev = p x1 = x0->next y1 = y0->next x1 = y1 (: goal) x0 = y0 ? (contr.?) x0->next = x1 x0->next->prev = x1->prev x0 = y1->prev x0 = y0->next->prev x0 = y0

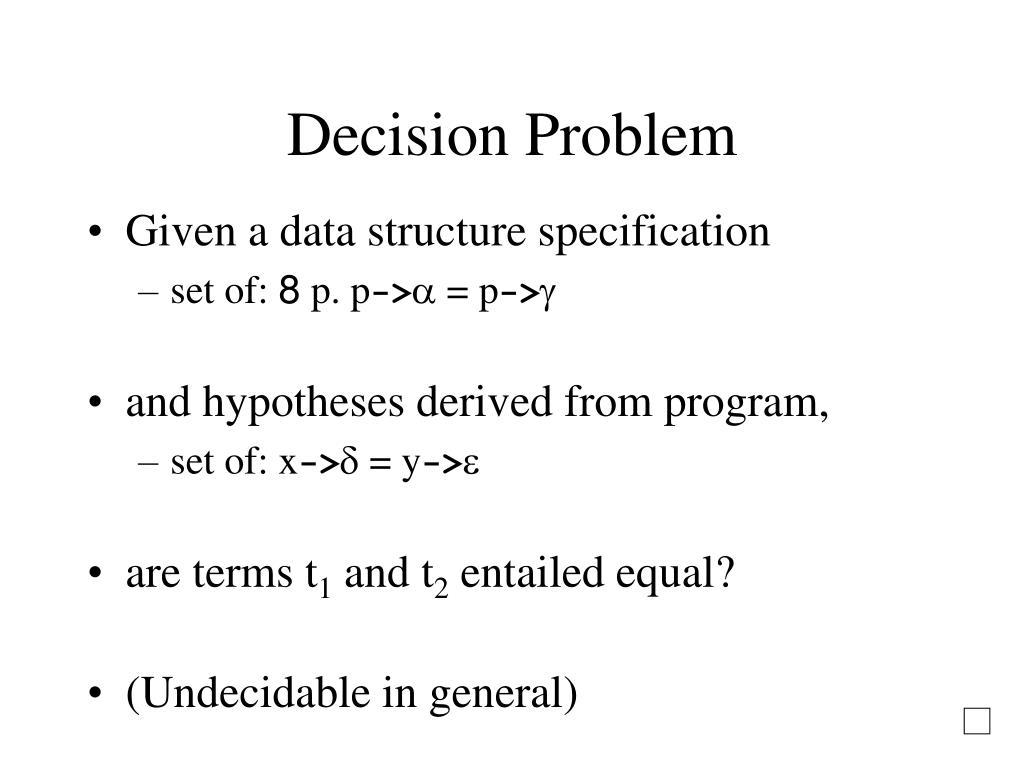

  8. Decision Problem • Given a data structure specification • set of: 8 p. p->a = p->g • and hypotheses derived from program, • set of: x->d = y->e • are terms t1 and t2 entailed equal? • (Undecidable in general)

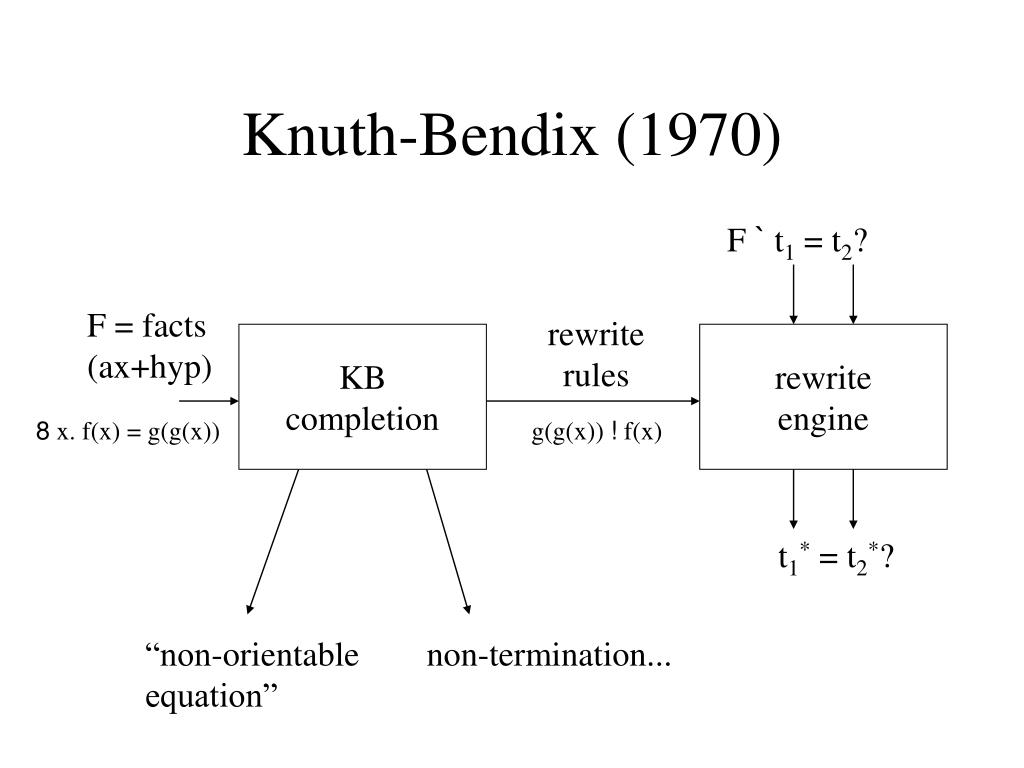

  9. Knuth-Bendix (1970) F ` t1 = t2? F = facts (ax+hyp) rewrite rules KBcompletion rewrite engine 8 x. f(x) = g(g(x)) g(g(x)) ! f(x) t1* = t2*? “non-orientable equation” non-termination...

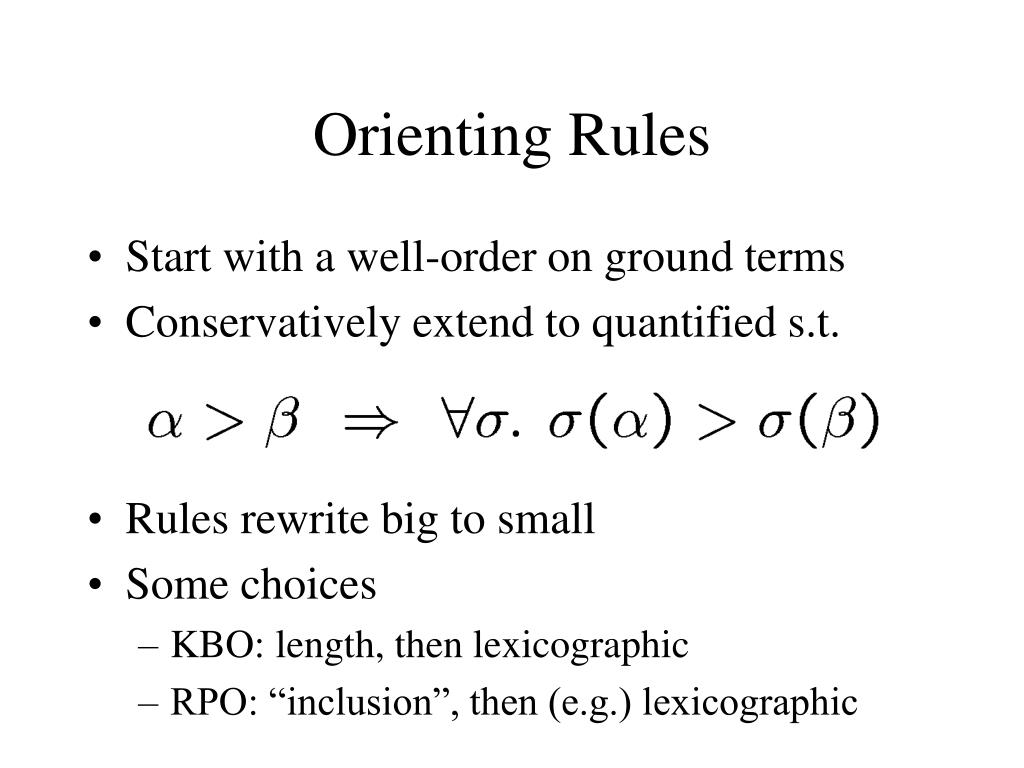

  10. Orienting Rules • Start with a well-order on ground terms • Conservatively extend to quantified s.t. • Rules rewrite big to small • Some choices • KBO: length, then lexicographic • RPO: “inclusion”, then (e.g.) lexicographic

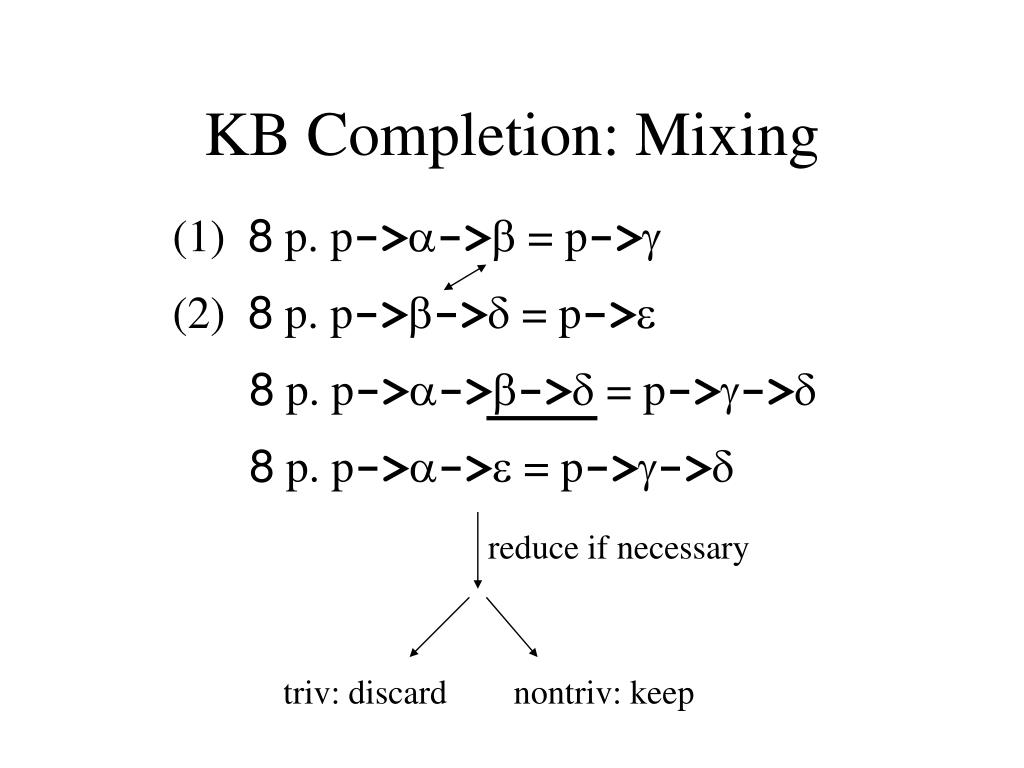

  11. reduce if necessary triv: discard nontriv: keep KB Completion: Mixing (1) 8 p. p->a->b = p->g (2) 8 p. p->b->d = p->e 8 p. p->a->b->d = p->g->d 8 p. p->a->e = p->g->d

  12. 8 p. p->A->B->C = p->A->C (3) 8 p. p->A->A = p->A->C 8 p. p->A->A->B = p->A->C->B 8 p. p->A->A = p->A->C->B 8 p. p->A->C = p->A->C->B (4) 8 p. p->A->C->B = p->A->C 8 p. p->A->C->B->C = p->A->C->C (5) 8 p. p->A->C->A = p->A->C->C Mixing Example (1) 8 p. p->B->C = p->A (2) 8 p. p->A->B = p->A

  13. Confluence • Completed system has confluence property: • t ß t1Æ t ß t2) 9 t3. t1ß* t3Æ t2ß* t3 • Proof • Case 1: t = x->a->b->g->d->e (1) bßb’ (2) dßd’ (1) (2) t2 = x->a->b->g->d’->e t1 = x->a->b’->g->d->e (2) (1) t3 = x->a->b’->g->d’->e t3 = x->a->b’->g->d’->e

  14. (3) Because the axioms have been mixed: (1) 8 p. p->b->g = p->h (2) 8 p. p->g->d = p->q (1)+d 8 p. p->b->g->d = p->h->d (3) 8 p. p->b->q = p->h->d Confluence Proof, Case 2 t = x->a->b->g->d->e (1) b->gßh (2) g->dßq (2) (1) t1 = x->a->h->d->e t2 = x->a->b->q->e

  15. Why Confluence is Useful • Suppose F ` s = t • Then s = t1 = t2 = ... = tn-1 = tn = t • where each equality justified by an axiom • Then tiß ti+1 or ti+1ß ti, for all i • But x ß y ) 9 z. x ß* z Æ y ß* z • Then 9 u. x ß* u Æ y ß* u, induction on n • Also, confluence+term. ) normal form

  16. Ensuring Termination • Axioms correspond to data structures • change rarely: process off-line • Hypotheses correspond to program stmts • change frequently: must handle on-line • Q: Can we restrict axioms s.t. KB(ax+hyp) terminates for all hypotheses?

  17. Attempt #1 • Theorem: If KB(ax) terminates, then KB(ax+hyp) terminates Wrong! (a) 8 p. p->C->A->B = p->D->D->C (1) x->C->C = y x->C->C->A->B = y->A->B (2) x->C->D->D->C = y->A->B x->C->D->D->C->A->B = y->A->B->A->B (3) x->C->D->D->D->D->C = y->A->B->A->B

  18. (1) 8 p. p->C->A = p->C->C (2) 8 p. p->A->B = p->B->B (3) i->C->C = j (4) k->B->B = m (5) x->C->B = y terminates nontermination (6) 8 p. p->C->B->B = p->C->C->B Attempt #2 • Theorem: If KB(ax+RHSs) terminates, then KB(ax+hyp) terminates Wrong!

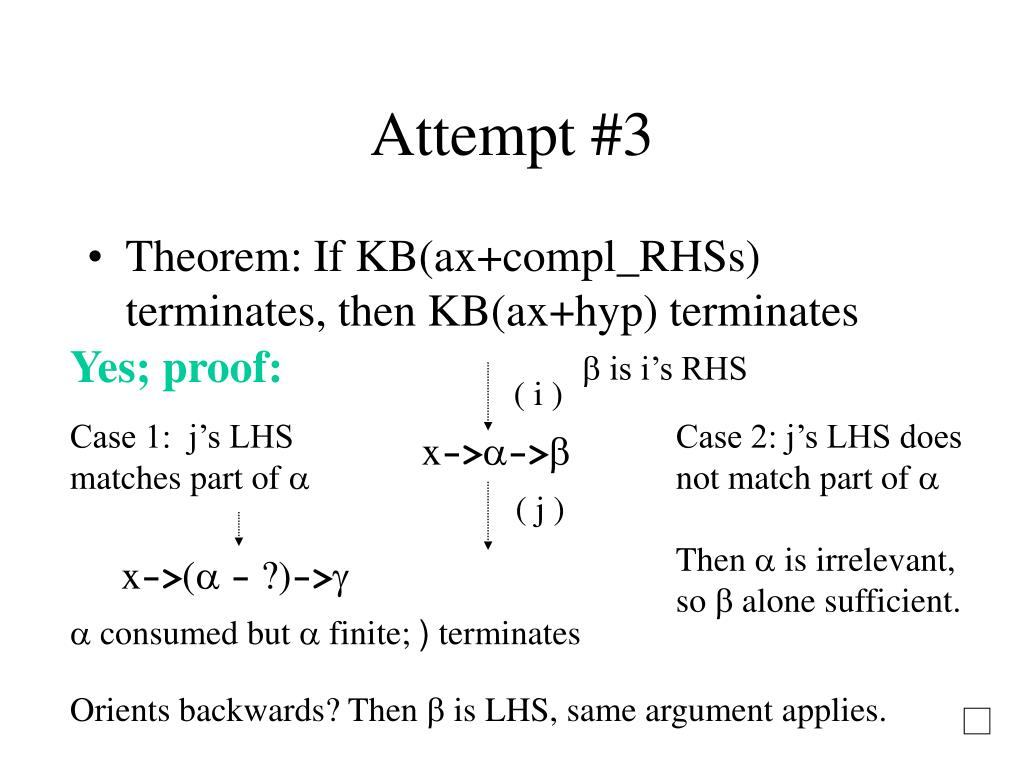

  19. Yes; proof: b is i’s RHS ( i ) Case 1: j’s LHSmatches part of a x->a->b ( j ) x->(a- ?)->g a consumed but a finite; ) terminates Attempt #3 • Theorem: If KB(ax+compl_RHSs) terminates, then KB(ax+hyp) terminates Case 2: j’s LHS does not match part of a Then a is irrelevant, so b alone sufficient. Orients backwards? Then b is LHS, same argument applies.

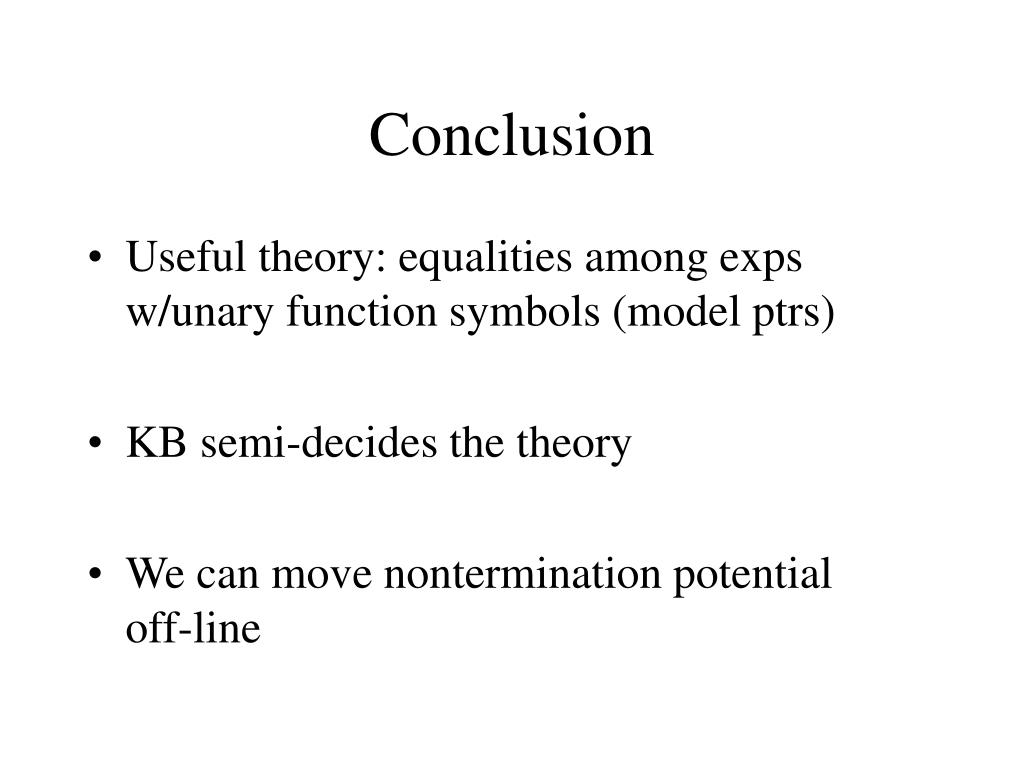

  20. Conclusion • Useful theory: equalities among exps w/unary function symbols (model ptrs) • KB semi-decides the theory • We can move nontermination potentialoff-line
