Introduction to Compilers 66416 Computer Engineering Spring Semester 2005

1. Introduction to Compilers66416Computer EngineeringSpring Semester 2005 Dr. Raed Alqadi

2. Why Take This Course? • Interested in writing compilers of programming languages. • Curious about compiler. • Requirement. • Why shouldn’t you take course? • Think it will be easy.

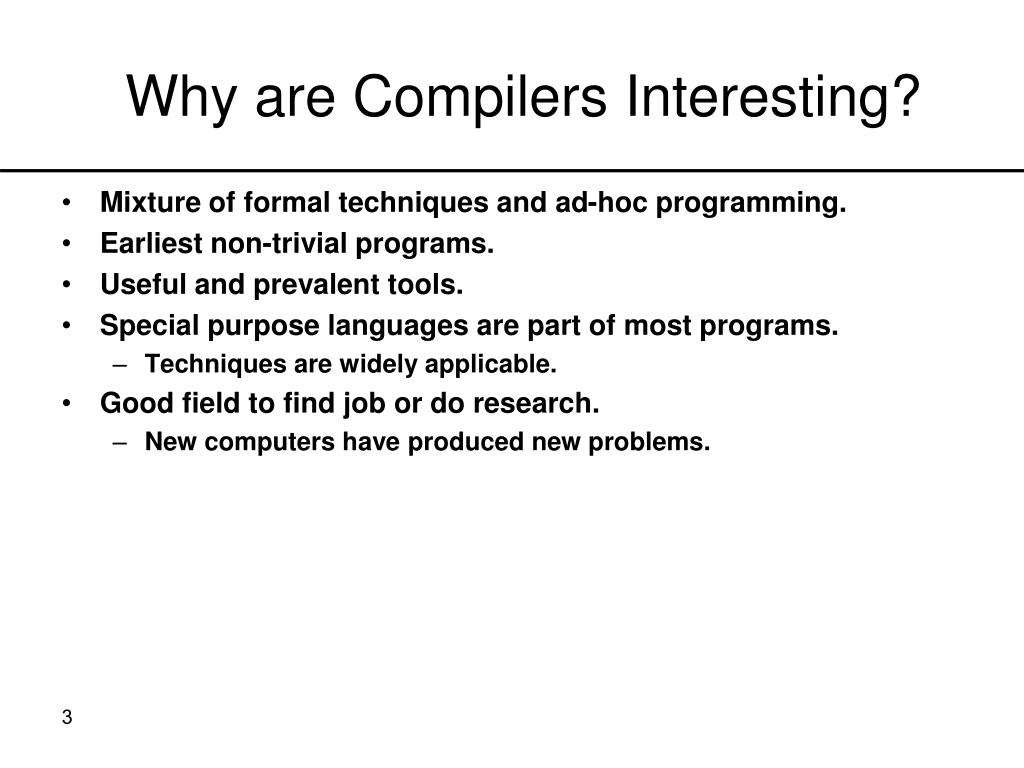

3. Why are Compilers Interesting? • Mixture of formal techniques and ad-hoc programming. • Earliest non-trivial programs. • Useful and prevalent tools. • Special purpose languages are part of most programs. • Techniques are widely applicable. • Good field to find job or do research. • New computers have produced new problems.

4. Pieces of a Compiler • Will discuss scanning, parsing, (optimization), code generation. • Input language can be any programming language. • Output is usually machine/assembly language. • Could be another language (e.g. C). • Read Dragon Ch1.

5. Why This Organization? • Traditional (and effective). • Functional decomposition. • Separate theory for each area. • Large size requires abstractions. • What is the alternative.

6. Example: Scanner • Input is sequence of characters. • If x>100 then y :=1 else y:=2; • Output is tokens (lexemes).

7. Example: Parser • Input is tokens. • . • Output is syntax tree.

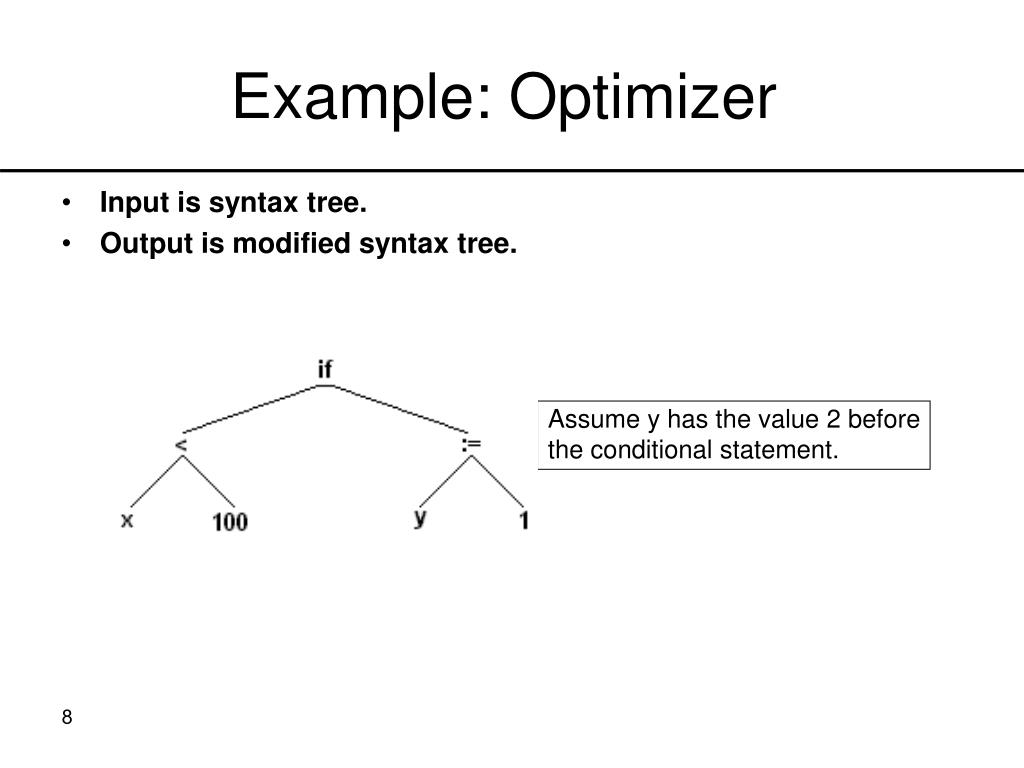

8. Example: Optimizer • Input is syntax tree. • Output is modified syntax tree. Assume y has the value 2 before the conditional statement.

9. Example: Code Generation • Input is syntax tree. • Output is assembly (machine) language program. ble x, 100, L505 mov y, 1 j L506 L505: mov y, 2 L506:

10. Extended example to illustrate compiler • Light bulb language (LBL) • Language for controlling a light bulb. • Syntax of the two statements: • on <time>. • off <time>. • Where <time> is an integer.

11. Syntax of Language • <stmt> := on_stmnt | off_stmnt on_stmnt := on <int> ; off_stmnt := off <int> ; • For example: • on 33; off -89; off 0; Backus-Naur Form (BNF)

12. Semantics of Language • What is the ‘meaning’ of a program written in a language? • Statements processed in order in which they appear. • on N turns on light bulb for N ticks. • off N turns off light bulb for N ticks. • Time must be non-negative. • For example: • on 3; off 2; off 6; on 0; • on -1; illegal program.

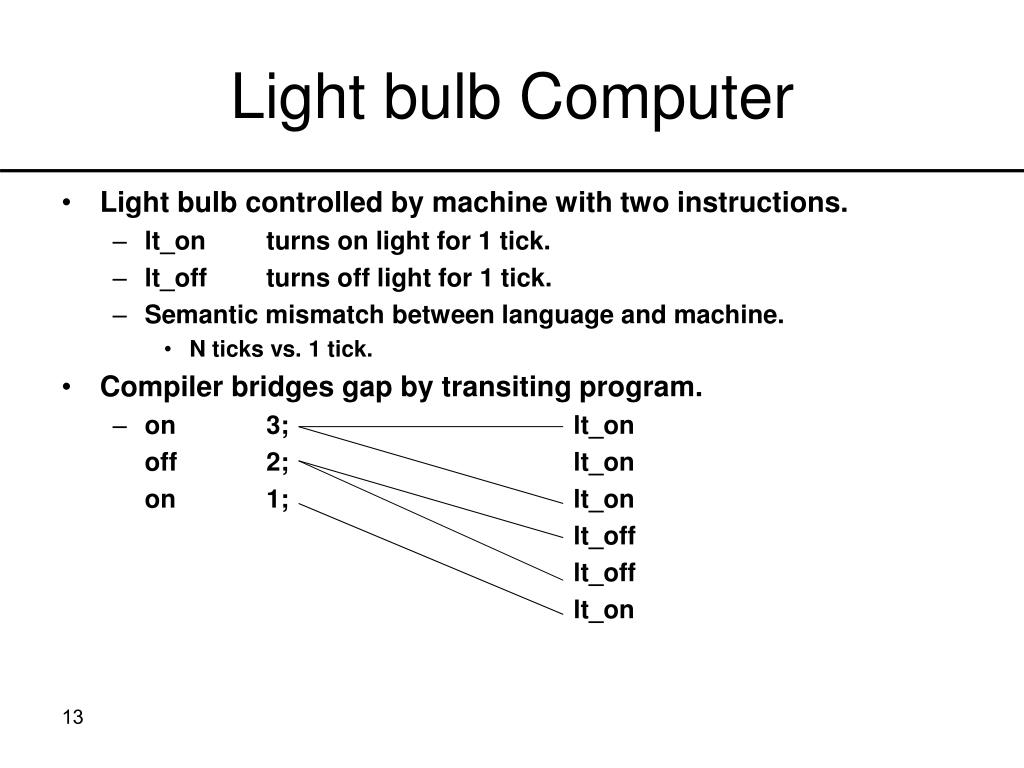

13. Light bulb Computer • Light bulb controlled by machine with two instructions. • lt_on turns on light for 1 tick. • lt_off turns off light for 1 tick. • Semantic mismatch between language and machine. • N ticks vs. 1 tick. • Compiler bridges gap by transiting program. • on 3; lt_on off 2; lt_on on 1; lt_on lt_off lt_off lt_on

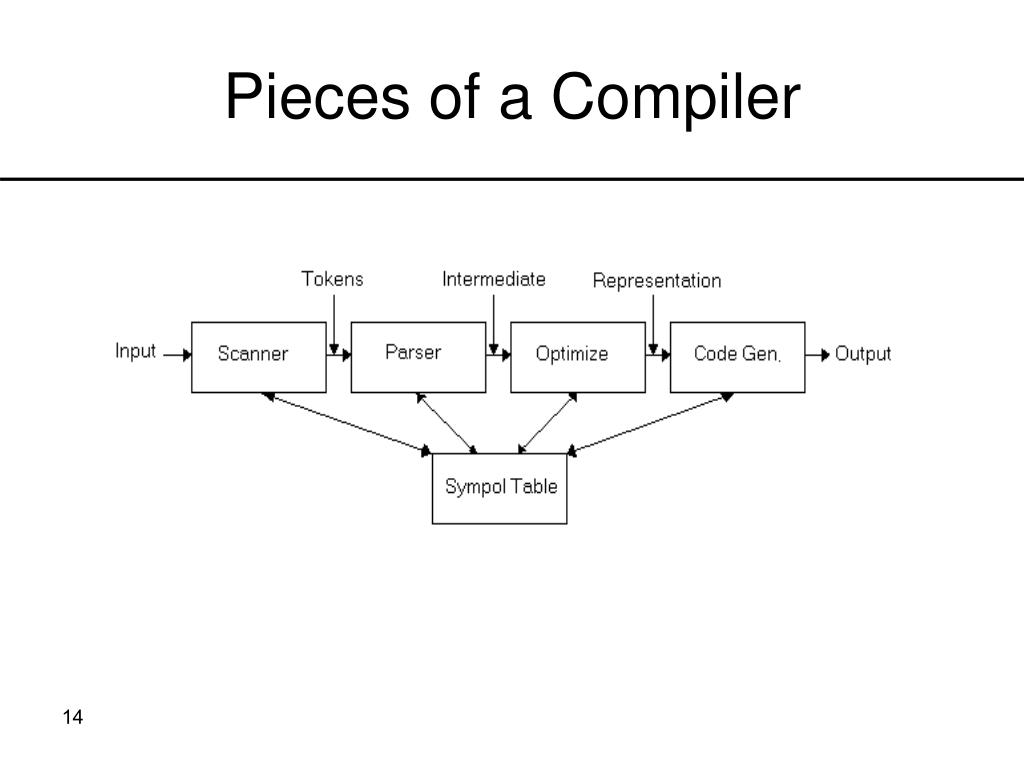

14. Pieces of a Compiler

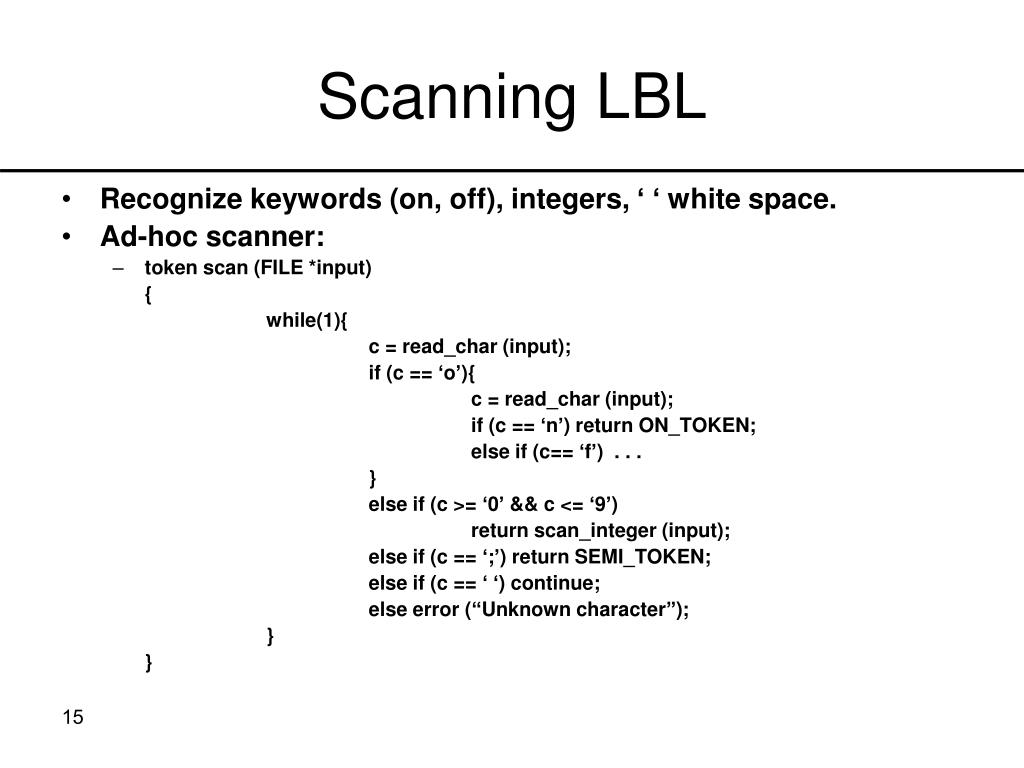

15. Scanning LBL • Recognize keywords (on, off), integers, ‘ ‘ white space. • Ad-hoc scanner: • token scan (FILE *input) { while(1){ c = read_char (input); if (c == ‘o’){ c = read_char (input); if (c == ‘n’) return ON_TOKEN; else if (c== ‘f’) . . . } else if (c >= ‘0’ && c <= ‘9’) return scan_integer (input); else if (c == ‘;’) return SEMI_TOKEN; else if (c == ‘ ‘) continue; else error (“Unknown character”); } }

16. Parsing and Compiling LBL • Parser gets stream tokens from scanner • ON_TOKEN, OFF_TOKEN, INT_TOKEN, SEMI_TOKEN • parse (FILE *input) { t = scan (input); if (t == ON_TOKEN) { t = scan (input); if (t != INT_TOKEN) syntax_error (“Expected int”); else for (i = 0; i < token_value (t); i++) generate (“lt_on”); } else if (t == OFF_TOKEN) { . . . } else syntax_error (“Unknown keyword”); }

17. Optimization • New instruction • lt_toggle = lt_on; lt_off; or lt_off; lt_on; • Copmiler must recognize transition between states. • Difficult in parser since it doesn’t know next state when generating code for current state. • Build representation of program and examine whole sequence before optimizing or generating code. • Keep an array of values • a[i] > 0 means light is on for N ticks. • a[i] < 0 means light is off for N ticks.

18. Optimization, cont’d • parse (FILE * input) { t = scan (input); if (t == ON_TOKEN) { t = scan (input); if (t != INT_TOKEN) syntax_error (“Expected int”); else a[i++] = token_value(t); } else if (t == OFF_TOKEN) { . . . } else syntax_error (“Unknown keyword”); }

19. Code Generation After Optimization • Generate (int *a) { for (I =0; i< length(a); i++) { if (i<length(a) and a[i] := a[i+1]) generate(“lt_toggle”); else if (a[i] > 0) for (j = 0; j < a[i]; j++) generate(“lt_on”); else for (j = 0; j < -a[i]; j++) generate(“lt_off”); } }

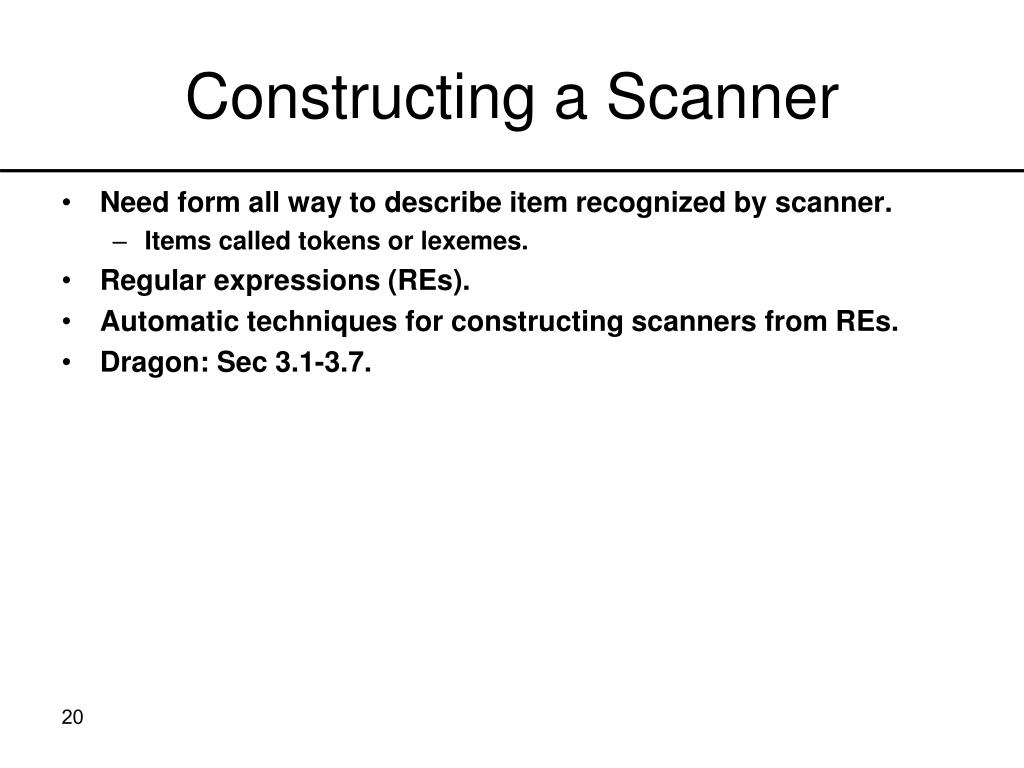

20. Constructing a Scanner • Need form all way to describe item recognized by scanner. • Items called tokens or lexemes. • Regular expressions (REs). • Automatic techniques for constructing scanners from REs. • Dragon: Sec 3.1-3.7.

21. How to Describe Tokens • English. • e. g. “an identifier is sequence of letters and digits that does not begin with a digit” • What about A_3? • Verbose, but not precise. • e. g. “floating point number is sequence of one or more digits followed by a decimal point followed by a sequence of one or more digits”. • Too complex and verbose. • -1.4, 1.0e9. • Regular Expressions (REs) • Concise and precise notation. • Efficient translation to finite state machine that mechanically recognizes tokens.

22. What is a Regular Expression (REs)? • Language for describing a set of strings. • A string S is in the language of RE R if R matches S. • Build from a simple set of rules. • Start with alphabet A of Symbols (i. e characters). • A = {a, …, z, A, …, Z, 0, …, 9}. • Also allow the empty string λ. • Concatenate REs with ‘.’ • If R1 and R2 are REs, so is R1.R2. • a.b is an ‘a’ followed by a ‘b’. 1.0.1 is a ‘1’, a ‘0’, and finally a ‘1’.

23. REs, cont’d • Alternate RE with ‘|’ • If R1 and R2 are REs, so is R1|R2. • 0|1 is a ‘0’ or ‘1’. (a.b)|c is ‘ab’ or ‘c’. • 0|1|2|3|4|5|6|7|8|9 matches a digit. • Repeat REs with ‘*’ • If R1 is a RE, then R1* is a RE. • Means 0 or more repeated times of R1. • a* matches λ, a, aa, aaa, aaaa, …. (0|1|2|3|4|5|6|7|8|9)* matches positive integers.

24. REs, Precisely • L(R) is a set of strings matched by RE R. x Є A ==> L (x) = {x}. R = R1 . R2 ==> L (R) = {ab : a Є L (R1), b Є L (R2)}. R = R1 | R2 ==> L (R) = L (R1) U L (R2). R = R1* ==> L (R) = Us=0 { as: a Є L (R1)}

25. Examples of REs • Letter := a|b . . . y|z|A|B . . . Y|Z • Digit := 0|1|2|3|4|5|6|7|8|9 • IdChar := Letter | Digit := {a|b . . . y|z|A|B . . . Y|Z|0| . . . |9} • Id := Letter . IdChar*. • FPNum := Digit . Digit ’.’ Digit . Digit* • Note that decimal point must be quoted

26. More Concise Notation (Unix) • Square brackets delimit alternative set • [a-z] = a|b … y|z [0-9] = 0|1 … 8|9 • Allow more than one set in bracket. • [a-z,A-Z]. • Plus super script is one or more repeating. • R+= R.R*. • e.g: Id := [a-z,A-Z].[a-z,A-Z,0-9]*. FPNum := [0-9]+’.’[0-9]+

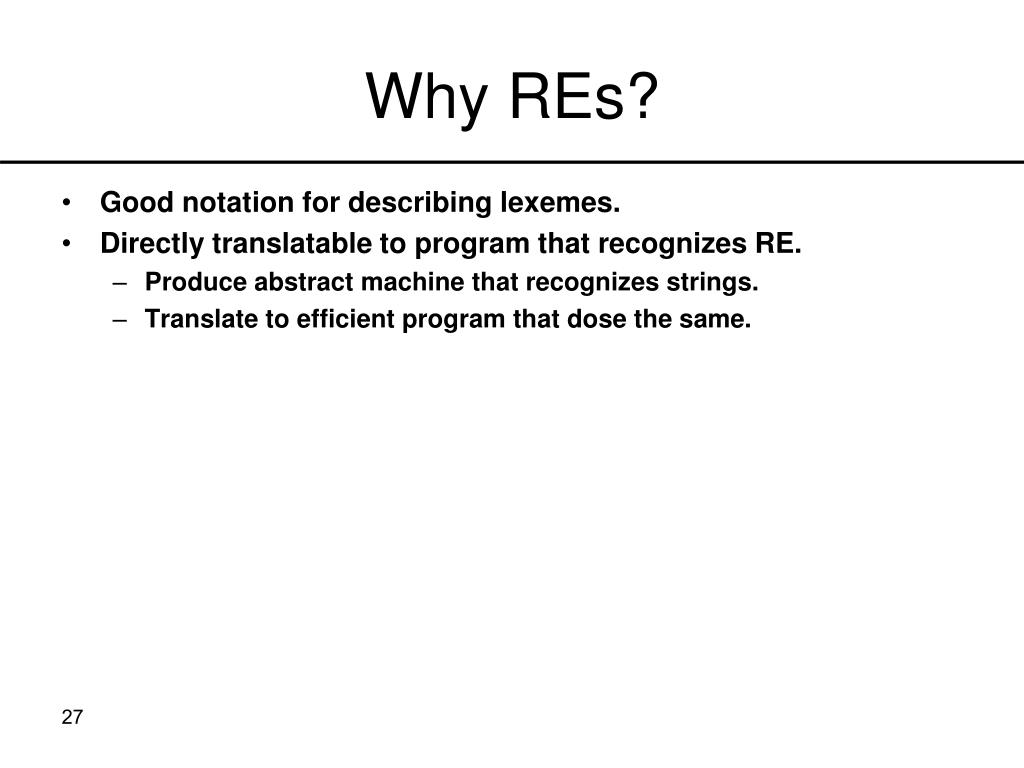

27. Why REs? • Good notation for describing lexemes. • Directly translatable to program that recognizes RE. • Produce abstract machine that recognizes strings. • Translate to efficient program that dose the same.

28. PA1: Symbol Tables and Modularity • Goal is to build first part of compiler: the symbol table. • Another goal is to introduce a good programming style: modularity and abstract data types. • The symbol table holds information on the identifiers in a program. • Identifiers are the names of variables, functions, constants, etc. • The compiler hands the symbol table a string containing the identifier’s name and gets back a record containing information on the identifier. “x” Symbol Table

29. Interface • Two data types: • symbol_table – a symbol table. • Symbol_table_entry – entry in a symbol table with information on an identifier. • Five functions: • symbol_table *make_symbol_table (int fold_case). • symbol_table_entry *get_symbol (symbol_table tbl, char *str). • symbol_table_entry *put_symbol (symbol_table tbl, char *str). • symbol_table *clear_symbol_table (symbol_table tbl). • Void print_statistics (symbol_table tbl).

30. Digression: Abstract Datatypes (ADTs) • An abstract data type (ADT) is a building block. • An object with a carefully specified interface. • The interface isolates clients from implementation details. • Change the way that ADT is built without modifying clients. • Implications: • Cannot let clients outside ADT see internal details. • Export an interface with a complete set of operations. • Only the functions exported by ADT know the details. • Clients hold instances of object and invoke operations on them.

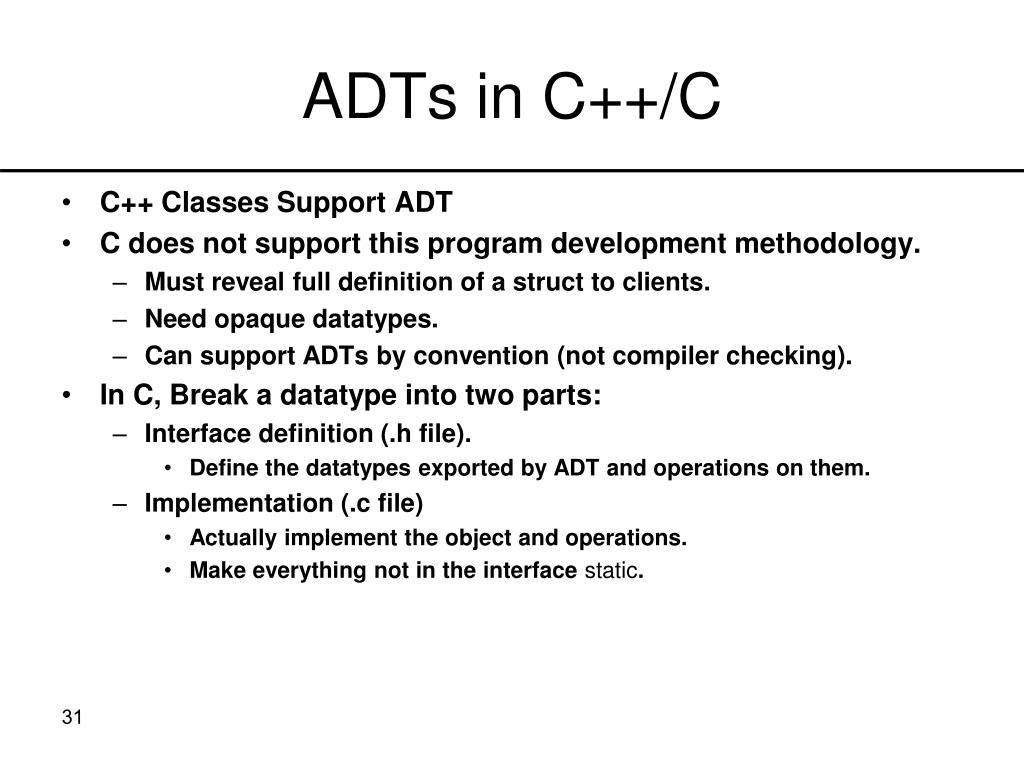

31. ADTs in C++/C • C++ Classes Support ADT • C does not support this program development methodology. • Must reveal full definition of a struct to clients. • Need opaque datatypes. • Can support ADTs by convention (not compiler checking). • In C, Break a datatype into two parts: • Interface definition (.h file). • Define the datatypes exported by ADT and operations on them. • Implementation (.c file) • Actually implement the object and operations. • Make everything not in the interface static.

32. Symbol Table ADT • I have provided the interface definition • (symbol_table.h) • You need to write the 5 symbol table routines described earlier. • I have also written a test driver routine that users the interface • test_symbol.c • You should not have to look at the code in this file.

33. Implementing Symbol Tables • Probably the best (and simplest) implementation is a hash table • Have a large table holding entries. • Want to find the entry associated with a particular string. • Where do you start looking in table? • “Hash” the string by computing a function to the integers • Function should be chosen so entries are evenly distributed • What if two entries fall in the same slot? • Search nearby entries. • Chain together entries into a linked list.

34. Hash functions • Two desirable properties. • Fast to compute • Spread expected collection of strings over table evenly. • A reasonable function is: x = strlen (str); While (*str != ‘\0’) { x = x ^ *str; x = x << 1; str ++; } • Worry about common cases: i, j, x1, x2, x3, … .
