  1. T R A N S E P T TRM TYPE TRANSFER SYSTEM OUR NEWLY BORN PRODUCT !

  2. The success of all TRANSEPT products is due to a number of factors including unsophisticated technology, simple design, ergonomy, commitment to quality of material used in the manufacturing, easy maintenance, customer service, reliability and performance of the entire range.

  3. TRM TYPE TRANSFER SYSTEM • Our newly born system is a conventional double way system • fitted with rollers chains. • The workpiece carriers of 500x500mm to 1000x1000mm • can transport up to 110kg each. • The workpiece carriers are fitted with pads and roll along the sections • (on the chain rollers). • Dampened stop units are located along the sections. • Automatic chain tensioning is provided by a spring tensioning device. • Elevation/sliding devices allow the worpiece carriers to go from • one section to the next one. • Positioning at the working place : precision = 0,5mm

  4. TRM TYPE TRANSFER SYSTEM Dimensions of the profile : 45x105 SEW Motor 250W or 370W available range of speed : 4.5m/mn 6 m/mn 10 m/mn 12 m/mn 17 m/mn

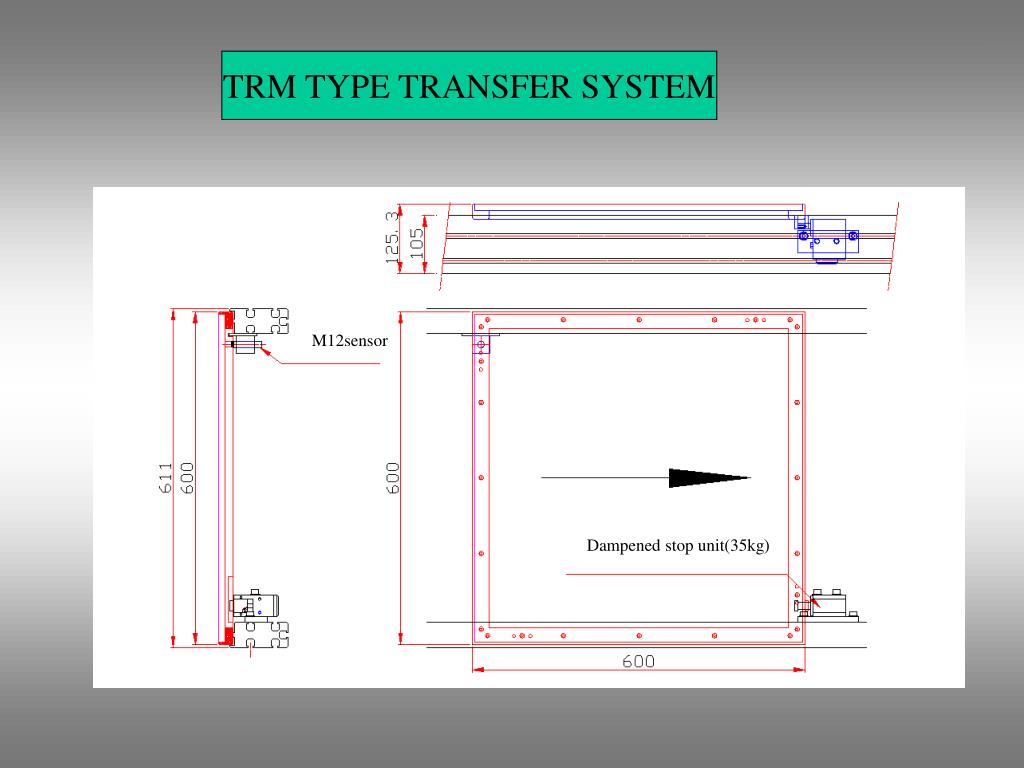

  5. TRM TYPE TRANSFER SYSTEM M12sensor Dampened stop unit(35kg)

  6. EXEMPLES OF CONFIGURATIONS M12 sensor Dampened stop unit (100kg)

  7. EXEMPLES OF CONFIGURATIONS Workpiece carrier 640mm x 640mm Workpiece carriers 640mm x 640 mm

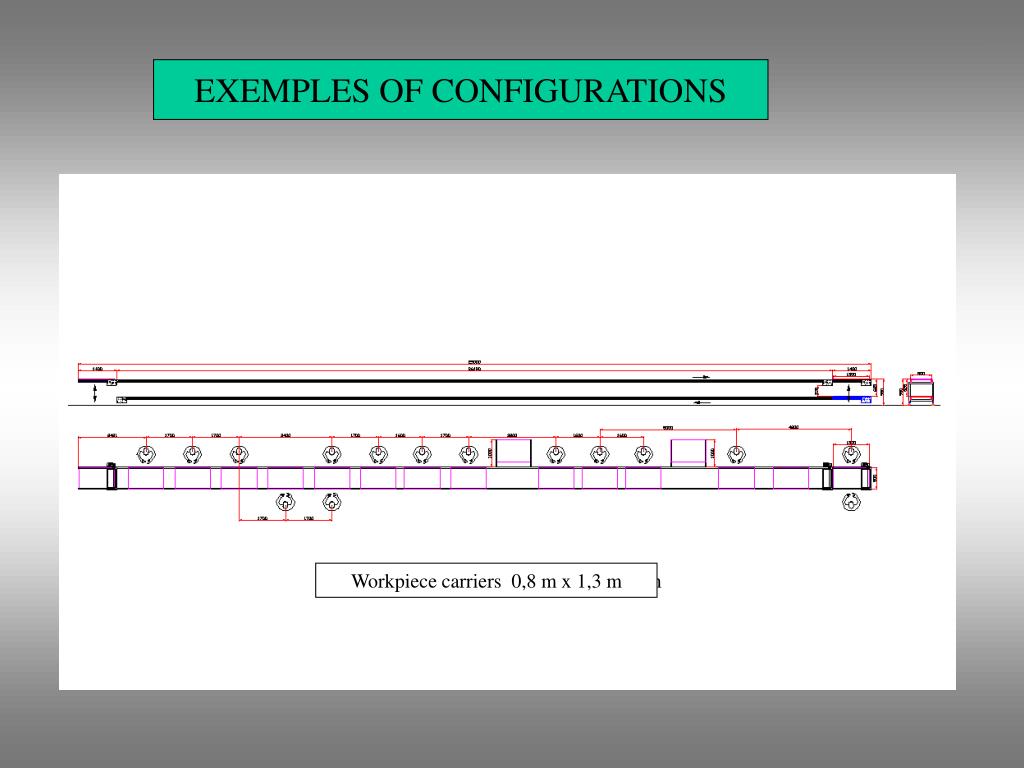

  8. EXEMPLES OF CONFIGURATIONS Workpiece carriers 0,8 m x 1,3 m Workpiece carriers 1.3m x 0.8m

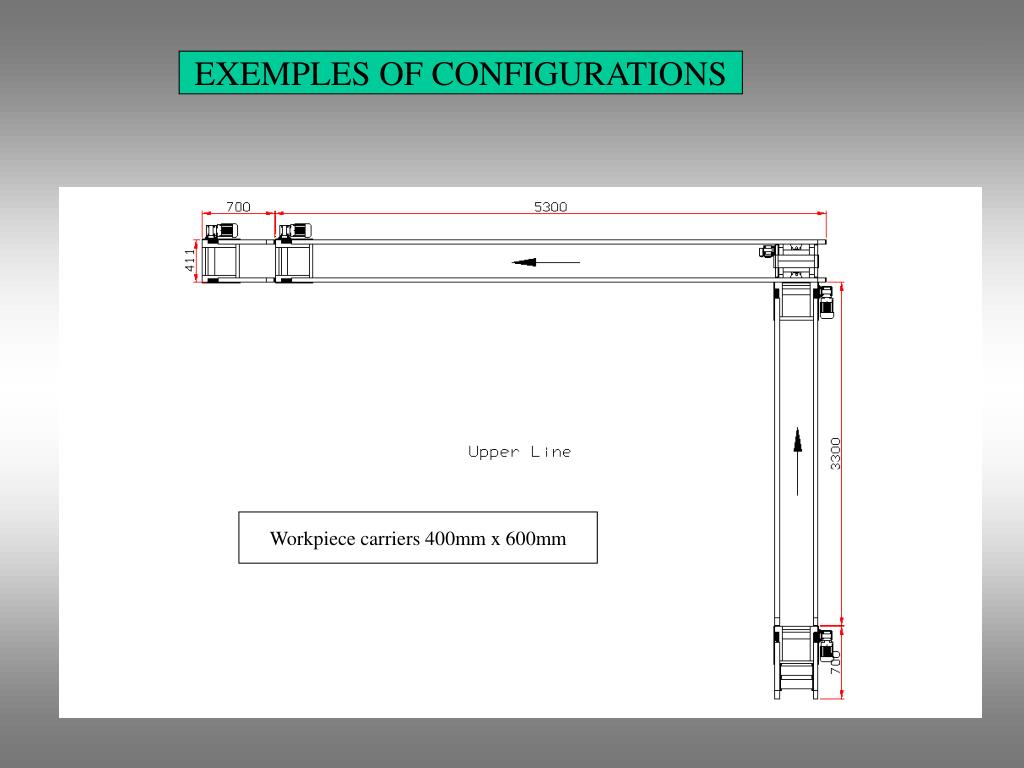

  9. EXEMPLES OF CONFIGURATIONS Workpiece carriers 400mm x 600mm Workpiece carriers 400mm x 600mm

  10. A FEW PICTURES

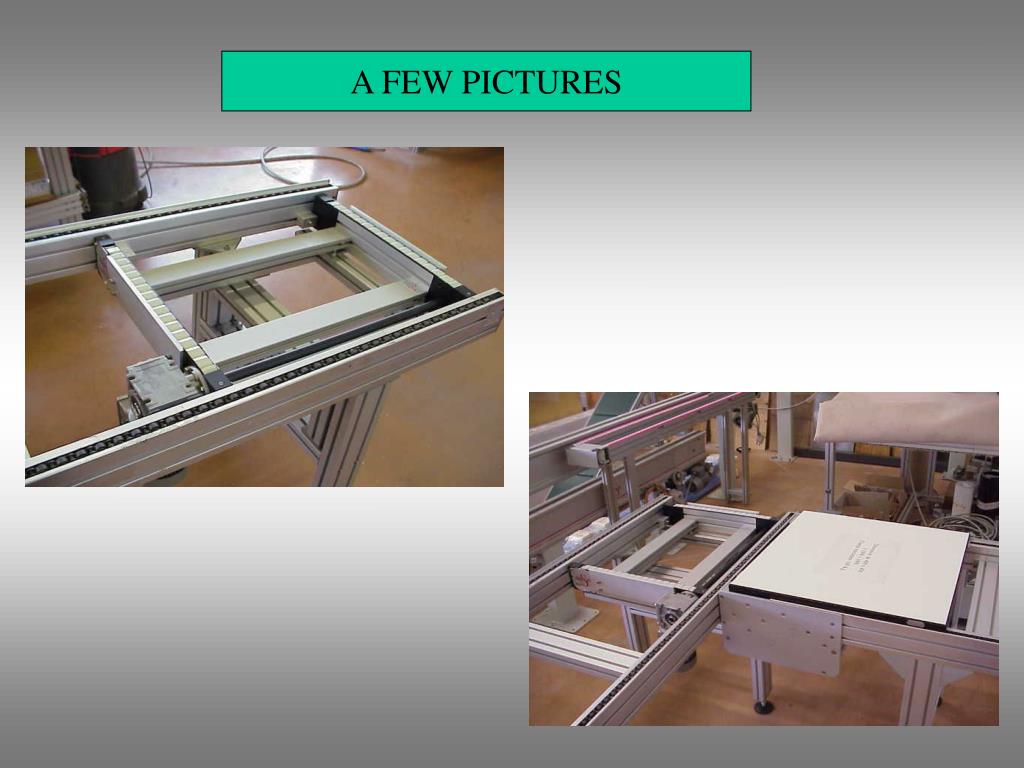

  11. A FEW PICTURES

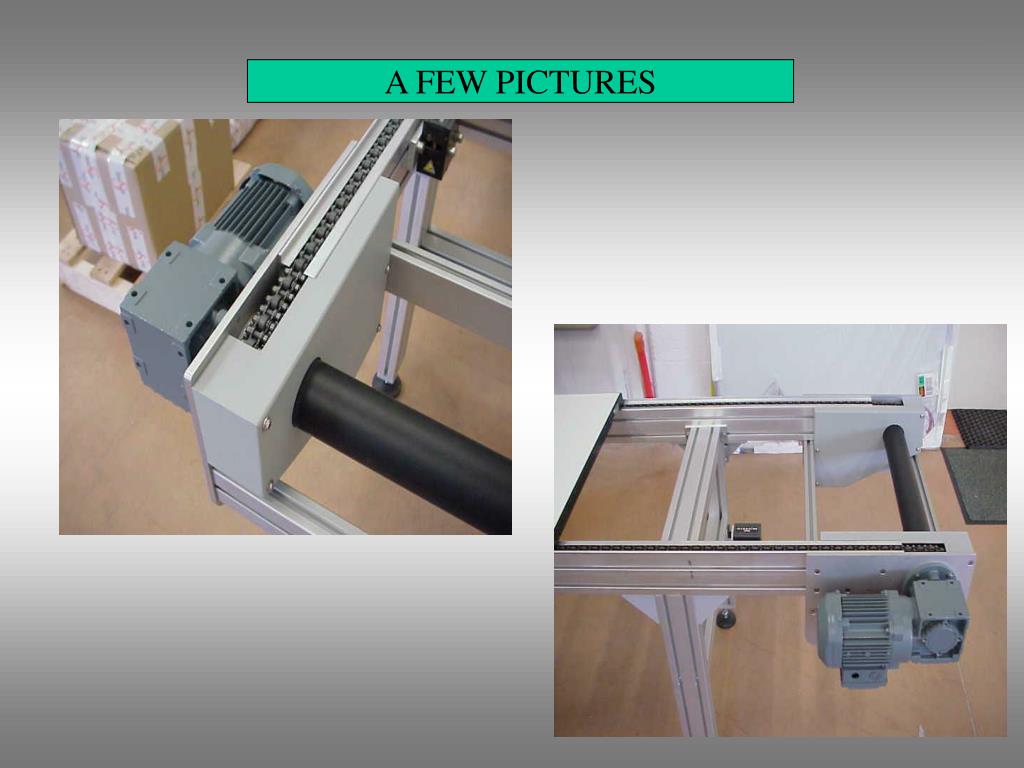

  12. A FEW PICTURES

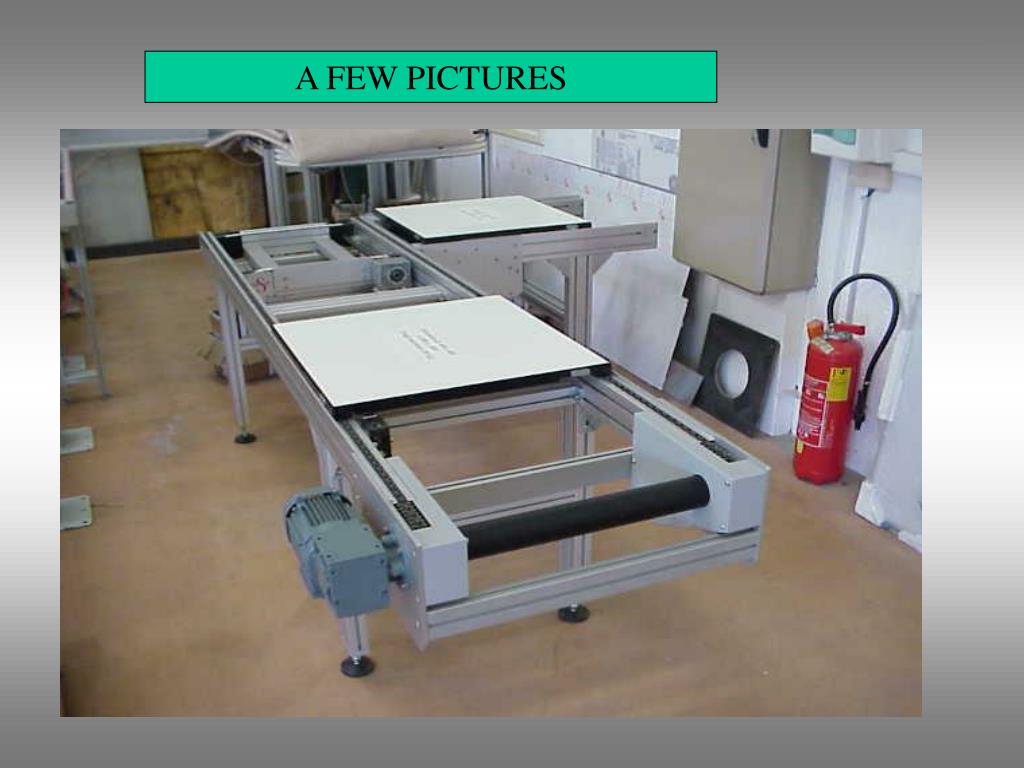

  13. A FEW PICTURES
