  1. Introduction to Status Enterprise

  2. What is Status Enterprise? Status is an HMI/SCADA system with data modelling and asset management capabilities. HMI – Human Machine Interface SCADA – Supervisory Control and Data Access

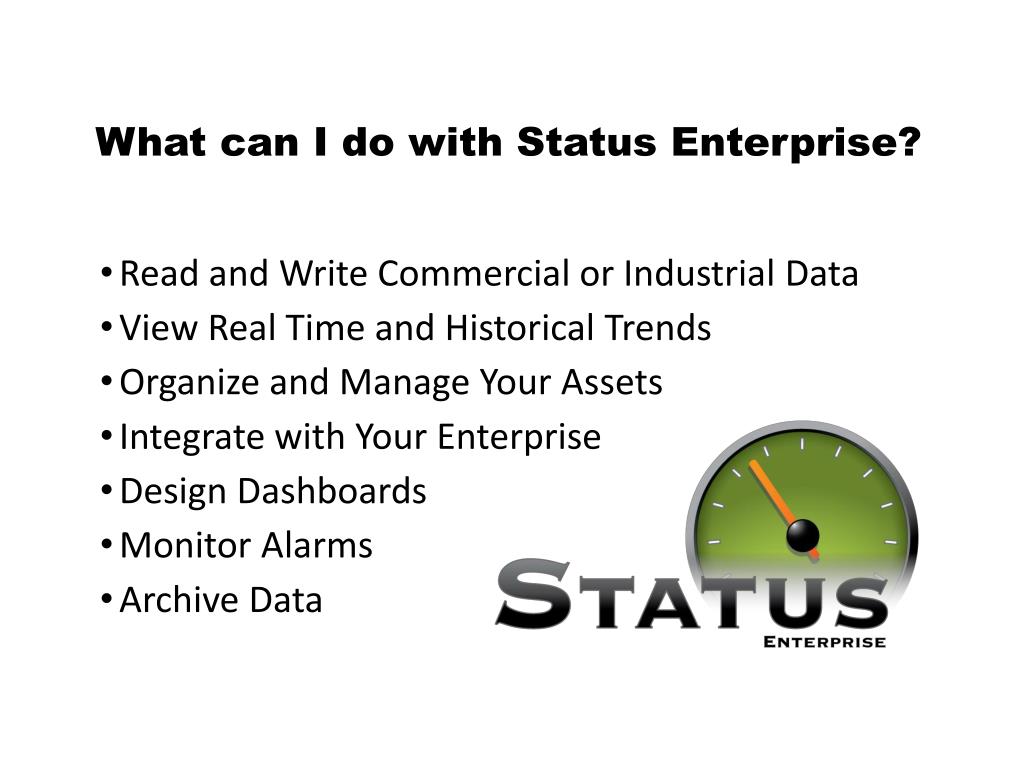

  3. What can I do with Status Enterprise? • Read and Write Commercial or Industrial Data • View Real Time and Historical Trends • Organize and Manage Your Assets • Integrate with Your Enterprise • Design Dashboards • Monitor Alarms • Archive Data

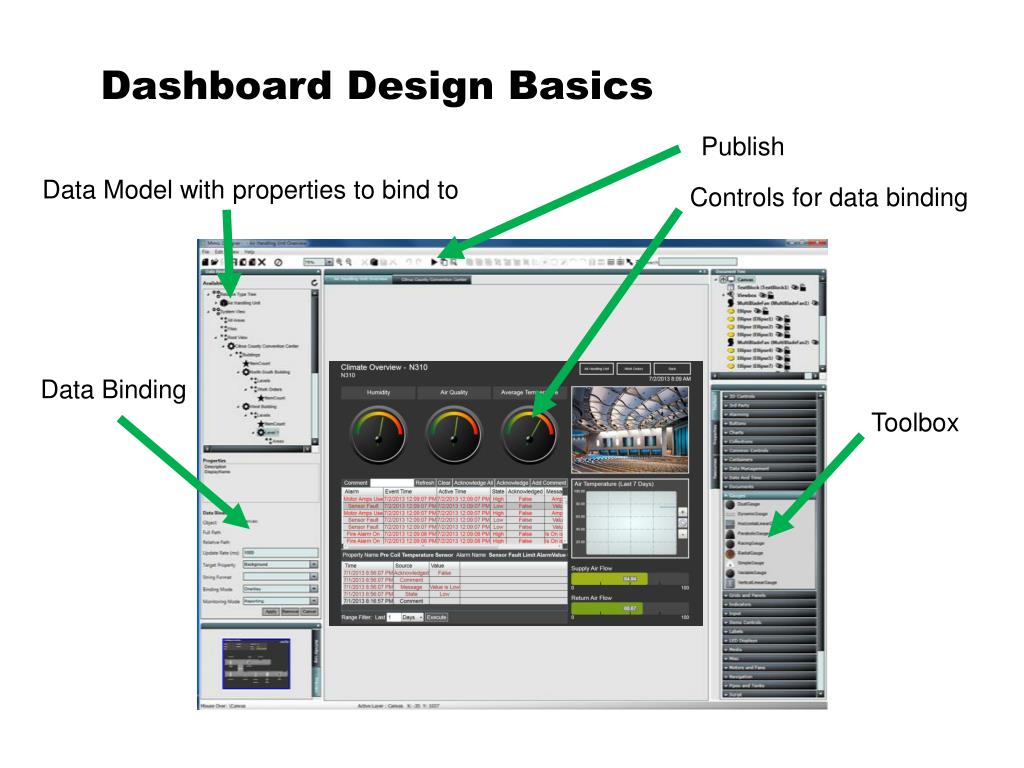

  4. Dashboard Design Basics Publish Data Model with properties to bind to Controls for data binding Data Binding Toolbox

  5. 2 Graphic Design Applications • Powerful Modern Graphics Designer with hundreds of controls • Point and Click Data Binding to your Data Model Mimic Designer • Design once for Windows Client or HTML 5 enabled device • Zero Deployment • Mimic stored in the database as part of your data model • Mimic Reuse Application Designer • Design a Windows Client Application with Visual Basic or C# code behind • Extremely extensible • Windows Client

  6. Dashboard Samples

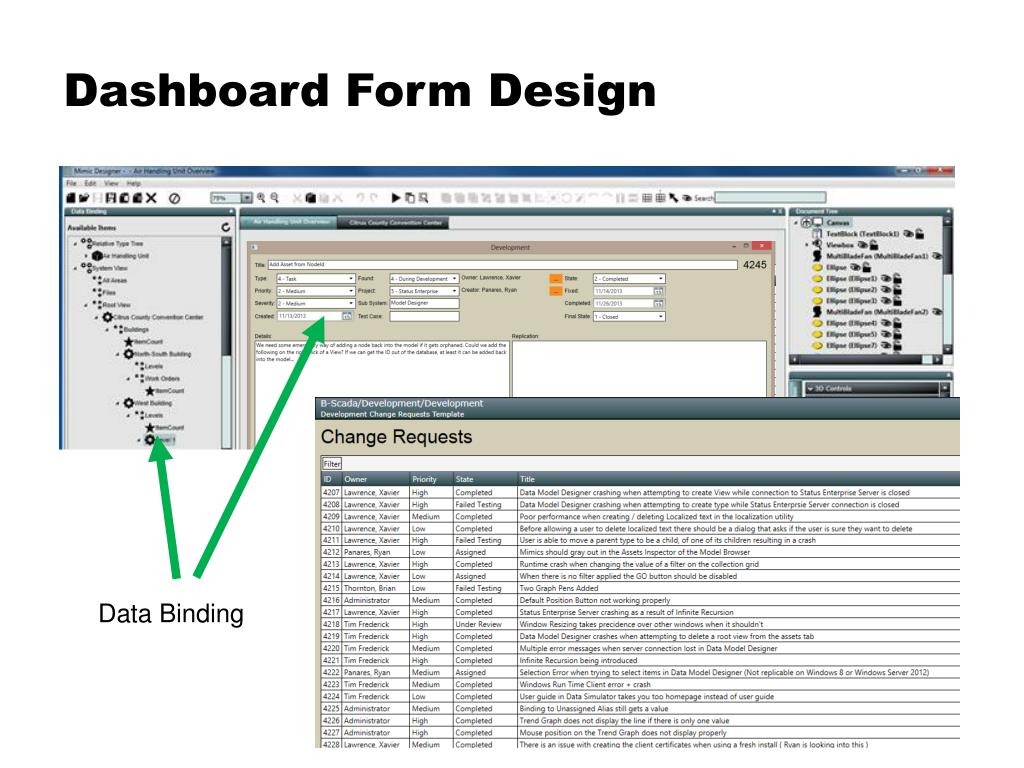

  7. Dashboard Form Design Data Binding

  8. Viewing your Dashboards and Data Windows, Web and Mobile Devices and Model Browser

  9. Windows - Status Client

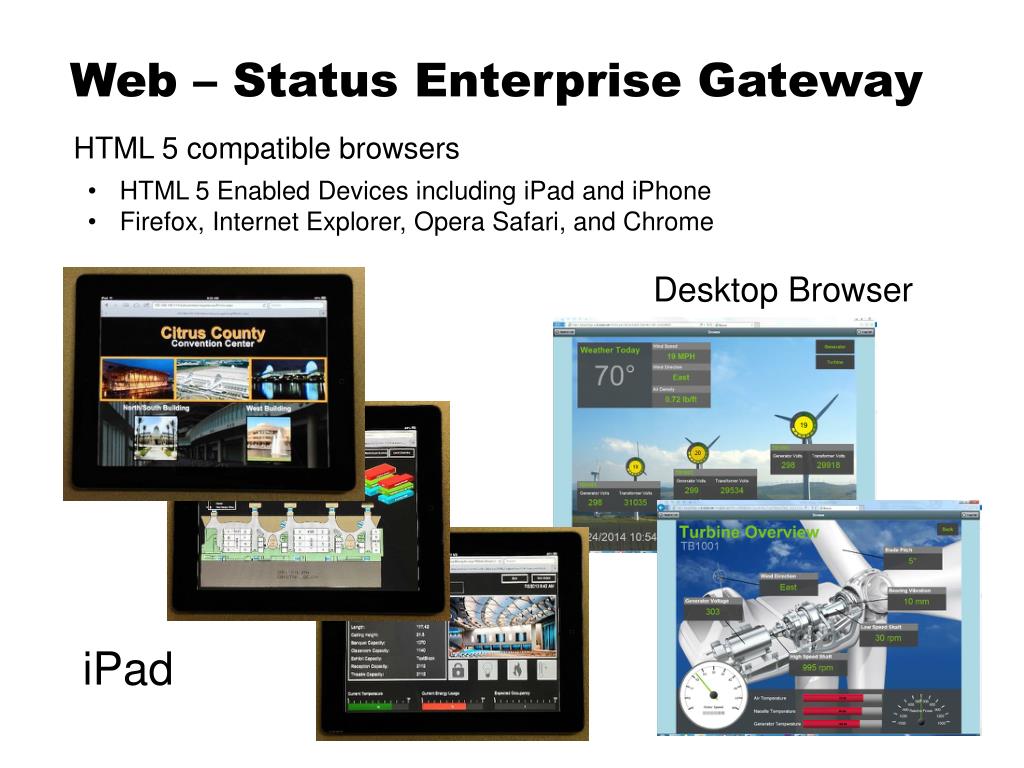

  10. Web – Status Enterprise Gateway • HTML 5 Enabled Devices including iPad and iPhone • Firefox, Internet Explorer, Opera Safari, and Chrome HTML 5 compatible browsers Desktop Browser iPad

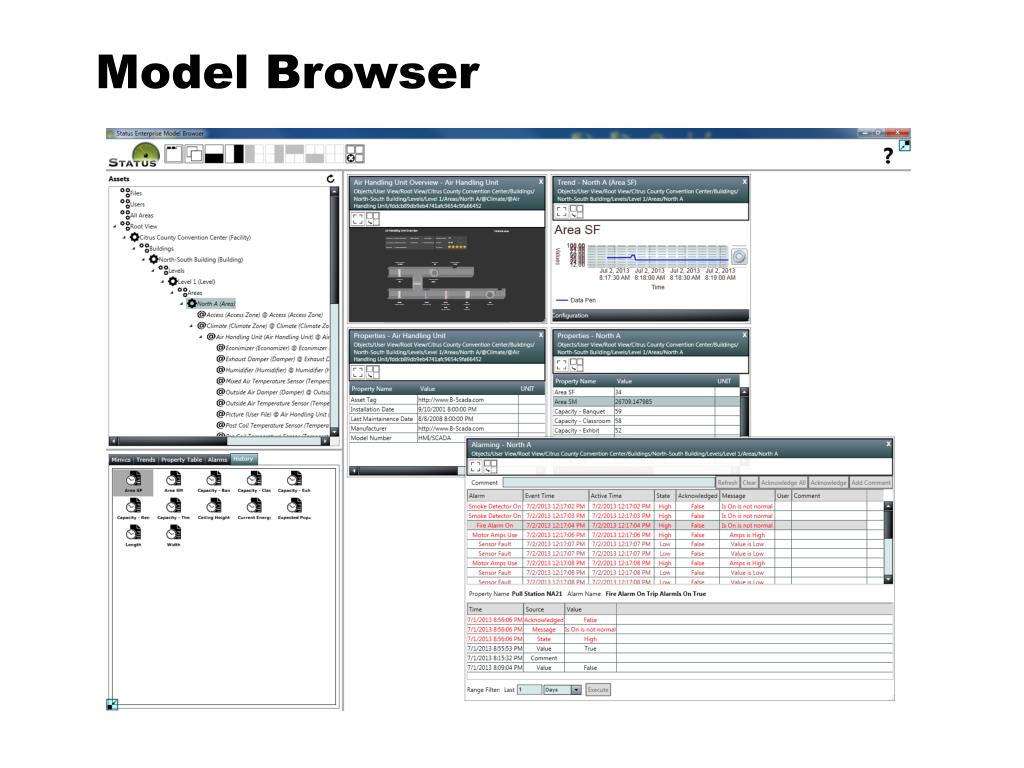

  11. Model Browser

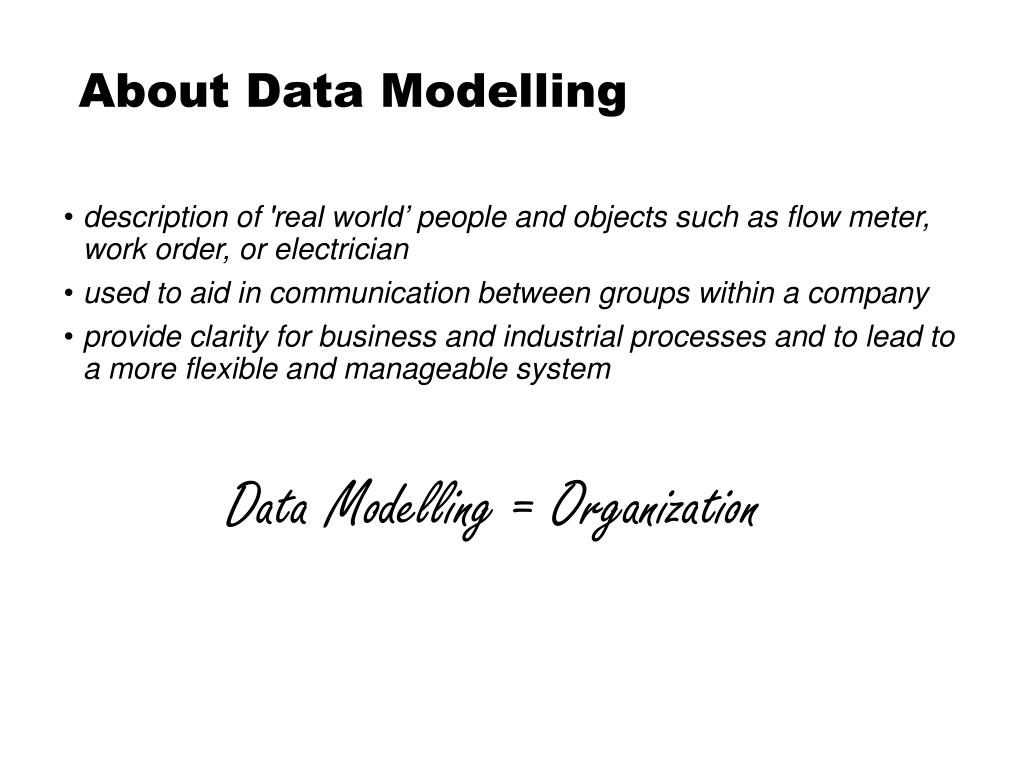

  12. About Data Modelling • description of 'real world’ people and objects such as flow meter, work order, or electrician • used to aid in communication between groups within a company • provide clarity for business and industrial processes and to lead to a more flexible and manageable system Data Modelling = Organization

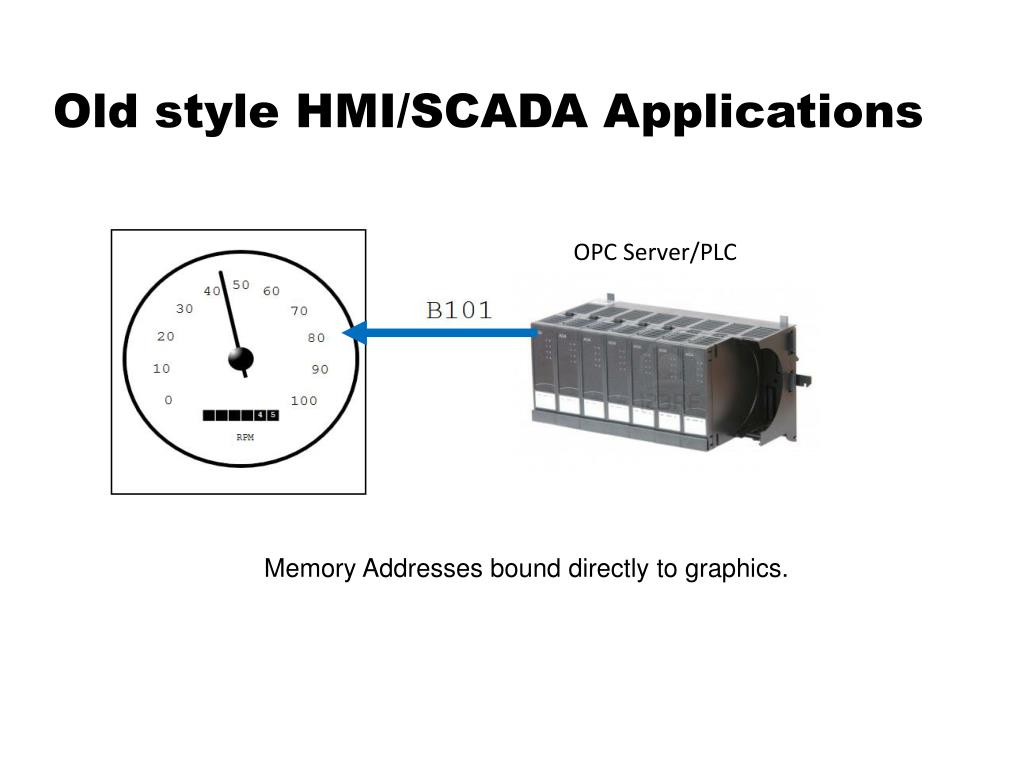

  13. Old style HMI/SCADA Applications OPC Server/PLC Memory Addresses bound directly to graphics.

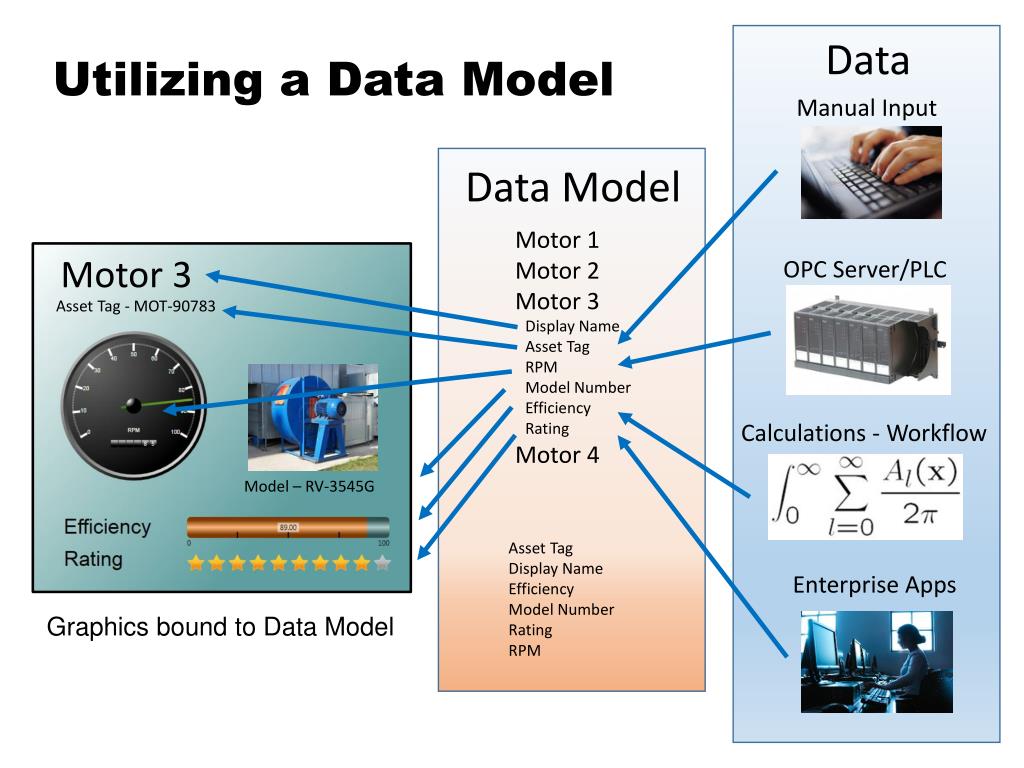

  14. Data Utilizing a Data Model Manual Input Data Model Motor 1 Motor 2 Motor 3 Motor 4 Motor 3 OPC Server/PLC Asset Tag - MOT-90783 Display Name Asset Tag RPM Model Number Efficiency Rating Calculations - Workflow Model – RV-3545G Asset Tag Display Name Efficiency Model Number Rating RPM Enterprise Apps Graphics bound to Data Model

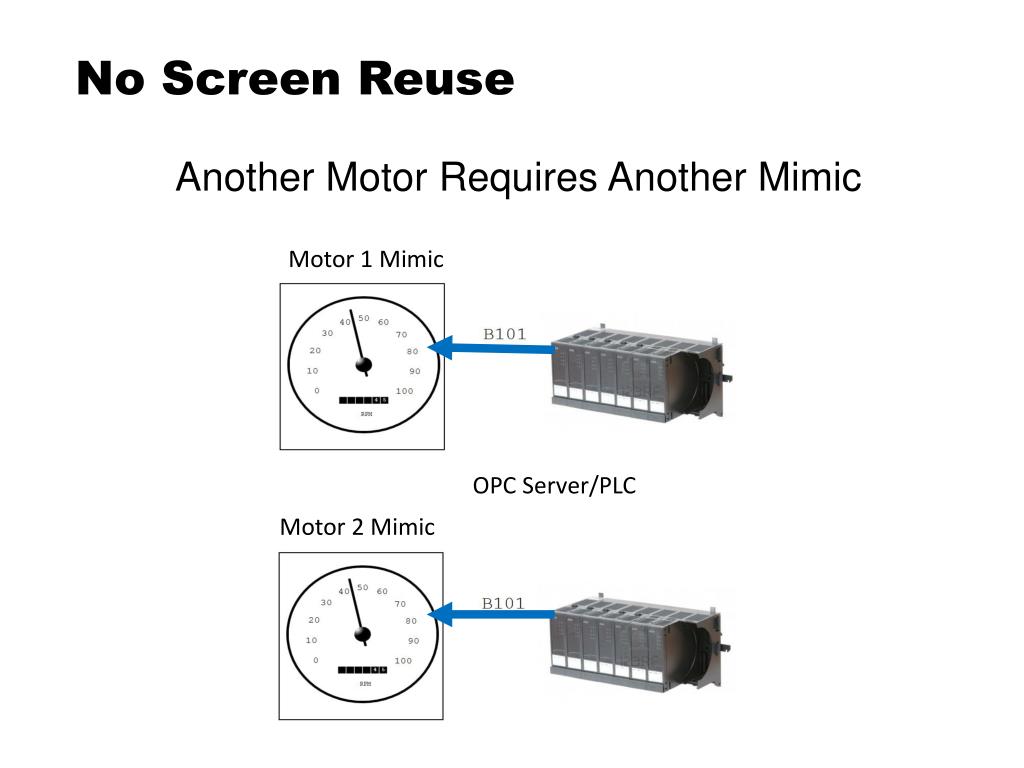

  15. No Screen Reuse Another Motor Requires Another Mimic Motor 1 Mimic OPC Server/PLC Motor 2 Mimic

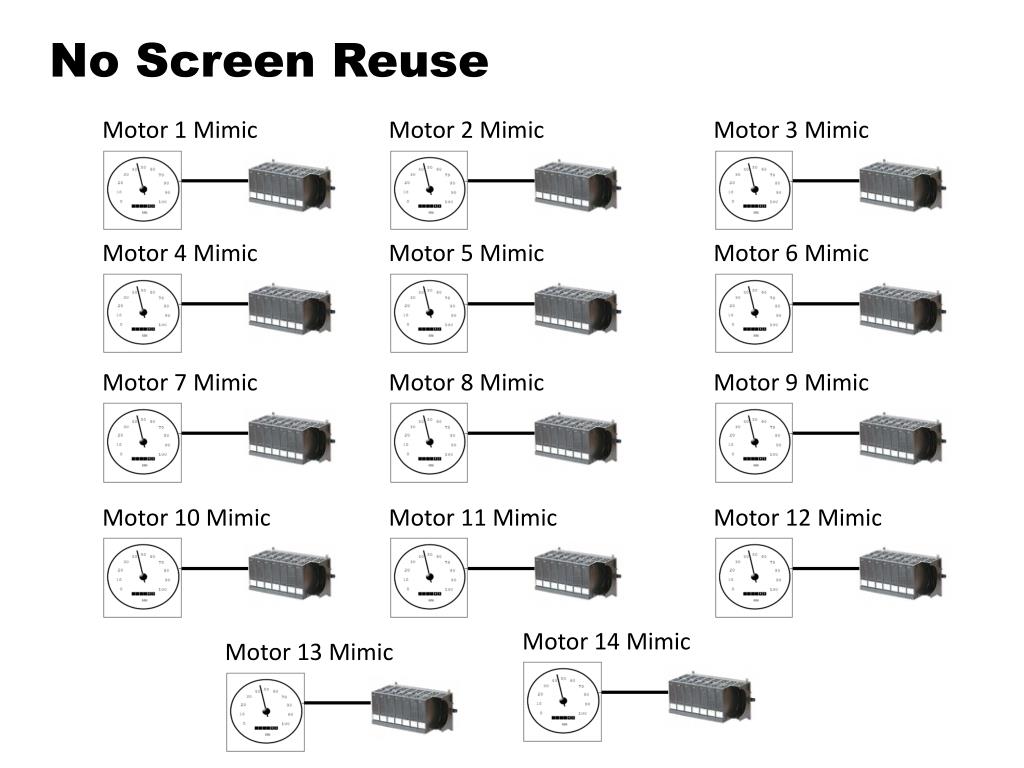

  16. No Screen Reuse Motor 7 Mimic Motor 4 Mimic Motor 1 Mimic Motor 10 Mimic Motor 8 Mimic Motor 5 Mimic Motor 2 Mimic Motor 11 Mimic Motor 9 Mimic Motor 6 Mimic Motor 3 Mimic Motor 12 Mimic Motor 14 Mimic Motor 13 Mimic

  17. Screen Reuse Data Model Mimic – Motor Type Motor 1 Motor 2 Motor 3 Motor 4 Motor 5 Motor 6 Motor 7 Motor 8 Motor 9 Motor 10 Motor 11 Motor 12 Motor 13 Motor 14 Motor..N Motor 14 Asset Tag - MOT-90714 Model – RV-3545G Graphics bound to Data Model

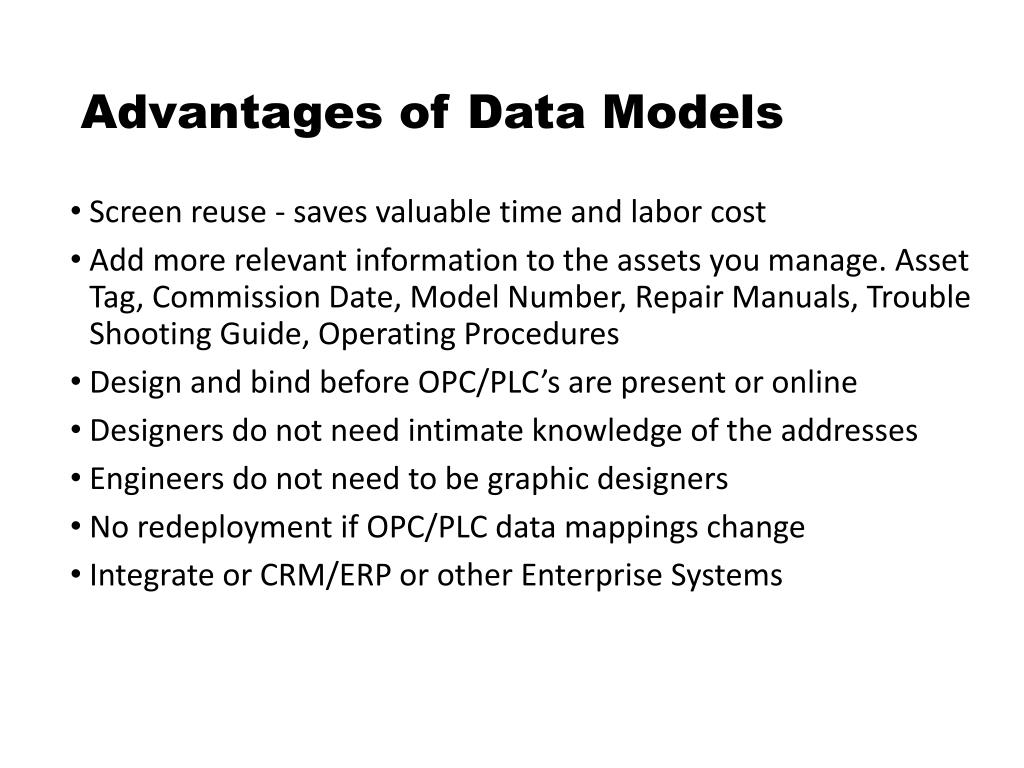

  18. Advantages of Data Models • Screen reuse - saves valuable time and labor cost • Add more relevant information to the assets you manage. Asset Tag, Commission Date, Model Number, Repair Manuals, Trouble Shooting Guide, Operating Procedures • Design and bind before OPC/PLC’s are present or online • Designers do not need intimate knowledge of the addresses • Engineers do not need to be graphic designers • No redeployment if OPC/PLC data mappings change • Integrate or CRM/ERP or other Enterprise Systems

  19. Data Model Designer • Designs the type system for the data model • Allows creation of instances of assets • Configures data logging, security, workflow and alarms • Communicates with the Status Server using a publicly accessible object model

  20. Status Object Model • Allows programmatic access to live data, historical and alarms in the data model • .NET API’s • Model Configuration • Workflow • Automated Operations • Batch • Custom Behavior • Model Generation

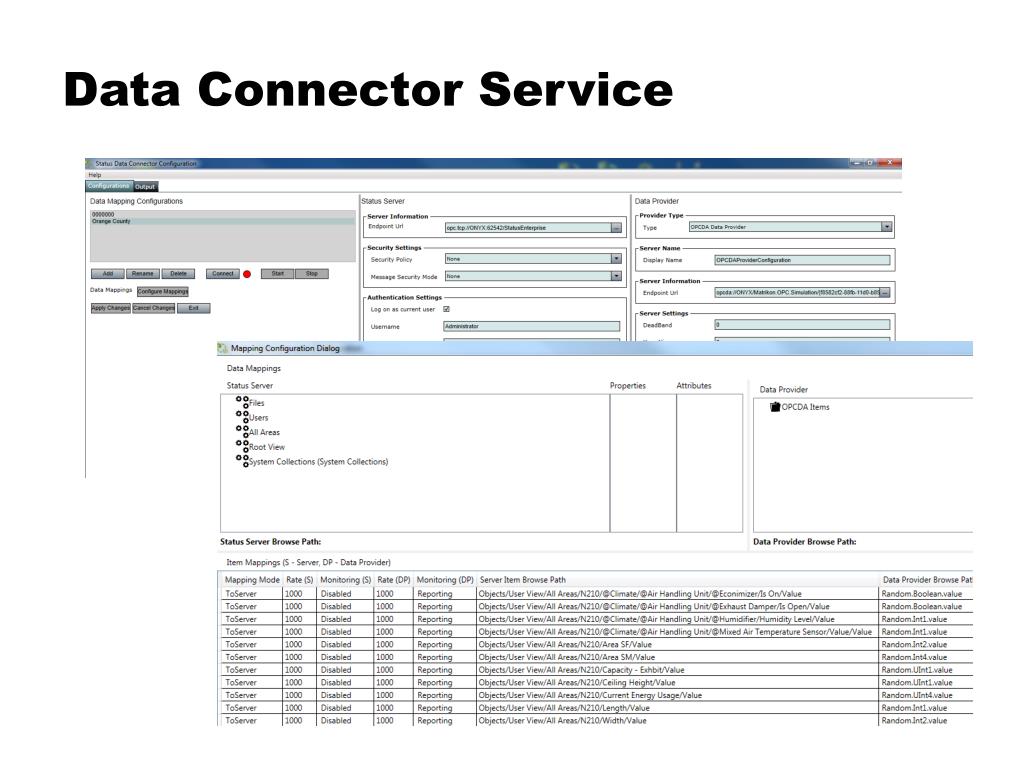

  21. Data Connector Service

  22. Data Connector Service • Installed near ‘live’ data • Connects back to Status Server • Maps live data points to data items in the data model or vise versa (bi directional) • Connectors for OPC DA, OPC UA, ODBC and Status Machine Edition • Sample connector for custom data (Stock Symbol Data Connector)

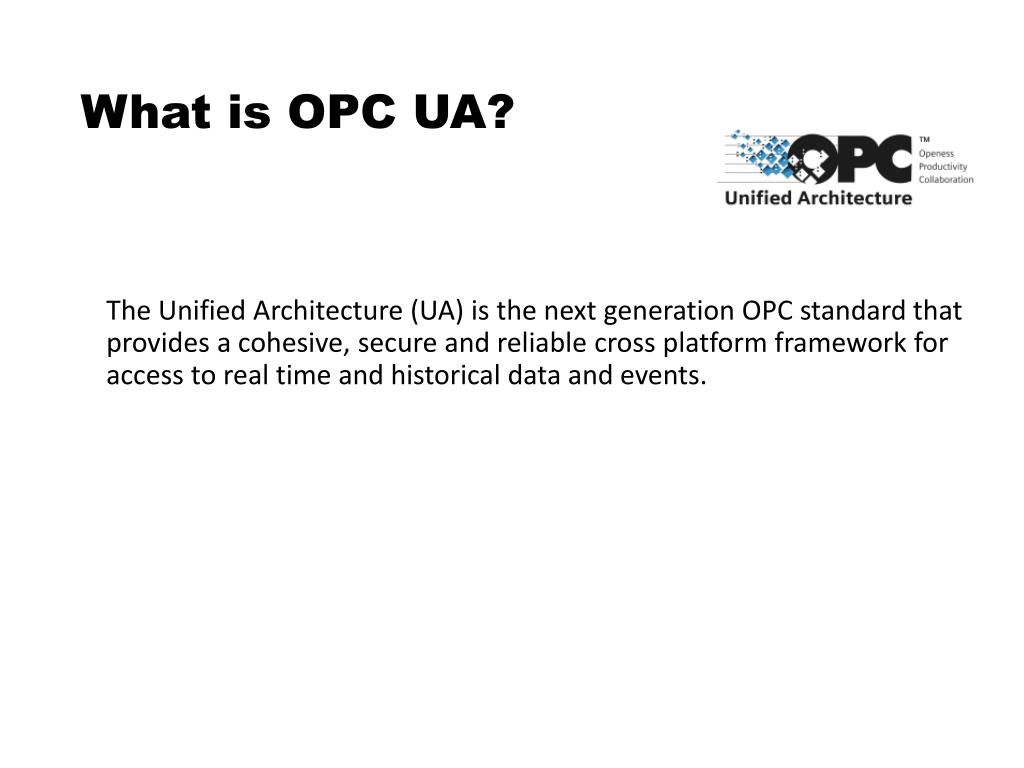

  23. What is OPC UA? The Unified Architecture (UA) is the next generation OPC standard that provides a cohesive, secure and reliable cross platform framework for access to real time and historical data and events.

  24. Why a New OPC Architecture • Microsoft has deemphasized COM in favor of cross-platform capable Web Services and SOA (Service Oriented Architecture) • OPC Vendors want a single set of services to expose the OPC data models (DA, A&E, HDA ...) • OPC Vendors want to implement OPC on non-Microsoft systemsand embedded devices • Other collaborating organizations need a reliable, efficient way to move higher level structured data - OPC Foundation

  25. Status Enterprise Server • OPC UA Server • Houses the OPC UA Data Model • Real Time OPC UA Data and Historical Data • Hosts Alarming, Workflow and Historical Data Access • Serves up Mimics designed with the Mimic Designer to Windows and Web clients • SQL Server or SQLite Database • ISA 95 Compatible
