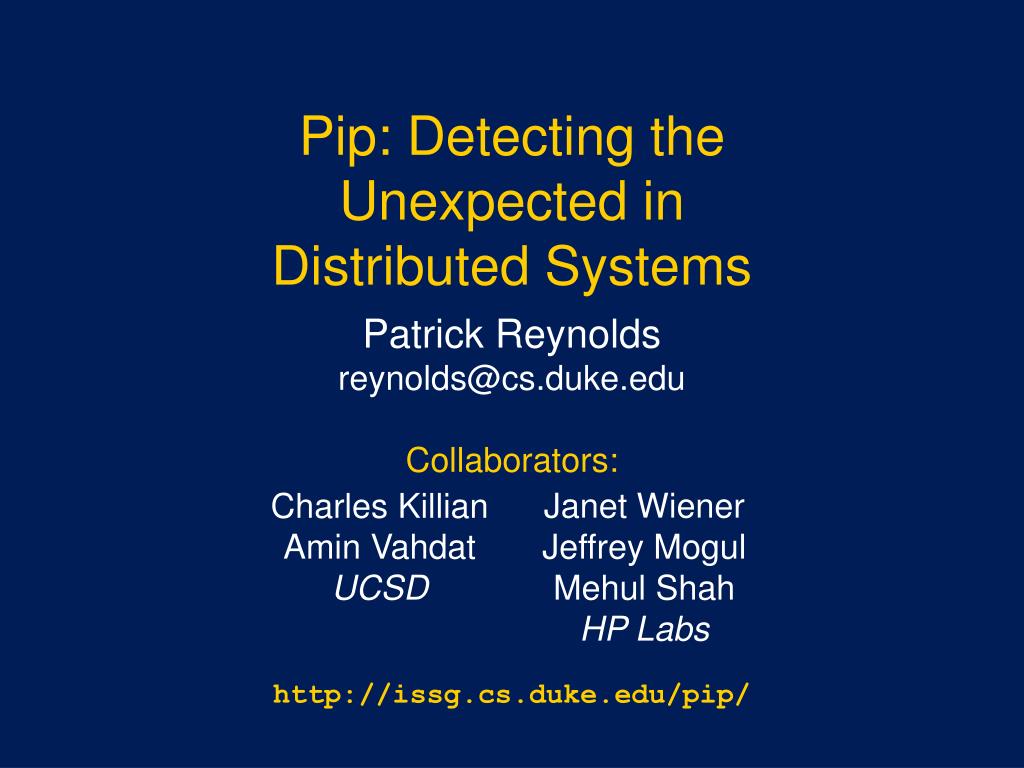

  1. Pip: Detecting the Unexpected in Distributed Systems • Patrick Reynolds • reynolds@cs.duke.edu • Collaborators: • Charles Killian • Amin Vahdat • UCSD • Janet Wiener • Jeffrey Mogul • Mehul Shah • HP Labs http://issg.cs.duke.edu/pip/

  2. Introduction • Distributed systems are essential to the Internet • Distributed systems are complex • Harder to debug than centralized systems • Pip uses causal paths to find bugs • Characterize system behavior • Deviations from expected behavior often indicate bugs • Experimental results show that Pip is effective • Found 19 bugs in 6 test systems NSDI - May 8th, 2006

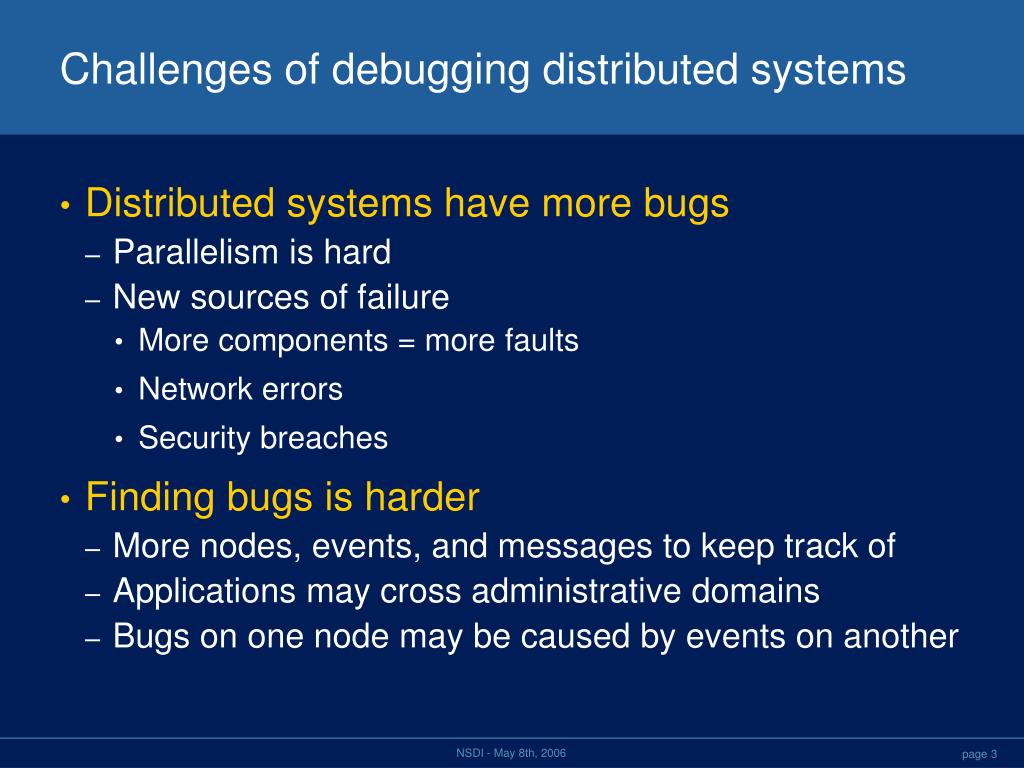

  3. Challenges of debugging distributed systems • Distributed systems have more bugs • Parallelism is hard • New sources of failure • More components = more faults • Network errors • Security breaches • Finding bugs is harder • More nodes, events, and messages to keep track of • Applications may cross administrative domains • Bugs on one node may be caused by events on another NSDI - May 8th, 2006

  4. 500ms 2000 page faults Causal path analysis • Programmers wish to examine and check system-wide behaviors • Causal paths • Components of end-to-end delay • Attribution of resource consumption • Unexpected behavior might indicate a bug • Pip compares actual behavior to expected behavior Web server App server Database NSDI - May 8th, 2006

  5. Web server App server 500ms Database 2000 page faults What kinds of bugs? • Structure bugs • Incorrect placement/timing of processing and communication • Performance bugs • Throughput bottlenecks • Over- or under-consumption of resources • Bugs present in an actual run of the system • Selecting input for path coverage is orthogonal NSDI - May 8th, 2006

  6. Three target audiences • Primary programmer • Debugging or optimizing his/her own system • Secondary programmer • Inheriting a project or joining a programming team • Discovery: learning how the system behaves • Operator • Monitoring a running system for unexpected behavior • Performing regression tests after a change NSDI - May 8th, 2006

  7. Outline • Introduction • Pip • Expressing expected behavior • Exploring application behavior • Results • Conclusions NSDI - May 8th, 2006

  8. Behavior model Expectations Pip checker Unexpected structure Resource violations Pip explorer: visualization GUI Workflow Pip: • Captures events from a running system • Reconstructs behavior from events • Checks behavior against expectations • Displays unexpected behavior Both structure and resource violations Goal: help programmers locate and explain bugs Application NSDI - May 8th, 2006

  9. Parse HTTP Send response Run application Query Describing application behavior • Application behavior consists of paths • All events, on any node, related to one high-level operation • Definition of a path is programmer defined • Path is often causal, related to a user request WWW App srv DB time NSDI - May 8th, 2006

  10. “Request = /cgi/…” “2096 bytes in response” “done with request 12” Parse HTTP Send response Run application Query Describing application behavior • Within paths are tasks, messages, and notices • Tasks: processing with start and end points • Messages: send and receive events for any communication • Includes network, synchronization (lock/unlock), and timers • Notices: time-stamped strings; essentially log entries WWW App srv DB time NSDI - May 8th, 2006

  11. Outline • Introduction • Pip • Expressing expected behavior • Exploring application behavior • Results • Conclusions NSDI - May 8th, 2006

  12. R1 R2 R3 ?  Expectations • Pip has two kinds of expectations • Recognizers classify paths into sets • Aggregates assert properties of sets NSDI - May 8th, 2006

  13. Expectations: recognizers • Application behavior consists of paths • Each recognizer matches paths • A path can match more than one recognizer • A recognizer can be a validator, an invalidator, or neither • Any path matching zero validators or at least one invalidator is unexpected behavior:bug? validator CGIRequest thread WebServer(*, 1) task(“Parse HTTP”) limit(CPU_TIME, 100ms); notice(m/Request URL: .*/); send(AppServer); recv(AppServer); invalidator DatabaseError notice(m/Database error: .*/); NSDI - May 8th, 2006

  14. Expectations: recognizers language • repeat: matches a ≤ n ≤ b copies of a block • xor: matches any one of several blocks • future: lets a block match now or later • done: forces the named block to match repeat between 1 and 3 { … } xor { branch: … branch: … } future F1 { … } … done(F1); NSDI - May 8th, 2006

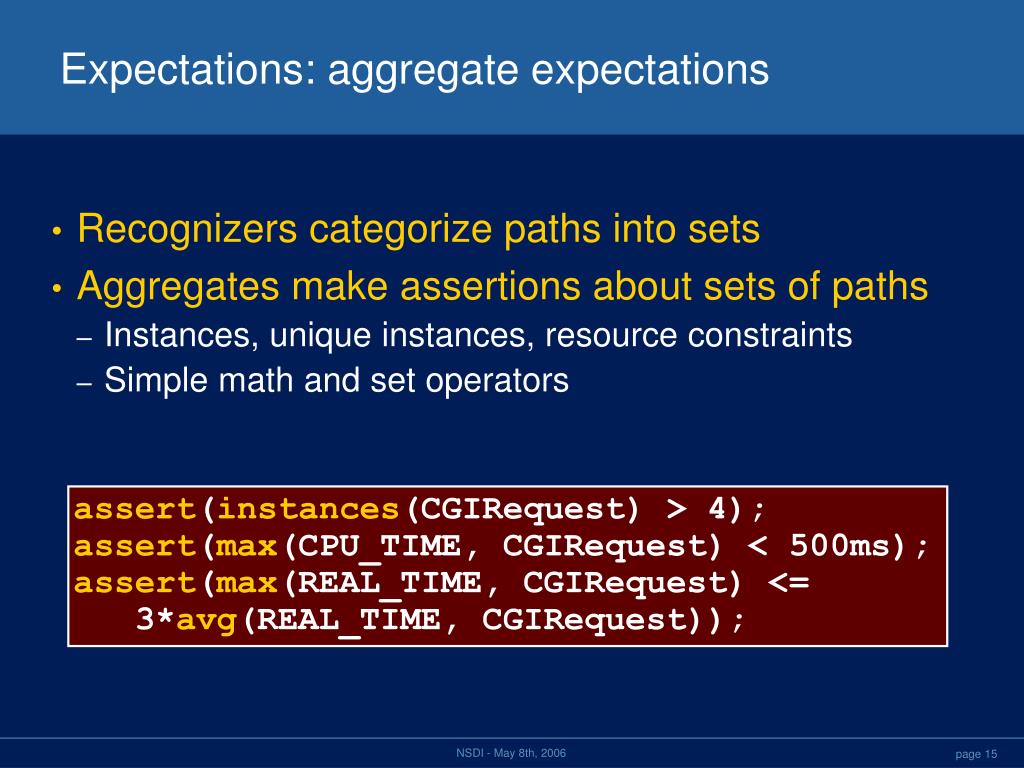

  15. Expectations: aggregate expectations • Recognizers categorize paths into sets • Aggregates make assertions about sets of paths • Instances, unique instances, resource constraints • Simple math and set operators assert(instances(CGIRequest) > 4); assert(max(CPU_TIME, CGIRequest) < 500ms); assert(max(REAL_TIME, CGIRequest) <= 3*avg(REAL_TIME, CGIRequest)); NSDI - May 8th, 2006

  16. Behavior model Automating expectations and annotations • Expectations can be generated from behavior model • Create a recognizer for each actual path • Eliminate repetition • Strike a balance between over- and under-specification • Annotations can be generated by middleware • As in several of our test systems Application Annotations Expectations Pip checker Unexpected behavior NSDI - May 8th, 2006

  17. Exploring behavior • Expectations checker generates lists of valid and invalid paths • Explore both sets • Why did invalid paths occur? • Is any unexpected behavior misclassified as valid? • Insufficiently constrained expectations • Pip may be unable to express all expectations NSDI - May 8th, 2006

  18. Visualization: causal paths Timing and resource properties for one task Causal view of path Caused tasks, messages, and notices on that thread NSDI - May 8th, 2006

  19. Visualization: timelines • View one path instance as a timeline • Different colors = different hosts • Each bar = task • Click a bar to see task details NSDI - May 8th, 2006

  20. Visualization: performance graphs • Plot per-task or per-path resource metrics • Cumulative distribution (CDF) • Probability density (PDF) • Changing values over time • Click on a point to see its value and the task/path represented Delay (ms) Time (s) NSDI - May 8th, 2006

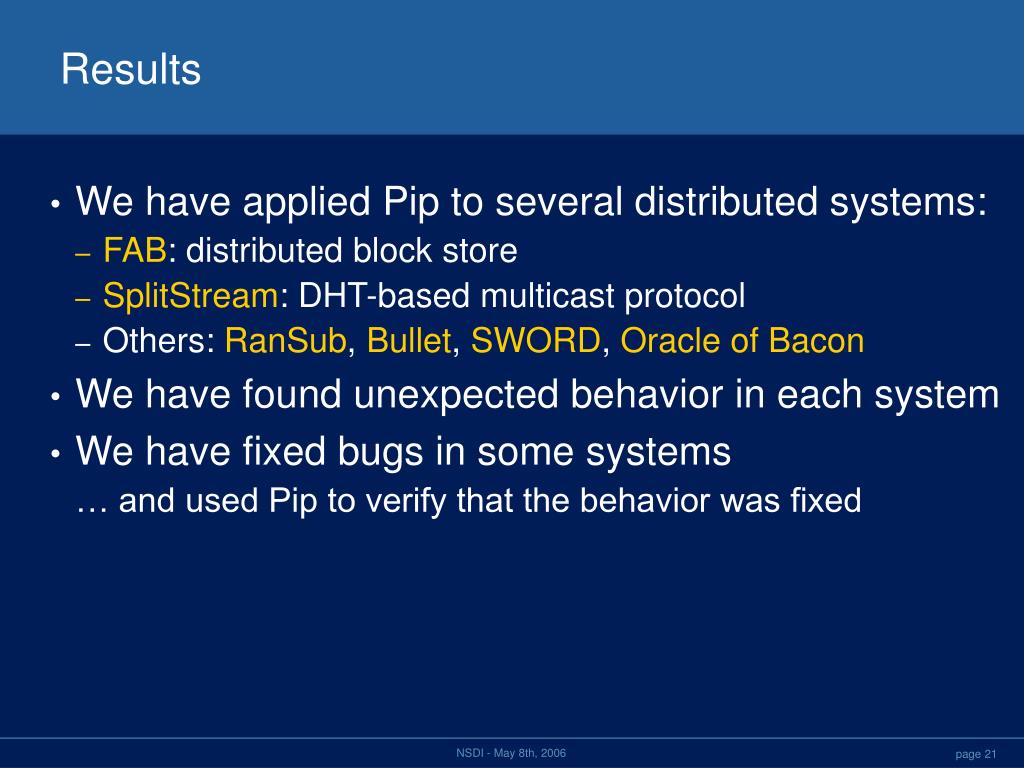

  21. Results • We have applied Pip to several distributed systems: • FAB: distributed block store • SplitStream: DHT-based multicast protocol • Others: RanSub, Bullet, SWORD, Oracle of Bacon • We have found unexpected behavior in each system • We have fixed bugs in some systems … and used Pip to verify that the behavior was fixed NSDI - May 8th, 2006

  22. Results: SplitStreamDHT-based multicast protocol 13 bugs found, 12 fixed • 11 found using expectations, 2 found using GUI • Structural bug: some nodes have up to 25 children when they should have at most 18 • This bug was fixed and later reoccurred • Root cause #1: variable shadowing • Root cause #2: failed to register a callback • How discovered: first in the explorer GUI, confirmed with automated checking NSDI - May 8th, 2006

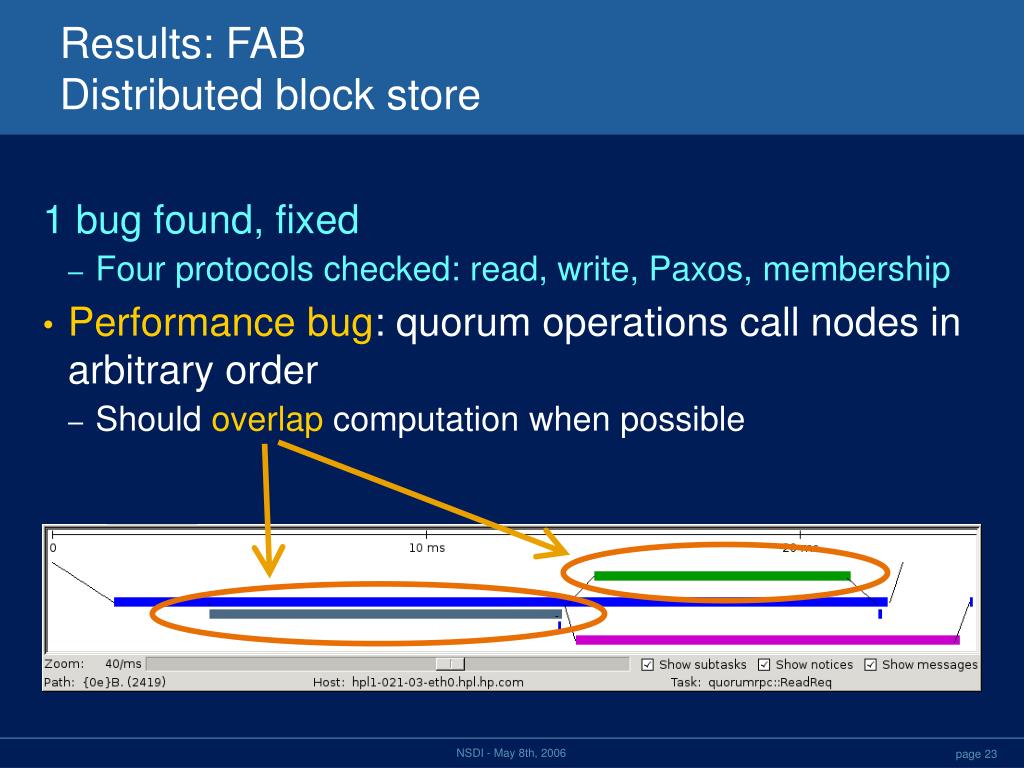

  23. Results: FABDistributed block store 1 bug found, fixed • Four protocols checked: read, write, Paxos, membership • Performance bug: quorum operations call nodes in arbitrary order • Should overlap computation when possible NSDI - May 8th, 2006

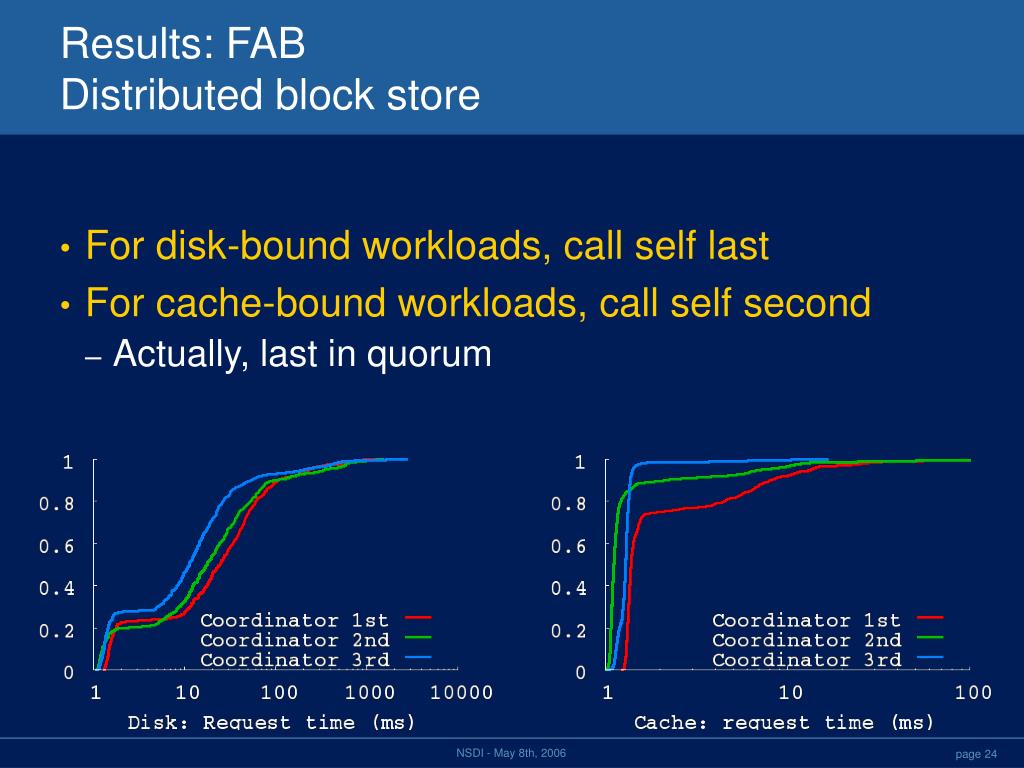

  24. Results: FABDistributed block store • For disk-bound workloads, call self last • For cache-bound workloads, call self second • Actually, last in quorum NSDI - May 8th, 2006

  25. Conclusions • Causal paths are a useful abstraction of distributed system behavior • Expectations serve as a high-level description • Summary of inter-component behavior and timing • Regression test for structure and performance • Finding unexpected behavior can help us find bugs • Both structure and performance bugs • Visualization can expose additional bugs http://issg.cs.duke.edu/pip/ NSDI - May 8th, 2006

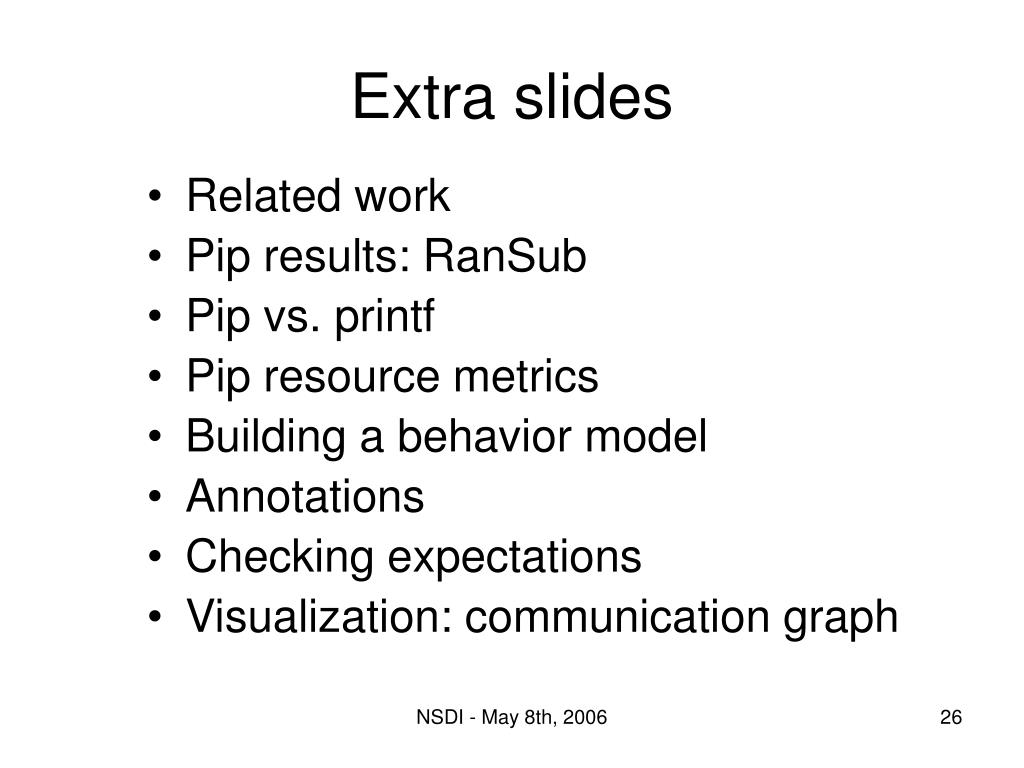

  26. Extra slides • Related work • Pip results: RanSub • Pip vs. printf • Pip resource metrics • Building a behavior model • Annotations • Checking expectations • Visualization: communication graph NSDI - May 8th, 2006

  27. Related work • Causal paths • Pinpoint [Chen, 2004] • Magpie [Barham, 2004] • Black-box inferences • Finding stepping stones [Zhang, 1997] • Wavelets to debug network performance [Huang, 2001] • Expectations-checking systems • PSpec [Perl, 1993] • Meta-level compilation [Engler, 2000] • Paradyn [Miller, 1995] • Model checking • MaceMC [Killian, 2006] • VeriSoft [Godefroid, 2005] NSDI - May 8th, 2006

  28. Pip results: RanSub 2 bugs found, 1 fixed • Structural bug: during first round of communication, parent nodes send summary messages before hearing from all children • Root cause: uninitialized state variables • Performance bug: linear increase in end-to-end delay for the first ~2 minutes • Suspected root cause: data structure listing all discovered nodes NSDI - May 8th, 2006

  29. Pip vs. printf • Both record interesting events to check off-line • Pip imposes structure and automates checking • Generalizes ad hoc approaches NSDI - May 8th, 2006

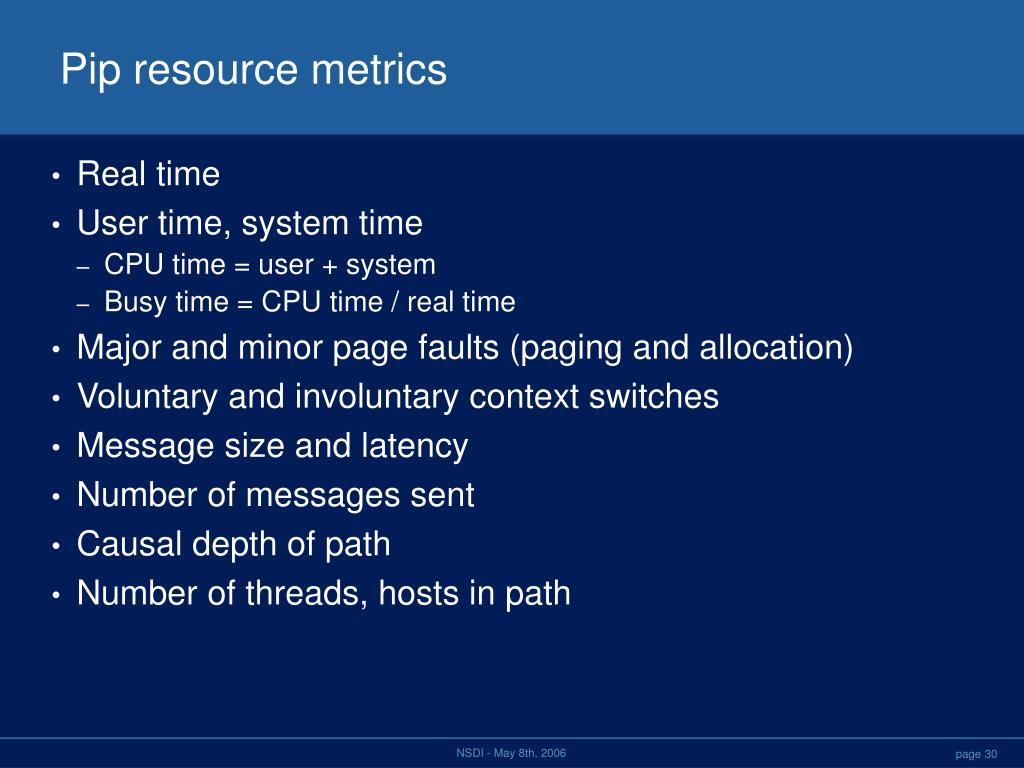

  30. Pip resource metrics • Real time • User time, system time • CPU time = user + system • Busy time = CPU time / real time • Major and minor page faults (paging and allocation) • Voluntary and involuntary context switches • Message size and latency • Number of messages sent • Causal depth of path • Number of threads, hosts in path NSDI - May 8th, 2006

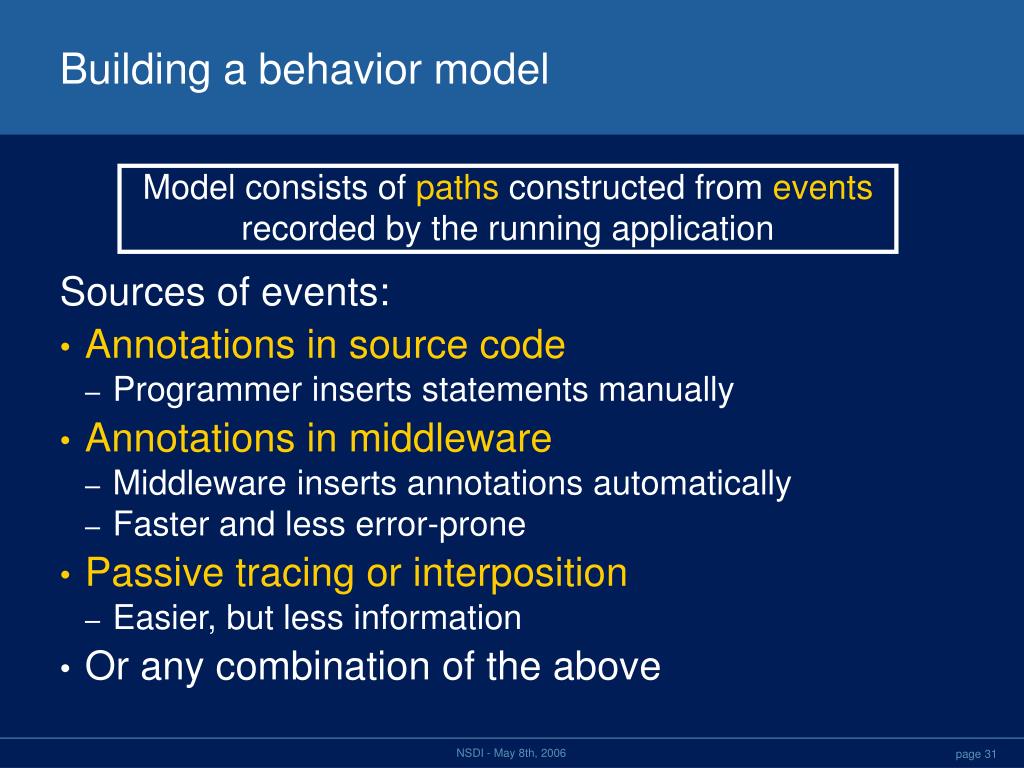

  31. Building a behavior model Sources of events: • Annotations in source code • Programmer inserts statements manually • Annotations in middleware • Middleware inserts annotations automatically • Faster and less error-prone • Passive tracing or interposition • Easier, but less information • Or any combination of the above Model consists of paths constructed from events recorded by the running application NSDI - May 8th, 2006

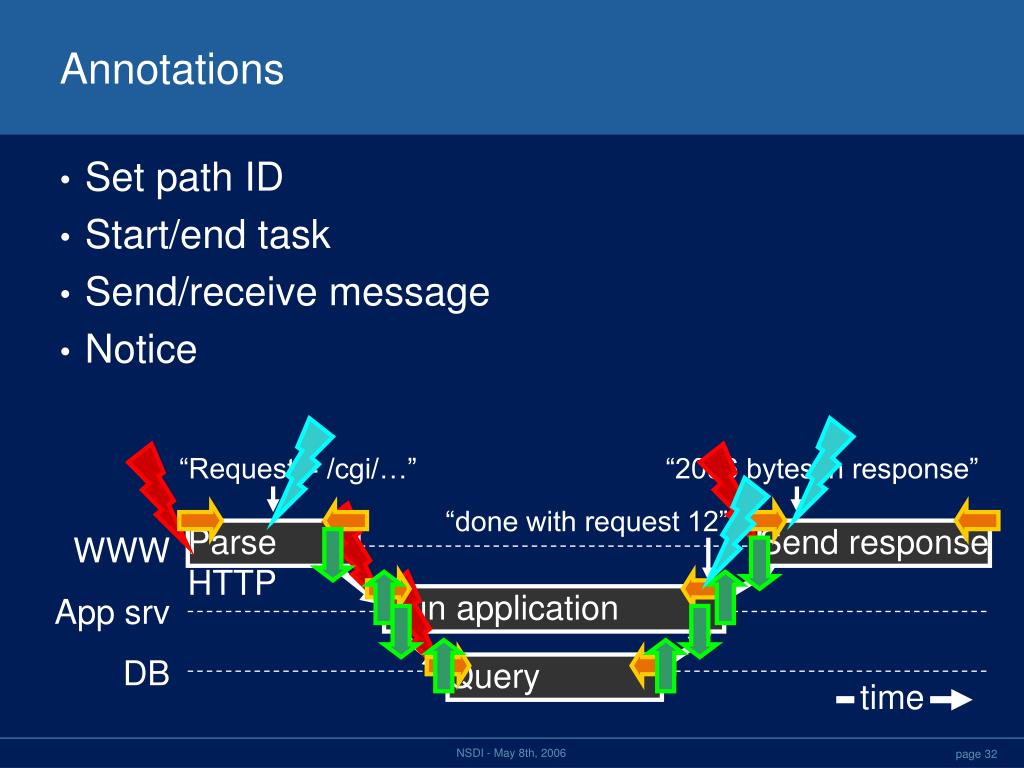

  32. “Request = /cgi/…” “2096 bytes in response” “done with request 12” Parse HTTP Send response Run application Query Annotations • Set path ID • Start/end task • Send/receive message • Notice WWW App srv DB time NSDI - May 8th, 2006

  33. Match start/end task, send/receive message Organize events into causal paths For each path P For each recognizer R Does R match P? Check each aggregate Checking expectations Application Traces Reconciliation Events database Path construction Paths Expectations Expectation checking Categorized paths NSDI - May 8th, 2006

  34. Visualization: communication graph • Graph view of all host-to-host network traffic • Nodes = hosts, edges = network links in use • Directed edge = unidirectional communication NSDI - May 8th, 2006
