ミーティング資料 08/Jun/26 (THU) 森田
小型コアの共振周波数 MWSで計算 S11 500MHzで共振周波数

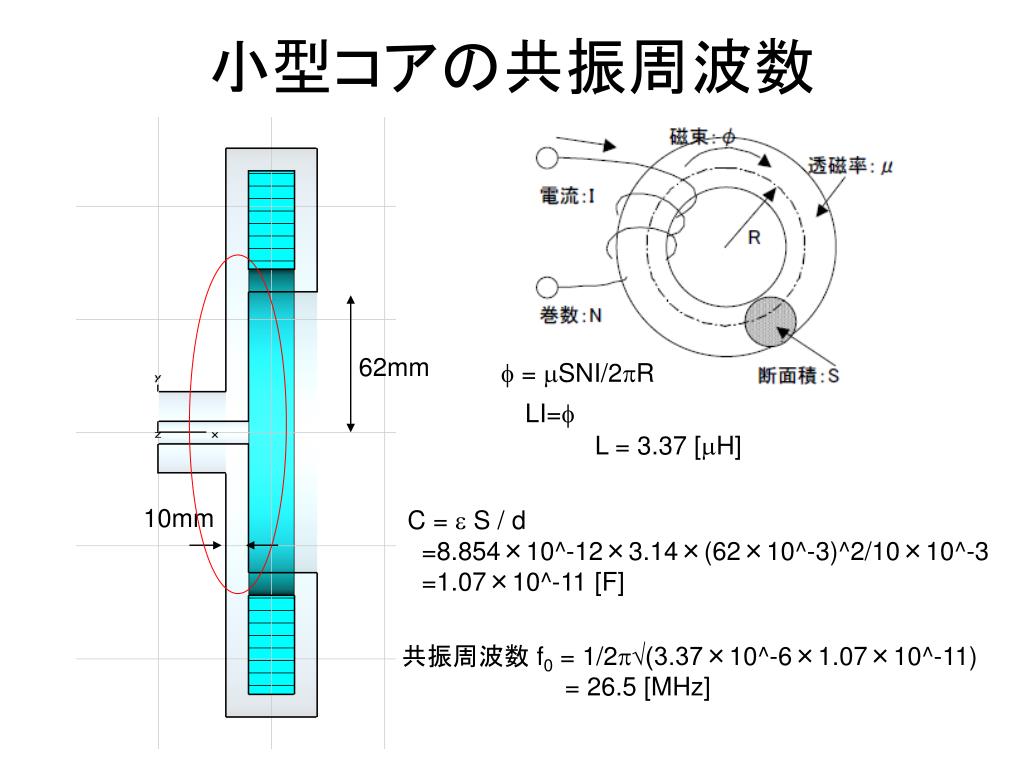

小型コアの共振周波数 62mm f = mSNI/2pR LI=f L = 3.37 [mH] 10mm C = e S / d =8.854×10^-12×3.14×(62×10^-3)^2/10×10^-3 =1.07×10^-11 [F] 共振周波数 f0 = 1/2p√(3.37×10^-6×1.07×10^-11) = 26.5 [MHz]

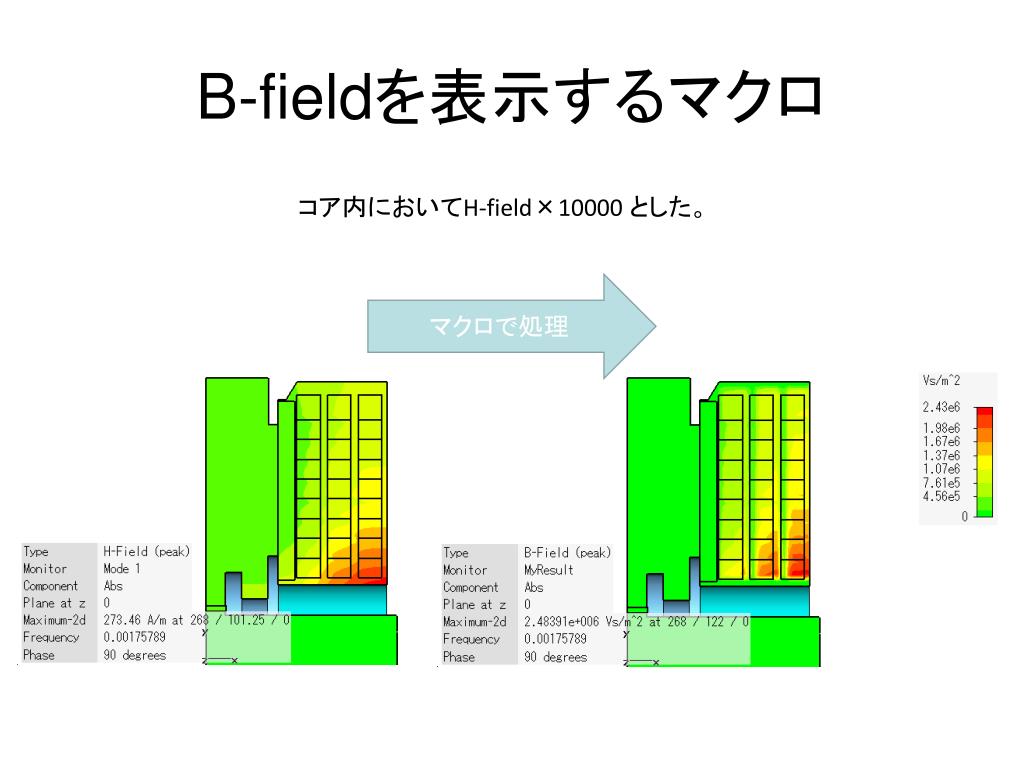

B-fieldを表示するマクロ コア内においてH-field×10000 とした。マクロで処理
