  1. Programming in C

  2. Introduction to Computers Programming in C sophir@techst02.technion.ac.il

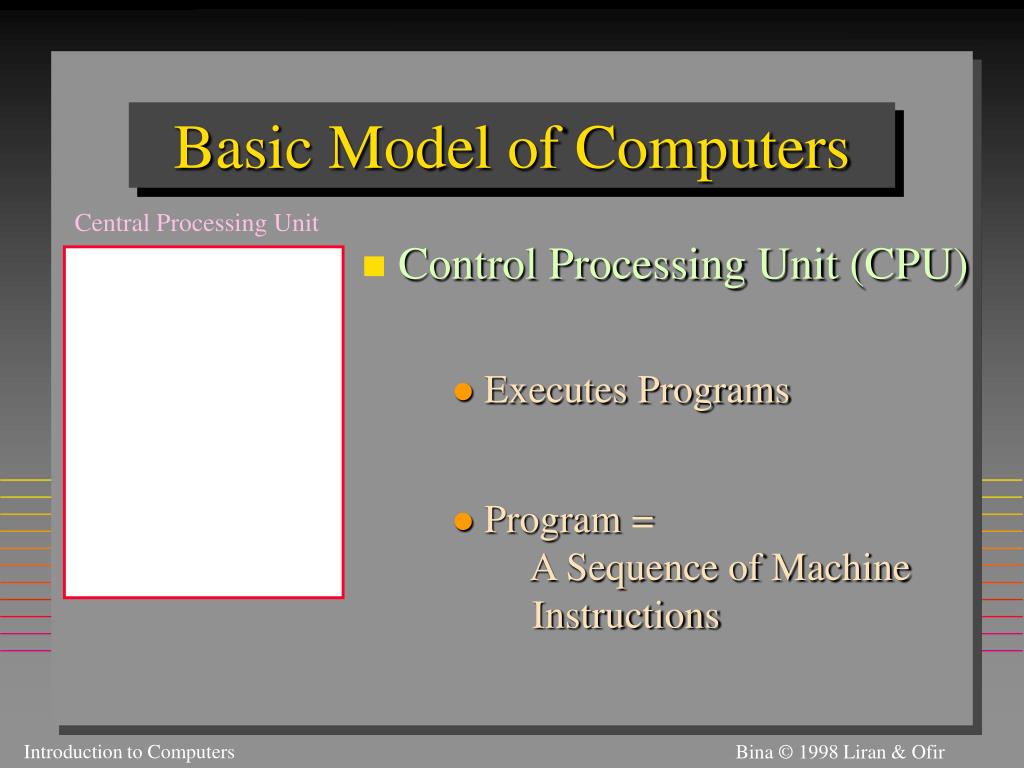

  3. Central Processing Unit Basic Model of Computers • Control Processing Unit (CPU) • Executes Programs • Program = • A Sequence of Machine • Instructions

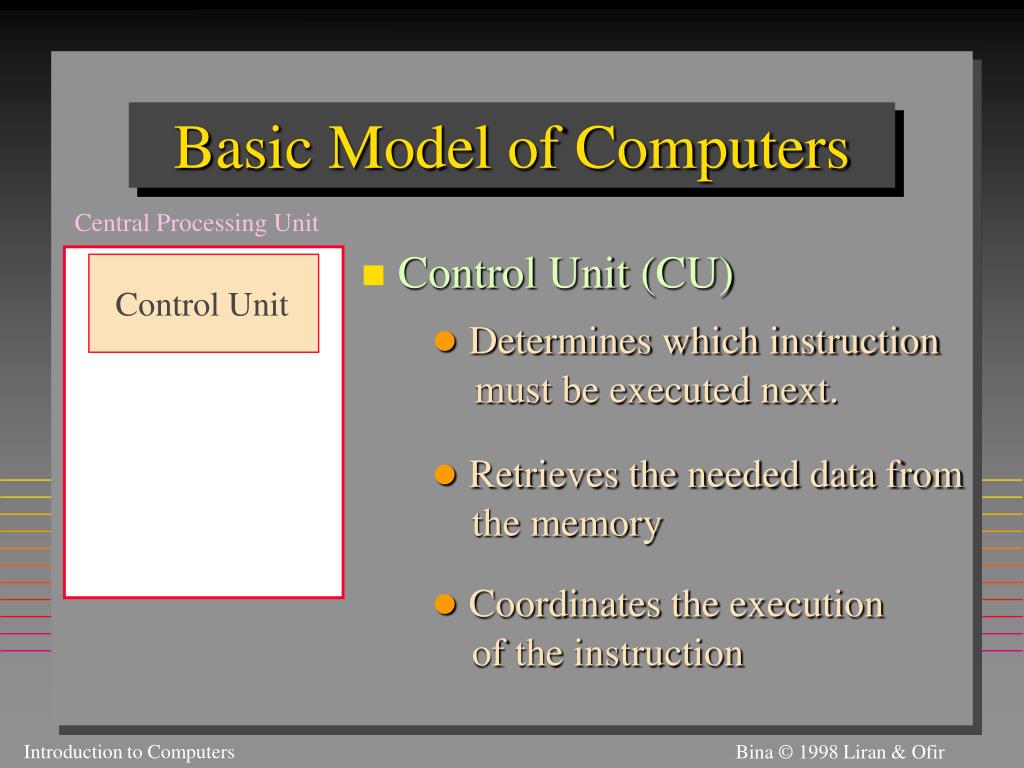

  4. Central Processing Unit Control Unit Basic Model of Computers • Control Unit (CU) • Determines which instruction • must be executed next. • Retrieves the needed data from • the memory • Coordinates the execution • of the instruction

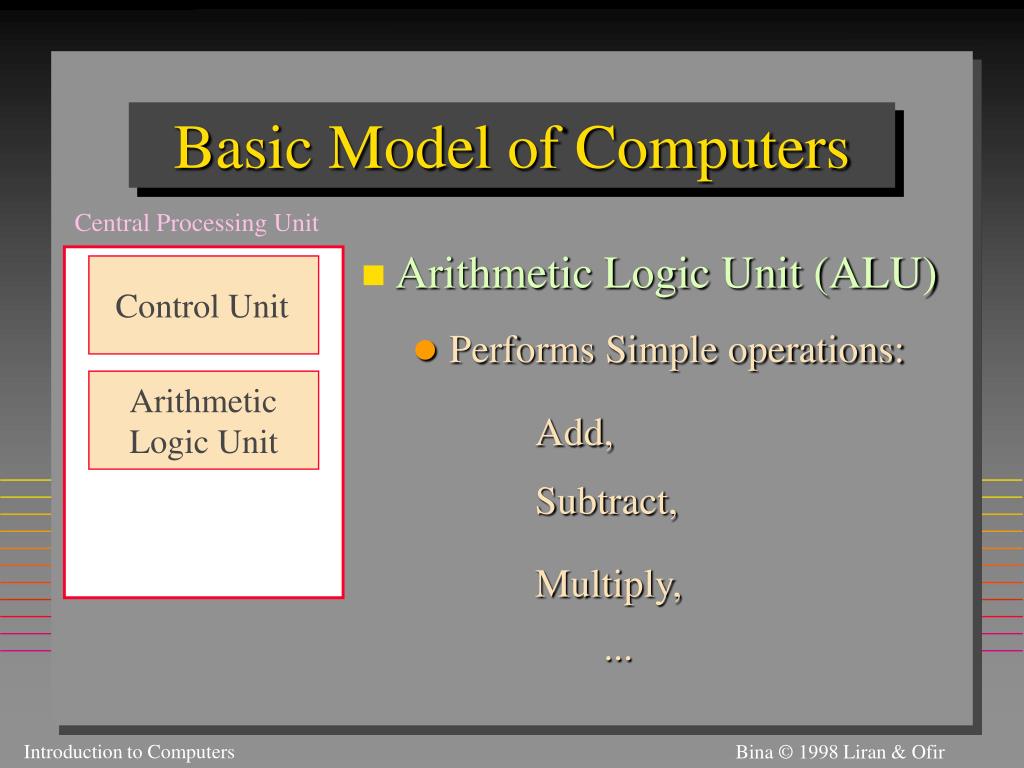

  5. Central Processing Unit Control Unit Arithmetic Logic Unit Basic Model of Computers • Arithmetic Logic Unit (ALU) • Performs Simple operations: Add, Subtract, Multiply, ...

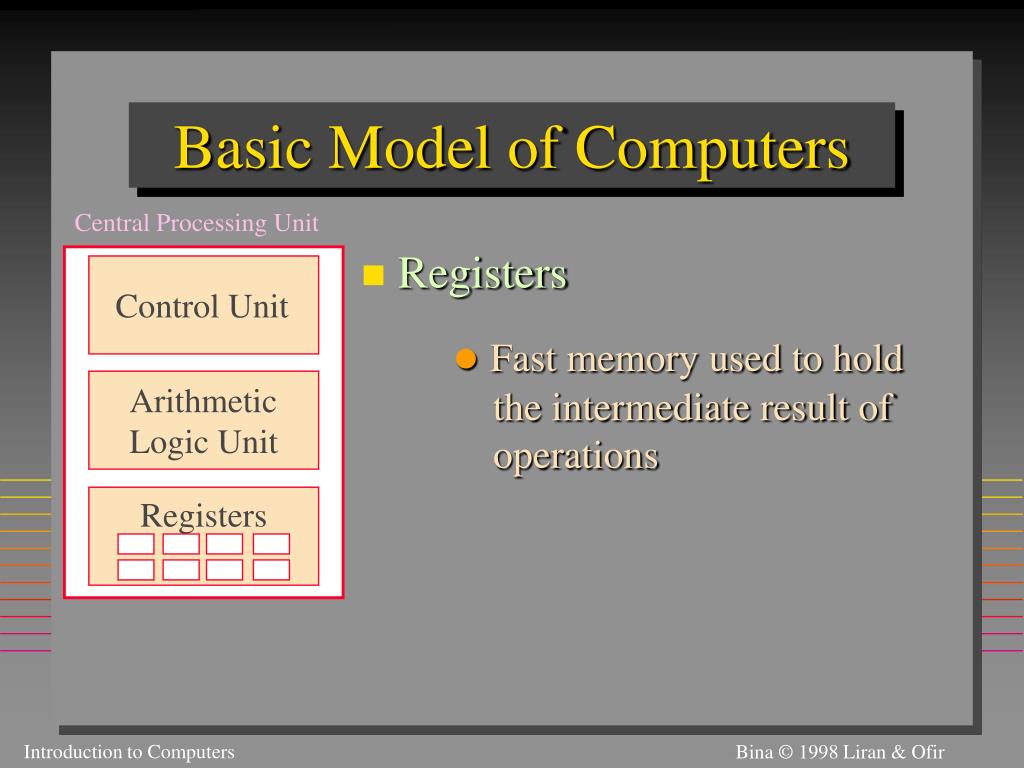

  6. Central Processing Unit Registers Basic Model of Computers • Registers Control Unit • Fast memory used to hold • the intermediate result of • operations Arithmetic Logic Unit

  7. Central Processing Unit Memory Basic Model of Computers • Memory (RAM) Control Unit • holds data and • instructions Arithmetic Logic Unit • Random Access Registers • volatile

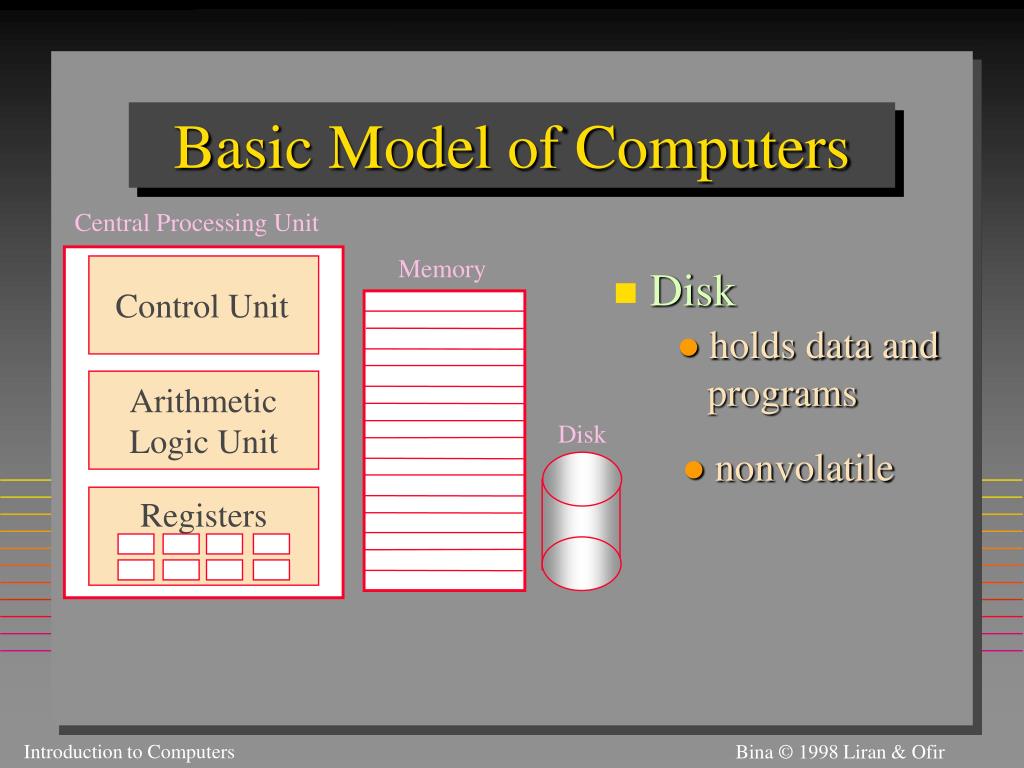

  8. Central Processing Unit Memory Disk Basic Model of Computers • Disk Control Unit • holds data and • programs Arithmetic Logic Unit • nonvolatile Registers

  9. Central Processing Unit Memory Disk Display Printer Basic Model of Computers • And other peripherals Control Unit Arithmetic Logic Unit Registers . . .

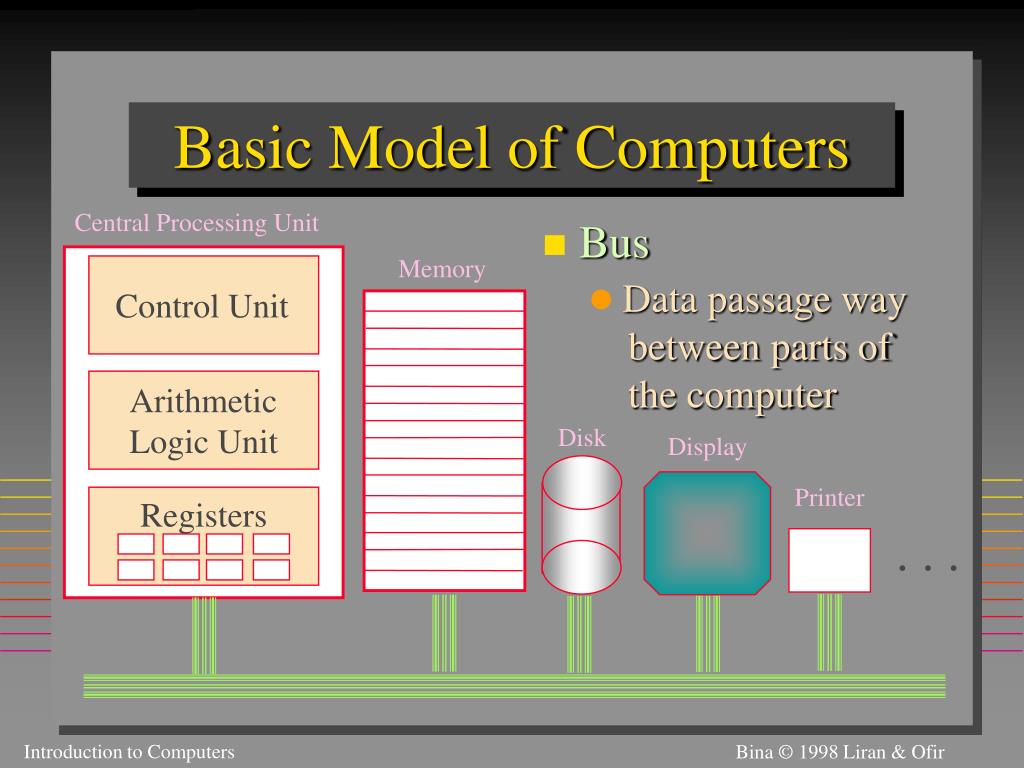

  10. Central Processing Unit Memory Disk Display Printer Basic Model of Computers • Bus • Data passage way • between parts of • the computer Control Unit Arithmetic Logic Unit Registers . . .

  11. CPU • Repeatedly does the following: • Gets the next instruction from the memory • Gets the data required to execute the instruction from the memory • Performs the instruction • Stores the result in the memory

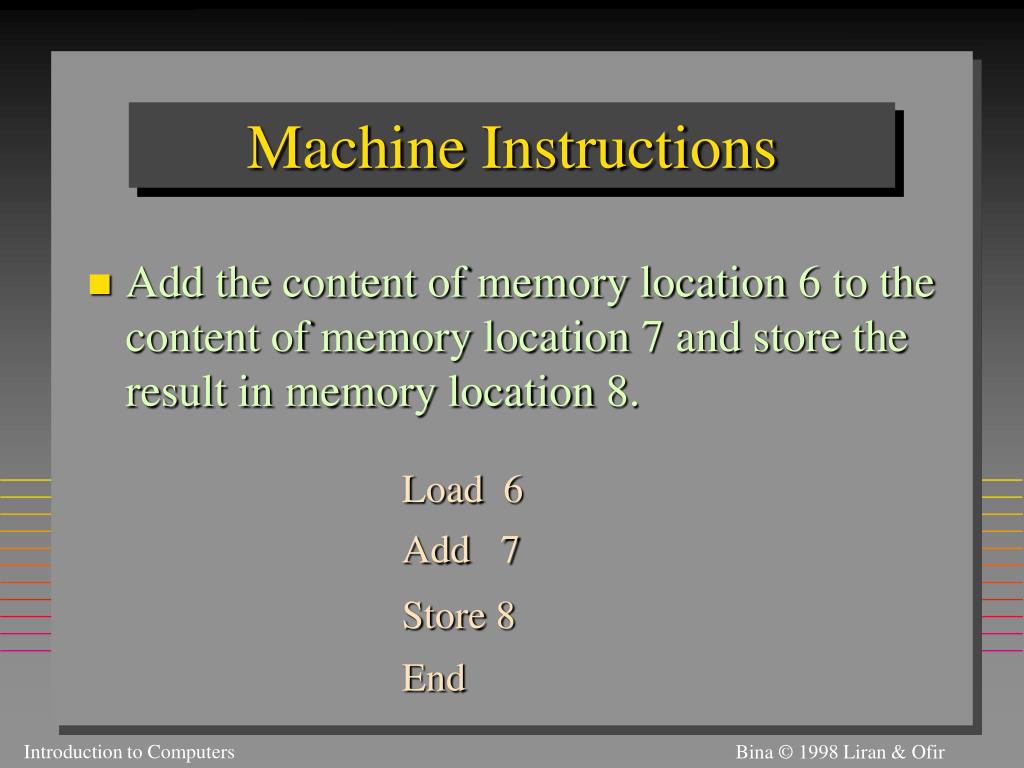

  12. Machine Instructions • Add the content of memory location 6 to the content of memory location 7 and store the result in memory location 8. Load 6 Add 7 Store 8 End

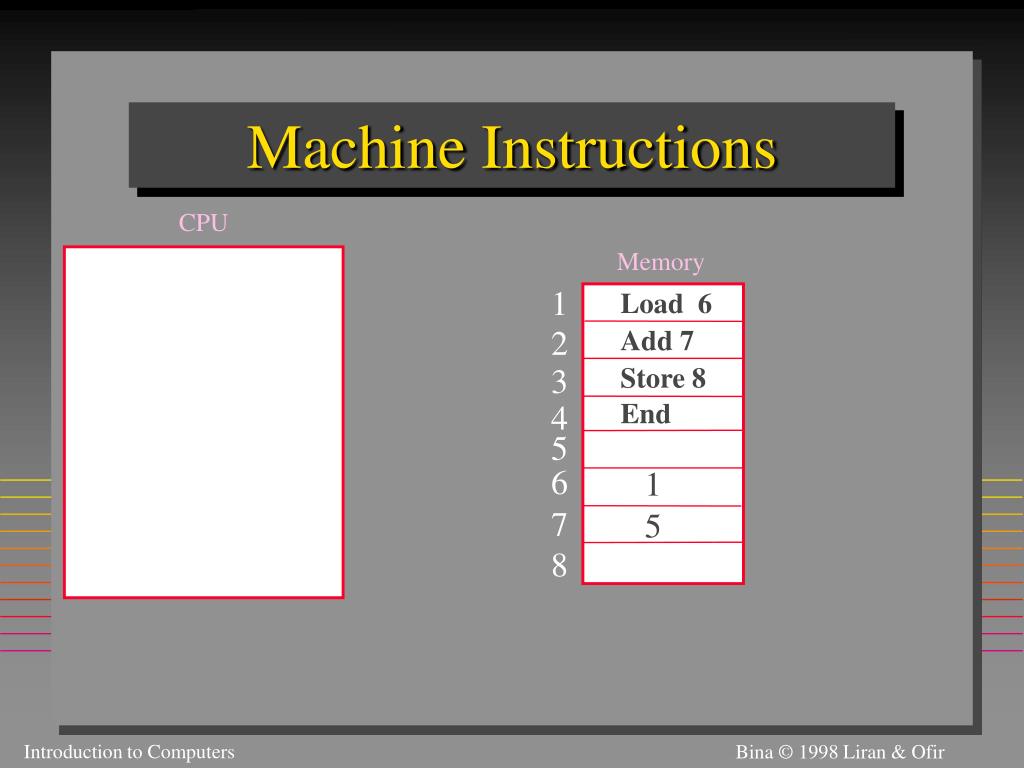

  13. Memory Machine Instructions CPU 1 Load 6 2 Add 7 3 Store 8 End 4 5 6 1 7 5 8

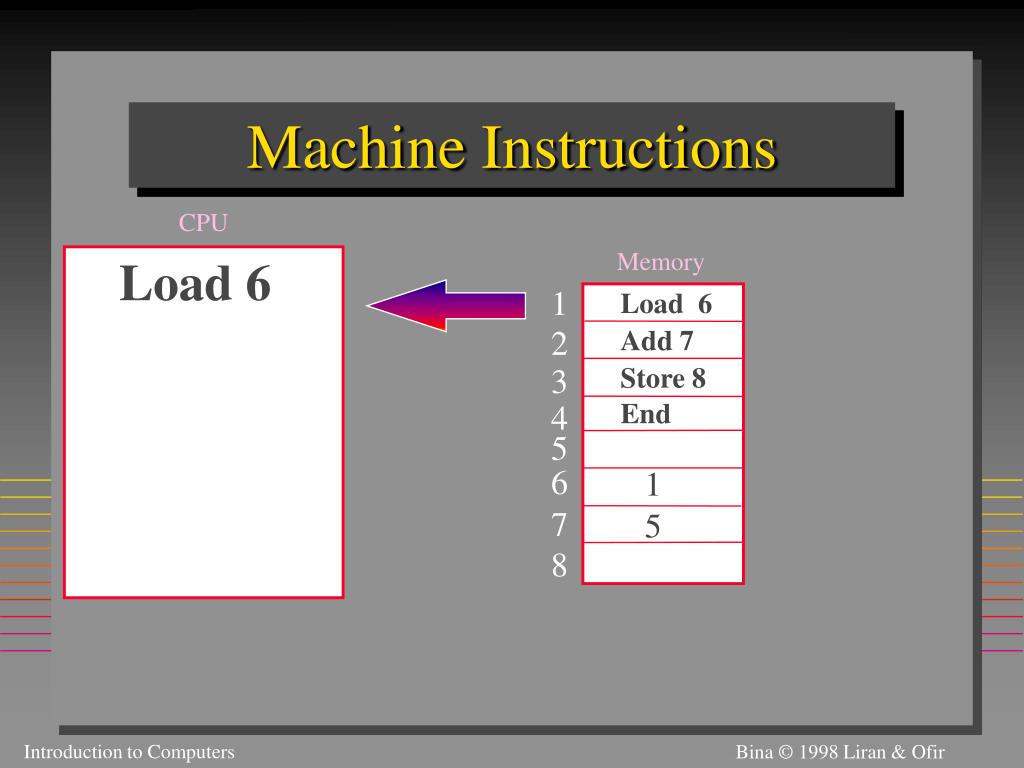

  14. Memory Machine Instructions CPU Load 6 1 Load 6 2 Add 7 3 Store 8 End 4 5 6 1 7 5 8

  15. Memory Machine Instructions CPU Load 6 1 Load 6 2 Add 7 1 3 Store 8 End 4 5 6 1 7 5 8

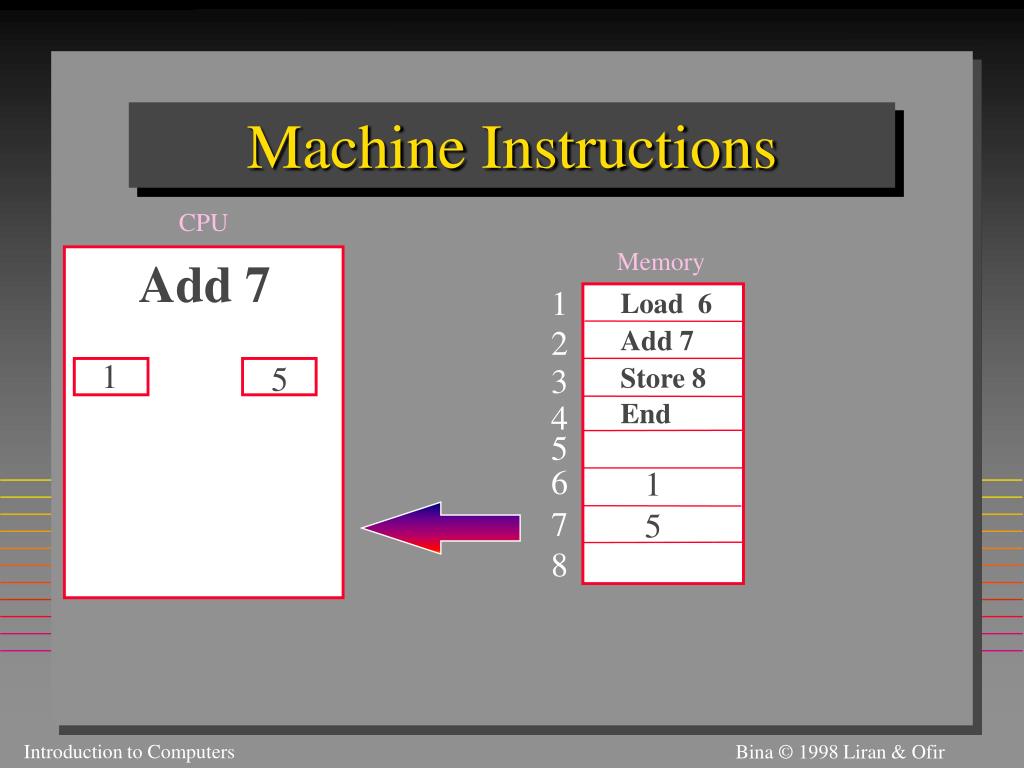

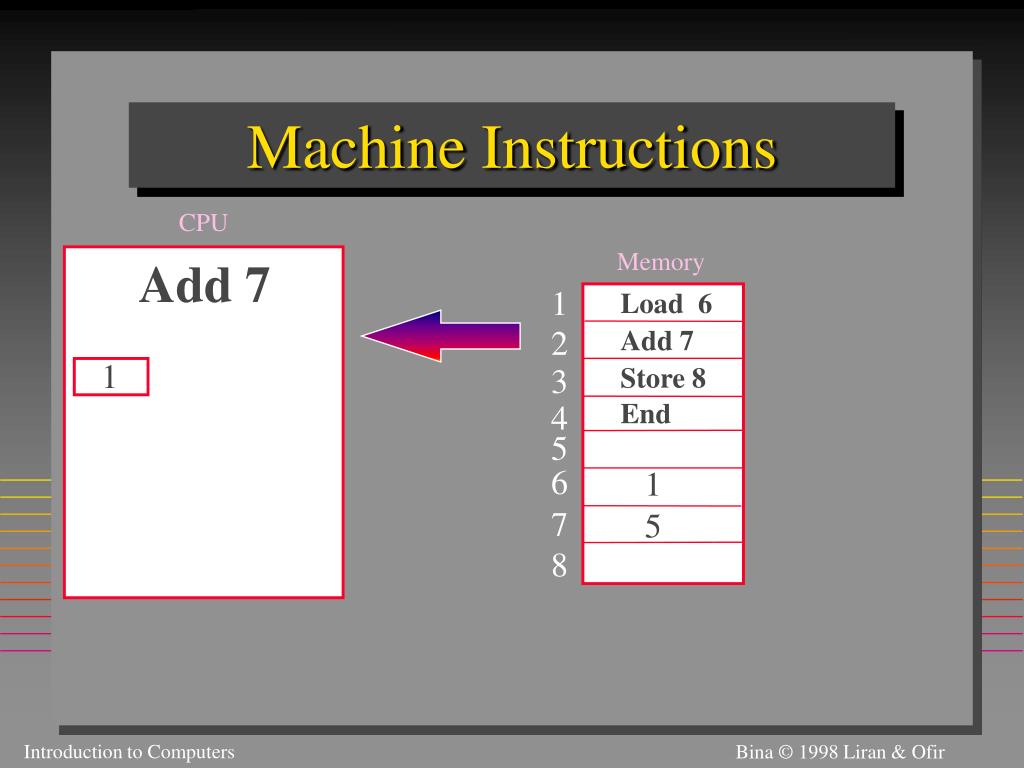

  16. Memory Machine Instructions CPU Add 7 1 Load 6 2 Add 7 1 3 Store 8 End 4 5 6 1 7 5 8

  17. Memory Machine Instructions CPU Add 7 1 Load 6 2 Add 7 1 5 3 Store 8 End 4 5 6 1 7 5 8

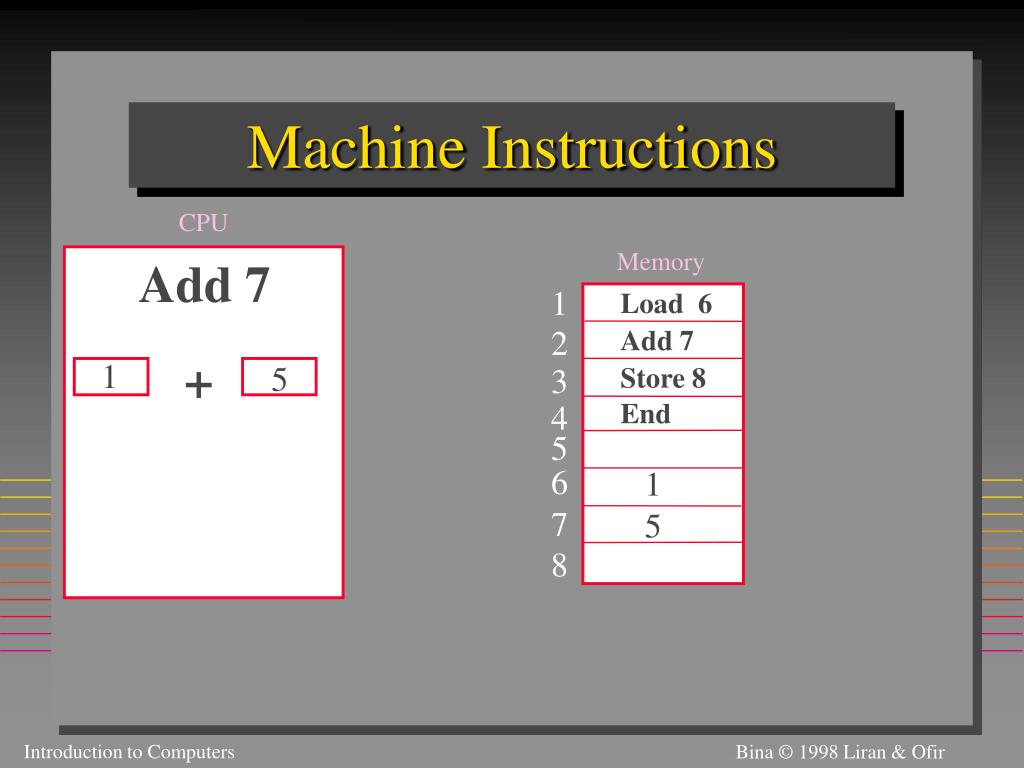

  18. Memory Machine Instructions CPU Add 7 1 Load 6 2 Add 7 + 1 5 3 Store 8 End 4 5 6 1 7 5 8

  19. Memory Machine Instructions CPU Add 7 1 Load 6 2 Add 7 + 1 5 3 Store 8 End 4 5 6 1 7 5 6 8

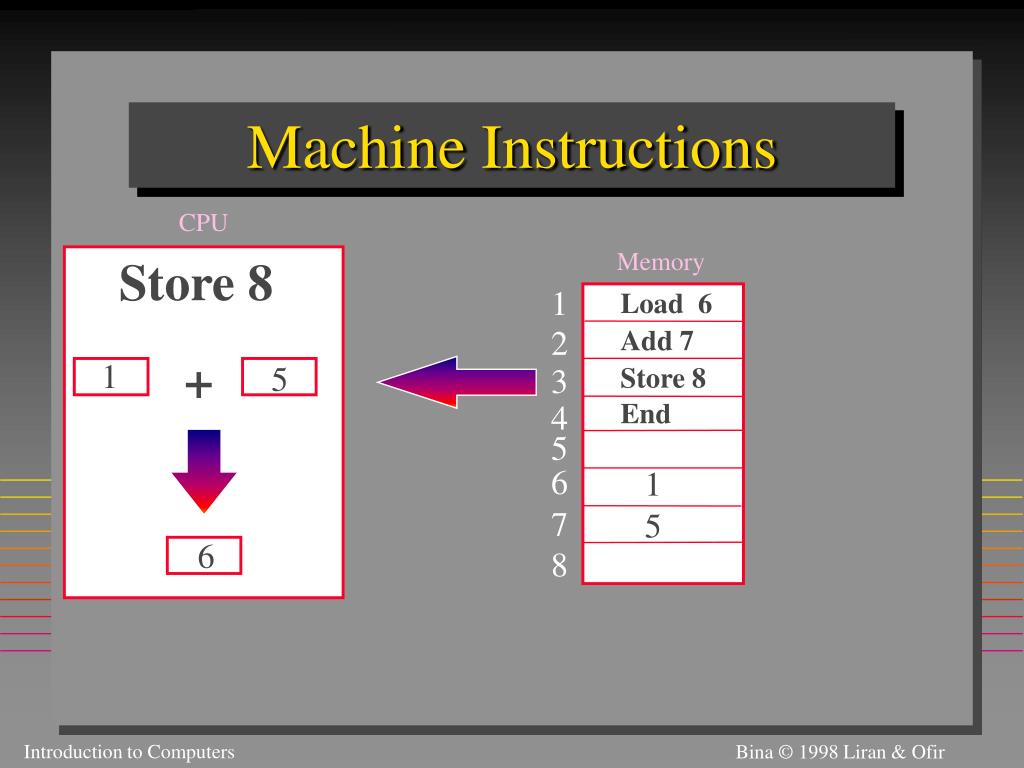

  20. Memory Machine Instructions CPU Store 8 1 Load 6 2 Add 7 + 1 5 3 Store 8 End 4 5 6 1 7 5 6 8

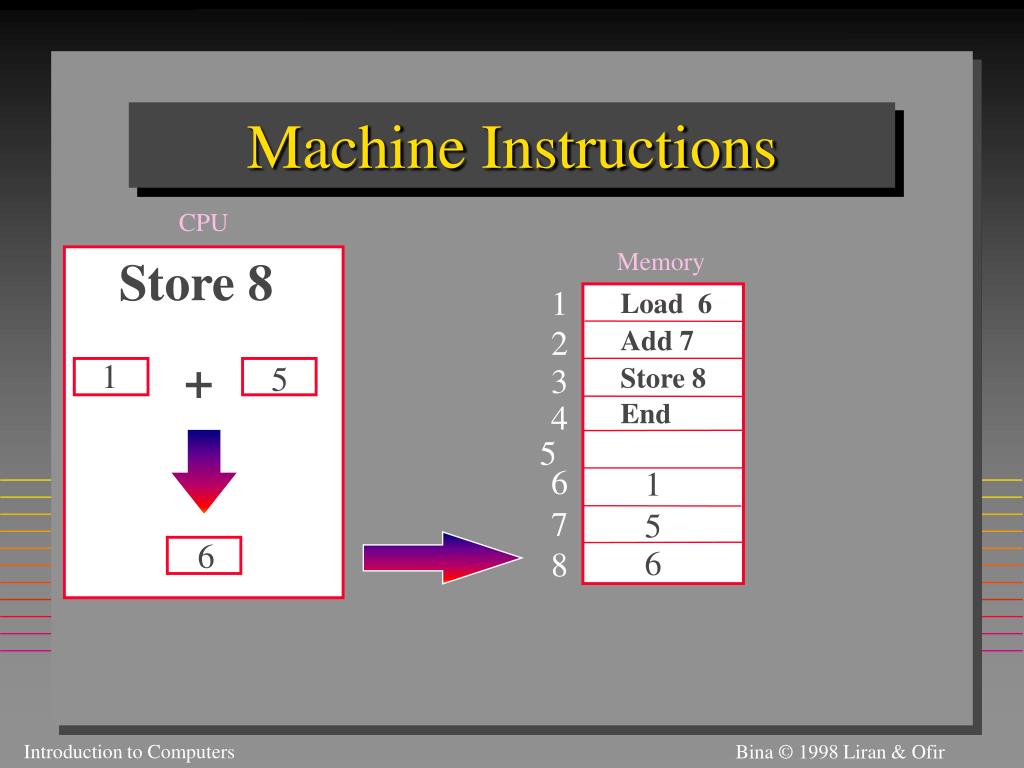

  21. Memory Machine Instructions CPU Store 8 1 Load 6 2 Add 7 + 1 5 3 Store 8 End 4 5 6 1 7 5 6 6 8

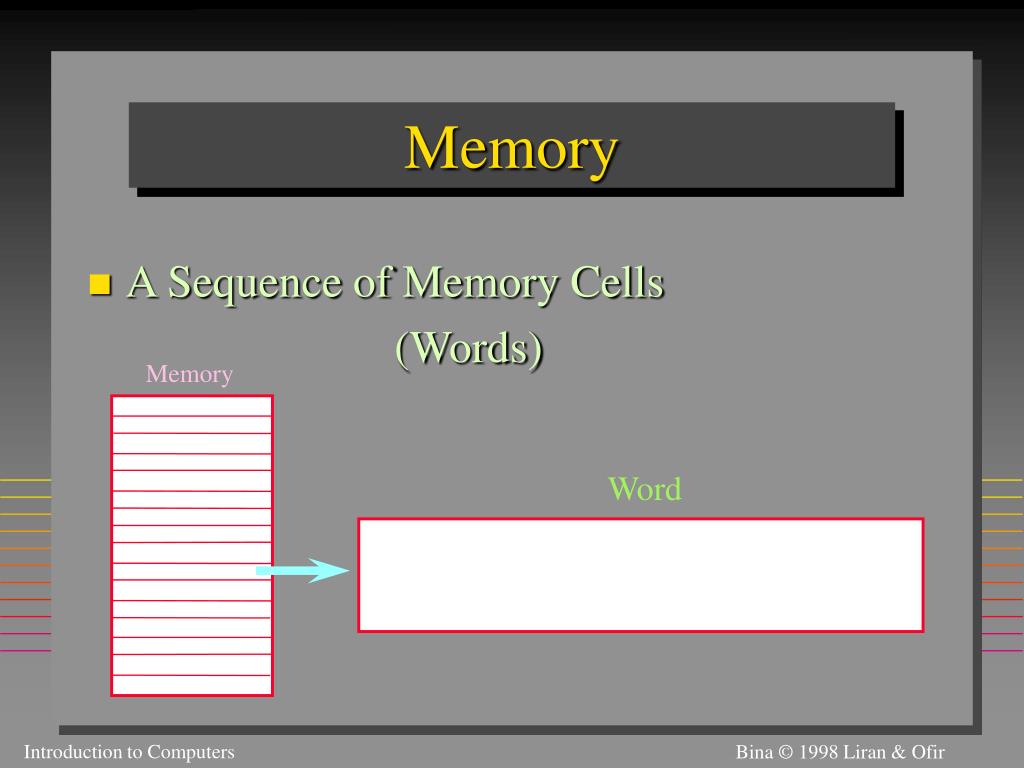

  22. Memory Memory • A Sequence of Memory Cells (Words) Word

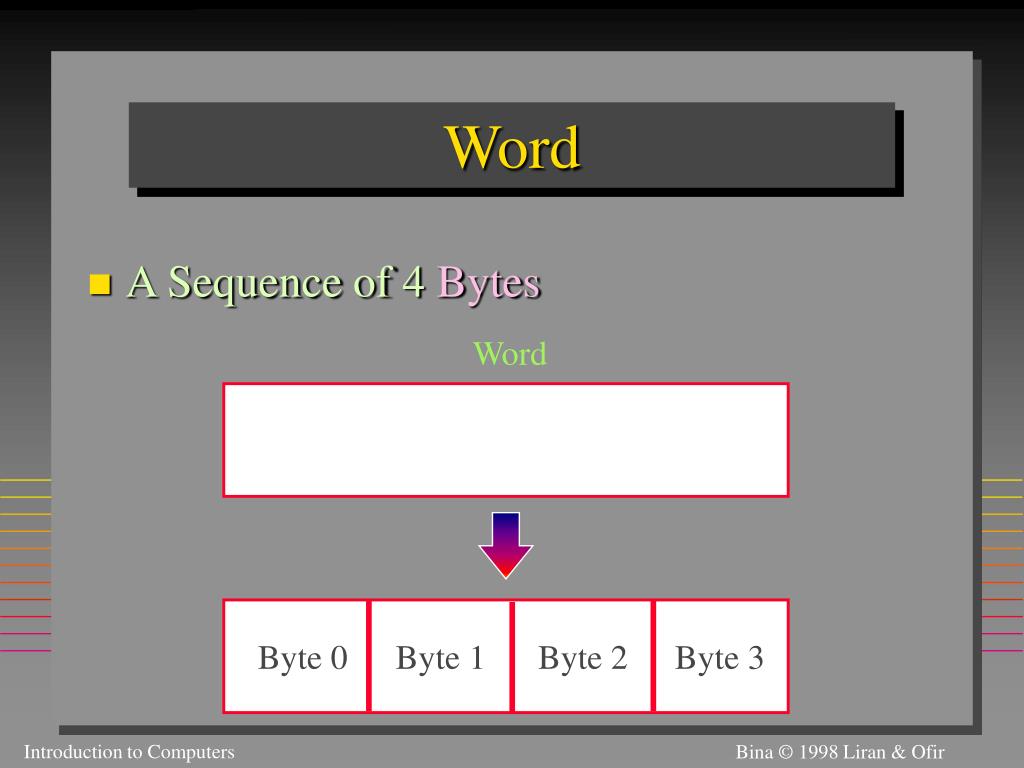

  23. Word Word • A Sequence of 4 Bytes Byte 0 Byte 1 Byte 2 Byte 3

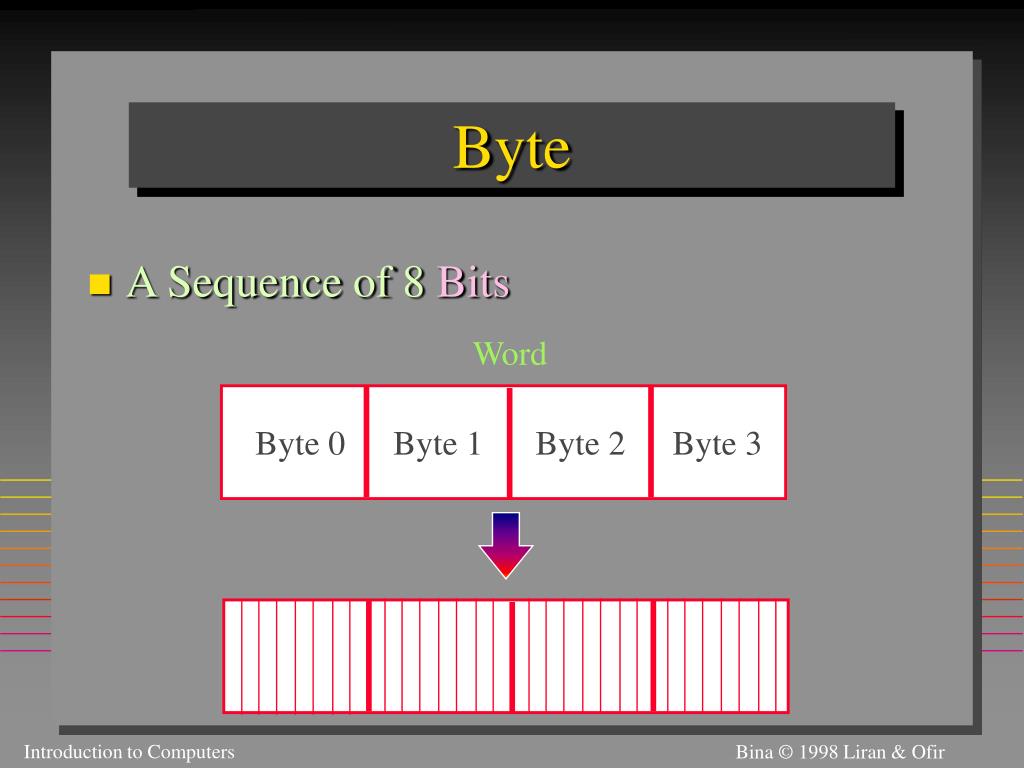

  24. Byte • A Sequence of 8 Bits Word Byte 0 Byte 1 Byte 2 Byte 3

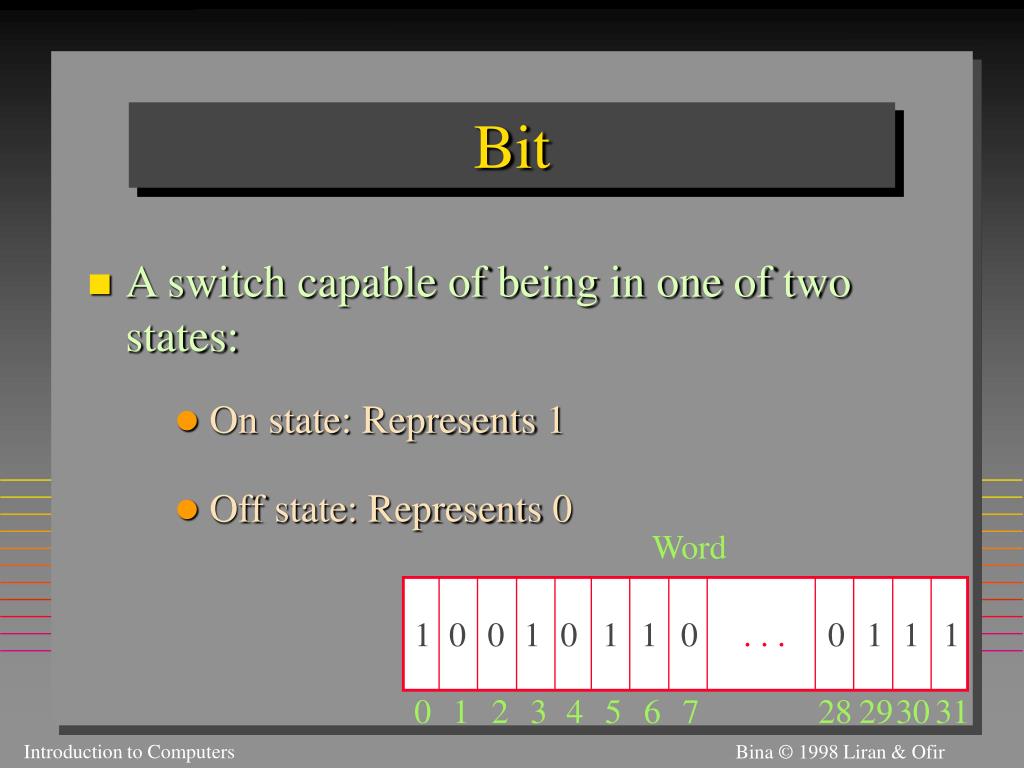

  25. 1 0 0 1 0 1 1 0 . . . 0 1 1 1 Bit • A switch capable of being in one of two states: • On state: Represents 1 • Off state: Represents 0 Word 0 1 2 3 4 5 6 7 28 29 30 31

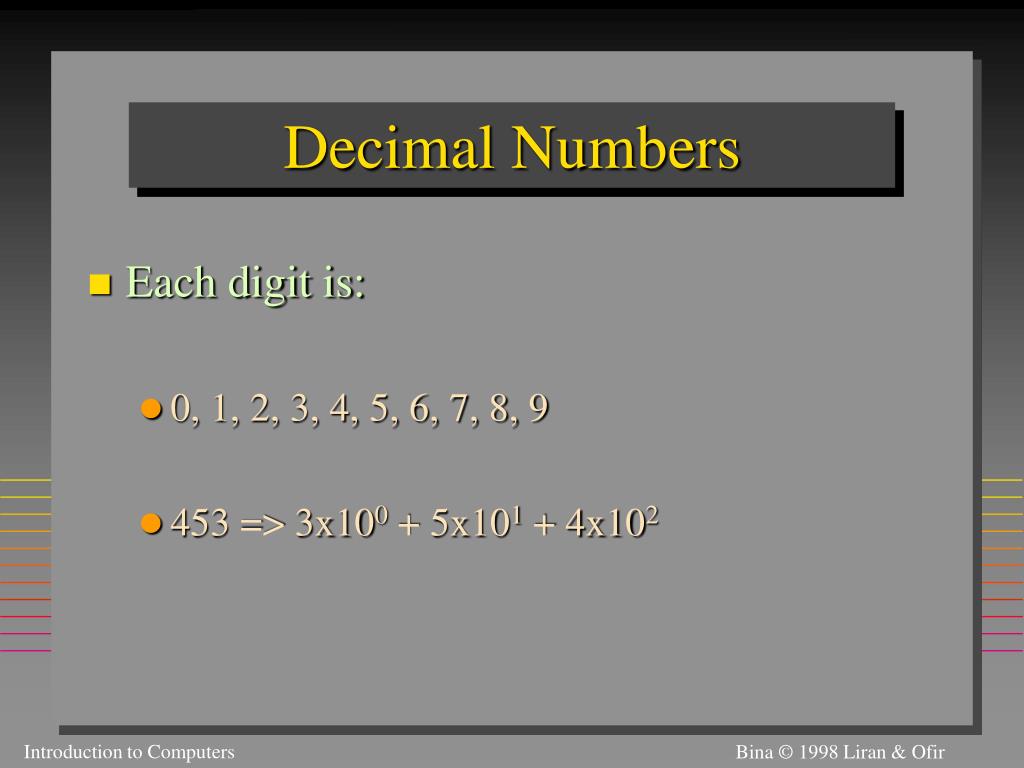

  26. Decimal Numbers • Each digit is: • 0, 1, 2, 3, 4, 5, 6, 7, 8, 9 • 453 => 3x100 + 5x101 + 4x102

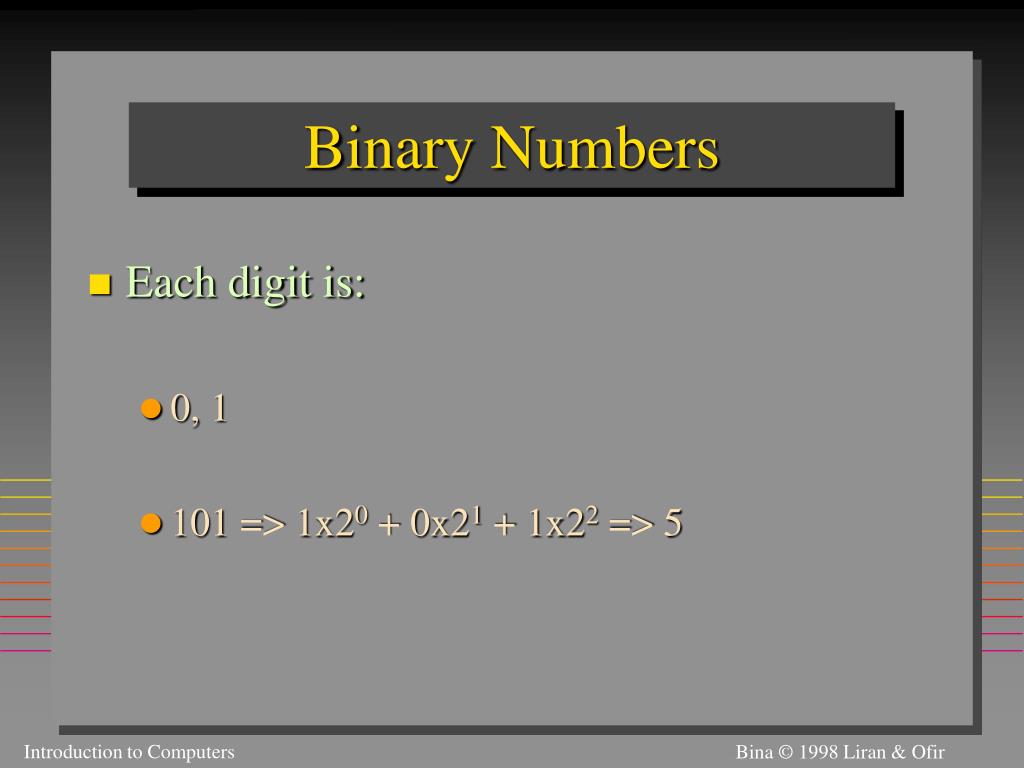

  27. Binary Numbers • Each digit is: • 0, 1 • 101 => 1x20 + 0x21 + 1x22 => 5

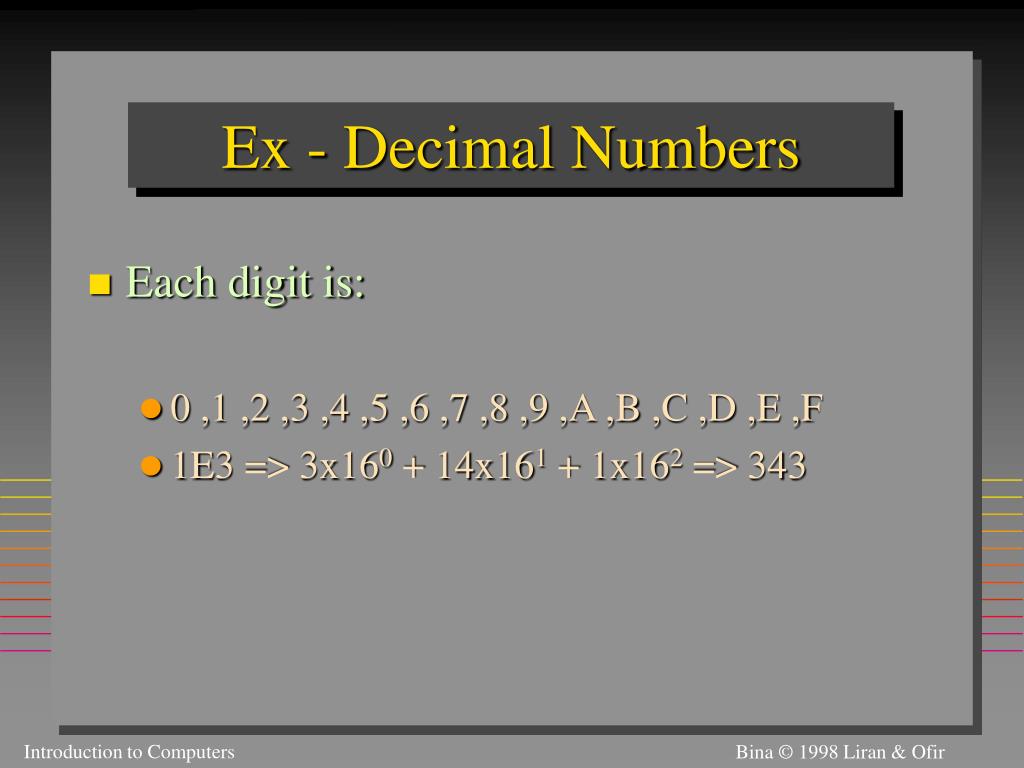

  28. Ex - Decimal Numbers • Each digit is: • 0 ,1 ,2 ,3 ,4 ,5 ,6 ,7 ,8 ,9 ,A ,B ,C ,D ,E ,F • 1E3 => 3x160 + 14x161 + 1x162 => 343
