  1. MB - NG Bringing High-Performance Networking to HEP users Richard Hughes-Jones Stephen Dallison, Nicola Pezzi, Yee-Ting Lee UKLIGHT CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  2. The Bandwidth Challenge at SC2003 • Peak bandwidth 23.21Gbits/s • 6.6 TBytes in 48 minutes Phoenix - Amsterdam 4.35 Gbit HighSpeed TCP rtt 175 ms , window 200 MB CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

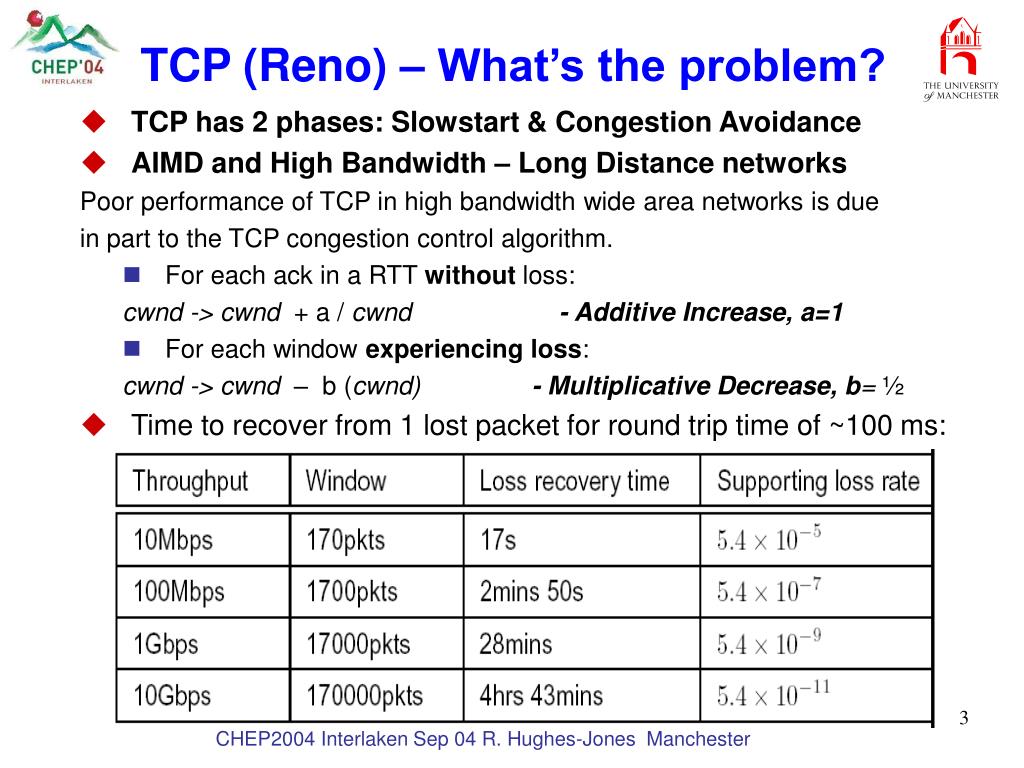

  3. TCP (Reno) – What’s the problem? • TCP has 2 phases: Slowstart & Congestion Avoidance • AIMD and High Bandwidth – Long Distance networks Poor performance of TCP in high bandwidth wide area networks is due in part to the TCP congestion control algorithm. • For each ack in a RTT without loss: cwnd -> cwnd + a / cwnd - Additive Increase, a=1 • For each window experiencing loss: cwnd -> cwnd – b (cwnd) - Multiplicative Decrease, b= ½ • Time to recover from 1 lost packet for round trip time of ~100 ms: CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  4. Investigation of new TCP Stacks • The AIMD Algorithm – Standard TCP (Reno) • For each ack in a RTT without loss: cwnd -> cwnd + a / cwnd - Additive Increase, a=1 • For each window experiencing loss: cwnd -> cwnd – b (cwnd) - Multiplicative Decrease, b= ½ • High Speed TCP a and b vary depending on current cwnd using a table • a increases more rapidly with larger cwnd – returns to the ‘optimal’ cwnd size sooner for the network path • b decreases less aggressively and, as a consequence, so does the cwnd. The effect is that there is not such a decrease in throughput. • Scalable TCP a and b are fixed adjustments for the increase and decrease of cwnd • a = 1/100 – the increase is greater than TCP Reno • b = 1/8 – the decrease on loss is less than TCP Reno • Scalable over any link speed. • Fast TCP Uses round trip time as well as packet loss to indicate congestion with rapid convergence to fair equilibrium for throughput. • HSTCP-LP, H-TCP, BiC-TCP CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  5. MB-NG Managed Bandwidth Packet Loss with new TCP Stacks • TCP Response Function • Throughput vs Loss Rate – further to right: faster recovery • Drop packets in kernel MB-NG rtt 6ms DataTAG rtt 120 ms CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  6. Send data with TCP Drop Packets Monitor TCP with Web100 man03 lon01 High Throughput Demonstrations London (Chicago) Manchester (Geneva) Dual Zeon 2.2 GHz Dual Zeon 2.2 GHz Cisco GSR Cisco GSR Cisco 7609 Cisco 7609 1 GEth 1 GEth 2.5 Gbit SDH MB-NG Core CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  7. MB-NG Managed Bandwidth High Performance TCP – MB-NG • Drop 1 in 25,000 • rtt 6.2 ms • Recover in 1.6 s Standard HighSpeed Scalable CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  8. High Performance TCP – DataTAG • Different TCP stacks tested on the DataTAG Network • rtt 128 ms • Drop 1 in 106 • High-Speed • Rapid recovery • Scalable • Very fast recovery • Standard • Recovery would take ~ 20 mins CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

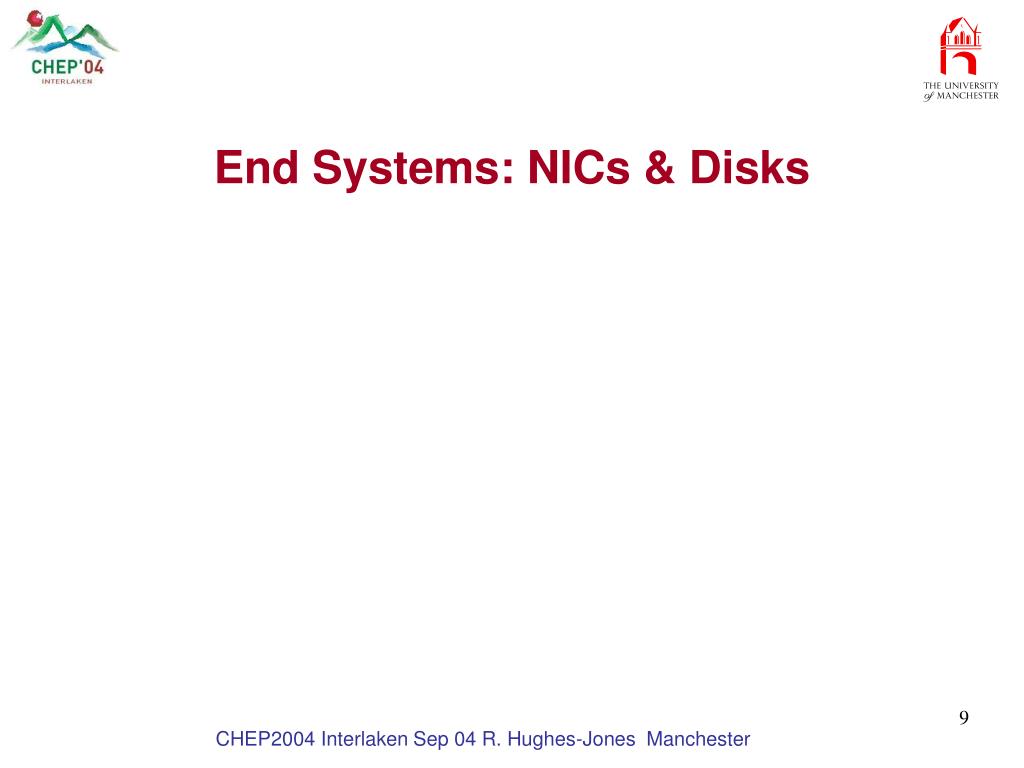

  9. End Systems: NICs & Disks CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  10. End Hosts & NICs SuperMicro P4DP6 • Use UDP packets to characterise Host & NIC • SuperMicro P4DP6 motherboard • Dual Xenon 2.2GHz CPU • 400 MHz System bus • 66 MHz 64 bit PCI bus Throughput Latency Bus Activity CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  11. Memory - Disk Write Speeds Disk – Memory Read Speeds Host, PCI & RAID Controller Performance • RAID5 (stripped with redundancy) • 3Ware 7506 Parallel 66 MHz 3Ware 7505 Parallel 33 MHz • 3Ware 8506 Serial ATA 66 MHz ICP Serial ATA 33/66 MHz • Tested on Dual 2.2 GHz Xeon Supermicro P4DP8-G2 motherboard • Disk: Maxtor 160GB 7200rpm 8MB Cache • Read ahead kernel tuning: /proc/sys/vm/max-readahead = 512 • RAID0 (stripped) Read 1040 Mbit/s, Write 800 Mbit/s CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  12. The performance of the end host / disks BaBar Case Study: RAID BW & PCI Activity • 3Ware 7500-8 RAID5 parallel EIDE • 3Ware forces PCI bus to 33 MHz • BaBar Tyan to MB-NG SuperMicroNetwork mem-mem 619 Mbit/s • Disk – disk throughput bbcp40-45 Mbytes/s (320 – 360 Mbit/s) • PCI bus effectively full! • User throughput ~ 250 Mbit/s Read from RAID5 Disks Write to RAID5 Disks CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

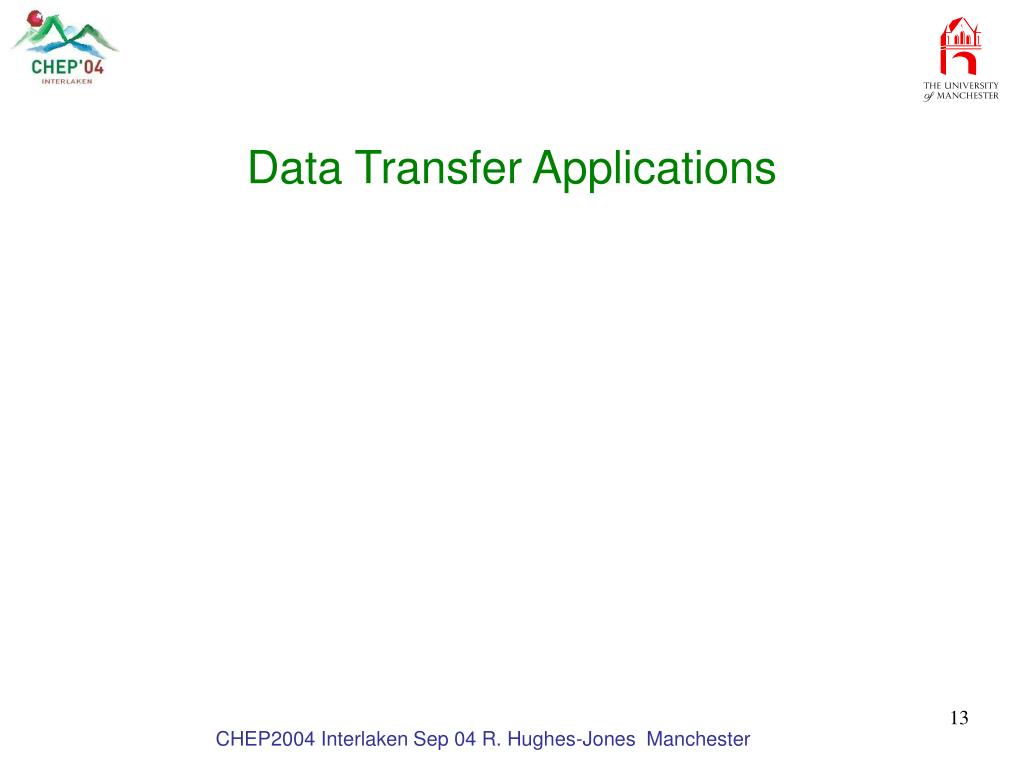

  13. Data Transfer Applications CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  14. The Tests (being) Made CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  15. Manchester Domain UKERNA DevelopmentNetwork UCL Domain Boundary Router Cisco 7609 Boundary Router Cisco 7609 lon02 lon01 lon03 HW RAID HW RAID Edge Router Cisco 7609 MB-NG ral02 ral02 RAL Domain Managed Bandwidth Key Gigabit Ethernet 2.5 Gbit POS Access MPLS Admin. Domains ral01 Boundary Router Cisco 7609 man02 man03 man01 Topology of the MB – NG Network CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  16. HW RAID HW RAID ral01 man01 Topology of the Production Network Manchester Domain 3 routers2 switches RAL Domain routers switches Key Gigabit Ethernet 2.5 Gbit POS Access 10 Gbit POS CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

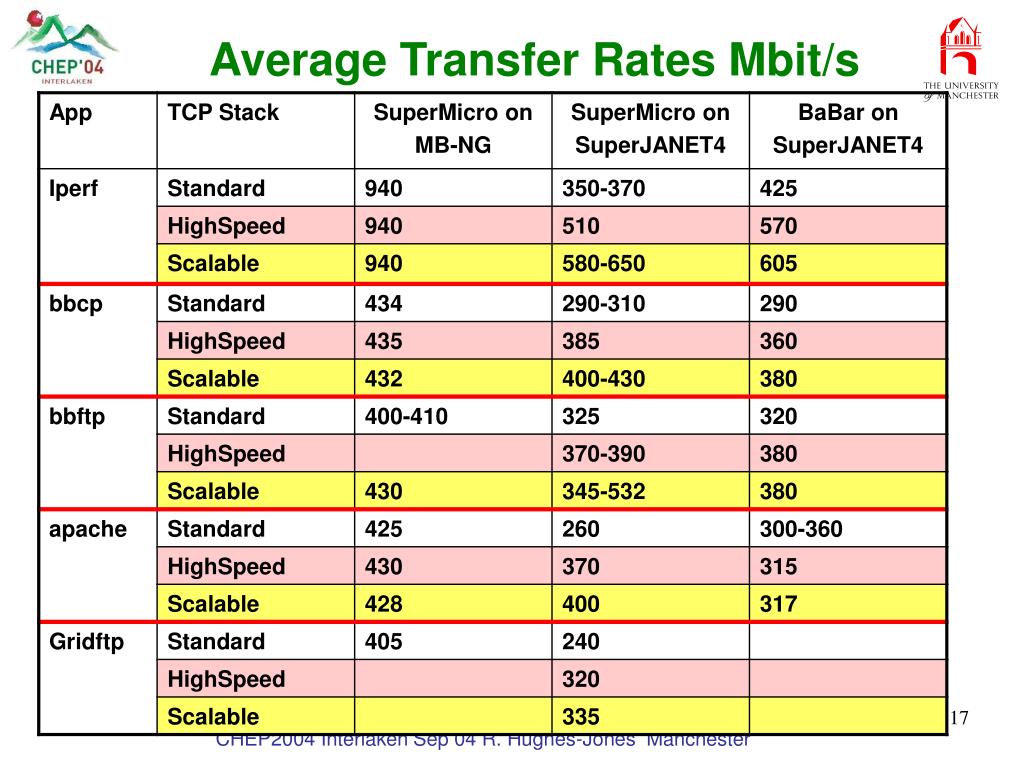

  17. Average Transfer Rates Mbit/s CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  18. BaBar on Production network • Standard TCP • 425 Mbit/s • DupACKs 350-400 – re-transmits iperf Throughput + Web100 • SuperMicro on MB-NG network • HighSpeed TCP • Linespeed 940 Mbit/s • DupACK ? <10 (expect ~400) CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  19. bbftp: Host & Network Effects • 2 Gbyte file RAID5 Disks: • 1200 Mbit/s read • 600 Mbit/s write • Scalable TCP • BaBar + SuperJANET • Instantaneous 220 - 625 Mbit/s • SuperMicro + SuperJANET • Instantaneous 400 - 665 Mbit/s for 6 sec • Then 0 - 480 Mbit/s • SuperMicro + MB-NG • Instantaneous 880 - 950 Mbit/s for 1.3 sec • Then 215 - 625 Mbit/s CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  20. bbftp: What else is going on? • Scalable TCP • BaBar + SuperJANET • SuperMicro + SuperJANET • Congestion window – dupACK • Variation not TCP related? • Disk speed / bus transfer • Application CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  21. Applications: Throughput Mbit/s • HighSpeed TCP • 2 GByte file RAID5 • SuperMicro + SuperJANET • bbcp • bbftp • Apachie • Gridftp • Previous work used RAID0(not disk limited) CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  22. MB-NG Managed Bandwidth Summary, Conclusions & Thanks • Motherboards NICs, RAID controllers and Disks matter • The NICs should be well designed: • NIC should use 64 bit 133 MHz PCI-X (66 MHz PCI can be OK) • NIC/drivers: CSR access / Clean buffer management / Good interrupt handling • Worry about the CPU-Memory bandwidth as well as the PCI bandwidth • Data crosses the memory bus at least 3 times • Separate the data transfers – use motherboards with multiple 64 bit PCI-X buses • 32 bit 33 MHz is too slow for Gigabit rates • 64 bit 33 MHz > 80% used • Choose a modern high throughput RAID controller • Consider SW RAID0 of RAID5 HW controllers • Need plenty of CPU power for sustained 1 Gbit/s transfers • Work with Campus network engineers to eliminate bottlenecks and packet loss • High bandwidth link to your server • Look for Access link overloading / old Ethernet equipment / flow limitation policies • Use of Jumbo frames, Interrupt Coalescence and Tuning the PCI-X bus helps • New TCP stacks are stable and run with 10 Gigabit Ethernet NICs • New stacks give better response & performance • Still need to set the tcp buffer sizes • System maximums in collaboration with the sysadmin • Socket sizes in the application • Application architecture & implementation is also important CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  23. More Information Some URLs • MB-NG project web site:http://www.mb-ng.net/ • DataTAG project web site: http://www.datatag.org/ • UDPmon / TCPmon kit + writeup: http://www.hep.man.ac.uk/~rich/net • Motherboard and NIC Tests: www.hep.man.ac.uk/~rich/net/nic/GigEth_tests_Boston.ppt& http://datatag.web.cern.ch/datatag/pfldnet2003/ “Performance of 1 and 10 Gigabit Ethernet Cards with Server Quality Motherboards” FGCS Special issue 2004 • TCP tuning information may be found at:http://www.ncne.nlanr.net/documentation/faq/performance.html& http://www.psc.edu/networking/perf_tune.html • TCP stack comparisons:“Evaluation of Advanced TCP Stacks on Fast Long-Distance Production Networks” Journal of Grid Computing 2004 CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

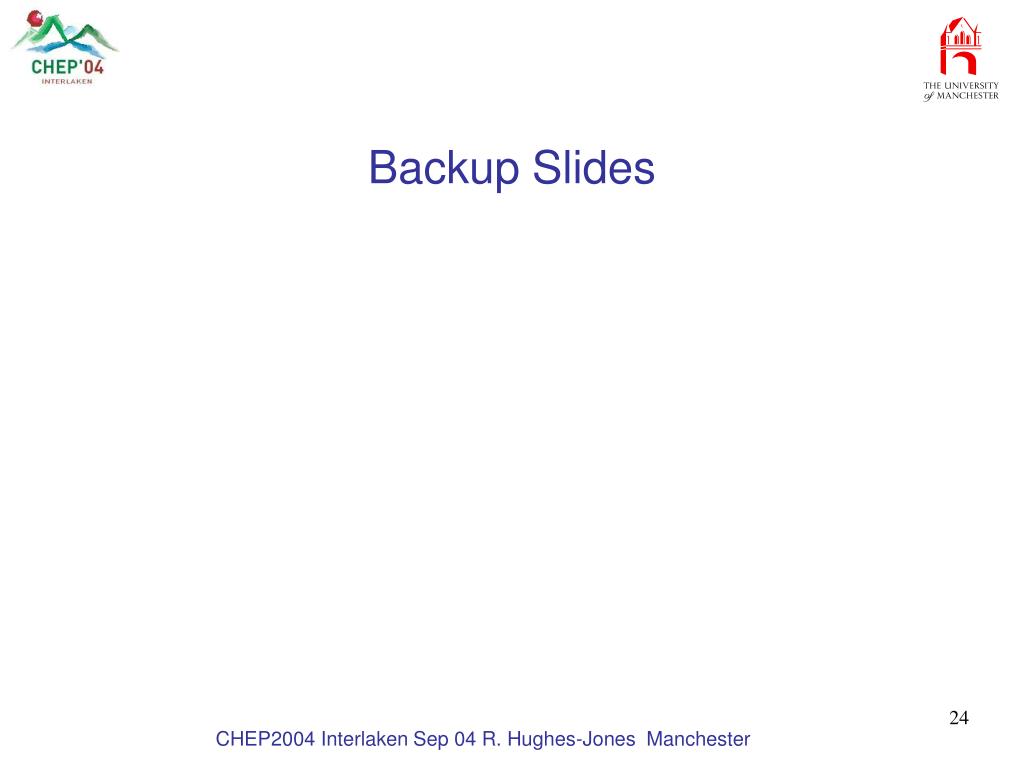

  24. Backup Slides CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  25. SuperMicro P4DP6: Throughput Intel Pro/1000 • Motherboard: SuperMicro P4DP6 Chipset: Intel E7500 (Plumas) • CPU: Dual Xeon Prestonia 2.2 GHz PCI, 64 bit, 66 MHz • RedHat 7.2 Kernel 2.4.19 • Max throughput 950Mbit/s • No packet loss • CPU utilisation on the receiving PC was ~ 25 % for packets > than 1000 bytes • 30- 40 % for smaller packets CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  26. SuperMicro P4DP6: Latency Intel Pro/1000 • Motherboard: SuperMicro P4DP6 Chipset: Intel E7500 (Plumas) • CPU: Dual Xeon Prestonia 2.2 GHz PCI, 64 bit, 66 MHz • RedHat 7.2 Kernel 2.4.19 • Some steps • Slope 0.009 us/byte • Slope flat sections : 0.0146 us/byte • Expect 0.0118 us/byte • No variation with packet size • FWHM 1.5 us • Confirms timing reliable CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

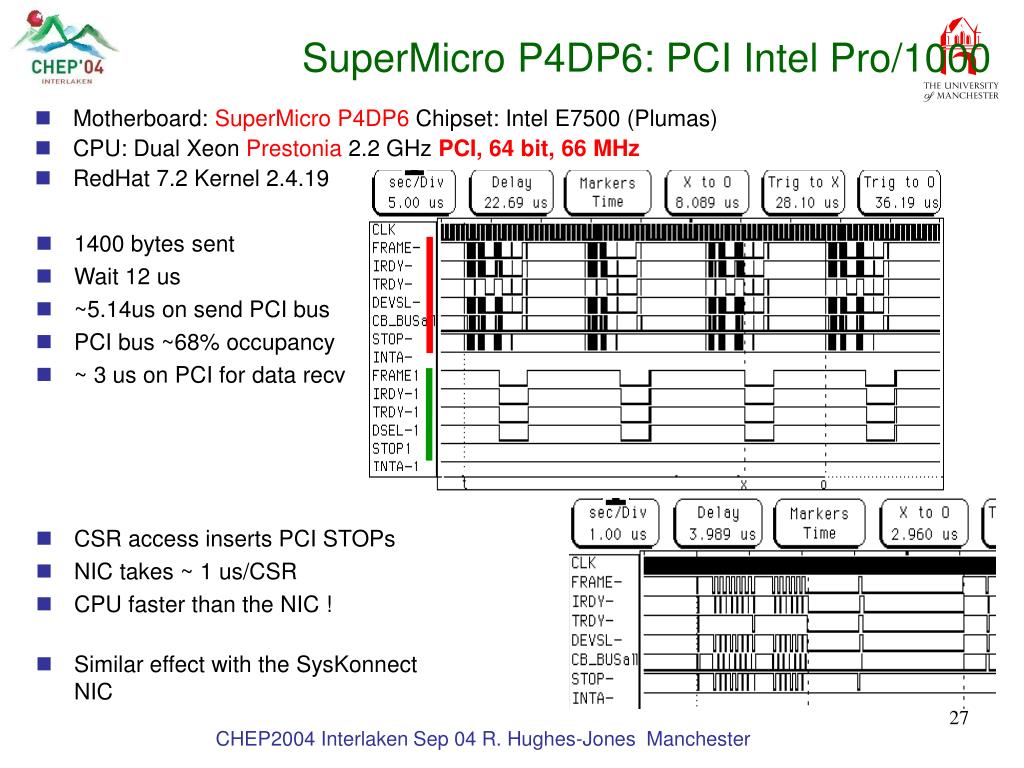

  27. SuperMicro P4DP6: PCI Intel Pro/1000 • Motherboard: SuperMicro P4DP6 Chipset: Intel E7500 (Plumas) • CPU: Dual Xeon Prestonia 2.2 GHz PCI, 64 bit, 66 MHz • RedHat 7.2 Kernel 2.4.19 • 1400 bytes sent • Wait 12 us • ~5.14us on send PCI bus • PCI bus ~68% occupancy • ~ 3 us on PCI for data recv • CSR access inserts PCI STOPs • NIC takes ~ 1 us/CSR • CPU faster than the NIC ! • Similar effect with the SysKonnect NIC CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  28. Raid0 Performance (1) • 3Ware 7500-8 RAID0parallel EIDE • Maxtor 3.5 Series DiamondMax Plus 9 120 Gb ATA/133 • Raid stripe size 64 bytes • WriteSlight increase with number of disks • Read • 3 Disks OK • Write 100 MBytes/s • Read 130 MBytes/s CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  29. Raid0 Performance (2) • Maxtor 3.5 Series DiamondMax PLus 9 120 Gb ATA/133 • No difference for Write • Larger Stripe lower the performance • Write 100 MBytes/s • Read 120 MBytes/s CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  30. Raid5 Disk Performance vs readahead_max • BaBar Disk Server • Tyan Tiger S2466N motherboard • 1 64bit 66 MHz PCI bus • Athlon MP2000+ CPU • AMD-760 MPX chipset • 3Ware 7500-8 RAID5 • 8 * 200Gb Maxtor IDE 7200rpm disks • Note the VM parameterreadahead max • Disk to memory (read)Max throughput 1.2 Gbit/s 150 MBytes/s) • Memory to disk (write)Max throughput 400 Mbit/s 50 MBytes/s)[not as fast as Raid0] CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  31. Host, PCI & RAID Controller Performance • RAID0 (striped) & RAID5 (stripped with redundancy) • 3Ware 7506 Parallel 66 MHz 3Ware 7505 Parallel 33 MHz • 3Ware 8506 Serial ATA 66 MHz ICP Serial ATA 33/66 MHz • Tested on Dual 2.2 GHz Xeon Supermicro P4DP8-G2 motherboard • Disk: Maxtor 160GB 7200rpm 8MB Cache • Read ahead kernel tuning: /proc/sys/vm/max-readahead CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  32. Serial ATA Raid Controllers RAID5 • ICP 66 MHz PCI • 3Ware 66 MHz PCI CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  33. RAID Controller Performance Write Speed Read Speed RAID 0 RAID 5 CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  34. Gridftp Throughput + Web100 • RAID0 Disks: • 960 Mbit/s read • 800 Mbit/s write • Throughput Mbit/s: • See alternate 600/800 Mbit and zero • Data Rate: 520 Mbit/s • Cwnd smooth • No dup Ack / send stall /timeouts CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  35. http data transfers HighSpeed TCP • Same Hardware • RAID0 Disks • Bulk data moved by web servers • Apachie web server out of the box! • prototype client - curl http library • 1Mbyte TCP buffers • 2Gbyte file • Throughput ~720 Mbit/s • Cwnd - some variation • No dup Ack / send stall / timeouts CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester

  36. Bbcp & GridFTP Throughput • RAID5 - 4disks Manc – RAL • 2Gbyte file transferred • bbcp • Mean 710 Mbit/s • DataTAG altAIMD kernel in BaBar & ATLAS Mean ~710 • GridFTP • See many zeros Mean ~620 CHEP2004 Interlaken Sep 04 R. Hughes-Jones Manchester
