  1. On the Distribution of Responsibility for Network Security Scott Dexter Dept. of Computer and Information Science Brooklyn College

  2. Overview • My Perspective • My Argument • Dramatis Personae • Their Roles (and Malfeasances) • and Their Eventual Rehabilitation

  3. My Perspective • Theoretician by training and inclination • Dissertation: formal/logical analysis of security protocols • Implementation details sometimes regarded as abhorrent • Interested in relationship between individual empowerment and collective behavior • Deeply committed to (public) education

  4. My Argument • Network/computer security is really interesting... • …mostly because of its social intractability: • Any actor, at any level, may (easily) cause a “security breach” • Probably due only to ignorance, human error, laziness, or even kindness • But could impact many others • No easy fix • Need some technical solutions • Need lots of different kinds of education

  5. Network Technologies • “The Internet” • One of many technologies • (and can be said to be composed of many itself) • Designed for robustness and reliability (which is one aspect of “security”) • Designed to accommodate innovation • Also need • Proprietary/closed networks (e.g. bank machines) • Network applications “on top of” Internet

  6. Actors • Designers • Implementers • Administrators • Users • (“Hackers”)

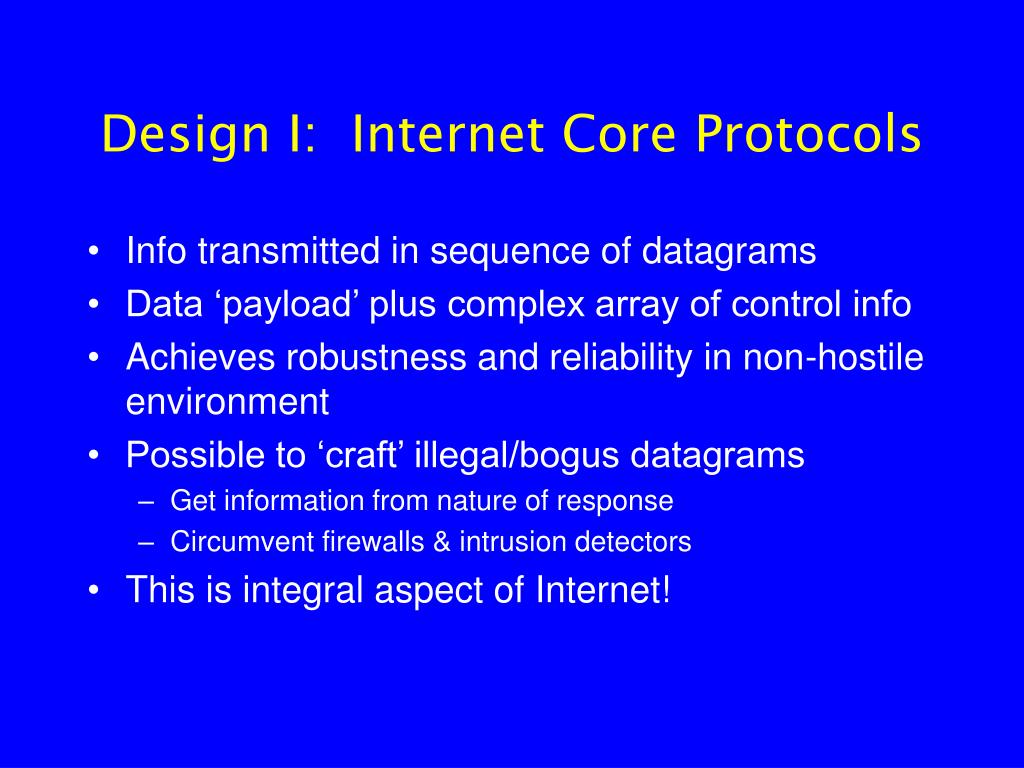

  7. Design I: Internet Core Protocols • Info transmitted in sequence of datagrams • Data ‘payload’ plus complex array of control info • Achieves robustness and reliability in non-hostile environment • Possible to ‘craft’ illegal/bogus datagrams • Get information from nature of response • Circumvent firewalls & intrusion detectors • This is integral aspect of Internet!

  8. Design II: Cryptographic Security • Appropriate use of cryptography has potential to solve many security problems • Can support many services: • Confidentiality (hide content from others) • Integrity (assure that content hasn’t changed) • Authenticity (demonstrate/confirm identity) • But appropriate is incredibly difficult….

  9. One Scenario: “Key Distribution” Alice Bob

  10. One Scenario: “Key Distribution” Alice Bob

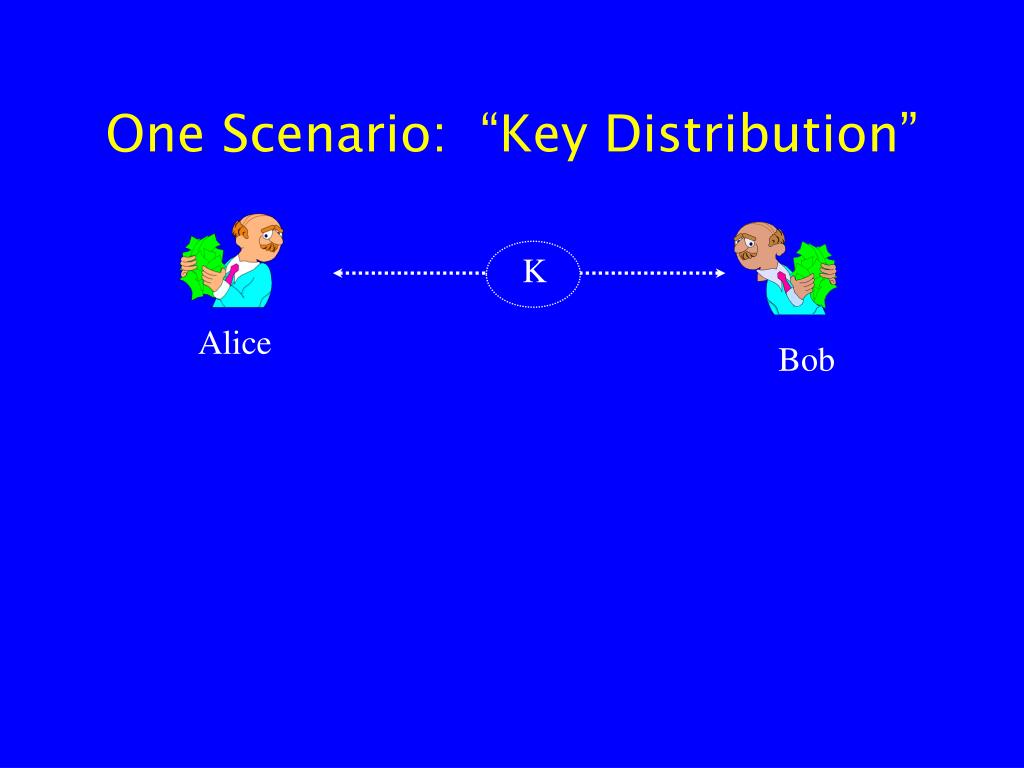

  11. One Scenario: “Key Distribution” K Alice Bob

  12. Mallory One Scenario: “Key Distribution” K Alice Bob KA KB Solomon

  13. Passive Attacks Eavesdropping Public Information Agent Identities Algorithms Protocol Design “Legitimate” Identity Active Attacks Modification Redirection Suppression Fake Messages Mallory’s Machinations

  14. Defenses • Cryptography • Encryption {m}kencrypt message m with key k • Time • Nonces M,N random numbers “used only once” • “Handshake” function • (e.g. decrement) f(m) relates to “strong encryption”: assumption that {x}k and {g(x)}k (for any function g) are not easily computed from each other

  15. The Needham-Schroeder Protocol AS: A, B, N A B S

  16. The Needham-Schroeder Protocol AS: A, B, N SA: {N, B, K, {K,A}KB}KA A B S

  17. The Needham-Schroeder Protocol AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB A B S

  18. The Needham-Schroeder Protocol AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K A B S

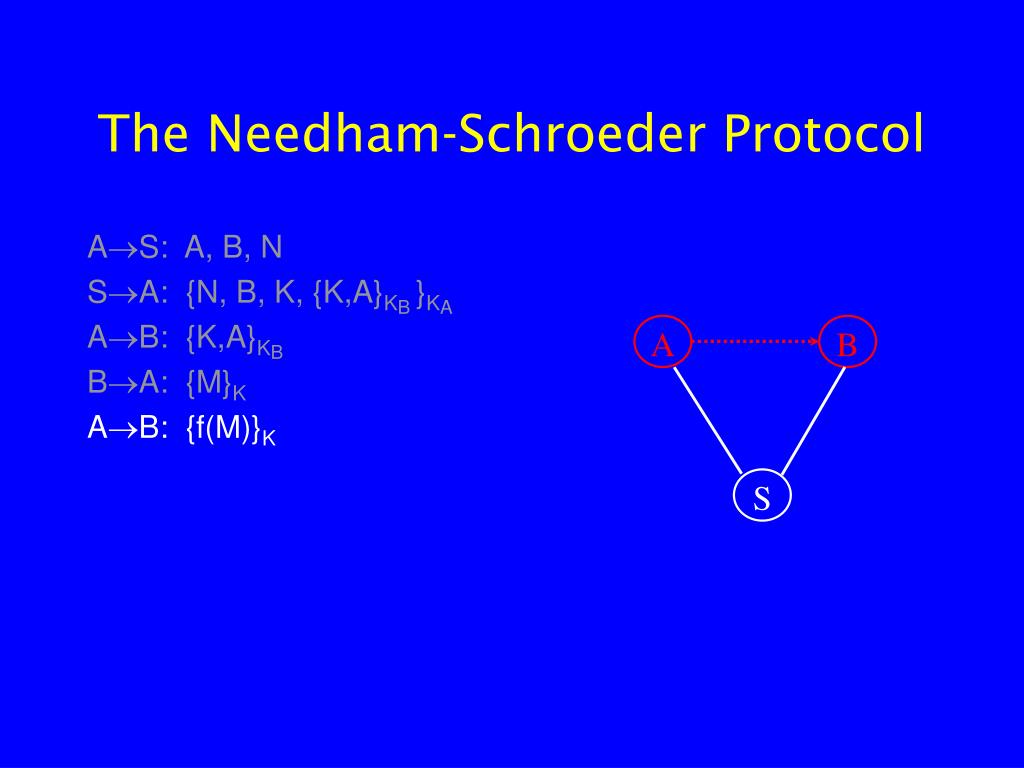

  19. The Needham-Schroeder Protocol AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K AB: {f(M)}K A B S

  20. The Needham-Schroeder Protocol AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K AB: {f(M)}K AB: {P}K once protocol completes, BA: {Q}K A and B can send messages over secure channel A B S

  21. But . . . AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K AB: {f(M)}K What if Mallory • learns {K,A}KB • learns K ?

  22. Mallory Attacks! AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K AB: {f(M)}K (M)B: {K,A}KB

  23. Mallory Attacks! AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K AB: {f(M)}K (M)B: {K,A}KB B(M): {M}K

  24. Mallory Attacks! AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K AB: {f(M)}K (M)B: {K,A}KB B(M): {M}K (M)B: {f(M)}K

  25. Mallory Attacks! AS: A, B, N SA: {N, B, K, {K,A}KB}KA AB: {K,A}KB BA: {M}K AB: {f(M)}K (M)B: {K,A}KB B(M): {M}K (M)B: {f(M)}K . . . and now Bob thinks Mallory is Alice

  26. Design Revisited • Such mistakes are common even today • Protocols disarmingly simple • Error may not be discovered (by the “good guys”) for a long time

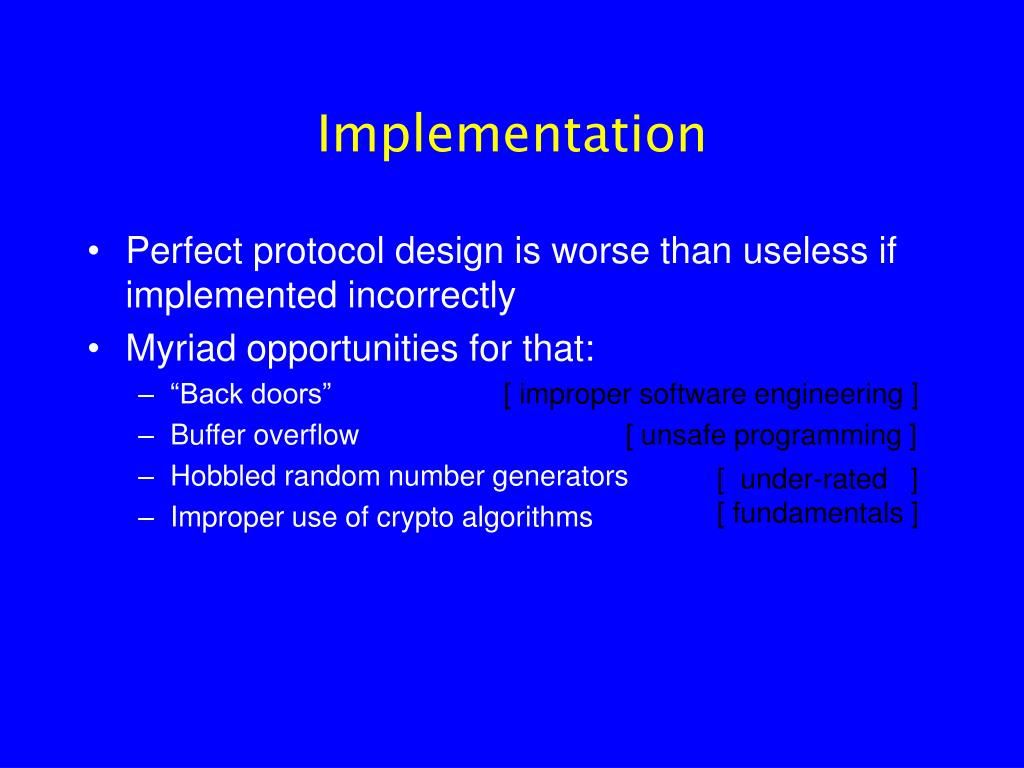

  27. Implementation • Perfect protocol design is worse than useless if implemented incorrectly • Myriad opportunities for that: • “Back doors” [ improper software engineering ] • Buffer overflow [ unsafe programming ] • Hobbled random number generators • Improper use of crypto algorithms • [ under-rated ] • [ fundamentals ]

  28. Administration • (Where to start?) • Enforcing security policy, e.g. • Password policy • Rogue modems • Internal threats • Intrusion prevention and detection • Information Gathering • Information Analysis • Response

  29. Information Gathering • ‘Normal’ Profiles • ‘Abnormal’ Signatures • Inbound Traffic Analysis • Audit Trail • On-the-Fly • Daily operational analysis (‘intuitive’)

  30. Information Analysis • What is an intrusion? • Traffic Analysis Indicators • Analysis Techniques

  31. Traffic Analysis Indicators • Repetition • Vulnerability Exploits • Mysterious Behavior / Problems • Unexpected/Inconsistent Activity

  32. Analysis Techniques • Pattern-matching & Signatures • Dynamic Association • Statistical Profiling • Audit Reduction

  33. Response • False Positives • Traceback & Anonymity • Offensive Action & Traps

  34. Intrusion Detection Revisited • Technical component: • Hardware to scan traffic • Software to process traffic • Crafty component: • Clear understanding of normal traffic • Finger on the pulse • Sensitive viscera • Constant re-education

  35. Users • Increasingly must be network admins at home • Personal privacy/security • Often must trust integrity of arcane infrastructure • Major target of “social engineering” • Critical thinking • Analytic problem-solving

  36. Conclusions… • Improving security is fundamentally not technical • Must provide access to resources and knowledge • Must not let technology of security undermine permissive structure of Internet
