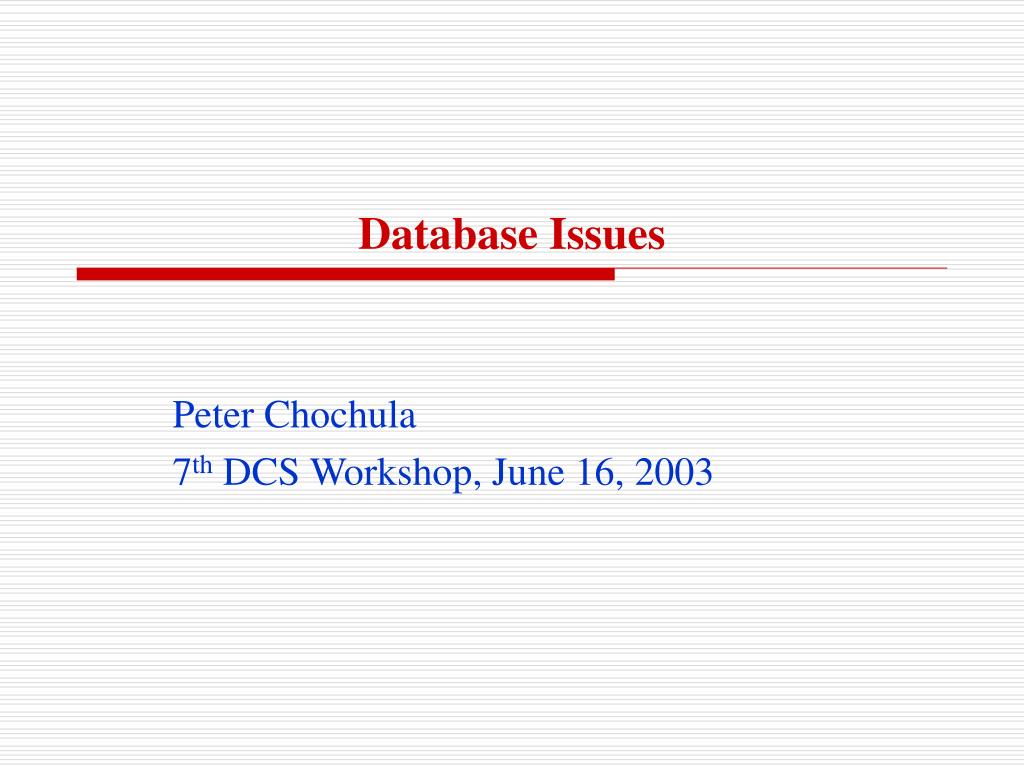

  1. Database Issues Peter Chochula 7th DCS Workshop, June 16, 2003

  2. Acknowledgments • Presented information was collected from several sources. • Many slides are directly taken from F.Carminati, L.Betev and Laura del Cano. Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  3. Outline • This talk is collection of different database related topics • The aim of this talk is to clarify some terms • The talk is far from being conclusive – please see it as a collection of topics for discussions Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  4. Reference talks: Databases for ALICE P.Buncic & F.Carminati Technical Board Geneva, December 16 Update on ALICE Databases L. Betev ALICE Technical Board Geneva, May 20 Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  5. Partial list of Databases in Alice (Source: talk of L.Betev) • Development by other groups in ALICE • Detector Construction (DCDB) • Run Control and Configuration (DATE) • Detector Control System (DCS) – Configuration, Logging • Cable database • Development by the off-line group • File Catalogue (ALiEn) • Detector Calibration • Detector Geometry • Development by other groups at CERN • Database for Equipment Management (DEM) • Currently being defined, EST/ISS group in charge Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  6. Detector Construction Database • Reference: http://det-dbalice.if.pw.edu.pl/det-dbalice/alice.html • Contains all data related to the detector construction • Essential tool for tracking of detector properties during the construction time • Warsaw group is developing the ALICE DCDB • For more information please refer to meeting organized by W. Peryt on June 17 Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  7. Offline Calibration Database (Source: talk of L.Betev) The choices of the object store technology has already been done i.e. ROOT Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  8. Database for Equipment Management (DEM) • Will store information about the properties, location and service connections of equipment installed into the LHC experiments • Main usage of DEM: • Tracking of equipment (INB protocol) • Management of material flow in experimental areas • Management of material positioning in underground areas • Planning support of maintenance operations • Call for User Requirements was submitted to offline board Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  9. Relationship of DEM with other projects • Production data will be stored in several places • ST databases will store information about cabling • Connection to condition database, DCDB etc. will be needed ALICE is involved in the DEM project Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  10. DCS Databases in Alice – Configuration System Configuration Configuration DB Device Configuration Dynamic Configuration FERO Configuration PVSS Hardware Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  11. FW PVSS Configuration Prototype • See talk given by Laura del Cano to JCOP FWG Meeting: http://itcobe.web.cern.ch/itcobe/Projects/Framework/Presentations/welcome.html • Configuration data: • System Static Configuration (e.g. which processes are running, managers, drivers etc.) • Device Static Configuration (device structure, addresses, etc.) • Device Dynamic Configuration – Recipe (device settings, archiving, alarm limits etc.) Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  12. FW PVSS Configuration Prototype Implementation • Database access based on ADO • ETM provides sets of libraries enabling “quasi” ADO functionality on Linux • Underlying database system: Oracle and/or MySQL • Few limitations based on data type diferencies between Oracle and MySQL Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  13. FW PVSS Configuration Prototype Status • First version prepared for beta testing • Panels integrated in Device Editor/Navigator • Set of panels for recipe management • Database integrated with framework panels • Libraries for database connectivity • Present version works only with devices integrated in framework Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  14. FERO Configuration • Data is accessed directly by the FED software • PVSS only transfers configuration request • Prototype exists for SPD • Access Technology: ADO under Windows XP • Database : MySQL • DAQ and DCS will share FERO configuration data • Present agreement expects relational database and usage of standard SQL Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  15. DCS Databases in Alice - Logging PVSS Archive Archive Archive Condition DB Archive Present Model is based on PVSS Archiving scheme Condition DB is an extension of the standard archiving Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  16. DCS logging limitations • PVSS archives are distributed • Offline software might have problems to retrieve the information • Access to Archives is based on proprietary technology • Condition Database stores data “relevant to offline” • Disadvantage is data duplication • We always “forget” to store some data • In first approximation all data is “relevant” to offline • Possible replacement of archives with relational database is a very interesting option Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  17. FERO Configuration Database Prototype • SPD prototype is based on standard SQL • ADO has been chosen as access technology as it enables easy integration with different database systems • Prototype database is implemented in MySQL (Oracle version will follow) • Subdetectors are launching their database projects • There is an urgent need for coordination (see next talk on numbering and naming conventions) Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  18. Conclusions • The database problematic is evolving • There are many projects indirectly related to DCS • JCOP Framework is evaluating its PVSS configuration tools • First prototypes for FERO configuration exist • There is a need for coordination between projects • User feedback is essential • See next talk on naming and numbering conventions for additional details Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  19. ADO has been mentioned several times ( see also the talk on FERO presented at this workshop) • In following slides we provide a few basic facts about this technology Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  20. Data Access Technology – ADO (ActiveX Data Objects) • ADO provides object model for programmatically accessing, editing, and updating data from a wide variety of data sources • Ado is accessing data through OLE DB system interfaces. • The most common usage of ADO is to query a table or tables in a relational database, retrieve and display the results in an application, and allow users to make and save changes to the data. Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  21. ADO Examples • For a given database only a ODBC interface is available • Solution: Ole DB provider for ODBC source • Native OleDB provider exists • Solution: Ado talks directly to the provider • Data is stored in files on NTFS • Solution: Native OleDB provider over Microsoft Indexing Service can be used Peter Chochula 7th ALICE DCS Workshop, June 16, 2003

  22. Database Migration with ADO • Data is residing in MS access database stored in D:\Database\SPD_Prototype.MDB: • spCON->ConnectionString ="DRIVER={Microsoft Access Driver (*.mdb)};DBQ=SPD_Prototype.MDB;DefaultDir=d:\\database;"; • Data is Stored in MySQL Database residing at the same machine. ADO uses OLEDB Provider for ODBC sources: • spCON->ConnectionString ="DRIVER={MySQL ODBC 3.51 DRIVER};DB=SPD_Prototype;"; • Data is store on remote MySQL server. The connection details described in system DSN: • spCON-> ConnectionString="DSN=MySQL_Remote_SPD_Prototype;"; The rest of the program code remains EXACTLY the same ! Peter Chochula 7th ALICE DCS Workshop, June 16, 2003
