Advanced Tethered Lifting System for Atmospheric Testing

This database summarizes profiles utilizing a tethered lifting system for atmospheric testing at altitudes ranging from 40m to over 2km. Payloads include Basic Meteorological Payload, Turbulence Payload, Particle Counter, and PTR-MS inlet. The system addresses kite and tether icing issues, mechanical and biological interferences, and flow distortions. Profiles include data from various missions, such as MIZ/PI and Ice Drift.

sachi
Télécharger la présentation

Advanced Tethered Lifting System for Atmospheric Testing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

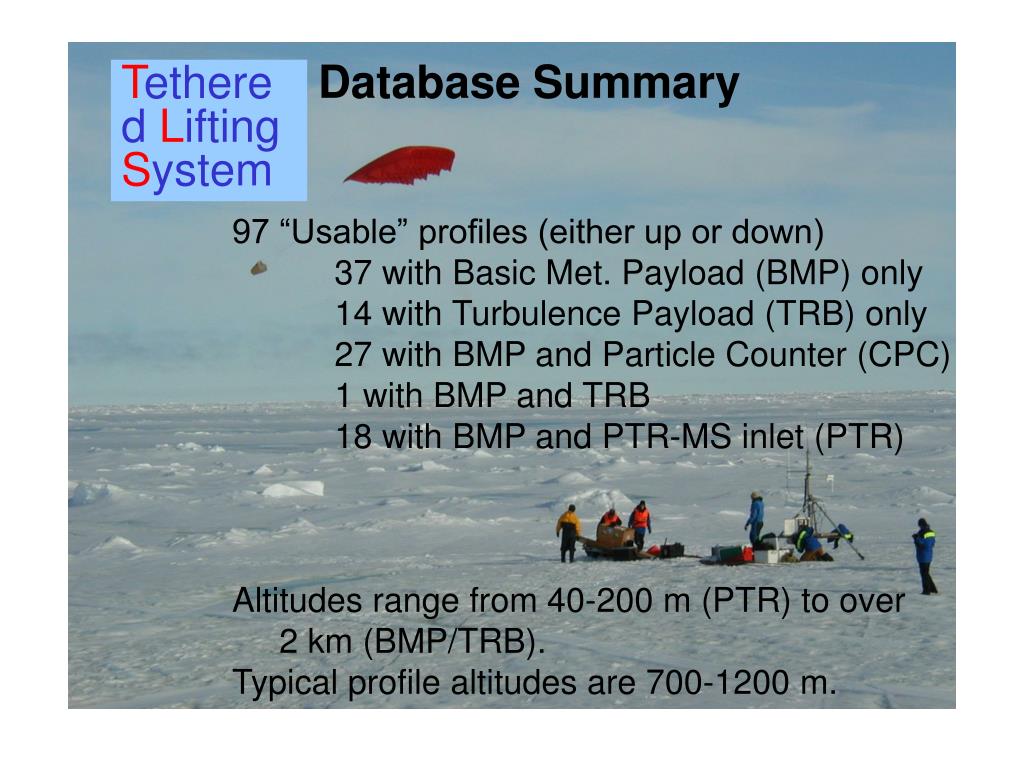

  1. Database Summary Tethered Lifting System 97 “Usable” profiles (either up or down) 37 with Basic Met. Payload (BMP) only 14 with Turbulence Payload (TRB) only 27 with BMP and Particle Counter (CPC) 1 with BMP and TRB 18 with BMP and PTR-MS inlet (PTR) Altitudes range from 40-200 m (PTR) to over 2 km (BMP/TRB). Typical profile altitudes are 700-1200 m.

  2. Payloads Basic Meteorological Payload Pressure Temp. (2) RH Wind Speed (Wind Direction) Pitch & Roll Condensation Particle Counter 4-channels: <20, 40, 100, 300 nm

  3. BMP Payload Example

  4. BMP & CPC Payloads Example

  5. TuRBulence Payload (TRB) 3D Winds Sonic Temp. Krypton Hygrometer Mean Temp. & RH GPS Motion sensors

  6. TRB Payload Example

  7. PTR-MS Raised Inlet System Proton Transfer Reaction- Mass Spectrometer (University of Innsbruck) Raised Inlet System

  8. Problem: Kite and Tether Icing Decreases kite efficiency Complicates winching

  9. Problem: Mechanical & Biological Interferences Contamination from the ship and snowmobiles Unwelcome visitors interrupting operations Flow distortion from the ship

  10. Example of Ship Flow Interference

  11. TLS Profiles from MIZ/PI

  12. JD190.404 (MIZ-1) [Gold]

  13. JD190.409 (MIZ-1) [Gold]

  14. JD190.426 (MIZ-1) [Gold]

  15. JD190.438 (MIZ-1) [Gold]

  16. JD193.325 (MIZ-2)

  17. JD193.333 (MIZ-2) {Heli 4,<Heli 5}

  18. * JD203.697 (PI-2)

  19. JD203.718 (PI-2)

  20. JD203.743 (PI-2)

  21. JD203.762 (PI-2) {Heli 10}

  22. JD203.780 (PI-2) {Heli 10}

  23. JD203.800 (PI-2)

  24. JD207.977 (PI-3) [Gold]

  25. JD207.990 (PI-3) [Gold]

  26. JD208.012 (PI-3) [Gold] {Heli 14}

  27. JD208.032 (PI-3) [Gold] {Heli 14}

  28. JD208.050 (PI-3) [Gold] {Heli 14}

  29. JD208.067 (PI-3) [Gold]

  30. JD208.100 (PI-3) [Gold]

  31. JD208.117 (PI-3) [Gold] {< Heli 15}

  32. JD208.566 (PI-3) [Gold] {> Heli 15}

  33. JD208.613 (PI-3) [Gold]

  34. TLS Profiles from the Ice Drift

  35. JD217.468 (Drift) [Silver]

  36. JD217.475 [Silver]

  37. JD217.613 [Silver]

  38. JD217.623 [Silver]

  39. JD217.637 [Silver]

  40. * JD217.678 [Silver]

  41. JD217.691 [Silver]

  42. JD218.730 {Heli 20}

  43. JD220.685 [Platinum]

  44. JD220.755 [Platinum] {Heli 23}

  45. JD220.774 [Platinum] {Heli 23}

  46. JD220.793 [Platinum] {Heli 23}

  47. JD220.808 [Platinum]

  48. JD220.841 [Platinum] {Heli 24}

  49. JD222.609 [Platinum]

  50. JD222.631 [Platinum]
