  1. UPDATE ON ASSETS IN CESC’S T&D NETWORK

  2. CESC’S T&D NETWORK 567 Sq. Km. Area T&D LINE (CKT. KM) 15 nos. 132 kV S/S 88 nos. 33 kV D/S 132 kV - 267 33 kV - 1194 6/11 kV - 4125

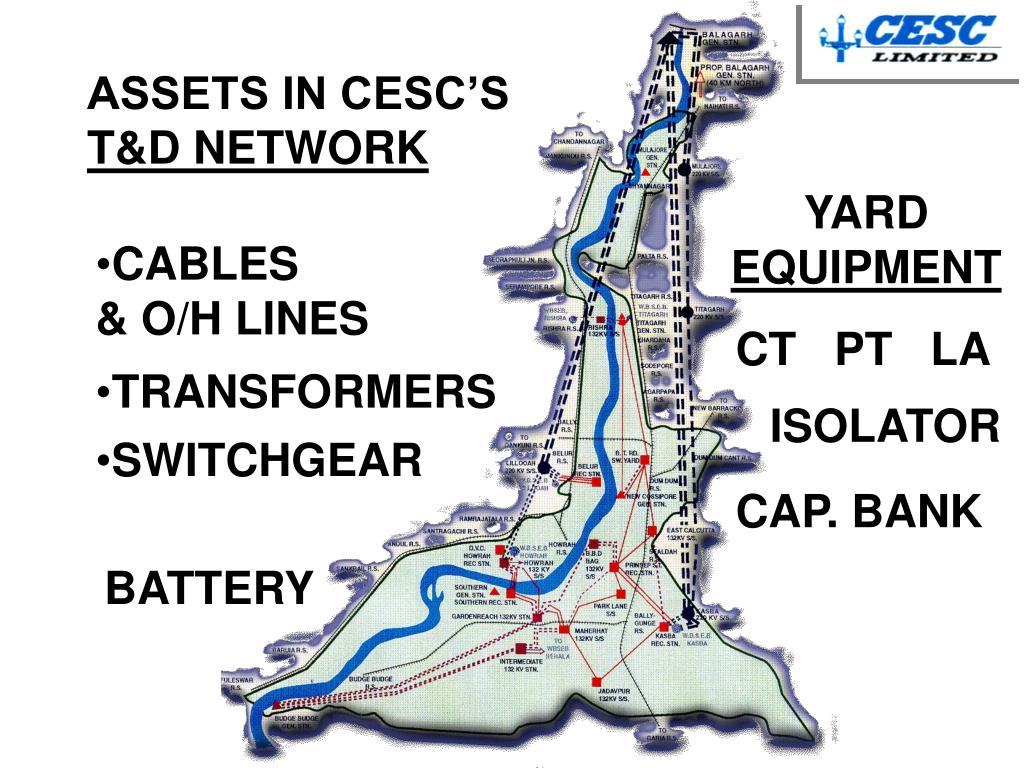

  3. ASSETS IN CESC’S T&D NETWORK YARD EQUIPMENT • CABLES & O/H LINES CT PT LA • TRANSFORMERS ISOLATOR • SWITCHGEAR CAP. BANK BATTERY

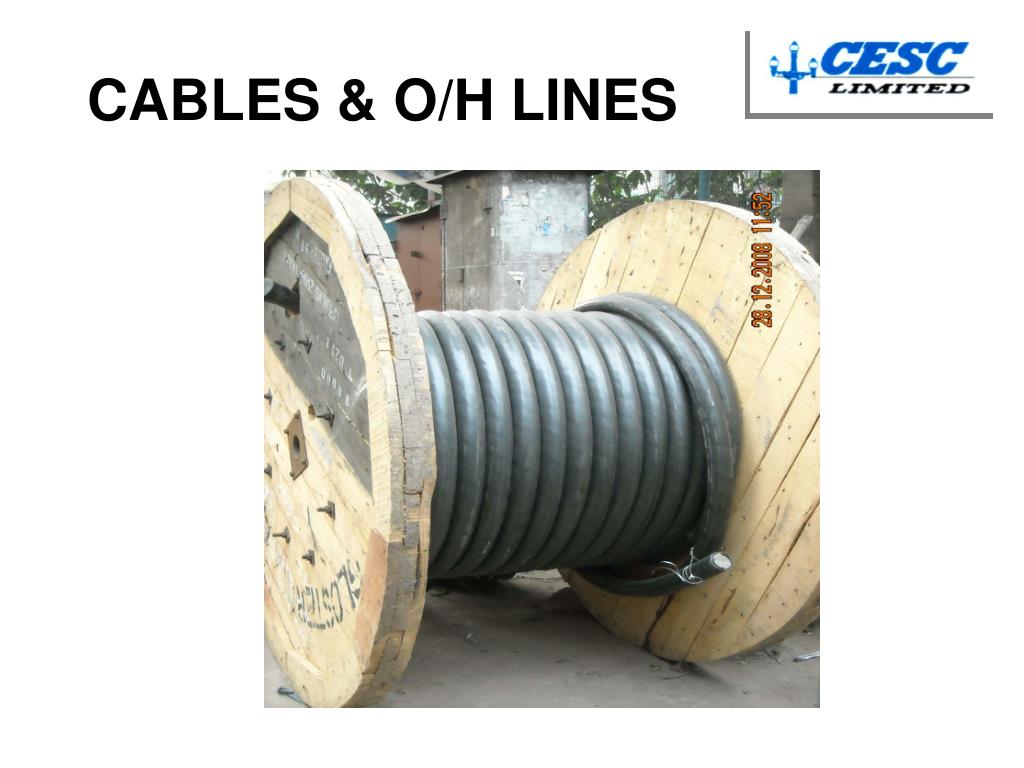

  4. CABLES & O/H LINES

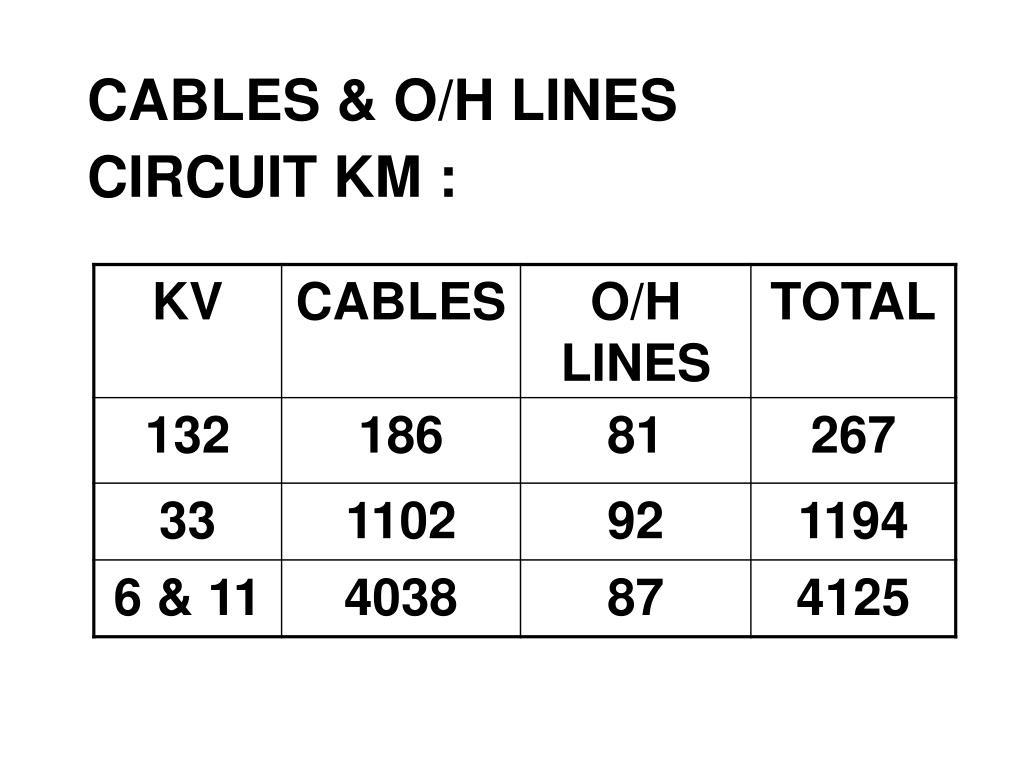

  5. CABLES & O/H LINES CIRCUIT KM :

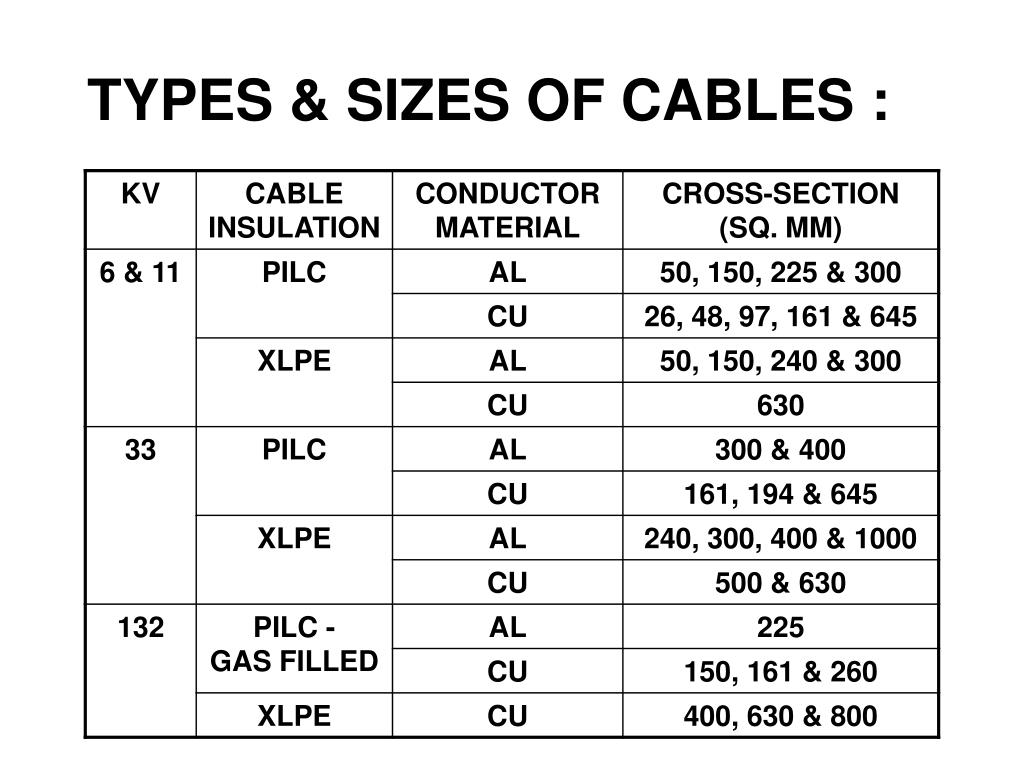

  6. TYPES & SIZES OF CABLES :

  7. TRANSFORMERS

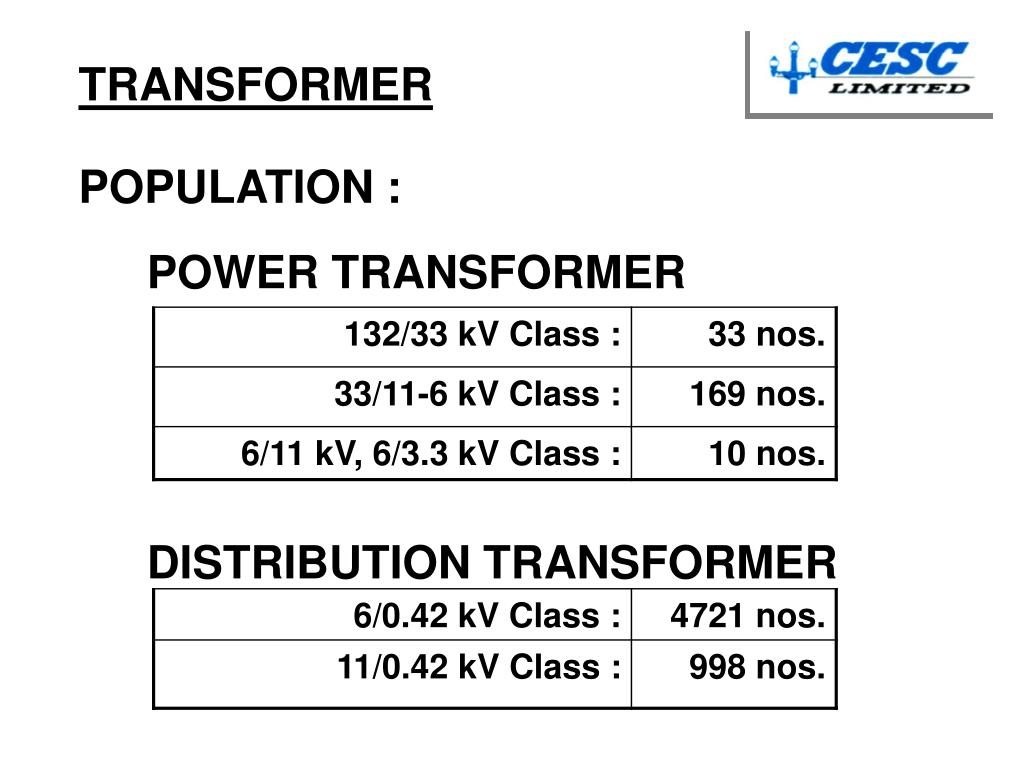

  8. TRANSFORMER POPULATION : POWER TRANSFORMER DISTRIBUTION TRANSFORMER

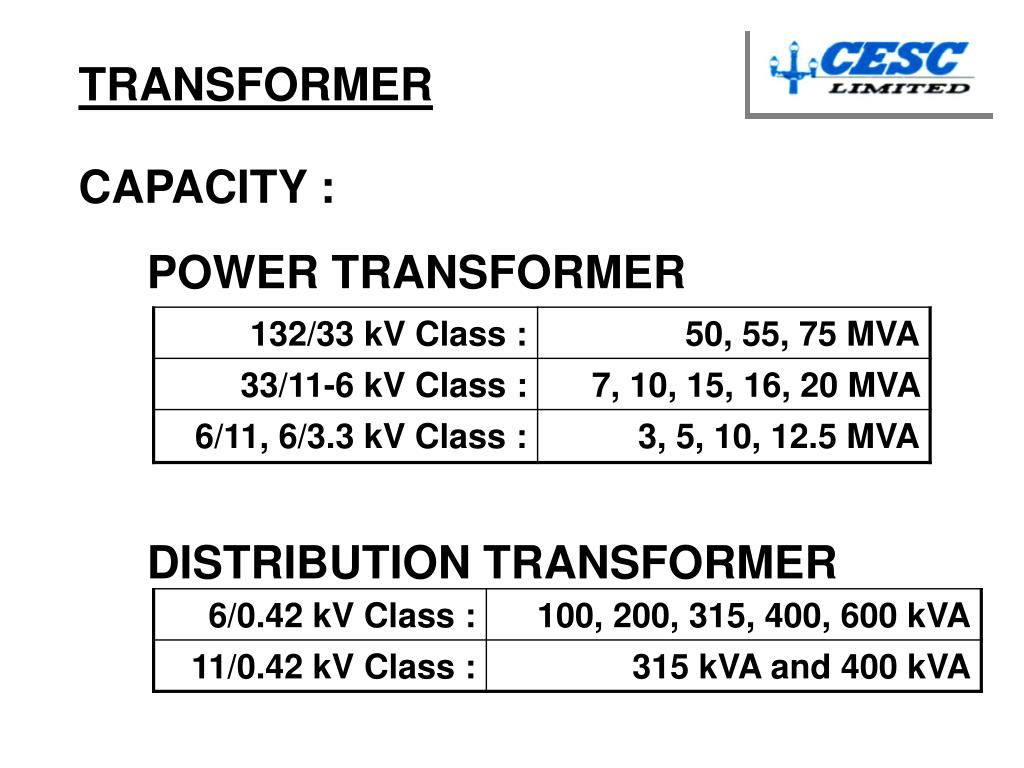

  9. TRANSFORMER CAPACITY : POWER TRANSFORMER DISTRIBUTION TRANSFORMER

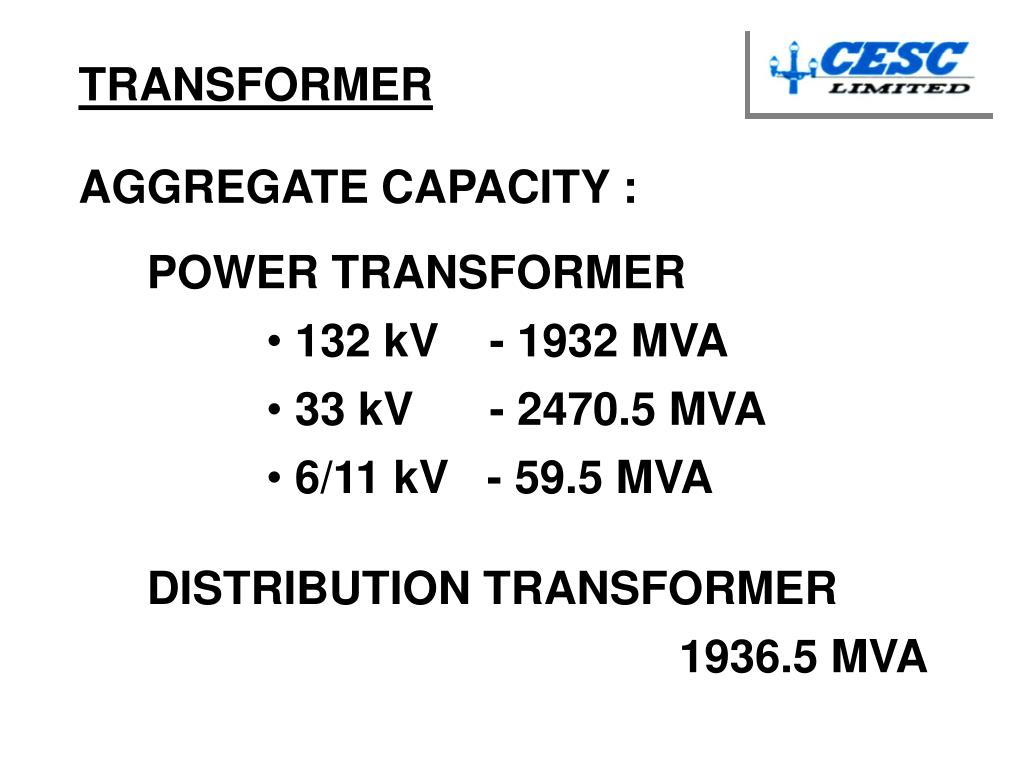

  10. TRANSFORMER AGGREGATE CAPACITY : POWER TRANSFORMER • 132 kV - 1932 MVA • 33 kV - 2470.5 MVA • 6/11 kV - 59.5 MVA DISTRIBUTION TRANSFORMER 1936.5 MVA

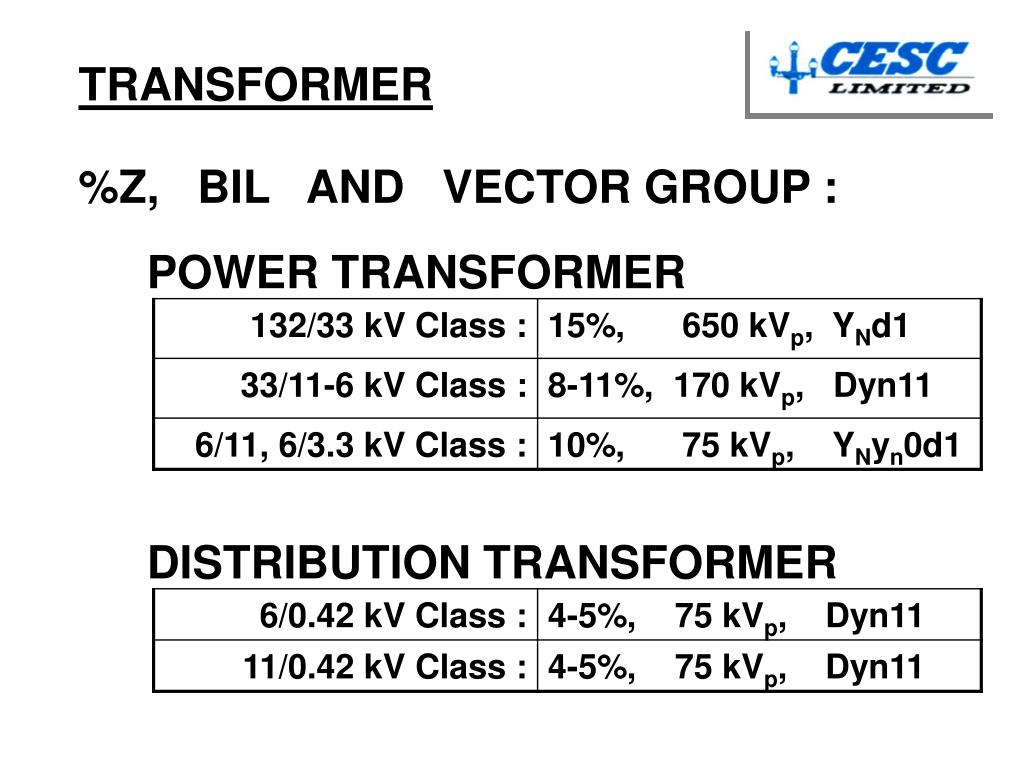

  11. TRANSFORMER %Z, BIL AND VECTOR GROUP : POWER TRANSFORMER DISTRIBUTION TRANSFORMER

  12. TRANSFORMER TAP CHANGER : POWER TRANSFORMER DISTRIBUTION TRANSFORMER ALL TAP-LINK

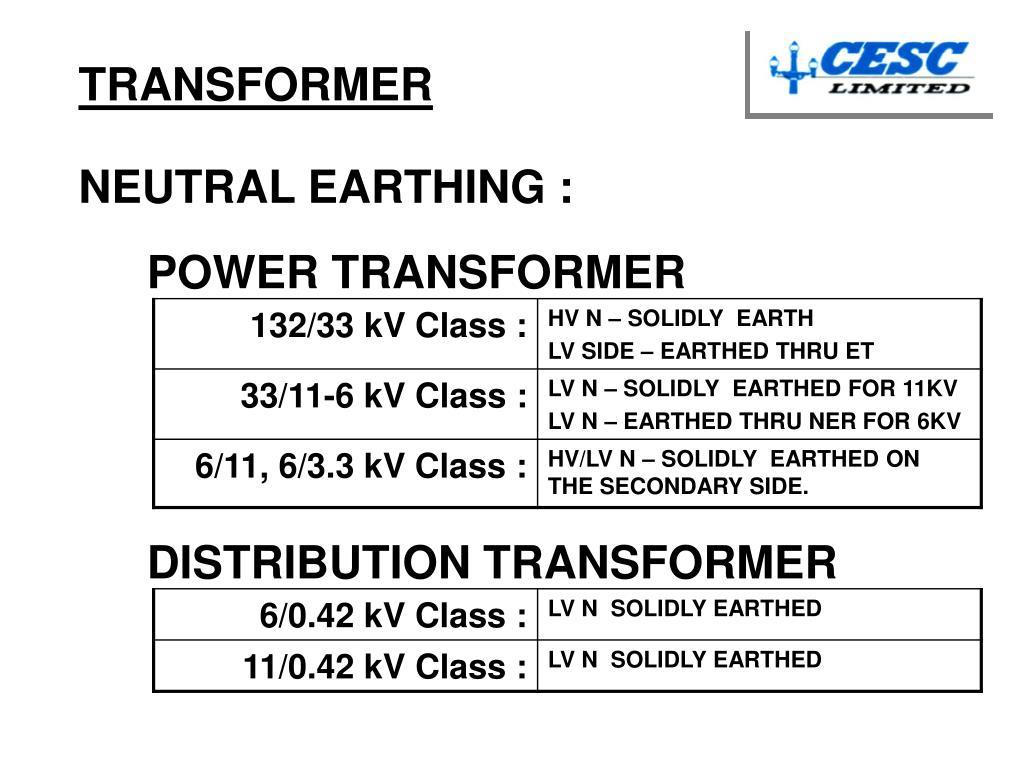

  13. TRANSFORMER NEUTRAL EARTHING : POWER TRANSFORMER DISTRIBUTION TRANSFORMER

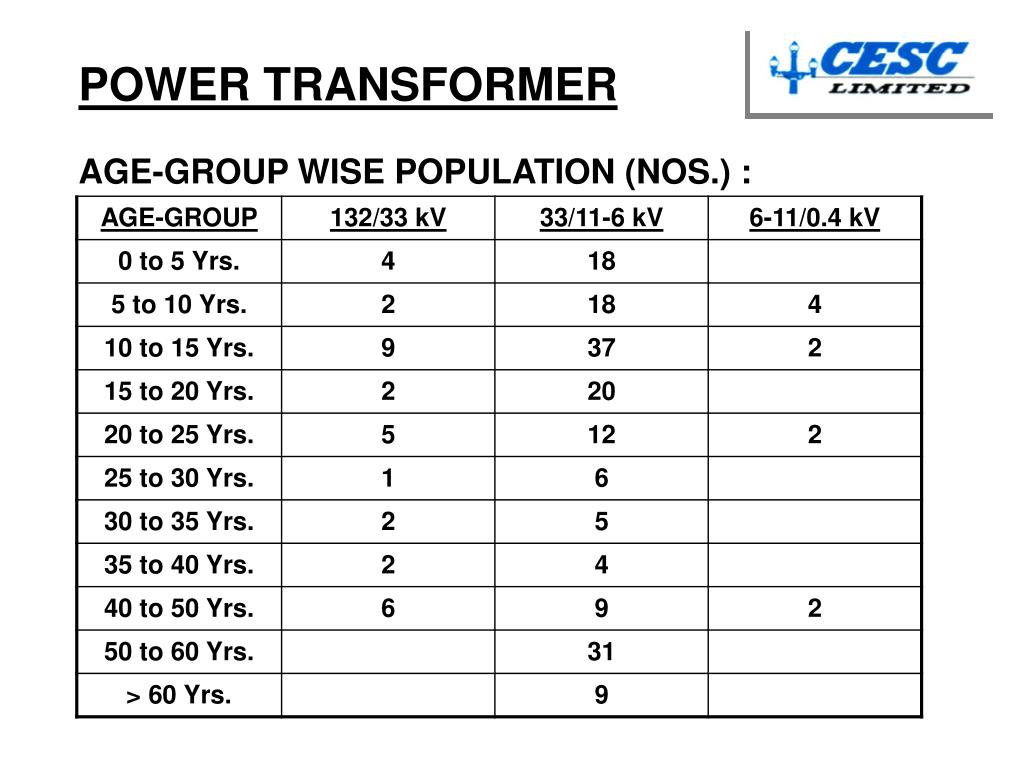

  14. POWER TRANSFORMER AGE-GROUP WISE POPULATION (NOS.) :

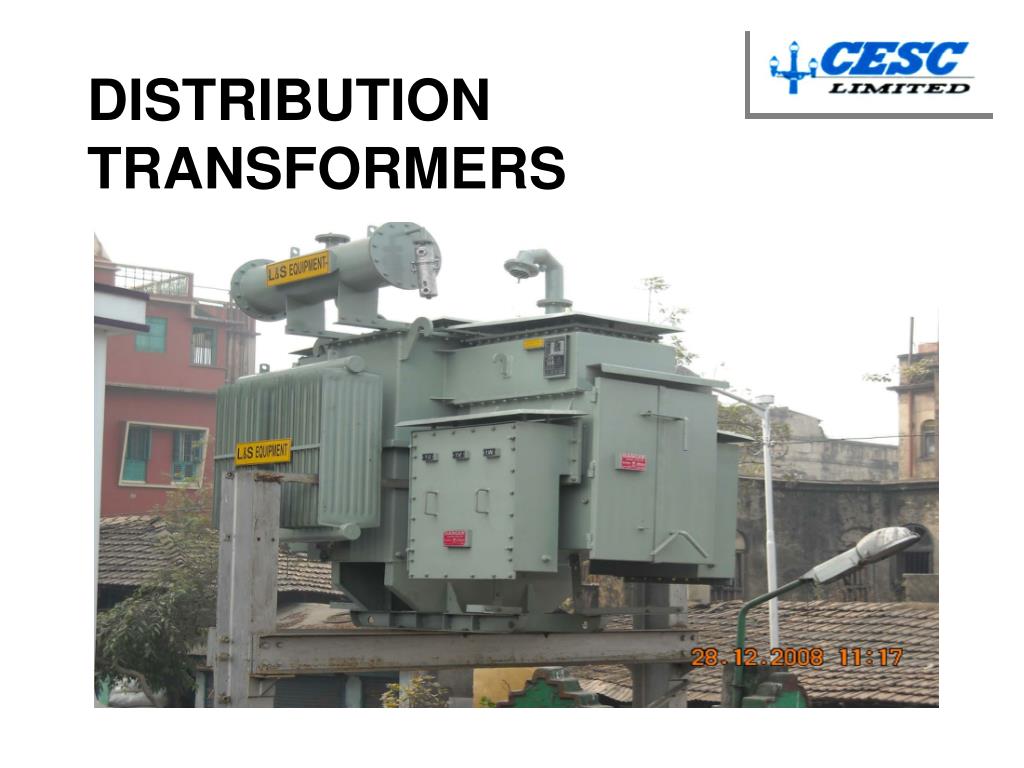

  15. DISTRIBUTION TRANSFORMERS

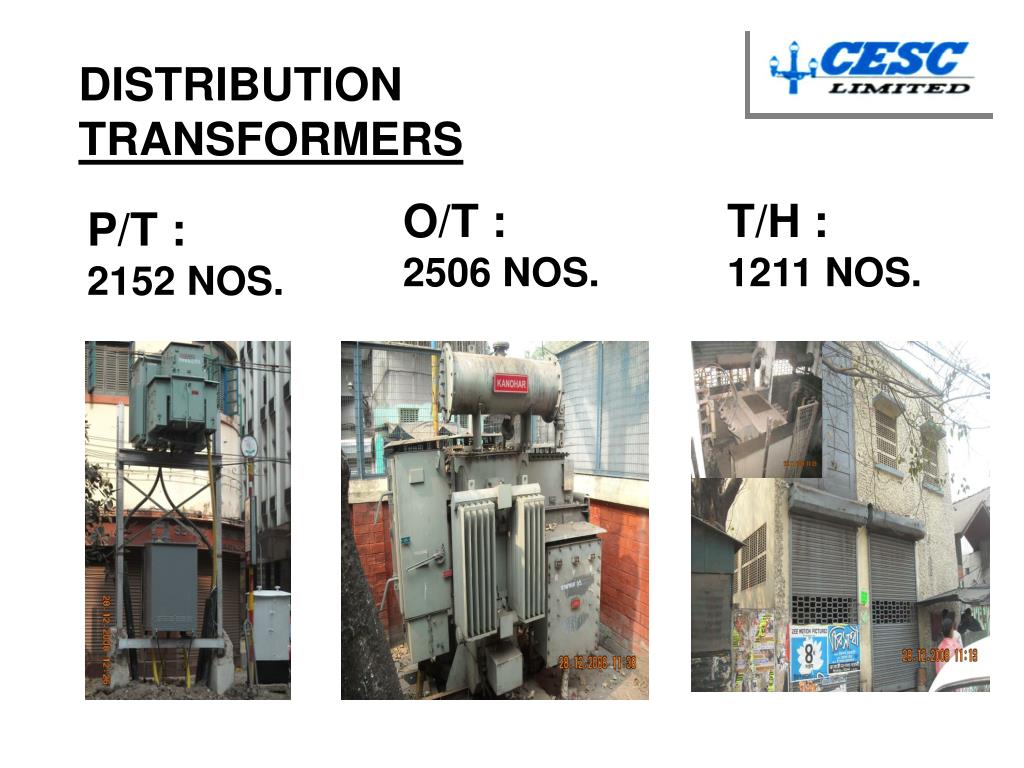

  16. DISTRIBUTION TRANSFORMERS O/T :2506 NOS. T/H :1211 NOS. P/T :2152 NOS.

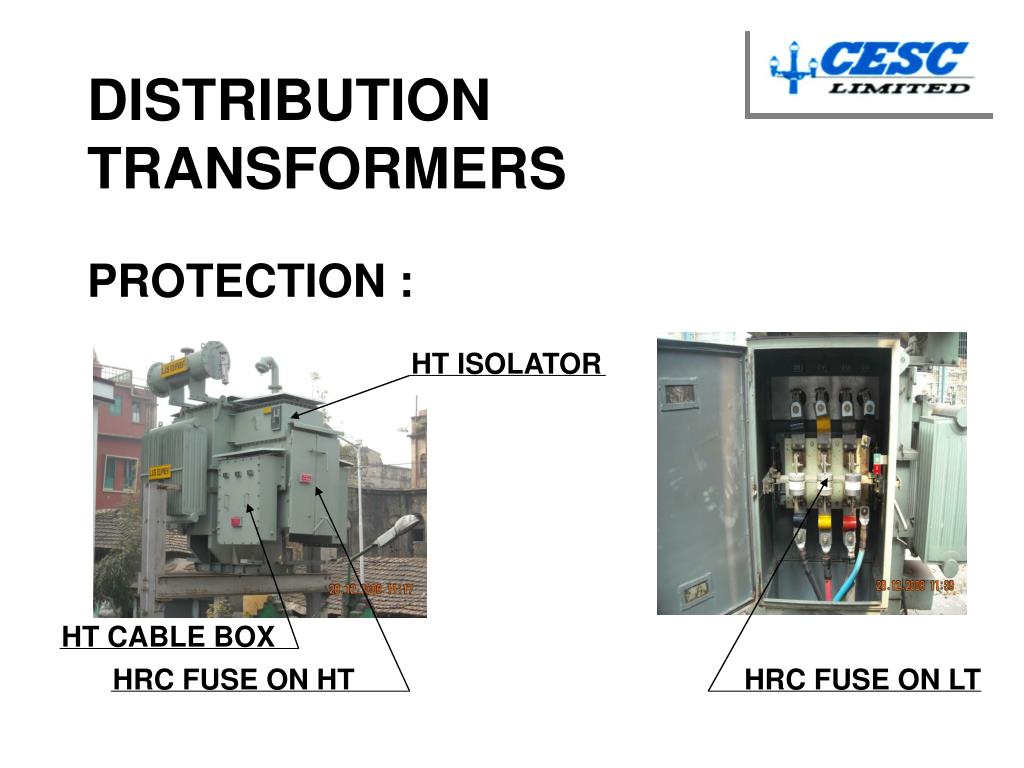

  17. DISTRIBUTION TRANSFORMERS PROTECTION : HT ISOLATOR HT CABLE BOX HRC FUSE ON HT HRC FUSE ON LT

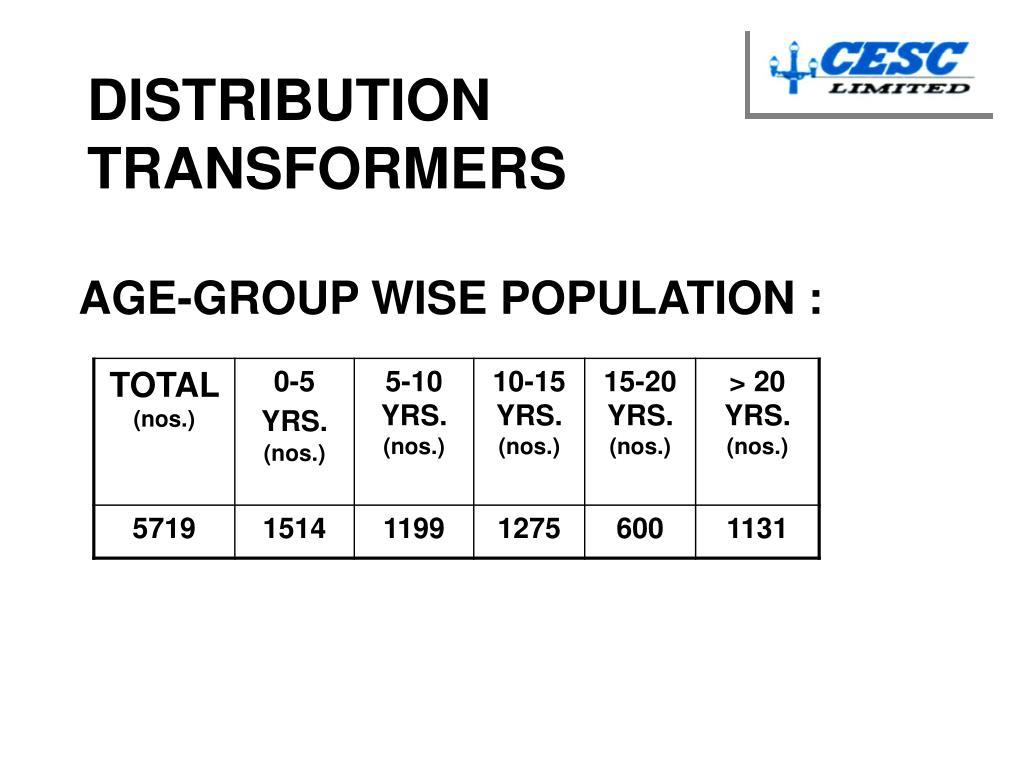

  18. DISTRIBUTION TRANSFORMERS AGE-GROUP WISE POPULATION :

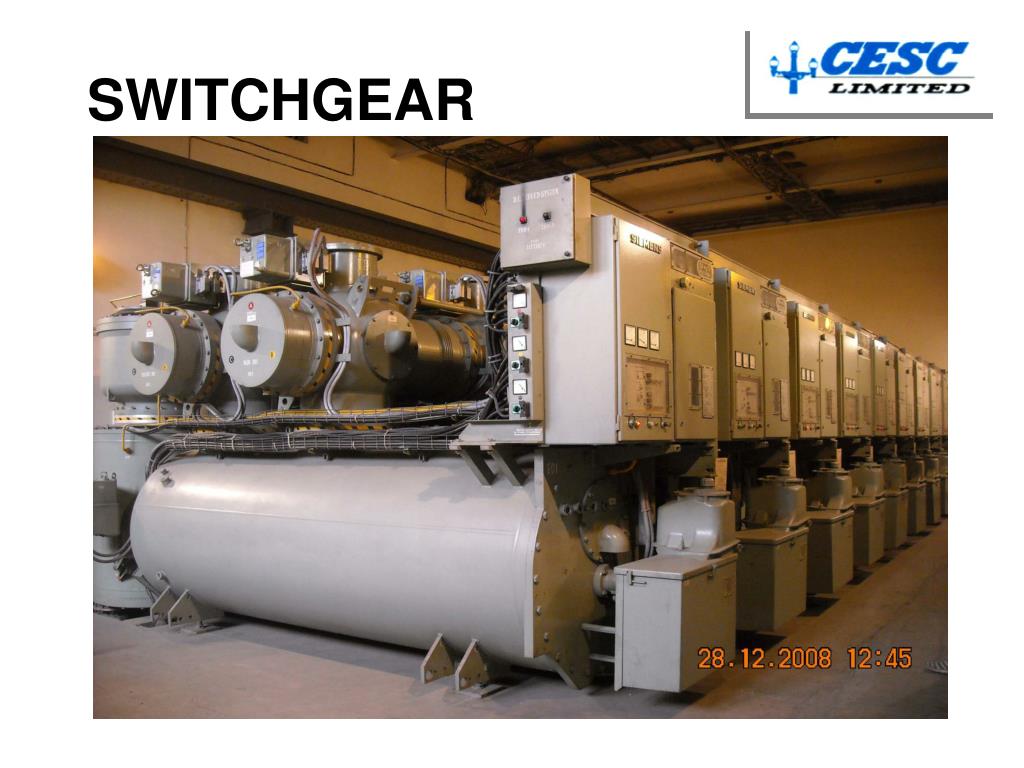

  19. SWITCHGEAR

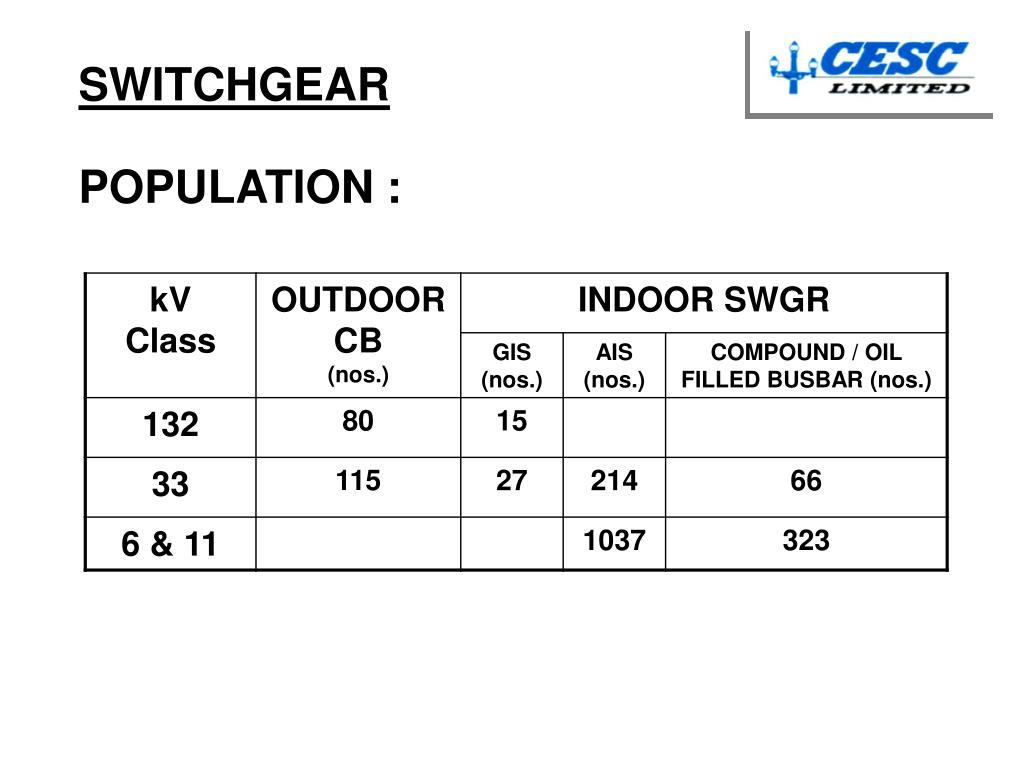

  20. SWITCHGEAR POPULATION :

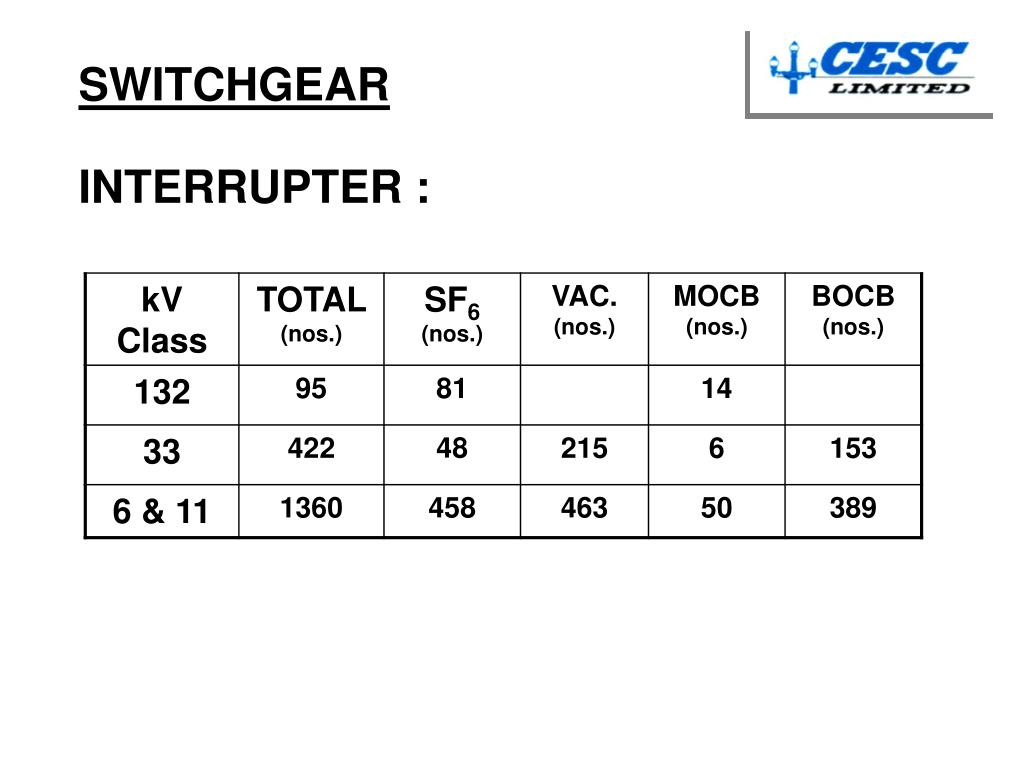

  21. SWITCHGEAR INTERRUPTER :

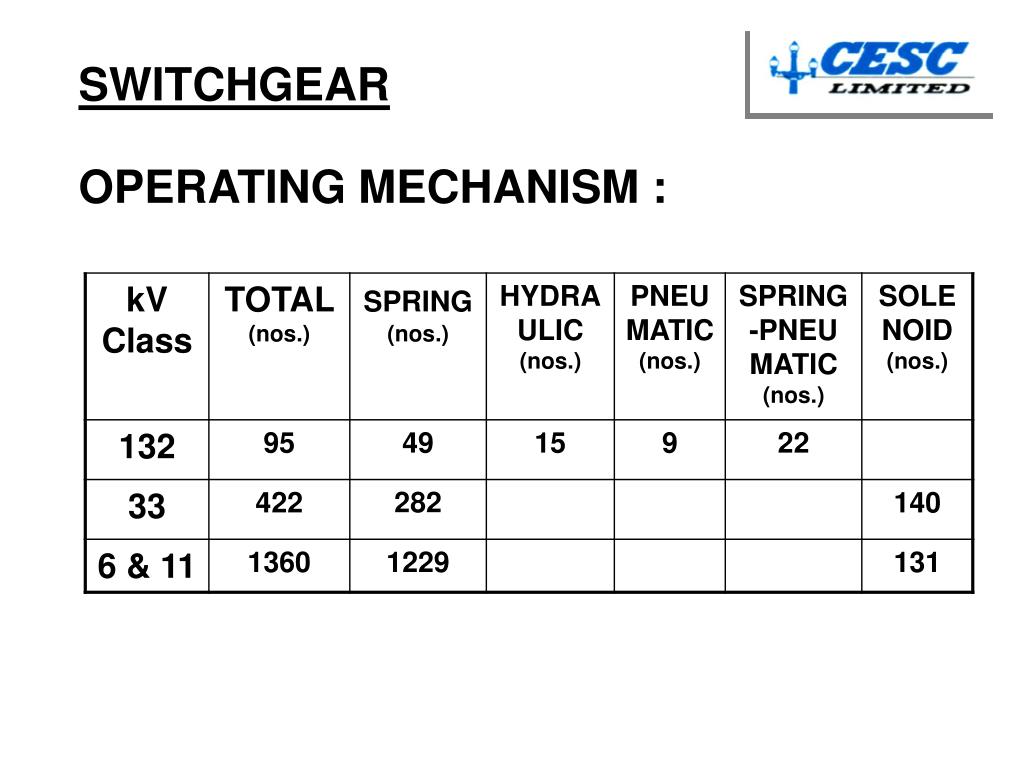

  22. SWITCHGEAR OPERATING MECHANISM :

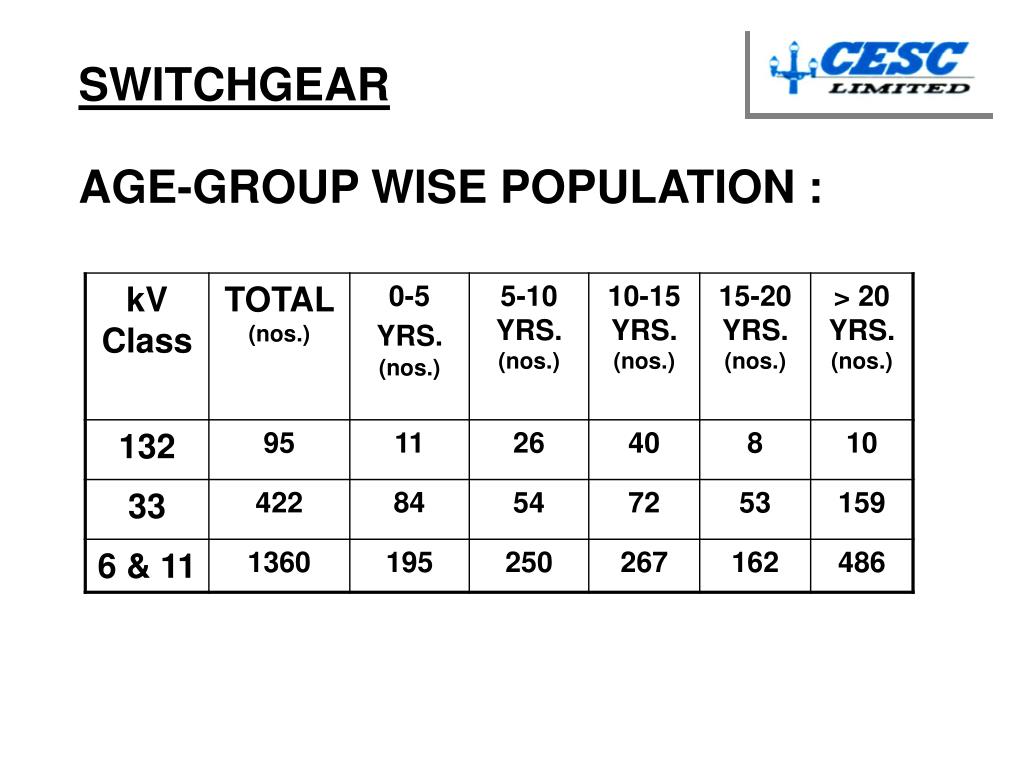

  23. SWITCHGEAR AGE-GROUP WISE POPULATION :

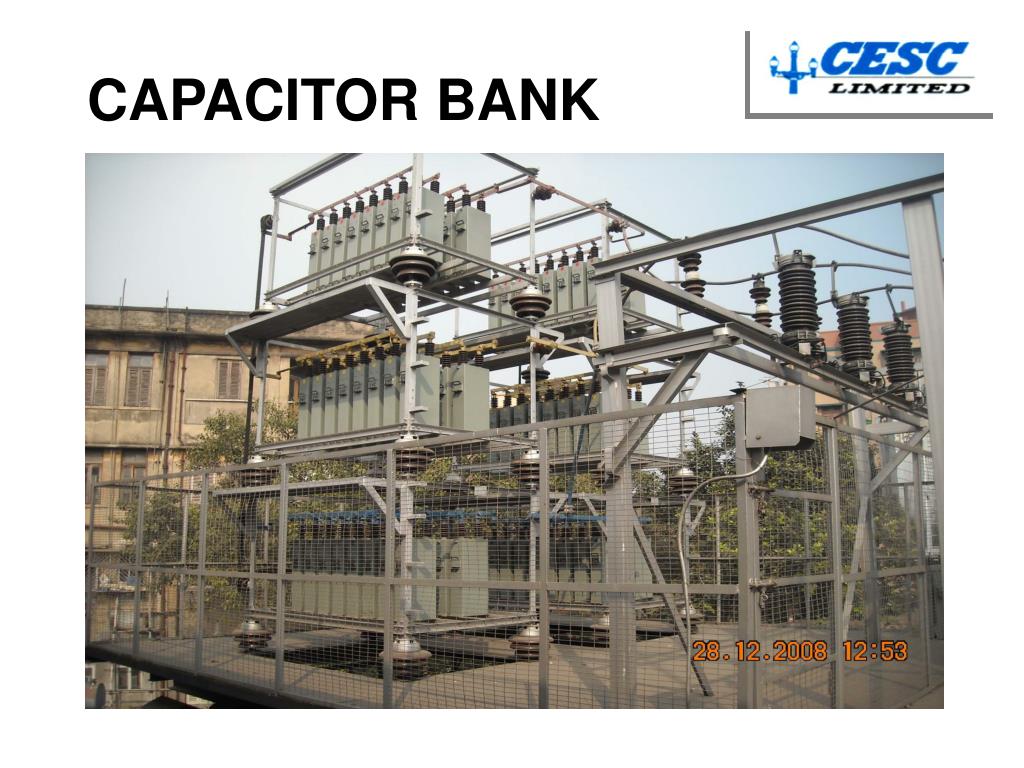

  24. CAPACITOR BANK

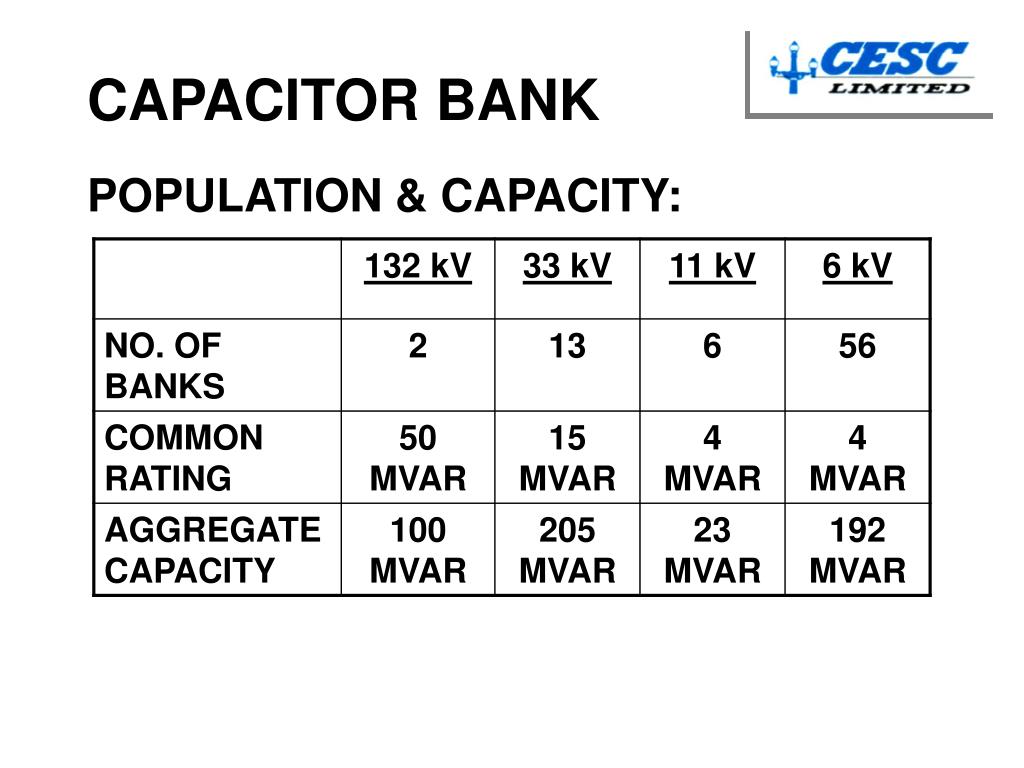

  25. CAPACITOR BANK POPULATION & CAPACITY:

  26. CAPACITOR BANK PROTECTION:

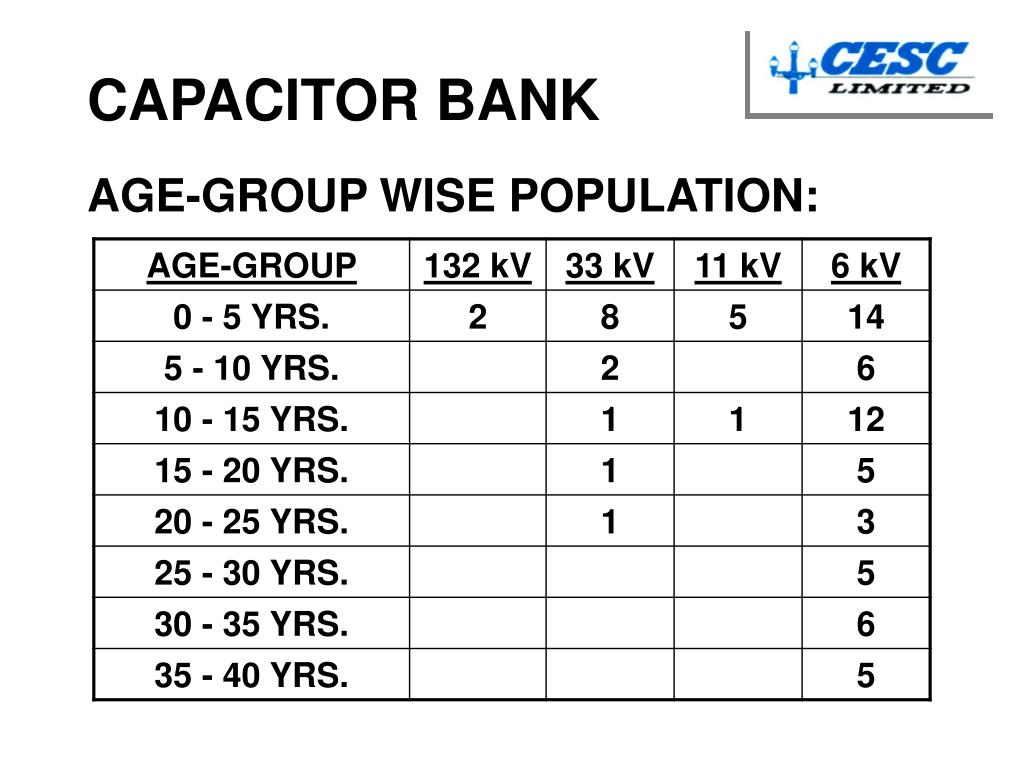

  27. CAPACITOR BANK AGE-GROUP WISE POPULATION:

  28. BATTERY

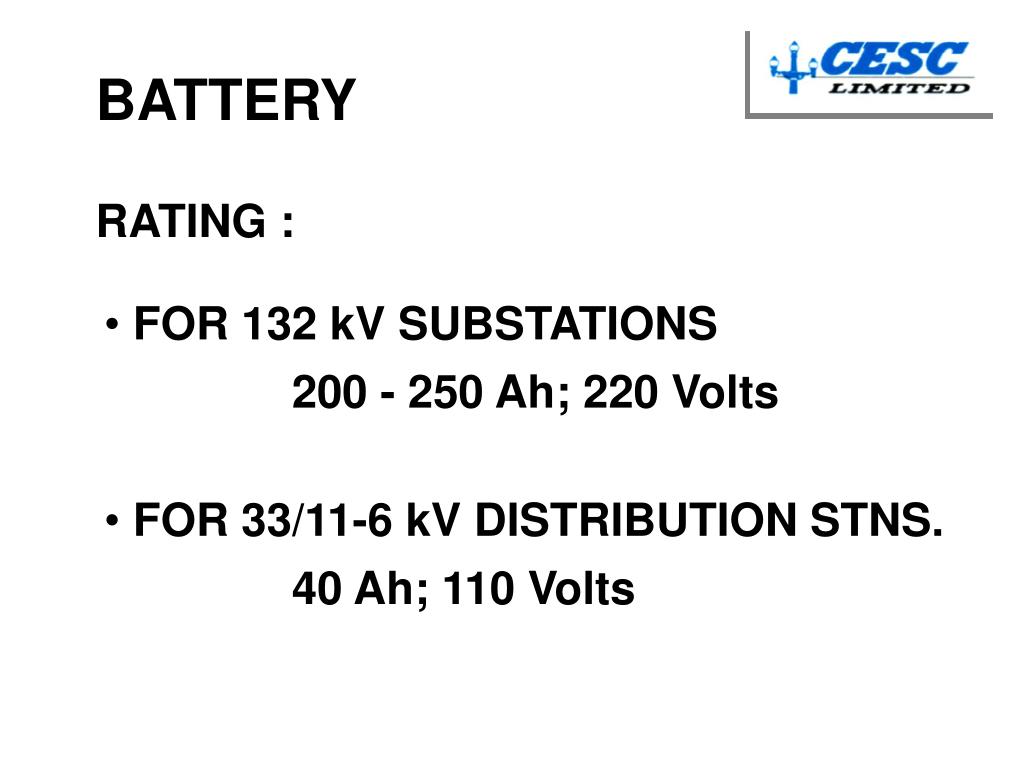

  29. BATTERY RATING : • FOR 132 kV SUBSTATIONS 200 - 250 Ah; 220 Volts • FOR 33/11-6 kV DISTRIBUTION STNS. 40 Ah; 110 Volts

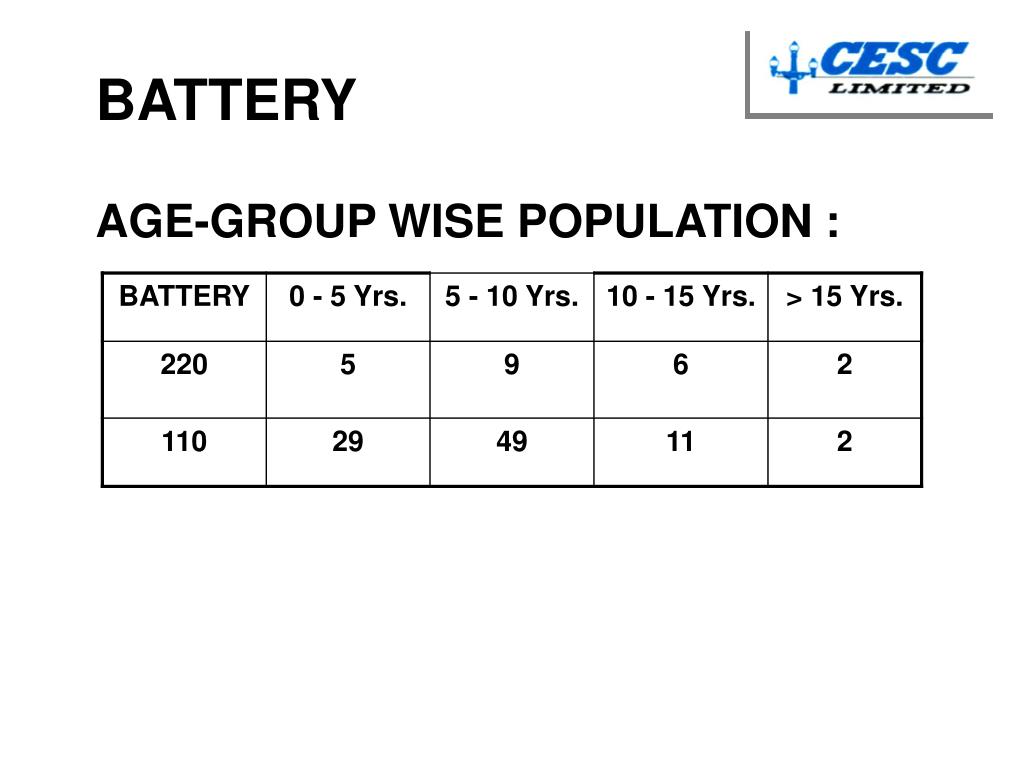

  30. BATTERY AGE-GROUP WISE POPULATION :

  31. Thank you
