OMSE 510: Computing Foundations 8: The Address Space

1. OMSE 510: Computing Foundations8: The Address Space Chris Gilmore <grimjack@cs.pdx.edu> Portland State University/OMSE Material Borrowed from Jon Walpole’s lectures

2. Today • Memory Management • Virtual/Physical Address Translation • Page Tables • MMU, TLB

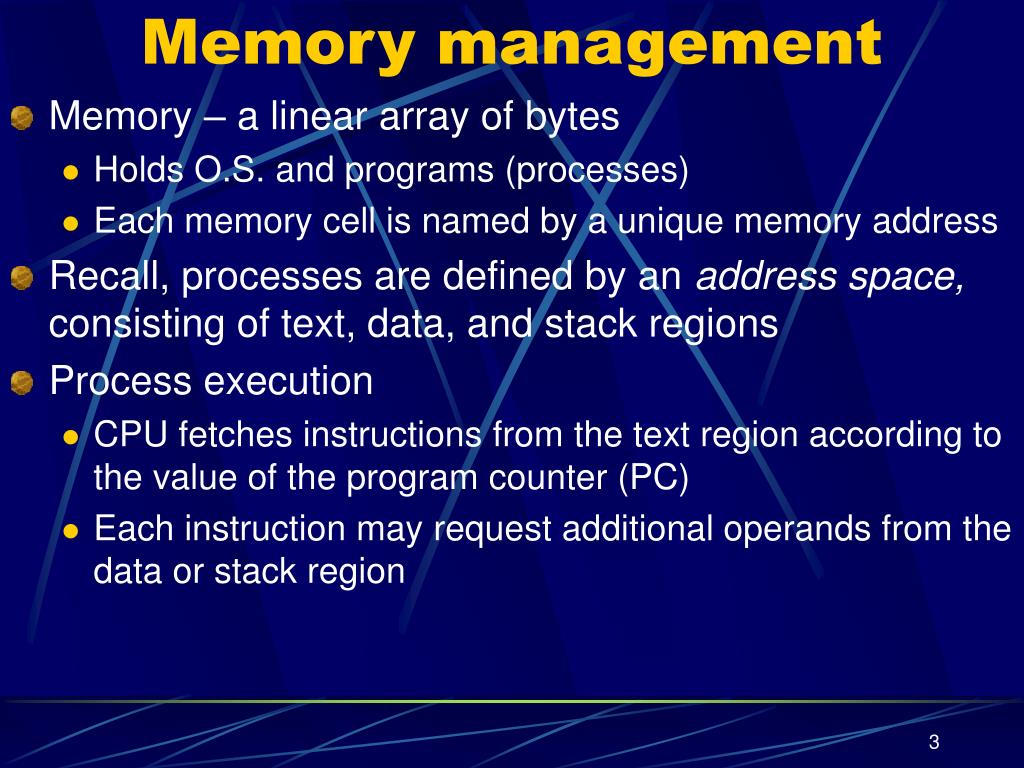

3. Memory management • Memory – a linear array of bytes • Holds O.S. and programs (processes) • Each memory cell is named by a unique memory address • Recall, processes are defined by an address space, consisting of text, data, and stack regions • Process execution • CPU fetches instructions from the text region according to the value of the program counter (PC) • Each instruction may request additional operands from the data or stack region

4. Virtual memory management overview • What have know about memory management? • Processes require memory to run • We prove the appearance that the entire process is resident during execution • We know some functions/code in processes never get invoked • Error detection and recovery routines • In a graphics package, functions like smooth, sharpen, brighten, etc... may not get invoked • Virtual Memory - allows for the execution of processes that may not be completely in memory (extension of paging technique from the last chapter)

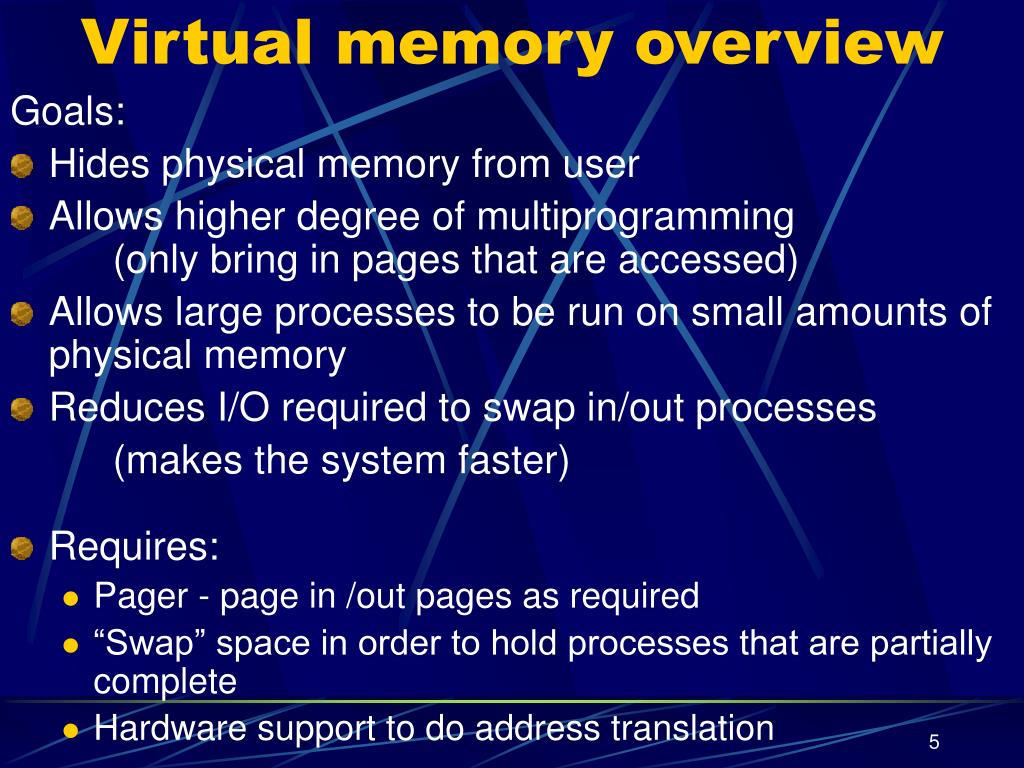

5. Virtual memory overview Goals: • Hides physical memory from user • Allows higher degree of multiprogramming (only bring in pages that are accessed) • Allows large processes to be run on small amounts of physical memory • Reduces I/O required to swap in/out processes (makes the system faster) • Requires: • Pager - page in /out pages as required • “Swap” space in order to hold processes that are partially complete • Hardware support to do address translation

6. Addressing memory • Cannot know ahead of time where in memory a program will be loaded! • Compiler produces code containing embedded addresses • these addresses can’t be absolute ( physical addresses) • Linker combines pieces of the program • Assumes the program will be loaded at address 0 • We need to bind the compiler/linker generated addresses to the actual memory locations

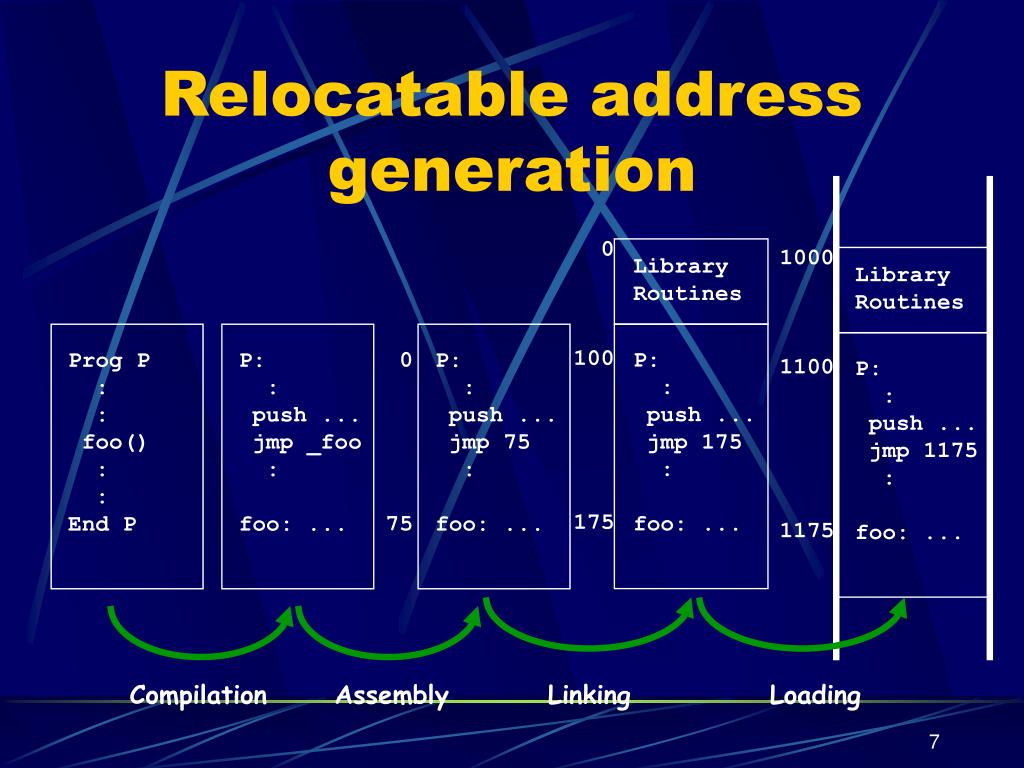

7. Relocatable address generation 0 100 175 1000 1100 1175 Library Routines Library Routines 0 75 P: : push ... jmp 175 : foo: ... Prog P : : foo() : : End P P: : push ... jmp _foo : foo: ... P: : push ... jmp 75 : foo: ... P: : push ... jmp 1175 : foo: ... Compilation Assembly Linking Loading

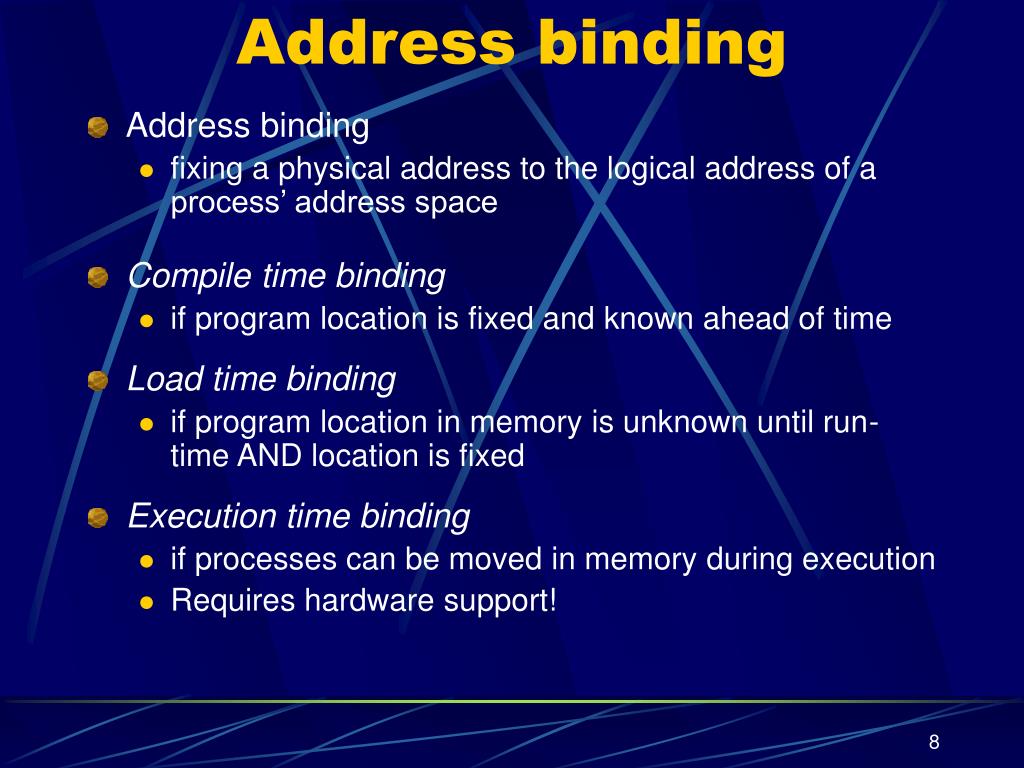

8. Address binding • Address binding • fixing a physical address to the logical address of a process’ address space • Compile time binding • if program location is fixed and known ahead of time • Load time binding • if program location in memory is unknown until run-time AND location is fixed • Execution time binding • if processes can be moved in memory during execution • Requires hardware support!

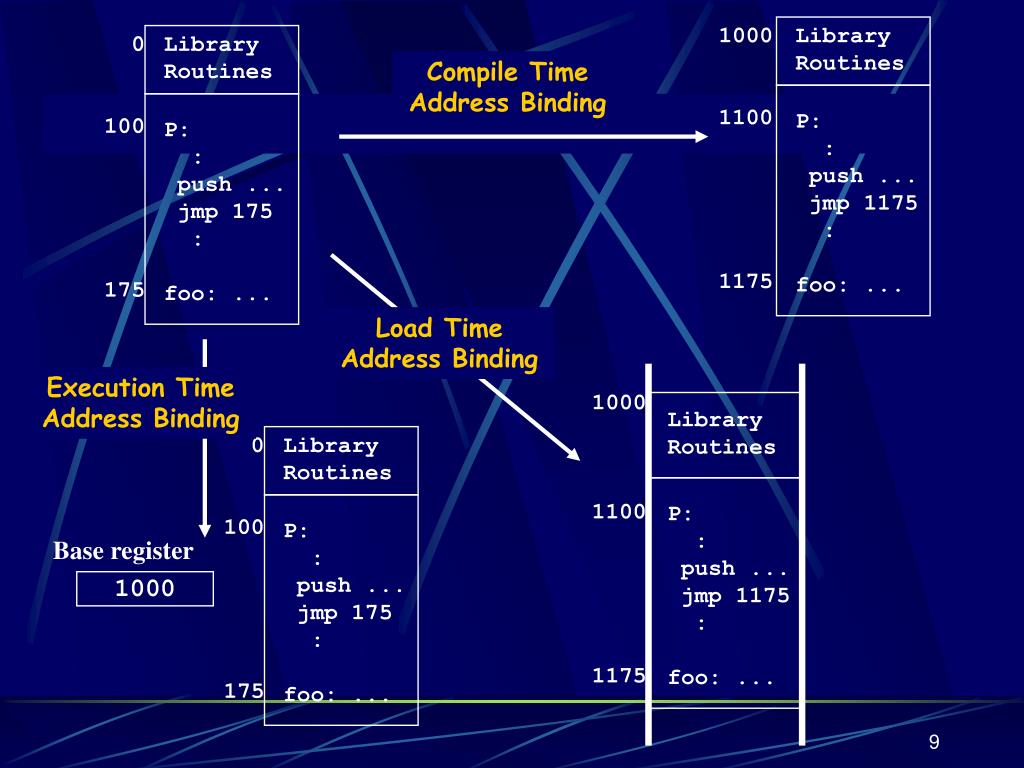

9. 1000 1100 1175 Library Routines 0 100 175 Library Routines Compile Time Address Binding P: : push ... jmp 1175 : foo: ... P: : push ... jmp 175 : foo: ... Load Time Address Binding Execution Time Address Binding 1000 1100 1175 Library Routines 0 100 175 Library Routines P: : push ... jmp 1175 : foo: ... P: : push ... jmp 175 : foo: ... Base register 1000

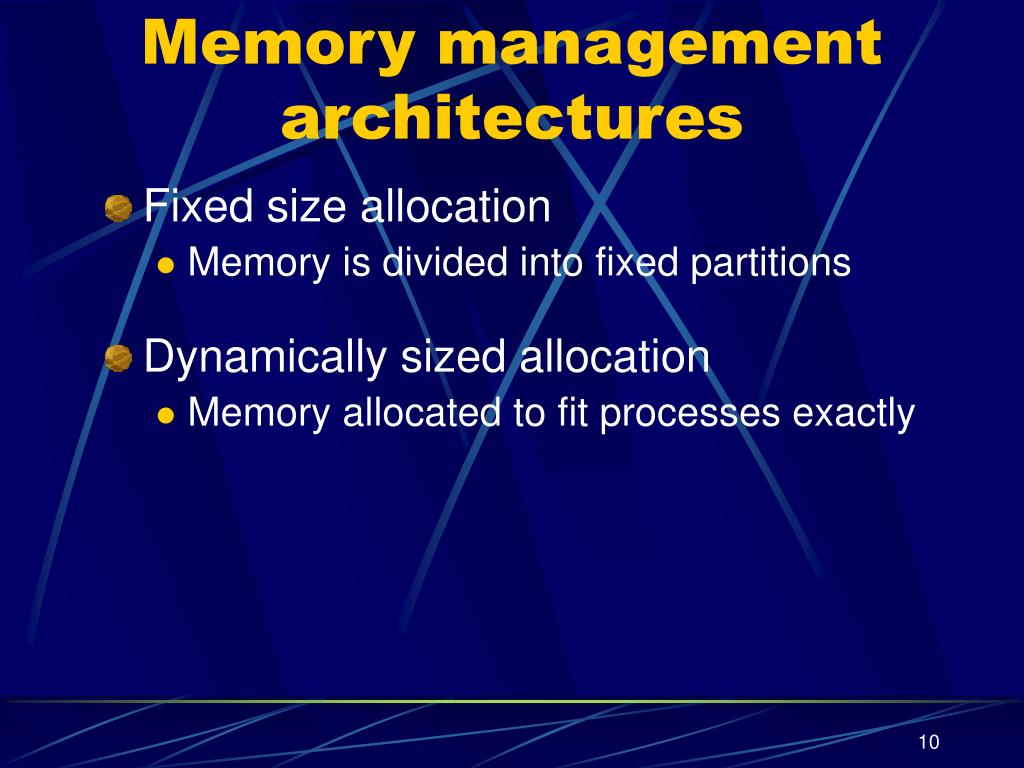

10. Memory management architectures • Fixed size allocation • Memory is divided into fixed partitions • Dynamically sized allocation • Memory allocated to fit processes exactly

11. Runtime binding – base & limit registers • Simple runtime relocation scheme • Use 2 registers to describe a partition • For every address generated, at runtime... • Compare to the limit register (& abort if larger) • Add to the base register to give physical memory address

12. Dynamic relocation with a base register • Memory Management Unit (MMU) - dynamically converts logical addresses into physical address • MMU contains base address register for running process Relocation register for process i Max Mem 1000 Max addr process i 0 Program generated address + Physical memory address MMU Operating system 0

13. Protection using base & limit registers • Memory protection • Base register gives starting address for process • Limit register limits the offset accessible from the relocation register limit base register register Physical memory logical address address yes + < no addressing error

14. Multiprogramming with base and limit registers • Multiprogramming: a separate partition per process • What happens on a context switch? • Store process A’s base and limit register values • Load new values into base and limitregisters for process B Partition E limit Partition D Partition C base Partition B Partition A OS

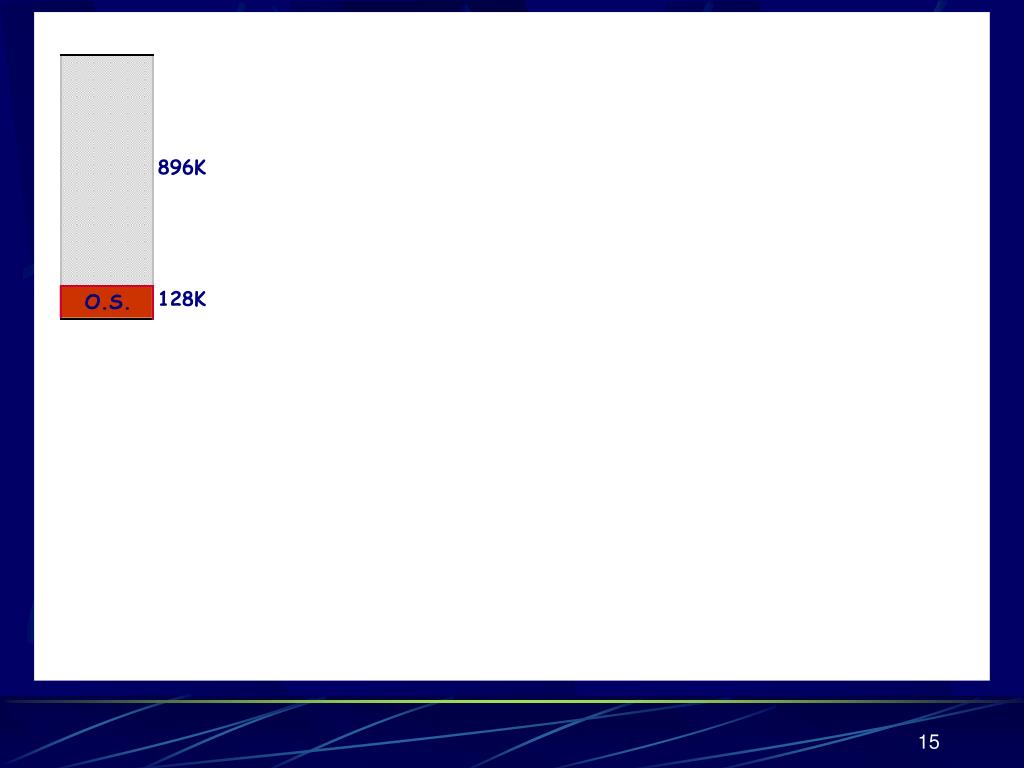

15. 896K 128K O.S.

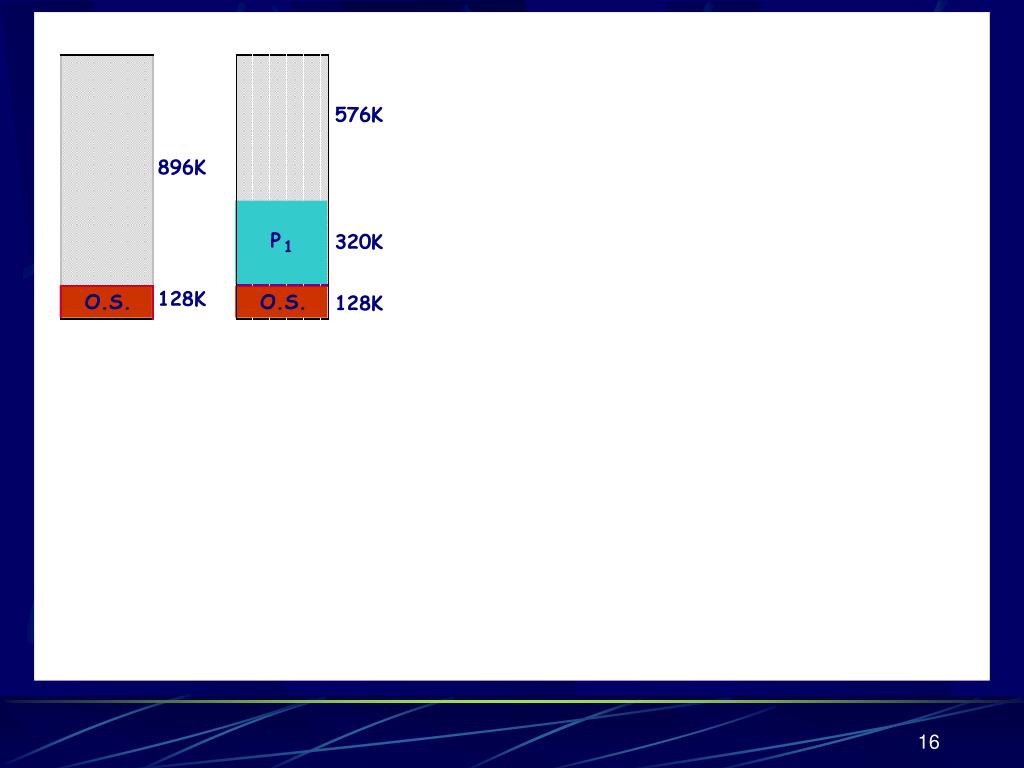

16. 576K 896K P 320K 1 128K O.S. O.S. 128K

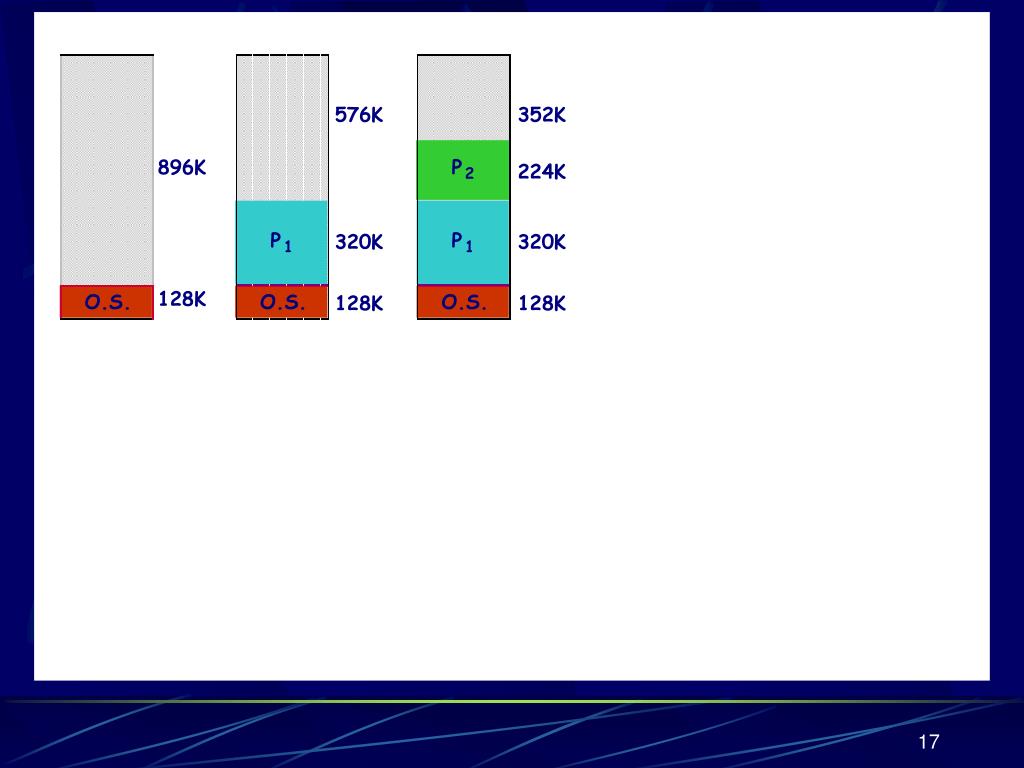

17. 576K 352K 896K P 224K 2 P P 320K 320K 1 1 128K O.S. O.S. O.S. 128K 128K

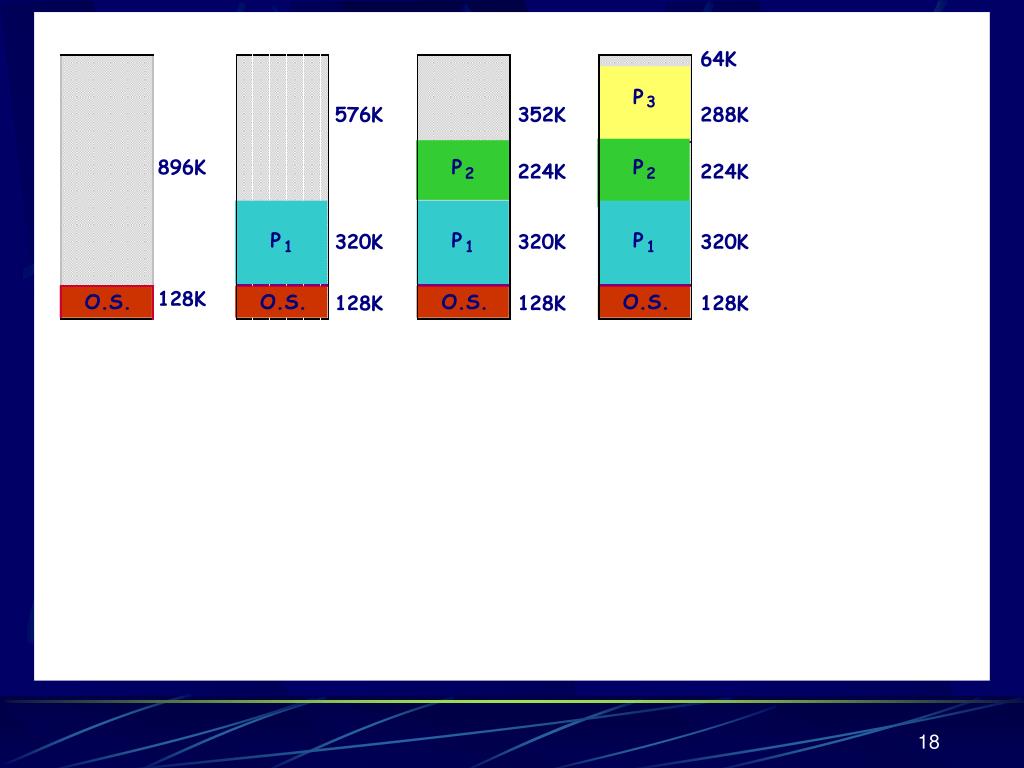

18. 64K P 3 576K 352K 288K 896K P P 224K 224K 2 2 P P P 320K 320K 320K 1 1 1 128K O.S. O.S. O.S. O.S. 128K 128K 128K

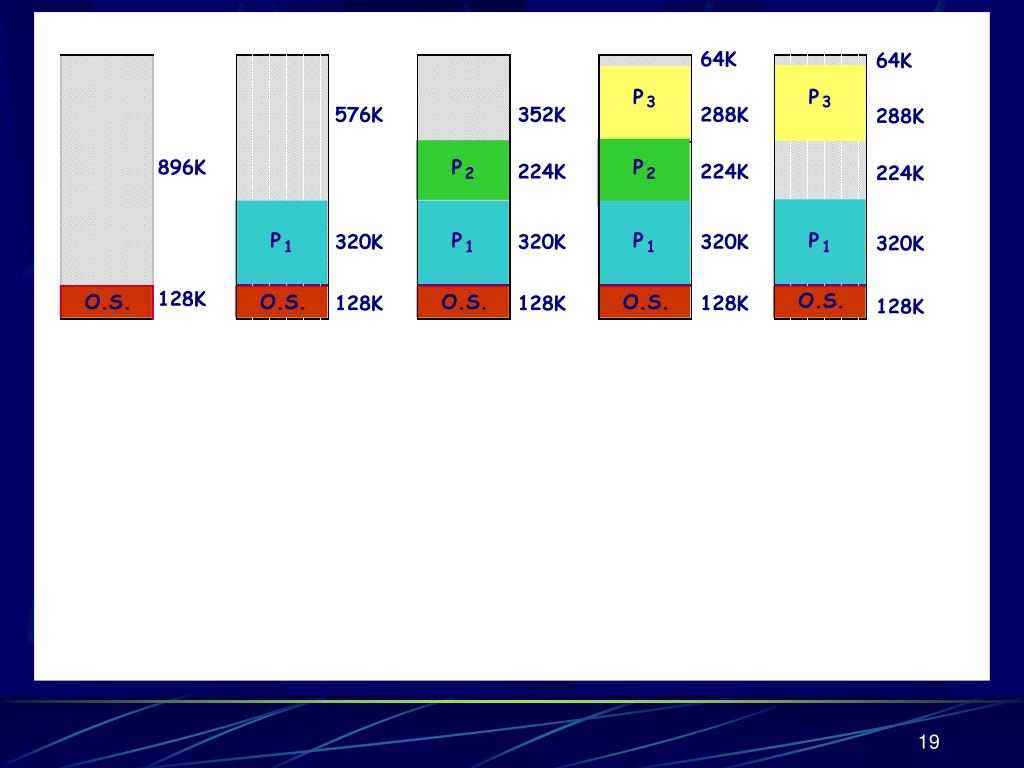

19. 64K 64K P P 3 3 576K 352K 288K 288K 896K P P 224K 224K 224K 2 2 P P P P 320K 320K 320K 320K 1 1 1 1 128K O.S. O.S. O.S. O.S. O.S. 128K 128K 128K 128K

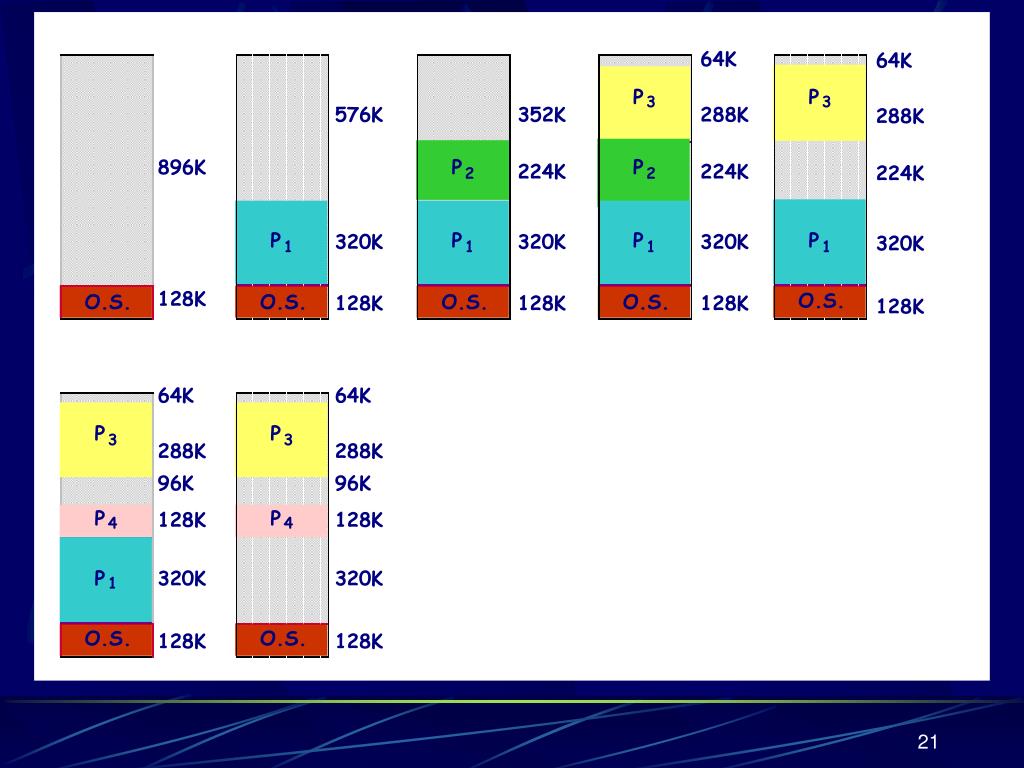

20. 64K 64K P P 3 3 576K 352K 288K 288K 896K P P 224K 224K 224K 2 2 P P P P 320K 320K 320K 320K 1 1 1 1 128K O.S. O.S. O.S. O.S. O.S. 128K 128K 128K 128K 64K P 3 288K 96K P 128K 4 P 320K 1 O.S. 128K

21. 64K 64K P P 3 3 576K 352K 288K 288K 896K P P 224K 224K 224K 2 2 P P P P 320K 320K 320K 320K 1 1 1 1 128K O.S. O.S. O.S. O.S. O.S. 128K 128K 128K 128K 64K 64K P P 3 3 288K 288K 96K 96K P P 128K 128K 4 4 P 320K 320K 1 O.S. O.S. 128K 128K

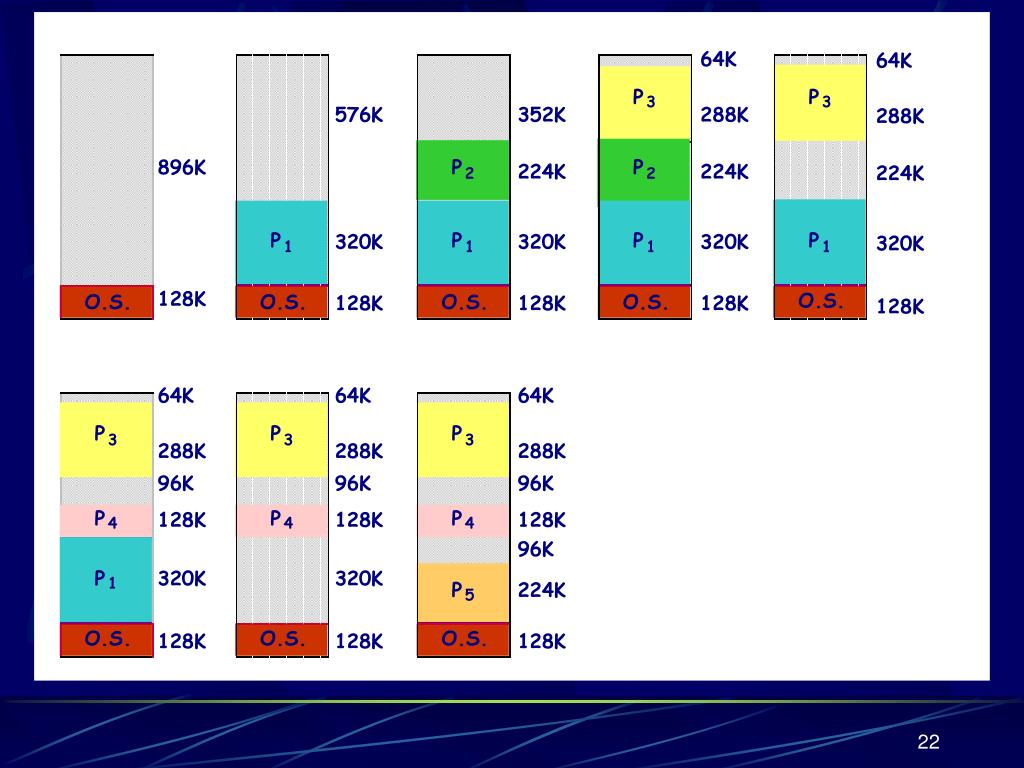

22. 64K 64K P P 3 3 576K 352K 288K 288K 896K P P 224K 224K 224K 2 2 P P P P 320K 320K 320K 320K 1 1 1 1 128K O.S. O.S. O.S. O.S. O.S. 128K 128K 128K 128K 64K 64K 64K P P P 3 3 3 288K 288K 288K 96K 96K 96K P P P 128K 128K 128K 4 4 4 96K P 320K 320K 1 P 224K 5 O.S. O.S. O.S. 128K 128K 128K

23. 64K 64K P P 3 3 576K 352K 288K 288K 896K P P 224K 224K 224K 2 2 P P P P 320K 320K 320K 320K 1 1 1 1 128K O.S. O.S. O.S. O.S. O.S. 128K 128K 128K 128K 64K 64K 64K 64K P P P P 3 3 3 3 288K 288K 288K 288K 96K 96K 96K 96K ??? 128K P P P P 128K 128K 128K 128K P 4 4 4 4 6 96K 96K P 320K 320K 1 P 224K P 224K 5 5 O.S. O.S. O.S. O.S. 128K 128K 128K 128K

24. Swapping • When a program is running... • The entire program must be in memory • Each program is put into a single partition • When the program is not running... • May remain resident in memory • May get “swapped” out to disk • Over time... • Programs come into memory when they get swapped in • Programs leave memory when they get swapped out

25. Basics - swapping • Benefits of swapping: • Allows multiple programs to be run concurrently • … more than will fit in memory at once Max mem Process i Swap in Process m Process j Process k Swap out Operating system 0

26. Swapping can also lead to fragmentation

27. Dealing with fragmentation • Compaction – from time to time shift processes around to collect all free space into one contiguous block • Placement algorithms: First-fit, best-fit, worst-fit 64K 256K P 3 288K 96K P 288K 3 ??? P 128K P 128K 4 P 6 6 P 128K 96K 4 P 224K P 224K 5 5 O.S. O.S. 128K 128K

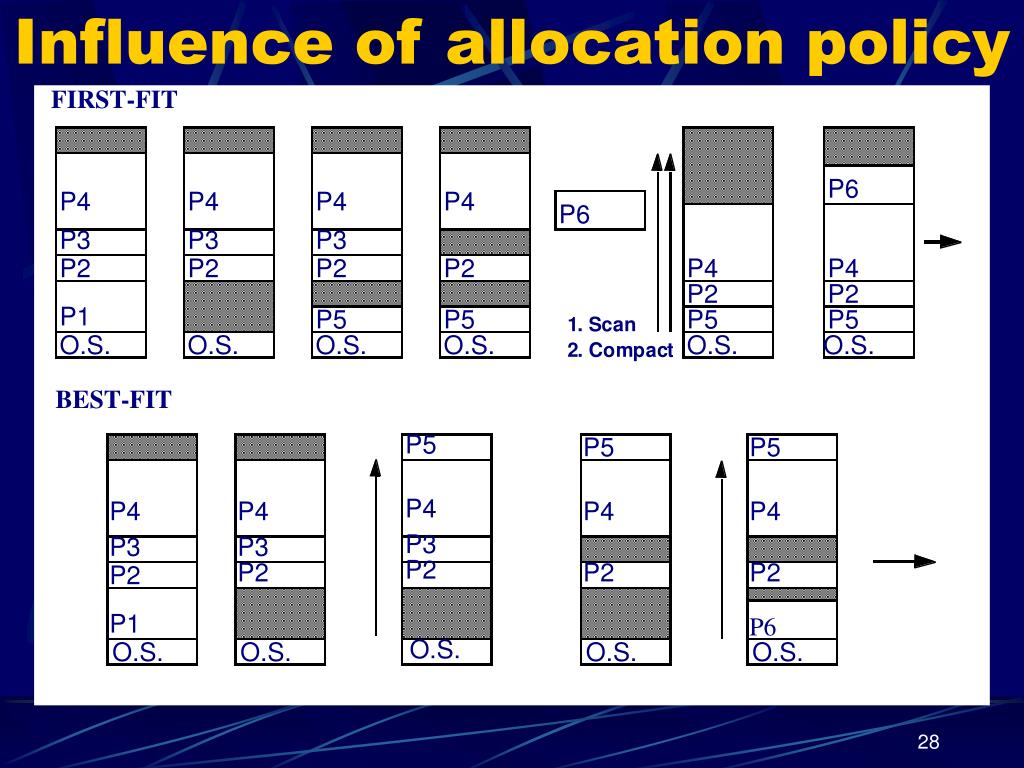

28. Influence of allocation policy

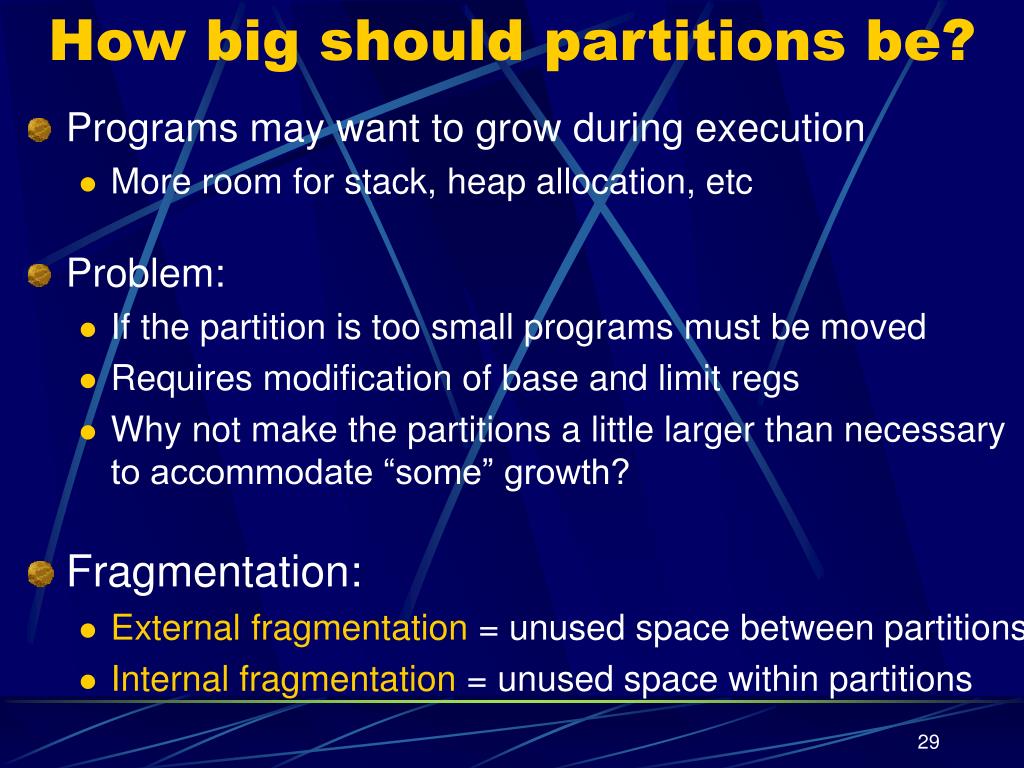

29. How big should partitions be? • Programs may want to grow during execution • More room for stack, heap allocation, etc • Problem: • If the partition is too small programs must be moved • Requires modification of base and limit regs • Why not make the partitions a little larger than necessary to accommodate “some” growth? • Fragmentation: • External fragmentation = unused space between partitions • Internal fragmentation = unused space within partitions

30. Allocating extra space within partitions

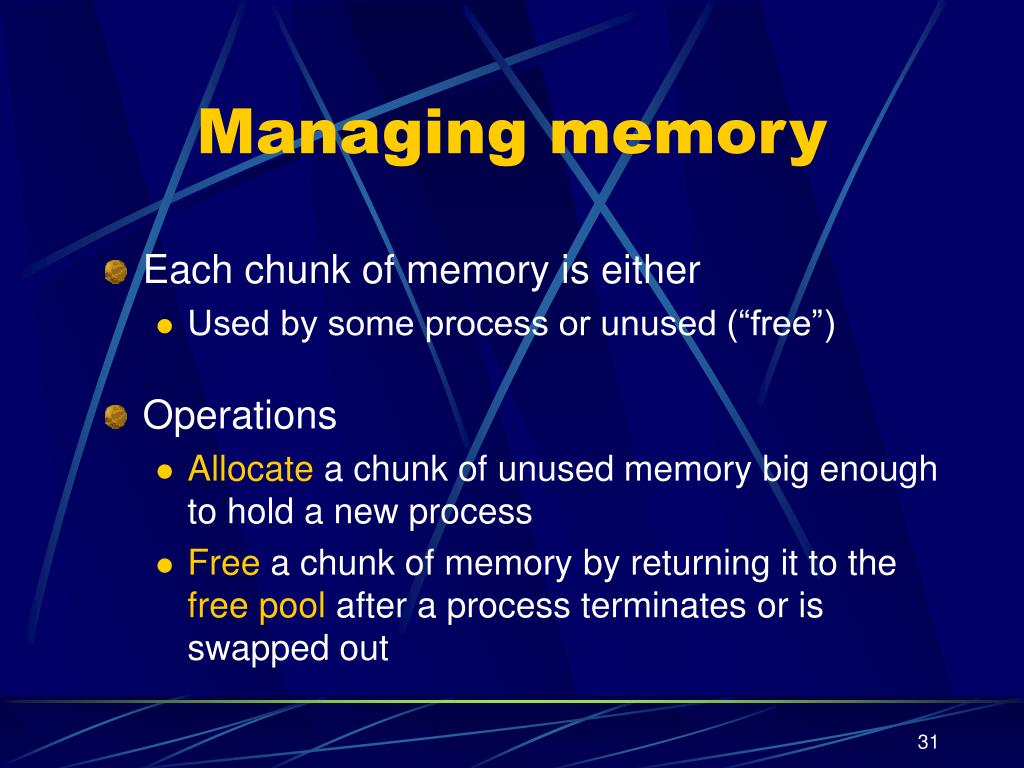

31. Managing memory • Each chunk of memory is either • Used by some process or unused (“free”) • Operations • Allocate a chunk of unused memory big enough to hold a new process • Free a chunk of memory by returning it to the free pool after a process terminates or is swapped out

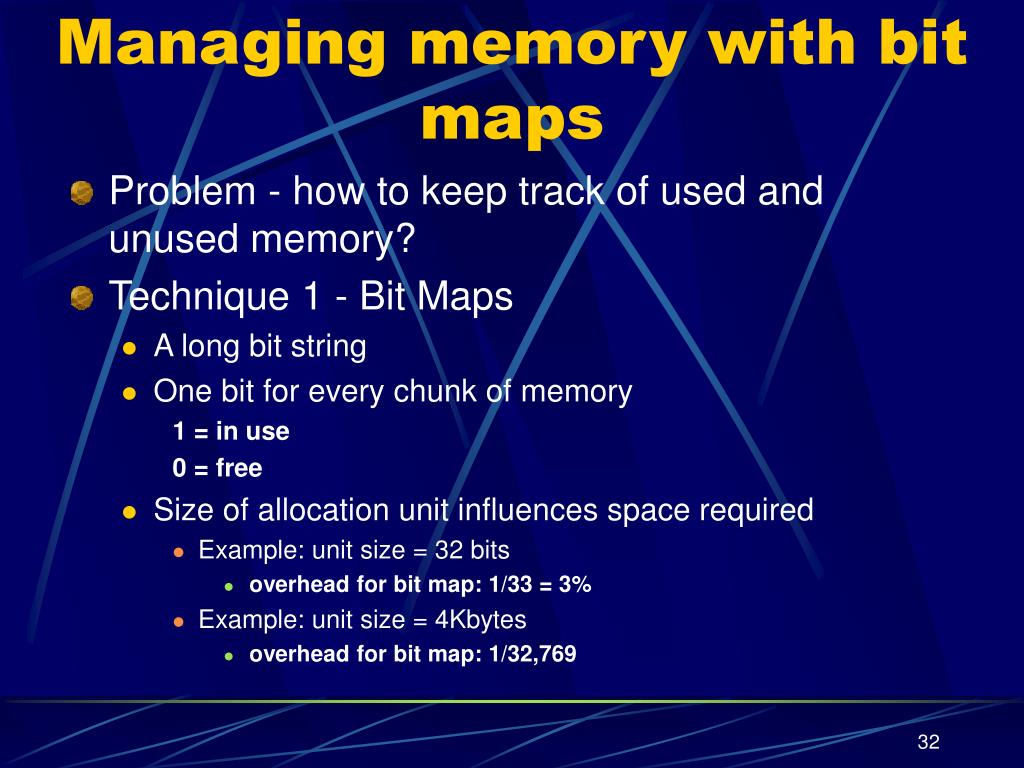

32. Managing memory with bit maps • Problem - how to keep track of used and unused memory? • Technique 1 - Bit Maps • A long bit string • One bit for every chunk of memory 1 = in use 0 = free • Size of allocation unit influences space required • Example: unit size = 32 bits • overhead for bit map: 1/33 = 3% • Example: unit size = 4Kbytes • overhead for bit map: 1/32,769

33. Managing memory with bit maps

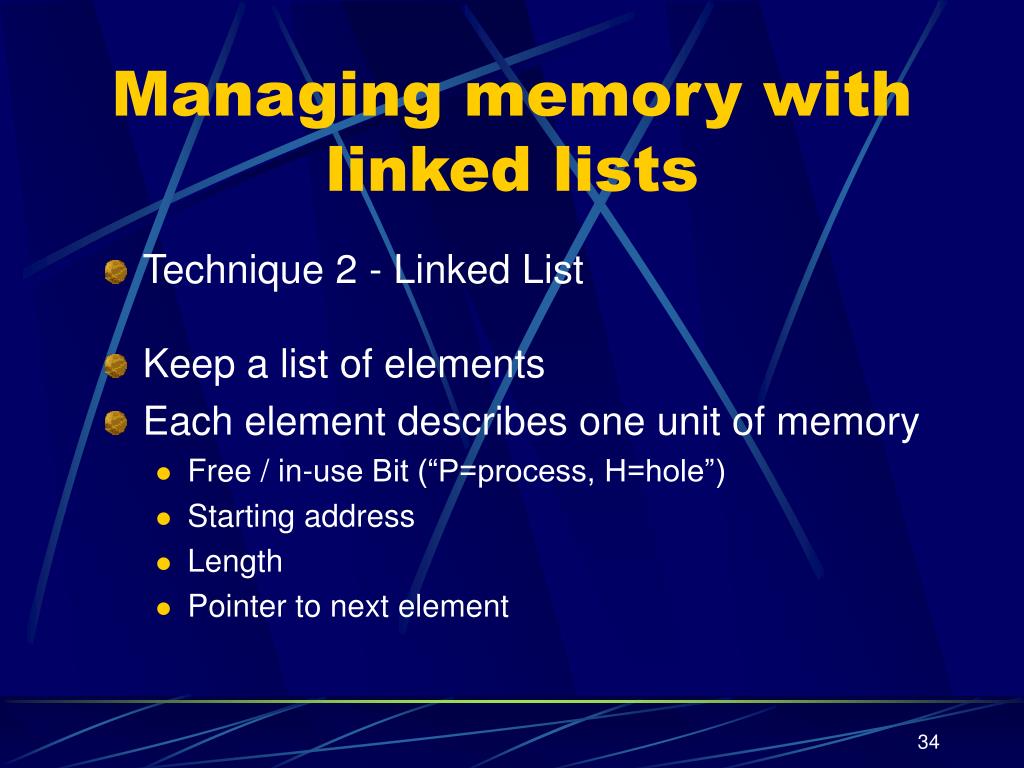

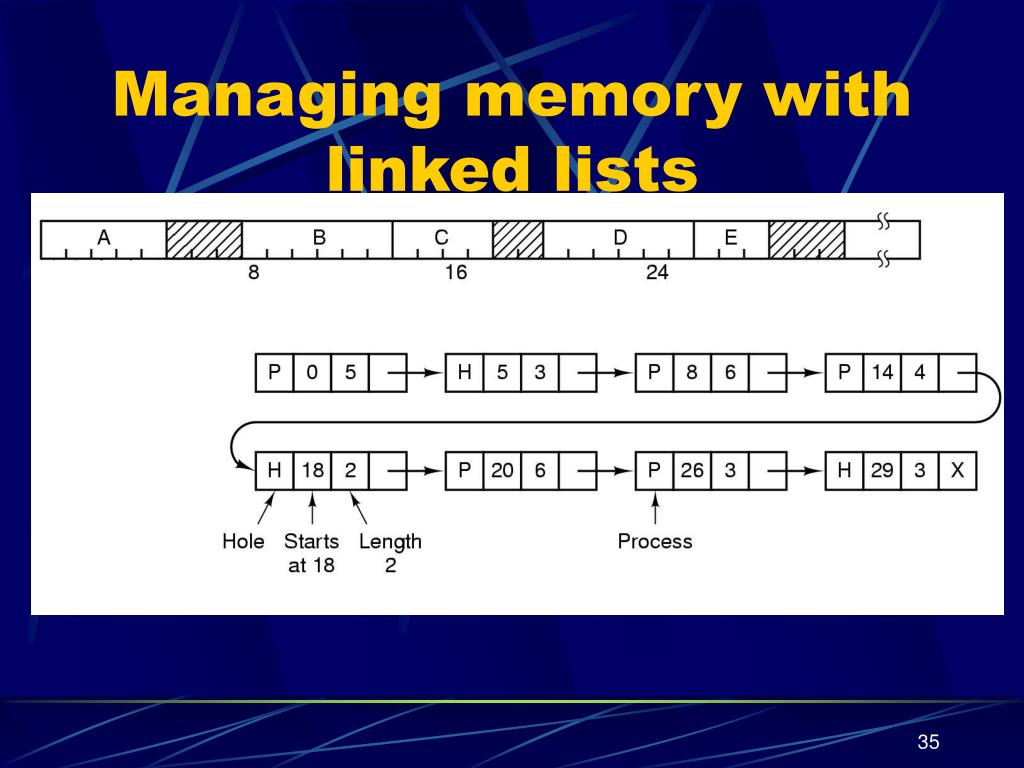

34. Managing memory with linked lists • Technique 2 - Linked List • Keep a list of elements • Each element describes one unit of memory • Free / in-use Bit (“P=process, H=hole”) • Starting address • Length • Pointer to next element

35. Managing memory with linked lists 0

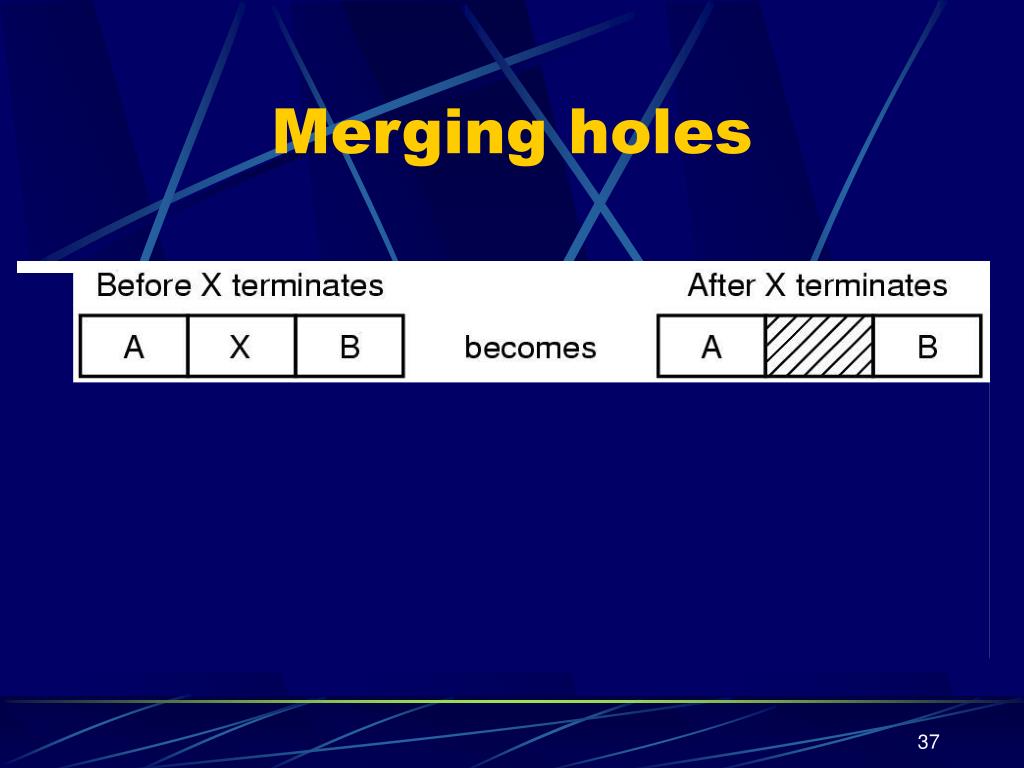

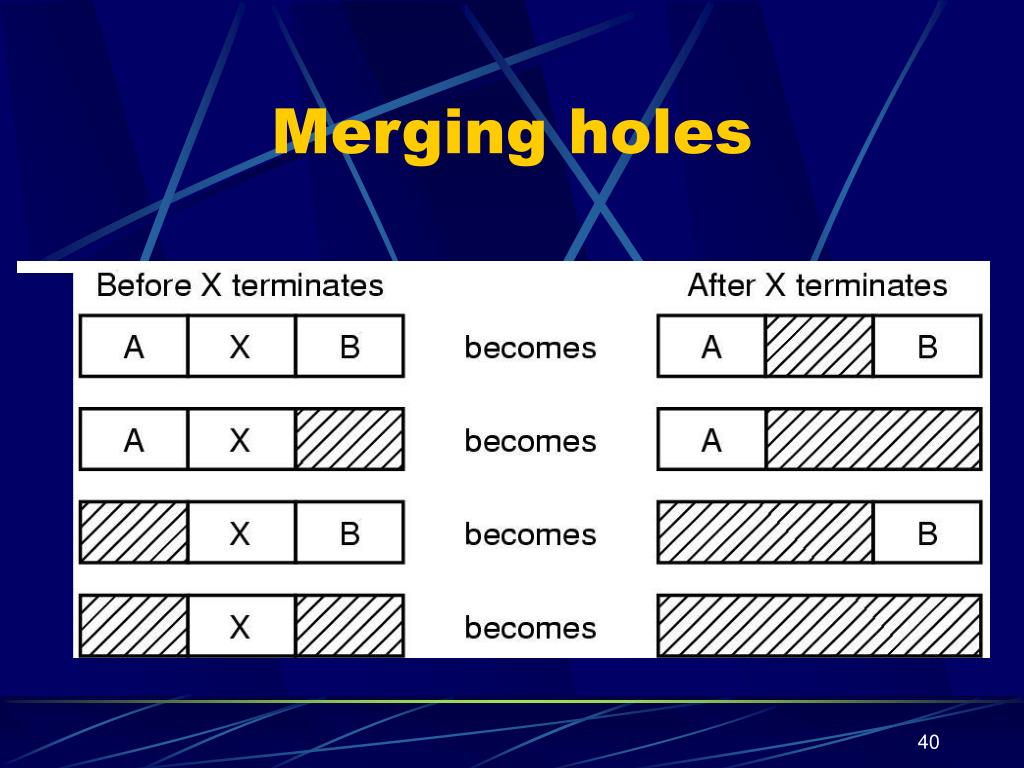

36. Merging holes • Whenever a unit of memory is freed we want to merge adjacent holes!

37. Merging holes

38. Merging holes

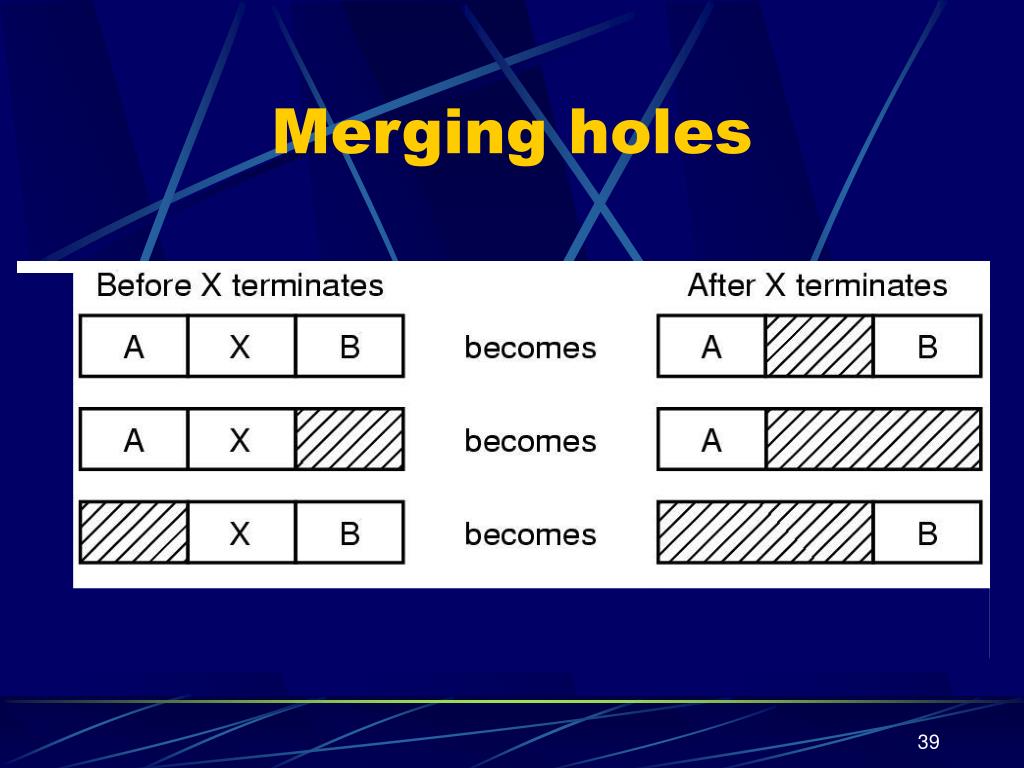

39. Merging holes

40. Merging holes

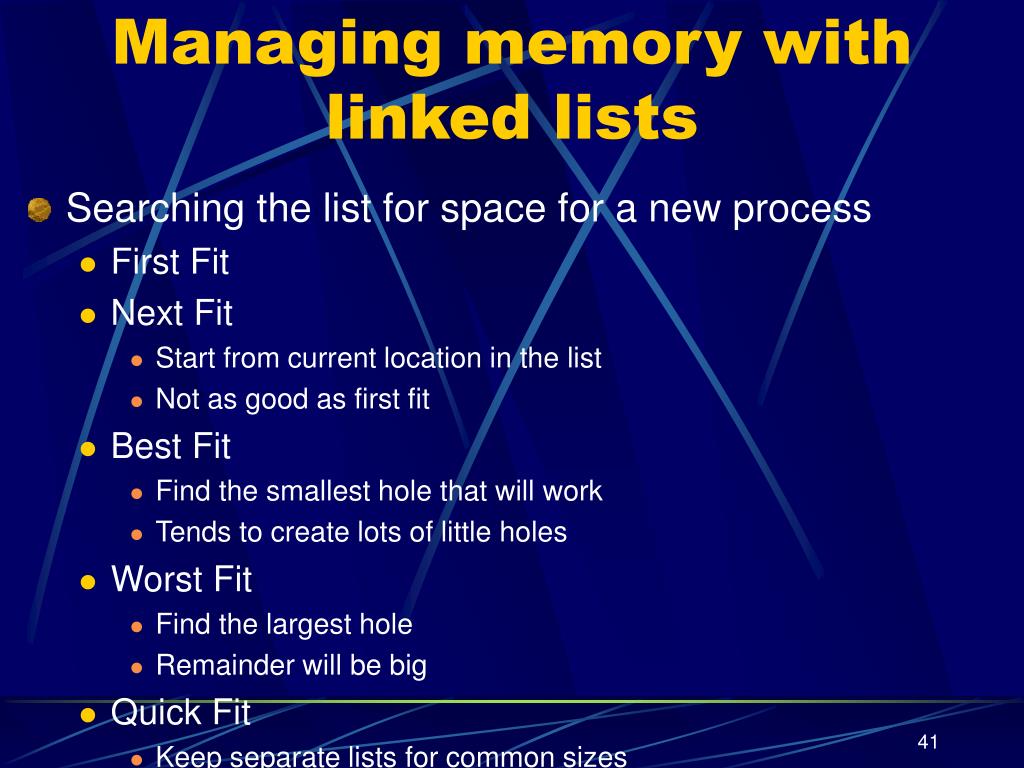

41. Managing memory with linked lists • Searching the list for space for a new process • First Fit • Next Fit • Start from current location in the list • Not as good as first fit • Best Fit • Find the smallest hole that will work • Tends to create lots of little holes • Worst Fit • Find the largest hole • Remainder will be big • Quick Fit • Keep separate lists for common sizes

42. Fragmentation • Memory is divided into partitions • Each partition has a different size • Processes are allocated space and later freed • After a while memory will be full of small holes! • No free space large enough for a new process even though there is enough free memory in total • This is external fragmentation • If we allow free space within a partition we have internal fragmentation

43. Solution to fragmentation? • Allocate memory in equal fixed size units? • Reduces external fragmentation problems • But what about wasted space inside a unit due to internal fragmentation? • How big should the units be? • The smaller the better for internal fragmentation • The larger the better for management overhead • Can we use a unit size smaller than the memory needed by a process? • Ie, allocate non-contiguous units to the same process? • … but how would the base and limit registers work?

44. Using pages for non-contiguous allocation • Memory divided into fixed size page frames • Page frame size = 2n bytes • Lowest n bits of an address specify byte offset in page • But how do we associate page frames with processes? • And how do we map memory addresses within a process to the correct memory byte in a page frame? • Solution • Processes use virtual addresses • Hardware uses physical addresses • hardware support for virtual to physical address translation

45. Virtual addresses • Virtual memory addresses (what the process uses) • Page number plus byte offset in page • Low order n bits are the byte offset • Remaining high order bits are the page number bit 31 bit n-1 bit 0 20 bits 12 bits page number offset Example: 32 bit virtual address Page size = 212 = 4KB Address space size = 232 bytes = 4GB

46. Physical addresses • Physical memory addresses (what the CPU uses) • Page frame number plus byte offset in page • Low order n bits are the byte offset • Remaining high order bits are the page frame number bit 24 bit n-1 bit 0 12 bits 12 bits Page frame number offset Example: 24 bit physical address Page frame size = 212 = 4KB Max physical memory size = 224 bytes = 16MB

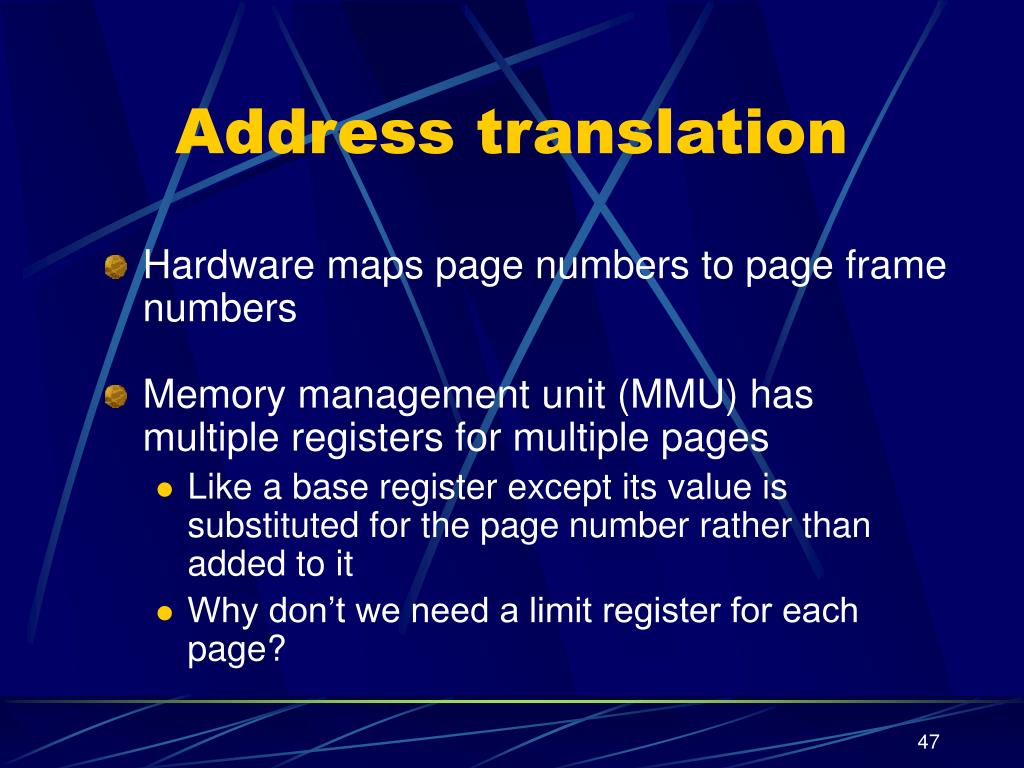

47. Address translation • Hardware maps page numbers to page frame numbers • Memory management unit (MMU) has multiple registers for multiple pages • Like a base register except its value is substituted for the page number rather than added to it • Why don’t we need a limit register for each page?

48. Memory Management Unit (MMU)

49. Virtual address spaces • Here is the virtual address space • (as seen by the process) Lowest address Highest address Virtual Addr Space

50. Virtual address spaces • The address space is divided into “pages” • In x86, the page size is 4K Page 0 0 1 2 3 4 5 6 7 N Page 1 A Page Page N Virtual Addr Space
