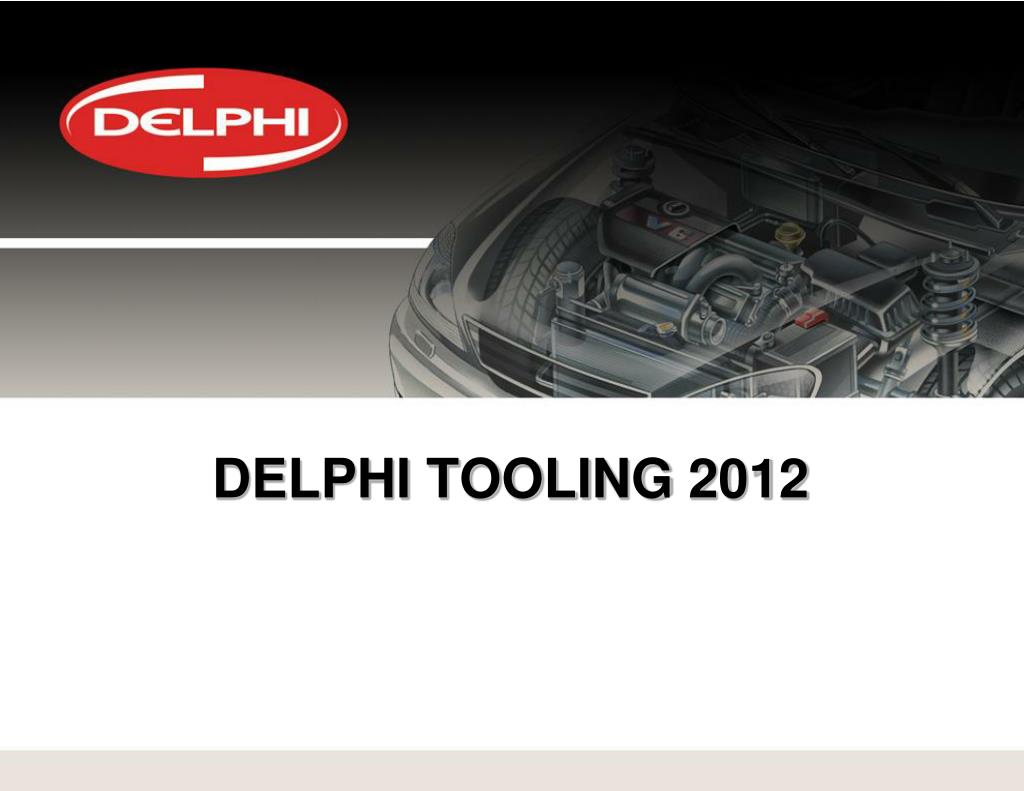

  1. DELPHI TOOLING 2012

  2. 2012 – AC Machine Range Features • Designed for the workshop and the environment • Modern design • Designed for working with Hybrid vehicle AC systems • Electrical compressors seen on Hybrid vehicles use non conductive oils and to avoid contamination with normal PAG oils the machine is programmed to flush the oiling system prior to use on these vehicles. • Very important safety feature • 2 year warranty from date of sale to garage or workshop • Appoint and train customer technical departments and / or 3rd party repair companies • WD’s to hold stock of spare parts • Claim forms, Job sheets to be submitted to UK warranty • 17 languages, UK-D-F-E-I-POR-NL-PL-GR -CZ-SF-SK-SLO-TK-HU-RU-RO- SWE • Safety glove and glasses supplied free with all machines • Each machine supplied with dust cover • Vehicle database included on complete range • Vehicle refrigerant quantity and oil type can be selected and used directly from a database • Updated annually by purchase of a new serial data key

  3. KEY FEATURES • PATENTED ALUMINUM MANIFOLD (Patent no.: EP 1367343 US 6,826,925) • Main component of the station which has made it possible to minimize the number of internal connection hoses, thanks to the piping inside the manifold, and the integration of the oil-refrigerant separator, offering numerous advantages, including • : • RAPID RECOVERY • LEAK PROTECTION • EASY ASSEMBLY • EASY ACCESS FOR SERVICE • AUTOMATICDISCHARGE OF NON-CONDENSABLE GAS • Recycling refrigerant from old poorly maintained systems can result in the recovery of air (non-condensable vapors), which can contain moisture, and become stratified inside the bottle, dangerously raising the pressure. • To prevent this the Delphi Machines: • Use pressure and temperature Transducers for the bottle pressure • Automatic air purge with solenoid valve • Possibility to purge across compete temperaturerange • Prevents moisture being added to the vehicle during the refrigerant charging

  4. KEY FEATURES COALESCENT FILTER This filter technology prevents the oil starvation of the compressor during refrigerant recovery Guaranteed HIGH PERFORMANCE over time Greater PROTECTION AGAINST SEIZING REFRIGERANT MANAGEMENT User and create customized archive of all refrigerant transactions according to the most recent laws in Europe (F-gas regulation). Easy download of data from the units via a USB port. DirectPrintout Archive data on PC Printout

  5. KEY FEATURES • SAE J-2210 AND SAE J-2788 • This Standard ensures that pure recycled refrigerant is recovered at the end of the process: • Only European manufacturer able to produce machines comply with the AmericanUL-ETLStandard which include the severe purity test of SAE J-2210: •  Residual oil < 500 ppm • Humidity < 50 ppm • Non condensable gas < 150 ppm • In European Markets the technology is branded High Precision which is based on the J-2788 standard which is more stringent than SAE J-2210, and will require: •  recover 95% of the refrigerant • Recharge accuracy +/- 15 grams • Recovery accuracy +/- 30 grams • This will result in: • saving of about 20% by increasing refrigerant recovery • Increased charge accuracy minimizing problems with over-filling • Especially important with increasing costs of R134a Gas

  6. R1234yf Refrigerant

  7. Refrigerant change to R1234yf • Should your customers ask for information regarding “The new refrigerant” you might find the following information useful. • EU legislation has mandated the change from R134a to R1234yf • For global warming reasons (R1234yf has GWP 4) • Applies to all vehicles homologated after Jan 1 2011 • Only Mercedes, so far, have confirmed they will use this refrigerant in November 2011 • In the IAM workshops may start to see cars in 2012 • The transfer to the new refrigerant is expected to be completed by 2017 • What equipment do I need? • A dedicated R1234yf machine – Delphi Part Number AT41652 • R1234yf Machines in Stock in Delphi Warehouse • Some manufacturers are offering dual gas machines • This machine can only be used on 1 vehicle at a time – limiting use • 10 to 15 minute change over between refrigerants – limiting availability

  8. New 2012 AC Machine for HFO1234YF - AT41652 • FULLY AUTOMATIC MACHINE WITH GRAPHICAL DISPALY • Can be used manually, automatically or in database mode • 100 litre per minute vacuum pump • 12cc recovery compressor • 12 litre refrigerant storage tank • Easily read Graphical display • Hybrid functionality • Oil line flushing to avoid cross contamination with standard PAG oils. • Vehicle database • For choice of refrigerant quantity by make, model of vehicle • Updates, via serial data key, can be purchased annually • Thermal printer • Output via USB stick (not included) for printing data on PC • 3 metre hoses • Automatic UV Dye Injection • Digital Tank Pressure Gauge • External connection for Oxygen free nitrogen (OFN) • An environmentally preferred method of leak detection

  9. 2012 – AC Machine Range IN STOCK

  10. Additional AC Tooling

  11. Leak Detection Ultra Violet Leak Detection AT41550 – Complete UV Leak Detection Kit Including injection gun, rechargeable lamp, dye, goggles and dye cleaner AT41551 – UV Dye Injector Including injection gun, and a 64 dose bottle of dye AT41549 – UV Lamp Including 12v lamp and goggles AT41556 – UV Lamp Including rechargeable lamp and goggles AT41559 – UV Enhancing Goggles These goggles not only enhance the vision of UV dye but provide the operator with protection equivalent to a 44g steel ball at 50m/s.

  12. Leak Detection Ultra Violet Dye AT41606– UV Dye 240ml with single dose measure – Solvent Free AT41602– UV Dye 64 dose measure – Solvent Free AT41603 – UV Dye 4 bottles, 32 dose – Solvent Free AT41604 – UV Dye 6 bottles 16 dose – Solvent Free AT41605– UV Dye Box of 12 single dose bottles – Solvent Free UV Dye Cleaner Essential to remove UV dye residues, available in 2 sizes AT41557 – 6 x 240ml bottles AT41558 – 6 x 123ml bottles

  13. Leak Detection AT41542 & AT41542UK - Nitrogen leak detection kit This kit is provided with a class 1 gauge. The kit can detect vary small leakages. This kit can also be used to verify the settings of the pressure switches and gauges. Inlet pressure 200 bar Outlet pressure 5 bar → 48 bar Connections ¼ “ SAE Manometer 80 mm diameter, class 1.0 (defined sectors), provided with positioning indicator and calibration screw Adapter 5/16” SAE – F x ¼ “ SAE Flexible hose ¼” SAE - 1,5 m (∗) AT41542UK is differentiated with a 7/8” 14UNS adapter, only suitable for UK market (please check your nitrogen bottle connection type and order accordingly). Leak Detection • AT41570 – Electronic Leak Detector- • Main characteristics • This refrigerant leak detector has an electro-chemical sensor made of ceramic substrate covered with a reagent. The sensor is kept at a high temperature by an in-built mechanism. It is sensitive to all CFCs (R12, R11), HFCs (R134a) and HCFCs (R22, R123). When one of these gases comes in contact with the hot surface, the chlorine, fluorine and bromine atoms separate from their molecules and ionise. This produces an electrical current that, passing through the ceramic material, reaches an electrode in the centre of the sensor. The detector is • automatic and does not have to be set for a particular type of refrigerant. It compensates automatically for variations in background contamination and humidity. An audible variable pitch signal pinpoints the exact source of the leak. • Certifications UL - CE

  14. Consumables PAG oils AT41593 ISO100 viscosity AT41594 ISO150 viscosity AT41595 ISO46 viscosity AT41611 Hybrid vehicle AC oil Air Conditioning Oils Ester oils AT41596 ISO100 1 x 936ml can AT41597 ISO100 12 x 936 ml cans AT41598 ISO150 1 x 936ml can Vacuum pump oil AT41197 Oil for AC machine vacuum pump oil

  15. Anti-Bacterial Anti-Bacterial Treatments AT41428 ACAT 30 400ml – Foam - 12 cans AT41434 ACAT 40 400ml – Spray – 12 cans AT41567 ACAT 40 200ml – single dose “grenade” – 12 cans AT41577 ACAT 30 & 40 50ml – single dose 28 cans (14 of each) AT41532 – Air Sanitizer The sanitizer is a professional ozone generator of high capacity which, thanks to the ozone strong oxidizing power, fights against bacteria, moulds and mites and dissolves bad smells, such as smoke of cigarette, pet odours, Perfect to sanitize the following places: • Vehicles’ air conditioning and ventilation systems • Driver and passenger compartment and driver’s cabins • Campers and caravans • Trains carriages • Boats Equipped with 230V power and 12V car adapter. Capacity 100 mg/h Power supply 230V - 50 Hz Timer 5 selectable programmes (5mins – 60mins)
