Duplicate record detection

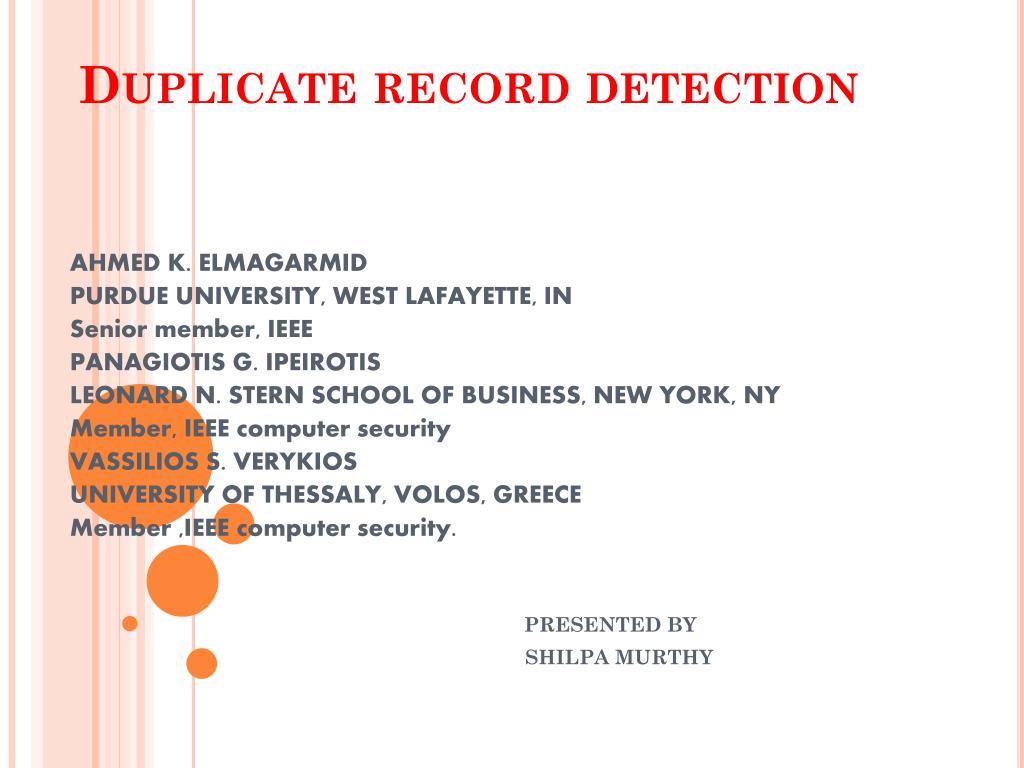

1. Duplicate record detection AHMED K. ELMAGARMID PURDUE UNIVERSITY, WEST LAFAYETTE, IN Senior member, IEEE PANAGIOTIS G. IPEIROTIS LEONARD N. STERN SCHOOL OF BUSINESS, NEW YORK, NY Member, IEEE computer security VASSILIOS S. VERYKIOS UNIVERSITY OF THESSALY, VOLOS, GREECE Member ,IEEE computer security. PRESENTED BY SHILPA MURTHY

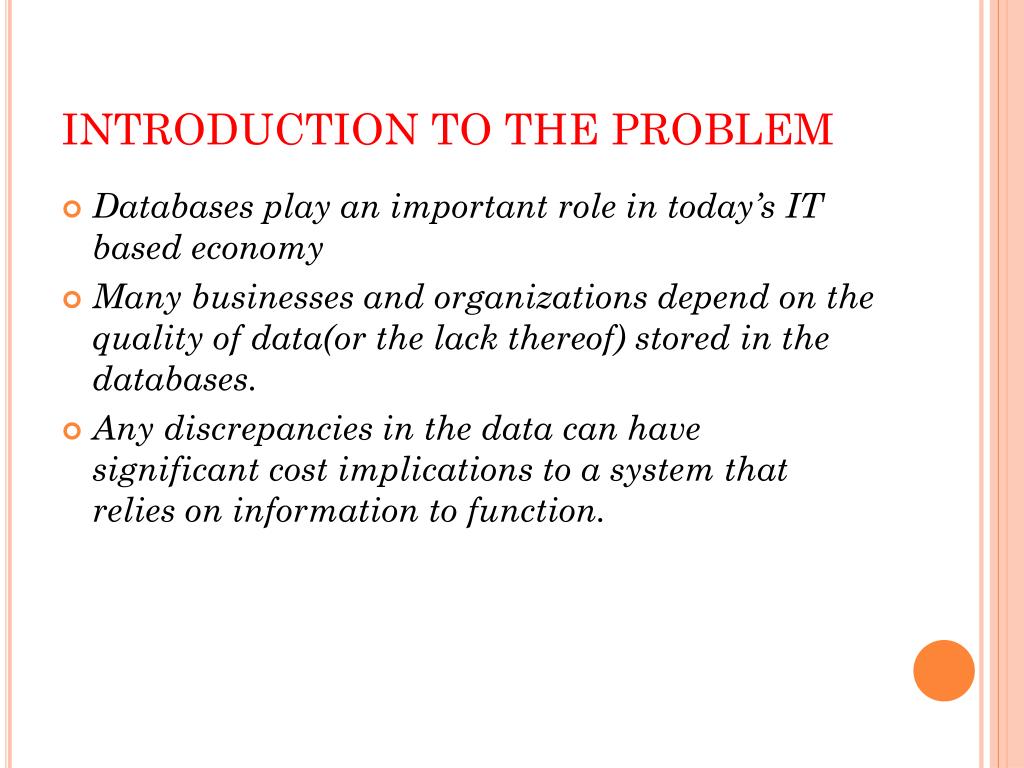

2. INTRODUCTION TO THE PROBLEM • Databases play an important role in today’s IT based economy • Many businesses and organizations depend on the quality of data(or the lack thereof) stored in the databases. • Any discrepancies in the data can have significant cost implications to a system that relies on information to function.

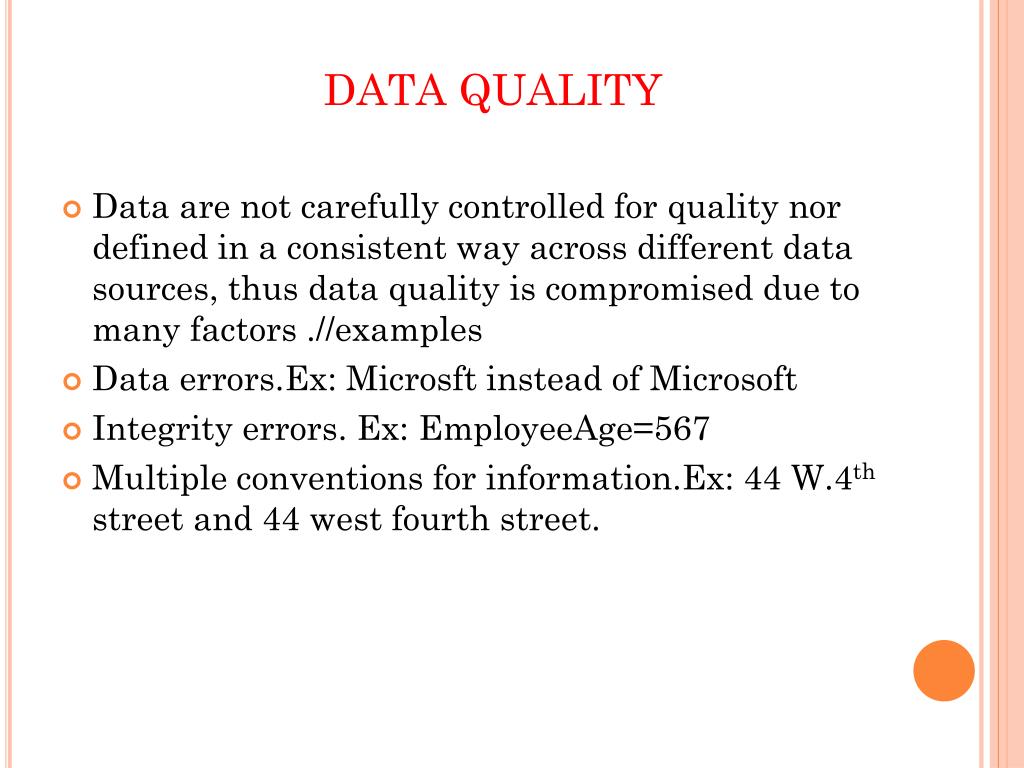

3. DATA QUALITY • Data are not carefully controlled for quality nor defined in a consistent way across different data sources, thus data quality is compromised due to many factors .//examples • Data errors.Ex: Microsft instead of Microsoft • Integrity errors. Ex: EmployeeAge=567 • Multiple conventions for information.Ex: 44 W.4th street and 44 west fourth street.

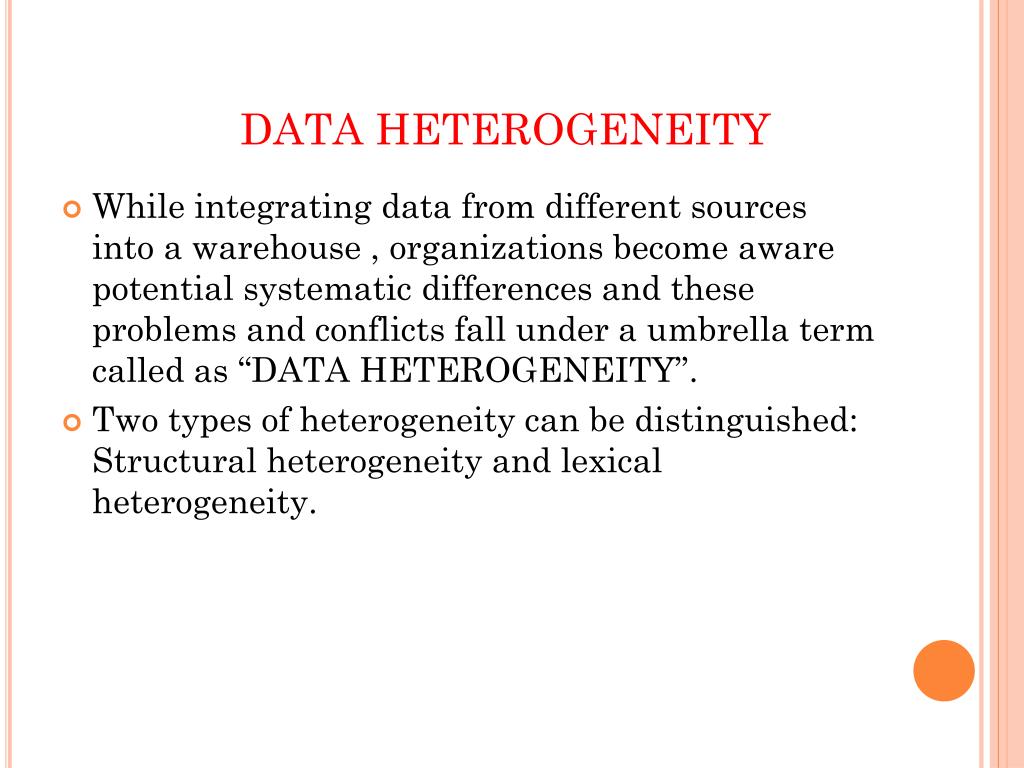

4. DATA HETEROGENEITY • While integrating data from different sources into a warehouse , organizations become aware potential systematic differences and these problems and conflicts fall under a umbrella term called as “DATA HETEROGENEITY”. • Two types of heterogeneity can be distinguished: Structural heterogeneity and lexical heterogeneity.

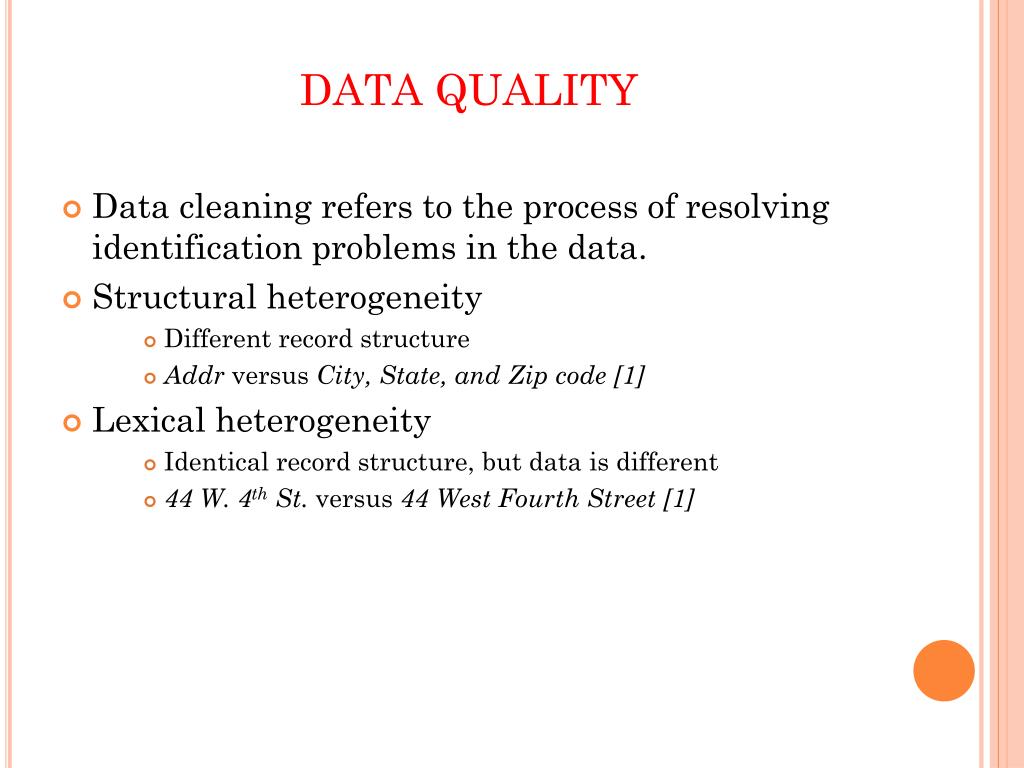

5. DATA QUALITY • Data cleaning refers to the process of resolving identification problems in the data. • Structural heterogeneity • Different record structure • Addrversus City, State, and Zip code [1] • Lexical heterogeneity • Identical record structure, but data is different • 44 W. 4th St. versus 44 West Fourth Street [1]

6. TERMINOLOGY

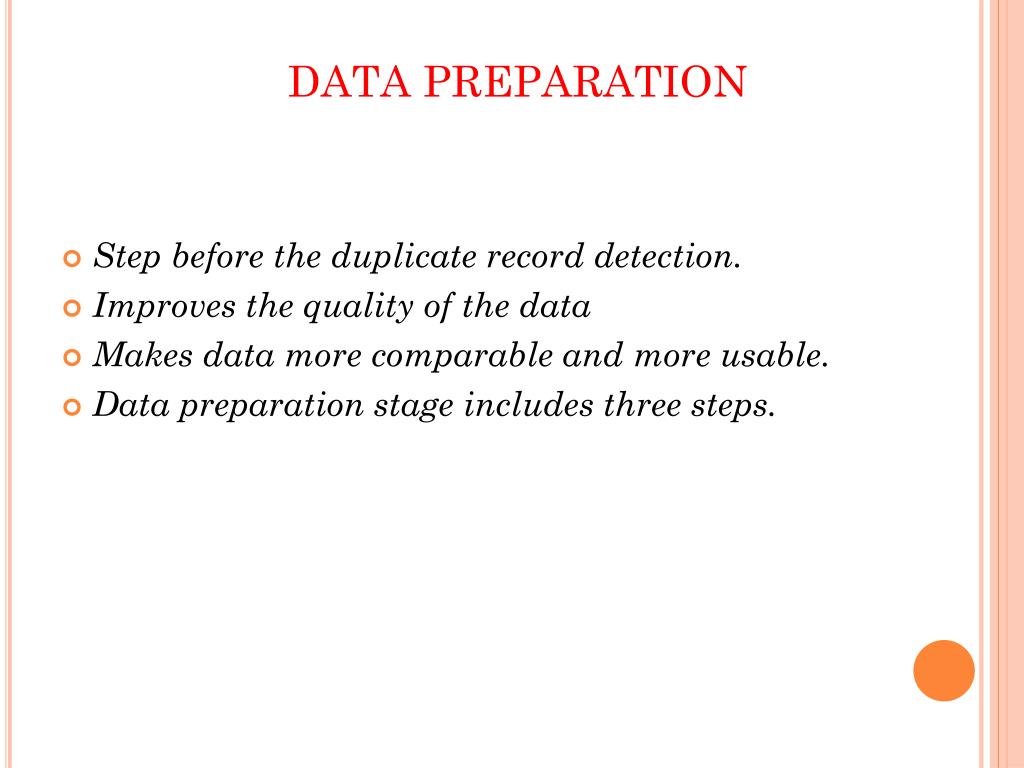

7. DATA PREPARATION • Step before the duplicate record detection. • Improves the quality of the data • Makes data more comparable and more usable. • Data preparation stage includes three steps.

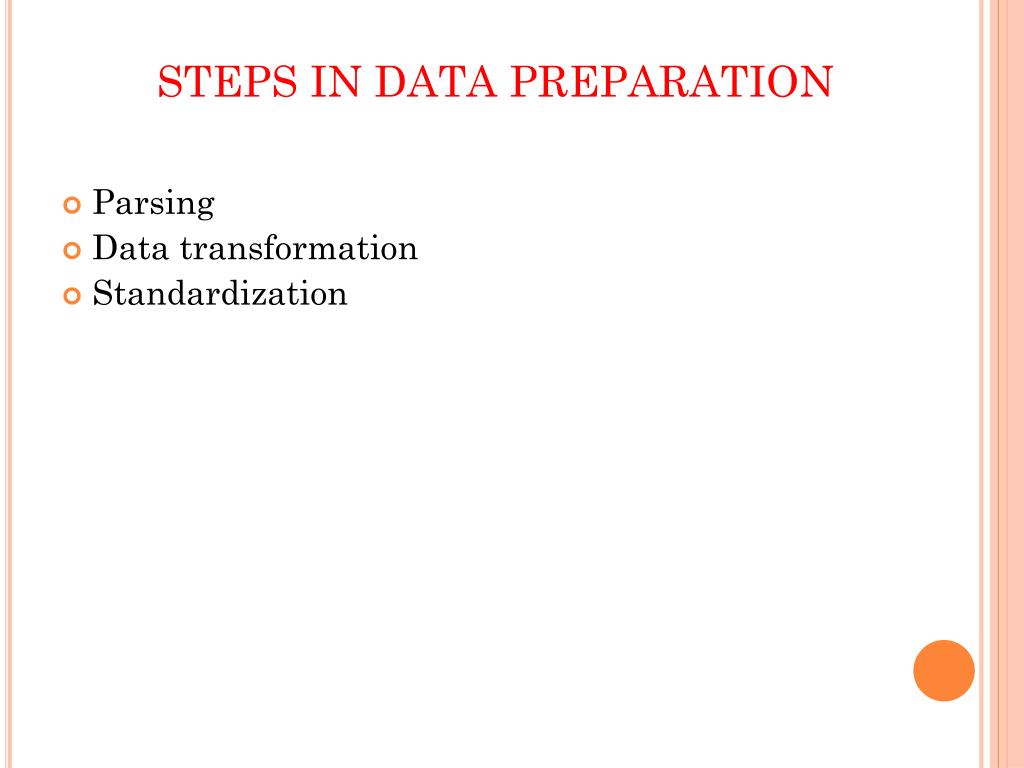

8. STEPS IN DATA PREPARATION • Parsing • Data transformation • Standardization

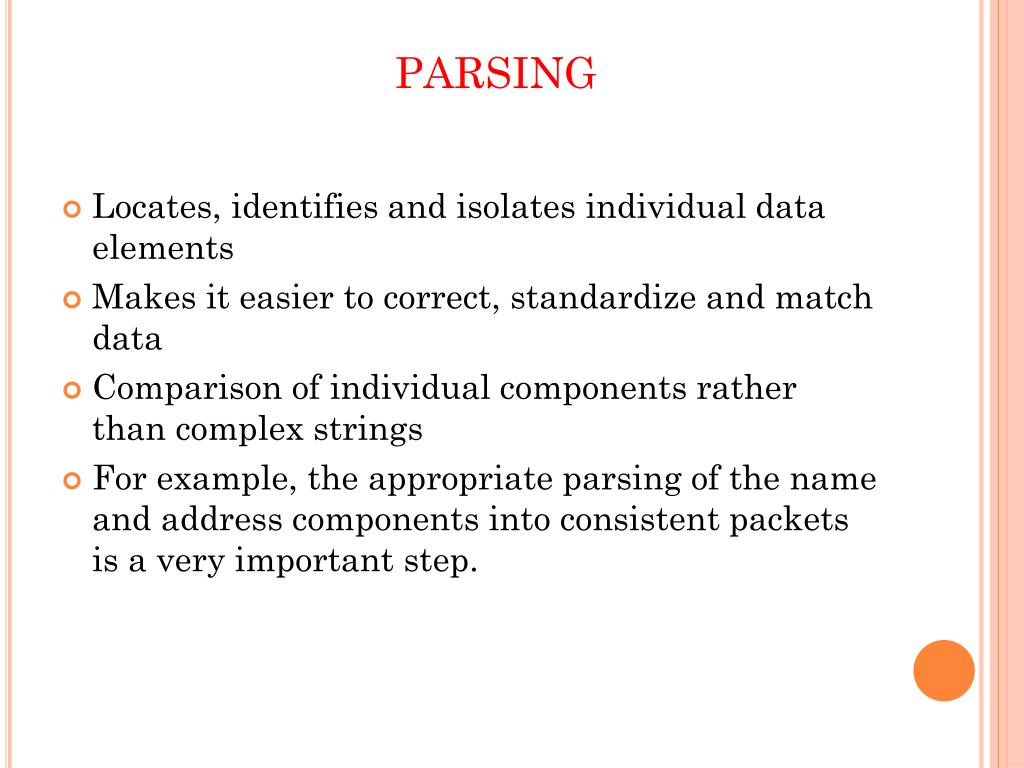

9. PARSING • Locates, identifies and isolates individual data elements • Makes it easier to correct, standardize and match data • Comparison of individual components rather than complex strings • For example, the appropriate parsing of the name and address components into consistent packets is a very important step.

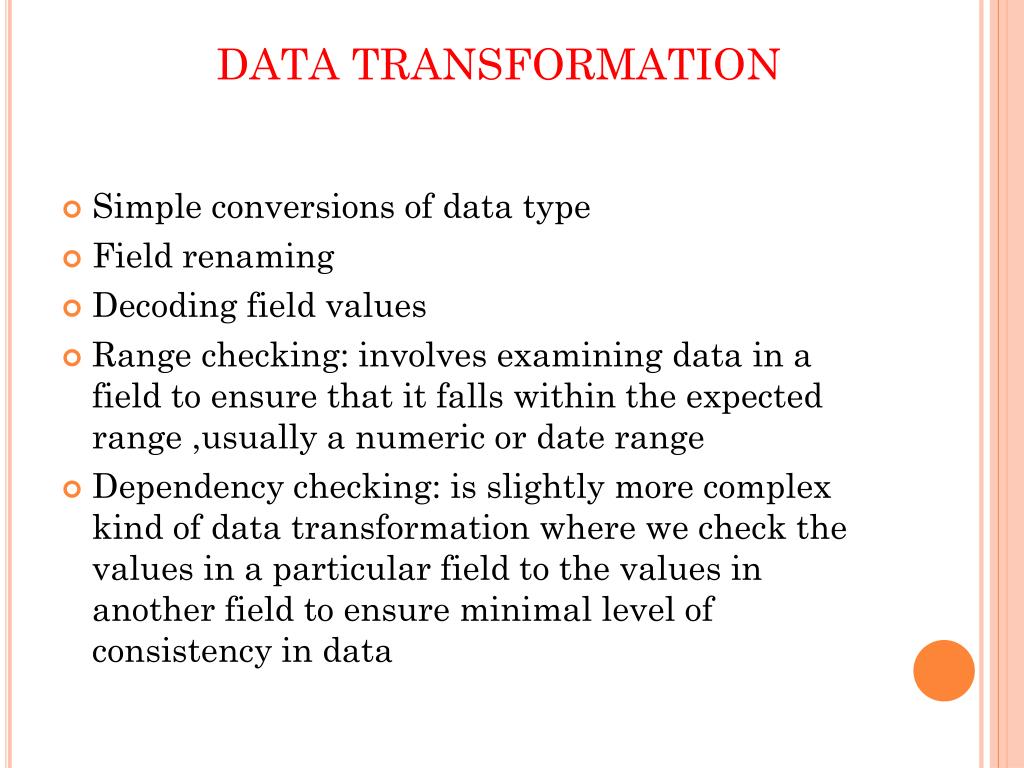

10. DATA TRANSFORMATION • Simple conversions of data type • Field renaming • Decoding field values • Range checking: involves examining data in a field to ensure that it falls within the expected range ,usually a numeric or date range • Dependency checking: is slightly more complex kind of data transformation where we check the values in a particular field to the values in another field to ensure minimal level of consistency in data

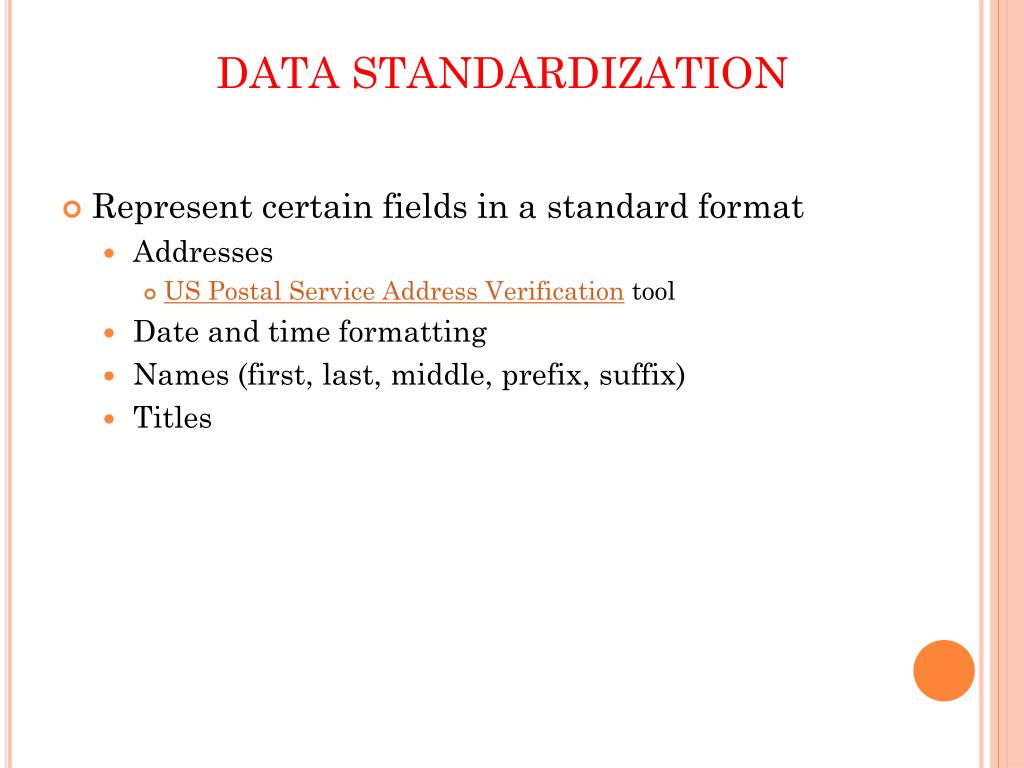

11. DATA STANDARDIZATION • Represent certain fields in a standard format • Addresses • US Postal Service Address Verification tool • Date and time formatting • Names (first, last, middle, prefix, suffix) • Titles

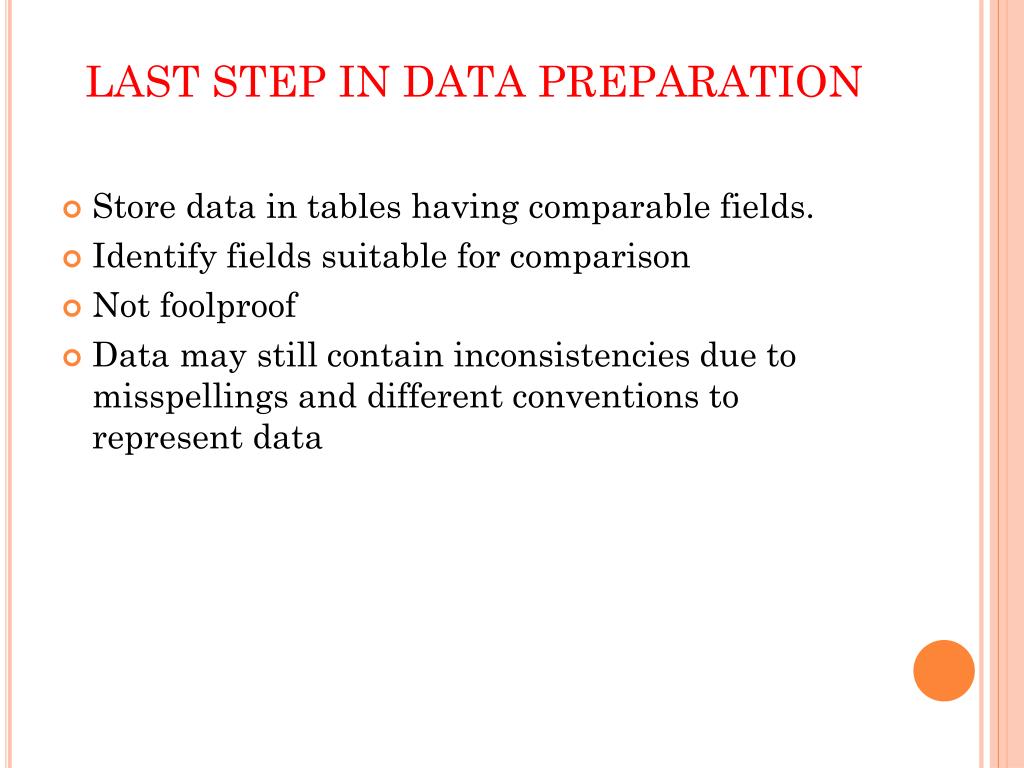

12. LAST STEP IN DATA PREPARATION • Store data in tables having comparable fields. • Identify fields suitable for comparison • Not foolproof • Data may still contain inconsistencies due to misspellings and different conventions to represent data

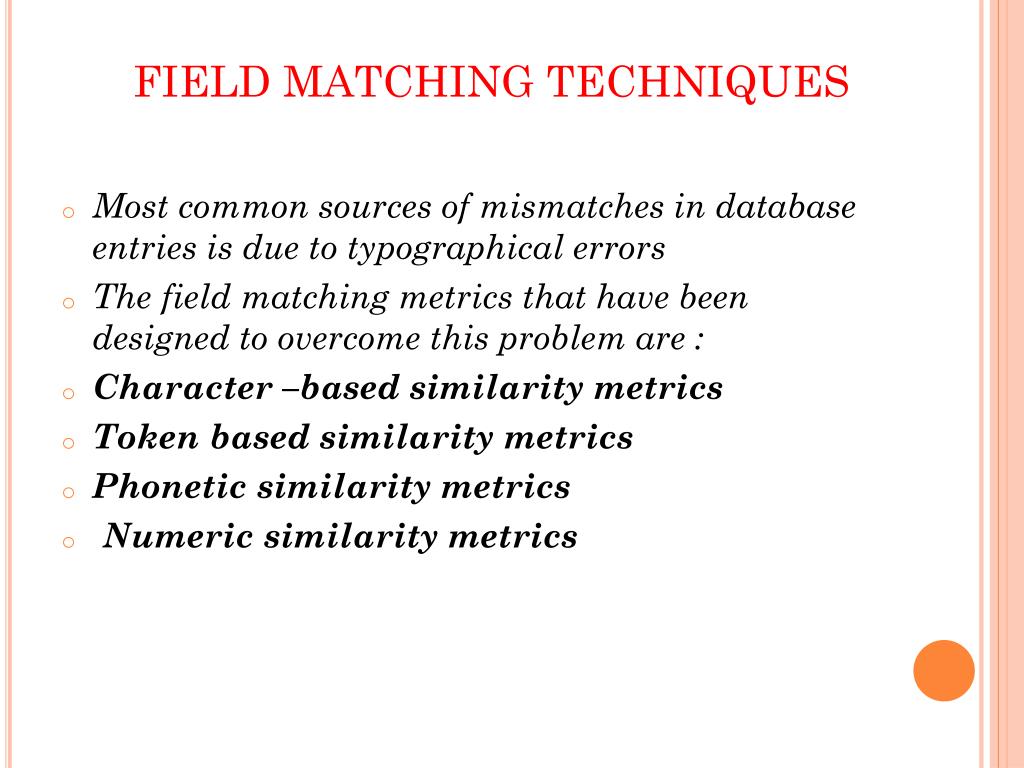

13. FIELD MATCHING TECHNIQUES • Most common sources of mismatches in database entries is due to typographical errors • The field matching metrics that have been designed to overcome this problem are : • Character –based similarity metrics • Token based similarity metrics • Phonetic similarity metrics • Numeric similarity metrics

14. CHARACTER BASED SIMILARITY • Works best on typographical errors • Edit distance • Shortest sequence of edit commands that can transform a string s into t • Three types of edit operations . If (cost =1) this version of edit distance is referred to as the “Levenshein” distance. • Insert, delete, replace operations. • Example. S1=“tin” s2= “tan” • We need to replace “I” to “A” to convert string s1 to s2. • The edit distance here is 1. because we needed only one operation to convert s1 to s2.

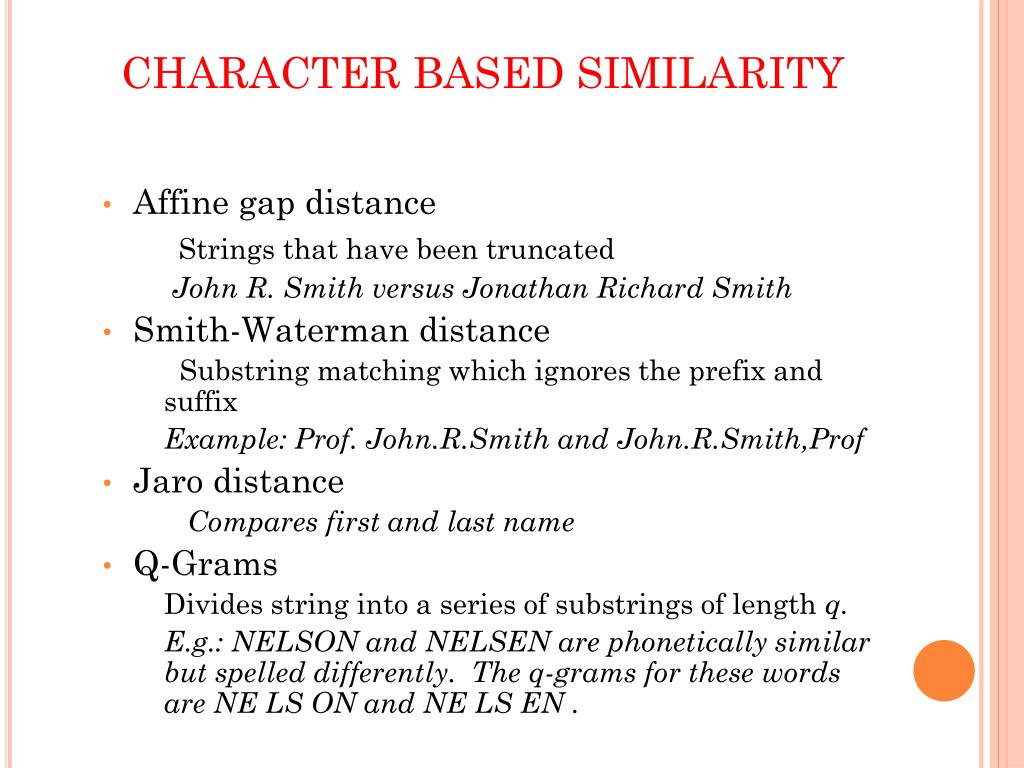

15. CHARACTER BASED SIMILARITY • Affine gap distance Strings that have been truncated John R. Smith versus Jonathan Richard Smith • Smith-Waterman distance Substring matching which ignores the prefix and suffix Example: Prof. John.R.Smith and John.R.Smith,Prof • Jaro distance Compares first and last name • Q-Grams Divides string into a series of substrings of length q. E.g.: NELSON and NELSEN are phonetically similar but spelled differently. The q-grams for these words are NE LS ON and NE LS EN .

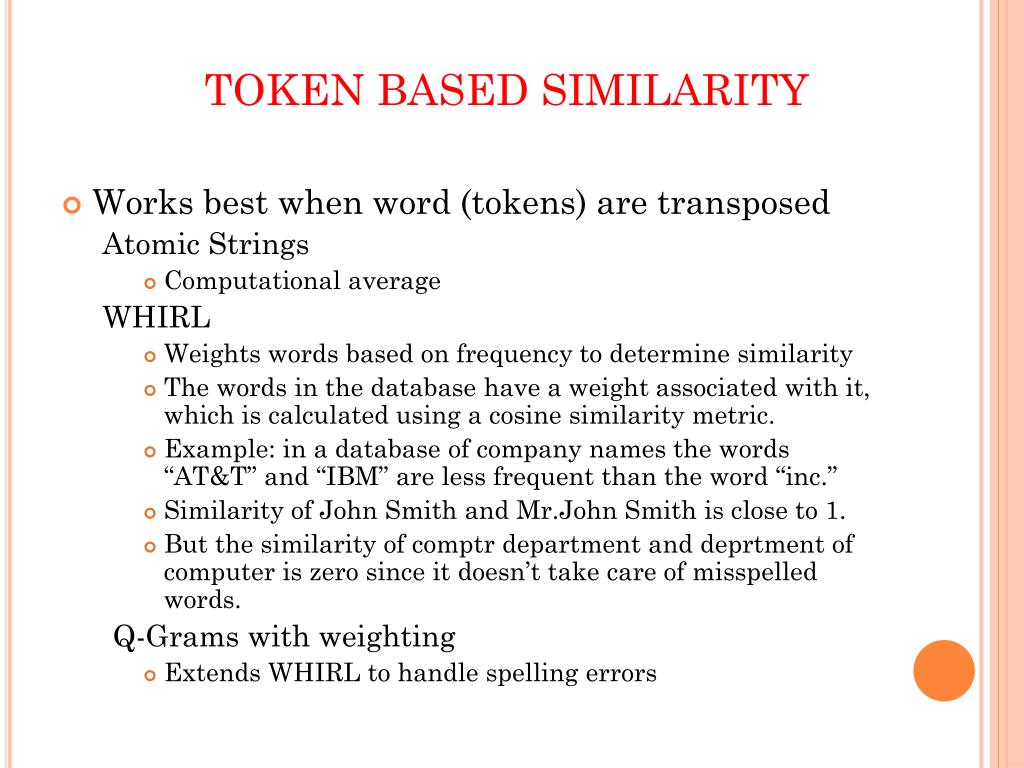

16. TOKEN BASED SIMILARITY • Works best when word (tokens) are transposed Atomic Strings • Computational average WHIRL • Weights words based on frequency to determine similarity • The words in the database have a weight associated with it, which is calculated using a cosine similarity metric. • Example: in a database of company names the words “AT&T” and “IBM” are less frequent than the word “inc.” • Similarity of John Smith and Mr.John Smith is close to 1. • But the similarity of comptr department and deprtment of computer is zero since it doesn’t take care of misspelled words. Q-Grams with weighting • Extends WHIRL to handle spelling errors

17. PHONETIC SIMILARITY • Comparison based on how words sound

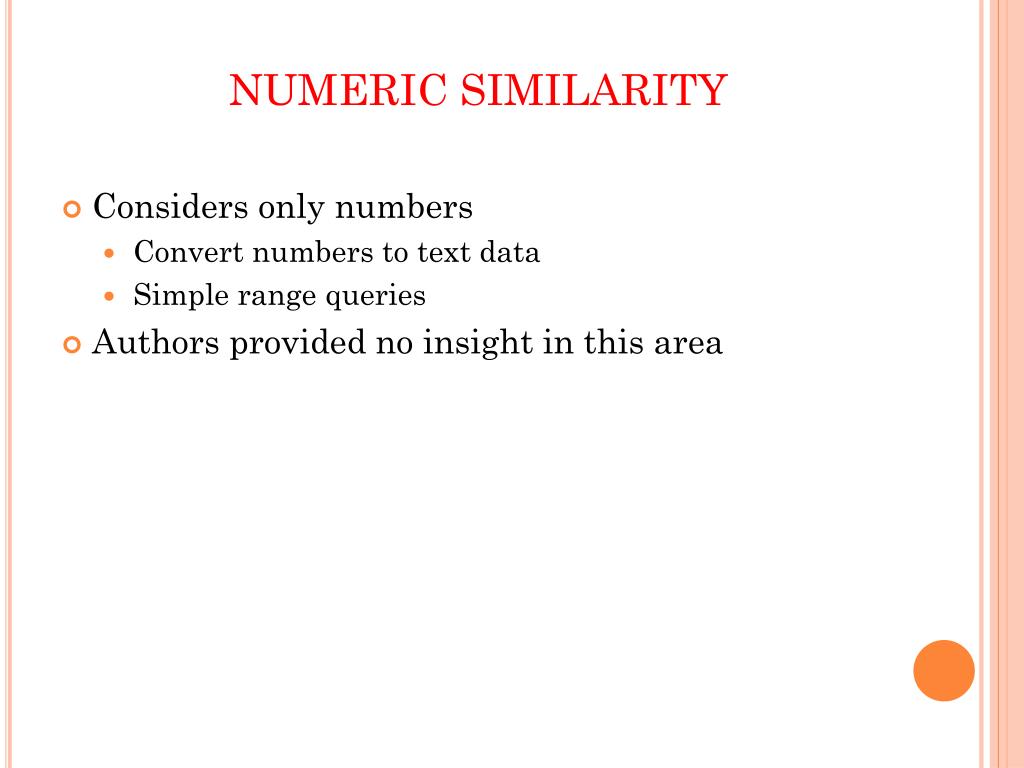

18. NUMERIC SIMILARITY • Considers only numbers • Convert numbers to text data • Simple range queries • Authors provided no insight in this area

19. SUMMARY OF METRICS

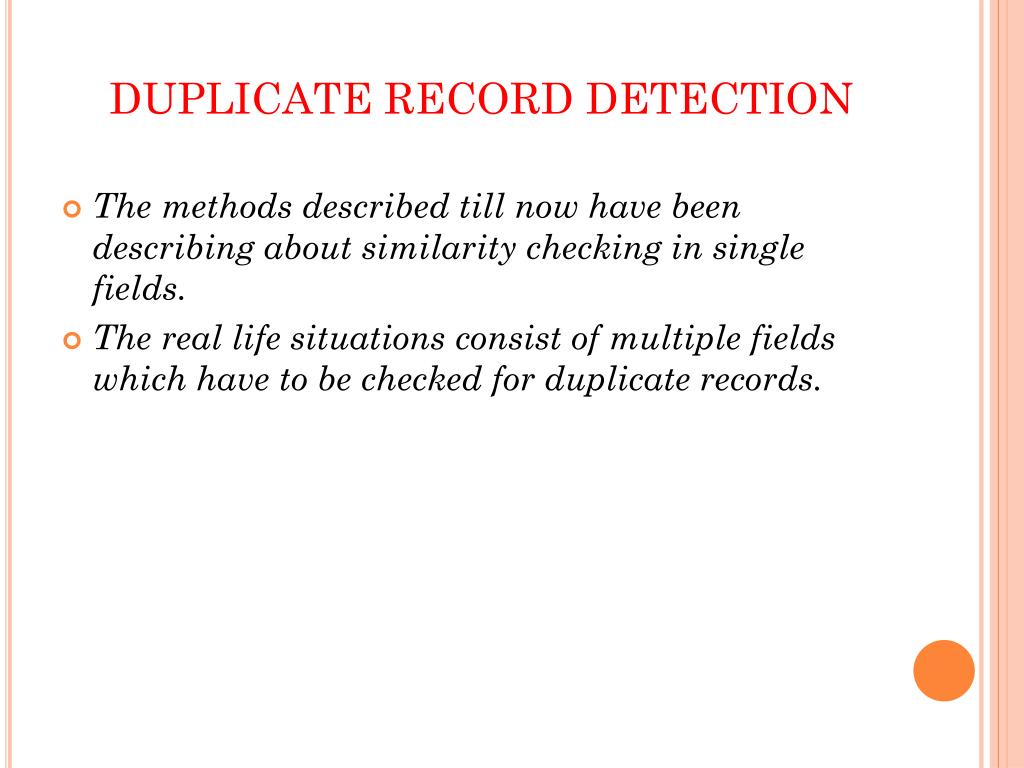

20. DUPLICATE RECORD DETECTION • The methods described till now have been describing about similarity checking in single fields. • The real life situations consist of multiple fields which have to be checked for duplicate records.

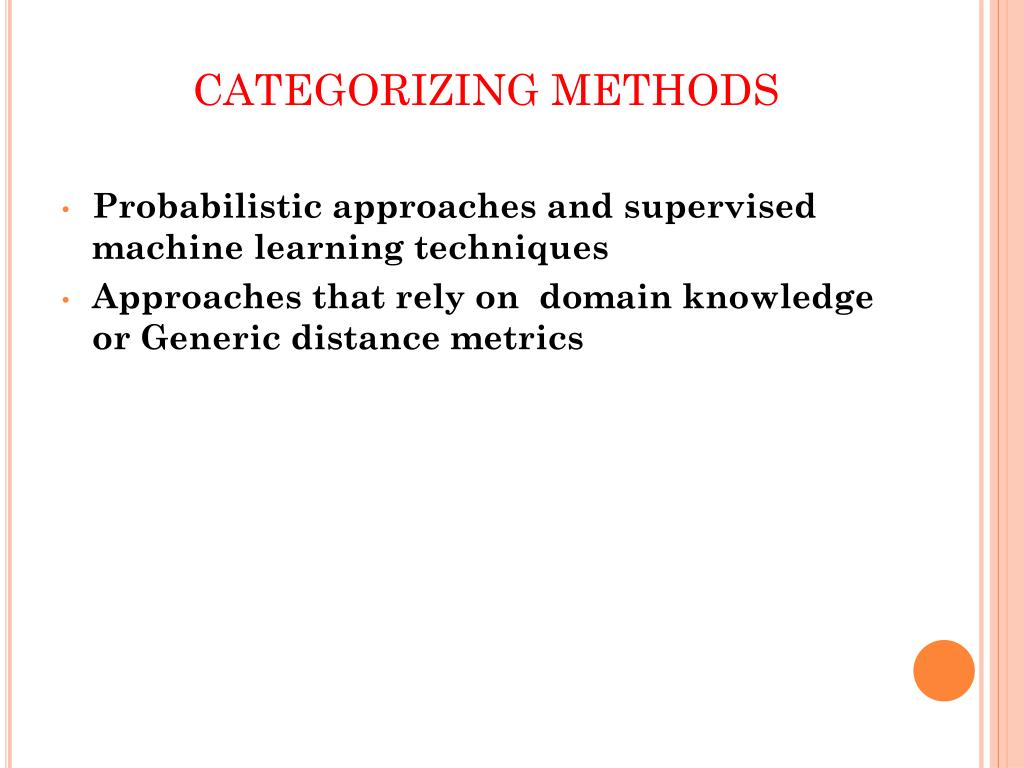

21. CATEGORIZING METHODS • Probabilistic approaches and supervised machine learning techniques • Approaches that rely on domain knowledge or Generic distance metrics

22. PROBABILISTIC MATCHINGMODELS • Models derived from Bayes theorem • Use prior knowledge to make decision about current data set • A tuple pair is assigned to one of the two classes M or U. M class represents(match) same entity, and the U class represents(non-match) different entity. • This can be determined by calculating the probability distribution. • Rule-based decision tree • If-then-else traversal

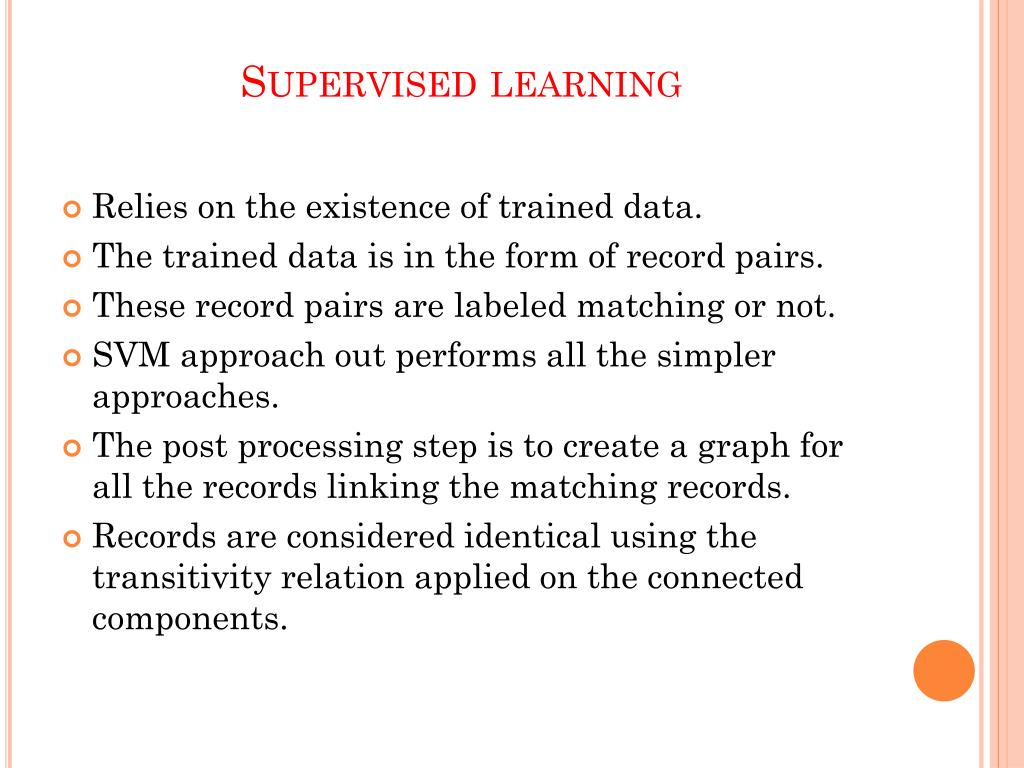

23. Supervised learning • Relies on the existence of trained data. • The trained data is in the form of record pairs. • These record pairs are labeled matching or not. • SVM approach out performs all the simpler approaches. • The post processing step is to create a graph for all the records linking the matching records. • Records are considered identical using the transitivity relation applied on the connected components.

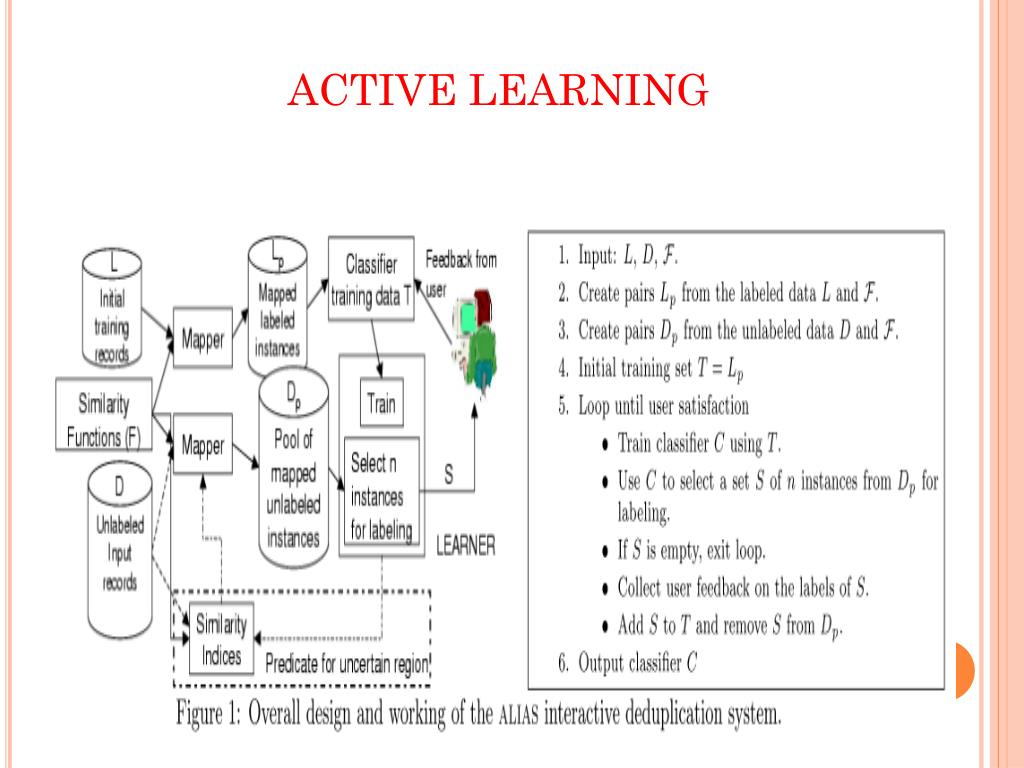

24. ACTIVE LEARNING

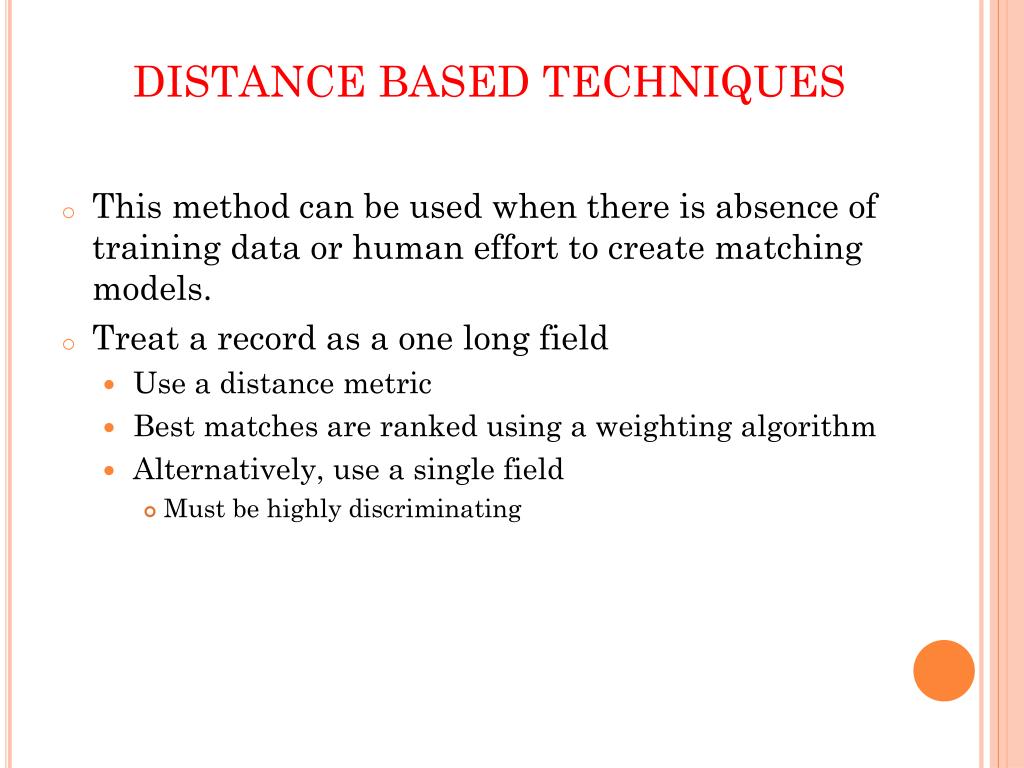

25. DISTANCE BASED TECHNIQUES • This method can be used when there is absence of training data or human effort to create matching models. • Treat a record as a one long field • Use a distance metric • Best matches are ranked using a weighting algorithm • Alternatively, use a single field • Must be highly discriminating

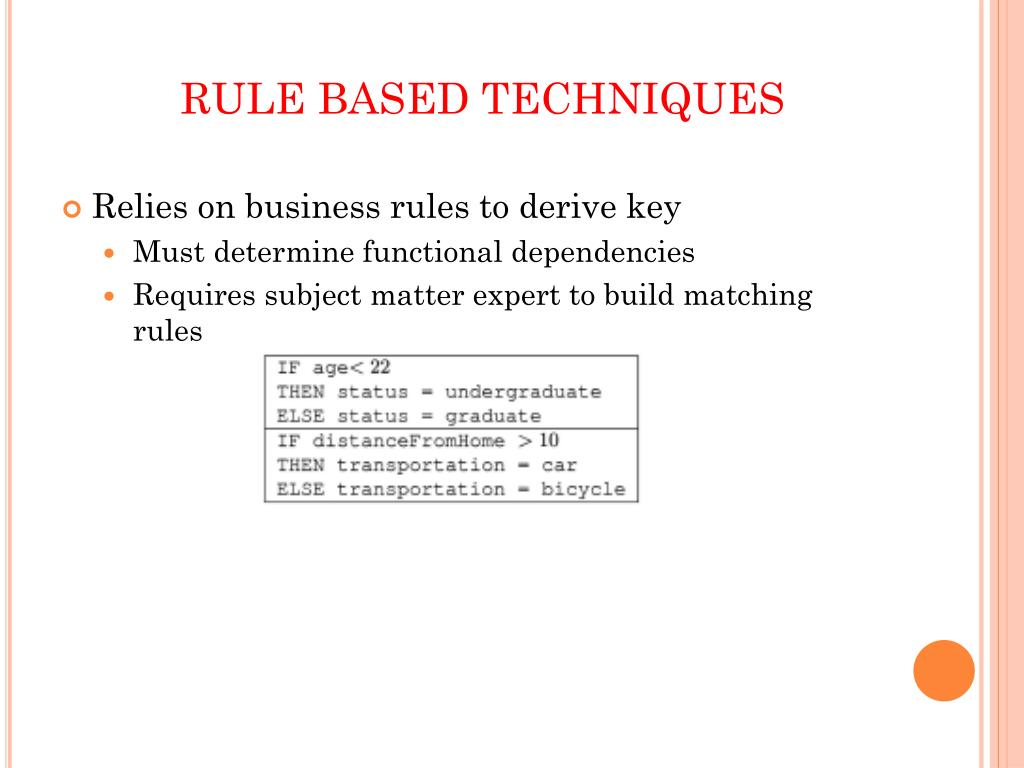

26. RULE BASED TECHNIQUES • Relies on business rules to derive key • Must determine functional dependencies • Requires subject matter expert to build matching rules

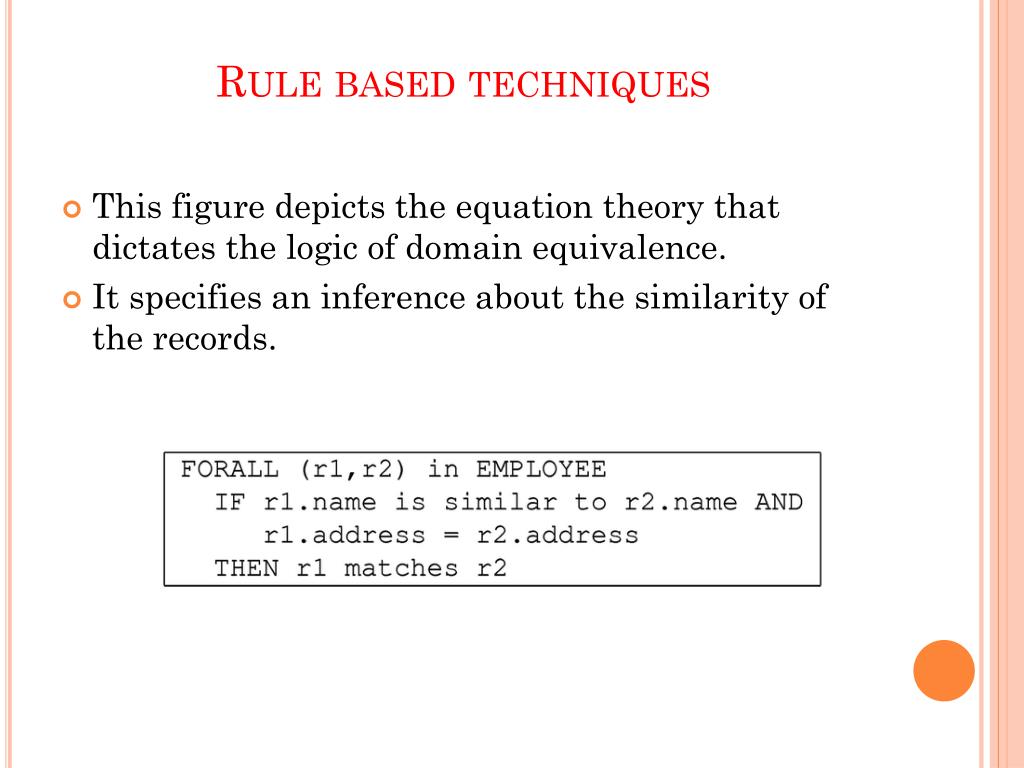

27. Rule based techniques • This figure depicts the equation theory that dictates the logic of domain equivalence. • It specifies an inference about the similarity of the records.

28. UNSUPERVISED LEARNING • Classify data as matched or unmatched without a training set. • The comparison vector generally depicts which category it belongs to. If it does not then it has to be done manually. • One way to avoid manual labeling is to use the clustering algorithms. • Group together similar comparison vectors. • Each cluster contains vectors with similar characteristics. • By knowing the real class of only few vectors we can infer the class of all the vectors.

29. techniques to improve efficiency • Reduce the number of record comparisons • Improve the efficiency of record comparison

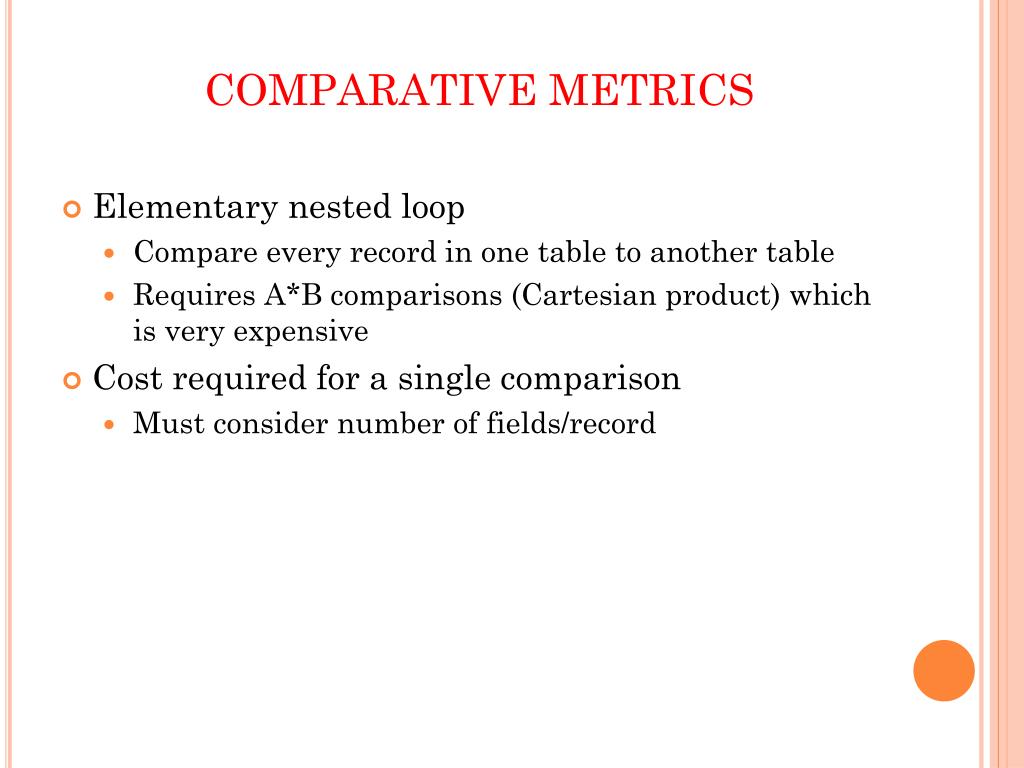

30. COMPARATIVE METRICS • Elementary nested loop • Compare every record in one table to another table • Requires A*B comparisons (Cartesian product) which is very expensive • Cost required for a single comparison • Must consider number of fields/record

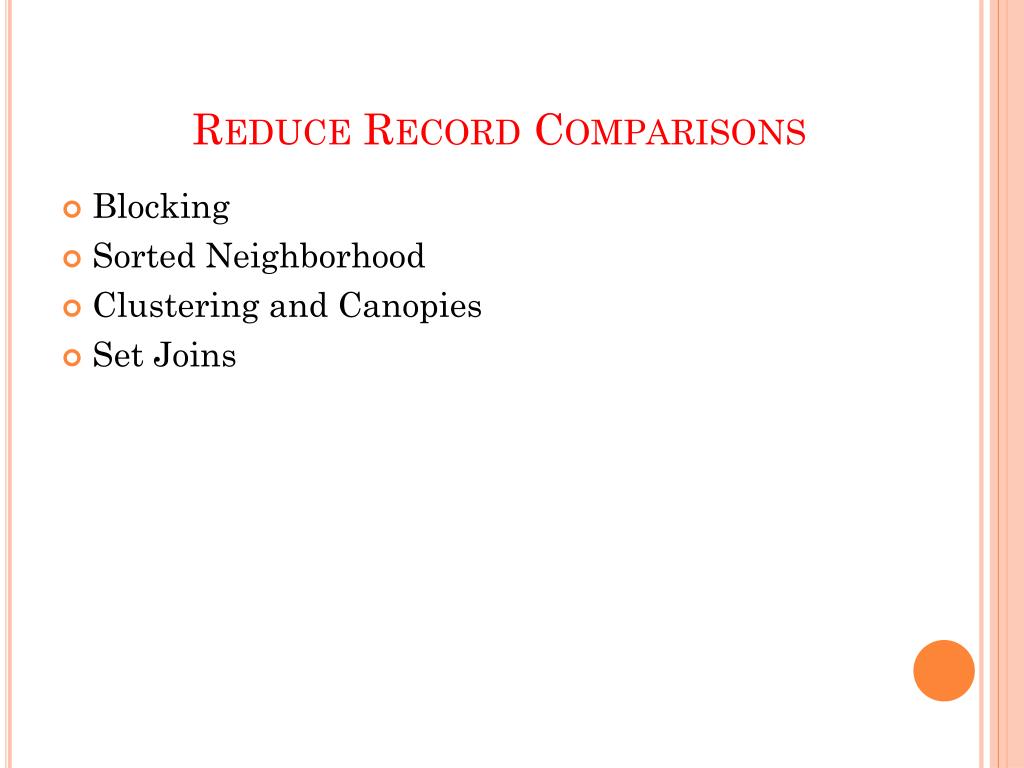

31. Reduce Record Comparisons • Blocking • Sorted Neighborhood • Clustering and Canopies • Set Joins

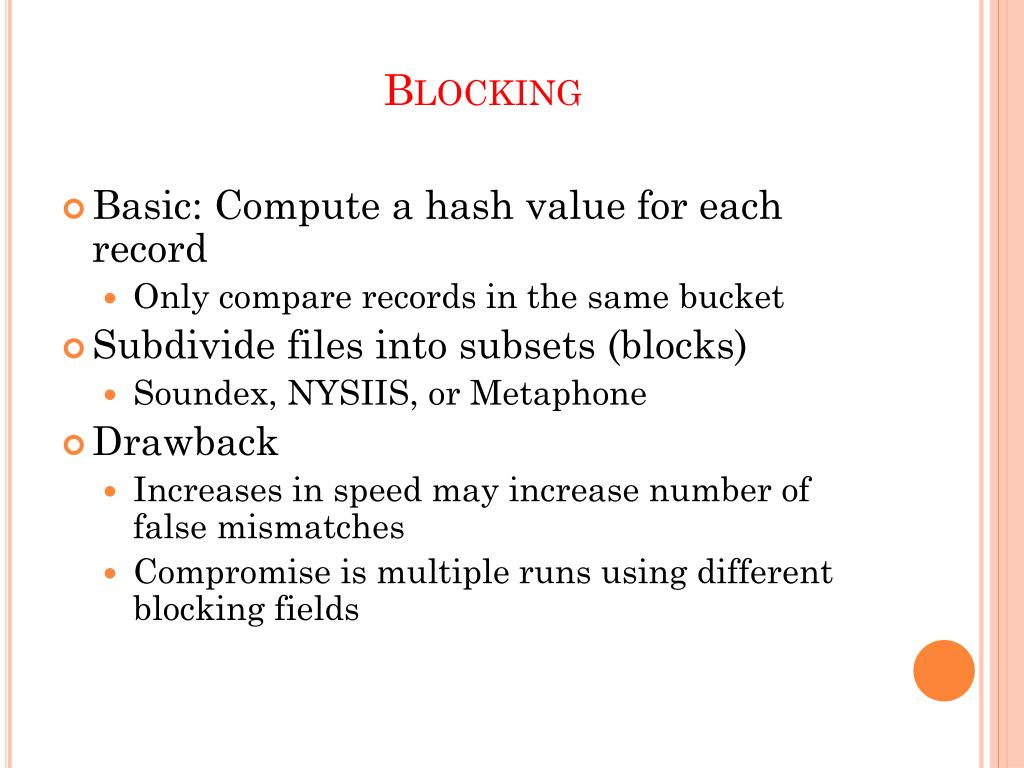

32. Blocking • Basic: Compute a hash value for each record • Only compare records in the same bucket • Subdivide files into subsets (blocks) • Soundex, NYSIIS, or Metaphone • Drawback • Increases in speed may increase number of false mismatches • Compromise is multiple runs using different blocking fields

33. Sorted Neighborhood • Create composite key, sort data, merge • Assumption • Duplicate records will be close in sorted system • Highly dependent upon the comparison key

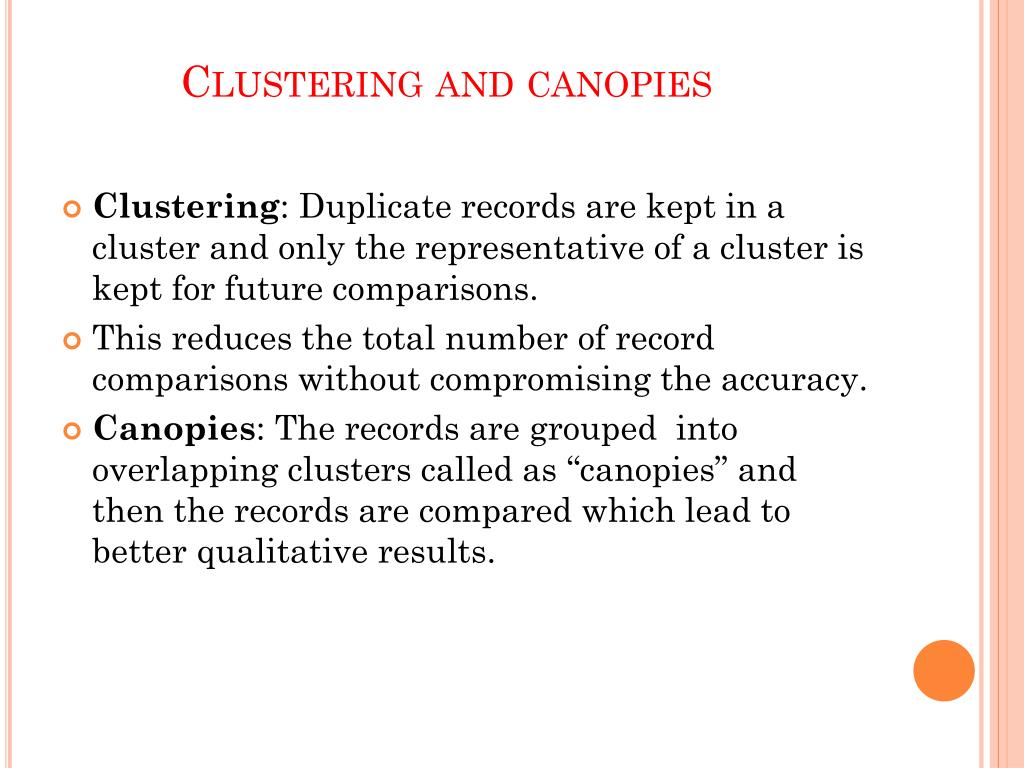

34. Clustering and canopies • Clustering: Duplicate records are kept in a cluster and only the representative of a cluster is kept for future comparisons. • This reduces the total number of record comparisons without compromising the accuracy. • Canopies: The records are grouped into overlapping clusters called as “canopies” and then the records are compared which lead to better qualitative results.

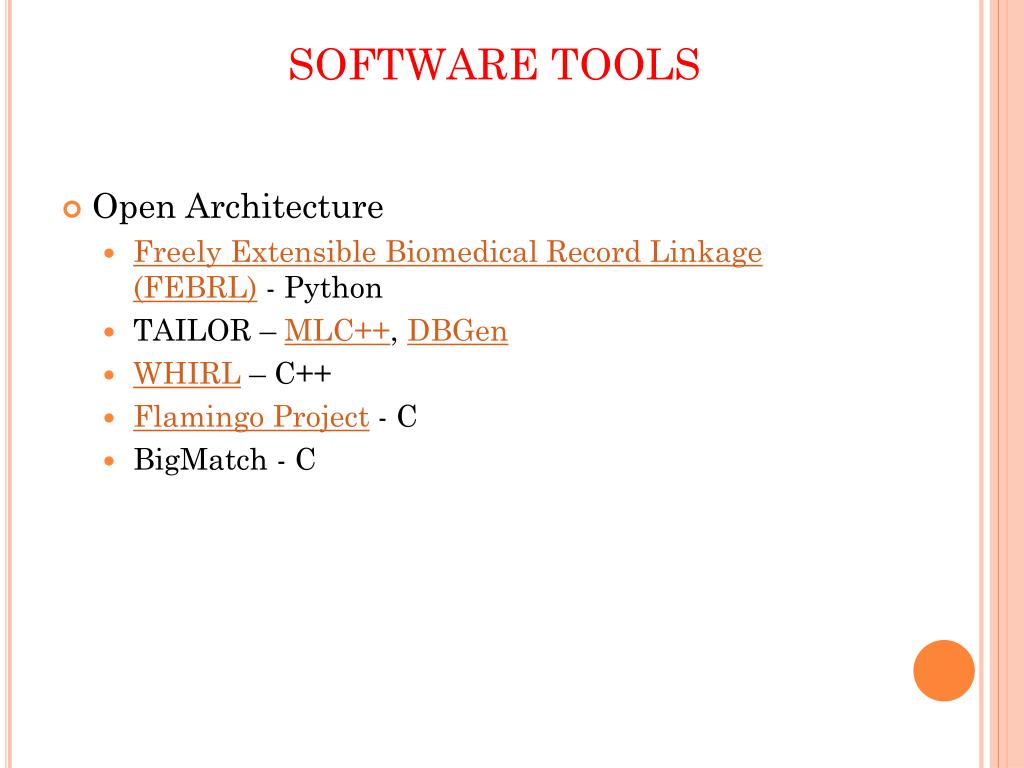

35. SOFTWARE TOOLS • Open Architecture • Freely Extensible Biomedical Record Linkage (FEBRL) - Python • TAILOR – MLC++, DBGen • WHIRL – C++ • Flamingo Project - C • BigMatch - C

36. DATABASE TOOLS • Commercial RDBMS • SQL Server 2005 implements “fuzzy matches” • Oracle 11g implements these techniques in its utl_match package • Levenshtein Distance • Soundex • Jaro Winkler

37. CONCLUSIONS • Lack of a standardized, large-scale benchmarking data set • Training data is needed to produce matching models • Research diversion • Databases emphasize simple, fast, and efficient techniques • Machine learning and statistics rely on sophisticated techniques and probabilistic models • More synergy is needed among various communities • Detection systems need to be adaptive over time
