  1. Ad hoc communication #2/3

  2. Course element content for Ad hoc • Lecture 1 (Ad hoc concept and networking overview) • Ad hoc concept • Ad hoc basic functionality • Ad hoc possible usage areas • Background of ad hoc • Networking: OSI, Protocols, routing, TCP/IP • Project description (briefly) • Lecture 2 (Networking and routing in depth) • TCP/IP in depth • Routing protocols: purpose, conceptual function and review • Standardization work: IETF, IEEE current protocols • Additional ad hoc routing features • Lecture 3 (Advanced concepts) • ARP, MAC layer • Quality of Siervice (QoS): SNR, Bandwidth constraints, Neighbor solicitation errors • IPv6 (briefly) • Security issues for ad hoc networks (briefly) Ad hoc communication: Concept, OSI and TCP/IP

  3. Routing algorithms in general (Not ad hoc specific!) Purpose: • Means of discovering paths in a (data) network along which information can be sent. • Allows routing in large/complex networks without the need of manual configuration. Example of applications: • Public Switched Telephone Network (PSTN) • The Internet Example of wired routing algorithms: • Open Shortest Path First (OSPF) • Routing Information Protocol (RIP) • Border Gateway Protocol (BGP)

  4. 7 - Application Layer 6 - Presentation Layer 5 - Session Layer Network Operating System (NOS) TCP 3 - Network Layer IP 802.2Logical Link Control (LLC) 2 - Data Link Layer Medium Access Control (MAC) 4 - Transport Layer 1 - Physical Layer 802.11Wireless LAN 802.5Token Ring 802.4Token Bus 802.3Ethernet The 7-Layer OSI Reference Model • Divides the functions of protocols into a series of layers. • Often referred to as a protocol stack. • Each layer performs services for the next higher layer and makes requests of the next lower layer. • Is an ISO standard. • Often simplified to a 5-layer model.

  5. Application Layer HyperText Transfer Protocol Transport Layer Transmission Control Protocol (TCP) Network Layer Internet Protocol (IP) Data Link Layer Ethernet (MAC) Physical Layer 802.11x Simplified OSI Reference Model (Examples of each layer)

  6. The Data Link Layer – Layer 2 • Provides a reliable data transfer over a physical link. • May detect and possibly correct errors occurred at the physical layer. • All IEEE 802 compatible devices has a unique Media Access Control (MAC) address. • The MAC addresses are used for identification on point-to-point (link) communication.

  7. The Network Layer – Layer 3 • Responsible for end-to-end packet delivery. • Determines the route from source to destination. • Most famous Network Layer Protocol is the Internet Protocol, IPv4. • Provides logical addressing, such as the IP addresses. • IP provides an unreliable packet service (best effort). Reliability is typically performed at higher level protocols like TCP.

  8. Layer 7 example: HTTP Objective: We want to transmit a HyperText Transfer Protocol HTTP/1.1 200 OK Date: Tue, 1 November 2005 12:38:34 GMT Server: Apache/1.3.27 (Linux) Last-Modified: Wed, 08 Jan 2003 23:11:55 GMT Accept-Ranges: bytes Content-Length: 188 Content-Type: text/html; charset=UTF-8 <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"><html> <head> <title> Communication Research Labs Sweden AB </title> </head> <body> ... </body></html> HTTP object(HTTP/1.1 200 OK\n Date:Tue, 1 November 2005 12:38:34 GMT\nServer: Apache/1.3.27 ...)

  9. TCPHEADER TCP PAYLOAD(Fragment 1) HTTP/1.1 200 OK\nDate: Tue, 1 November 2005 12:38:34 GMT\nServer: Apache/1.3.27 (Linux)\nLast-Modified: Wed, 08 Jan 2003 23:11:55 GMT\nAccept-Ranges: 148 bytes\nContent-Length: 188\nContent-Type: text/html; charset=UTF-8\n<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" TCPHEADER TCP PAYLOAD(Fragment 2) "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">\n<html>\n<head>\n<title>\nCommunication Research Labs Sweden AB</title>\n</head>\n<body>\n...\n</body>\n</html>\n Layer 4 example: TCP TCP PAYLOAD(i.e. the HTTP object) HTTP/1.1 200 OK\nDate: Tue, 1 November 2005 12:38:34 GMT\nServer: Apache/1.3.27 (Linux)\nLast-Modified: Wed, 08 Jan 2003 23:11:55 GMT\nAccept-Ranges: 148 bytes\nContent-Length: 188\nContent-Type: text/html; charset=UTF-8\n<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">\n<html>\n<head>\n<title>\nCommunication Research Labs Sweden AB</title>\n</head>\n<body>\n...\n</body>\n</html>\n Payload is to large. Fragmentation needed!

  10. TCPHEADER IPHEADER IPHEADER TCP PAYLOAD(Fragment 1) TCPHEADER TCPHEADER TCP PAYLOAD(Fragment 1) TCP PAYLOAD(Fragment 1) MACHEADER Layer 2 & 3 example: IP & MAC

  11. IPHEADER TCPHEADER TCP PAYLOAD(Fragment 1) MACHEADER Layer 1 example: PHY • Line coding (0010 0010 1100 0101 …) • Channel coding (01010 01010 11100 01101 …) • Modulation

  12. 0 0 DF DF MF MF 0 DF MF Fragment offset 0 bit 32 Version IHL Type of Service Total Length Version IHL Type of Service Total Length Identification 64 Identification Fragment offset 96 IP header Time To Live Header Checksum Protocol Time To Live Protocol Header Checksum Source Address 128 bit Source Address 160 Destination Address Destination Address Transport Layer Data…. Transport Layer Data…. IPv4 Header overview 0 bit 32 64 ….. Version IHL Type of Service Total Length Identification Fragment offset Time To Live

  13. Standardization work The Internet Engineering Task Force (IETF) • Charged with developing and promoting Internet standards, in particular, those of the TCP/IP protocol suite • Organized into a large number of Working Groups (WGs), each dealing with a specific topic, and intended to complete work on that topic and then shut down. • IETF MANET WG is dedicated to MANET research in deployment of open standards for ad hoc routing protocols.

  14. Standardization work IETF – MANET Workgroup Internet-Drafts: • The Dynamic Source Routing Protocol for Mobile Ad Hoc Networks (DSR) • Dynamic MANET On-demand (DYMO) Routing • Simplified Multicast Forwarding for MANET • The Optimized Link-State Routing Protocol version 2 Request For Comments: • Mobile Ad Hoc Networking (MANET): Routing Protocol Performance Issues and Evaluation Considerations (RFC2501) • Ad Hoc On Demand Distance Vector (AODV) Routing (RFC 3561) • Optimized Link-State Routing Protocol (RFC 3626) • Topology Dissemination Based on Reversed-Path Forwarding (TBRPF) (RFC 3684)

  15. Ad hoc routing protocols • AODV Ad hoc On demand Distance Vector Protocol (IETF RFC #3561) • DSR Dynamic Source Routing Protocol (IETF DRAFT #09) • OLSR Optimized Link State Routing Protocol (IETF RFC #3626) • TBRPF Topology Dissemination Based on Reverse-Path Forwarding (IETF RFC #3684) Will used in one of the projects.

  16. Proactive Routing Routing / mobility management (Repetition from the first lecture) Reactive Routing • Continuously updates the network topology • Requested routes are immediately available • Network resources are wasted • Route discovery on demand • Might cause some initial delay • Consumes less network resources • Silent network

  17. Ad hoc communication with WLAN 802.11 MAC Layer Service Set Infrastructure ModeExtended Service Set(ESS) Ad hoc ModeIndependent Basic Service Set(IBSS)

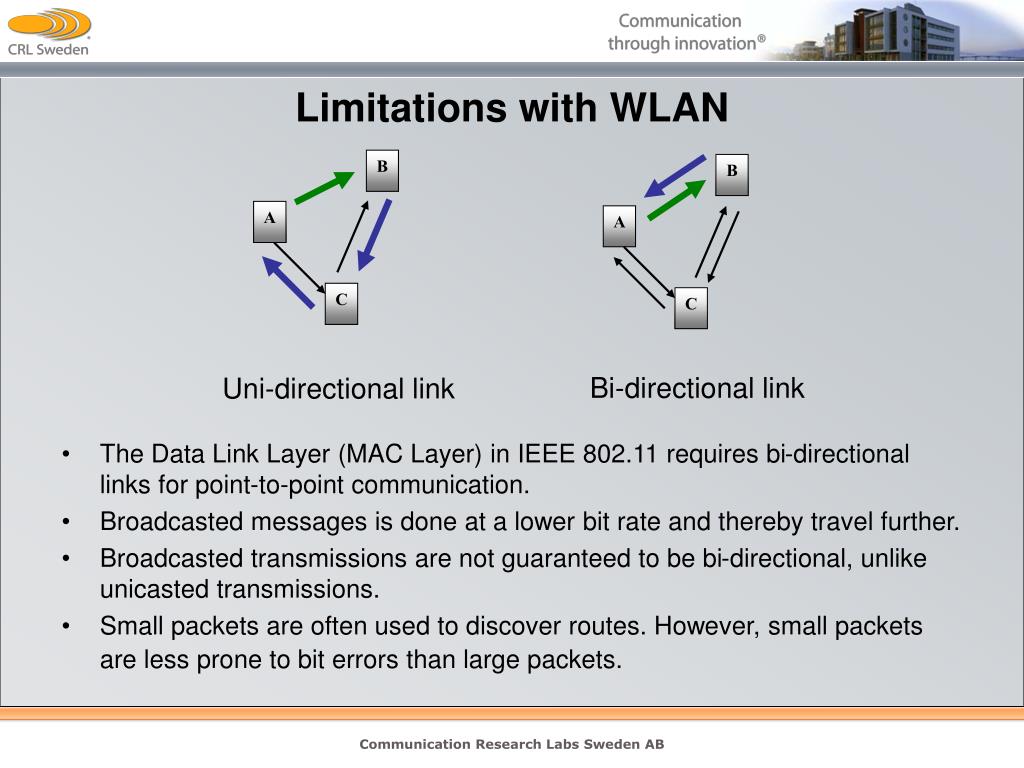

  18. B B A A C C Limitations with WLAN • The Data Link Layer (MAC Layer) in IEEE 802.11 requires bi-directional links for point-to-point communication. • Broadcasted messages is done at a lower bit rate and thereby travel further. • Broadcasted transmissions are not guaranteed to be bi-directional, unlike unicasted transmissions. • Small packets are often used to discover routes. However, small packets are less prone to bit errors than large packets. Bi-directional link Uni-directional link

  19. Ad hoc On-demand Distance Vector (AODV) • Reactive routing protocol. • The User Datagram Protocol (UDP), Layer 4, is used for locating and maintaining routes. • Uses Expanding Ring Search to locate destinations. • Simple, yet effective routing algorithm.

  20. RREQ RREQ RREQ RREQ RREP RREP RREP RREP AODV Route Establishment • Expanding Ring Search (ERS) limits data packets from traversing through the entire network. • Route Requests are broadcasted! • All routing messages MUST contain node specific sequence numbers which are incremented for every transmission. • Each node MUST record and maintain sequence numbers for all known destinations. • A received message with lower sequence number than recorded is to be discarded to ensure loop freedom at all times.

  21. RERR AODV Connectivity • Each forwarding node MUST ensure connectivity to its active next hops. • Most implementations of AODV uses hello messages to offer connectivity.A hello message is a broadcasted message with hop limit of one. This also allows nodes to always keep track of its neighbors. • Broken links has to be reported by sending a Route Error message to adjacent nodes. Connectivity lost. Sending Route Error!

  22. AODV Characteristics Advantages: • Low processing. • Low network utilization. • Low memory overhead. Disadvantages: • Initial latency while requesting new routes. (Reactive routing) • Sensitive to unstable links (for instance when used in WLAN). • Does not support multi-path, load balancing or weighting of routes.

  23. Optimized Link-State Routing (OLSR) • Proactive routing protocol. • Table driven (i.e. nodes exchange topology information). • Quality aware algorithm. • Uses the User Datagram Protocol (UDP) for topology propagation.

  24. OLSR Multipoint relays (MPR) – 1 of 3 • Each node selects a set of its neighbor nodes as Multipoint Relays (MPR) by two rules: any 2-hop neighbor must be covered by at least one MPR and the number of MPRs be as low as possible. • Only MPRs advertises (floods) their current links. 2 4 1 A B 6 3 5 • MPRs was first introduced in HiperLAN, a ETSI standard similar to WLAN.

  25. OLSR Multipoint relays (MPR) – 2 of 3 Left image: • Normal flooding. Right image: • MPRs are the only nodes that may forward (flood) messages.

  26. OLSR Multipoint relays (MPR) – 3 of 3

  27. OLSR Route Establishment • Every node periodically broadcasts hello messages in order to exchange neighborhood information. (IP address, route weight, distance, sequence number etc.) • MPRs propagates the topology information in the network. • Hello messages allows nodes to calculate the shortest/best route to other nodes. • The information is only updated when: • The neighborhood has changed. • A route has expired. • A better route is detected.

  28. OLSR Characteristics Advantages: • Minimal latency. • Supports multi-path. • Supports route weighting. (i.e. the cost of using a certain route) Disadvantages: • High routing control overhead traffic. • High demands on memory, computational capacity and power. • Complex (implementation)!

  29. Dynamic Source Routing (DSR) IPHEADER DSRHEADER TCPHEADER TCP PAYLOAD • Reactive routing protocol. • Modifies every IP packet with an additional header, DSR Header.Example:

  30. X X X ”A” ”A,B” ”A,B,C” A B C D Id=2 Id=2 Id=2 X X X X DSR Route Discovery • A Route Request is preformed as in AODV but with one great difference: Each node adds its own IP address in the request. • The Route Discovery mechanism in DSR allows intermediate nodes to eavesdrop on routes. • The destination of a Route Request reverses the the route in the received request. Thereby, the return-path is found.

  31. DSR Route Maintenance • Every node is responsible for confirming that the next hop in the DSR Header receives the packet. • Packets are retransmitted up to a maximum number of times. If the retransmission fails, a Route Error message is sent to the initiator of the packet.

  32. DSR Characteristics Advantages: • Forwarding nodes do not need to know the path (memory efficient). • Does not transmit any routing data (overhead) when there is no data traffic. • Simple, yet very effective! • Natively supports uni-directional links, however, the MAC protocols in IEEE 802.11 does not. Disadvantages: • Source routing information (the DSR Header) increases per hop.(e.g. IP packet size increases per hop) • Initial latency while requesting new routes. (Reactive routing)

  33. Zone Routing Protocol (ZRP) • Hybrid routing protocol. • Consists of 3 routing algorithms • Intrazone Routing Protocol (IARP) (Proactive) • Interzone Routing Protocol (IERP) (Reactive) • Bordercast Resolution Protocol (BRP) (Reactive)

  34. ZRP Characteristics Advantages: • No initial delay within a cluster. • Takes advantage of pro-active route discovery within a nodes local neighborhood. Disadvantages: • Small initial delay in cluster-cluster communication. • Complex (implementation)!

  35. Different routing approaches • UDP based routing packets. (Most common) • TCP based routing packets. • Self-defined IP Header. (e.g. DSR) • Usage of the ARP - Address Resolution Protocol. (Next lecture) • IPv6 Routing Header. (Next Lecture)

  36. Additional advanced features • Promiscuous mode • Setting the network interface into promiscuous mode. • Listen to all data packets within reach. • A node can catch and examine all routing specific packets, even if the target address of the packets is neither broadcast nor its own IP. • Network can save a lot of overhead packets by using such information: • Passive acknowledgement of a transmitted packet by overhearing the next node forward the same packet. • route shortening. When a node is overhearing a packet with a source route where this node is used later in the route, but not the next hop, it can send back a gratuitousroute reply to the original sender of the packet, telling it there is a shorter route to the destination. • Gratuitous Route errorsA node that is receiving a route error can, in addition to update its route cache, also resend the route error to its neighbors with the next route request. By caching recent route errors, the node can also assure that an incoming route reply does not deliver an old previously broken link.

  37. Ad hoc communication References • Standardization • IETF MANET WG: http://www.ietf.org/html.charters/manet-charter.html • Mobile Ad hoc Networking (MANET): Routing Protocol Performance Issues and Evaluation Considerations (RFC 2501) • How 802.x Wireless Works: http://www.microsoft.com/technet/prodtechnol/windowsserver2003/library/TechRef/370b019f-711f-4d5a-8b1e-4289db0bcafd.mspx
