This project aims to reduce errors in medical institutions by leveraging advances in biotelemetry and RFID tracking technologies. Our objectives include wirelessly transmitting vital sign data, uniquely identifying personnel, and ensuring patient safety while promoting freedom. We will demonstrate our approach by collecting heart rate signals, determining approximate locations, and transmitting data to a central computer where it will be displayed on a user-friendly graphical interface. Future improvements will focus on refining device capabilities and enhancing modularity.

sakina
Télécharger la présentation

Telemetr-acking

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Telemetr-acking Dan Cwiertak Mike Ehlert Matt Nitz KhunSok

  2. Project Overview • Goal: reduce errors in medical institutions. • Where to start? • Advances in technology … • Biotelemetry & Tracking • How can this be demonstrated: • Collect heart rate signal • Determine approximate location • Transmit data to central computer • Display data in a graphical user interface (GUI)

  3. Project Overview • Objectives: • Uniquely identify personnel • Track personnel or assets • Collect sample vital sign data • Wirelessly transmit & receive data • Associate data with internal records • Display information on GUI • Design devices to be small • Maintain modularity for future improvement

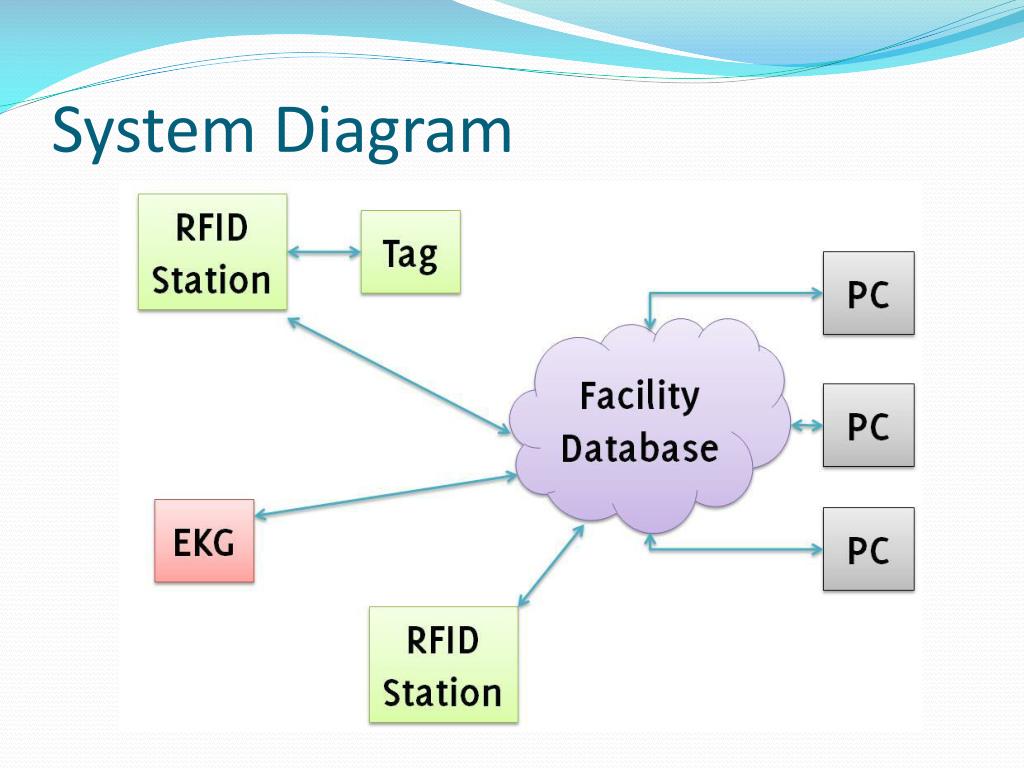

  4. System Diagram

  5. Vital Sign Data Acquisition • Purpose: • Ensure patients’ health and safety • Promote freedom • Design Alternatives: • Body Temperature • Blood Pressure • Heart Signal • Individual Tasks: • Analog signal collection • Filtering • Amplification

  6. Vital Sign Data Acquisition • Advantages: • Non-invasive • More informative • Quality of care • Disadvantages: • More complex design • Common sources of noise

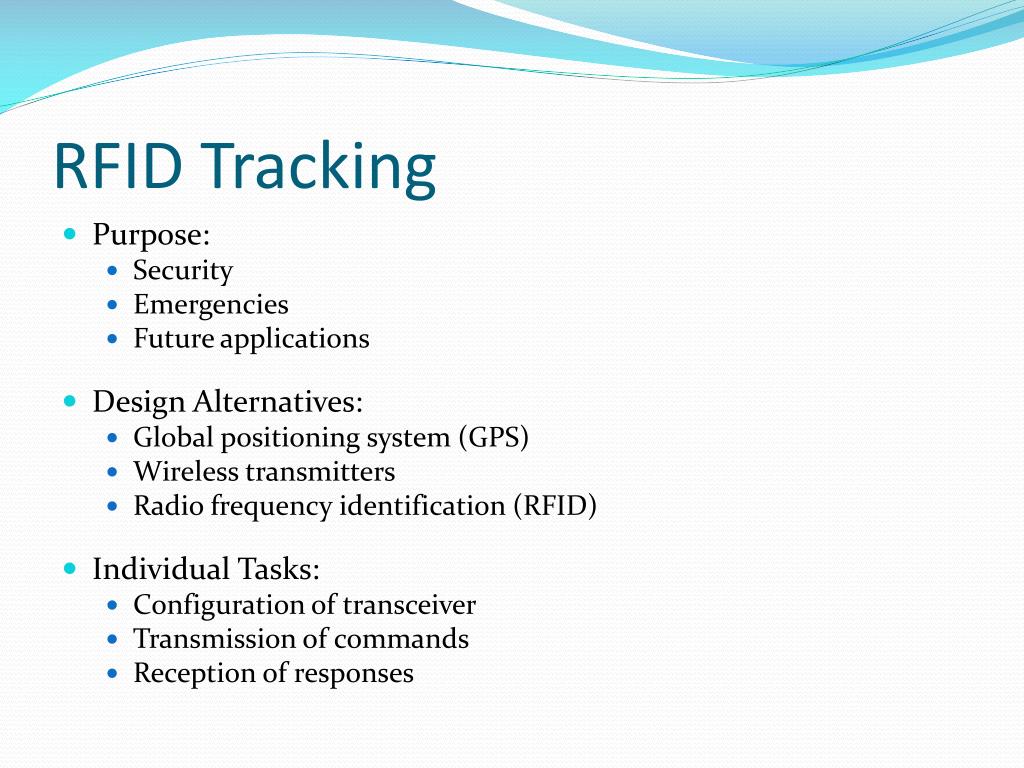

  7. RFID Tracking • Purpose: • Security • Emergencies • Future applications • Design Alternatives: • Global positioning system (GPS) • Wireless transmitters • Radio frequency identification (RFID) • Individual Tasks: • Configuration of transceiver • Transmission of commands • Reception of responses

  8. RFID Tracking • Advantages: • Allows for unique identification • Minimum cost per person • Small physical outline • Modularity • Disadvantages: • Complex low-level design • Accuracy (time domain) • Potential electromagnetic interference (EMI) issues

  9. Wireless Communication • Purpose: • Promote freedom • Save time • Design Alternatives: • MiWi / Zigbee • Bluetooth • Frequency • Individual Tasks: • Setup network • Transmit • Receive

  10. Wireless Communication • Advantages: • Cost savings • Cut the cord • Network integration • Disadvantages: • EMI • Point of failure

  11. Graphical User Interface • Purpose: • Ease of use • Save time • System integration • Design Alternatives: • MATLAB • Visual C++ • LabView • Individual Tasks: • Process received data • Display data

  12. Graphical User Interface • Advantages: • Usability • Centralized • Fool proof • Mobility • Disadvantages: • Upfront design cost • Maintenance

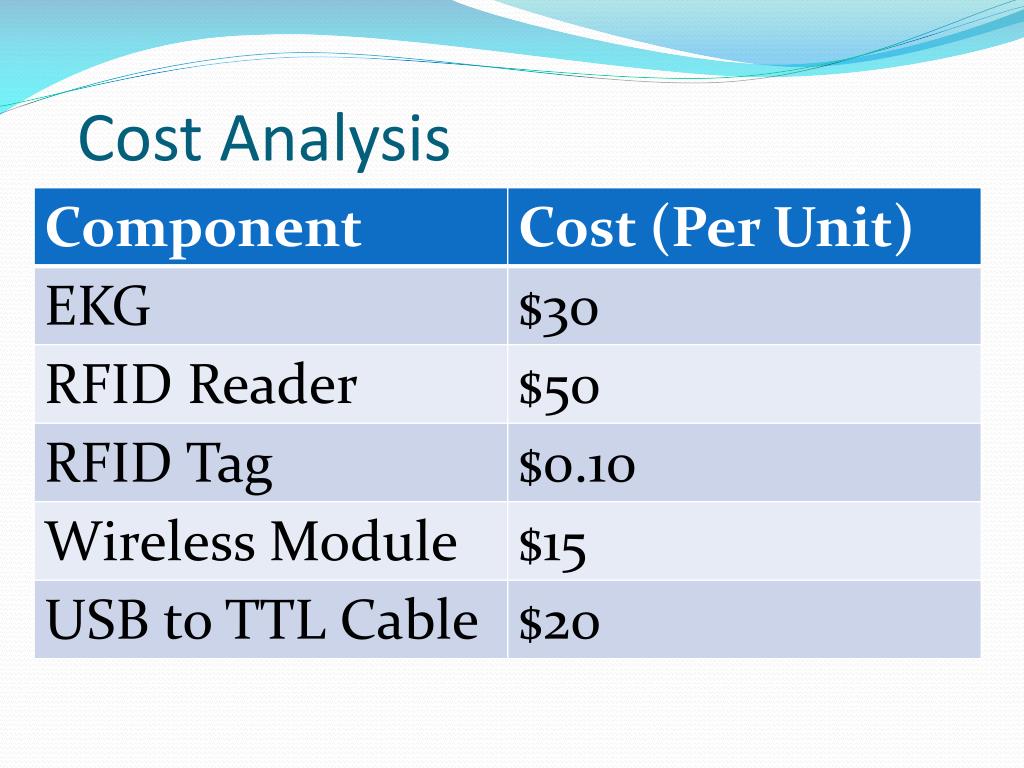

  13. Cost Analysis

  14. Results

  15. Results

  16. Results

  17. Conclusions • Feasible design with room for improvement • Possible Future Work: • Refine amplifiers and filters • Access control for RFID • Antenna/power design for RFID • Electromagnetic capability testing

  18. Acknowledgements • Dr. Weidong Xiang • Dr. “Nattu” (Natarajan) • Dr. John Miller • Jim Kopitzke of Precision Dynamics Corporation • Chris Baird of Digikey • TycoElectronics and Microchip • ECE department

  19. Thank you! Any questions? “Questions in life are guaranteed; Answers are not.” -anonymous
